8-75 — CONDENSER (#74933) — 141 parça

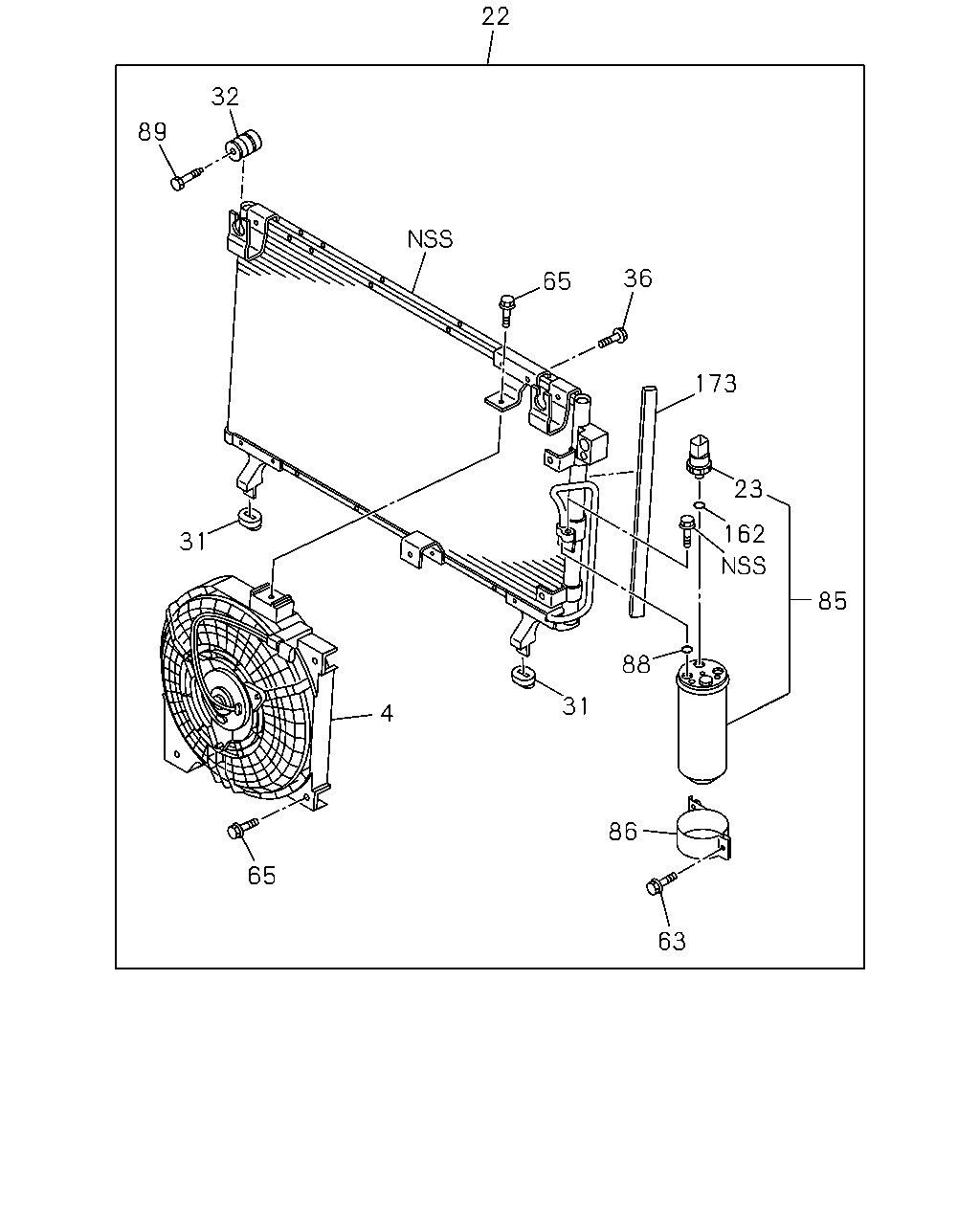

63 86 85 162 23 173 36 65 22 32 89 31 4 31 88 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	MOTOR ASM; FAN THA	8-97356-646-0	01	1	0411-0606	●	●
4	MOTOR ASM; FAN 4JJ1-TCS ENG<LFB> THA	8-97356-646-0	01	1	0607-0609	●	●
4	MOTOR ASM; FAN THA	8-97356-646-0	01	1	0610-0708	●	●
4	MOTOR ASM; FAN 4JJ1-TCS ENG<LFB> THA	8-97356-646-0	01	1	0709-0709	●	●
4	MOTOR ASM; FAN THA	8-97356-646-0	01	1	0710-	●	●
22	CONDENSER ASM; A/C THA	8-97367-519-3	01	1	0411-0604	●	●
22	CONDENSER ASM; A/C THA	8-98000-111-0	01	1	0605-0606	●	●
22	CONDENSER ASM; A/C 4JJ1-TCS ENG<LFB> THA	8-98000-111-0	01	1	0607-0609	●	●
22	CONDENSER ASM; A/C THA	8-98000-111-0	01	1	0610-0703	●	●
22	CONDENSER ASM; A/C THA	8-98071-120-0	01	1	0704-0708	●	●
22	CONDENSER ASM; A/C 4JJ1-TCS ENG<LFB> THA	8-98071-120-0	01	1	0709-0709	●	●
22	CONDENSER ASM; A/C THA	8-98071-120-0	01	1	0710-1201	●	●
22	CONDENSER ASM; A/C THA	8-98176-437-0	01	1	1202-	●	●
23	SWITCH; PRESSURE,CONDENSER THA	8-97380-449-0	01	1	0411-0606	●	●
23	SWITCH; PRESSURE,CONDENSER 4JJ1-TCS ENG<LFB> THA	8-97380-449-0	01	1	0607-0609	●	●
23	SWITCH; PRESSURE,CONDENSER THA	8-97380-449-0	01	1	0610-0703	●	●
23	SWITCH; PRESSURE,CONDENSER THA	8-97381-465-0	01	1	0704-0708	●	●
23	SWITCH; PRESSURE,CONDENSER 4JJ1-TCS ENG<LFB> THA	8-97381-465-0	01	1	0709-0709	●	●
23	SWITCH; PRESSURE,CONDENSER THA	8-97381-465-0	01	1	0710-	●	●
31	RUBBER; MTG,CONDENSER THA	8-97333-319-0	02	1	0411-0606	●	●
31	RUBBER; MTG,CONDENSER 4JJ1-TCS ENG<LFB> THA	8-97333-319-0	02	1	0607-0609	●	●
31	RUBBER; MTG,CONDENSER THA	8-97333-319-0	02	1	0610-0708	●	●
31	RUBBER; MTG,CONDENSER 4JJ1-TCS ENG<LFB> THA	8-97333-319-0	02	1	0709-0709	●	●
31	RUBBER; MTG,CONDENSER THA	8-97333-319-0	02	1	0710-	●	●
32	GROMMET; CONDENSER THA	8-97333-320-0	02	1	0411-0606	●	●
32	GROMMET; CONDENSER 4JJ1-TCS ENG<LFB> THA	8-97333-320-0	02	1	0607-0609	●	●
32	GROMMET; CONDENSER THA	8-97333-320-0	02	1	0610-0708	●	●
32	GROMMET; CONDENSER 4JJ1-TCS ENG<LFB> THA	8-97333-320-0	02	1	0709-0709	●	●
32	GROMMET; CONDENSER THA	8-97333-320-0	02	1	0710-	●	●
36	SCREW; PLATE TO CONDENSER M4X25 THA	8-98071-148-0	09	1	0704-0708	●	●
36	SCREW; PLATE TO CONDENSER 4JJ1-TCS ENG<LFB> M4X25 THA	8-98071-148-0	09	1	0709-0709	●	●
36	SCREW; PLATE TO CONDENSER M4X25 THA	8-98071-148-0	09	1	0710-	●	●
63	BOLT; RECEIVER TANK M6X16 THA	8-98071-146-0	03	1	0704-0708	●	●
63	BOLT; RECEIVER TANK 4JJ1-TCS ENG<LFB> M6X16 THA	8-98071-146-0	03	1	0709-0709	●	●
63	BOLT; RECEIVER TANK M6X16 THA	8-98071-146-0	03	1	0710-	●	●
65	BOLT; SHROUD M6X16 THA	8-97356-647-0	04	1	0411-0606	●	●
65	BOLT; SHROUD 4JJ1-TCS ENG<LFB> M6X16 THA	8-97356-647-0	04	1	0607-0609	●	●
65	BOLT; SHROUD M6X16 THA	8-97356-647-0	04	1	0610-0703	●	●
65	BOLT; SHROUD M6X18 THA	8-98071-145-0	04	1	0704-0708	●	●
65	BOLT; SHROUD 4JJ1-TCS ENG<LFB> M6X18 THA	8-98071-145-0	04	1	0709-0709	●	●
65	BOLT; SHROUD M6X18 THA	8-98071-145-0	04	1	0710-	●	●
85	DRYER; RECEIVER THA	8-97380-448-2	01	1	0411-0606	●	●
85	DRYER; RECEIVER 4JJ1-TCS ENG<LFB> THA	8-97380-448-2	01	1	0607-0609	●	●
85	DRYER; RECEIVER THA	8-97380-448-2	01	1	0610-0708	●	●
85	DRYER; RECEIVER 4JJ1-TCS ENG<LFB> THA	8-97380-448-2	01	1	0709-0709	●	●
85	DRYER; RECEIVER THA	8-97380-448-2	01	1	0710-1201	●	●
85	DRYER; RECEIVER THA	8-97381-576-0	01	1	1202-	●	●
86	BRACKET; RECEIVER DRYER THA	8-97380-437-0	01	1	0411-0606	●	●
86	BRACKET; RECEIVER DRYER 4JJ1-TCS ENG<LFB> THA	8-97380-437-0	01	1	0607-0609	●	●
86	BRACKET; RECEIVER DRYER THA	8-97380-437-0	01	1	0610-0708	●	●
86	BRACKET; RECEIVER DRYER 4JJ1-TCS ENG<LFB> THA	8-97380-437-0	01	1	0709-0709	●	●
86	BRACKET; RECEIVER DRYER THA	8-97380-437-0	01	1	0710-	●	●
88	GASKET; PRESSURE SW THA	8-97333-321-0	01	1	0411-0606	●	●
88	GASKET; PRESSURE SW 4JJ1-TCS ENG<LFB> THA	8-97333-321-0	01	1	0607-0609	●	●
88	GASKET; PRESSURE SW THA	8-97333-321-0	01	1	0610-0708	●	●
88	GASKET; PRESSURE SW 4JJ1-TCS ENG<LFB> THA	8-97333-321-0	01	1	0709-0709	●	●
88	GASKET; PRESSURE SW THA	8-97333-321-0	01	1	0710-	●	●
89	BOLT; CONDENSER TO BODY M6X35 THA	8-97333-317-0	02	1	0411-0606	●	●
89	BOLT; CONDENSER TO BODY 4JJ1-TCS ENG<LFB> M6X35 THA	8-97333-317-0	02	1	0607-0609	●	●
89	BOLT; CONDENSER TO BODY M6X35 THA	8-97333-317-0	02	1	0610-0703	●	●
89	BOLT; CONDENSER TO BODY M6X35 THA	8-98071-149-0	02	1	0704-0708	●	●
89	BOLT; CONDENSER TO BODY 4JJ1-TCS ENG<LFB> M6X35 THA	8-98071-149-0	02	1	0709-0709	●	●
89	BOLT; CONDENSER TO BODY M6X35 THA	8-98071-149-0	02	1	0710-	●	●
161	BOLT; PIPE M6X16 THA	8-98071-146-0	01	1	0909-	●	●
161	BOLT; PIPE M6X20 THA	8-98071-147-0	01	1	0704-0708	●	●
161	BOLT; PIPE 4JJ1-TCS ENG<LFB> M6X20 THA	8-98071-147-0	01	1	0709-0709	●	●
161	BOLT; PIPE M6X20 THA	8-98071-147-0	01	1	0710-0908	●	●
162	GASKET; PIPE TO DRYER THA	8-97333-321-0	01	1	0411-0606	●	●
162	GASKET; PIPE TO DRYER 4JJ1-TCS ENG<LFB> THA	8-97333-321-0	01	1	0607-0609	●	●
162	GASKET; PIPE TO DRYER THA	8-97333-321-0	01	1	0610-0708	●	●
162	GASKET; PIPE TO DRYER 4JJ1-TCS ENG<LFB> THA	8-97333-321-0	01	1	0709-0709	●	●
162	GASKET; PIPE TO DRYER THA	8-97333-321-0	01	1	0710-	●	●
173	INSULATOR; CONDENSER THA	8-98034-693-0	02	1	0704-0708	●	●
173	INSULATOR; CONDENSER 4JJ1-TCS ENG<LFB> THA	8-98034-693-0	02	1	0709-0709	●	●
173	INSULATOR; CONDENSER THA	8-98034-693-0	02	1	0710-	●	●

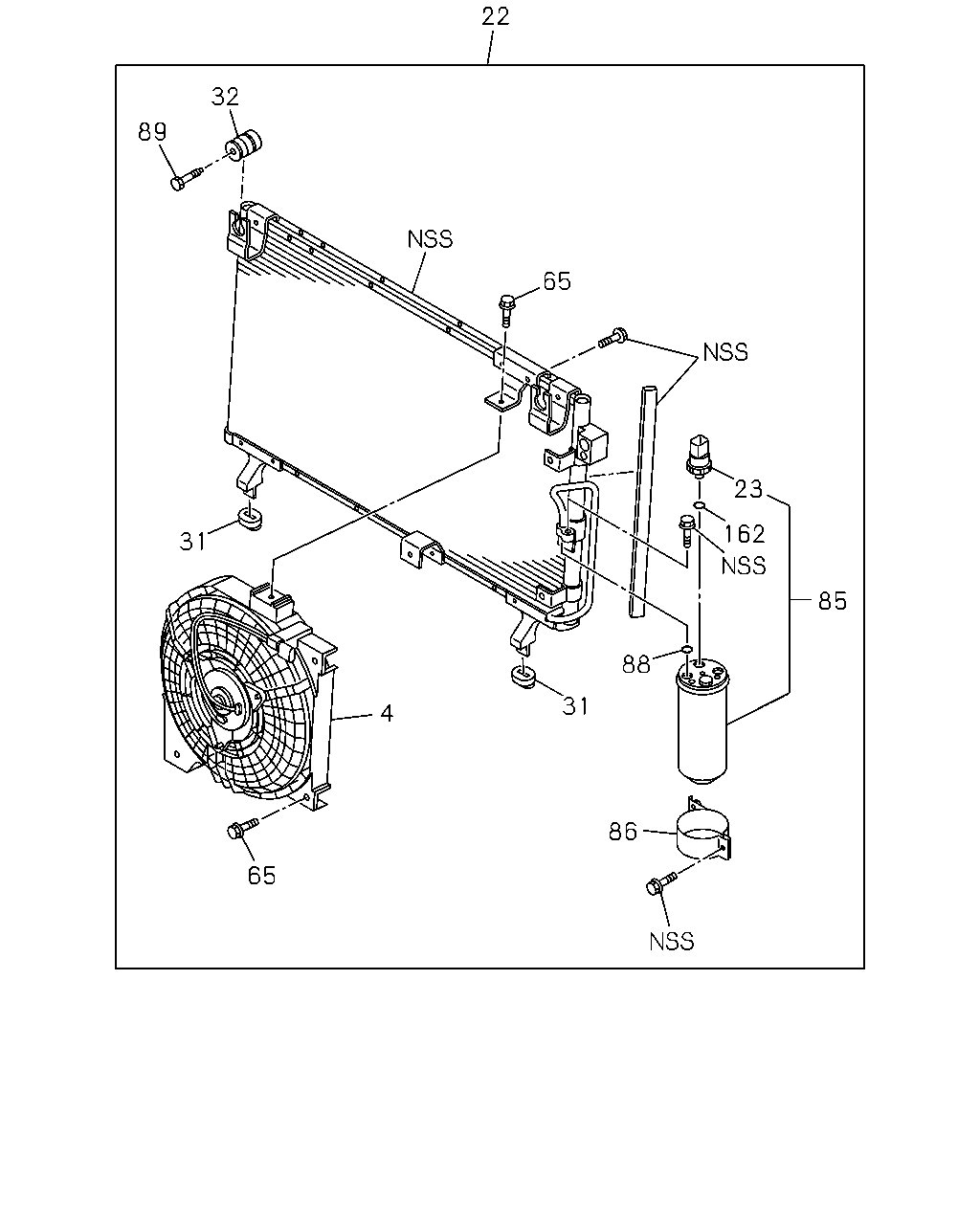

86 85 162 23 65 22 32 89 31 4 31 88 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	MOTOR ASM; FAN THA	8-97356-646-0	01	1	0411-0606	●	●
4	MOTOR ASM; FAN 4JJ1-TCS ENG<LFB> THA	8-97356-646-0	01	1	0607-0609	●	●
4	MOTOR ASM; FAN THA	8-97356-646-0	01	1	0610-0708	●	●
4	MOTOR ASM; FAN 4JJ1-TCS ENG<LFB> THA	8-97356-646-0	01	1	0709-0709	●	●
4	MOTOR ASM; FAN THA	8-97356-646-0	01	1	0710-	●	●
22	CONDENSER ASM; A/C THA	8-97367-519-3	01	1	0411-0604	●	●
22	CONDENSER ASM; A/C THA	8-98000-111-0	01	1	0605-0606	●	●
22	CONDENSER ASM; A/C 4JJ1-TCS ENG<LFB> THA	8-98000-111-0	01	1	0607-0609	●	●
22	CONDENSER ASM; A/C THA	8-98000-111-0	01	1	0610-0703	●	●
22	CONDENSER ASM; A/C THA	8-98071-120-0	01	1	0704-0708	●	●
22	CONDENSER ASM; A/C 4JJ1-TCS ENG<LFB> THA	8-98071-120-0	01	1	0709-0709	●	●
22	CONDENSER ASM; A/C THA	8-98071-120-0	01	1	0710-1201	●	●
22	CONDENSER ASM; A/C THA	8-98176-437-0	01	1	1202-	●	●
23	SWITCH; PRESSURE,CONDENSER THA	8-97380-449-0	01	1	0411-0606	●	●
23	SWITCH; PRESSURE,CONDENSER 4JJ1-TCS ENG<LFB> THA	8-97380-449-0	01	1	0607-0609	●	●
23	SWITCH; PRESSURE,CONDENSER THA	8-97380-449-0	01	1	0610-0703	●	●
23	SWITCH; PRESSURE,CONDENSER THA	8-97381-465-0	01	1	0704-0708	●	●
23	SWITCH; PRESSURE,CONDENSER 4JJ1-TCS ENG<LFB> THA	8-97381-465-0	01	1	0709-0709	●	●
23	SWITCH; PRESSURE,CONDENSER THA	8-97381-465-0	01	1	0710-	●	●
31	RUBBER; MTG,CONDENSER THA	8-97333-319-0	02	1	0411-0606	●	●
31	RUBBER; MTG,CONDENSER 4JJ1-TCS ENG<LFB> THA	8-97333-319-0	02	1	0607-0609	●	●
31	RUBBER; MTG,CONDENSER THA	8-97333-319-0	02	1	0610-0708	●	●
31	RUBBER; MTG,CONDENSER 4JJ1-TCS ENG<LFB> THA	8-97333-319-0	02	1	0709-0709	●	●
31	RUBBER; MTG,CONDENSER THA	8-97333-319-0	02	1	0710-	●	●
32	GROMMET; CONDENSER THA	8-97333-320-0	02	1	0411-0606	●	●
32	GROMMET; CONDENSER 4JJ1-TCS ENG<LFB> THA	8-97333-320-0	02	1	0607-0609	●	●
32	GROMMET; CONDENSER THA	8-97333-320-0	02	1	0610-0708	●	●
32	GROMMET; CONDENSER 4JJ1-TCS ENG<LFB> THA	8-97333-320-0	02	1	0709-0709	●	●
32	GROMMET; CONDENSER THA	8-97333-320-0	02	1	0710-	●	●
65	BOLT; SHROUD M6X16 THA	8-97356-647-0	04	1	0411-0606	●	●
65	BOLT; SHROUD 4JJ1-TCS ENG<LFB> M6X16 THA	8-97356-647-0	04	1	0607-0609	●	●
65	BOLT; SHROUD M6X16 THA	8-97356-647-0	04	1	0610-0703	●	●
65	BOLT; SHROUD M6X18 THA	8-98071-145-0	04	1	0704-0708	●	●
65	BOLT; SHROUD 4JJ1-TCS ENG<LFB> M6X18 THA	8-98071-145-0	04	1	0709-0709	●	●
65	BOLT; SHROUD M6X18 THA	8-98071-145-0	04	1	0710-	●	●
85	DRYER; RECEIVER THA	8-97380-448-2	01	1	0411-0606	●	●
85	DRYER; RECEIVER 4JJ1-TCS ENG<LFB> THA	8-97380-448-2	01	1	0607-0609	●	●
85	DRYER; RECEIVER THA	8-97380-448-2	01	1	0610-0708	●	●
85	DRYER; RECEIVER 4JJ1-TCS ENG<LFB> THA	8-97380-448-2	01	1	0709-0709	●	●
85	DRYER; RECEIVER THA	8-97380-448-2	01	1	0710-1201	●	●
85	DRYER; RECEIVER THA	8-97381-576-0	01	1	1202-	●	●
86	BRACKET; RECEIVER DRYER THA	8-97380-437-0	01	1	0411-0606	●	●
86	BRACKET; RECEIVER DRYER 4JJ1-TCS ENG<LFB> THA	8-97380-437-0	01	1	0607-0609	●	●
86	BRACKET; RECEIVER DRYER THA	8-97380-437-0	01	1	0610-0708	●	●
86	BRACKET; RECEIVER DRYER 4JJ1-TCS ENG<LFB> THA	8-97380-437-0	01	1	0709-0709	●	●
86	BRACKET; RECEIVER DRYER THA	8-97380-437-0	01	1	0710-	●	●
88	GASKET; PRESSURE SW THA	8-97333-321-0	01	1	0411-0606	●	●
88	GASKET; PRESSURE SW 4JJ1-TCS ENG<LFB> THA	8-97333-321-0	01	1	0607-0609	●	●
88	GASKET; PRESSURE SW THA	8-97333-321-0	01	1	0610-0708	●	●
88	GASKET; PRESSURE SW 4JJ1-TCS ENG<LFB> THA	8-97333-321-0	01	1	0709-0709	●	●
88	GASKET; PRESSURE SW THA	8-97333-321-0	01	1	0710-	●	●
89	BOLT; CONDENSER TO BODY M6X35 THA	8-97333-317-0	02	1	0411-0606	●	●
89	BOLT; CONDENSER TO BODY 4JJ1-TCS ENG<LFB> M6X35 THA	8-97333-317-0	02	1	0607-0609	●	●
89	BOLT; CONDENSER TO BODY M6X35 THA	8-97333-317-0	02	1	0610-0703	●	●
89	BOLT; CONDENSER TO BODY M6X35 THA	8-98071-149-0	02	1	0704-0708	●	●
89	BOLT; CONDENSER TO BODY 4JJ1-TCS ENG<LFB> M6X35 THA	8-98071-149-0	02	1	0709-0709	●	●
89	BOLT; CONDENSER TO BODY M6X35 THA	8-98071-149-0	02	1	0710-	●	●
161	BOLT; PIPE M6X16 THA	8-98071-146-0	01	1	0909-	●	●
161	BOLT; PIPE M6X20 THA	8-98071-147-0	01	1	0704-0708	●	●
161	BOLT; PIPE 4JJ1-TCS ENG<LFB> M6X20 THA	8-98071-147-0	01	1	0709-0709	●	●
161	BOLT; PIPE M6X20 THA	8-98071-147-0	01	1	0710-0908	●	●
162	GASKET; PIPE TO DRYER THA	8-97333-321-0	01	1	0411-0606	●	●
162	GASKET; PIPE TO DRYER 4JJ1-TCS ENG<LFB> THA	8-97333-321-0	01	1	0607-0609	●	●
162	GASKET; PIPE TO DRYER THA	8-97333-321-0	01	1	0610-0708	●	●
162	GASKET; PIPE TO DRYER 4JJ1-TCS ENG<LFB> THA	8-97333-321-0	01	1	0709-0709	●	●
162	GASKET; PIPE TO DRYER THA	8-97333-321-0	01	1	0710-	●	●
