8-74 — EVAPORATOR (#74932) — 86 parça

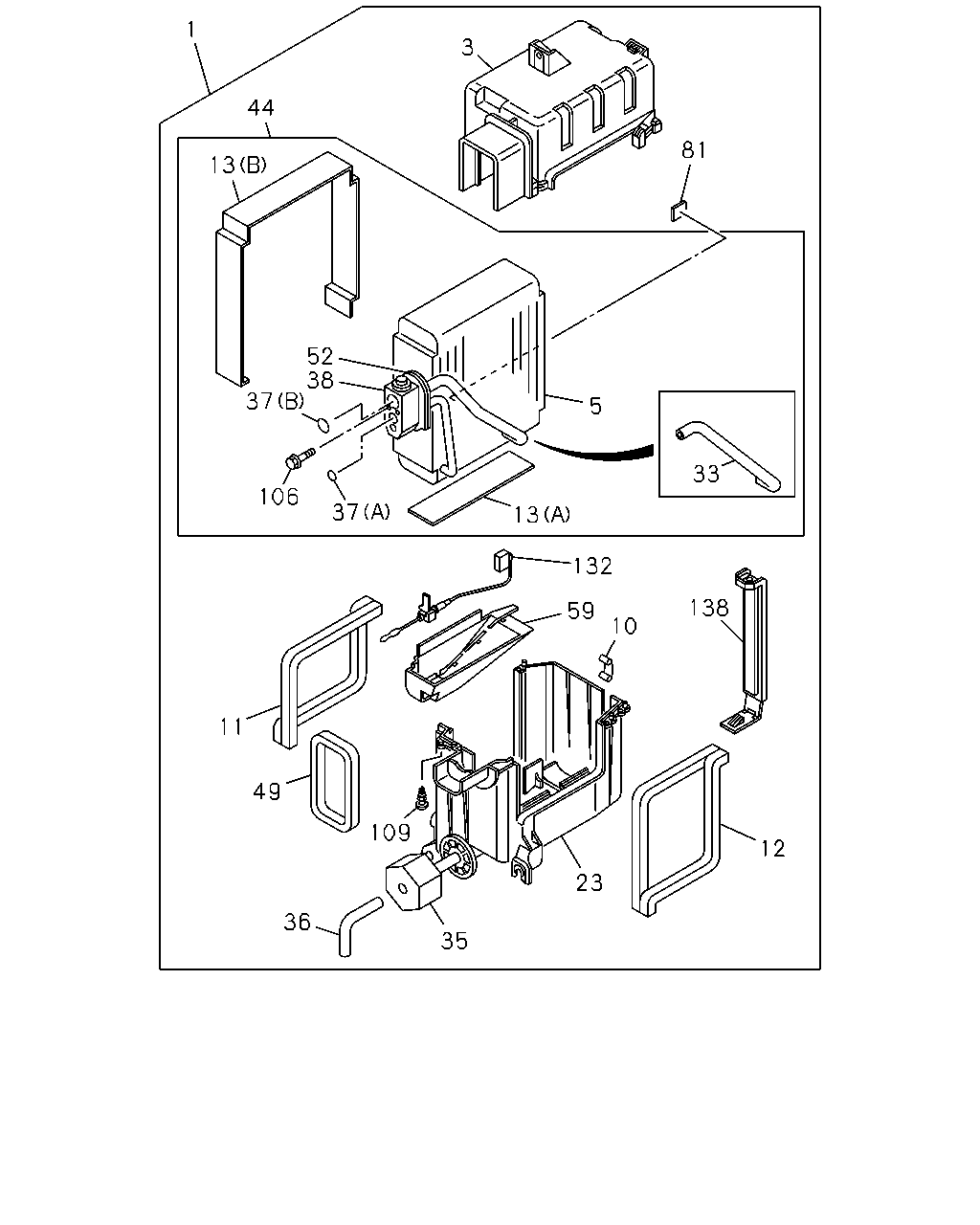

1 3 44 81 13 52 38 37 5 33 106 37 13 132 138 59 10 11 49 109 12 23 36 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	EVAPORATOR ASM THA	8-97369-327-0	01	1	0411-0503	●	●
1	EVAPORATOR ASM THA	8-98000-719-0	01	1	0504-0606	●	●
1	EVAPORATOR ASM THA	8-98045-307-0	01	1	0607-0701	●	●
1	EVAPORATOR ASM THA	8-98063-496-0	01	1	0702-0708	●	●
1	EVAPORATOR ASM THA	8-98086-168-0	01	1	0709-	●	●
3	CASE; EVAP,UPR THA	8-97321-144-0	01	1	0411-0606	●	●
3	CASE; EVAP,UPR THA	8-98055-332-0	01	1	0607-	●	●
5	EVAPORATOR THA	8-97321-148-0	01	1	0411-0606	●	●
5	EVAPORATOR THA	8-98055-342-0	01	1	0607-0701	●	●
5	EVAPORATOR THA	8-98063-687-0	01	1	0702-	●	●
10	CLIP; EVAP CASE THA	8-97321-166-0	01	1	0411-0708	●	●
10	CLIP; EVAP CASE THA	8-98088-089-0	01	1	0709-	●	●
11	LINING; EVAP A/C THA	8-97321-159-0	01	1	0411-	●	●
12	LINING; EVAP THA	8-97321-160-0	01	1	0411-0701	●	●
12	LINING; EVAP THA	8-98063-684-0	01	1	0702-	●	●
13	SEAL; EVAP (B) THA	8-97321-151-0	01	1	0411-0606	●	●
13	SEAL; EVAP (C) THA	8-98055-345-0	01	1	0607-	●	●
13	SEAL; EVAP (A) THA	8-97370-355-0	01	1	0411-0606	●	●
23	CASE; EVAP,LWR THA	8-97321-145-0	01	1	0411-0606	●	●
23	CASE; EVAP,LWR THA	8-98055-336-0	01	1	0607-	●	●
33	LINING; EVAP THA	8-97368-626-0	01	1	0411-0606	●	●
35	GROMMET; EVAP,LOW THA	8-97321-157-0	01	1	0411-	●	●
36	HOSE; DRAIN EVAP THA	8-97370-352-0	01	1	0411-	●	●
37	GASKET; EVAP (A) THA	8-97321-154-0	01	1	0411-	●	●
37	GASKET; EVAP (B) THA	8-97321-155-0	01	1	0411-	●	●
38	VALVE; EXPANSION THA	8-97370-353-0	01	1	0411-0606	●	●
38	VALVE; EXPANSION THA	8-98055-344-0	01	1	0607-0701	●	●
38	VALVE; EXPANSION THA	8-98063-690-0	01	1	0702-	●	●
44	EVAPORATOR ASM; A/C THA	8-97370-354-0	01	1	0411-0503	●	●
44	EVAPORATOR ASM; A/C THA	8-98004-444-0	01	1	0504-0606	●	●
44	EVAPORATOR ASM; A/C THA	8-98055-340-0	01	1	0607-0701	●	●
44	EVAPORATOR ASM; A/C THA	8-98063-685-0	01	1	0702-0708	●	●
44	EVAPORATOR ASM; A/C THA	8-98090-235-0	01	1	0709-	●	●
49	GROMMET; EVAP THA	8-97321-158-1	01	1	0411-	●	●
52	GROMMET; EVAP,A/C THA	8-97321-152-0	01	1	0411-	●	●
59	LINING; EVAP,LWR THA	8-97321-146-0	01	1	0411-	●	●
81	CLIP; THERMOSTAT A/C THA	8-97321-161-0	01	1	0411-	●	●
106	BOLT; EXPANSION VLV THA	8-97321-153-0	02	1	0411-0701	●	●
106	BOLT; EXPANSION VLV THA	8-98072-395-0	02	1	0702-	●	●
109	BOLT; EVAP THA	8-97321-165-0	04	1	0411-0701	●	●
109	BOLT; EVAP THA	8-98071-323-0	04	1	0702-	●	●
132	AMPLIFIER; EVAP THA	8-97321-163-0	01	1	0411-	●	●
138	COVER; CASE THA	8-97321-156-0	01	1	0411-0606	●	●

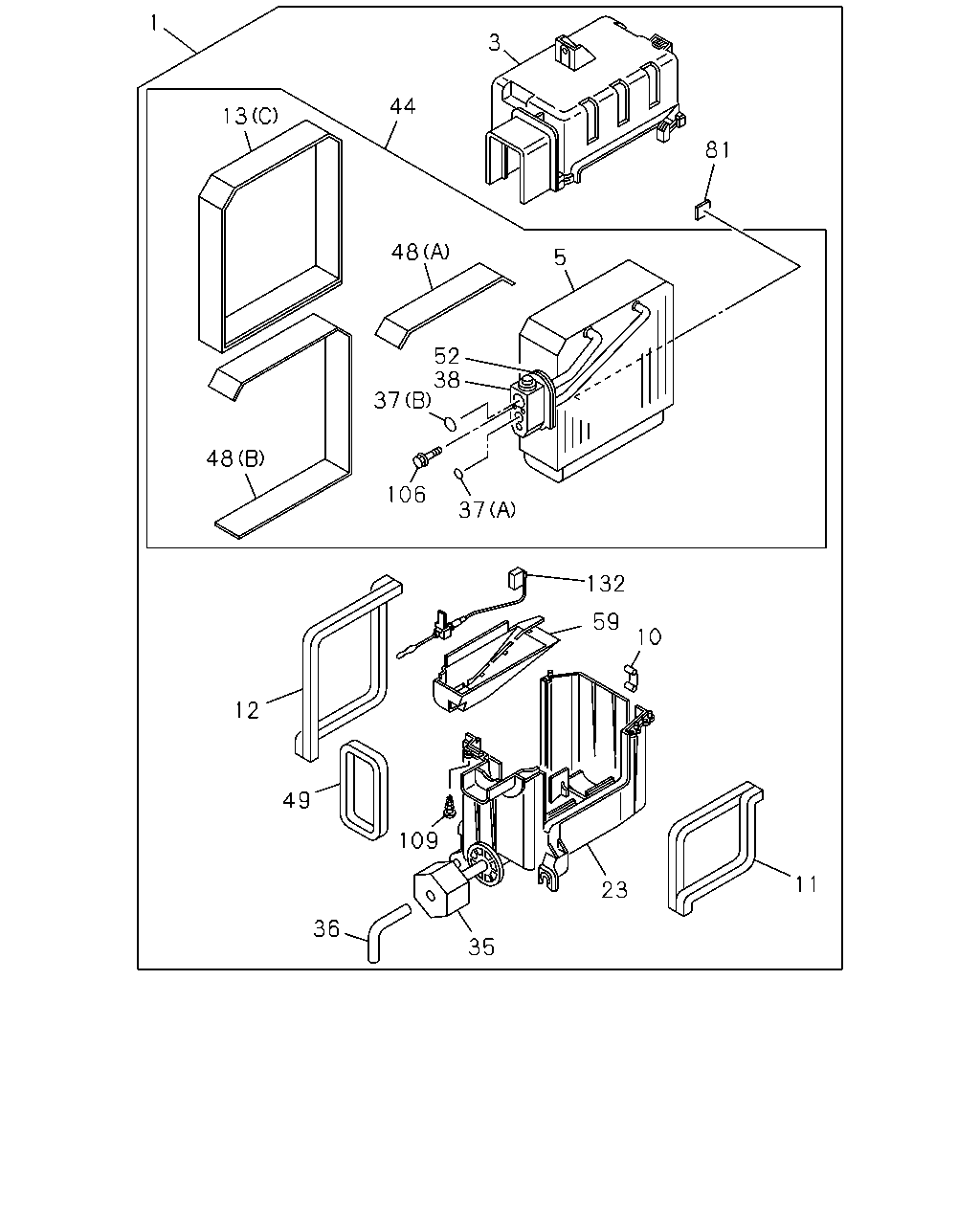

1 3 44 13 81 48 5 52 38 37 48 106 37 132 59 10 12 49 109 11 23 36 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	EVAPORATOR ASM THA	8-97369-327-0	01	1	0411-0503	●	●
1	EVAPORATOR ASM THA	8-98000-719-0	01	1	0504-0606	●	●
1	EVAPORATOR ASM THA	8-98045-307-0	01	1	0607-0701	●	●
1	EVAPORATOR ASM THA	8-98063-496-0	01	1	0702-0708	●	●
1	EVAPORATOR ASM THA	8-98086-168-0	01	1	0709-	●	●
3	CASE; EVAP,UPR THA	8-97321-144-0	01	1	0411-0606	●	●
3	CASE; EVAP,UPR THA	8-98055-332-0	01	1	0607-	●	●
5	EVAPORATOR THA	8-97321-148-0	01	1	0411-0606	●	●
5	EVAPORATOR THA	8-98055-342-0	01	1	0607-0701	●	●
5	EVAPORATOR THA	8-98063-687-0	01	1	0702-	●	●
10	CLIP; EVAP CASE THA	8-97321-166-0	01	1	0411-0708	●	●
10	CLIP; EVAP CASE THA	8-98088-089-0	01	1	0709-	●	●
11	LINING; EVAP A/C THA	8-97321-159-0	01	1	0411-	●	●
12	LINING; EVAP THA	8-97321-160-0	01	1	0411-0701	●	●
12	LINING; EVAP THA	8-98063-684-0	01	1	0702-	●	●
13	SEAL; EVAP (B) THA	8-97321-151-0	01	1	0411-0606	●	●
13	SEAL; EVAP (C) THA	8-98055-345-0	01	1	0607-	●	●
13	SEAL; EVAP (A) THA	8-97370-355-0	01	1	0411-0606	●	●
23	CASE; EVAP,LWR THA	8-97321-145-0	01	1	0411-0606	●	●
23	CASE; EVAP,LWR THA	8-98055-336-0	01	1	0607-	●	●
35	GROMMET; EVAP,LOW THA	8-97321-157-0	01	1	0411-	●	●
36	HOSE; DRAIN EVAP THA	8-97370-352-0	01	1	0411-	●	●
37	GASKET; EVAP (A) THA	8-97321-154-0	01	1	0411-	●	●
37	GASKET; EVAP (B) THA	8-97321-155-0	01	1	0411-	●	●
38	VALVE; EXPANSION THA	8-97370-353-0	01	1	0411-0606	●	●
38	VALVE; EXPANSION THA	8-98055-344-0	01	1	0607-0701	●	●
38	VALVE; EXPANSION THA	8-98063-690-0	01	1	0702-	●	●
44	EVAPORATOR ASM; A/C THA	8-97370-354-0	01	1	0411-0503	●	●
44	EVAPORATOR ASM; A/C THA	8-98004-444-0	01	1	0504-0606	●	●
44	EVAPORATOR ASM; A/C THA	8-98055-340-0	01	1	0607-0701	●	●
44	EVAPORATOR ASM; A/C THA	8-98063-685-0	01	1	0702-0708	●	●
44	EVAPORATOR ASM; A/C THA	8-98090-235-0	01	1	0709-	●	●
48	INSULATOR; EVAP (A) THA	8-98055-347-0	01	1	0607-0708	●	●
48	INSULATOR; EVAP (B) THA	8-98090-228-0	01	1	0709-	●	●
49	GROMMET; EVAP THA	8-97321-158-1	01	1	0411-	●	●
52	GROMMET; EVAP,A/C THA	8-97321-152-0	01	1	0411-	●	●
59	LINING; EVAP,LWR THA	8-97321-146-0	01	1	0411-	●	●
81	CLIP; THERMOSTAT A/C THA	8-97321-161-0	01	1	0411-	●	●
106	BOLT; EXPANSION VLV THA	8-97321-153-0	02	1	0411-0701	●	●
106	BOLT; EXPANSION VLV THA	8-98072-395-0	02	1	0702-	●	●
109	BOLT; EVAP THA	8-97321-165-0	04	1	0411-0701	●	●
109	BOLT; EVAP THA	8-98071-323-0	04	1	0702-	●	●
132	AMPLIFIER; EVAP THA	8-97321-163-0	01	1	0411-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
