8-60 — HEATER UNIT; FRONT (#74927) — 23 parça

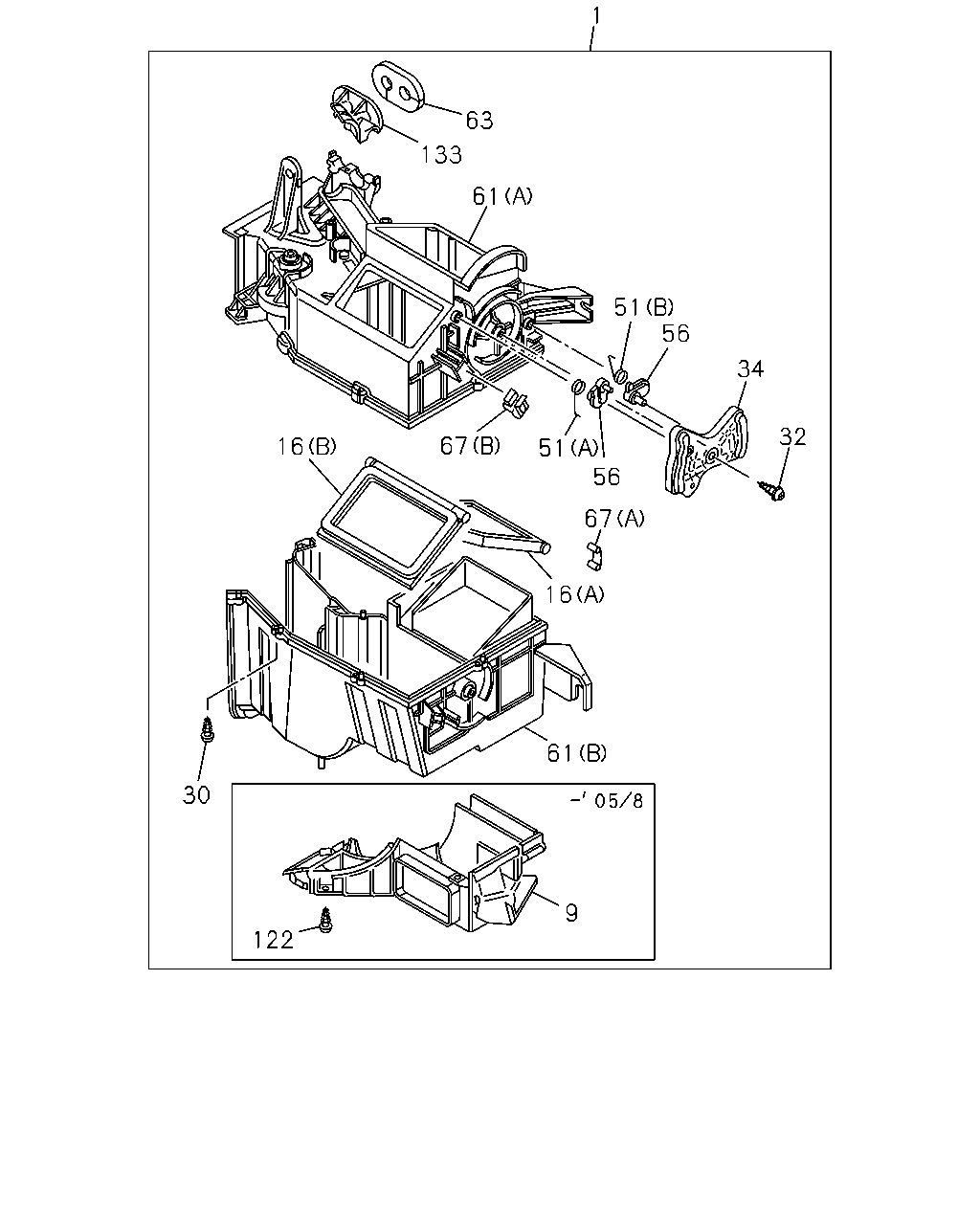

çizim 141280
1 63 133 61 51 56 34 32 67 16 51 56 67 16 61 30 9 122
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
THA 		8-97369-312-0 01 1 0411-0508 ● ●
1 HEATER UNIT
THA 		8-98021-930-0 01 1 0509-0703 ● ●
1 HEATER UNIT
THA 		8-98071-335-0 01 1 0704-0708 ● ●
1 HEATER UNIT
THA 		8-98086-154-0 01 1 0709- ● ●
9 DUCT; HTR UNIT
THA 		8-97321-338-0 01 1 0411-0508 ● ●
16 SHUTTER; HTR UNIT,CENTER UPR
(B) THA 		8-97321-340-0 01 1 0411- ● ●
16 SHUTTER; HTR UNIT,CENTER UPR
(A) THA 		8-97321-342-0 01 1 0411- ● ●
30 SCREW; HTR UNIT
THA 		8-97321-165-0 08 1 0411-0703 ● ●
30 SCREW; HTR UNIT
THA 		8-98071-323-0 08 1 0704- ● ●
32 SCREW; HTR UNIT
THA 		8-97321-276-0 01 1 0411-0703 ● ●
32 SCREW; HTR UNIT
THA 		8-98071-324-0 01 1 0704- ● ●
34 LEVER; SHUTTER,HTR UNIT
THA 		8-97321-343-0 01 1 0411- ● ●
51 SPRING; HTR UNIT
(A) THA 		8-97321-368-0 01 1 0411- ● ●
51 SPRING; HTR UNIT
(B) THA 		8-97321-369-0 01 1 0411- ● ●
56 LEVER; SHUTTER,HTR UNIT
THA 		8-97321-341-0 02 1 0411- ● ●
61 CASE; HTR UNIT
(A) THA 		8-97321-336-0 01 1 0411- ● ●
61 CASE; HTR UNIT
(B) THA 		8-97321-337-0 01 1 0411- ● ●
63 LINING; HTR UNIT
THA 		8-97321-370-0 01 1 0411- ● ●
67 CLIP; HTR UNIT
(A) THA 		8-97321-166-0 01 1 0411-0708 ● ●
67 CLIP; HTR UNIT
(A) THA 		8-98088-089-0 01 1 0709- ● ●
67 CLIP; HTR UNIT
(B) THA 		8-97321-274-0 01 1 0411- ● ●
122 SCREW; DUCT
THA 		8-97321-165-0 02 1 0411-0508 ● ●
133 CLIP; PIPE
THA 		8-97321-366-0 01 1 0411- ● ●
