Sayfa 8-52 - Isuzu EPC

8-52 — PIPING; AIR CONDITIONING (#74926) — 176 parça

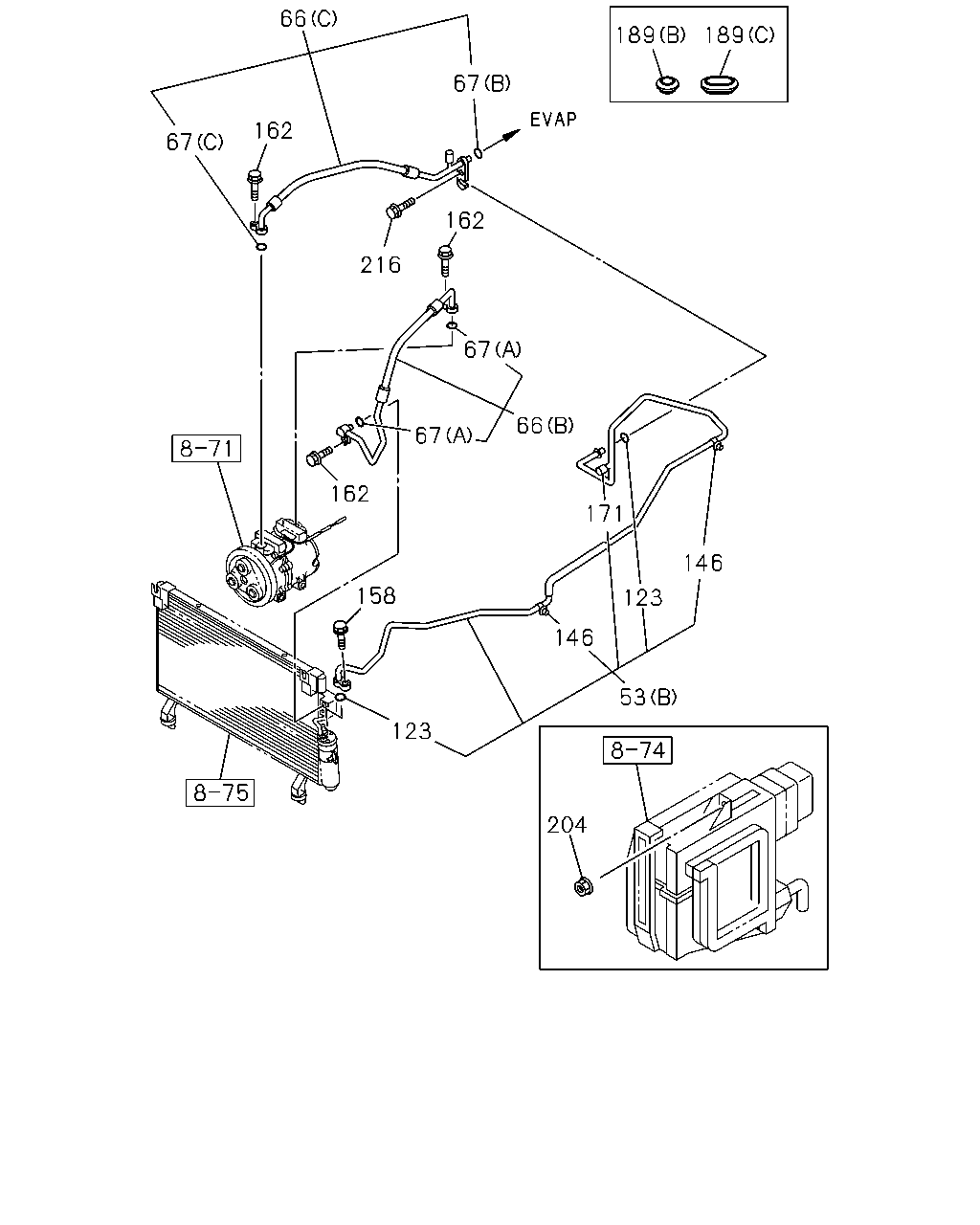

66 189 189 67 162 67 162 216 67 66 67 162 171 146 158 123 146 53 123 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG<LFB> AIR CONDITIONER ROOF MOUNTED<C69> (A) THA	8-97369-334-1	01	1	0411-0606	●	●
53	PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG<LFB> AIR CONDITIONER ROOF MOUNTED<C69> (A) THA	8-98051-597-0	01	1	0607-0609	●	●
53	PIPE; RECEIVER TANK TO EVAP AIR CONDITIONER ROOF MOUNTED<C69> (A) THA	8-98051-597-0	01	1	0610-0708	●	●
53	PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG<LFB> AIR CONDITIONER ROOF MOUNTED<C69> (A) THA	8-98088-791-0	01	1	0709-0709	●	●
53	PIPE; RECEIVER TANK TO EVAP AIR CONDITIONER ROOF MOUNTED<C69> (A) THA	8-98088-791-0	01	1	0710-	●	●
53	PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG<LFB> EXC. AIR CONDITIONER ROOF MOUNTED<C69> (B) THA	8-97370-700-1	01	1	0411-0606	●	●
53	PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG<LFB> EXC. AIR CONDITIONER ROOF MOUNTED<C69> (B) THA	8-98049-891-0	01	1	0607-0609	●	●
53	PIPE; RECEIVER TANK TO EVAP EXC. AIR CONDITIONER ROOF MOUNTED<C69> (B) THA	8-98049-891-0	01	1	0610-0708	●	●
53	PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG<LFB> EXC. AIR CONDITIONER ROOF MOUNTED<C69> (B) THA	8-98088-792-0	01	1	0709-0709	●	●
53	PIPE; RECEIVER TANK TO EVAP EXC. AIR CONDITIONER ROOF MOUNTED<C69> (B) THA	8-98088-792-0	01	1	0710-	●	●
66	HOSE; FLEX,A/C (B) THA	8-97363-903-0	01	1	0411-0606	●	●
66	HOSE; FLEX,A/C 4JJ1-TCS ENG<LFB> (B) THA	8-97363-903-0	01	1	0607-0609	●	●
66	HOSE; FLEX,A/C (B) THA	8-97363-903-0	01	1	0610-0708	●	●
66	HOSE; FLEX,A/C 4JJ1-TCS ENG<LFB> (B) THA	8-97363-903-0	01	1	0709-0709	●	●
66	HOSE; FLEX,A/C (B) THA	8-97363-903-0	01	1	0710-	●	●
66	HOSE; FLEX,A/C 4JJ1-TCS ENG<LFB> AIR CONDITIONER ROOF MOUNTED<C69> (A) THA	8-97363-905-2	01	1	0411-	●	●
66	HOSE; FLEX,A/C 4JJ1-TCS ENG<LFB> EXC. AIR CONDITIONER ROOF MOUNTED<C69> (C) THA	8-97363-904-1	01	1	0411-	●	●
66	HOSE; FLEX,A/C 4JJ1-TCX ENG<LS0> AIR CONDITIONER ROOF MOUNTED<C69> (A) THA	8-98018-881-0	01	1	0610-	●	●
66	HOSE; FLEX,A/C 4JJ1-TCX ENG<LS0> EXC. AIR CONDITIONER ROOF MOUNTED<C69> (C) THA	8-98007-108-1	01	1	0610-	●	●
67	GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB> (B) THA	8-97321-351-0	01	1	0411-0609	●	●
67	GASKET; FLEX HOSE (B) THA	8-97321-351-0	01	1	0610-0708	●	●
67	GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB> (B) THA	8-97321-351-0	01	1	0709-0709	●	●
67	GASKET; FLEX HOSE (B) THA	8-97321-351-0	01	1	0710-	●	●
67	GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB> (C) THA	8-97321-352-0	01	1	0411-0609	●	●
67	GASKET; FLEX HOSE (C) THA	8-97321-352-0	01	1	0610-0708	●	●
67	GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB> (C) THA	8-97321-352-0	01	1	0709-0709	●	●
67	GASKET; FLEX HOSE (C) THA	8-97321-352-0	01	1	0710-	●	●
67	GASKET; FLEX HOSE (A) THA	8-97321-353-0	02	1	0411-0606	●	●
67	GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB> (A) THA	8-97321-353-0	02	1	0607-0609	●	●
67	GASKET; FLEX HOSE (A) THA	8-97321-353-0	02	1	0610-0708	●	●
67	GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB> (A) THA	8-97321-353-0	02	1	0709-0709	●	●
67	GASKET; FLEX HOSE (A) THA	8-97321-353-0	02	1	0710-	●	●
67	GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB> AIR CONDITIONER ROOF MOUNTED<C69> (A) THA	8-97321-353-0	01	1	0411-0609	●	●
67	GASKET; FLEX HOSE AIR CONDITIONER ROOF MOUNTED<C69> (A) THA	8-97321-353-0	01	1	0610-0708	●	●
67	GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB> AIR CONDITIONER ROOF MOUNTED<C69> (A) THA	8-97321-353-0	01	1	0709-0709	●	●
67	GASKET; FLEX HOSE AIR CONDITIONER ROOF MOUNTED<C69> (A) THA	8-97321-353-0	01	1	0710-	●	●
123	GASKET; RECEIVER PIPE 4JJ1-TCS ENG<LFB> AIR CONDITIONER ROOF MOUNTED<C69> SCAL THA	8-97919-270-0	03	1	0411-0609	●	●
123	GASKET; RECEIVER PIPE AIR CONDITIONER ROOF MOUNTED<C69> SCAL THA	8-97919-270-0	03	1	0610-0708	●	●
123	GASKET; RECEIVER PIPE 4JJ1-TCS ENG<LFB> AIR CONDITIONER ROOF MOUNTED<C69> SCAL THA	8-97919-270-0	03	1	0709-0709	●	●
123	GASKET; RECEIVER PIPE AIR CONDITIONER ROOF MOUNTED<C69> SCAL THA	8-97919-270-0	03	1	0710-	●	●
123	GASKET; RECEIVER PIPE 4JJ1-TCS ENG<LFB> EXC. AIR CONDITIONER ROOF MOUNTED<C69> SCAL THA	8-97919-270-0	02	1	0411-0609	●	●
123	GASKET; RECEIVER PIPE EXC. AIR CONDITIONER ROOF MOUNTED<C69> SCAL THA	8-97919-270-0	02	1	0610-0708	●	●
123	GASKET; RECEIVER PIPE 4JJ1-TCS ENG<LFB> EXC. AIR CONDITIONER ROOF MOUNTED<C69> SCAL THA	8-97919-270-0	02	1	0709-0709	●	●
123	GASKET; RECEIVER PIPE EXC. AIR CONDITIONER ROOF MOUNTED<C69> SCAL THA	8-97919-270-0	02	1	0710-	●	●
146	CLIP; RECEIVER PIPE 4JJ1-TCS ENG<LFB> AIR CONDITIONER ROOF MOUNTED<C69> THA	8-97354-058-0	04	1	0411-0609	●	●
146	CLIP; RECEIVER PIPE AIR CONDITIONER ROOF MOUNTED<C69> THA	8-97354-058-0	04	1	0610-0708	●	●
146	CLIP; RECEIVER PIPE 4JJ1-TCS ENG<LFB> AIR CONDITIONER ROOF MOUNTED<C69> THA	8-97354-058-0	04	1	0709-0709	●	●
146	CLIP; RECEIVER PIPE AIR CONDITIONER ROOF MOUNTED<C69> THA	8-97354-058-0	04	1	0710-	●	●
146	CLIP; RECEIVER PIPE 4JJ1-TCS ENG<LFB> EXC. AIR CONDITIONER ROOF MOUNTED<C69> THA	8-97354-058-0	02	1	0411-0609	●	●
146	CLIP; RECEIVER PIPE EXC. AIR CONDITIONER ROOF MOUNTED<C69> THA	8-97354-058-0	02	1	0610-0708	●	●
146	CLIP; RECEIVER PIPE 4JJ1-TCS ENG<LFB> EXC. AIR CONDITIONER ROOF MOUNTED<C69> THA	8-97354-058-0	02	1	0709-0709	●	●
146	CLIP; RECEIVER PIPE EXC. AIR CONDITIONER ROOF MOUNTED<C69> THA	8-97354-058-0	02	1	0710-	●	●
158	BOLT; PIPE FIX M6X25 FLANGE THA	0-28650-625-0	01	1	0411-	●	●
162	BOLT; FLEX HOSE M8X25 FLANGE THA	0-28650-825-0	03	1	0411-	●	●
171	CAP; PIPE 4JJ1-TCS ENG<LFB> EXC. AIR CONDITIONER ROOF MOUNTED<C69> THA	8-97376-622-0	01	1	0411-0606	●	●
171	CAP; PIPE 4JJ1-TCS ENG<LFB> THA	8-97376-622-0	01	1	0607-0609	●	●
171	CAP; PIPE THA	8-97376-622-0	01	1	0610-0708	●	●
171	CAP; PIPE 4JJ1-TCS ENG<LFB> THA	8-97376-622-0	01	1	0709-0709	●	●
171	CAP; PIPE THA	8-97376-622-0	01	1	0710-	●	●
189	GROMMET AIR CONDITIONER ROOF MOUNTED<C69> (A) THA	8-97382-968-0	01	1	0411-	●	●
189	GROMMET EXC. AIR CONDITIONER ROOF MOUNTED<C69> (B) OD=30 THA	8-94107-655-0	01	1	0411-	●	●
189	GROMMET EXC. AIR CONDITIONER ROOF MOUNTED<C69> (C) THA	8-97363-901-0	01	1	0411-	●	●
204	NUT M6 FLANGE THA	8-97063-399-0	02	1	0411-0702	●	●
204	NUT M6 FLANGE IMA	8-98055-704-0	02	1	0703-	●	●
216	BOLT; HOSE FIX M6X20 FLANGE THA	0-28650-620-0	01	1	0411-	●	●

185 116 116 189 8 185 116 116 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	BOLT; CLIP AIR CONDITIONER ROOF MOUNTED<C69> (B) M6X16 FLANGE THA	0-28650-616-0	09	1	0411-0411	●	●
8	BOLT; CLIP AIR CONDITIONER ROOF MOUNTED<C69> (B) M6X16 FLANGE THA	0-28650-616-0	08	1	0412-	●	●
8	BOLT; CLIP AIR CONDITIONER ROOF MOUNTED<C69> (A) THA	8-97383-407-0	02	1	0411-	●	●
8	BOLT; CLIP AIR CONDITIONER ROOF MOUNTED<C69> (B) M6X16 FLANGE THA	0-28650-616-0	01	1	0412-	●	●
116	GASKET; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (A) THA	8-97321-353-0	01	1	0411-0606	●	●
116	GASKET; PIPE 4JJ1-TCS ENG<LFB> AIR CONDITIONER ROOF MOUNTED<C69> (A) THA	8-97321-353-0	01	1	0607-0609	●	●
116	GASKET; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (A) THA	8-97321-353-0	01	1	0610-0708	●	●
116	GASKET; PIPE 4JJ1-TCS ENG<LFB> AIR CONDITIONER ROOF MOUNTED<C69> (A) THA	8-97321-353-0	01	1	0709-0709	●	●
116	GASKET; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (A) THA	8-97321-353-0	01	1	0710-	●	●
116	GASKET; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (A) THA	8-97321-353-0	03	1	0411-	●	●
116	GASKET; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (B) SCAL THA	8-97919-270-0	02	1	0411-	●	●
116	GASKET; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (B) SCAL THA	8-97919-270-0	04	1	0411-	●	●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO AIR CONDITIONER ROOF MOUNTED<C69> (A) THA	8-97363-889-0	01	1	0411-	●	●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO AIR CONDITIONER ROOF MOUNTED<C69> (B) THA	8-97363-891-1	01	1	0411-	●	●
189	GROMMET AIR CONDITIONER ROOF MOUNTED<C69> (A) THA	8-97382-968-0	01	1	0411-	●	●
189	GROMMET EXC. AIR CONDITIONER ROOF MOUNTED<C69> (B) OD=30 THA	8-94107-655-0	01	1	0411-	●	●
189	GROMMET EXC. AIR CONDITIONER ROOF MOUNTED<C69> (C) THA	8-97363-901-0	01	1	0411-	●	●

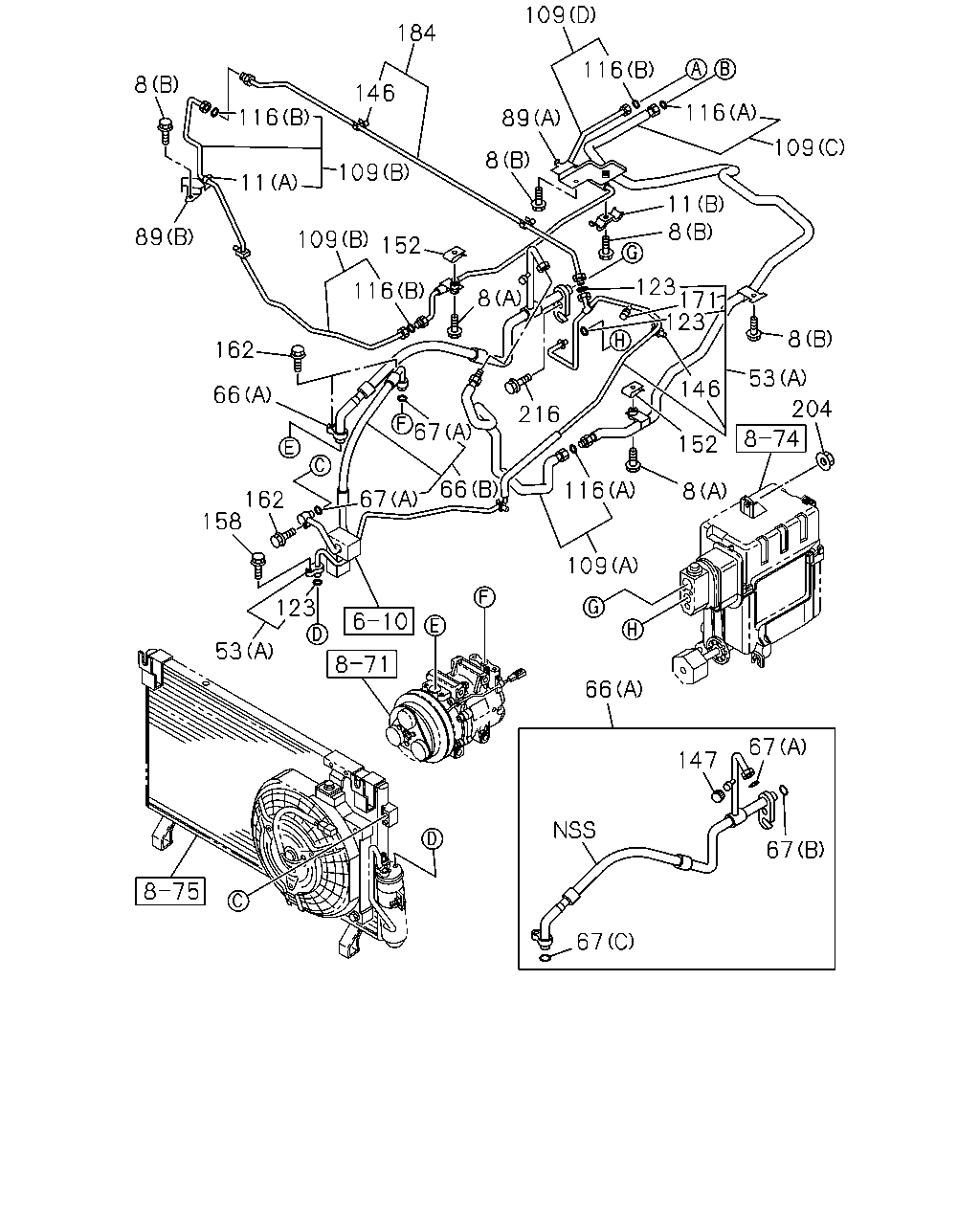

109 184 116 8 146 116 116 89 109 8 109 11 11 8 89 109 152 123 171 123 116 8 8 162 53 146 66 204 216 67 152 66 116 8 67 162 158 109 123 53 66 67 147 67 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	BOLT; CLIP AIR CONDITIONER ROOF MOUNTED<C69> (B) M6X16 FLANGE THA	0-28650-616-0	09	1	0411-0411	●	●
8	BOLT; CLIP AIR CONDITIONER ROOF MOUNTED<C69> (B) M6X16 FLANGE THA	0-28650-616-0	08	1	0412-	●	●
8	BOLT; CLIP AIR CONDITIONER ROOF MOUNTED<C69> (A) THA	8-97383-407-0	02	1	0411-	●	●
8	BOLT; CLIP AIR CONDITIONER ROOF MOUNTED<C69> (B) M6X16 FLANGE THA	0-28650-616-0	01	1	0412-	●	●
11	CLIP; COOLER PIPE AIR CONDITIONER ROOF MOUNTED<C69> (A) THA	8-97354-058-0	01	1	0411-	●	●
11	CLIP; COOLER PIPE AIR CONDITIONER ROOF MOUNTED<C69> (B) THA	8-97375-867-0	01	1	0411-	●	●
53	PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG<LFB> AIR CONDITIONER ROOF MOUNTED<C69> (A) THA	8-97369-334-1	01	1	0411-0606	●	●
53	PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG<LFB> AIR CONDITIONER ROOF MOUNTED<C69> (A) THA	8-98051-597-0	01	1	0607-0609	●	●
53	PIPE; RECEIVER TANK TO EVAP AIR CONDITIONER ROOF MOUNTED<C69> (A) THA	8-98051-597-0	01	1	0610-0708	●	●
53	PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG<LFB> AIR CONDITIONER ROOF MOUNTED<C69> (A) THA	8-98088-791-0	01	1	0709-0709	●	●
53	PIPE; RECEIVER TANK TO EVAP AIR CONDITIONER ROOF MOUNTED<C69> (A) THA	8-98088-791-0	01	1	0710-	●	●
53	PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG<LFB> EXC. AIR CONDITIONER ROOF MOUNTED<C69> (B) THA	8-97370-700-1	01	1	0411-0606	●	●
53	PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG<LFB> EXC. AIR CONDITIONER ROOF MOUNTED<C69> (B) THA	8-98049-891-0	01	1	0607-0609	●	●
53	PIPE; RECEIVER TANK TO EVAP EXC. AIR CONDITIONER ROOF MOUNTED<C69> (B) THA	8-98049-891-0	01	1	0610-0708	●	●
53	PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG<LFB> EXC. AIR CONDITIONER ROOF MOUNTED<C69> (B) THA	8-98088-792-0	01	1	0709-0709	●	●
53	PIPE; RECEIVER TANK TO EVAP EXC. AIR CONDITIONER ROOF MOUNTED<C69> (B) THA	8-98088-792-0	01	1	0710-	●	●
66	HOSE; FLEX,A/C (B) THA	8-97363-903-0	01	1	0411-0606	●	●
66	HOSE; FLEX,A/C 4JJ1-TCS ENG<LFB> (B) THA	8-97363-903-0	01	1	0607-0609	●	●
66	HOSE; FLEX,A/C (B) THA	8-97363-903-0	01	1	0610-0708	●	●
66	HOSE; FLEX,A/C 4JJ1-TCS ENG<LFB> (B) THA	8-97363-903-0	01	1	0709-0709	●	●
66	HOSE; FLEX,A/C (B) THA	8-97363-903-0	01	1	0710-	●	●
66	HOSE; FLEX,A/C 4JJ1-TCS ENG<LFB> AIR CONDITIONER ROOF MOUNTED<C69> (A) THA	8-97363-905-2	01	1	0411-	●	●
66	HOSE; FLEX,A/C 4JJ1-TCS ENG<LFB> EXC. AIR CONDITIONER ROOF MOUNTED<C69> (C) THA	8-97363-904-1	01	1	0411-	●	●
66	HOSE; FLEX,A/C 4JJ1-TCX ENG<LS0> AIR CONDITIONER ROOF MOUNTED<C69> (A) THA	8-98018-881-0	01	1	0610-	●	●
66	HOSE; FLEX,A/C 4JJ1-TCX ENG<LS0> EXC. AIR CONDITIONER ROOF MOUNTED<C69> (C) THA	8-98007-108-1	01	1	0610-	●	●
67	GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB> (B) THA	8-97321-351-0	01	1	0411-0609	●	●
67	GASKET; FLEX HOSE (B) THA	8-97321-351-0	01	1	0610-0708	●	●
67	GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB> (B) THA	8-97321-351-0	01	1	0709-0709	●	●
67	GASKET; FLEX HOSE (B) THA	8-97321-351-0	01	1	0710-	●	●
67	GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB> (C) THA	8-97321-352-0	01	1	0411-0609	●	●
67	GASKET; FLEX HOSE (C) THA	8-97321-352-0	01	1	0610-0708	●	●
67	GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB> (C) THA	8-97321-352-0	01	1	0709-0709	●	●
67	GASKET; FLEX HOSE (C) THA	8-97321-352-0	01	1	0710-	●	●
67	GASKET; FLEX HOSE (A) THA	8-97321-353-0	02	1	0411-0606	●	●
67	GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB> (A) THA	8-97321-353-0	02	1	0607-0609	●	●
67	GASKET; FLEX HOSE (A) THA	8-97321-353-0	02	1	0610-0708	●	●
67	GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB> (A) THA	8-97321-353-0	02	1	0709-0709	●	●
67	GASKET; FLEX HOSE (A) THA	8-97321-353-0	02	1	0710-	●	●
67	GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB> AIR CONDITIONER ROOF MOUNTED<C69> (A) THA	8-97321-353-0	01	1	0411-0609	●	●
67	GASKET; FLEX HOSE AIR CONDITIONER ROOF MOUNTED<C69> (A) THA	8-97321-353-0	01	1	0610-0708	●	●
67	GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB> AIR CONDITIONER ROOF MOUNTED<C69> (A) THA	8-97321-353-0	01	1	0709-0709	●	●
67	GASKET; FLEX HOSE AIR CONDITIONER ROOF MOUNTED<C69> (A) THA	8-97321-353-0	01	1	0710-	●	●
89	BRACKET; A/C PIPE AIR CONDITIONER ROOF MOUNTED<C69> (A) THA	8-97363-892-0	01	1	0411-	●	●
89	BRACKET; A/C PIPE 4JJ1-TCS ENG<LFB> AIR CONDITIONER ROOF MOUNTED<C69> (B) THA	8-97369-405-0	01	1	0411-0609	●	●
89	BRACKET; A/C PIPE AIR CONDITIONER ROOF MOUNTED<C69> (B) THA	8-97369-405-0	01	1	0610-0708	●	●
89	BRACKET; A/C PIPE 4JJ1-TCS ENG<LFB> AIR CONDITIONER ROOF MOUNTED<C69> (B) THA	8-97369-405-0	01	1	0709-0709	●	●
89	BRACKET; A/C PIPE AIR CONDITIONER ROOF MOUNTED<C69> (B) THA	8-97369-405-0	01	1	0710-	●	●
109	PIPE; PIPE TO PIPE AIR CONDITIONER ROOF MOUNTED<C69> (A) THA	8-97363-884-1	01	1	0411-0606	●	●
109	PIPE; PIPE TO PIPE 4JJ1-TCS ENG<LFB> AIR CONDITIONER ROOF MOUNTED<C69> (A) THA	8-98027-843-0	01	1	0607-	●	●
109	PIPE; PIPE TO PIPE AIR CONDITIONER ROOF MOUNTED<C69> (B) THA	8-97363-885-1	01	1	0411-	●	●
109	PIPE; PIPE TO PIPE AIR CONDITIONER ROOF MOUNTED<C69> (C) THA	8-97363-886-1	01	1	0411-	●	●
109	PIPE; PIPE TO PIPE AIR CONDITIONER ROOF MOUNTED<C69> (D) THA	8-97363-887-2	01	1	0411-	●	●
109	PIPE; PIPE TO PIPE 4JJ1-TCX ENG<LS0> AIR CONDITIONER ROOF MOUNTED<C69> (A) THA	8-98027-845-0	01	1	0610-	●	●
116	GASKET; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (A) THA	8-97321-353-0	01	1	0411-0606	●	●
116	GASKET; PIPE 4JJ1-TCS ENG<LFB> AIR CONDITIONER ROOF MOUNTED<C69> (A) THA	8-97321-353-0	01	1	0607-0609	●	●
116	GASKET; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (A) THA	8-97321-353-0	01	1	0610-0708	●	●
116	GASKET; PIPE 4JJ1-TCS ENG<LFB> AIR CONDITIONER ROOF MOUNTED<C69> (A) THA	8-97321-353-0	01	1	0709-0709	●	●
116	GASKET; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (A) THA	8-97321-353-0	01	1	0710-	●	●
116	GASKET; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (A) THA	8-97321-353-0	03	1	0411-	●	●
116	GASKET; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (B) SCAL THA	8-97919-270-0	02	1	0411-	●	●
116	GASKET; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (B) SCAL THA	8-97919-270-0	04	1	0411-	●	●
123	GASKET; RECEIVER PIPE 4JJ1-TCS ENG<LFB> AIR CONDITIONER ROOF MOUNTED<C69> SCAL THA	8-97919-270-0	03	1	0411-0609	●	●
123	GASKET; RECEIVER PIPE AIR CONDITIONER ROOF MOUNTED<C69> SCAL THA	8-97919-270-0	03	1	0610-0708	●	●
123	GASKET; RECEIVER PIPE 4JJ1-TCS ENG<LFB> AIR CONDITIONER ROOF MOUNTED<C69> SCAL THA	8-97919-270-0	03	1	0709-0709	●	●
123	GASKET; RECEIVER PIPE AIR CONDITIONER ROOF MOUNTED<C69> SCAL THA	8-97919-270-0	03	1	0710-	●	●
123	GASKET; RECEIVER PIPE 4JJ1-TCS ENG<LFB> EXC. AIR CONDITIONER ROOF MOUNTED<C69> SCAL THA	8-97919-270-0	02	1	0411-0609	●	●
123	GASKET; RECEIVER PIPE EXC. AIR CONDITIONER ROOF MOUNTED<C69> SCAL THA	8-97919-270-0	02	1	0610-0708	●	●
123	GASKET; RECEIVER PIPE 4JJ1-TCS ENG<LFB> EXC. AIR CONDITIONER ROOF MOUNTED<C69> SCAL THA	8-97919-270-0	02	1	0709-0709	●	●
123	GASKET; RECEIVER PIPE EXC. AIR CONDITIONER ROOF MOUNTED<C69> SCAL THA	8-97919-270-0	02	1	0710-	●	●
146	CLIP; RECEIVER PIPE 4JJ1-TCS ENG<LFB> AIR CONDITIONER ROOF MOUNTED<C69> THA	8-97354-058-0	04	1	0411-0609	●	●
146	CLIP; RECEIVER PIPE AIR CONDITIONER ROOF MOUNTED<C69> THA	8-97354-058-0	04	1	0610-0708	●	●
146	CLIP; RECEIVER PIPE 4JJ1-TCS ENG<LFB> AIR CONDITIONER ROOF MOUNTED<C69> THA	8-97354-058-0	04	1	0709-0709	●	●
146	CLIP; RECEIVER PIPE AIR CONDITIONER ROOF MOUNTED<C69> THA	8-97354-058-0	04	1	0710-	●	●
146	CLIP; RECEIVER PIPE 4JJ1-TCS ENG<LFB> EXC. AIR CONDITIONER ROOF MOUNTED<C69> THA	8-97354-058-0	02	1	0411-0609	●	●
146	CLIP; RECEIVER PIPE EXC. AIR CONDITIONER ROOF MOUNTED<C69> THA	8-97354-058-0	02	1	0610-0708	●	●
146	CLIP; RECEIVER PIPE 4JJ1-TCS ENG<LFB> EXC. AIR CONDITIONER ROOF MOUNTED<C69> THA	8-97354-058-0	02	1	0709-0709	●	●
146	CLIP; RECEIVER PIPE EXC. AIR CONDITIONER ROOF MOUNTED<C69> THA	8-97354-058-0	02	1	0710-	●	●
147	CAP; FLEX HOSE 4JJ1-TCX ENG<LS0> THA	8-97386-623-0	01	1	0610-	●	●
152	NUT; CLIP AIR CONDITIONER ROOF MOUNTED<C69> IMA	8-94334-769-0	02	1	0411-	●	●
158	BOLT; PIPE FIX M6X25 FLANGE THA	0-28650-625-0	01	1	0411-	●	●
162	BOLT; FLEX HOSE M8X25 FLANGE THA	0-28650-825-0	03	1	0411-	●	●
171	CAP; PIPE 4JJ1-TCS ENG<LFB> EXC. AIR CONDITIONER ROOF MOUNTED<C69> THA	8-97376-622-0	01	1	0411-0606	●	●
171	CAP; PIPE 4JJ1-TCS ENG<LFB> THA	8-97376-622-0	01	1	0607-0609	●	●
171	CAP; PIPE THA	8-97376-622-0	01	1	0610-0708	●	●
171	CAP; PIPE 4JJ1-TCS ENG<LFB> THA	8-97376-622-0	01	1	0709-0709	●	●
171	CAP; PIPE THA	8-97376-622-0	01	1	0710-	●	●
184	PIPE; PIPE TO EVAP 4JJ1-TCS ENG<LFB> AIR CONDITIONER ROOF MOUNTED<C69> THA	8-97363-883-0	01	1	0411-0606	●	●
184	PIPE; PIPE TO EVAP 4JJ1-TCS ENG<LFB> AIR CONDITIONER ROOF MOUNTED<C69> THA	8-98018-755-0	01	1	0607-0609	●	●
184	PIPE; PIPE TO EVAP AIR CONDITIONER ROOF MOUNTED<C69> THA	8-98018-755-0	01	1	0610-0708	●	●
184	PIPE; PIPE TO EVAP 4JJ1-TCS ENG<LFB> AIR CONDITIONER ROOF MOUNTED<C69> THA	8-98018-755-0	01	1	0709-0709	●	●
184	PIPE; PIPE TO EVAP AIR CONDITIONER ROOF MOUNTED<C69> THA	8-98018-755-0	01	1	0710-	●	●
204	NUT M6 FLANGE THA	8-97063-399-0	02	1	0411-0702	●	●
204	NUT M6 FLANGE IMA	8-98055-704-0	02	1	0703-	●	●
216	BOLT; HOSE FIX M6X20 FLANGE THA	0-28650-620-0	01	1	0411-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
