8-50 — AIR CONDITIONING SYSTEM; FRONT (#74925) — 68 parça

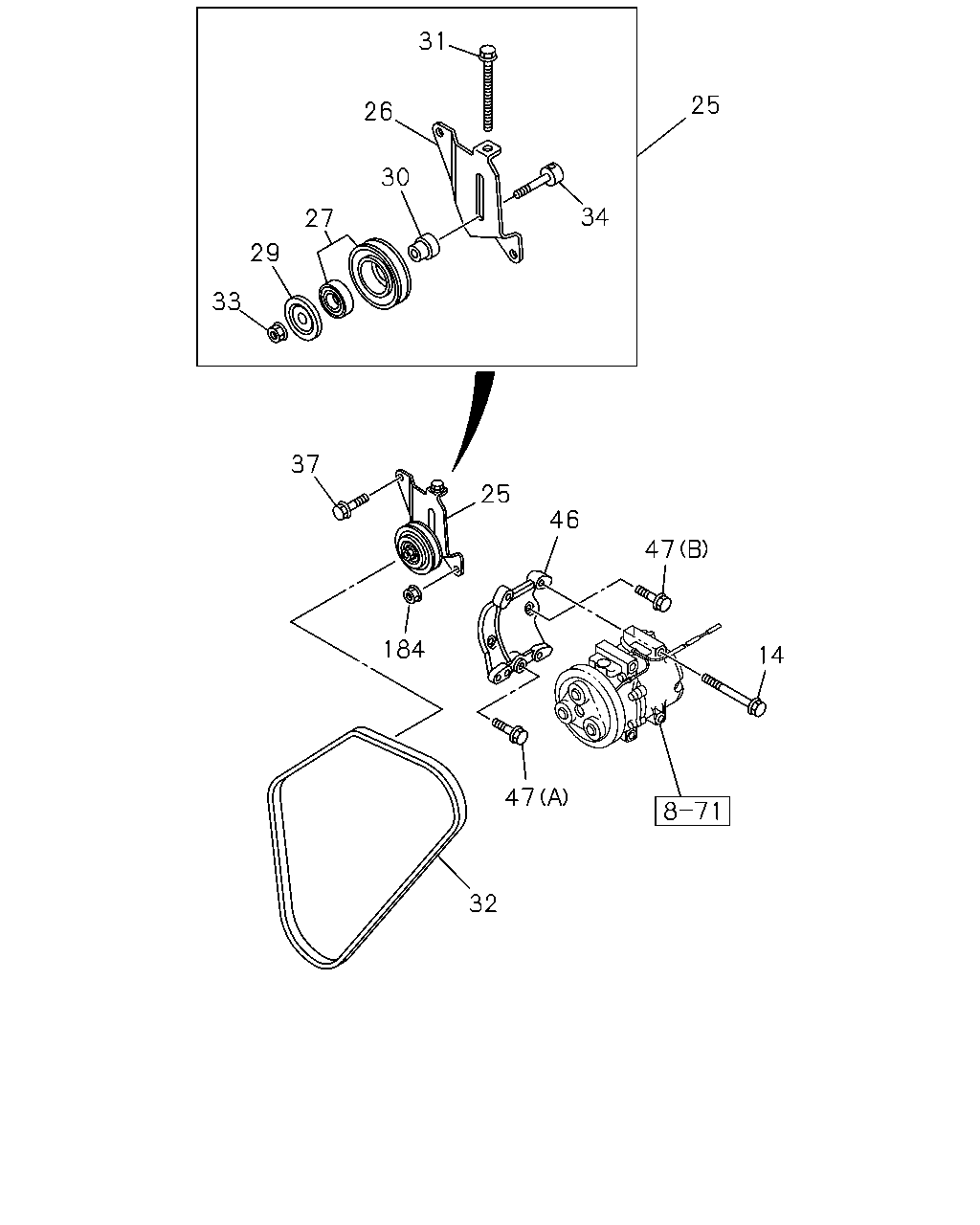

çizim 141044
31 25 26 30 34 27 29 33 37 25 46 47 184 14 47 32
BalonParca AdiParca NoAdetTipApplied Date A B
14 BOLT; CMPR
4JJ1-TCS ENG<LFB> M10X100 FLANGE THA 		0-28151-000-0 04 1 0411-0609 ● ●
14 BOLT; CMPR
M10X100 FLANGE THA 		0-28151-000-0 04 1 0610-0708 ● ●
14 BOLT; CMPR
4JJ1-TCS ENG<LFB> M10X100 FLANGE THA 		0-28151-000-0 04 1 0709-0709 ● ●
14 BOLT; CMPR
M10X100 FLANGE THA 		0-28151-000-0 04 1 0710- ● ●
25 PULLEY ASM; IDLER,CMPR
THA 		8-97363-476-3 01 1 0411-0508 ● ●
25 PULLEY ASM; IDLER,CMPR
4JJ1-TCS ENG<LFB> THA 		8-97945-065-0 01 1 0509-0609 ● ●
25 PULLEY ASM; IDLER,CMPR
THA 		8-97945-065-0 01 1 0610-0610 ● ●
25 PULLEY ASM; IDLER,CMPR
1-GROOVE THA 		8-98051-011-0 01 1 0611-0708 ● ●
25 PULLEY ASM; IDLER,CMPR
4JJ1-TCS ENG<LFB> 1-GROOVE THA 		8-98051-011-0 01 1 0709-0709 ● ●
25 PULLEY ASM; IDLER,CMPR
1-GROOVE THA 		8-98051-011-0 01 1 0710- ● ●
26 BRACKET; IDLE PULLEY,A/C
4JJ1-TCS ENG<LFB> THA 		8-97377-329-0 01 1 0411-0609 ● ●
26 BRACKET; IDLE PULLEY,A/C
THA 		8-97377-329-0 01 1 0610-0708 ● ●
26 BRACKET; IDLE PULLEY,A/C
4JJ1-TCS ENG<LFB> THA 		8-97377-329-0 01 1 0709-0709 ● ●
26 BRACKET; IDLE PULLEY,A/C
THA 		8-97377-329-0 01 1 0710-0908 ● ●
27 PULLEY; IDLE,A/C
4JJ1-TCS ENG<LFB> THA 		8-97377-328-0 01 1 0411-0609 ● ●
27 PULLEY; IDLE,A/C
THA 		8-97377-328-0 01 1 0610-0708 ● ●
27 PULLEY; IDLE,A/C
4JJ1-TCS ENG<LFB> THA 		8-97377-328-0 01 1 0709-0709 ● ●
27 PULLEY; IDLE,A/C
THA 		8-97377-328-0 01 1 0710-0908 ● ●
29 COVER; DUST,IDLE PULLEY
4JJ1-TCS ENG<LFB> THA 		8-97377-334-1 01 1 0411-0609 ● ●
29 COVER; DUST,IDLE PULLEY
THA 		8-97377-334-1 01 1 0610-0708 ● ●
29 COVER; DUST,IDLE PULLEY
4JJ1-TCS ENG<LFB> THA 		8-97377-334-1 01 1 0709-0709 ● ●
29 COVER; DUST,IDLE PULLEY
THA 		8-97377-334-1 01 1 0710-0908 ● ●
30 COLLAR; IDLE PULLEY
4JJ1-TCS ENG<LFB> THA 		8-97377-333-2 01 1 0411-0609 ● ●
30 COLLAR; IDLE PULLEY
THA 		8-97377-333-2 01 1 0610-0708 ● ●
30 COLLAR; IDLE PULLEY
4JJ1-TCS ENG<LFB> THA 		8-97377-333-2 01 1 0709-0709 ● ●
30 COLLAR; IDLE PULLEY
THA 		8-97377-333-2 01 1 0710-0908 ● ●
31 BOLT; ADJ,IDLE PULLEY
4JJ1-TCS ENG<LFB> M8X75 THA 		8-97377-330-2 01 1 0411-0609 ● ●
31 BOLT; ADJ,IDLE PULLEY
M8X75 THA 		8-97377-330-2 01 1 0610-0708 ● ●
31 BOLT; ADJ,IDLE PULLEY
4JJ1-TCS ENG<LFB> M8X75 THA 		8-97377-330-2 01 1 0709-0709 ● ●
31 BOLT; ADJ,IDLE PULLEY
M8X75 THA 		8-97377-330-2 01 1 0710-0908 ● ●
32 BELT; A/C CMPR
4JJ1-TCS ENG<LFB> MITSUBOSHI THA 		8-97944-104-0 01 1 0411-0609 ● ●
32 BELT; A/C CMPR
MITSUBOSHI THA 		8-97944-104-0 01 1 0610-0708 ● ●
32 BELT; A/C CMPR
4JJ1-TCS ENG<LFB> MITSUBOSHI THA 		8-97944-104-0 01 1 0709-0709 ● ●
32 BELT; A/C CMPR
MITSUBOSHI THA 		8-97944-104-0 01 1 0710-0711 ● ●
32 BELT; A/C CMPR
L=1355 MITSUBOSHI THA 		8-98088-385-0 01 1 0712- ● ●
32 BELT; A/C CMPR
4JJ1-TCS ENG<LFB> BANDO THA 		8-97944-138-0 01 1 0411-0609 ● ●
32 BELT; A/C CMPR
BANDO THA 		8-97944-138-0 01 1 0610-0708 ● ●
32 BELT; A/C CMPR
4JJ1-TCS ENG<LFB> BANDO THA 		8-97944-138-0 01 1 0709-0709 ● ●
32 BELT; A/C CMPR
BANDO THA 		8-97944-138-0 01 1 0710- ● ●
33 NUT; IDLER PULLEY
4JJ1-TCS ENG<LFB> M10 THA 		8-97377-331-0 01 1 0411-0609 ● ●
33 NUT; IDLER PULLEY
M10 THA 		8-97377-331-0 01 1 0610-0708 ● ●
33 NUT; IDLER PULLEY
4JJ1-TCS ENG<LFB> M10 THA 		8-97377-331-0 01 1 0709-0709 ● ●
33 NUT; IDLER PULLEY
M10 THA 		8-97377-331-0 01 1 0710-0908 ● ●
34 SHAFT; IDLE PULLEY
THA 		8-97377-332-1 01 1 0411-0508 ● ●
34 SHAFT; IDLE PULLEY
4JJ1-TCS ENG<LFB> THA 		8-97945-181-0 01 1 0509-0609 ● ●
34 SHAFT; IDLE PULLEY
THA 		8-97945-181-0 01 1 0610-0708 ● ●
34 SHAFT; IDLE PULLEY
4JJ1-TCS ENG<LFB> THA 		8-97945-181-0 01 1 0709-0709 ● ●
34 SHAFT; IDLE PULLEY
THA 		8-97945-181-0 01 1 0710-0908 ● ●
37 BOLT; PULLEY BRKT
4JJ1-TCS ENG<LFB> M8X20 FLANGE THA 		0-28650-820-0 01 1 0411-0609 ● ●
37 BOLT; PULLEY BRKT
M8X20 FLANGE THA 		0-28650-820-0 01 1 0610-0708 ● ●
37 BOLT; PULLEY BRKT
4JJ1-TCS ENG<LFB> M8X20 FLANGE THA 		0-28650-820-0 01 1 0709-0709 ● ●
37 BOLT; PULLEY BRKT
M8X20 FLANGE THA 		0-28650-820-0 01 1 0710- ● ●
46 BRACKET; CMPR
4JJ1-TCS ENG<LFB> THA 		8-97371-258-0 01 1 0411- ● ●
46 BRACKET; CMPR
4JJ1-TCX ENG<LS0> THA 		8-98039-618-0 01 1 0610- ● ●
47 BOLT; BRKT TO BODY
4JJ1-TCS ENG<LFB> (A) M8X35 FLANGE THA 		0-28650-835-0 01 1 0411-0606 ● ●
47 BOLT; BRKT TO BODY
4JJ1-TCS ENG<LFB> (A) M8X35 FLANGE THA 		8-98049-562-0 01 1 0607-0609 ● ●
47 BOLT; BRKT TO BODY
(A) M8X35 FLANGE THA 		8-98049-562-0 01 1 0610-0708 ● ●
47 BOLT; BRKT TO BODY
4JJ1-TCS ENG<LFB> (A) M8X35 FLANGE THA 		8-98049-562-0 01 1 0709-0709 ● ●
47 BOLT; BRKT TO BODY
(A) M8X35 FLANGE THA 		8-98049-562-0 01 1 0710- ● ●
47 BOLT; BRKT TO BODY
4JJ1-TCS ENG<LFB> (B) M8X25 FLANGE THA 		0-28680-825-0 03 1 0411-0601 ● ●
47 BOLT; BRKT TO BODY
4JJ1-TCS ENG<LFB> (B) M8X25 FLANGE THA 		0-28650-825-0 03 1 0602-0609 ● ●
47 BOLT; BRKT TO BODY
(B) M8X25 FLANGE THA 		0-28650-825-0 03 1 0610-0708 ● ●
47 BOLT; BRKT TO BODY
4JJ1-TCS ENG<LFB> (B) M8X25 FLANGE THA 		0-28650-825-0 03 1 0709-0709 ● ●
47 BOLT; BRKT TO BODY
(B) M8X25 FLANGE THA 		0-28650-825-0 03 1 0710- ● ●
184 NUT; A/C PIPE BRKT
4JJ1-TCS ENG<LFB> M8 FLANGE THA 		0-91180-208-0 01 1 0411-0609 ● ●
184 NUT; A/C PIPE BRKT
M8 FLANGE THA 		0-91180-208-0 01 1 0610-0708 ● ●
184 NUT; A/C PIPE BRKT
4JJ1-TCS ENG<LFB> M8 FLANGE THA 		0-91180-208-0 01 1 0709-0709 ● ●
184 NUT; A/C PIPE BRKT
M8 FLANGE THA 		0-91180-208-0 01 1 0710- ● ●
