8-45 — HEATER PIPING (#74924) — 56 parça

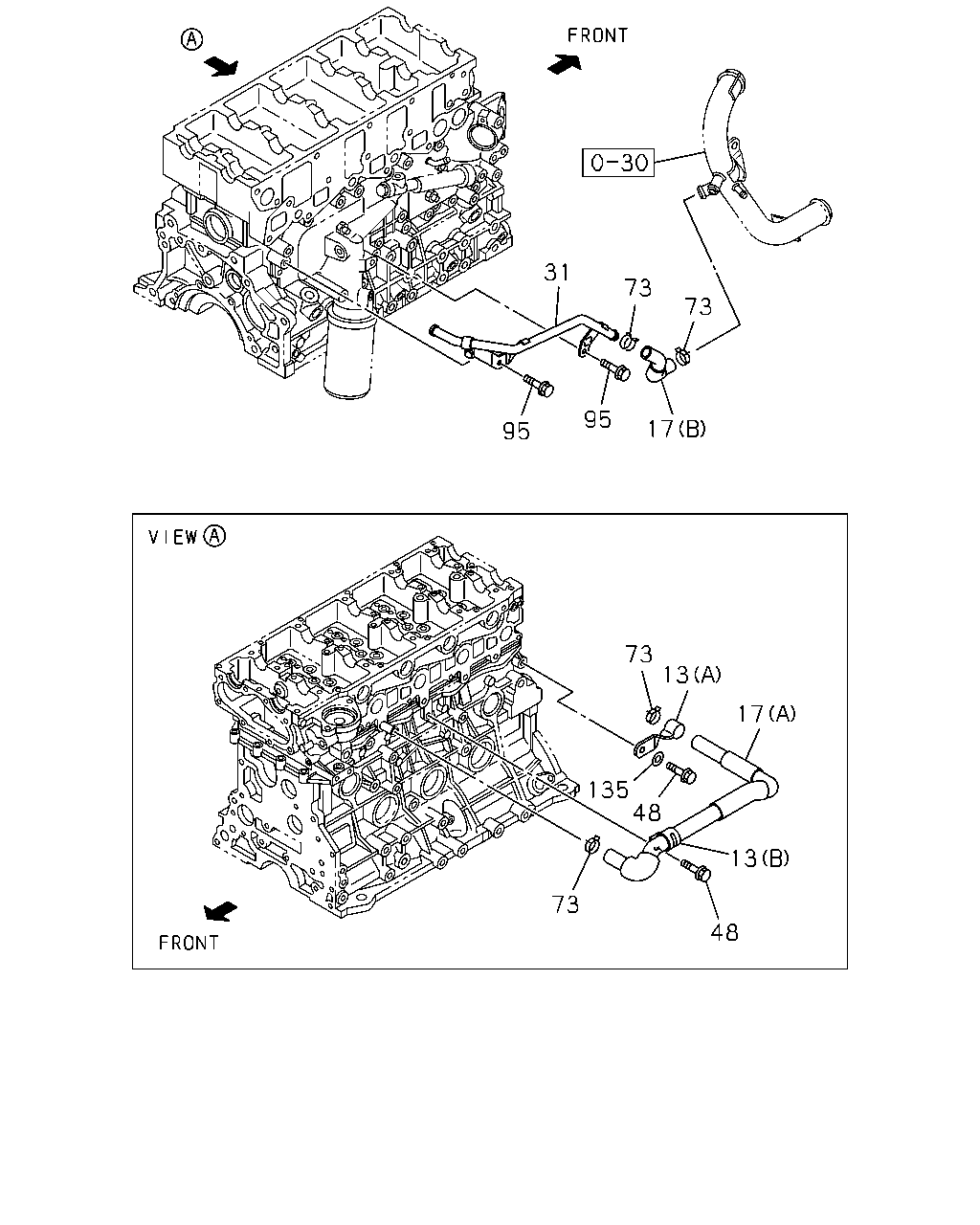

çizim 141007
31 73 73 95 17 95 73 13 17 135 48 13 73 48
BalonParca AdiParca NoAdetTipApplied Date A B
13 CLIP; HTR HOSE
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (A) ID=25 L=54 THA 		1-09700-392-0 01 1 0411-0508 ● ●
13 CLIP; HTR HOSE
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (A) ID=25 L=54 THA 		1-09700-392-0 01 1 0509-0606 ● ●
13 CLIP; HTR HOSE
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> (A) ID=25 L=54 THA 		1-09700-392-0 01 1 0607-0609 ● ●
13 CLIP; HTR HOSE
(A) ID=25 L=54 IMA 		1-09700-392-1 01 1 0610-0708 ● ●
13 CLIP; HTR HOSE
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> (A) ID=25 L=54 IMA 		1-09700-392-1 01 1 0709-0709 ● ●
13 CLIP; HTR HOSE
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (A) ID=25 L=54 IMA 		1-09700-392-1 01 1 0710-0809 ● ●
13 CLIP; HTR HOSE
(A) ID=25 L=54 IMA 		1-09700-392-1 01 1 0810- ● ●
13 CLIP; HTR HOSE
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (B) ID=24 H=40 L=24 THA 		1-09701-243-0 01 1 0411-0508 ● ●
13 CLIP; HTR HOSE
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (B) ID=24 H=40 L=24 THA 		1-09701-243-0 01 1 0509-0606 ● ●
13 CLIP; HTR HOSE
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> (B) ID=24 H=40 L=24 THA 		1-09701-243-0 01 1 0607-0609 ● ●
13 CLIP; HTR HOSE
(B) ID=24 H=40 L=24 THA 		1-09701-243-1 01 1 0610-0708 ● ●
13 CLIP; HTR HOSE
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> (B) ID=24 H=40 L=24 THA 		1-09701-243-1 01 1 0709-0709 ● ●
13 CLIP; HTR HOSE
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (B) ID=24 H=40 L=24 THA 		1-09701-243-1 01 1 0710-0809 ● ●
13 CLIP; HTR HOSE
(B) ID=24 H=40 L=24 THA 		1-09701-243-1 01 1 0810- ● ●
17 HOSE; WATER,BYPASS
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> (A) THA 		8-98036-953-0 01 1 0810- ●
17 HOSE; WATER,BYPASS
A/T 4 SPEED-JATCO<RMK> (A) THA 		8-97383-552-0 01 1 0411-0508 ● ●
17 HOSE; WATER,BYPASS
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> (A) THA 		8-97383-552-0 01 1 0509-0606 ● ●
17 HOSE; WATER,BYPASS
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (B) THA 		8-97375-189-1 01 1 0411-0508 ● ●
17 HOSE; WATER,BYPASS
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (B) THA 		8-97375-189-1 01 1 0509-0606 ● ●
17 HOSE; WATER,BYPASS
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> (A) THA 		8-98036-848-0 01 1 0607-0609 ● ●
17 HOSE; WATER,BYPASS
(A) THA 		8-98036-848-0 01 1 0610-0708 ● ●
17 HOSE; WATER,BYPASS
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> (A) THA 		8-98036-848-0 01 1 0709-0709 ● ●
17 HOSE; WATER,BYPASS
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (A) THA 		8-98036-848-0 01 1 0710- ● ●
17 HOSE; WATER,BYPASS
M/T MUA 5 SPEED 5G<RSP> (A) THA 		8-97375-188-1 01 1 0411-0508 ● ●
17 HOSE; WATER,BYPASS
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5G<RSP> (A) THA 		8-97375-188-1 01 1 0509-0606 ● ●
17 HOSE; WATER,BYPASS
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> (B) THA 		8-98031-860-0 01 1 0607-0609 ● ●
17 HOSE; WATER,BYPASS
(B) THA 		8-98031-860-0 01 1 0610-0708 ● ●
17 HOSE; WATER,BYPASS
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> (B) THA 		8-98031-860-0 01 1 0709-0709 ● ●
17 HOSE; WATER,BYPASS
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (B) THA 		8-98031-860-0 01 1 0710-0809 ● ●
17 HOSE; WATER,BYPASS
(B) THA 		8-98031-860-0 01 1 0810- ● ●
31 PIPE; BYPASS,HTR
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97375-042-0 01 1 0411-0606 ● ●
31 PIPE; BYPASS,HTR
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98025-351-0 01 1 0607-0809 ● ●
31 PIPE; BYPASS,HTR
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-98025-351-0 01 1 0810-1008 ● ●
31 PIPE; BYPASS,HTR
THA 		8-98025-351-0 01 1 1009- ● ●
48 BOLT; CLIP FIX
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> M8X12 FLANGE THA 		0-28050-812-0 02 1 0411-0606 ● ●
48 BOLT; CLIP FIX
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> M8X12 FLANGE THA 		0-28050-812-0 02 1 0607-0609 ● ●
48 BOLT; CLIP FIX
M8X12 FLANGE THA 		0-28050-812-0 02 1 0610-0708 ● ●
48 BOLT; CLIP FIX
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> M8X12 FLANGE THA 		0-28050-812-0 02 1 0709-0709 ● ●
48 BOLT; CLIP FIX
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> M8X12 FLANGE THA 		0-28050-812-0 02 1 0710-0809 ● ●
48 BOLT; CLIP FIX
M8X12 FLANGE THA 		0-28050-812-0 02 1 0810- ● ●
73 CLIP; HTR HOSE
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> ID=20.8 THA 		8-97944-127-0 04 1 0411-0606 ● ●
73 CLIP; HTR HOSE
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> ID=20.8 THA 		8-97944-127-0 04 1 0607-0609 ● ●
73 CLIP; HTR HOSE
ID=20.8 THA 		8-97944-127-0 04 1 0610-0708 ● ●
73 CLIP; HTR HOSE
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> ID=20.8 THA 		8-97944-127-0 04 1 0709-0709 ● ●
73 CLIP; HTR HOSE
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> ID=20.8 THA 		8-97944-127-0 04 1 0710-0809 ● ●
73 CLIP; HTR HOSE
ID=20.8 THA 		8-97944-127-0 04 1 0810- ● ●
95 BOLT; BYPASS PIPE
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> M8X16 FLANGE THA 		0-28050-816-0 02 1 0411-0606 ● ●
95 BOLT; BYPASS PIPE
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> M8X16 FLANGE THA 		0-28050-816-0 02 1 0607-0809 ● ●
95 BOLT; BYPASS PIPE
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> M8X16 FLANGE THA 		0-28050-816-0 02 1 0810-1008 ● ●
95 BOLT; BYPASS PIPE
M8X16 FLANGE THA 		0-28050-816-0 02 1 1009- ● ●
135 WASHER; PL
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> ID=8.4 OD=16 THA 		0-91610-508-0 01 1 0411-0606 ● ●
135 WASHER; PL
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> ID=8.4 OD=16 THA 		0-91610-508-0 01 1 0607-0609 ● ●
135 WASHER; PL
ID=8.4 OD=16 THA 		0-91610-508-0 01 1 0610-0708 ● ●
135 WASHER; PL
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> ID=8.4 OD=16 THA 		0-91610-508-0 01 1 0709-0709 ● ●
135 WASHER; PL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> ID=8.4 OD=16 THA 		0-91610-508-0 01 1 0710-0809 ● ●
135 WASHER; PL
ID=8.4 OD=16 THA 		0-91610-508-0 01 1 0810- ● ●
