8-40 — HEATER SYSTEM (#74923) — 21 parça

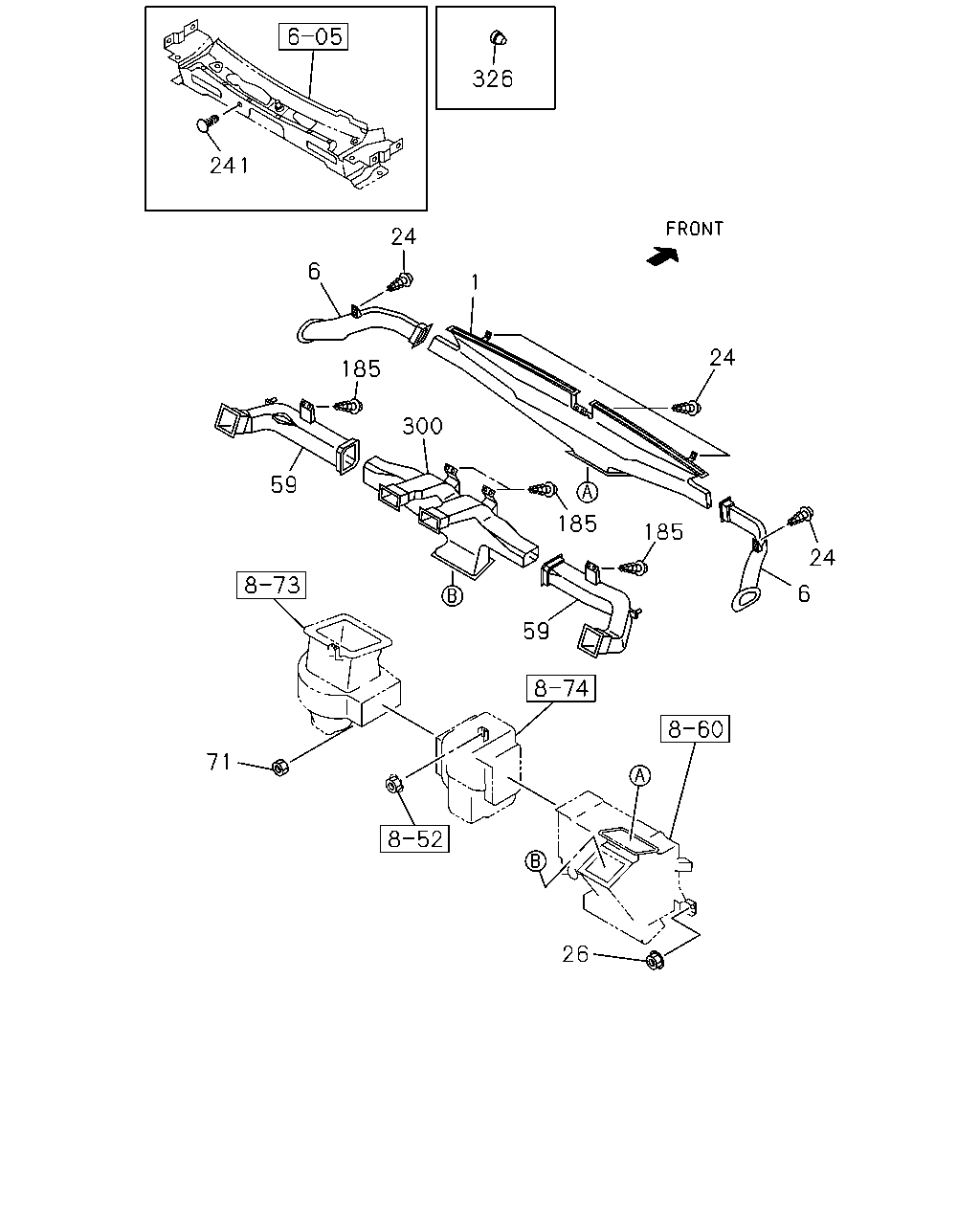

çizim 143717
326 241 24 6 1 24 185 300 59 185 185 24 6 59 71 26
BalonParca AdiParca NoAdetTipApplied Date A B
1 NOZZLE; DEFROSTER,INST PNL
THA 		8-97235-773-1 01 1 0411- ● ●
6 DUCT; SIDE DEFROSTER
THA 		8-97235-878-0 01 1 0411- ● ●
6 DUCT; SIDE DEFROSTER
THA 		8-97235-874-0 01 1 0411- ● ●
24 SCREW; NOZZLE TO INST PNL
M5X16 TAPPING THA 		9-09829-323-1 05 1 0411-0702 ● ●
24 SCREW; NOZZLE TO INST PNL
M5X16 TAPPING THA 		8-98061-685-0 05 1 0703-1005 ● ●
24 SCREW; NOZZLE TO INST PNL
M5X16 TAPPING THA 		8-98167-449-0 05 1 1006- ● ●
26 NUT; HTR
M6 FLANGE THA 		8-97063-399-0 04 1 0411-0702 ● ●
26 NUT; HTR
M6 FLANGE IMA 		8-98055-704-0 04 1 0703- ● ●
59 DUCT; VENT,ASSIST SIDE
PASSENGER SIDE THA 		8-97235-884-1 01 1 0411-0606 ● ●
59 DUCT; VENT,ASSIST SIDE
PASSENGER SIDE THA 		8-98007-083-0 01 1 0607- ● ●
59 DUCT; VENT,ASSIST SIDE
DRIVER SIDE THA 		8-97235-886-1 01 1 0411-0606 ● ●
59 DUCT; VENT,ASSIST SIDE
DRIVER SIDE THA 		8-98007-084-0 01 1 0607- ● ●
71 NUT; BLOWER UNIT TO DASH
M6 FLANGE THA 		8-97063-399-0 03 1 0411-0702 ● ●
71 NUT; BLOWER UNIT TO DASH
M6 FLANGE IMA 		8-98055-704-0 03 1 0703- ● ●
185 SCREW; VENT DUCT
M5X16 TAPPING THA 		9-09829-323-1 04 1 0411-0702 ● ●
185 SCREW; VENT DUCT
M5X16 TAPPING THA 		8-98061-685-0 04 1 0703-1005 ● ●
185 SCREW; VENT DUCT
M5X16 TAPPING THA 		8-98167-449-0 04 1 1006- ● ●
241 PLUG; RUBBER,EVAP DRAIN HOLE
THA 		8-94279-922-0 02 1 0411-0606 ● ●
300 DUCT; VENT,CENTER
THA 		8-97235-881-0 01 1 0411-0606 ● ●
300 DUCT; VENT,CENTER
THA 		8-98007-074-0 01 1 0607- ● ●
326 GROMMET; DRAIN HOSE
EXC. AIR CONDITIONER ROOF MOUNTED<C69> OD=12 THA 		9-09956-122-0 02 1 0411- ● ●
