8-28 — CHASSIS ELECTRICAL (#74922) — 83 parça

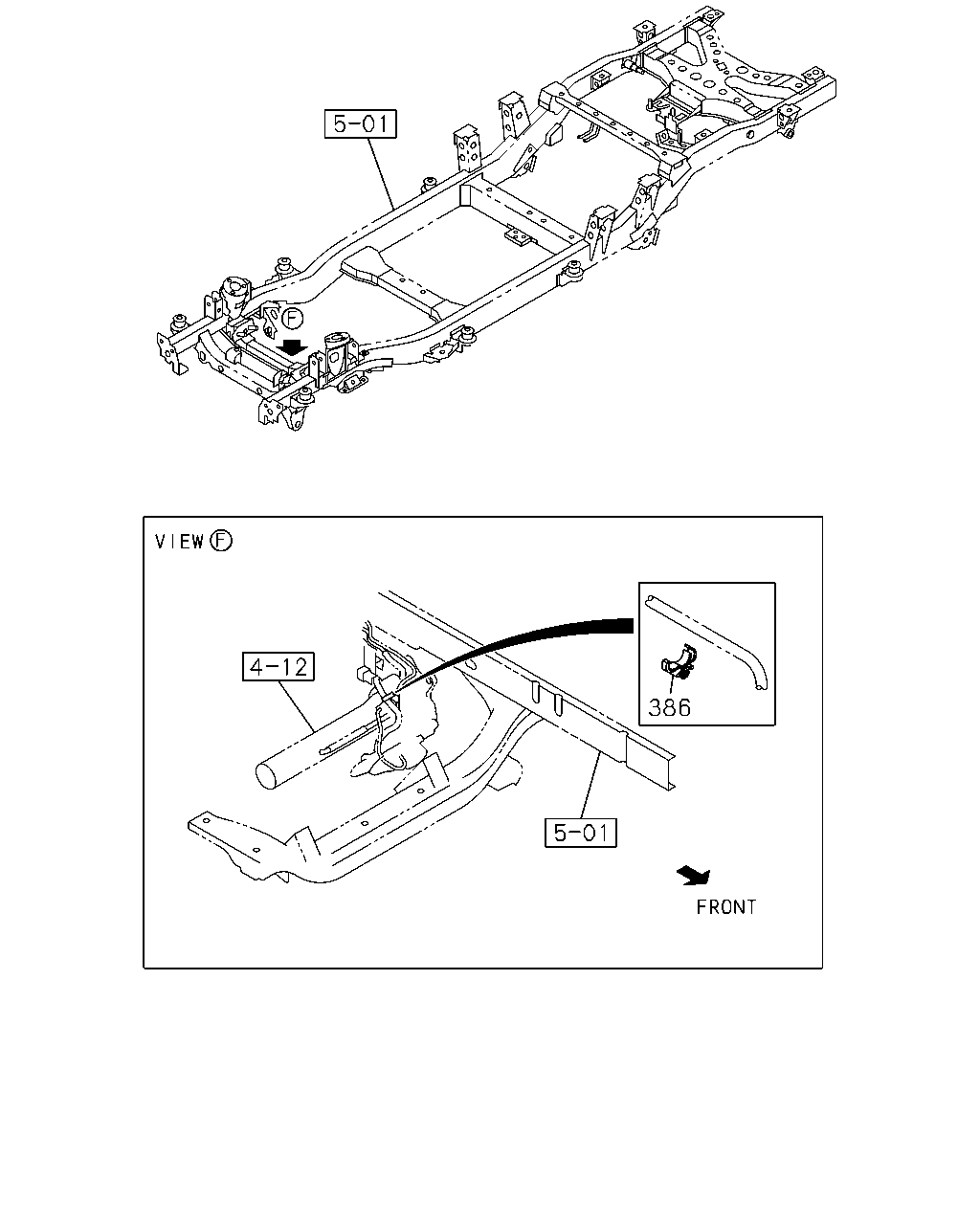

386

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	386	CLIP; HARNESS ID=7-10 THA	8-94472-578-0	01	1	0411-	●

25 25 551 123 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	RELAY; TAIL LAMP 4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> 12V YAZAKI THA	8-97309-293-0	01	1	0411-0606	●	●
25	RELAY; TAIL LAMP 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> 12V OMRON THA	8-98005-407-0	01	1	0607-0609	●	●
25	RELAY; TAIL LAMP M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> 12V OMRON THA	8-98005-407-0	01	1	0610-0708	●	●
25	RELAY; TAIL LAMP 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> 12V OMRON THA	8-98005-407-0	01	1	0709-0709	●	●
25	RELAY; TAIL LAMP M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> 12V OMRON THA	8-98005-407-0	01	1	0710-0809	●	●
25	RELAY; TAIL LAMP 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> 12V OMRON THA	8-98005-407-0	01	1	0810-	●	●
25	RELAY; TAIL LAMP 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> 12V OMRON THA	8-98005-407-0	01	1	0810-	●	●
25	RELAY; TAIL LAMP 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> 12V YAZAKI THA	8-97309-293-0	01	1	0709-0709	●	●
25	RELAY; TAIL LAMP M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> 12V YAZAKI THA	8-97309-293-0	01	1	0710-0809	●	●
25	RELAY; TAIL LAMP 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> 12V YAZAKI THA	8-97309-293-0	01	1	0810-	●	●
25	RELAY; TAIL LAMP 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> 12V YAZAKI THA	8-97309-293-0	01	1	0810-	●	●
123	RELAY; HTR 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> 12V YAZAKI THA	8-98146-834-0	01	1	0909-	●	●
123	RELAY; HTR 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> 12V YAZAKI THA	8-98146-834-0	01	1	0909-	●	●
123	RELAY; HTR 4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> 12V YAZAKI THA	8-97309-294-0	01	1	0411-0606	●	●
123	RELAY; HTR 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> 12V OMRON THA	8-97125-441-1	01	1	0607-0609	●	●
123	RELAY; HTR M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> 12V OMRON THA	8-97125-441-1	01	1	0610-0708	●	●
123	RELAY; HTR 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> 12V OMRON THA	8-97125-441-1	01	1	0709-0709	●	●
123	RELAY; HTR M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> 12V OMRON THA	8-97125-441-1	01	1	0710-0809	●	●
123	RELAY; HTR 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> 12V OMRON THA	8-97125-441-1	01	1	0810-0908	●	●
123	RELAY; HTR 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> 12V OMRON THA	8-97125-441-1	01	1	0810-0908	●	●
123	RELAY; HTR 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> 12V YAZAKI THA	8-97309-294-0	01	1	0709-0709	●	●
123	RELAY; HTR M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> 12V YAZAKI THA	8-97309-294-0	01	1	0710-0809	●	●
123	RELAY; HTR 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> 12V YAZAKI THA	8-97309-294-0	01	1	0810-0908	●	●
123	RELAY; HTR 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> 12V YAZAKI THA	8-97309-294-0	01	1	0810-0908	●	●
551	RELAY; TRANSMISSION 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> 12V OMRON THA	8-98005-407-0	01	1	0607-0609	●	●
551	RELAY; TRANSMISSION M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> 12V OMRON THA	8-98005-407-0	01	1	0610-0708	●	●
551	RELAY; TRANSMISSION 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> 12V OMRON THA	8-98005-407-0	01	1	0709-0709	●	●
551	RELAY; TRANSMISSION M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> 12V OMRON THA	8-98005-407-0	01	1	0710-0809	●	●
551	RELAY; TRANSMISSION 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> 12V OMRON THA	8-98005-407-0	01	1	0810-	●	●
551	RELAY; TRANSMISSION 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> 12V OMRON THA	8-98005-407-0	01	1	0810-	●	●
551	RELAY; TRANSMISSION 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> 12V YAZAKI THA	8-97309-293-0	01	1	0709-0709	●	●
551	RELAY; TRANSMISSION M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> 12V YAZAKI THA	8-97309-293-0	01	1	0710-0809	●	●
551	RELAY; TRANSMISSION 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> 12V YAZAKI THA	8-97309-293-0	01	1	0810-	●	●
551	RELAY; TRANSMISSION 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> 12V YAZAKI THA	8-97309-293-0	01	1	0810-	●	●

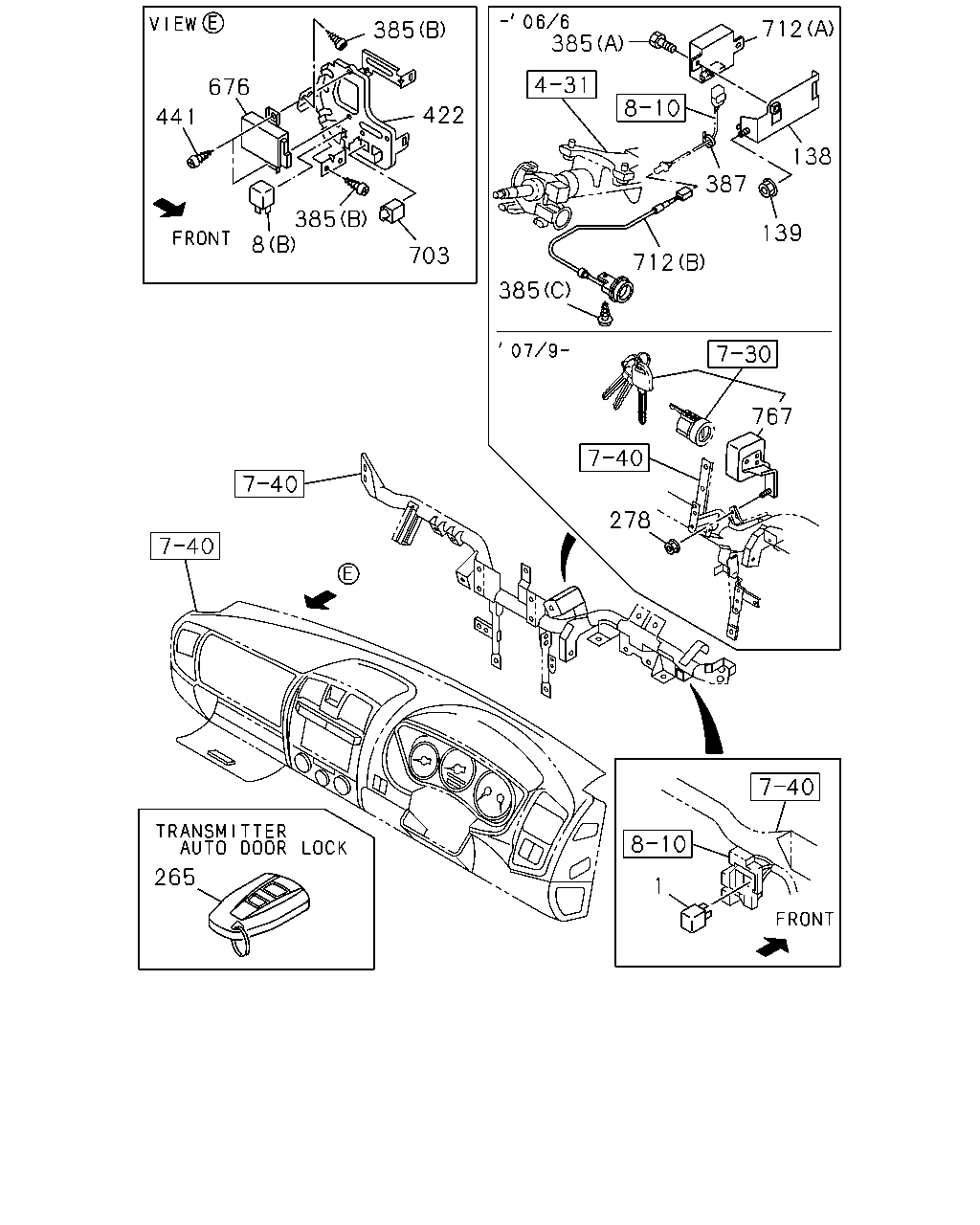

385 712 385 676 422 441 138 387 385 8 139 703 712 385 767 278 265 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	UNIT; FLASHER 12V DENSO THA	8-97912-779-0	01	1	0411-0510	●	●
1	UNIT; FLASHER 12V DENSO THA	8-98032-675-0	01	1	0511-1404	●	●
1	UNIT; FLASHER DENSO THA	8-97202-225-1	01	1	1405-	●	●
8	RELAY; WIPER (A) 12V THA	8-97302-101-0	01	1	0411-	●	●
8	RELAY; WIPER (B) 12V YAZAKI THA	8-97309-292-0	02	1	0411-	●	●
138	BRACKET; ANTI THEFT CONT THA	8-97357-768-0	01	1	0411-0606	●	●
139	NUT; ANTI THEFT BRKT M6 FLANGE THA	0-91180-106-0	01	1	0411-0606	●	●
265	TRANSMITTER ASM; AUTO DOOR LOCK THA	8-97375-439-0	02	1	0411-0708	●	●
278	NUT; CONT UNIT M6 FLANGE THA	0-91180-106-0	01	1	0709-	●	●
385	BOLT; CONT UNIT (A) M6X12 FLANGE THA	0-28050-612-0	01	1	0411-0606	●	●
385	BOLT; CONT UNIT (C) M4X12 W/LK&PL WASHER THA	9-03920-412-0	01	1	0411-0606	●	●
385	BOLT; CONT UNIT (C) M4X12 W/LK&PL WASHER THA	0-36230-412-0	01	1	0607-0607	●	●
385	BOLT; CONT UNIT (C) M4X12 W/LK&PL WASHER THA	0-36230-412-0	02	1	0607-	●	●
385	BOLT; CONT UNIT (B) M5X16 TAPPING THA	9-09829-323-1	02	1	0411-0702	●	●
385	BOLT; CONT UNIT (B) M5X16 TAPPING THA	8-98061-685-0	02	1	0703-1005	●	●
385	BOLT; CONT UNIT (B) M5X16 TAPPING THA	8-98167-449-0	02	1	1006-	●	●
387	CLIP; BAND L=140 THA	8-97920-656-0	01	1	0411-	●	●
422	BRACKET; CONT UNIT THA	8-97381-410-0	01	1	0411-	●	●
441	SCREW; CONT UNIT M5X16 TAPPING THA	9-09829-323-1	02	1	0411-0702	●	●
441	SCREW; CONT UNIT M5X16 TAPPING THA	8-98061-685-0	02	1	0703-1005	●	●
441	SCREW; CONT UNIT M5X16 TAPPING THA	8-98167-449-0	02	1	1006-	●	●
676	CONTROL UNIT; KEYLESS ENTRY THA	8-97375-440-0	01	1	0411-0708	●	●
676	CONTROL UNIT; KEYLESS ENTRY THA	8-98053-167-0	01	1	0709-	●	●
703	TIMER; DEFOGGER 12V THA	8-97301-600-0	01	1	0411-	●	●
712	CONTROL UNIT; ANTI THEFT (B) THA	8-97251-755-0	01	1	0411-0606	●	●
712	CONTROL UNIT; ANTI THEFT (C) THA	8-98008-412-0	01	1	0607-0708	●	●
712	CONTROL UNIT; ANTI THEFT 4JJ1-TCS ENG<LFB> (C) THA	8-98008-412-0	01	1	0709-0709	●	●
712	CONTROL UNIT; ANTI THEFT (C) THA	8-98008-412-0	01	1	0710-	●	●
712	CONTROL UNIT; ANTI THEFT (A) THA	8-97377-323-0	01	1	0411-0606	●	●
767	RECEIVER ASM; KEYLESS ENTRY THA	8-98053-170-2	01	1	0709-	●	●

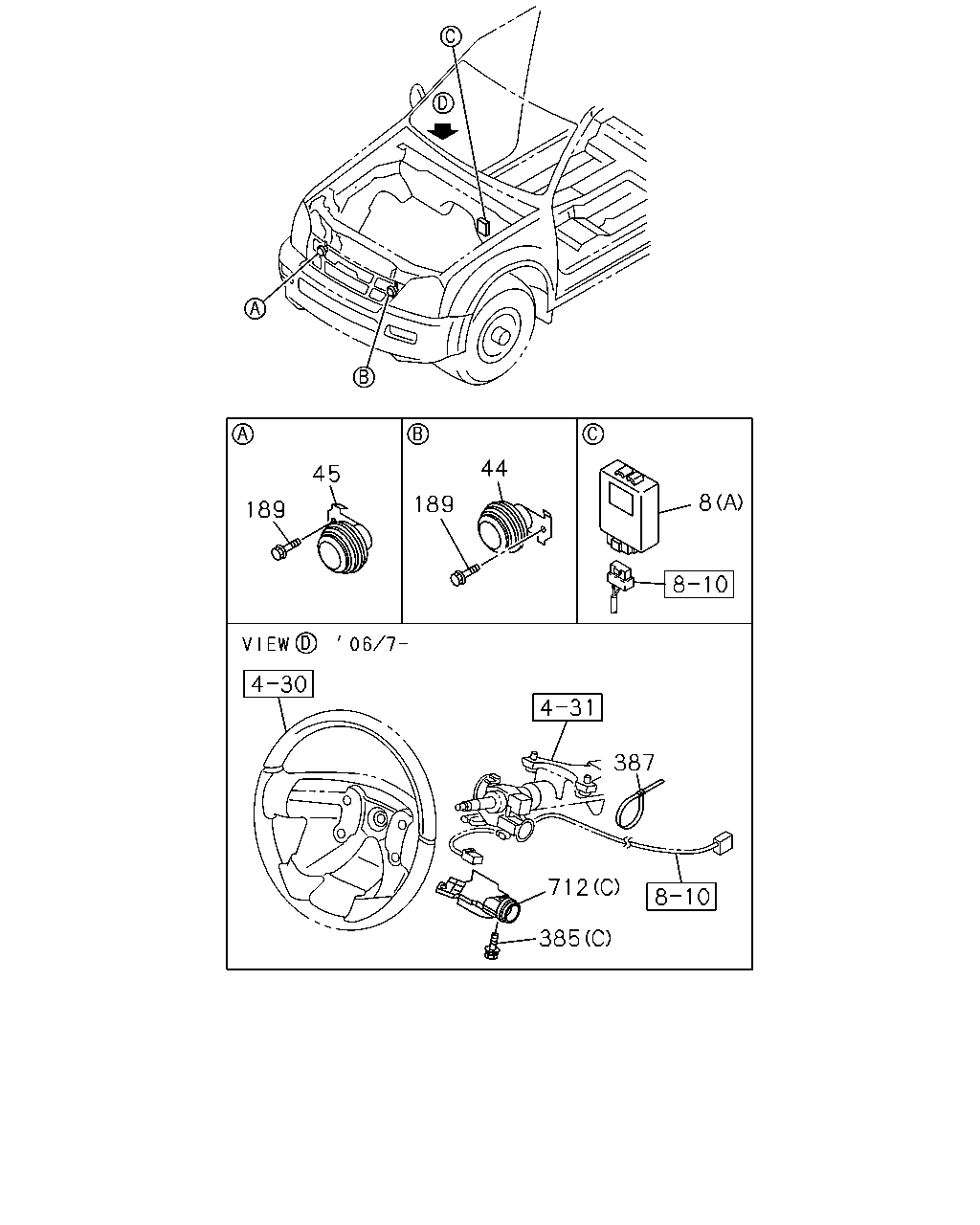

44 45 8 189 189 387 712 385

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	RELAY; WIPER (A) 12V THA	8-97302-101-0	01	1	0411-	●	●
8	RELAY; WIPER (B) 12V YAZAKI THA	8-97309-292-0	02	1	0411-	●	●
44	HORN; HIGH NOTE THA	8-97237-046-0	01	1	0411-	●	●
45	HORN; LOW NOTE THA	8-97237-047-0	01	1	0411-	●	●
189	BOLT; HORN M6X14 W/LK&PL WASHER THA	8-97086-822-0	02	1	0411-	●	●
385	BOLT; CONT UNIT (A) M6X12 FLANGE THA	0-28050-612-0	01	1	0411-0606	●	●
385	BOLT; CONT UNIT (C) M4X12 W/LK&PL WASHER THA	9-03920-412-0	01	1	0411-0606	●	●
385	BOLT; CONT UNIT (C) M4X12 W/LK&PL WASHER THA	0-36230-412-0	01	1	0607-0607	●	●
385	BOLT; CONT UNIT (C) M4X12 W/LK&PL WASHER THA	0-36230-412-0	02	1	0607-	●	●
385	BOLT; CONT UNIT (B) M5X16 TAPPING THA	9-09829-323-1	02	1	0411-0702	●	●
385	BOLT; CONT UNIT (B) M5X16 TAPPING THA	8-98061-685-0	02	1	0703-1005	●	●
385	BOLT; CONT UNIT (B) M5X16 TAPPING THA	8-98167-449-0	02	1	1006-	●	●
387	CLIP; BAND L=140 THA	8-97920-656-0	01	1	0411-	●	●
712	CONTROL UNIT; ANTI THEFT (B) THA	8-97251-755-0	01	1	0411-0606	●	●
712	CONTROL UNIT; ANTI THEFT (C) THA	8-98008-412-0	01	1	0607-0708	●	●
712	CONTROL UNIT; ANTI THEFT 4JJ1-TCS ENG<LFB> (C) THA	8-98008-412-0	01	1	0709-0709	●	●
712	CONTROL UNIT; ANTI THEFT (C) THA	8-98008-412-0	01	1	0710-	●	●
712	CONTROL UNIT; ANTI THEFT (A) THA	8-97377-323-0	01	1	0411-0606	●	●
