◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51027 - UCR/UCS(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-27 - SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM ▶
8-27 — SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM (#74921) — 20 parça

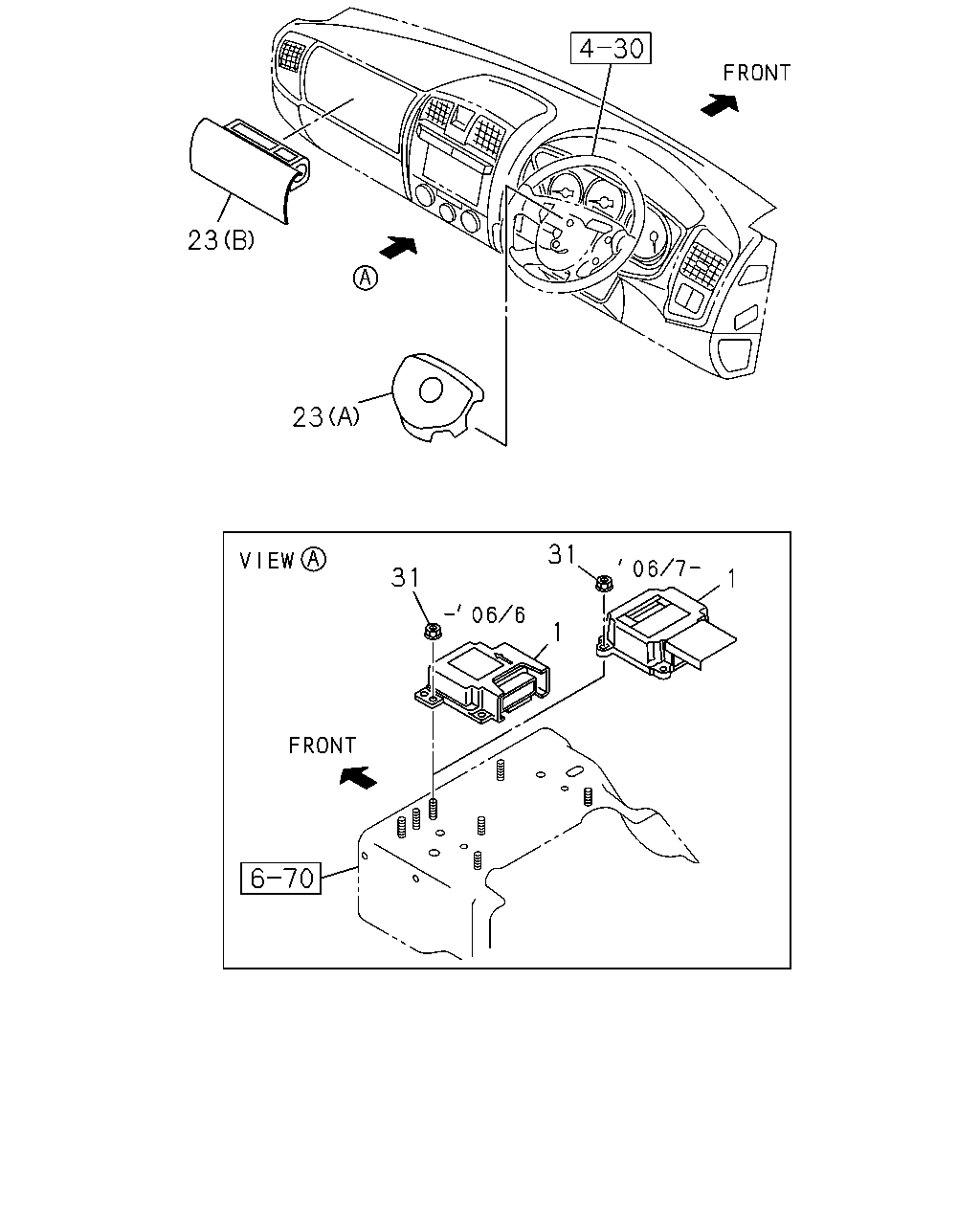

çizim 143683
23 23 31 31 1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CONTROL UNIT; SIR
THA 		8-97373-161-0 01 1 0411-0512 ● ●
1 CONTROL UNIT; SIR
THA 		8-98032-629-0 01 1 0601-0606 ● ●
1 CONTROL UNIT; SIR
THA 		8-98039-723-0 01 1 0607- ● ●
23 AIR BAG UNIT
INTERIOR COLOR VERY DARK GRAY<116> SALES PACKAGE EQUIPMENT SPORTY<XK0> (A) DARK GRAY THA 		8-97418-424-0 01 1 1101-1101 ●
23 AIR BAG UNIT
(B) DARK GRAY THA 		8-97396-840-0 01 1 0411-0606 ● ●
23 AIR BAG UNIT
(A) DARK GRAY THA 		8-97403-333-1 01 1 0607-0609 ● ●
23 AIR BAG UNIT
(A) DARK GRAY THA 		8-97408-898-0 01 1 0610-0708 ● ●
23 AIR BAG UNIT
(A) DARK GRAY THA 		8-97412-975-0 01 1 0709-0808 ● ●
23 AIR BAG UNIT
(A) DARK GRAY THA 		8-97408-898-0 01 1 0809-0904 ● ●
23 AIR BAG UNIT
(A) DARK GRAY THA 		8-97417-274-0 01 1 0905-0906 ● ●
23 AIR BAG UNIT
(A) DARK GRAY THA 		8-97418-298-0 01 1 0907-1012 ● ●
23 AIR BAG UNIT
INTERIOR COLOR BEIGE<184> EXC. SALES PACKAGE EQUIPMENT SPORTY<XK0> (A) DARK GRAY THA 		8-97418-298-0 01 1 1101-1101 ●
23 AIR BAG UNIT
(A) DARK GRAY THA 		8-97418-298-0 01 1 1101-1101 ●
23 AIR BAG UNIT
(A) DARK GRAY THA 		8-97418-298-0 01 1 1102- ● ●
23 AIR BAG UNIT
(A) DARK GRAY THA 		8-97397-845-0 01 1 0411-0508 ● ●
23 AIR BAG UNIT
(A) DARK GRAY THA 		8-97404-845-0 01 1 0509-0606 ● ●
23 AIR BAG UNIT
(B) DARK GRAY THA 		8-97403-930-1 01 1 0607-0609 ● ●
23 AIR BAG UNIT
(B) DARK GRAY THA 		8-97408-901-1 01 1 0610-1007 ● ●
23 AIR BAG UNIT
(B) BLACK THA 		8-97422-062-0 01 1 1008- ● ●
31 NUT
M6 FLANGE THA 		0-91180-206-0 03 1 0411- ● ●
