◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51027 - UCR/UCS(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#74920) — 50 parça

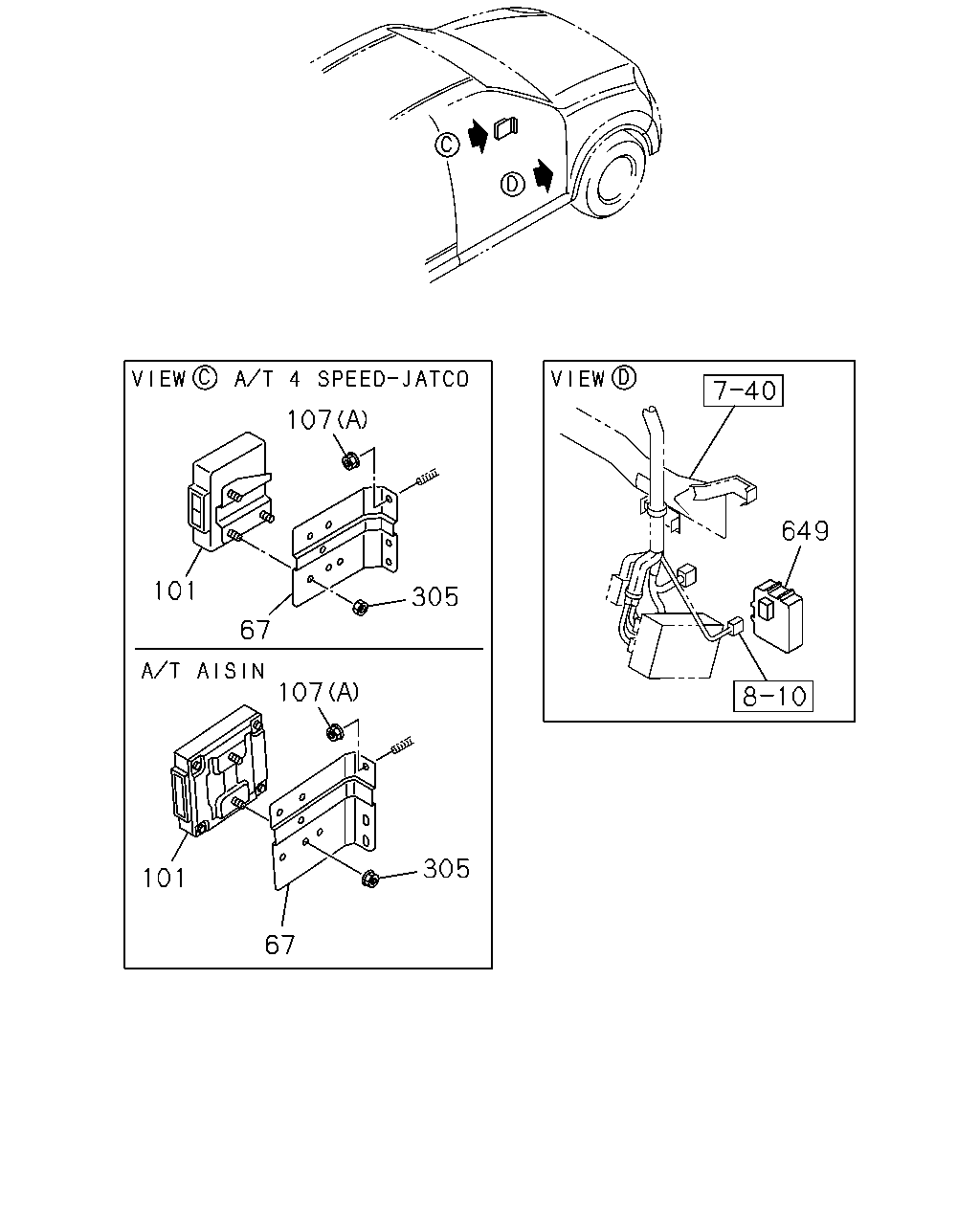

çizim 138294
107 649 101 305 67 107 305 101 67
BalonParca AdiParca NoAdetTipApplied Date A B
67 BRACKET; CONT UNIT
A/T AISIN<RMD> THA 		8-97306-829-0 01 1 0610-0809 ● ●
67 BRACKET; CONT UNIT
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA 		8-97306-829-0 01 1 0810- ● ●
67 BRACKET; CONT UNIT
A/T 4 SPEED-JATCO<RMK> THA 		8-97306-829-0 01 1 0411-0606 ● ●
101 CONTROL UNIT; ELEC,A/T
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> FINAL GEAR RATIO 43/10<GY2> THA 		8-98041-750-0 01 1 0810- ●
101 CONTROL UNIT; ELEC,A/T
A/T 4 SPEED-JATCO<RMK> THA 		8-97374-474-0 01 1 0411-0503 ● ●
101 CONTROL UNIT; ELEC,A/T
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA 		8-98012-395-0 01 1 0504-0606 ● ●
101 CONTROL UNIT; ELEC,A/T
4JJ1-TCX ENG<LS0> A/T AISIN<RMD> THA 		8-98043-641-0 01 1 0610- ● ●
107 NUT; BRKT,ELEC CONT UNIT
A/T AISIN<RMD> (A) M8 FLANGE THA 		0-91180-108-0 02 1 0610-0809 ● ●
107 NUT; BRKT,ELEC CONT UNIT
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (A) M8 FLANGE THA 		0-91180-108-0 02 1 0810- ● ●
107 NUT; BRKT,ELEC CONT UNIT
A/T 4 SPEED-JATCO<RMK> (A) M8 FLANGE THA 		0-91180-108-0 02 1 0411-0606 ● ●
107 NUT; BRKT,ELEC CONT UNIT
(B) M6 FLANGE THA 		0-91180-106-0 02 1 0607- ●
305 NUT; CONT UNIT
A/T 4 SPEED-JATCO<RMK> M6 FLANGE THA 		0-91180-106-0 03 1 0810- ●
305 NUT; CONT UNIT
A/T AISIN<RMD> M6 FLANGE THA 		0-91180-106-0 02 1 0610- ● ●
305 NUT; CONT UNIT
A/T 4 SPEED-JATCO<RMK> M6 FLANGE THA 		0-91180-106-0 03 1 0411-0606 ● ●
649 CONTROL UNIT; RR FOG LAMP
THA 		8-97362-213-0 01 1 0411- ● ●

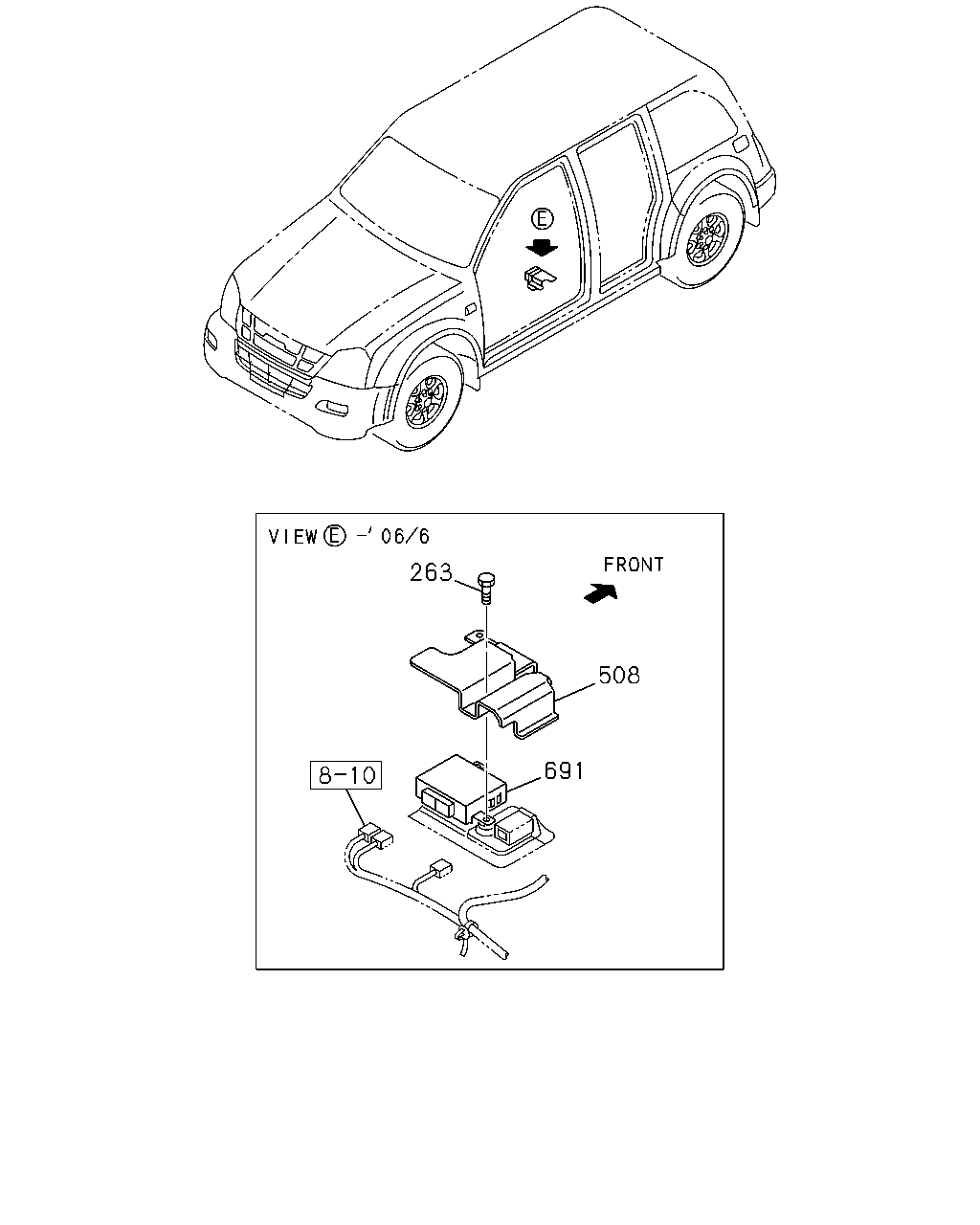

çizim 138431
263 508 691
BalonParca AdiParca NoAdetTipApplied Date A B
263 BOLT; CONT UNIT
M6X16 FLANGE THA 		0-28680-616-0 02 1 0411-0601 ●
263 BOLT; CONT UNIT
M6X16 FLANGE THA 		0-28650-616-0 02 1 0602-0606 ●
508 PROTECTOR
THA 		8-97324-594-1 01 1 0411-0606 ●
691 CONTROLLER; TRANSFER
THA 		8-97374-038-0 01 1 0411-0508 ●
691 CONTROLLER; TRANSFER
THA 		8-97386-320-0 01 1 0509-0512 ●
691 CONTROLLER; TRANSFER
THA 		8-98021-885-0 01 1 0601-0606 ●
691 CONTROLLER; TRANSFER
THA 		8-98024-663-0 01 1 0607- ●

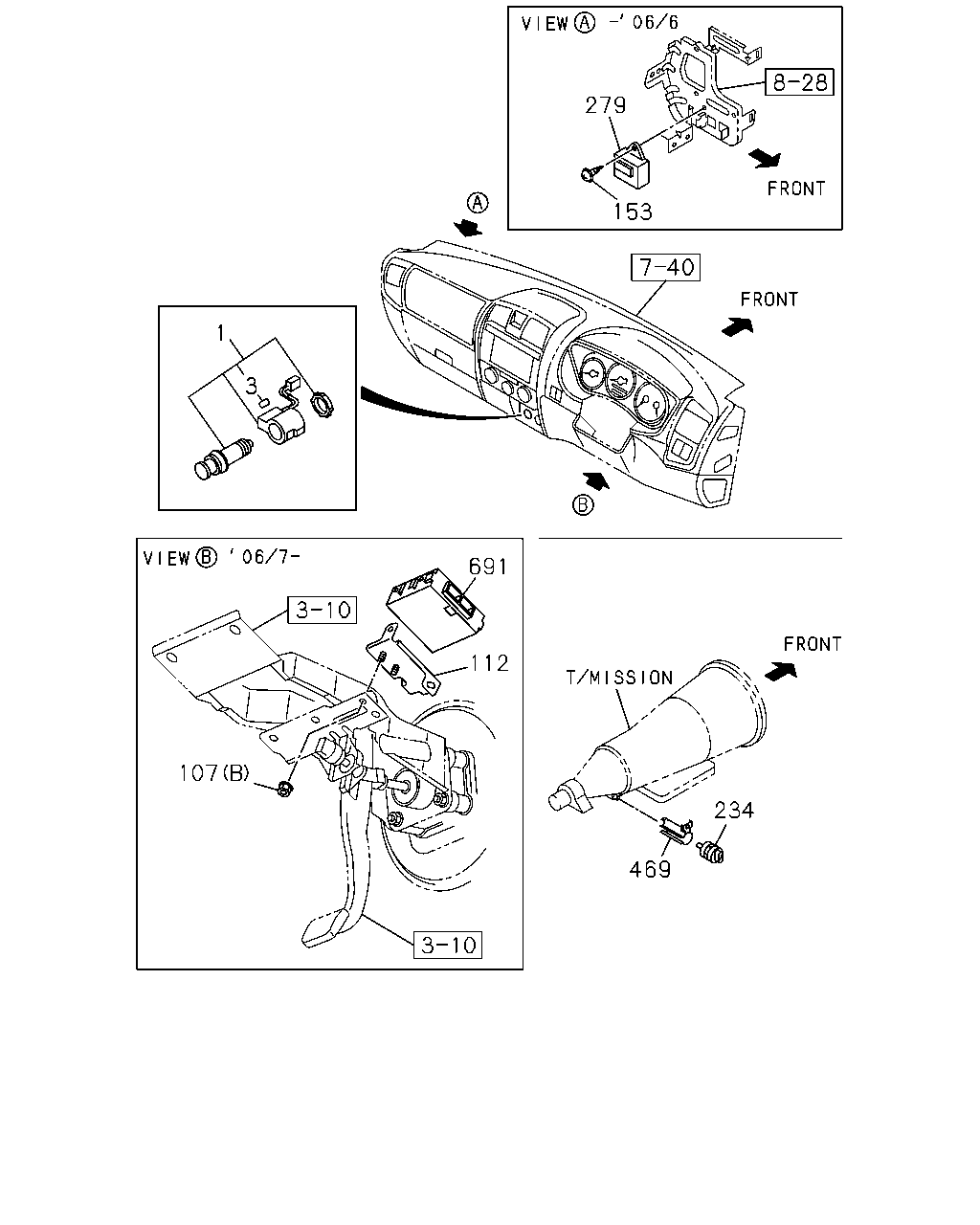

çizim 185459
279 153 1 3 691 112 107 234 469
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR
THA 		8-97329-641-0 01 1 0411-1001 ● ●
1 LIGHTER; CIGAR
THA 		8-97302-229-0 01 1 1002- ● ●
3 BULB; CIGAR LIGHTER
14V 1.4W THA 		8-97173-160-0 01 1 0411- ● ●
107 NUT; BRKT,ELEC CONT UNIT
A/T AISIN<RMD> (A) M8 FLANGE THA 		0-91180-108-0 02 1 0610-0809 ● ●
107 NUT; BRKT,ELEC CONT UNIT
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (A) M8 FLANGE THA 		0-91180-108-0 02 1 0810- ● ●
107 NUT; BRKT,ELEC CONT UNIT
A/T 4 SPEED-JATCO<RMK> (A) M8 FLANGE THA 		0-91180-108-0 02 1 0411-0606 ● ●
107 NUT; BRKT,ELEC CONT UNIT
(B) M6 FLANGE THA 		0-91180-106-0 02 1 0607- ●
112 BRACKET; CONT UNIT
THA 		8-97945-256-0 01 1 0607- ●
153 BOLT; BUZZER FIX
M5X16 TAPPING THA 		9-09829-323-1 01 1 0411-0606 ● ●
234 SENSOR; VEHICLE SPD
A/T AISIN<RMD> 4 PULSE PPS RESIN WHITE/BLACK THA 		8-98043-734-0 01 1 0610- ●
234 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5G<RSP> 4 PULSE PPS RESIN WHITE IMA 		8-97377-920-0 01 1 0411-0508 ●
234 SENSOR; VEHICLE SPD
4 PULSE PPS RESIN WHITE IMA 		8-97377-920-0 01 1 0411-0508 ●
234 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5G<RSP> 4 PULSE PPS RESIN WHITE IMA 		8-97377-920-0 01 1 0509-0606 ●
234 SENSOR; VEHICLE SPD
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> 4 PULSE PPS RESIN WHITE IMA 		8-97377-920-0 01 1 0509-0606 ●
234 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H<MWQ> 4 PULSE PPS RESIN WHITE IMA 		8-97377-920-0 01 1 0607-0609 ● ●
234 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H<MWQ> 4 PULSE PPS RESIN WHITE IMA 		8-97377-920-0 01 1 0610-0708 ●
234 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> 4 PULSE PPS RESIN WHITE IMA 		8-97377-920-0 01 1 0610-0708 ●
234 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H<MWQ> 4 PULSE PPS RESIN WHITE IMA 		8-97377-920-0 01 1 0709-0709 ● ●
234 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 PULSE PPS RESIN WHITE IMA 		8-97377-920-0 01 1 0710- ●
234 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> 4 PULSE PPS RESIN WHITE IMA 		8-97377-920-0 01 1 0710- ●
279 BUZZER ASM; SEAT BELT WARNING
THA 		8-97135-562-0 01 1 0411-0606 ● ●
469 PROTECTOR; SPEED SENSOR
M/T MUA 5 SPEED 5G<RSP> THA 		8-97168-308-0 01 1 0411-0606 ●
469 PROTECTOR; SPEED SENSOR
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97168-308-0 01 1 0607-0809 ●
469 PROTECTOR; SPEED SENSOR
M/T MUA 5 SPEED 5H<MWQ> IMA 		8-98119-901-0 01 1 0810- ●
691 CONTROLLER; TRANSFER
THA 		8-97374-038-0 01 1 0411-0508 ●
691 CONTROLLER; TRANSFER
THA 		8-97386-320-0 01 1 0509-0512 ●
691 CONTROLLER; TRANSFER
THA 		8-98021-885-0 01 1 0601-0606 ●
691 CONTROLLER; TRANSFER
THA 		8-98024-663-0 01 1 0607- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
