Sayfa 8-25 - Isuzu EPC

8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#74919) — 327 parça

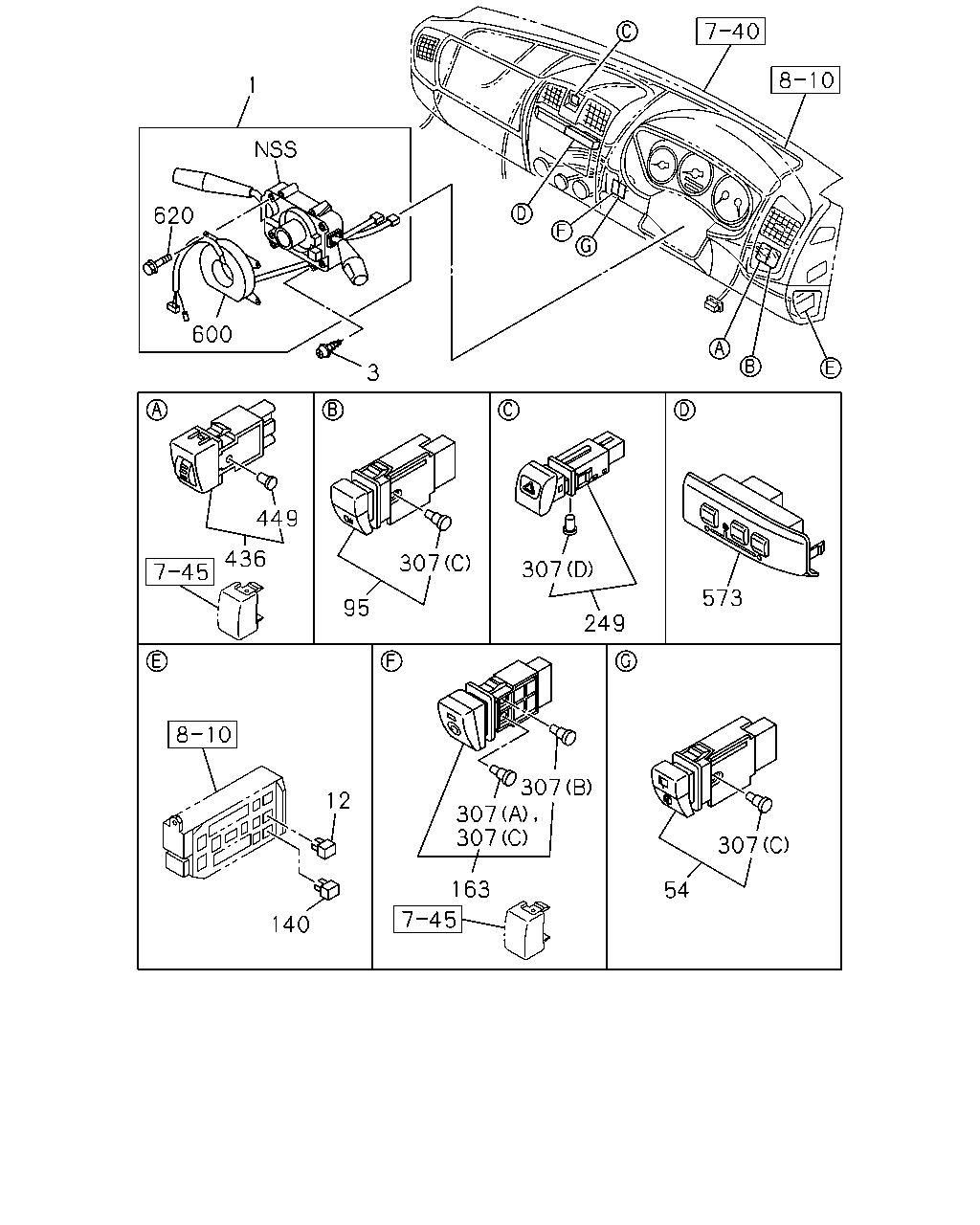

1 620 600 3 449 436 307 307 573 95 249 307 307 307 12 307 163 54 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SWITCH; COMB THA	8-97360-687-0	01	1	0411-0606	●	●
1	SWITCH; COMB THA	8-98007-711-0	01	1	0607-	●	●
3	SCREW; COMB SW M5X14 W/LK&PL WASHER THA	9-03920-514-0	02	1	0411-0606	●	●
3	SCREW; COMB SW M5X14 W/LK&PL WASHER THA	0-36230-514-0	02	1	0607-	●	●
12	RELAY; POWER WINDOW A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> 12V YAZAKI THA	8-97309-293-0	01	1	0411-0606	●	●
12	RELAY; POWER WINDOW M/T MUA 5 SPEED 5H<MWQ> 12V OMRON THA	8-98005-407-0	01	1	0607-0609	●	●
12	RELAY; POWER WINDOW M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> 12V OMRON THA	8-98005-407-0	01	1	0610-0708	●	●
12	RELAY; POWER WINDOW M/T MUA 5 SPEED 5H<MWQ> 12V OMRON THA	8-98005-407-0	01	1	0709-0709	●	●
12	RELAY; POWER WINDOW M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> 12V OMRON THA	8-98005-407-0	01	1	0710-0809	●	●
12	RELAY; POWER WINDOW M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> 12V OMRON THA	8-98005-407-0	01	1	0810-	●	●
54	SWITCH; RR WIPER DARK GRAY THA	8-97398-944-0	01	1	0411-0606	●	●
54	SWITCH; RR WIPER DARK GRAY THA	8-97404-581-0	01	1	0607-1001	●	●
54	SWITCH; RR WIPER DARK GRAY THA	8-97418-508-0	01	1	1002-1010	●	●
54	SWITCH; RR WIPER INTERIOR COLOR BEIGE<184> DARK GRAY THA	8-97418-508-0	01	1	1011-1012	●
54	SWITCH; RR WIPER DARK GRAY THA	8-97418-508-0	01	1	1011-1012		●
54	SWITCH; RR WIPER INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> DARK GRAY THA	8-97418-508-0	01	1	1101-1107	●
54	SWITCH; RR WIPER DARK GRAY THA	8-97418-508-0	01	1	1101-1107		●
54	SWITCH; RR WIPER DARK GRAY THA	8-97418-508-0	01	1	1108-	●	●
95	SWITCH; RR FOG LAMP THA	8-97313-981-0	01	1	0411-0411	●	●
95	SWITCH; RR FOG LAMP THA	8-98000-500-0	01	1	0412-0606	●	●
95	SWITCH; RR FOG LAMP DARK GRAY THA	8-97403-904-0	01	1	0607-1001	●	●
95	SWITCH; RR FOG LAMP DARK GRAY THA	8-97418-510-0	01	1	1002-	●	●
140	RELAY; RR DEFOGGER A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> 12V YAZAKI THA	8-97309-293-0	01	1	0411-0606	●	●
140	RELAY; RR DEFOGGER M/T MUA 5 SPEED 5H<MWQ> 12V OMRON THA	8-98005-407-0	01	1	0607-0609	●	●
140	RELAY; RR DEFOGGER M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> 12V OMRON THA	8-98005-407-0	01	1	0610-0708	●	●
140	RELAY; RR DEFOGGER M/T MUA 5 SPEED 5H<MWQ> 12V OMRON THA	8-98005-407-0	01	1	0709-0709	●	●
140	RELAY; RR DEFOGGER M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> 12V OMRON THA	8-98005-407-0	01	1	0710-0809	●	●
140	RELAY; RR DEFOGGER M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> 12V OMRON THA	8-98005-407-0	01	1	0810-	●	●
163	SWITCH; RR COOLER AIR CONDITIONER ROOF MOUNTED<C69> DARK GRAY THA	8-97398-945-2	01	1	0411-0606	●	●
163	SWITCH; RR COOLER AIR CONDITIONER ROOF MOUNTED<C69> DARK GRAY THA	8-97404-582-2	01	1	0607-1001	●	●
163	SWITCH; RR COOLER AIR CONDITIONER ROOF MOUNTED<C69> DARK GRAY THA	8-97418-509-0	01	1	1002-1010	●	●
163	SWITCH; RR COOLER AIR CONDITIONER ROOF MOUNTED<C69> DARK GRAY THA	8-97418-509-0	01	1	1011-	●	●
249	SWITCH; HAZARD DARK GRAY THA	8-97238-511-0	01	1	0411-0606	●	●
249	SWITCH; HAZARD THA	8-98046-194-0	01	1	0607-	●	●
307	BULB ASM; SW (C) 14V 0.84W THA	8-98161-974-0	01	1	1002-1010	●	●
307	BULB ASM; SW INTERIOR COLOR BEIGE<184> (C) 14V 0.84W THA	8-98161-974-0	01	1	1011-1012	●
307	BULB ASM; SW (C) 14V 0.84W THA	8-98161-974-0	01	1	1011-1012		●
307	BULB ASM; SW INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> (C) 14V 0.84W THA	8-98161-974-0	01	1	1101-1107	●
307	BULB ASM; SW (C) 14V 0.84W THA	8-98161-974-0	01	1	1101-1107		●
307	BULB ASM; SW (C) 14V 0.84W THA	8-98161-974-0	01	1	1108-	●	●
307	BULB ASM; SW (C) 14V 0.84W THA	8-97327-317-0	01	1	0411-0411	●	●
307	BULB ASM; SW (C) 14V 0.84W THA	8-97327-317-0	01	1	0411-0411	●	●
307	BULB ASM; SW (C) 14V 0.84W THA	8-97327-317-0	01	1	0411-1001	●	●
307	BULB ASM; SW AIR CONDITIONER ROOF MOUNTED<C69> (C) 14V 0.84W THA	8-97327-317-0	01	1	0411-1001	●	●
307	BULB ASM; SW (C) 14V 0.84W THA	8-97327-317-0	01	1	0411-1001	●	●
307	BULB ASM; SW AIR CONDITIONER ROOF MOUNTED<C69> (C) 14V 0.84W THA	8-98152-588-0	01	1	1002-1010	●	●
307	BULB ASM; SW (C) 14V 0.84W THA	8-98152-588-0	01	1	1002-1010	●	●
307	BULB ASM; SW INTERIOR COLOR BEIGE<184> AIR CONDITIONER ROOF MOUNTED<C69> (C) 14V 0.84W THA	8-98152-588-0	01	1	1011-1012	●
307	BULB ASM; SW INTERIOR COLOR BEIGE<184> (C) 14V 0.84W THA	8-98152-588-0	01	1	1011-1012	●
307	BULB ASM; SW AIR CONDITIONER ROOF MOUNTED<C69> (C) 14V 0.84W THA	8-98152-588-0	01	1	1011-1012		●
307	BULB ASM; SW (C) 14V 0.84W THA	8-98152-588-0	01	1	1011-1012		●
307	BULB ASM; SW INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> AIR CONDITIONER ROOF MOUNTED<C69> (C) 14V 0.84W THA	8-98152-588-0	01	1	1101-1107	●
307	BULB ASM; SW INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> (C) 14V 0.84W THA	8-98152-588-0	01	1	1101-1107	●
307	BULB ASM; SW AIR CONDITIONER ROOF MOUNTED<C69> (C) 14V 0.84W THA	8-98152-588-0	01	1	1101-1107		●
307	BULB ASM; SW (C) 14V 0.84W THA	8-98152-588-0	01	1	1101-1107		●
307	BULB ASM; SW INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> AIR CONDITIONER ROOF MOUNTED<C69> (C) 14V 0.84W THA	8-98152-588-0	01	1	1108-	●	●
307	BULB ASM; SW INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> (C) 14V 0.84W THA	8-98152-588-0	01	1	1108-	●	●
307	BULB ASM; SW (D) 14V 0.91W THA	8-97327-526-0	01	1	0411-0606	●	●
307	BULB ASM; SW (D) THA	8-97532-440-0	01	1	0607-0607	●	●
307	BULB ASM; SW (D) THA	8-98057-959-0	01	1	0608-	●	●
307	BULB ASM; SW AIR CONDITIONER ROOF MOUNTED<C69> (A) 14V 0.91W THA	8-97355-451-0	01	1	0411-0411	●	●
307	BULB ASM; SW AIR CONDITIONER ROOF MOUNTED<C69> (B) 14V 0.63W THA	8-97378-795-0	01	1	0411-1010	●	●
307	BULB ASM; SW AIR CONDITIONER ROOF MOUNTED<C69> (B) 14V 0.63W THA	8-97378-795-0	01	1	1011-	●	●
436	SWITCH; HEADLAMP LEVELING HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> THA	8-97288-784-0	01	1	0411-0606	●
436	SWITCH; HEADLAMP LEVELING THA	8-97288-784-0	01	1	0411-0606		●
449	BULB ASM; HEADLAMP LEVELING SW HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> 14V 0.84W THA	8-97327-317-0	01	1	0411-0606	●
449	BULB ASM; HEADLAMP LEVELING SW 14V 0.84W THA	8-97327-317-0	01	1	0411-0606		●
573	SWITCH; 4WD LIGHT GRAY THA	8-97298-475-0	01	1	0411-0606		●
573	SWITCH; 4WD LIGHT GRAY THA	8-97407-362-0	01	1	0607-1001		●
573	SWITCH; 4WD LIGHT GRAY THA	8-97418-479-0	01	1	1002-	●	●
600	COIL ASM; SIR THA	8-97308-028-1	01	1	0411-0606	●	●
600	COIL ASM; SIR THA	8-98014-766-0	01	1	0607-	●	●
620	SCREW; COIL,COMB SW THA	8-97166-506-0	06	1	0411-	●	●

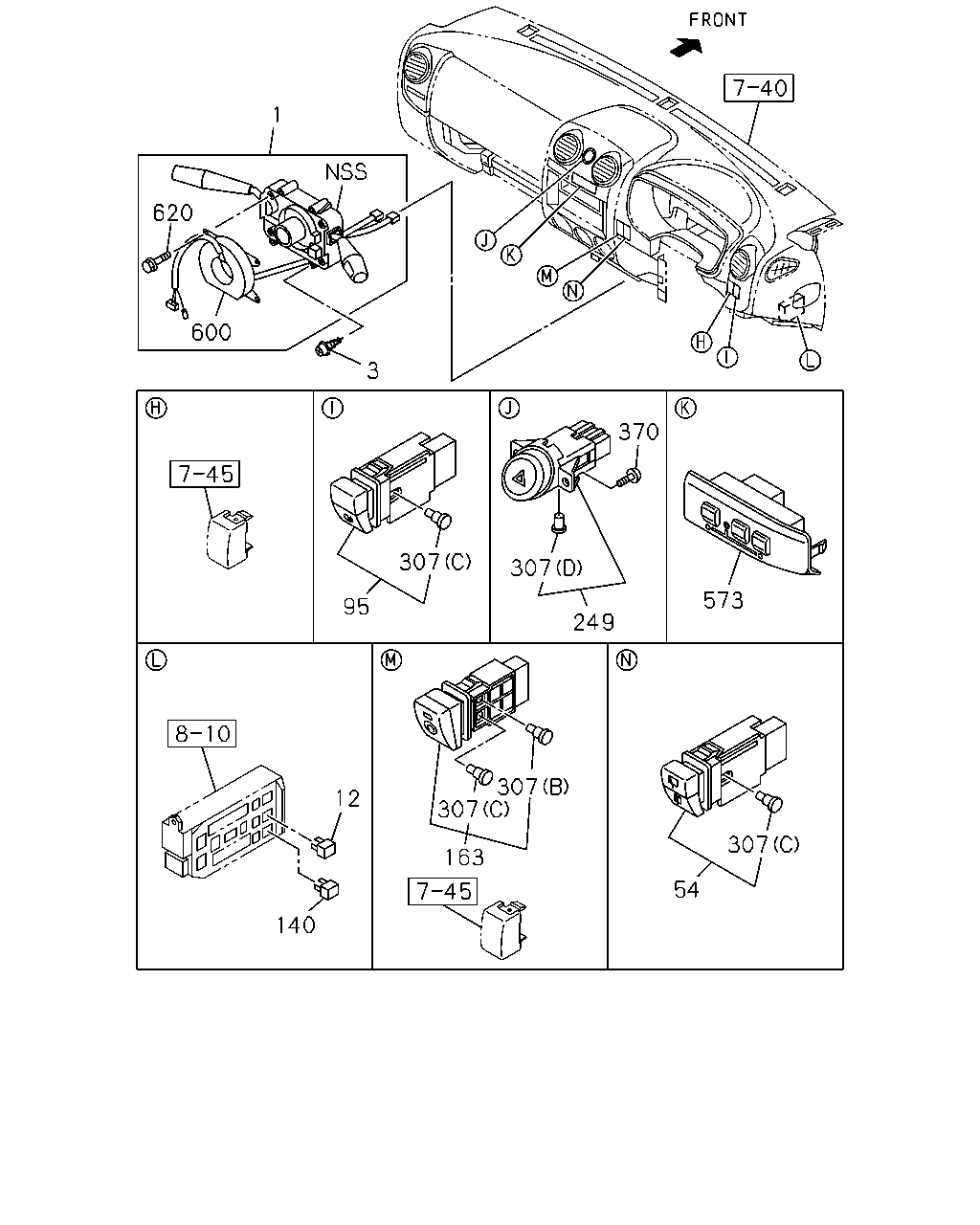

1 620 600 3 370 307 307 573 95 249 307 307 12 307 163 54 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SWITCH; COMB THA	8-97360-687-0	01	1	0411-0606	●	●
1	SWITCH; COMB THA	8-98007-711-0	01	1	0607-	●	●
3	SCREW; COMB SW M5X14 W/LK&PL WASHER THA	9-03920-514-0	02	1	0411-0606	●	●
3	SCREW; COMB SW M5X14 W/LK&PL WASHER THA	0-36230-514-0	02	1	0607-	●	●
12	RELAY; POWER WINDOW A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> 12V YAZAKI THA	8-97309-293-0	01	1	0411-0606	●	●
12	RELAY; POWER WINDOW M/T MUA 5 SPEED 5H<MWQ> 12V OMRON THA	8-98005-407-0	01	1	0607-0609	●	●
12	RELAY; POWER WINDOW M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> 12V OMRON THA	8-98005-407-0	01	1	0610-0708	●	●
12	RELAY; POWER WINDOW M/T MUA 5 SPEED 5H<MWQ> 12V OMRON THA	8-98005-407-0	01	1	0709-0709	●	●
12	RELAY; POWER WINDOW M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> 12V OMRON THA	8-98005-407-0	01	1	0710-0809	●	●
12	RELAY; POWER WINDOW M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> 12V OMRON THA	8-98005-407-0	01	1	0810-	●	●
54	SWITCH; RR WIPER DARK GRAY THA	8-97398-944-0	01	1	0411-0606	●	●
54	SWITCH; RR WIPER DARK GRAY THA	8-97404-581-0	01	1	0607-1001	●	●
54	SWITCH; RR WIPER DARK GRAY THA	8-97418-508-0	01	1	1002-1010	●	●
54	SWITCH; RR WIPER INTERIOR COLOR BEIGE<184> DARK GRAY THA	8-97418-508-0	01	1	1011-1012	●
54	SWITCH; RR WIPER DARK GRAY THA	8-97418-508-0	01	1	1011-1012		●
54	SWITCH; RR WIPER INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> DARK GRAY THA	8-97418-508-0	01	1	1101-1107	●
54	SWITCH; RR WIPER DARK GRAY THA	8-97418-508-0	01	1	1101-1107		●
54	SWITCH; RR WIPER DARK GRAY THA	8-97418-508-0	01	1	1108-	●	●
95	SWITCH; RR FOG LAMP THA	8-97313-981-0	01	1	0411-0411	●	●
95	SWITCH; RR FOG LAMP THA	8-98000-500-0	01	1	0412-0606	●	●
95	SWITCH; RR FOG LAMP DARK GRAY THA	8-97403-904-0	01	1	0607-1001	●	●
95	SWITCH; RR FOG LAMP DARK GRAY THA	8-97418-510-0	01	1	1002-	●	●
140	RELAY; RR DEFOGGER A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> 12V YAZAKI THA	8-97309-293-0	01	1	0411-0606	●	●
140	RELAY; RR DEFOGGER M/T MUA 5 SPEED 5H<MWQ> 12V OMRON THA	8-98005-407-0	01	1	0607-0609	●	●
140	RELAY; RR DEFOGGER M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> 12V OMRON THA	8-98005-407-0	01	1	0610-0708	●	●
140	RELAY; RR DEFOGGER M/T MUA 5 SPEED 5H<MWQ> 12V OMRON THA	8-98005-407-0	01	1	0709-0709	●	●
140	RELAY; RR DEFOGGER M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> 12V OMRON THA	8-98005-407-0	01	1	0710-0809	●	●
140	RELAY; RR DEFOGGER M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> 12V OMRON THA	8-98005-407-0	01	1	0810-	●	●
163	SWITCH; RR COOLER AIR CONDITIONER ROOF MOUNTED<C69> DARK GRAY THA	8-97398-945-2	01	1	0411-0606	●	●
163	SWITCH; RR COOLER AIR CONDITIONER ROOF MOUNTED<C69> DARK GRAY THA	8-97404-582-2	01	1	0607-1001	●	●
163	SWITCH; RR COOLER AIR CONDITIONER ROOF MOUNTED<C69> DARK GRAY THA	8-97418-509-0	01	1	1002-1010	●	●
163	SWITCH; RR COOLER AIR CONDITIONER ROOF MOUNTED<C69> DARK GRAY THA	8-97418-509-0	01	1	1011-	●	●
249	SWITCH; HAZARD DARK GRAY THA	8-97238-511-0	01	1	0411-0606	●	●
249	SWITCH; HAZARD THA	8-98046-194-0	01	1	0607-	●	●
307	BULB ASM; SW (C) 14V 0.84W THA	8-98161-974-0	01	1	1002-1010	●	●
307	BULB ASM; SW INTERIOR COLOR BEIGE<184> (C) 14V 0.84W THA	8-98161-974-0	01	1	1011-1012	●
307	BULB ASM; SW (C) 14V 0.84W THA	8-98161-974-0	01	1	1011-1012		●
307	BULB ASM; SW INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> (C) 14V 0.84W THA	8-98161-974-0	01	1	1101-1107	●
307	BULB ASM; SW (C) 14V 0.84W THA	8-98161-974-0	01	1	1101-1107		●
307	BULB ASM; SW (C) 14V 0.84W THA	8-98161-974-0	01	1	1108-	●	●
307	BULB ASM; SW (C) 14V 0.84W THA	8-97327-317-0	01	1	0411-0411	●	●
307	BULB ASM; SW (C) 14V 0.84W THA	8-97327-317-0	01	1	0411-0411	●	●
307	BULB ASM; SW (C) 14V 0.84W THA	8-97327-317-0	01	1	0411-1001	●	●
307	BULB ASM; SW AIR CONDITIONER ROOF MOUNTED<C69> (C) 14V 0.84W THA	8-97327-317-0	01	1	0411-1001	●	●
307	BULB ASM; SW (C) 14V 0.84W THA	8-97327-317-0	01	1	0411-1001	●	●
307	BULB ASM; SW AIR CONDITIONER ROOF MOUNTED<C69> (C) 14V 0.84W THA	8-98152-588-0	01	1	1002-1010	●	●
307	BULB ASM; SW (C) 14V 0.84W THA	8-98152-588-0	01	1	1002-1010	●	●
307	BULB ASM; SW INTERIOR COLOR BEIGE<184> AIR CONDITIONER ROOF MOUNTED<C69> (C) 14V 0.84W THA	8-98152-588-0	01	1	1011-1012	●
307	BULB ASM; SW INTERIOR COLOR BEIGE<184> (C) 14V 0.84W THA	8-98152-588-0	01	1	1011-1012	●
307	BULB ASM; SW AIR CONDITIONER ROOF MOUNTED<C69> (C) 14V 0.84W THA	8-98152-588-0	01	1	1011-1012		●
307	BULB ASM; SW (C) 14V 0.84W THA	8-98152-588-0	01	1	1011-1012		●
307	BULB ASM; SW INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> AIR CONDITIONER ROOF MOUNTED<C69> (C) 14V 0.84W THA	8-98152-588-0	01	1	1101-1107	●
307	BULB ASM; SW INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> (C) 14V 0.84W THA	8-98152-588-0	01	1	1101-1107	●
307	BULB ASM; SW AIR CONDITIONER ROOF MOUNTED<C69> (C) 14V 0.84W THA	8-98152-588-0	01	1	1101-1107		●
307	BULB ASM; SW (C) 14V 0.84W THA	8-98152-588-0	01	1	1101-1107		●
307	BULB ASM; SW INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> AIR CONDITIONER ROOF MOUNTED<C69> (C) 14V 0.84W THA	8-98152-588-0	01	1	1108-	●	●
307	BULB ASM; SW INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> (C) 14V 0.84W THA	8-98152-588-0	01	1	1108-	●	●
307	BULB ASM; SW (D) 14V 0.91W THA	8-97327-526-0	01	1	0411-0606	●	●
307	BULB ASM; SW (D) THA	8-97532-440-0	01	1	0607-0607	●	●
307	BULB ASM; SW (D) THA	8-98057-959-0	01	1	0608-	●	●
307	BULB ASM; SW AIR CONDITIONER ROOF MOUNTED<C69> (A) 14V 0.91W THA	8-97355-451-0	01	1	0411-0411	●	●
307	BULB ASM; SW AIR CONDITIONER ROOF MOUNTED<C69> (B) 14V 0.63W THA	8-97378-795-0	01	1	0411-1010	●	●
307	BULB ASM; SW AIR CONDITIONER ROOF MOUNTED<C69> (B) 14V 0.63W THA	8-97378-795-0	01	1	1011-	●	●
370	BOLT; SW M5X16 TAPPING THA	9-09829-323-1	02	1	0607-0702	●	●
370	BOLT; SW M5X16 TAPPING THA	8-98061-685-0	02	1	0703-1005	●	●
370	BOLT; SW M5X16 TAPPING THA	8-98167-449-0	02	1	1006-	●	●
573	SWITCH; 4WD LIGHT GRAY THA	8-97298-475-0	01	1	0411-0606		●
573	SWITCH; 4WD LIGHT GRAY THA	8-97407-362-0	01	1	0607-1001		●
573	SWITCH; 4WD LIGHT GRAY THA	8-97418-479-0	01	1	1002-	●	●
600	COIL ASM; SIR THA	8-97308-028-1	01	1	0411-0606	●	●
600	COIL ASM; SIR THA	8-98014-766-0	01	1	0607-	●	●
620	SCREW; COIL,COMB SW THA	8-97166-506-0	06	1	0411-	●	●

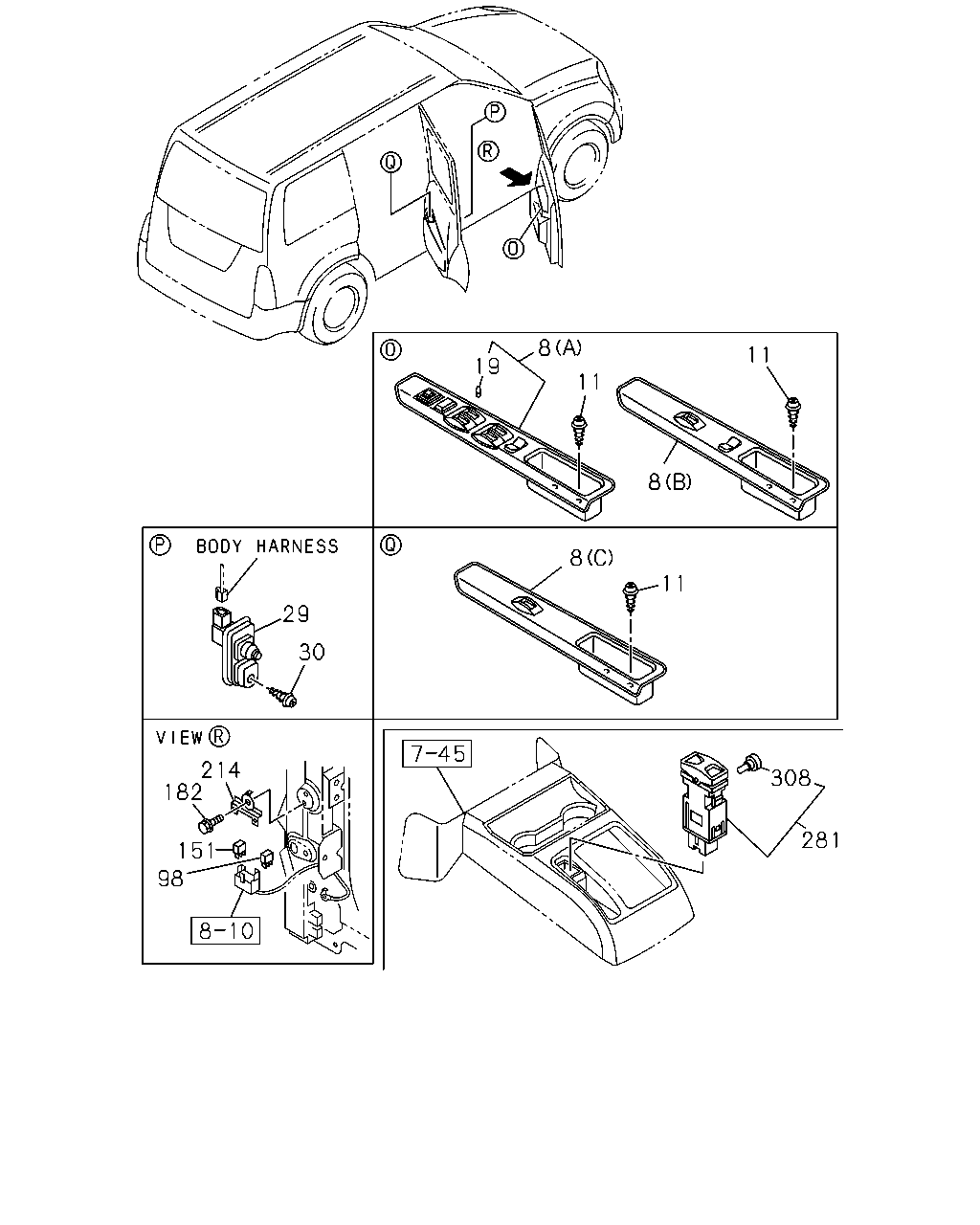

8 11 19 11 8 8 11 29 30 214 182 308 281 151 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	SWITCH; POWER WINDOW INTERIOR CUSTOM<B19> (B) PASSENGER THA	8-98181-513-0	01	1	1101-1107	●
8	SWITCH; POWER WINDOW INTERIOR CUSTOM<B19> (B) PASSENGER THA	8-98181-513-0	01	1	1108-	●	●
8	SWITCH; POWER WINDOW INTERIOR CUSTOM<B19> (C) REAR THA	8-98181-514-0	01	1	1101-1107	●
8	SWITCH; POWER WINDOW INTERIOR CUSTOM<B19> (C) REAR THA	8-98181-514-0	01	1	1108-	●	●
8	SWITCH; POWER WINDOW INTERIOR CUSTOM<B19> (C) REAR THA	8-98181-515-0	01	1	1101-1107	●
8	SWITCH; POWER WINDOW INTERIOR CUSTOM<B19> (C) REAR THA	8-98181-515-0	01	1	1108-	●	●
8	SWITCH; POWER WINDOW INTERIOR CUSTOM<B19> DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> (A) DRIVER THA	8-98181-512-0	01	1	1101-1101	●
8	SWITCH; POWER WINDOW INTERIOR CUSTOM<B19> DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3>, DOOR MIR ELEC PWR FOLDING TURN SIG IND COLOR<8ME> (A) DRIVER THA	8-98181-512-0	01	1	1101-1107	●
8	SWITCH; POWER WINDOW INTERIOR CUSTOM<B19> DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3>, DOOR MIR ELEC PWR FOLDING TURN SIG IND COLOR<8ME> (A) DRIVER THA	8-98181-512-0	01	1	1108-	●	●
8	SWITCH; POWER WINDOW INTERIOR LUXURY<B20> (A) DRIVER THA	8-98099-628-0	01	1	0902-1001	●	●
8	SWITCH; POWER WINDOW INTERIOR LUXURY<B20> (A) DRIVER THA	8-98152-497-0	01	1	1002-1010	●	●
8	SWITCH; POWER WINDOW INTERIOR LUXURY<B20> DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> (A) DRIVER THA	8-98152-497-0	01	1	1011-1012	●
8	SWITCH; POWER WINDOW INTERIOR LUXURY<B20> (A) DRIVER THA	8-98152-497-0	01	1	1011-1012		●
8	SWITCH; POWER WINDOW INTERIOR LUXURY<B20> DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3>, DOOR MIR ELEC PWR FOLDING TURN SIG IND COLOR<8ME> (A) DRIVER THA	8-98152-497-0	01	1	1101-1107	●
8	SWITCH; POWER WINDOW INTERIOR LUXURY<B20> (A) DRIVER THA	8-98152-497-0	01	1	1101-1107		●
8	SWITCH; POWER WINDOW INTERIOR LUXURY<B20> DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3>, DOOR MIR ELEC PWR FOLDING TURN SIG IND COLOR<8ME> (A) DRIVER THA	8-98152-497-0	01	1	1108-	●	●
8	SWITCH; POWER WINDOW INTERIOR LUXURY<B20> (C) REAR THA	8-98099-630-0	01	1	0902-	●	●
8	SWITCH; POWER WINDOW INTERIOR LUXURY<B20> (C) REAR THA	8-98099-631-0	01	1	0902-	●	●
8	SWITCH; POWER WINDOW INTERIOR LUXURY<B20> (B) PASSENGER THA	8-98100-415-0	01	1	0902-	●	●
8	SWITCH; POWER WINDOW (C) REAR LIGHT GRAY THA	8-97298-473-0	01	1	0411-0502	●	●
8	SWITCH; POWER WINDOW (C) REAR LIGHT GRAY THA	8-97400-392-0	01	1	0503-0508	●	●
8	SWITCH; POWER WINDOW (C) REAR LIGHT GRAY THA	8-98019-687-0	01	1	0509-0606	●	●
8	SWITCH; POWER WINDOW (C) REAR THA	8-98034-483-0	01	1	0607-0901	●	●
8	SWITCH; POWER WINDOW EXC. INTERIOR LUXURY<B20> (C) REAR THA	8-98034-483-0	01	1	0902-0908	●	●
8	SWITCH; POWER WINDOW EXC. INTERIOR LUXURY<B20> (C) REAR THA	8-98149-096-0	01	1	0909-1012	●	●
8	SWITCH; POWER WINDOW EXC. INTERIOR CUSTOM<B19>,INTERIOR LUXURY<B20> (C) REAR THA	8-98149-096-0	01	1	1101-1107	●
8	SWITCH; POWER WINDOW EXC. INTERIOR LUXURY<B20> (C) REAR THA	8-98149-096-0	01	1	1101-1107		●
8	SWITCH; POWER WINDOW EXC. INTERIOR CUSTOM<B19>,INTERIOR LUXURY<B20> (C) REAR THA	8-98149-096-0	01	1	1108-	●	●
8	SWITCH; POWER WINDOW (B) PASSENGER LIGHT GRAY THA	8-97396-102-0	01	1	0411-0508	●	●
8	SWITCH; POWER WINDOW (B) PASSENGER LIGHT GRAY THA	8-98019-685-0	01	1	0509-0606	●	●
8	SWITCH; POWER WINDOW (B) PASSENGER THA	8-98034-481-0	01	1	0607-0901	●	●
8	SWITCH; POWER WINDOW EXC. INTERIOR LUXURY<B20> (B) PASSENGER THA	8-98034-481-0	01	1	0902-0908	●	●
8	SWITCH; POWER WINDOW EXC. INTERIOR LUXURY<B20> (B) PASSENGER THA	8-98149-090-0	01	1	0909-1012	●	●
8	SWITCH; POWER WINDOW EXC. INTERIOR CUSTOM<B19>,INTERIOR LUXURY<B20> (B) PASSENGER THA	8-98149-090-0	01	1	1101-1107	●
8	SWITCH; POWER WINDOW EXC. INTERIOR LUXURY<B20> (B) PASSENGER THA	8-98149-090-0	01	1	1101-1107		●
8	SWITCH; POWER WINDOW EXC. INTERIOR CUSTOM<B19>,INTERIOR LUXURY<B20> (B) PASSENGER THA	8-98149-090-0	01	1	1108-	●	●
8	SWITCH; POWER WINDOW (C) REAR LIGHT GRAY THA	8-97298-474-0	01	1	0411-0502	●	●
8	SWITCH; POWER WINDOW (C) REAR LIGHT GRAY THA	8-97400-394-0	01	1	0503-0508	●	●
8	SWITCH; POWER WINDOW (A) DRIVER LIGHT GRAY THA	8-97399-709-0	01	1	0411-0508	●	●
8	SWITCH; POWER WINDOW (C) REAR LIGHT GRAY THA	8-98019-686-0	01	1	0509-0606	●	●
8	SWITCH; POWER WINDOW (C) REAR THA	8-98034-482-0	01	1	0607-0901	●	●
8	SWITCH; POWER WINDOW EXC. INTERIOR LUXURY<B20> (C) REAR THA	8-98034-482-0	01	1	0902-0908	●	●
8	SWITCH; POWER WINDOW EXC. INTERIOR LUXURY<B20> (C) REAR THA	8-98149-088-0	01	1	0909-1001	●	●
8	SWITCH; POWER WINDOW EXC. INTERIOR LUXURY<B20> (A) DRIVER THA	8-98152-494-0	01	1	1002-1010	●	●
8	SWITCH; POWER WINDOW DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> EXC. INTERIOR LUXURY<B20> (A) DRIVER THA	8-98152-494-0	01	1	1011-1012	●
8	SWITCH; POWER WINDOW EXC. INTERIOR LUXURY<B20> (A) DRIVER THA	8-98152-494-0	01	1	1011-1012		●
8	SWITCH; POWER WINDOW DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> EXC. INTERIOR CUSTOM<B19>,INTERIOR LUXURY<B20> (A) DRIVER THA	8-98152-494-0	01	1	1101-1101	●
8	SWITCH; POWER WINDOW EXC. INTERIOR LUXURY<B20> (A) DRIVER THA	8-98152-494-0	01	1	1101-1101		●
8	SWITCH; POWER WINDOW DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3>, DOOR MIR ELEC PWR FOLDING TURN SIG IND COLOR<8ME> EXC. INTERIOR CUSTOM<B19>,INTERIOR LUXURY<B20> (A) DRIVER THA	8-98152-494-0	01	1	1101-1107	●
8	SWITCH; POWER WINDOW EXC. INTERIOR LUXURY<B20> (A) DRIVER THA	8-98152-494-0	01	1	1101-1107		●
8	SWITCH; POWER WINDOW DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3>, DOOR MIR ELEC PWR FOLDING TURN SIG IND COLOR<8ME> EXC. INTERIOR CUSTOM<B19>,INTERIOR LUXURY<B20> (A) DRIVER THA	8-98152-494-0	01	1	1108-	●	●
8	SWITCH; POWER WINDOW (A) DRIVER WOODY PATTERN THA	8-98019-683-0	01	1	0509-0606	●	●
8	SWITCH; POWER WINDOW (A) DRIVER THA	8-98034-480-0	01	1	0607-0708	●	●
8	SWITCH; POWER WINDOW (A) DRIVER THA	8-98053-620-0	01	1	0709-0712	●	●
8	SWITCH; POWER WINDOW DOOR MIR ELEC PWR FOLDING TURN SIG IND COLOR<8ME> (A) DRIVER THA	8-98053-620-0	01	1	0801-0802	●	●
8	SWITCH; POWER WINDOW DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3>, DOOR MIR ELEC PWR FOLDING TURN SIG IND COLOR<8ME> (A) DRIVER THA	8-98053-620-0	01	1	0803-0808	●	●
8	SWITCH; POWER WINDOW (A) DRIVER THA	8-98053-620-0	01	1	0809-0901	●	●
8	SWITCH; POWER WINDOW EXC. INTERIOR LUXURY<B20> (A) DRIVER THA	8-98053-620-0	01	1	0902-0908	●	●
8	SWITCH; POWER WINDOW EXC. INTERIOR LUXURY<B20> (A) DRIVER THA	8-98149-093-0	01	1	0909-1012	●	●
8	SWITCH; POWER WINDOW EXC. INTERIOR CUSTOM<B19>,INTERIOR LUXURY<B20> (A) DRIVER THA	8-98149-093-0	01	1	1101-1107	●
8	SWITCH; POWER WINDOW EXC. INTERIOR LUXURY<B20> (A) DRIVER THA	8-98149-093-0	01	1	1101-1107		●
8	SWITCH; POWER WINDOW EXC. INTERIOR CUSTOM<B19>,INTERIOR LUXURY<B20> (A) DRIVER THA	8-98149-093-0	01	1	1108-	●	●
11	BOLT; POWER WINDOW M5X14 THA	8-94152-495-0	08	1	0411-	●	●
19	BULB; POWER WINDOW SW INTERIOR LUXURY<B20> THA	8-97327-881-0	01	1	0902-0908	●	●
19	BULB; POWER WINDOW SW THA	8-97327-881-0	01	1	0909-1001	●	●
19	BULB; POWER WINDOW SW THA	8-98152-589-0	01	1	1002-	●	●
19	BULB; POWER WINDOW SW THA	8-97327-881-0	01	1	0411-0708	●	●
29	SWITCH; DOOR THA	8-97313-208-0	04	1	0411-	●	●
30	SCREW; DOOR SW M5X14 IMA	8-94120-095-0	04	1	0411-	●	●
98	RELAY; RR FOG LAMP 12V YAZAKI THA	8-97309-293-0	01	1	0411-0502	●	●
98	RELAY; RR FOG LAMP 12V OMRON THA	8-98005-407-0	01	1	0503-0708	●	●
98	RELAY; RR FOG LAMP 12V YAZAKI THA	8-97309-293-0	01	1	0709-	●	●
151	RELAY; HTR & A/C AIR CONDITIONER ROOF MOUNTED<C69> 12V YAZAKI THA	8-97309-292-0	01	1	0411-	●	●
182	BOLT; RELAY BRKT M6X16 FLANGE THA	0-28450-616-0	01	1	0411-	●	●
214	BRACKET; RELAY,FOG LAMP THA	8-97373-034-0	01	1	0411-	●	●
281	SWITCH; SELECT,TRANS CONT A/T AISIN<RMD> DARK GRAY THA	8-97396-692-0	01	1	0610-0809	●	●
281	SWITCH; SELECT,TRANS CONT A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> DARK GRAY THA	8-97396-692-0	01	1	0810-1001	●	●
281	SWITCH; SELECT,TRANS CONT A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> DARK GRAY THA	8-97418-478-0	01	1	1002-1010	●	●
281	SWITCH; SELECT,TRANS CONT A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR BEIGE<184> DARK GRAY THA	8-97418-478-0	01	1	1011-1012	●
281	SWITCH; SELECT,TRANS CONT A/T AISIN<RMD> DARK GRAY THA	8-97418-478-0	01	1	1011-1012		●
281	SWITCH; SELECT,TRANS CONT A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> DARK GRAY THA	8-97418-478-0	01	1	1101-1107	●
281	SWITCH; SELECT,TRANS CONT A/T AISIN<RMD> DARK GRAY THA	8-97418-478-0	01	1	1101-1107		●
281	SWITCH; SELECT,TRANS CONT A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> DARK GRAY THA	8-97418-478-0	01	1	1108-	●
281	SWITCH; SELECT,TRANS CONT A/T AISIN<RMD> INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> DARK GRAY THA	8-97418-478-0	01	1	1108-		●
281	SWITCH; SELECT,TRANS CONT A/T 4 SPEED-JATCO<RMK> DARK GRAY THA	8-97300-364-0	01	1	0411-0508	●	●
281	SWITCH; SELECT,TRANS CONT A/T 4 SPEED-JATCO<RMK> DARK GRAY THA	8-97396-692-0	01	1	0509-0606	●	●
308	BULB; SELECT SW A/T AISIN<RMD> 14V 0.84W THA	8-97329-092-0	01	1	0610-0809	●	●
308	BULB; SELECT SW A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> 14V 0.84W THA	8-97329-092-0	01	1	0810-1001	●	●
308	BULB; SELECT SW A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> 14V 0.84W THA	8-98152-591-0	01	1	1002-1010	●	●
308	BULB; SELECT SW A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR BEIGE<184> 14V 0.84W THA	8-98152-591-0	01	1	1011-1012	●
308	BULB; SELECT SW A/T AISIN<RMD> 14V 0.84W THA	8-98152-591-0	01	1	1011-1012		●
308	BULB; SELECT SW A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> 14V 0.84W THA	8-98152-591-0	01	1	1101-1107	●
308	BULB; SELECT SW A/T AISIN<RMD> 14V 0.84W THA	8-98152-591-0	01	1	1101-1107		●
308	BULB; SELECT SW A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> 14V 0.84W THA	8-98152-591-0	01	1	1108-	●
308	BULB; SELECT SW A/T AISIN<RMD> INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> 14V 0.84W THA	8-98152-591-0	01	1	1108-		●
308	BULB; SELECT SW A/T 4 SPEED-JATCO<RMK> 14V 0.84W THA	8-97329-092-0	01	1	0411-0606	●	●

99 99 45 45 208 208 85 85 154 154 277 277 164 164 490 490

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
45	RELAY; HORN 4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> 12V YAZAKI THA	8-97309-293-0	01	1	0411-0606	●	●
45	RELAY; HORN 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> 12V OMRON THA	8-98005-407-0	01	1	0607-0609	●	●
45	RELAY; HORN M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> 12V OMRON THA	8-98005-407-0	01	1	0610-0708	●	●
45	RELAY; HORN 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> 12V OMRON THA	8-98005-407-0	01	1	0709-0709	●	●
45	RELAY; HORN M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> 12V OMRON THA	8-98005-407-0	01	1	0710-0809	●	●
45	RELAY; HORN 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> 12V OMRON THA	8-98005-407-0	01	1	0810-	●	●
45	RELAY; HORN 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> 12V OMRON THA	8-98005-407-0	01	1	0810-	●	●
45	RELAY; HORN 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> 12V YAZAKI THA	8-97309-293-0	01	1	0709-0709	●	●
45	RELAY; HORN M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> 12V YAZAKI THA	8-97309-293-0	01	1	0710-0809	●	●
45	RELAY; HORN 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> 12V YAZAKI THA	8-97309-293-0	01	1	0810-	●	●
45	RELAY; HORN 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> 12V YAZAKI THA	8-97309-293-0	01	1	0810-	●	●
85	RELAY; HEADLAMP 4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> 12V YAZAKI THA	8-97309-294-0	01	1	0411-0606	●
85	RELAY; HEADLAMP 4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> 12V YAZAKI THA	8-97309-294-0	01	1	0411-0606		●
85	RELAY; HEADLAMP 4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> 12V YAZAKI THA	8-97309-293-0	01	1	0411-0606	●
85	RELAY; HEADLAMP 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> 12V OMRON THA	8-98005-407-0	01	1	0607-0609	●	●
85	RELAY; HEADLAMP M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> 12V OMRON THA	8-98005-407-0	01	1	0610-0708	●	●
85	RELAY; HEADLAMP 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> 12V OMRON THA	8-98005-407-0	01	1	0709-0709	●	●
85	RELAY; HEADLAMP M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> 12V OMRON THA	8-98005-407-0	01	1	0710-0809	●	●
85	RELAY; HEADLAMP 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> 12V OMRON THA	8-98005-407-0	01	1	0810-	●	●
85	RELAY; HEADLAMP 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> 12V OMRON THA	8-98005-407-0	01	1	0810-	●	●
85	RELAY; HEADLAMP 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> 12V YAZAKI THA	8-97309-293-0	01	1	0709-0709	●	●
85	RELAY; HEADLAMP M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> 12V YAZAKI THA	8-97309-293-0	01	1	0710-0809	●	●
85	RELAY; HEADLAMP 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> 12V YAZAKI THA	8-97309-293-0	01	1	0810-	●	●
85	RELAY; HEADLAMP 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> 12V YAZAKI THA	8-97309-293-0	01	1	0810-	●	●
99	RELAY; FOG LAMP 4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> 12V YAZAKI THA	8-97309-293-0	01	1	0411-0606	●	●
99	RELAY; FOG LAMP 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> 12V OMRON THA	8-98005-407-0	01	1	0607-0609	●	●
99	RELAY; FOG LAMP M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> 12V OMRON THA	8-98005-407-0	01	1	0610-0708	●	●
99	RELAY; FOG LAMP 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> 12V OMRON THA	8-98005-407-0	01	1	0709-0709	●	●
99	RELAY; FOG LAMP M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> 12V OMRON THA	8-98005-407-0	01	1	0710-0809	●	●
99	RELAY; FOG LAMP 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> 12V OMRON THA	8-98005-407-0	01	1	0810-	●	●
99	RELAY; FOG LAMP 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> 12V OMRON THA	8-98005-407-0	01	1	0810-	●	●
99	RELAY; FOG LAMP 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> 12V YAZAKI THA	8-97309-293-0	01	1	0709-0709	●	●
99	RELAY; FOG LAMP M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> 12V YAZAKI THA	8-97309-293-0	01	1	0710-0809	●	●
99	RELAY; FOG LAMP 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> 12V YAZAKI THA	8-97309-293-0	01	1	0810-	●	●
99	RELAY; FOG LAMP 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> 12V YAZAKI THA	8-97309-293-0	01	1	0810-	●	●
154	RELAY; CONDENSER FAN 4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> 12V YAZAKI THA	8-97309-293-0	01	1	0411-0606	●	●
154	RELAY; CONDENSER FAN 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> 12V OMRON THA	8-98005-407-0	01	1	0607-0609	●	●
154	RELAY; CONDENSER FAN M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> 12V OMRON THA	8-98005-407-0	01	1	0610-0708	●	●
154	RELAY; CONDENSER FAN 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> 12V OMRON THA	8-98005-407-0	01	1	0709-0709	●	●
154	RELAY; CONDENSER FAN M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> 12V OMRON THA	8-98005-407-0	01	1	0710-0809	●	●
154	RELAY; CONDENSER FAN 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> 12V OMRON THA	8-98005-407-0	01	1	0810-	●	●
154	RELAY; CONDENSER FAN 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> 12V OMRON THA	8-98005-407-0	01	1	0810-	●	●
154	RELAY; CONDENSER FAN 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> 12V YAZAKI THA	8-97309-293-0	01	1	0709-0709	●	●
154	RELAY; CONDENSER FAN M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> 12V YAZAKI THA	8-97309-293-0	01	1	0710-0809	●	●
154	RELAY; CONDENSER FAN 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> 12V YAZAKI THA	8-97309-293-0	01	1	0810-	●	●
154	RELAY; CONDENSER FAN 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> 12V YAZAKI THA	8-97309-293-0	01	1	0810-	●	●
164	RELAY; A/C COMPRESSOR 4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> 12V YAZAKI THA	8-97309-293-0	01	1	0411-0606	●	●
164	RELAY; A/C COMPRESSOR 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> 12V OMRON THA	8-98005-407-0	01	1	0607-0609	●	●
164	RELAY; A/C COMPRESSOR M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> 12V OMRON THA	8-98005-407-0	01	1	0610-0708	●	●
164	RELAY; A/C COMPRESSOR 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> 12V OMRON THA	8-98005-407-0	01	1	0709-0709	●	●
164	RELAY; A/C COMPRESSOR M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> 12V OMRON THA	8-98005-407-0	01	1	0710-0809	●	●
164	RELAY; A/C COMPRESSOR 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> 12V OMRON THA	8-98005-407-0	01	1	0810-	●	●
164	RELAY; A/C COMPRESSOR 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> 12V OMRON THA	8-98005-407-0	01	1	0810-	●	●
164	RELAY; A/C COMPRESSOR 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> 12V YAZAKI THA	8-97309-293-0	01	1	0709-0709	●	●
164	RELAY; A/C COMPRESSOR M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> 12V YAZAKI THA	8-97309-293-0	01	1	0710-0809	●	●
164	RELAY; A/C COMPRESSOR 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> 12V YAZAKI THA	8-97309-293-0	01	1	0810-	●	●
164	RELAY; A/C COMPRESSOR 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> 12V YAZAKI THA	8-97309-293-0	01	1	0810-	●	●
208	RELAY; DIMMER & PASSING 4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> 12V YAZAKI THA	8-97309-292-0	01	1	0411-0606	●	●
208	RELAY; DIMMER & PASSING 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> 12V YAZAKI THA	8-97309-292-0	01	1	0607-0609	●	●
208	RELAY; DIMMER & PASSING M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> 12V YAZAKI THA	8-97309-292-0	01	1	0610-0708	●	●
208	RELAY; DIMMER & PASSING 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> 12V YAZAKI THA	8-97309-292-0	01	1	0709-0709	●	●
208	RELAY; DIMMER & PASSING M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> 12V YAZAKI THA	8-97309-292-0	01	1	0710-0809	●	●
208	RELAY; DIMMER & PASSING 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> 12V YAZAKI THA	8-97309-292-0	01	1	0810-	●	●
208	RELAY; DIMMER & PASSING 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> 12V YAZAKI THA	8-97309-292-0	01	1	0810-	●	●
277	RELAY; FUEL PUMP 4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> 12V YAZAKI THA	8-97309-293-0	01	1	0411-0606	●	●
277	RELAY; FUEL PUMP 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> 12V OMRON THA	8-98005-407-0	01	1	0607-0609	●	●
277	RELAY; FUEL PUMP M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> 12V OMRON THA	8-98005-407-0	01	1	0610-0708	●	●
277	RELAY; FUEL PUMP 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> 12V OMRON THA	8-98005-407-0	01	1	0709-0709	●	●
277	RELAY; FUEL PUMP M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> 12V OMRON THA	8-98005-407-0	01	1	0710-0809	●	●
277	RELAY; FUEL PUMP 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> 12V OMRON THA	8-98005-407-0	01	1	0810-	●	●
277	RELAY; FUEL PUMP 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> 12V OMRON THA	8-98005-407-0	01	1	0810-	●	●
277	RELAY; FUEL PUMP 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> 12V YAZAKI THA	8-97309-293-0	01	1	0709-0709	●	●
277	RELAY; FUEL PUMP M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> 12V YAZAKI THA	8-97309-293-0	01	1	0710-0809	●	●
277	RELAY; FUEL PUMP 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> 12V YAZAKI THA	8-97309-293-0	01	1	0810-	●	●
277	RELAY; FUEL PUMP 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> 12V YAZAKI THA	8-97309-293-0	01	1	0810-	●	●
490	RELAY; THERMO 4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> 12V YAZAKI THA	8-97309-293-0	01	1	0411-0606	●	●
490	RELAY; THERMO 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> 12V OMRON THA	8-98005-407-0	01	1	0607-0609	●	●
490	RELAY; THERMO M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> 12V OMRON THA	8-98005-407-0	01	1	0610-0708	●	●
490	RELAY; THERMO 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> 12V OMRON THA	8-98005-407-0	01	1	0709-0709	●	●
490	RELAY; THERMO M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> 12V OMRON THA	8-98005-407-0	01	1	0710-0809	●	●
490	RELAY; THERMO 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> 12V OMRON THA	8-98005-407-0	01	1	0810-	●	●
490	RELAY; THERMO 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> 12V OMRON THA	8-98005-407-0	01	1	0810-	●	●
490	RELAY; THERMO 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> 12V YAZAKI THA	8-97309-293-0	01	1	0709-0709	●	●
490	RELAY; THERMO M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> 12V YAZAKI THA	8-97309-293-0	01	1	0710-0809	●	●
490	RELAY; THERMO 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> 12V YAZAKI THA	8-97309-293-0	01	1	0810-	●	●
490	RELAY; THERMO 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> 12V YAZAKI THA	8-97309-293-0	01	1	0810-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
