8-21 — METER ASM (#74918) — 115 parça

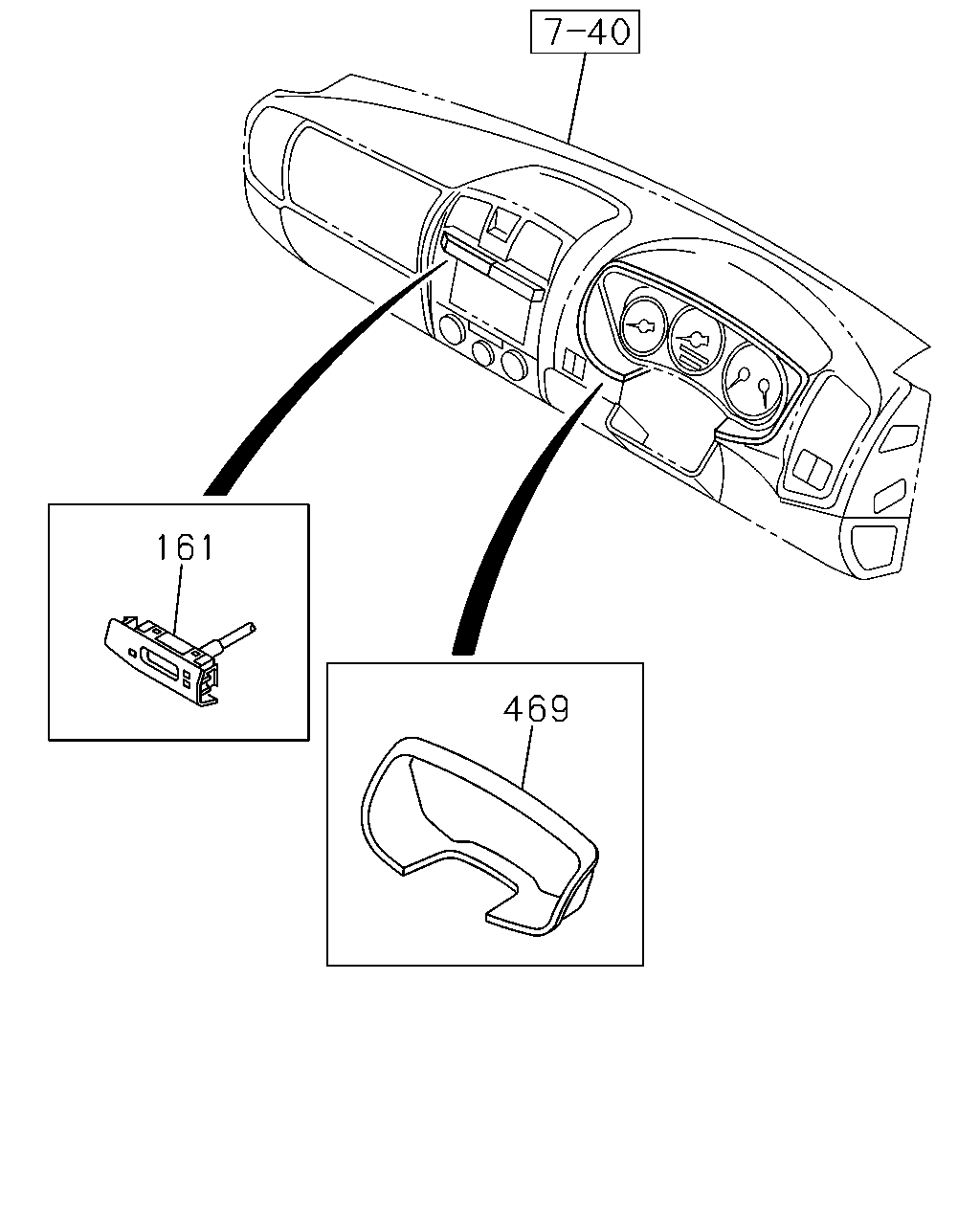

161 469

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
161	CLOCK; CLUSTER METER LIGHT GRAY THA	8-97396-393-0	01	1	0411-0606	●	●
161	CLOCK; CLUSTER METER LIGHT GRAY THA	8-97407-360-0	01	1	0607-1001	●	●
161	CLOCK; CLUSTER METER LIGHT GRAY THA	8-97418-483-0	01	1	1002-1010	●	●
161	CLOCK; CLUSTER METER INTERIOR COLOR BEIGE<184> LIGHT GRAY THA	8-97418-483-0	01	1	1011-1012	●
161	CLOCK; CLUSTER METER LIGHT GRAY THA	8-97418-483-0	01	1	1011-1012		●
161	CLOCK; CLUSTER METER INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> LIGHT GRAY THA	8-97418-483-0	01	1	1101-1107	●
161	CLOCK; CLUSTER METER LIGHT GRAY THA	8-97418-483-0	01	1	1101-1107		●
161	CLOCK; CLUSTER METER LIGHT GRAY THA	8-97418-483-0	01	1	1108-	●	●
469	PLATE; INSTRUMENT PANEL DARK GRAY THA	8-97294-069-0	01	1	0411-0508	●	●
469	PLATE; INSTRUMENT PANEL DARK GRAY THA	8-97404-874-0	01	1	0509-0606	●	●
469	PLATE; INSTRUMENT PANEL DARK GRAY THA	8-97404-875-0	01	1	0607-0612	●	●
469	PLATE; INSTRUMENT PANEL DARK GRAY THA	8-97409-178-0	01	1	0701-	●	●

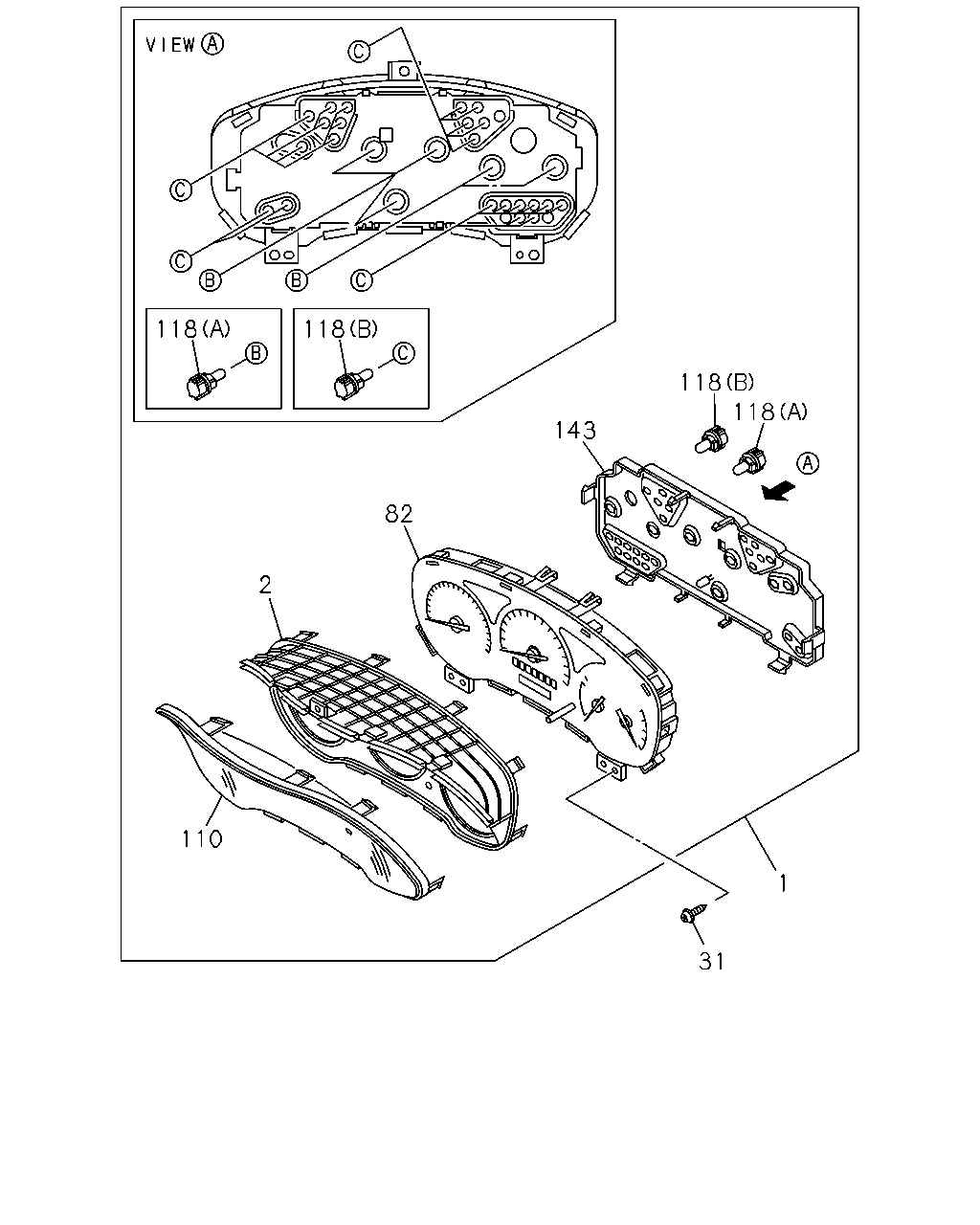

118 118 118 118 143 82 2 110 1 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	METER COMPL; CLUSTER A/T AISIN<RMD> THA	8-98046-258-0	01	1	0610-0809	●
1	METER COMPL; CLUSTER A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA	8-98046-258-0	01	1	0810-1001	●
1	METER COMPL; CLUSTER A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA	8-98152-711-0	01	1	1002-	●
1	METER COMPL; CLUSTER A/T 4 SPEED-JATCO<RMK> THA	8-97376-965-0	01	1	0411-0508	●
1	METER COMPL; CLUSTER 4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA	8-97387-960-0	01	1	0509-0606	●
1	METER COMPL; CLUSTER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> THA	8-98046-251-0	01	1	0607-0609	●
1	METER COMPL; CLUSTER M/T MUA 5 SPEED 5H<MWQ> THA	8-98046-251-0	01	1	0610-0708	●
1	METER COMPL; CLUSTER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> THA	8-98046-251-0	01	1	0709-0709	●
1	METER COMPL; CLUSTER M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-98046-251-0	01	1	0710-1001	●
1	METER COMPL; CLUSTER M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-98152-710-0	01	1	1002-	●
1	METER COMPL; CLUSTER M/T MUA 5 SPEED 5G<RSP> THA	8-97376-963-0	01	1	0411-0508	●
1	METER COMPL; CLUSTER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5G<RSP> THA	8-97387-958-0	01	1	0509-0606	●
1	METER COMPL; CLUSTER A/T AISIN<RMD> THA	8-98046-257-0	01	1	0610-1001		●
1	METER COMPL; CLUSTER A/T AISIN<RMD> THA	8-98152-706-0	01	1	1002-		●
1	METER COMPL; CLUSTER A/T 4 SPEED-JATCO<RMK> THA	8-97376-967-0	01	1	0411-0508		●
1	METER COMPL; CLUSTER 4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA	8-97387-961-0	01	1	0509-0606		●
1	METER COMPL; CLUSTER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> THA	8-98046-250-0	01	1	0607-0609		●
1	METER COMPL; CLUSTER M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-98046-250-0	01	1	0610-0708		●
1	METER COMPL; CLUSTER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> THA	8-98046-250-0	01	1	0709-0709		●
1	METER COMPL; CLUSTER M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-98046-250-0	01	1	0710-1001		●
1	METER COMPL; CLUSTER M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-98152-705-0	01	1	1002-		●
1	METER COMPL; CLUSTER M/T MUA 5 SPEED 5G<RSP> THA	8-97376-964-0	01	1	0411-0508		●
1	METER COMPL; CLUSTER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5G<RSP> THA	8-97387-959-0	01	1	0509-0606		●
2	PANEL; CLUSTER 4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> THA	8-97305-575-0	01	1	0411-0606	●	●
2	PANEL; CLUSTER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> THA	8-98047-112-0	01	1	0607-0609	●	●
2	PANEL; CLUSTER M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> THA	8-98047-112-0	01	1	0610-0708	●	●
2	PANEL; CLUSTER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> THA	8-98047-112-0	01	1	0709-0709	●	●
2	PANEL; CLUSTER M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> THA	8-98047-112-0	01	1	0710-0809	●	●
2	PANEL; CLUSTER M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA	8-98047-112-0	01	1	0810-1001	●	●
2	PANEL; CLUSTER M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA	8-98153-332-0	01	1	1002-	●	●
31	SCREW; METER,INST PANEL M5X16 TAPPING THA	9-09829-323-1	03	1	0411-0702	●	●
31	SCREW; METER,INST PANEL M5X16 TAPPING THA	8-98061-685-0	03	1	0703-1005	●	●
31	SCREW; METER,INST PANEL M5X16 TAPPING THA	8-98167-449-0	03	1	1006-	●	●
82	CASE ASM; CLUSTER METER M/T MUA 5 SPEED 5G<RSP> THA	8-97379-819-0	01	1	0411-0508	●
82	CASE ASM; CLUSTER METER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5G<RSP> THA	8-97389-958-0	01	1	0509-0606	●
82	CASE ASM; CLUSTER METER A/T 4 SPEED-JATCO<RMK> THA	8-97379-816-0	01	1	0411-0508	●	●
82	CASE ASM; CLUSTER METER 4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA	8-97389-955-0	01	1	0509-0606	●	●
82	CASE ASM; CLUSTER METER M/T MUA 5 SPEED 5G<RSP> THA	8-97379-817-0	01	1	0411-0508		●
82	CASE ASM; CLUSTER METER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5G<RSP> THA	8-97389-954-0	01	1	0509-0606		●
110	GLASS; CLUSTER METER 4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> THA	8-97305-572-0	01	1	0411-0606	●	●
110	GLASS; CLUSTER METER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> THA	8-98047-110-0	01	1	0607-0609	●	●
110	GLASS; CLUSTER METER M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> THA	8-98047-110-0	01	1	0610-0708	●	●
110	GLASS; CLUSTER METER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> THA	8-98047-110-0	01	1	0709-0709	●	●
110	GLASS; CLUSTER METER M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> THA	8-98047-110-0	01	1	0710-0809	●	●
110	GLASS; CLUSTER METER M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA	8-98047-110-0	01	1	0810-	●	●
118	BULB; CLUSTER METER (A) 14V 2W THA	8-97305-590-0	AR	1	0411-0606	●	●
118	BULB; CLUSTER METER (B) 14V 1.12W THA	8-97305-600-0	AR	1	0411-0606	●	●
143	COVER; CLUSTER METER 4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> THA	8-97305-577-0	01	1	0411-0606	●	●
143	COVER; CLUSTER METER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> THA	8-98047-114-0	01	1	0607-0609	●	●
143	COVER; CLUSTER METER M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> THA	8-98047-114-0	01	1	0610-0708	●	●
143	COVER; CLUSTER METER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> THA	8-98047-114-0	01	1	0709-0709	●	●
143	COVER; CLUSTER METER M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> THA	8-98047-114-0	01	1	0710-0809	●	●
143	COVER; CLUSTER METER M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA	8-98047-114-0	01	1	0810-	●	●

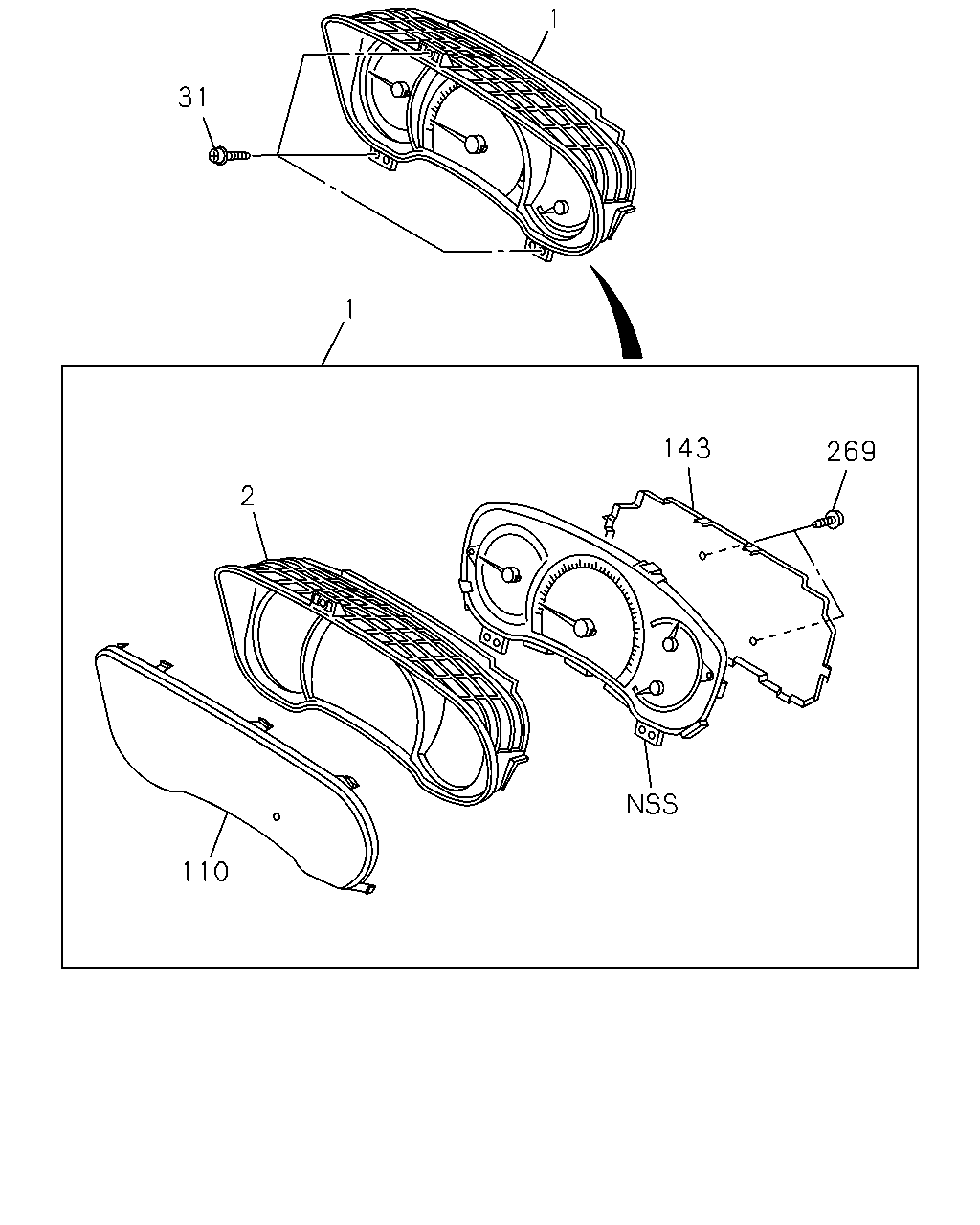

1 31 1 143 269 2 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	METER COMPL; CLUSTER A/T AISIN<RMD> THA	8-98046-258-0	01	1	0610-0809	●
1	METER COMPL; CLUSTER A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA	8-98046-258-0	01	1	0810-1001	●
1	METER COMPL; CLUSTER A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA	8-98152-711-0	01	1	1002-	●
1	METER COMPL; CLUSTER A/T 4 SPEED-JATCO<RMK> THA	8-97376-965-0	01	1	0411-0508	●
1	METER COMPL; CLUSTER 4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA	8-97387-960-0	01	1	0509-0606	●
1	METER COMPL; CLUSTER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> THA	8-98046-251-0	01	1	0607-0609	●
1	METER COMPL; CLUSTER M/T MUA 5 SPEED 5H<MWQ> THA	8-98046-251-0	01	1	0610-0708	●
1	METER COMPL; CLUSTER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> THA	8-98046-251-0	01	1	0709-0709	●
1	METER COMPL; CLUSTER M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-98046-251-0	01	1	0710-1001	●
1	METER COMPL; CLUSTER M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-98152-710-0	01	1	1002-	●
1	METER COMPL; CLUSTER M/T MUA 5 SPEED 5G<RSP> THA	8-97376-963-0	01	1	0411-0508	●
1	METER COMPL; CLUSTER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5G<RSP> THA	8-97387-958-0	01	1	0509-0606	●
1	METER COMPL; CLUSTER A/T AISIN<RMD> THA	8-98046-257-0	01	1	0610-1001		●
1	METER COMPL; CLUSTER A/T AISIN<RMD> THA	8-98152-706-0	01	1	1002-		●
1	METER COMPL; CLUSTER A/T 4 SPEED-JATCO<RMK> THA	8-97376-967-0	01	1	0411-0508		●
1	METER COMPL; CLUSTER 4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA	8-97387-961-0	01	1	0509-0606		●
1	METER COMPL; CLUSTER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> THA	8-98046-250-0	01	1	0607-0609		●
1	METER COMPL; CLUSTER M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-98046-250-0	01	1	0610-0708		●
1	METER COMPL; CLUSTER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> THA	8-98046-250-0	01	1	0709-0709		●
1	METER COMPL; CLUSTER M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-98046-250-0	01	1	0710-1001		●
1	METER COMPL; CLUSTER M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-98152-705-0	01	1	1002-		●
1	METER COMPL; CLUSTER M/T MUA 5 SPEED 5G<RSP> THA	8-97376-964-0	01	1	0411-0508		●
1	METER COMPL; CLUSTER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5G<RSP> THA	8-97387-959-0	01	1	0509-0606		●
2	PANEL; CLUSTER 4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> THA	8-97305-575-0	01	1	0411-0606	●	●
2	PANEL; CLUSTER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> THA	8-98047-112-0	01	1	0607-0609	●	●
2	PANEL; CLUSTER M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> THA	8-98047-112-0	01	1	0610-0708	●	●
2	PANEL; CLUSTER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> THA	8-98047-112-0	01	1	0709-0709	●	●
2	PANEL; CLUSTER M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> THA	8-98047-112-0	01	1	0710-0809	●	●
2	PANEL; CLUSTER M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA	8-98047-112-0	01	1	0810-1001	●	●
2	PANEL; CLUSTER M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA	8-98153-332-0	01	1	1002-	●	●
31	SCREW; METER,INST PANEL M5X16 TAPPING THA	9-09829-323-1	03	1	0411-0702	●	●
31	SCREW; METER,INST PANEL M5X16 TAPPING THA	8-98061-685-0	03	1	0703-1005	●	●
31	SCREW; METER,INST PANEL M5X16 TAPPING THA	8-98167-449-0	03	1	1006-	●	●
110	GLASS; CLUSTER METER 4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> THA	8-97305-572-0	01	1	0411-0606	●	●
110	GLASS; CLUSTER METER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> THA	8-98047-110-0	01	1	0607-0609	●	●
110	GLASS; CLUSTER METER M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> THA	8-98047-110-0	01	1	0610-0708	●	●
110	GLASS; CLUSTER METER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> THA	8-98047-110-0	01	1	0709-0709	●	●
110	GLASS; CLUSTER METER M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> THA	8-98047-110-0	01	1	0710-0809	●	●
110	GLASS; CLUSTER METER M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA	8-98047-110-0	01	1	0810-	●	●
143	COVER; CLUSTER METER 4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> THA	8-97305-577-0	01	1	0411-0606	●	●
143	COVER; CLUSTER METER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> THA	8-98047-114-0	01	1	0607-0609	●	●
143	COVER; CLUSTER METER M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> THA	8-98047-114-0	01	1	0610-0708	●	●
143	COVER; CLUSTER METER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> THA	8-98047-114-0	01	1	0709-0709	●	●
143	COVER; CLUSTER METER M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> THA	8-98047-114-0	01	1	0710-0809	●	●
143	COVER; CLUSTER METER M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA	8-98047-114-0	01	1	0810-	●	●
269	SCREW; METER CLUSTER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> THA	8-98047-116-0	03	1	0607-0609	●	●
269	SCREW; METER CLUSTER M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> THA	8-98047-116-0	03	1	0610-0708	●	●
269	SCREW; METER CLUSTER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> THA	8-98047-116-0	03	1	0709-0709	●	●
269	SCREW; METER CLUSTER M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> THA	8-98047-116-0	03	1	0710-0809	●	●
269	SCREW; METER CLUSTER M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA	8-98047-116-0	03	1	0810-	●	●
