◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51027 - UCR/UCS(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#74917) — 137 parça

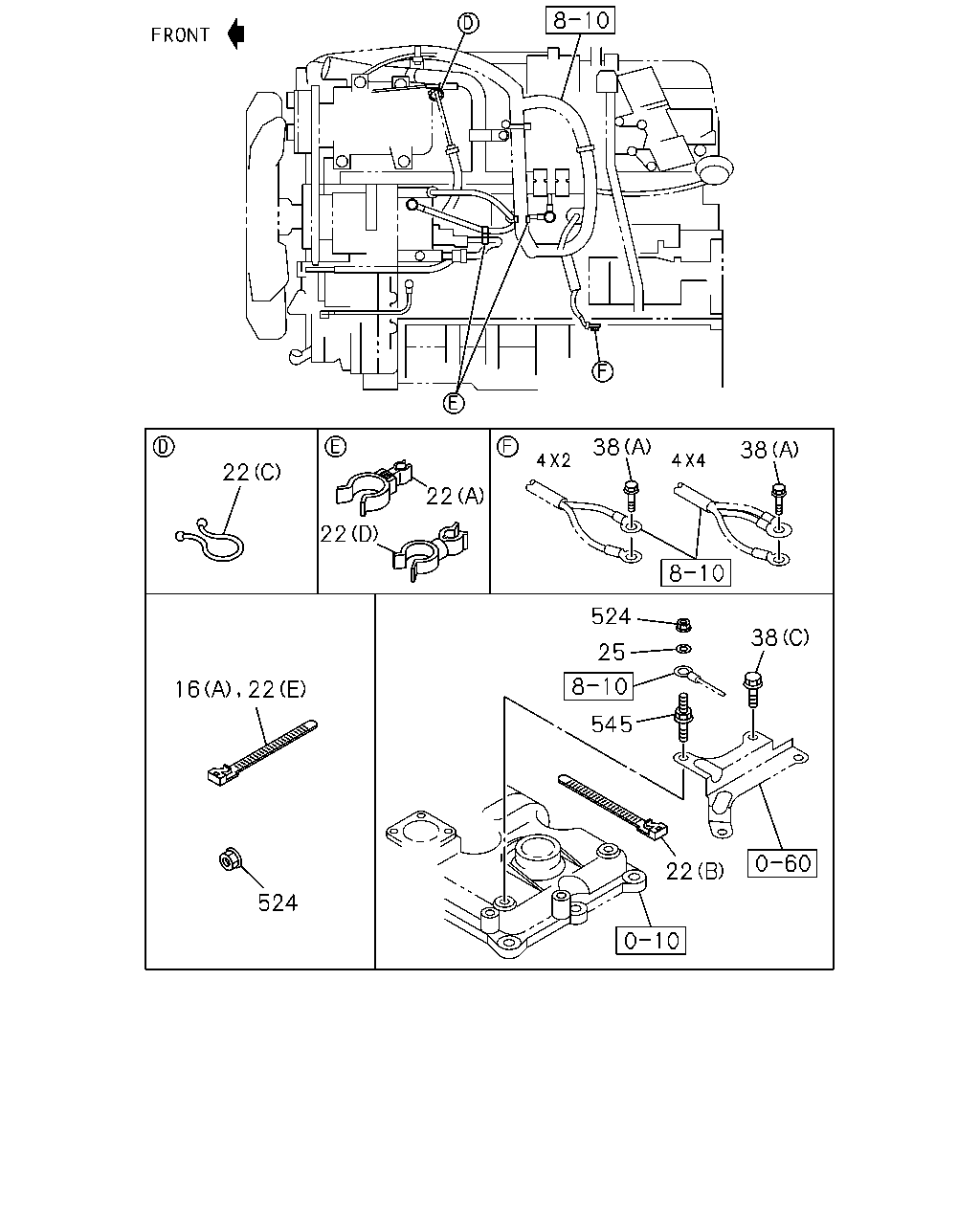

çizim 136799
38 38 22 22 22 524 38 25 545 22 16 22 524
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(B) L=135 IMA 		8-94473-399-0 02 1 0411- ● ●
16 CLIP; HARNESS
(C) L=60 H=10.9 THA 		8-97128-114-0 02 1 0411- ● ●
16 CLIP; HARNESS
(D) L=155 THA 		8-97173-307-0 06 1 0411- ● ●
16 CLIP; HARNESS
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (A) L=197 THA 		1-83574-032-0 01 1 0411-0508 ● ●
16 CLIP; HARNESS
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (A) L=197 THA 		1-83574-032-0 01 1 0509-0606 ● ●
22 CLIP; ENG HARNESS
(A) ID=20 & 16.5 IMA 		8-94486-835-0 01 1 0411-0606 ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> (A) ID=10 & 11 IMA 		8-94438-996-0 01 1 0607-0609 ● ●
22 CLIP; ENG HARNESS
(A) ID=10 & 11 IMA 		8-94438-996-0 01 1 0610-0708 ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> (A) ID=10 & 11 IMA 		8-94438-996-0 01 1 0709-0709 ● ●
22 CLIP; ENG HARNESS
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (A) ID=10 & 11 IMA 		8-94438-996-0 01 1 0710-0809 ● ●
22 CLIP; ENG HARNESS
(A) ID=10 & 11 IMA 		8-94438-996-0 01 1 0810- ● ●
22 CLIP; ENG HARNESS
(B) L=158.7 THA 		8-97922-209-0 01 1 0411-0606 ● ●
22 CLIP; ENG HARNESS
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (C) ID=15 THA 		1-09709-003-0 01 1 0411-0508 ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (C) ID=15 THA 		1-09709-003-0 01 1 0509-0606 ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> (C) ID=15 THA 		1-09709-003-0 01 1 0607-0809 ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (C) ID=15 THA 		1-09709-003-0 01 1 0810- ● ●
22 CLIP; ENG HARNESS
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (D) ID=6 & 8.3 IMA 		8-94167-742-0 01 1 0411-0508 ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (D) ID=6 & 8.3 IMA 		8-94167-742-0 01 1 0509-0606 ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> (D) ID=6 & 10 IMA 		8-94154-844-0 01 1 0607-0609 ● ●
22 CLIP; ENG HARNESS
(D) ID=6 & 10 IMA 		8-94154-844-0 01 1 0610-0708 ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> (D) ID=6 & 10 IMA 		8-94154-844-0 01 1 0709-0709 ● ●
22 CLIP; ENG HARNESS
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (D) ID=6 & 10 IMA 		8-94154-844-0 01 1 0710-0809 ● ●
22 CLIP; ENG HARNESS
(D) ID=6 & 10 IMA 		8-94154-844-0 01 1 0810- ● ●
22 CLIP; ENG HARNESS
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (E) L=140 THA 		8-97920-656-0 01 1 0411-0508 ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (E) L=140 THA 		8-97920-656-0 01 1 0509-0606 ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> (E) L=140 THA 		8-97920-656-0 01 1 0607-0609 ● ●
22 CLIP; ENG HARNESS
(E) L=140 THA 		8-97920-656-0 01 1 0610-0708 ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> (E) L=140 THA 		8-97920-656-0 01 1 0709-0709 ● ●
22 CLIP; ENG HARNESS
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (E) L=140 THA 		8-97920-656-0 01 1 0710-0809 ● ●
22 CLIP; ENG HARNESS
(E) L=140 THA 		8-97920-656-0 01 1 0810- ● ●
25 WASHER; PL,ENG HARNESS
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> ID=8.4 THA 		9-09164-508-0 01 1 0411-0508 ● ●
25 WASHER; PL,ENG HARNESS
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> ID=8.4 THA 		9-09164-508-0 01 1 0509-0606 ● ●
25 WASHER; PL,ENG HARNESS
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> ID=8.4 OD=16 IMA 		0-91614-508-0 01 1 0607-0607 ● ●
38 BOLT; CLIP,HARNESS
(B) M6X16 FLANGE THA 		0-28650-616-0 05 1 0411- ● ●
38 BOLT; CLIP,HARNESS
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (A) M8X12 FLANGE THA 		0-28050-812-0 01 1 0411-0508 ● ●
38 BOLT; CLIP,HARNESS
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (C) M8X20 FLANGE THA 		0-28650-820-0 01 1 0411-0508 ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (A) M8X12 FLANGE THA 		0-28050-812-0 01 1 0509-0606 ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> (A) M8X12 FLANGE THA 		0-28050-812-0 01 1 0607-0609 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X12 FLANGE THA 		0-28050-812-0 01 1 0610-0708 ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> (A) M8X12 FLANGE THA 		0-28050-812-0 01 1 0709-0709 ● ●
38 BOLT; CLIP,HARNESS
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (A) M8X12 FLANGE THA 		0-28050-812-0 01 1 0710-0809 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X12 FLANGE THA 		0-28050-812-0 01 1 0810- ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (C) M8X20 FLANGE THA 		0-28650-820-0 01 1 0509-0606 ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> (C) M8X16 FLANGE THA 		0-28050-816-0 02 1 0607-0609 ● ●
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE THA 		0-28050-816-0 02 1 0610-0708 ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> (C) M8X16 FLANGE THA 		0-28050-816-0 02 1 0709-0709 ● ●
38 BOLT; CLIP,HARNESS
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (C) M8X16 FLANGE THA 		0-28050-816-0 02 1 0710-0809 ● ●
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE THA 		0-28050-816-0 02 1 0810- ● ●
524 NUT; HARNESS
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> M8 FLANGE THA 		0-91180-108-0 02 1 0411-0508 ● ●
524 NUT; HARNESS
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> M8 FLANGE THA 		0-91180-108-0 02 1 0509-0606 ● ●
524 NUT; HARNESS
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> M8 FLANGE THA 		0-91180-108-0 01 1 0607-0609 ● ●
524 NUT; HARNESS
M8 FLANGE THA 		0-91180-108-0 01 1 0610-0708 ● ●
524 NUT; HARNESS
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> M8 FLANGE THA 		0-91180-108-0 01 1 0709-0709 ● ●
524 NUT; HARNESS
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> M8 FLANGE THA 		0-91180-108-0 01 1 0710-0809 ● ●
524 NUT; HARNESS
M8 FLANGE THA 		0-91180-108-0 01 1 0810- ● ●
545 STUD; HARNESS
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> M8X15 M8X17 L=40 THA 		8-97366-633-0 01 1 0411-0508 ● ●
545 STUD; HARNESS
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> M8X15 M8X17 L=40 THA 		8-97945-023-0 01 1 0509-0606 ● ●

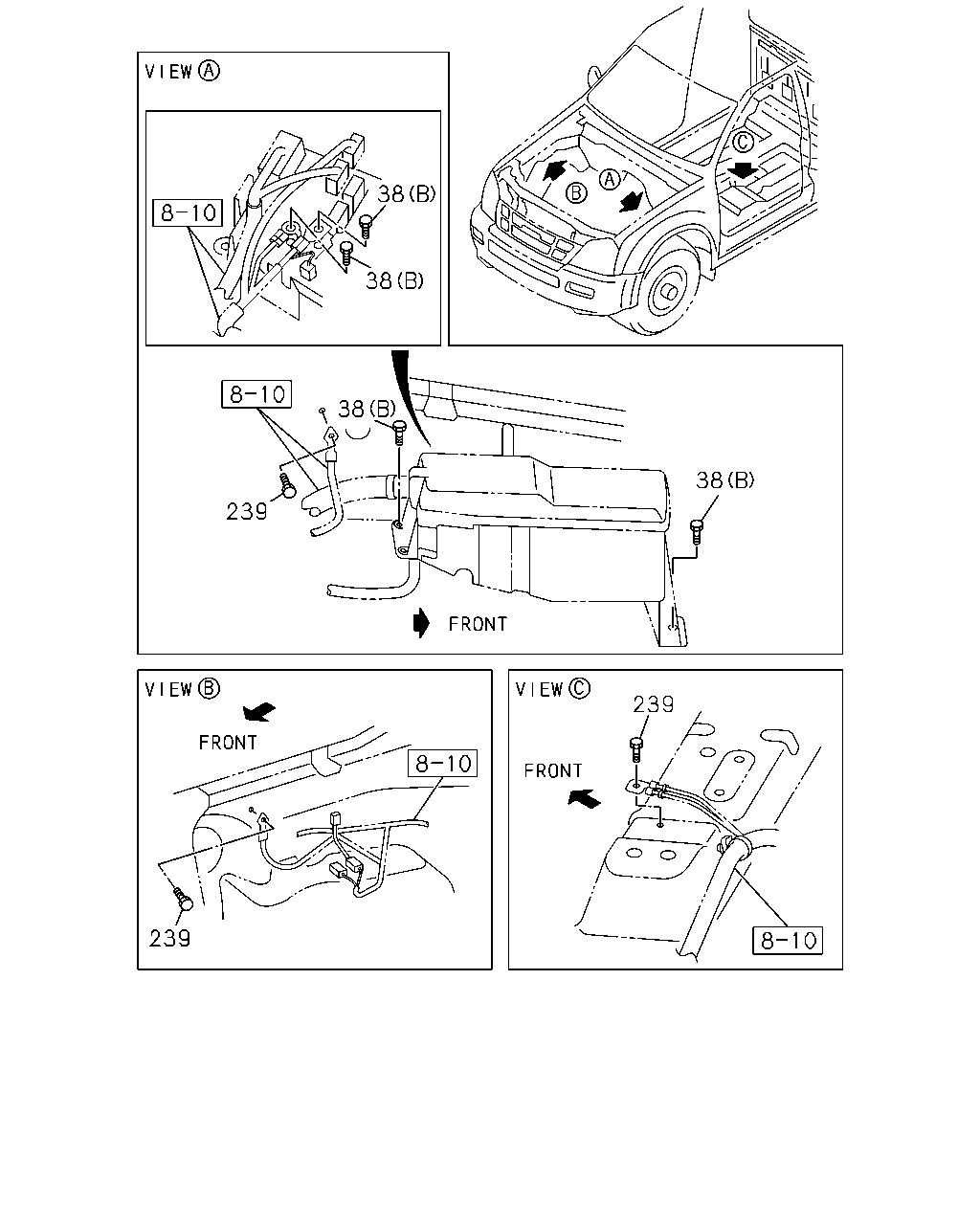

çizim 136931
38 38 38 38 239 239 239
BalonParca AdiParca NoAdetTipApplied Date A B
38 BOLT; CLIP,HARNESS
(B) M6X16 FLANGE THA 		0-28650-616-0 05 1 0411- ● ●
38 BOLT; CLIP,HARNESS
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (A) M8X12 FLANGE THA 		0-28050-812-0 01 1 0411-0508 ● ●
38 BOLT; CLIP,HARNESS
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (C) M8X20 FLANGE THA 		0-28650-820-0 01 1 0411-0508 ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (A) M8X12 FLANGE THA 		0-28050-812-0 01 1 0509-0606 ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> (A) M8X12 FLANGE THA 		0-28050-812-0 01 1 0607-0609 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X12 FLANGE THA 		0-28050-812-0 01 1 0610-0708 ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> (A) M8X12 FLANGE THA 		0-28050-812-0 01 1 0709-0709 ● ●
38 BOLT; CLIP,HARNESS
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (A) M8X12 FLANGE THA 		0-28050-812-0 01 1 0710-0809 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X12 FLANGE THA 		0-28050-812-0 01 1 0810- ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (C) M8X20 FLANGE THA 		0-28650-820-0 01 1 0509-0606 ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> (C) M8X16 FLANGE THA 		0-28050-816-0 02 1 0607-0609 ● ●
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE THA 		0-28050-816-0 02 1 0610-0708 ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> (C) M8X16 FLANGE THA 		0-28050-816-0 02 1 0709-0709 ● ●
38 BOLT; CLIP,HARNESS
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (C) M8X16 FLANGE THA 		0-28050-816-0 02 1 0710-0809 ● ●
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE THA 		0-28050-816-0 02 1 0810- ● ●
239 BOLT; GRAND
M6X14 W/LK&PL WASHER THA 		8-97086-822-0 04 1 0411- ● ●

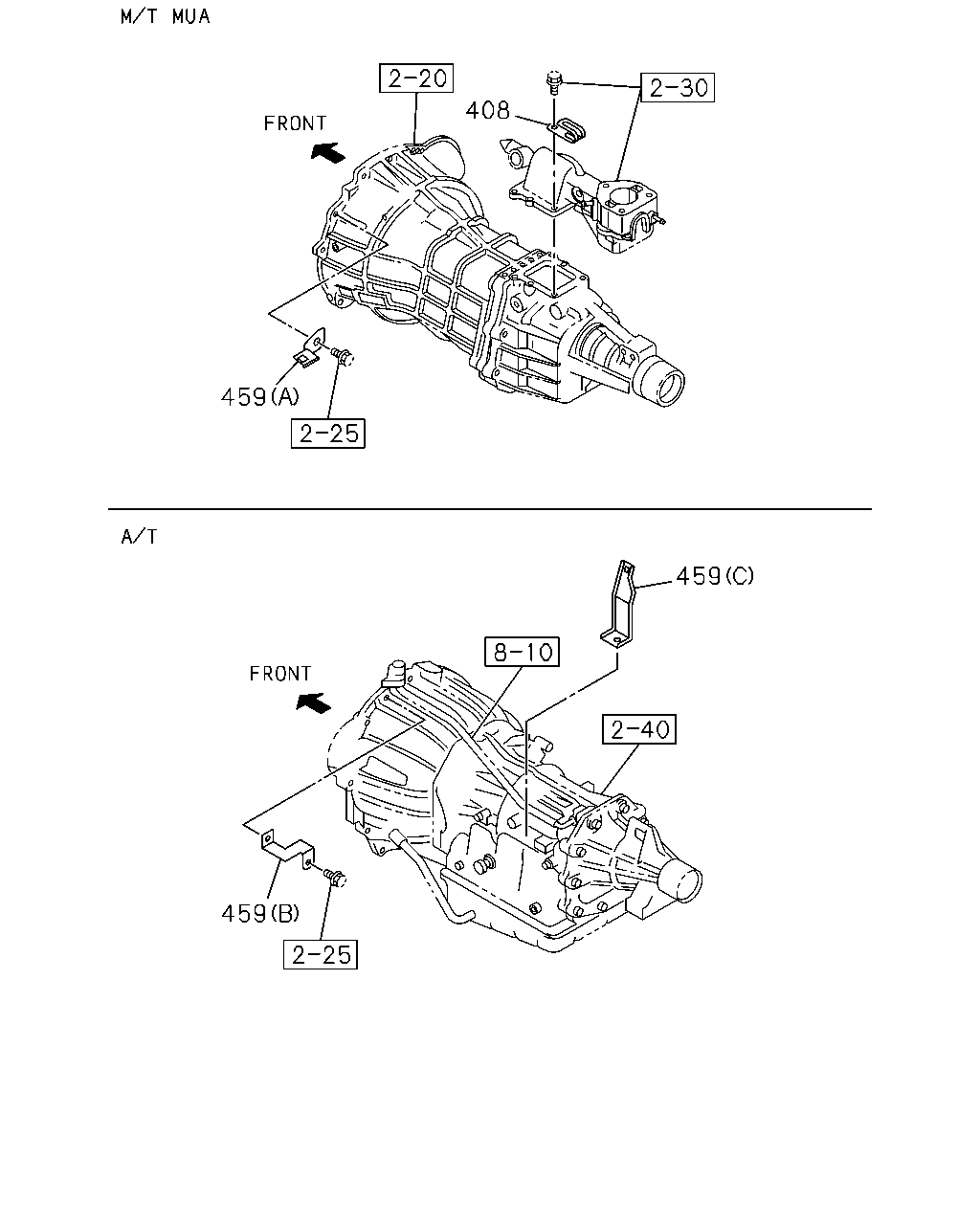

çizim 136976
408 459 459 459
BalonParca AdiParca NoAdetTipApplied Date A B
408 CLIP; TRANS HARNESS
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5G<RSP> ID=12 B=14 ID=8.5 THA 		5-09700-350-0 04 1 0411-0604 ● ●
408 CLIP; TRANS HARNESS
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5G<RSP> ID=12 B=14 ID=8.5 THA 		5-09700-350-0 04 1 0411-0604 ●
408 CLIP; TRANS HARNESS
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5G<RSP> ID=12 VINYL CHLORIDE THA 		8-97367-984-0 04 1 0605-0606 ● ●
408 CLIP; TRANS HARNESS
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5G<RSP> ID=12 VINYL CHLORIDE THA 		8-97367-984-0 04 1 0605-0606 ●
408 CLIP; TRANS HARNESS
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> ID=12 VINYL CHLORIDE THA 		8-97367-984-0 04 1 0607-0609 ● ●
408 CLIP; TRANS HARNESS
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> ID=12 VINYL CHLORIDE THA 		8-97367-984-0 04 1 0607-0609 ●
408 CLIP; TRANS HARNESS
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> FINAL GEAR RATIO 43/10<GY2> ID=12 VINYL CHLORIDE THA 		8-97367-984-0 04 1 0610-0708 ● ●
408 CLIP; TRANS HARNESS
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> ID=12 VINYL CHLORIDE THA 		8-97367-984-0 04 1 0610-0708 ●
408 CLIP; TRANS HARNESS
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> ID=12 VINYL CHLORIDE IMA 		8-97367-984-1 04 1 0709-0709 ● ●
408 CLIP; TRANS HARNESS
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> ID=12 VINYL CHLORIDE IMA 		8-97367-984-1 04 1 0709-0709 ●
408 CLIP; TRANS HARNESS
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> FINAL GEAR RATIO 43/10<GY2> ID=12 VINYL CHLORIDE IMA 		8-97367-984-1 04 1 0710- ● ●
408 CLIP; TRANS HARNESS
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> ID=12 VINYL CHLORIDE IMA 		8-97367-984-1 04 1 0710- ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> (B) THA 		8-97307-524-1 01 1 0810- ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG<LS0> A/T AISIN<RMD> (C) THA 		8-98050-720-0 01 1 0710- ● ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> (B) THA 		8-97307-524-1 01 1 0411-0606 ● ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5G<RSP> (A) THA 		8-94315-284-0 01 1 0411-0606 ● ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> (A) THA 		8-94315-284-0 01 1 0607-0608 ● ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> (A) THA 		8-98050-882-0 01 1 0609- ● ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG<LS0> A/T AISIN<RMD> (C) THA 		8-98050-720-0 01 1 0610-0708 ● ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (D) THA 		8-97382-804-0 01 1 0710- ● ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (E) THA 		8-98035-740-0 01 1 0710- ● ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (F) THA 		8-98035-741-0 01 1 0710- ● ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (D) THA 		8-97382-804-0 01 1 0610-0708 ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (E) THA 		8-98035-740-0 01 1 0610-0708 ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (F) THA 		8-98035-741-0 01 1 0610-0708 ●

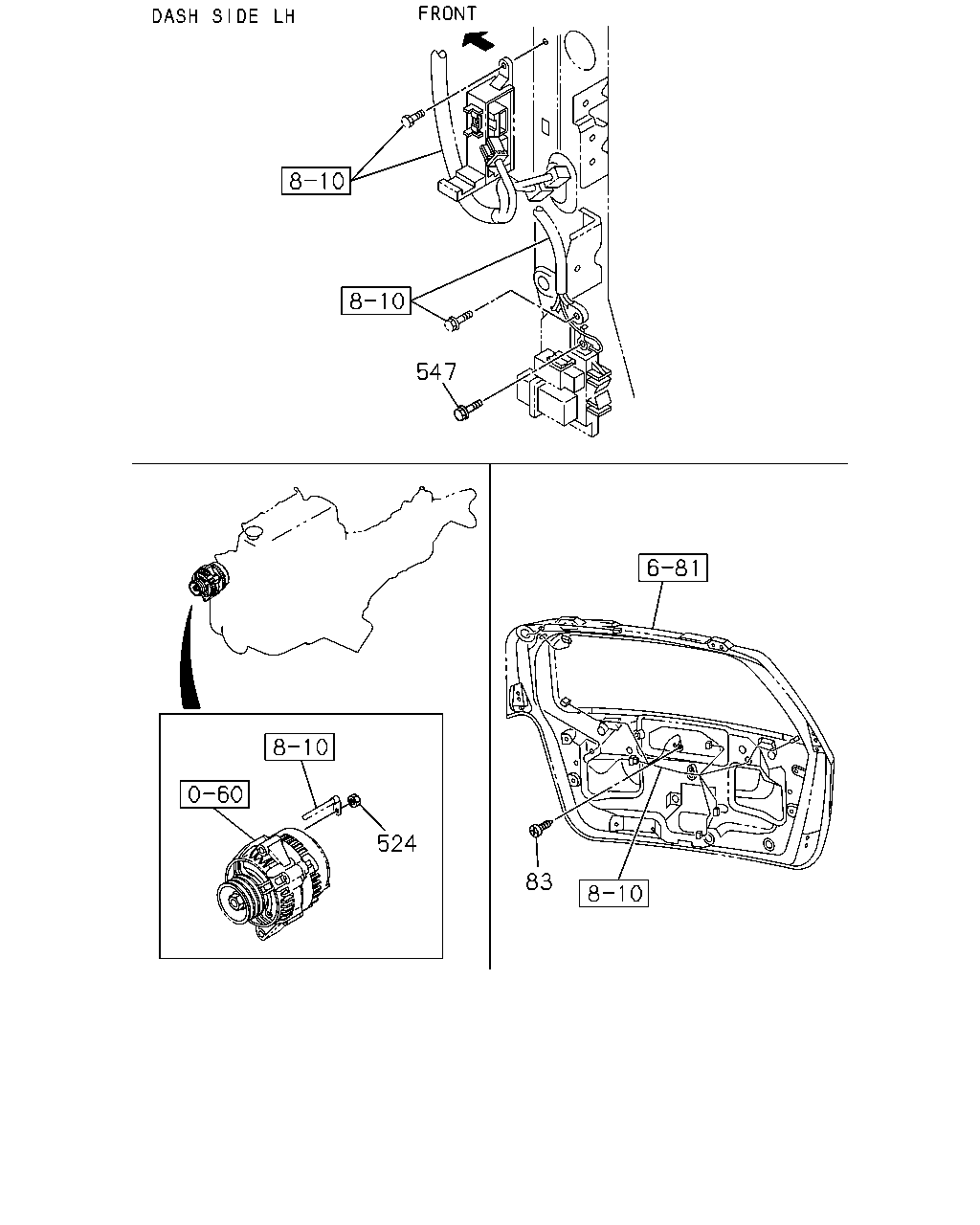

çizim 137242
547 524 83
BalonParca AdiParca NoAdetTipApplied Date A B
83 SCREW; HARNESS
M5X14 IMA 		8-94120-095-0 01 1 0509- ● ●
524 NUT; HARNESS
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> M8 FLANGE THA 		0-91180-108-0 02 1 0411-0508 ● ●
524 NUT; HARNESS
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> M8 FLANGE THA 		0-91180-108-0 02 1 0509-0606 ● ●
524 NUT; HARNESS
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> M8 FLANGE THA 		0-91180-108-0 01 1 0607-0609 ● ●
524 NUT; HARNESS
M8 FLANGE THA 		0-91180-108-0 01 1 0610-0708 ● ●
524 NUT; HARNESS
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> M8 FLANGE THA 		0-91180-108-0 01 1 0709-0709 ● ●
524 NUT; HARNESS
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> M8 FLANGE THA 		0-91180-108-0 01 1 0710-0809 ● ●
524 NUT; HARNESS
M8 FLANGE THA 		0-91180-108-0 01 1 0810- ● ●
547 BOLT
M6X14 W/LK&PL WASHER THA 		8-97086-822-0 01 1 0411- ● ●

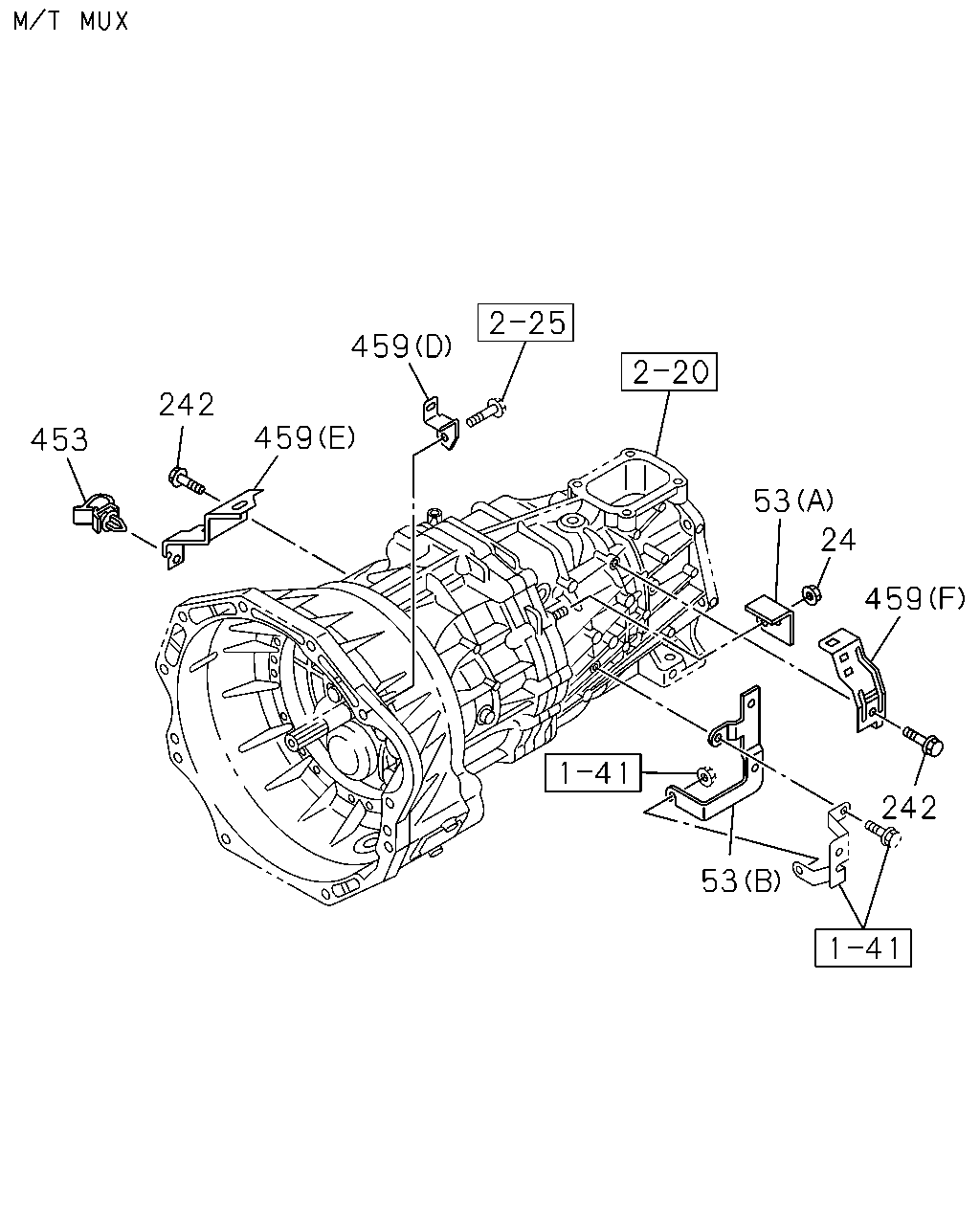

çizim 137736
459 242 459 453 53 24 459 242 53
BalonParca AdiParca NoAdetTipApplied Date A B
24 NUT; HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> M6 FLANGE THA 		0-91180-206-0 01 1 0710- ● ●
24 NUT; HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> M6 FLANGE THA 		0-91180-206-0 01 1 0610-0708 ●
53 BRACKET; HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (A) THA 		8-97944-510-1 01 1 0710- ● ●
53 BRACKET; HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (B) THA 		8-97944-511-1 01 1 0710- ● ●
53 BRACKET; HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (A) THA 		8-97944-510-1 01 1 0610-0708 ●
53 BRACKET; HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (B) THA 		8-97944-511-1 01 1 0610-0708 ●
242 BOLT; BRKT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> M8X16 FLANGE THA 		0-28050-816-0 02 1 0710- ● ●
242 BOLT; BRKT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> M8X16 FLANGE THA 		0-28050-816-0 02 1 0610-0708 ●
453 CLIP; CABLE HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> ID=6.5 IMA 		5-09709-117-0 01 1 0610-0708 ●
453 CLIP; CABLE HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> ID=6.5 IMA 		5-09709-117-0 01 1 0710- ● ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> (B) THA 		8-97307-524-1 01 1 0810- ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG<LS0> A/T AISIN<RMD> (C) THA 		8-98050-720-0 01 1 0710- ● ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> (B) THA 		8-97307-524-1 01 1 0411-0606 ● ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5G<RSP> (A) THA 		8-94315-284-0 01 1 0411-0606 ● ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> (A) THA 		8-94315-284-0 01 1 0607-0608 ● ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> (A) THA 		8-98050-882-0 01 1 0609- ● ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG<LS0> A/T AISIN<RMD> (C) THA 		8-98050-720-0 01 1 0610-0708 ● ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (D) THA 		8-97382-804-0 01 1 0710- ● ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (E) THA 		8-98035-740-0 01 1 0710- ● ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (F) THA 		8-98035-741-0 01 1 0710- ● ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (D) THA 		8-97382-804-0 01 1 0610-0708 ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (E) THA 		8-98035-740-0 01 1 0610-0708 ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (F) THA 		8-98035-741-0 01 1 0610-0708 ●

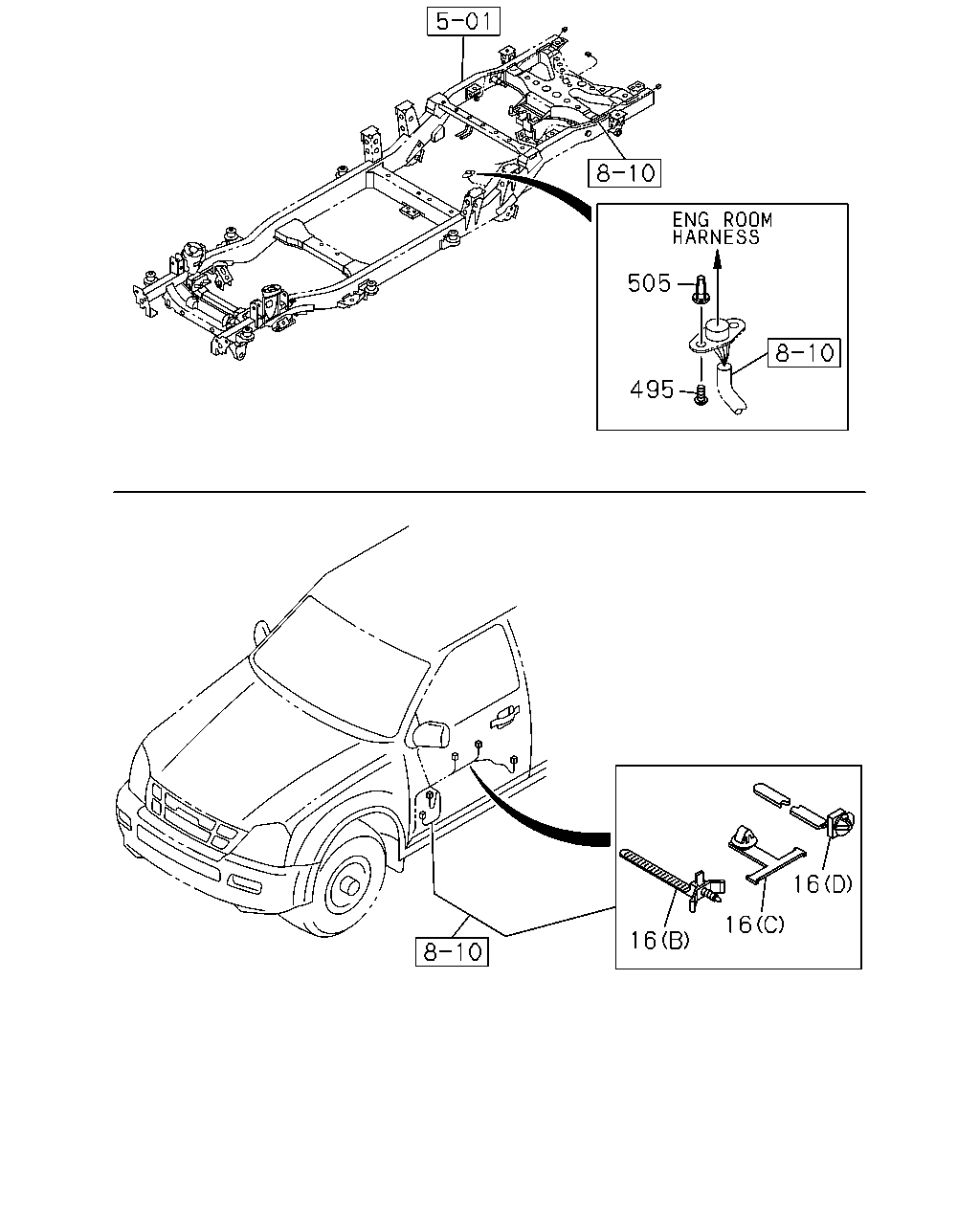

çizim 185455
505 495 16 16 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(B) L=135 IMA 		8-94473-399-0 02 1 0411- ● ●
16 CLIP; HARNESS
(C) L=60 H=10.9 THA 		8-97128-114-0 02 1 0411- ● ●
16 CLIP; HARNESS
(D) L=155 THA 		8-97173-307-0 06 1 0411- ● ●
16 CLIP; HARNESS
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (A) L=197 THA 		1-83574-032-0 01 1 0411-0508 ● ●
16 CLIP; HARNESS
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (A) L=197 THA 		1-83574-032-0 01 1 0509-0606 ● ●
495 BOLT; CABLE TO BODY
M5X14 IMA 		8-94120-095-0 02 1 0411- ● ●
505 RETAINER; HARNESS
D=7.9X7.9 L=20 M5 IMA 		8-94441-539-0 02 1 0411- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
