◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51027 - UCR/UCS(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#74916) — 235 parça

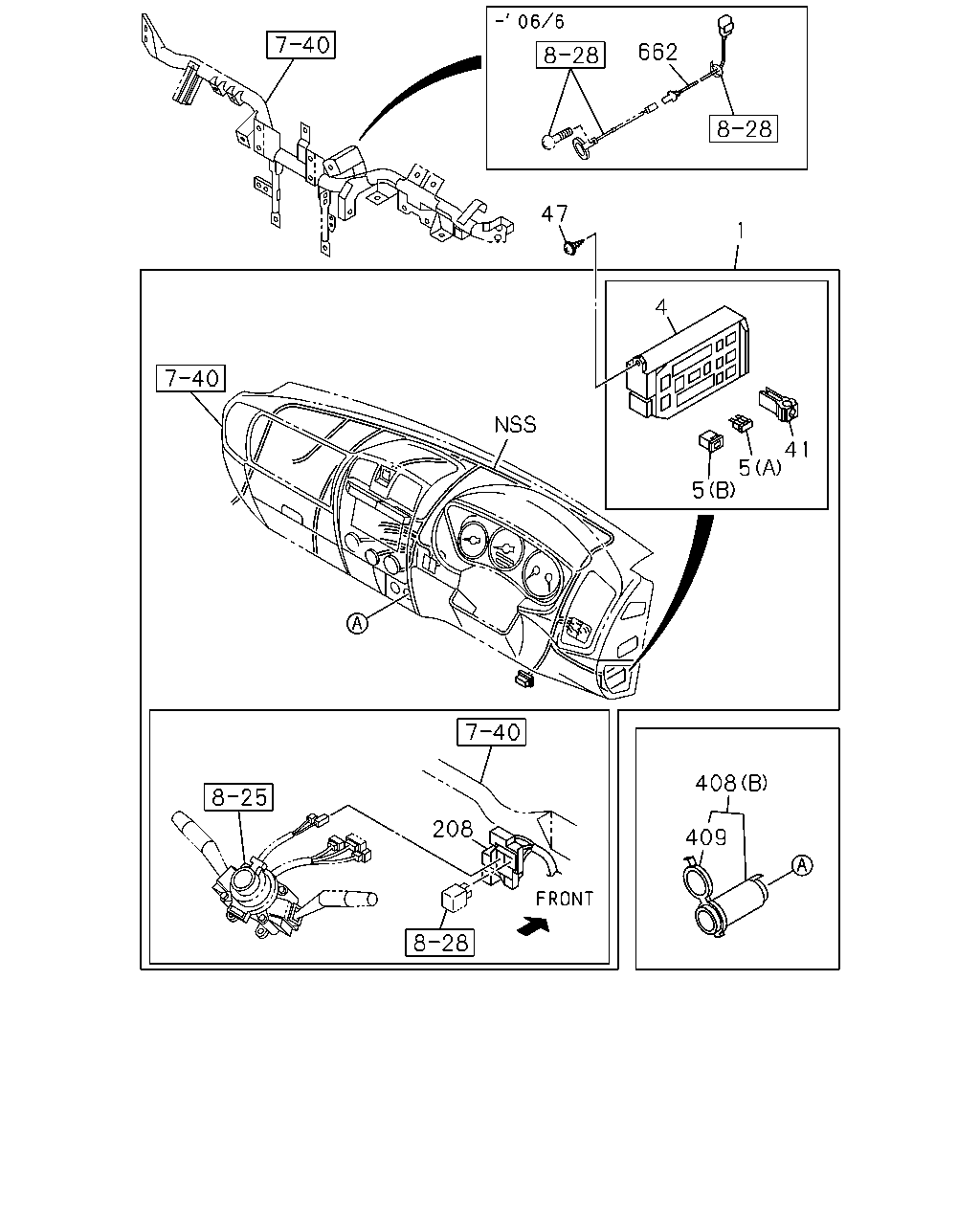

çizim 135974
662 47 1 4 41 5 5 408 208 409
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
A/T AISIN<RMD> THA 		8-98018-476-2 01 1 0610-0708 ●
1 HARNESS; CAB
A/T AISIN<RMD> THA 		8-98053-925-2 01 1 0710-0809 ●
1 HARNESS; CAB
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA 		8-98053-925-2 01 1 0810- ●
1 HARNESS; CAB
A/T 4 SPEED-JATCO<RMK> THA 		8-97380-003-0 01 1 0411-0508 ●
1 HARNESS; CAB
A/T 4 SPEED-JATCO<RMK> THA 		8-98018-243-0 01 1 0509-0606 ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98018-471-2 01 1 0607-0708 ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98053-923-2 01 1 0709-0709 ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-98053-923-2 01 1 0710- ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5G<RSP> THA 		8-97380-005-1 01 1 0411-0508 ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5G<RSP> THA 		8-98018-246-0 01 1 0509-0606 ●
1 HARNESS; CAB
A/T AISIN<RMD> THA 		8-98018-477-2 01 1 0610-0708 ●
1 HARNESS; CAB
A/T AISIN<RMD> THA 		8-98053-926-2 01 1 0710- ●
1 HARNESS; CAB
A/T 4 SPEED-JATCO<RMK> THA 		8-97380-004-0 01 1 0411-0508 ●
1 HARNESS; CAB
A/T 4 SPEED-JATCO<RMK> THA 		8-98018-245-0 01 1 0509-0606 ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98018-473-2 01 1 0607-0609 ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-98018-473-2 01 1 0610-0708 ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98053-924-2 01 1 0709-0709 ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-98053-924-2 01 1 0710- ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5G<RSP> THA 		8-97380-006-1 01 1 0411-0508 ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5G<RSP> THA 		8-98018-248-0 01 1 0509-0606 ●
4 BOX ASM; FUSE,HARNESS
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97245-601-0 01 1 0411-0606 ● ●
4 BOX ASM; FUSE,HARNESS
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97245-601-0 01 1 0607-0609 ● ●
4 BOX ASM; FUSE,HARNESS
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> THA 		8-97245-601-0 01 1 0610-0708 ● ●
4 BOX ASM; FUSE,HARNESS
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97245-601-0 01 1 0709-0709 ● ●
4 BOX ASM; FUSE,HARNESS
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> THA 		8-97245-601-0 01 1 0710-0809 ● ●
4 BOX ASM; FUSE,HARNESS
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA 		8-97245-601-0 01 1 0810- ● ●
5 FUSE; FACIA HARNESS
(A) 10A MINI RED THA 		8-97062-022-0 AR 1 0411- ● ●
5 FUSE; FACIA HARNESS
(A) 15A MINI BLUE THA 		8-97062-023-0 AR 1 0411- ● ●
5 FUSE; FACIA HARNESS
(A) 20A MINI YELLOW THA 		8-97062-024-0 AR 1 0411- ● ●
5 FUSE; FACIA HARNESS
(B) 20A LIGHT BLUE THA 		8-97183-642-0 AR 1 0411- ● ●
5 FUSE; FACIA HARNESS
(B) 30A PINK THA 		8-97183-643-0 AR 1 0411- ● ●
41 PULLER; FUSE
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97103-388-0 01 1 0411-0606 ● ●
41 PULLER; FUSE
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97103-388-0 01 1 0607-0609 ● ●
41 PULLER; FUSE
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> THA 		8-97103-388-0 01 1 0610-0708 ● ●
41 PULLER; FUSE
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97103-388-0 01 1 0709-0709 ● ●
41 PULLER; FUSE
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> THA 		8-97103-388-0 01 1 0710-0809 ● ●
41 PULLER; FUSE
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA 		8-97103-388-0 01 1 0810- ● ●
47 BOLT; JUNCTION BLOCK
M5X16 TAPPING THA 		9-09829-323-1 01 1 0411-0702 ● ●
47 BOLT; JUNCTION BLOCK
M5X16 TAPPING THA 		8-98061-685-0 01 1 0703-1005 ● ●
47 BOLT; JUNCTION BLOCK
M5X16 TAPPING THA 		8-98167-449-0 01 1 1006- ● ●
208 HOLDER; CONNECTOR
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97245-597-0 01 1 0411-0606 ● ●
208 HOLDER; CONNECTOR
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97245-597-0 01 1 0607-0609 ● ●
208 HOLDER; CONNECTOR
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> THA 		8-97245-597-0 01 1 0610-0708 ● ●
208 HOLDER; CONNECTOR
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97245-597-0 01 1 0709-0709 ● ●
208 HOLDER; CONNECTOR
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> THA 		8-97245-597-0 01 1 0710-0809 ● ●
208 HOLDER; CONNECTOR
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA 		8-97245-597-0 01 1 0810- ● ●
408 SOCKET ASM; ACCESSORY
(A) THA 		8-94382-451-1 01 1 0411- ● ●
408 SOCKET ASM; ACCESSORY
(B) THA 		8-97288-746-0 01 1 0411- ● ●
409 CAP; ACCESSORY SOCKET
THA 		8-97327-326-0 01 1 0411- ● ●
662 HARNESS; IMMOBILIZER
THA 		8-97303-923-0 01 1 0411-0606 ● ●
662 HARNESS; IMMOBILIZER
THA 		8-98040-808-0 01 1 0607- ● ●

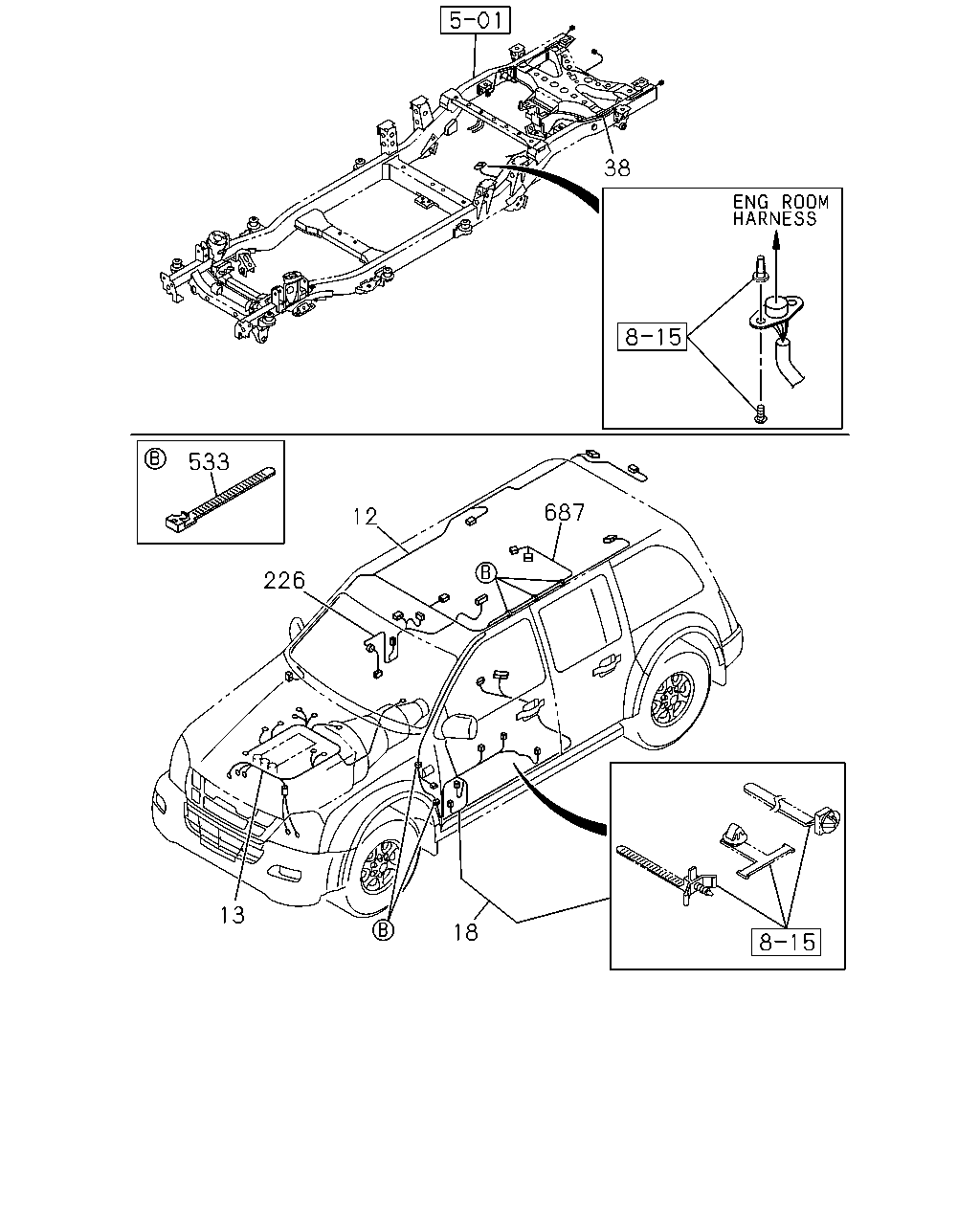

çizim 136207
38 533 687 12 226 13 18
BalonParca AdiParca NoAdetTipApplied Date A B
12 HARNESS; ROOF
THA 		8-97363-398-1 01 1 0411-0508 ● ●
12 HARNESS; ROOF
THA 		8-98018-242-1 01 1 0509- ● ●
13 HARNESS; ENG
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA 		8-98045-083-1 01 1 0810- ●
13 HARNESS; ENG
A/T 4 SPEED-JATCO<RMK> THA 		8-97375-101-4 01 1 0411-0508 ●
13 HARNESS; ENG
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA 		8-97375-101-4 01 1 0509-0601 ●
13 HARNESS; ENG
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA 		8-98038-664-0 01 1 0602-0606 ●
13 HARNESS; ENG
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98011-539-4 01 1 0607-0708 ●
13 HARNESS; ENG
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98045-081-1 01 1 0709- ●
13 HARNESS; ENG
M/T MUA 5 SPEED 5G<RSP> THA 		8-97375-099-4 01 1 0411-0508 ●
13 HARNESS; ENG
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5G<RSP> THA 		8-97375-099-4 01 1 0509-0601 ●
13 HARNESS; ENG
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5G<RSP> THA 		8-98038-662-0 01 1 0602-0606 ●
13 HARNESS; ENG
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98011-540-4 01 1 0607-0708 ●
13 HARNESS; ENG
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98045-082-1 01 1 0709- ●
13 HARNESS; ENG
4JJ1-TCX ENG<LS0> A/T AISIN<RMD> THA 		8-98011-545-6 01 1 0610-0708 ●
13 HARNESS; ENG
4JJ1-TCX ENG<LS0> A/T AISIN<RMD> THA 		8-98067-913-1 01 1 0710- ●
13 HARNESS; ENG
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> THA 		8-98067-911-1 01 1 0710- ●
13 HARNESS; ENG
A/T 4 SPEED-JATCO<RMK> THA 		8-97375-102-3 01 1 0411-0508 ●
13 HARNESS; ENG
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA 		8-97375-102-4 01 1 0509-0601 ●
13 HARNESS; ENG
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA 		8-98038-665-0 01 1 0602-0606 ●
13 HARNESS; ENG
M/T MUA 5 SPEED 5G<RSP> THA 		8-97375-100-3 01 1 0411-0508 ●
13 HARNESS; ENG
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5G<RSP> THA 		8-97375-100-4 01 1 0509-0601 ●
13 HARNESS; ENG
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5G<RSP> THA 		8-98038-663-0 01 1 0602-0606 ●
13 HARNESS; ENG
4JJ1-TCX ENG<LS0> A/T AISIN<RMD> THA 		8-98011-546-6 01 1 0610-0708 ●
13 HARNESS; ENG
4JJ1-TCX ENG<LS0> A/T AISIN<RMD> THA 		8-98067-914-1 01 1 0710- ●
13 HARNESS; ENG
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> THA 		8-98011-544-6 01 1 0610-0708 ●
13 HARNESS; ENG
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> THA 		8-98067-912-1 01 1 0710- ●
18 HARNESS; DOOR
THA 		8-97363-402-1 01 1 0411-0508 ● ●
18 HARNESS; DOOR
THA 		8-97387-007-0 01 1 0509-0606 ● ●
18 HARNESS; DOOR
THA 		8-98031-270-1 01 1 0607-0708 ● ●
18 HARNESS; DOOR
THA 		8-98053-484-0 01 1 0709- ● ●
18 HARNESS; DOOR
THA 		8-97363-400-1 01 1 0411-0606 ● ●
18 HARNESS; DOOR
THA 		8-98031-269-2 01 1 0607-0708 ● ●
18 HARNESS; DOOR
THA 		8-98053-931-0 01 1 0709- ● ●
38 HARNESS; CHAS
THA 		8-97363-406-1 01 1 0411-0606 ● ●
38 HARNESS; CHAS
THA 		8-98030-458-0 01 1 0607- ● ●
226 HARNESS; RR DOOR
THA 		8-97363-401-0 02 1 0411-0606 ● ●
226 HARNESS; RR DOOR
THA 		8-98043-385-0 02 1 0607- ● ●
533 CLIP
L=140 THA 		8-97920-656-0 05 1 0509- ● ●
687 HARNESS; VIDEO DISC PLYR
THA 		8-98023-146-1 01 1 0509- ● ●

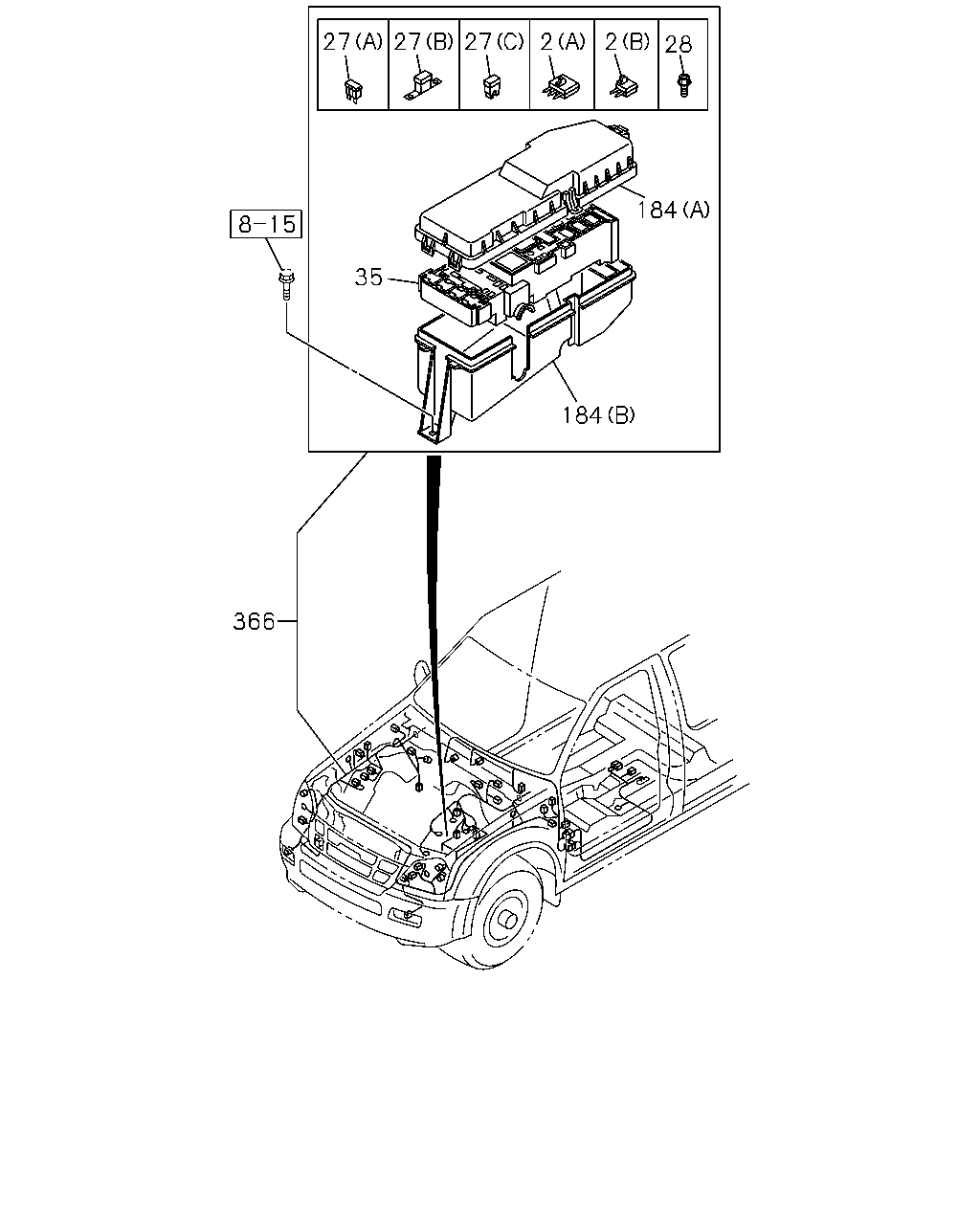

çizim 136462
27 27 27 2 2 28 184 35 184 366
BalonParca AdiParca NoAdetTipApplied Date A B
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A THA 		8-94422-639-1 AR 1 0411- ● ●
2 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A THA 		8-94422-640-1 AR 1 0411- ● ●
27 FUSE UNIT
(B) 120A WHITE IMA 		1-82516-028-1 AR 1 0411- ● ●
27 FUSE UNIT
(A) 10A MINI RED THA 		8-97062-022-0 AR 1 0411- ● ●
27 FUSE UNIT
(A) 15A MINI BLUE THA 		8-97062-023-0 AR 1 0411- ● ●
27 FUSE UNIT
(A) 20A MINI YELLOW THA 		8-97062-024-0 AR 1 0411- ● ●
27 FUSE UNIT
(C) 30A PINK THA 		8-97183-643-0 AR 1 0411- ● ●
27 FUSE UNIT
(C) 40A GREEN THA 		8-97183-644-0 AR 1 0411- ● ●
27 FUSE UNIT
(C) 60A YELLOW THA 		8-97219-407-0 AR 1 0411- ● ●
27 FUSE UNIT
(C) 20A LIGHT BLUE THA 		8-97183-642-0 AR 1 0607- ● ●
28 SCREW; FUSE BOX
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97249-192-0 02 1 0411-0606 ● ●
28 SCREW; FUSE BOX
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> THA 		8-97249-192-0 02 1 0607-0609 ● ●
28 SCREW; FUSE BOX
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> THA 		8-97249-192-0 02 1 0610-0708 ● ●
28 SCREW; FUSE BOX
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> THA 		8-97249-192-0 02 1 0709-0709 ● ●
28 SCREW; FUSE BOX
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> THA 		8-97249-192-0 02 1 0710-0809 ● ●
28 SCREW; FUSE BOX
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> THA 		8-97249-192-0 02 1 0810- ● ●
28 SCREW; FUSE BOX
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-97249-192-0 02 1 0810- ● ●
35 BOX; RELAY & FUSE
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97251-395-0 01 1 0411-0606 ● ●
35 BOX; RELAY & FUSE
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> THA 		8-97251-395-0 01 1 0607-0609 ● ●
35 BOX; RELAY & FUSE
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> THA 		8-97251-395-0 01 1 0610-0708 ● ●
35 BOX; RELAY & FUSE
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> THA 		8-97251-395-0 01 1 0709-0709 ● ●
35 BOX; RELAY & FUSE
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> THA 		8-97251-395-0 01 1 0710-0809 ● ●
35 BOX; RELAY & FUSE
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> THA 		8-97251-395-0 01 1 0810- ● ●
35 BOX; RELAY & FUSE
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-97251-395-0 01 1 0810- ● ●
184 COVER; RELAY & FUSE BOX
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (A) THA 		8-97251-393-0 01 1 0411-0606 ● ●
184 COVER; RELAY & FUSE BOX
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> (A) THA 		8-97251-393-0 01 1 0607-0609 ● ●
184 COVER; RELAY & FUSE BOX
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (A) THA 		8-97251-393-0 01 1 0610-0708 ● ●
184 COVER; RELAY & FUSE BOX
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> (A) THA 		8-97251-393-0 01 1 0709-0709 ● ●
184 COVER; RELAY & FUSE BOX
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (A) THA 		8-97251-393-0 01 1 0710-0809 ● ●
184 COVER; RELAY & FUSE BOX
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> (A) THA 		8-97251-393-0 01 1 0810- ● ●
184 COVER; RELAY & FUSE BOX
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (A) THA 		8-97251-393-0 01 1 0810- ● ●
184 COVER; RELAY & FUSE BOX
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (B) THA 		8-97251-394-0 01 1 0411-0606 ● ●
184 COVER; RELAY & FUSE BOX
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> (B) THA 		8-97251-394-0 01 1 0607-0609 ● ●
184 COVER; RELAY & FUSE BOX
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (B) THA 		8-97251-394-0 01 1 0610-0708 ● ●
184 COVER; RELAY & FUSE BOX
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> (B) THA 		8-97251-394-0 01 1 0709-0709 ● ●
184 COVER; RELAY & FUSE BOX
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (B) THA 		8-97251-394-0 01 1 0710-0809 ● ●
184 COVER; RELAY & FUSE BOX
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> (B) THA 		8-97251-394-0 01 1 0810- ● ●
184 COVER; RELAY & FUSE BOX
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (B) THA 		8-97251-394-0 01 1 0810- ● ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA 		8-98125-542-0 01 1 0810- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97363-387-1 01 1 0411-0606 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98018-461-3 01 1 0607-0708 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98067-843-5 01 1 0709-0808 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98101-751-0 01 1 0809- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97363-388-1 01 1 0411-0606 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5G<RSP> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97363-385-2 01 1 0411-0606 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5G<RSP> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97363-386-2 01 1 0411-0606 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> A/T AISIN<RMD> THA 		8-98018-465-3 01 1 0610-0708 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> A/T AISIN<RMD> THA 		8-98067-844-5 01 1 0710-0808 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> A/T AISIN<RMD> THA 		8-98101-752-0 01 1 0809- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> THA 		8-98080-183-3 01 1 0710-0808 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> THA 		8-98101-756-0 01 1 0809- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA 		8-97363-391-1 01 1 0411-0606 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98028-063-3 01 1 0607-0708 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98067-847-5 01 1 0709-0808 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98101-755-0 01 1 0809- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5G<RSP> THA 		8-97363-389-2 01 1 0411-0606 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> A/T AISIN<RMD> THA 		8-98018-467-3 01 1 0610-0708 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> A/T AISIN<RMD> THA 		8-98067-846-5 01 1 0710-0808 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> A/T AISIN<RMD> THA 		8-98101-754-0 01 1 0809- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> THA 		8-98018-466-3 01 1 0610-0708 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> THA 		8-98067-845-5 01 1 0710-0808 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> THA 		8-98101-753-0 01 1 0809- ●

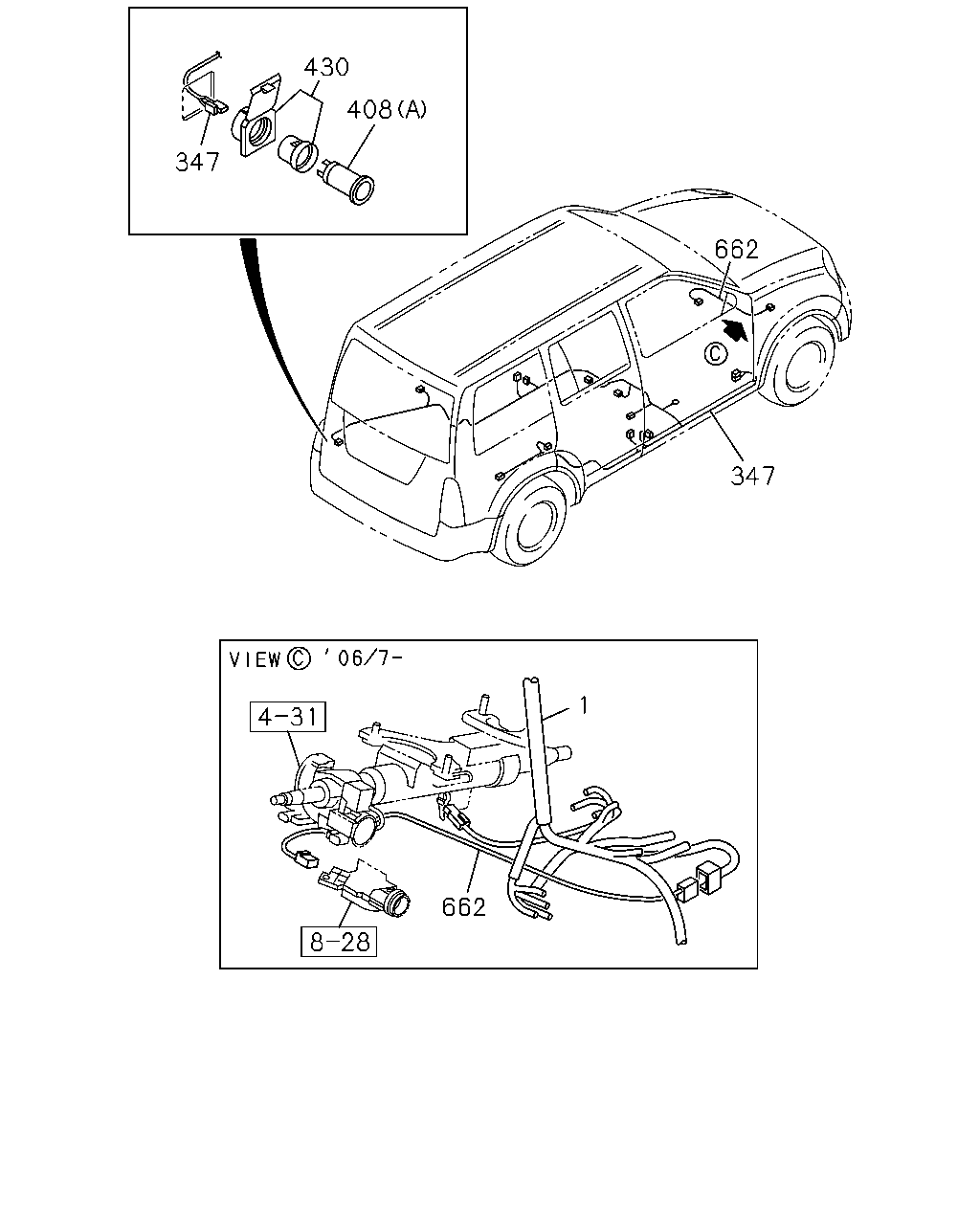

çizim 136680
430 408 347 662 347 1 662
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
A/T AISIN<RMD> THA 		8-98018-476-2 01 1 0610-0708 ●
1 HARNESS; CAB
A/T AISIN<RMD> THA 		8-98053-925-2 01 1 0710-0809 ●
1 HARNESS; CAB
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA 		8-98053-925-2 01 1 0810- ●
1 HARNESS; CAB
A/T 4 SPEED-JATCO<RMK> THA 		8-97380-003-0 01 1 0411-0508 ●
1 HARNESS; CAB
A/T 4 SPEED-JATCO<RMK> THA 		8-98018-243-0 01 1 0509-0606 ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98018-471-2 01 1 0607-0708 ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98053-923-2 01 1 0709-0709 ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-98053-923-2 01 1 0710- ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5G<RSP> THA 		8-97380-005-1 01 1 0411-0508 ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5G<RSP> THA 		8-98018-246-0 01 1 0509-0606 ●
1 HARNESS; CAB
A/T AISIN<RMD> THA 		8-98018-477-2 01 1 0610-0708 ●
1 HARNESS; CAB
A/T AISIN<RMD> THA 		8-98053-926-2 01 1 0710- ●
1 HARNESS; CAB
A/T 4 SPEED-JATCO<RMK> THA 		8-97380-004-0 01 1 0411-0508 ●
1 HARNESS; CAB
A/T 4 SPEED-JATCO<RMK> THA 		8-98018-245-0 01 1 0509-0606 ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98018-473-2 01 1 0607-0609 ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-98018-473-2 01 1 0610-0708 ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98053-924-2 01 1 0709-0709 ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-98053-924-2 01 1 0710- ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5G<RSP> THA 		8-97380-006-1 01 1 0411-0508 ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5G<RSP> THA 		8-98018-248-0 01 1 0509-0606 ●
347 HARNESS; CABLE,RR BODY
THA 		8-97363-397-1 01 1 0411-0708 ● ●
347 HARNESS; CABLE,RR BODY
THA 		8-98090-745-0 01 1 0709- ● ●
408 SOCKET ASM; ACCESSORY
(A) THA 		8-94382-451-1 01 1 0411- ● ●
408 SOCKET ASM; ACCESSORY
(B) THA 		8-97288-746-0 01 1 0411- ● ●
430 COVER ASM; SOCKET,ACCESSORY
INTERIOR COLOR VERY DARK GRAY<116> BLACK THA 		8-97422-944-0 01 1 1101-1107 ●
430 COVER ASM; SOCKET,ACCESSORY
INTERIOR COLOR VERY DARK GRAY<116> BLACK THA 		8-97422-944-0 01 1 1108- ● ●
430 COVER ASM; SOCKET,ACCESSORY
LIGHT GRAY THA 		8-97399-027-0 01 1 0411-0606 ● ●
430 COVER ASM; SOCKET,ACCESSORY
BEIGE THA 		8-97404-679-0 01 1 0607-1010 ● ●
430 COVER ASM; SOCKET,ACCESSORY
INTERIOR COLOR BEIGE<184> BEIGE THA 		8-97404-679-0 01 1 1011-1107 ●
430 COVER ASM; SOCKET,ACCESSORY
BEIGE THA 		8-97404-679-0 01 1 1011-1107 ●
430 COVER ASM; SOCKET,ACCESSORY
INTERIOR COLOR BEIGE<184> BEIGE THA 		8-97404-679-0 01 1 1108- ● ●
662 HARNESS; IMMOBILIZER
THA 		8-97303-923-0 01 1 0411-0606 ● ●
662 HARNESS; IMMOBILIZER
THA 		8-98040-808-0 01 1 0607- ● ●

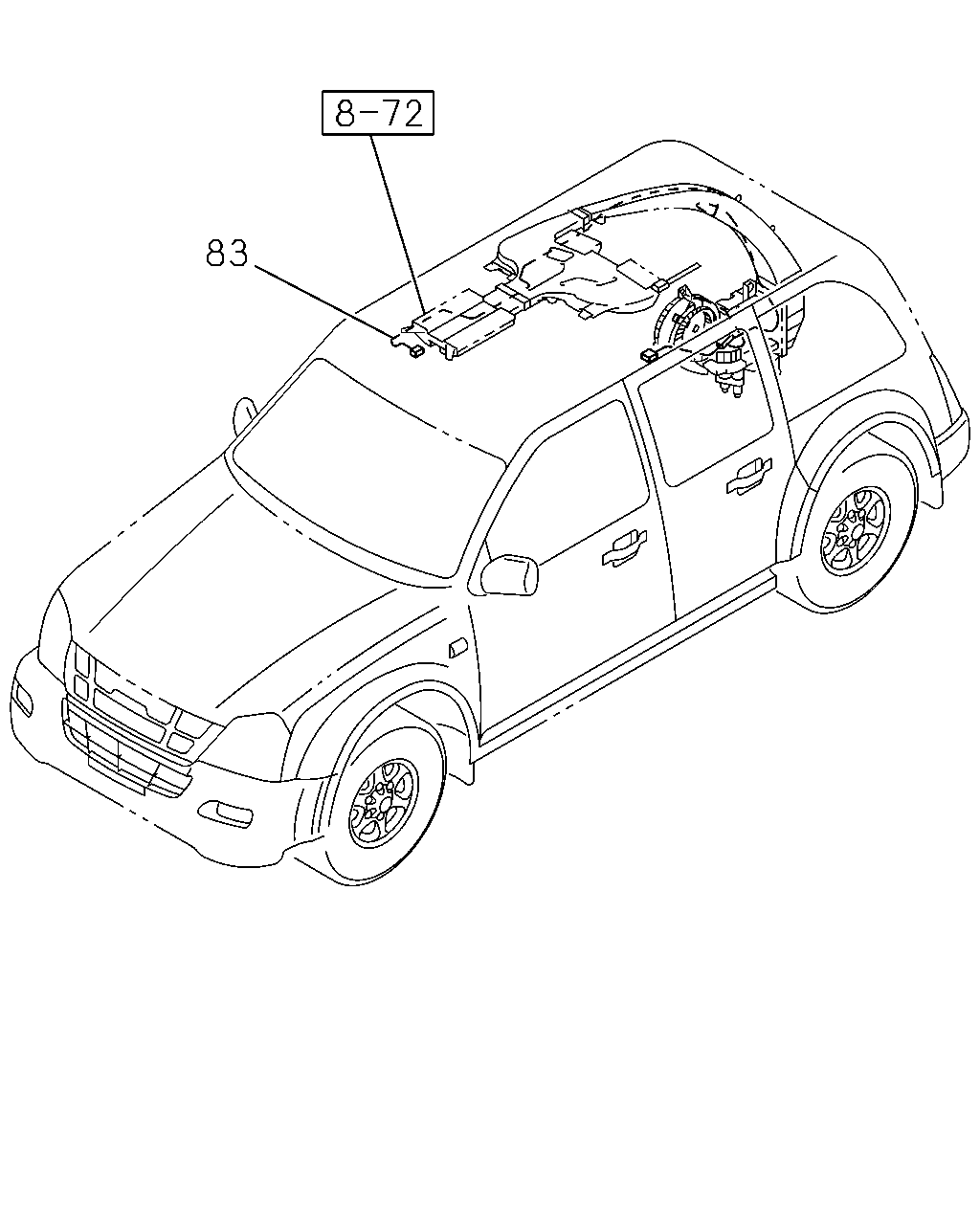

çizim 136727
83
BalonParca AdiParca NoAdetTipApplied Date A B
83 HARNESS; AIR CONDITIONER
AIR CONDITIONER ROOF MOUNTED<C69> THA 		8-97363-405-2 01 1 0411- ● ●
çizim 185451
130 366 366 1 130 130 100 100
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
A/T AISIN<RMD> THA 		8-98018-476-2 01 1 0610-0708 ●
1 HARNESS; CAB
A/T AISIN<RMD> THA 		8-98053-925-2 01 1 0710-0809 ●
1 HARNESS; CAB
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA 		8-98053-925-2 01 1 0810- ●
1 HARNESS; CAB
A/T 4 SPEED-JATCO<RMK> THA 		8-97380-003-0 01 1 0411-0508 ●
1 HARNESS; CAB
A/T 4 SPEED-JATCO<RMK> THA 		8-98018-243-0 01 1 0509-0606 ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98018-471-2 01 1 0607-0708 ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98053-923-2 01 1 0709-0709 ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-98053-923-2 01 1 0710- ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5G<RSP> THA 		8-97380-005-1 01 1 0411-0508 ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5G<RSP> THA 		8-98018-246-0 01 1 0509-0606 ●
1 HARNESS; CAB
A/T AISIN<RMD> THA 		8-98018-477-2 01 1 0610-0708 ●
1 HARNESS; CAB
A/T AISIN<RMD> THA 		8-98053-926-2 01 1 0710- ●
1 HARNESS; CAB
A/T 4 SPEED-JATCO<RMK> THA 		8-97380-004-0 01 1 0411-0508 ●
1 HARNESS; CAB
A/T 4 SPEED-JATCO<RMK> THA 		8-98018-245-0 01 1 0509-0606 ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98018-473-2 01 1 0607-0609 ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-98018-473-2 01 1 0610-0708 ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98053-924-2 01 1 0709-0709 ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-98053-924-2 01 1 0710- ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5G<RSP> THA 		8-97380-006-1 01 1 0411-0508 ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5G<RSP> THA 		8-98018-248-0 01 1 0509-0606 ●
100 HARNESS; RR GATE
(A) THA 		8-97363-403-1 01 1 0411-0508 ● ●
100 HARNESS; RR GATE
(A) THA 		8-98025-579-0 01 1 0509- ● ●
100 HARNESS; RR GATE
(B) THA 		8-97363-404-1 01 1 0411- ● ●
130 BOLT; HARNESS EARTH
M6X20 W/WASHER THA 		8-94112-987-1 03 1 0411-0612 ● ●
130 BOLT; HARNESS EARTH
M6X20 W/WASHER THA 		8-98056-282-0 03 1 0701- ● ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA 		8-98125-542-0 01 1 0810- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97363-387-1 01 1 0411-0606 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98018-461-3 01 1 0607-0708 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98067-843-5 01 1 0709-0808 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98101-751-0 01 1 0809- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97363-388-1 01 1 0411-0606 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5G<RSP> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97363-385-2 01 1 0411-0606 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5G<RSP> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97363-386-2 01 1 0411-0606 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> A/T AISIN<RMD> THA 		8-98018-465-3 01 1 0610-0708 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> A/T AISIN<RMD> THA 		8-98067-844-5 01 1 0710-0808 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> A/T AISIN<RMD> THA 		8-98101-752-0 01 1 0809- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> THA 		8-98080-183-3 01 1 0710-0808 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> THA 		8-98101-756-0 01 1 0809- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA 		8-97363-391-1 01 1 0411-0606 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98028-063-3 01 1 0607-0708 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98067-847-5 01 1 0709-0808 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98101-755-0 01 1 0809- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5G<RSP> THA 		8-97363-389-2 01 1 0411-0606 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> A/T AISIN<RMD> THA 		8-98018-467-3 01 1 0610-0708 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> A/T AISIN<RMD> THA 		8-98067-846-5 01 1 0710-0808 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> A/T AISIN<RMD> THA 		8-98101-754-0 01 1 0809- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> THA 		8-98018-466-3 01 1 0610-0708 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> THA 		8-98067-845-5 01 1 0710-0808 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> THA 		8-98101-753-0 01 1 0809- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
