8-05 — INTERIOR LAMP (#74915) — 21 parça

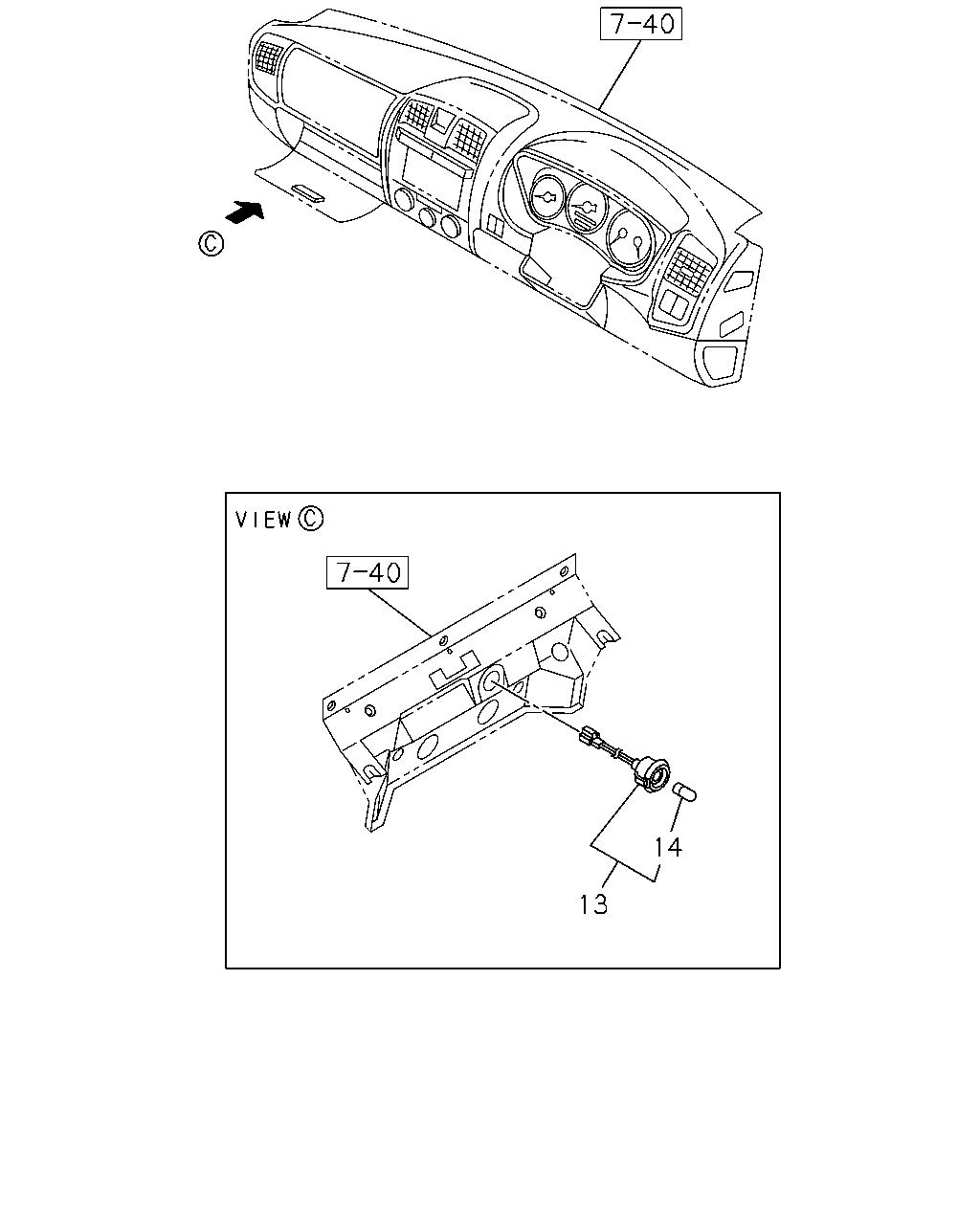

14 13

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	13	LAMP ASM; GLOVE BOX THA	8-97363-727-0	01	1	0411-	●	●
	14	BULB; GLOVE BOX LAMP 12V 1.2W THA	8-97352-272-0	01	1	0411-	●	●

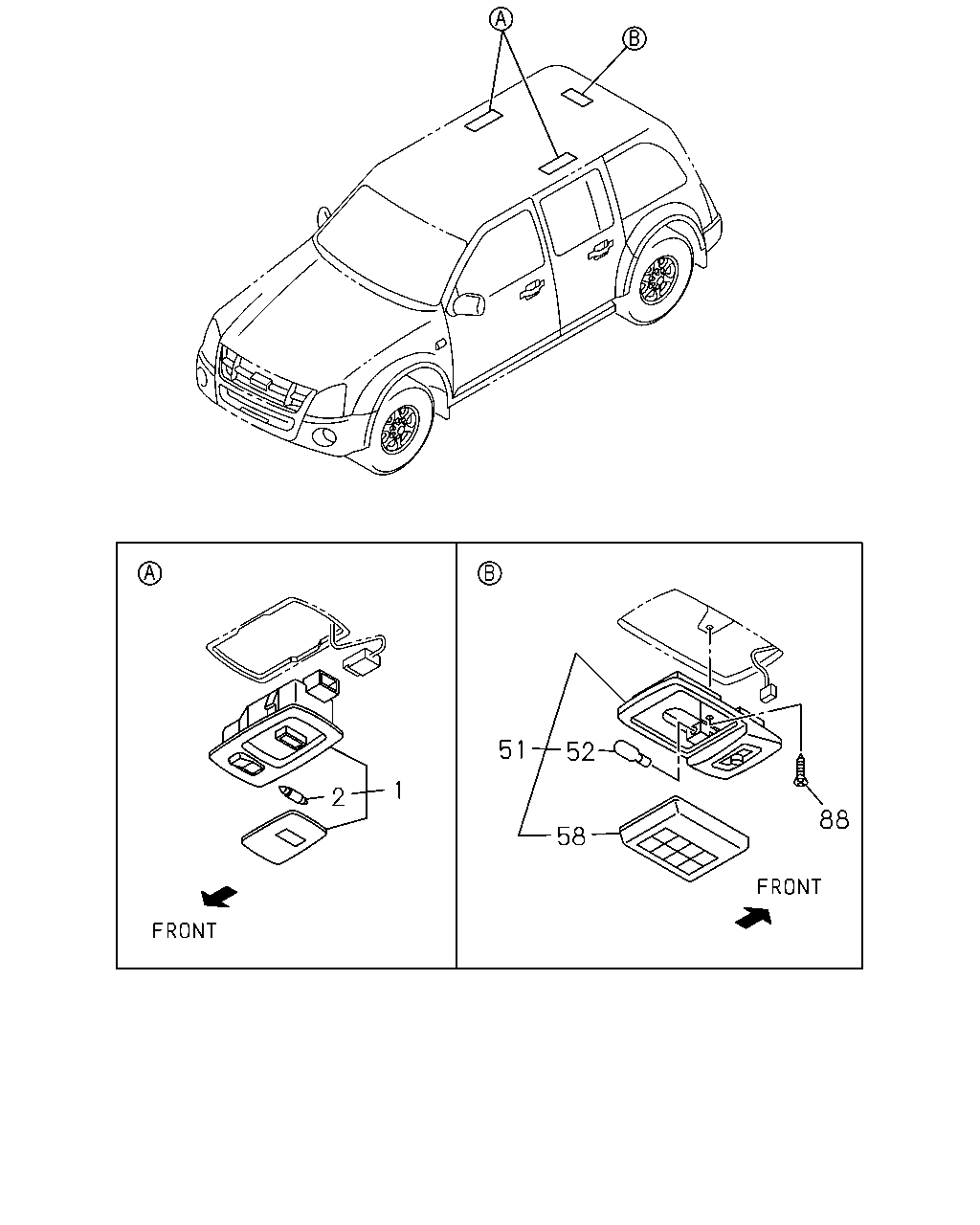

51 52 1 2 88 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LAMP ASM; ROOM INTERIOR COLOR VERY DARK GRAY<116> BLACK THA	8-97422-945-0	02	1	1101-1107	●
1	LAMP ASM; ROOM INTERIOR COLOR VERY DARK GRAY<116> BLACK THA	8-97422-945-0	02	1	1108-	●	●
1	LAMP ASM; ROOM LIGHT GRAY THA	8-97399-028-0	02	1	0411-0606	●	●
1	LAMP ASM; ROOM BEIGE THA	8-97404-680-0	02	1	0607-1010	●	●
1	LAMP ASM; ROOM INTERIOR COLOR BEIGE<184> BEIGE THA	8-97404-680-0	02	1	1011-1107	●
1	LAMP ASM; ROOM BEIGE THA	8-97404-680-0	02	1	1011-1107		●
1	LAMP ASM; ROOM INTERIOR COLOR BEIGE<184> BEIGE THA	8-97404-680-0	02	1	1108-	●	●
2	BULB; ROOM LAMP 12V 8W THA	8-94153-335-0	02	1	0411-	●	●
51	LAMP ASM; SPOT INTERIOR COLOR VERY DARK GRAY<116> THA	8-97422-943-0	01	1	1101-1107	●
51	LAMP ASM; SPOT INTERIOR COLOR VERY DARK GRAY<116> THA	8-97422-943-0	01	1	1108-	●	●
51	LAMP ASM; SPOT LIGHT GRAY THA	8-97399-011-0	01	1	0411-0606	●	●
51	LAMP ASM; SPOT BEIGE THA	8-97404-678-0	01	1	0607-1010	●	●
51	LAMP ASM; SPOT INTERIOR COLOR BEIGE<184> BEIGE THA	8-97404-678-0	01	1	1011-1107	●
51	LAMP ASM; SPOT BEIGE THA	8-97404-678-0	01	1	1011-1107		●
51	LAMP ASM; SPOT INTERIOR COLOR BEIGE<184> BEIGE THA	8-97404-678-0	01	1	1108-	●	●
52	BULB; SPOT LAMP 12V 5W THA	8-97178-882-0	01	1	0411-	●	●
58	LENS; SPOT LAMP THA	8-97178-881-0	01	1	0411-	●	●
88	BOLT; LAMP M4X12 TAPPING THA	9-07066-412-0	01	1	0411-0606	●	●
88	BOLT; LAMP M4X12 TAPPING THA	0-71040-412-0	01	1	0607-	●	●
