◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51027 - UCR/UCS(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-03 - LAMP; REAR AND REAR SIDE ▶
8-03 — LAMP; REAR AND REAR SIDE (#74914) — 39 parça

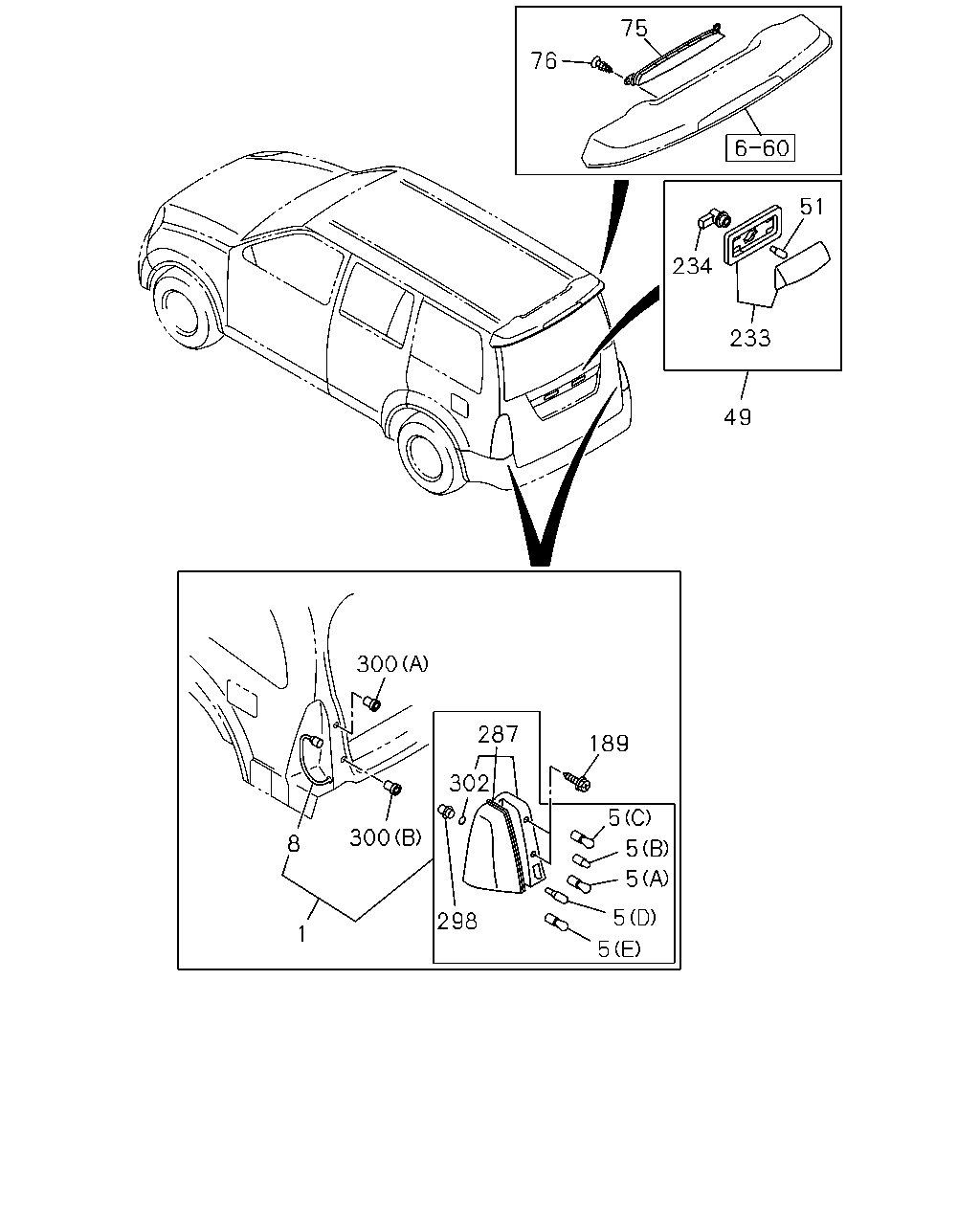

çizim 136369
75 76 51 234 233 49 300 287 189 302 5 300 8 5 5 5 298 1 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; RR COMB
SALES PACKAGE EQUIPMENT SPORTY<XK0> THA 		8-98182-622-0 01 1 1101-1107 ●
1 LAMP ASM; RR COMB
SALES PACKAGE EQUIPMENT SPORTY<XK0> THA 		8-98182-622-0 01 1 1108- ● ●
1 LAMP ASM; RR COMB
SALES PACKAGE EQUIPMENT SPORTY<XK0> THA 		8-98182-623-0 01 1 1101-1107 ●
1 LAMP ASM; RR COMB
SALES PACKAGE EQUIPMENT SPORTY<XK0> THA 		8-98182-623-0 01 1 1108- ● ●
1 LAMP ASM; RR COMB
THA 		8-97349-654-2 01 1 0411-1012 ● ●
1 LAMP ASM; RR COMB
EXC. SALES PACKAGE EQUIPMENT SPORTY<XK0> THA 		8-97349-654-2 01 1 1101-1107 ●
1 LAMP ASM; RR COMB
THA 		8-97349-654-2 01 1 1101-1107 ●
1 LAMP ASM; RR COMB
EXC. SALES PACKAGE EQUIPMENT SPORTY<XK0> THA 		8-97349-654-2 01 1 1108- ● ●
1 LAMP ASM; RR COMB
THA 		8-97349-653-2 01 1 0411-1012 ● ●
1 LAMP ASM; RR COMB
EXC. SALES PACKAGE EQUIPMENT SPORTY<XK0> THA 		8-97349-653-2 01 1 1101-1107 ●
1 LAMP ASM; RR COMB
THA 		8-97349-653-2 01 1 1101-1107 ●
1 LAMP ASM; RR COMB
EXC. SALES PACKAGE EQUIPMENT SPORTY<XK0> THA 		8-97349-653-2 01 1 1108- ● ●
5 BULB; RR COMB LAMP
(A) 12V 21W THA 		8-94124-074-0 02 1 0411- ● ●
5 BULB; RR COMB LAMP
(B) 12V 5W THA 		8-94124-595-0 02 1 0411- ● ●
5 BULB; RR COMB LAMP
(C) 12V 21/5W THA 		8-94125-959-0 02 1 0411- ● ●
5 BULB; RR COMB LAMP
(D) 12V 18W THA 		8-94372-897-0 02 1 0411- ● ●
5 BULB; RR COMB LAMP
(E) 12V 21W THA 		8-97179-967-0 02 1 0411- ● ●
8 HARNESS; RR COMB LAMP
THA 		8-98001-463-0 02 1 0411- ● ●
49 LAMP; LICENSE PLATE
THA 		8-97373-083-1 02 1 0411- ● ●
51 BULB; LICENSE PLATE LAMP
12V 5W THA 		8-94124-595-0 02 1 0411- ● ●
75 LAMP ASM; STOP,HIGHMOUNTED
SALES PACKAGE EQUIPMENT SPORTY<XK0> THA 		8-98184-781-0 01 1 1101-1107 ●
75 LAMP ASM; STOP,HIGHMOUNTED
SALES PACKAGE EQUIPMENT SPORTY<XK0> THA 		8-98184-781-0 01 1 1108- ● ●
75 LAMP ASM; STOP,HIGHMOUNTED
THA 		8-97375-459-2 01 1 0411-1012 ● ●
75 LAMP ASM; STOP,HIGHMOUNTED
EXC. SALES PACKAGE EQUIPMENT SPORTY<XK0> THA 		8-97375-459-2 01 1 1101-1107 ●
75 LAMP ASM; STOP,HIGHMOUNTED
THA 		8-97375-459-2 01 1 1101-1107 ●
75 LAMP ASM; STOP,HIGHMOUNTED
EXC. SALES PACKAGE EQUIPMENT SPORTY<XK0> THA 		8-97375-459-2 01 1 1108- ● ●
76 SCREW; STOP LAMP,HIGHMOUNTED
M5X16 THA 		8-97373-865-0 02 1 0411- ● ●
189 BOLT; FIX
M6X20 W/LK&PL WASHER THA 		8-94279-203-0 04 1 0411-0702 ● ●
189 BOLT; FIX
M6X18 W/LK&PL WASHER IMA 		8-98061-682-0 04 1 0703- ● ●
233 LAMP UNIT; LICENSE PLATE
THA 		8-98000-860-0 02 1 0411- ● ●
234 SOCKET ASM; LICENSE PLATE LAMP
THA 		8-98000-862-0 02 1 0411- ● ●
287 LAMP UNIT; RR COMB
THA 		8-98001-466-0 01 1 0411- ● ●
287 LAMP UNIT; RR COMB
THA 		8-98001-465-0 01 1 0411- ● ●
298 CAP; BREATHER,RR COMB LAMP
THA 		8-98001-464-0 04 1 0411- ● ●
300 HOLDER; LAMP
(A) THA 		8-97175-217-0 02 1 0411- ● ●
300 HOLDER; LAMP
(B) THA 		8-97194-154-0 02 1 0411-0502 ● ●
300 HOLDER; LAMP
(B) THA 		8-98009-046-0 02 1 0503-0506 ● ●
300 HOLDER; LAMP
(B) THA 		8-98014-041-0 02 1 0507- ● ●
302 FILTER; BREATHER,RR COMB LAMP
THA 		8-98001-518-0 04 1 0411- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
