◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10775 - FRR/FVR(TAIWAN) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-78 - FLOOR HOLE PLUG ▶
6-78 — FLOOR HOLE PLUG (#7491) — 18 parça

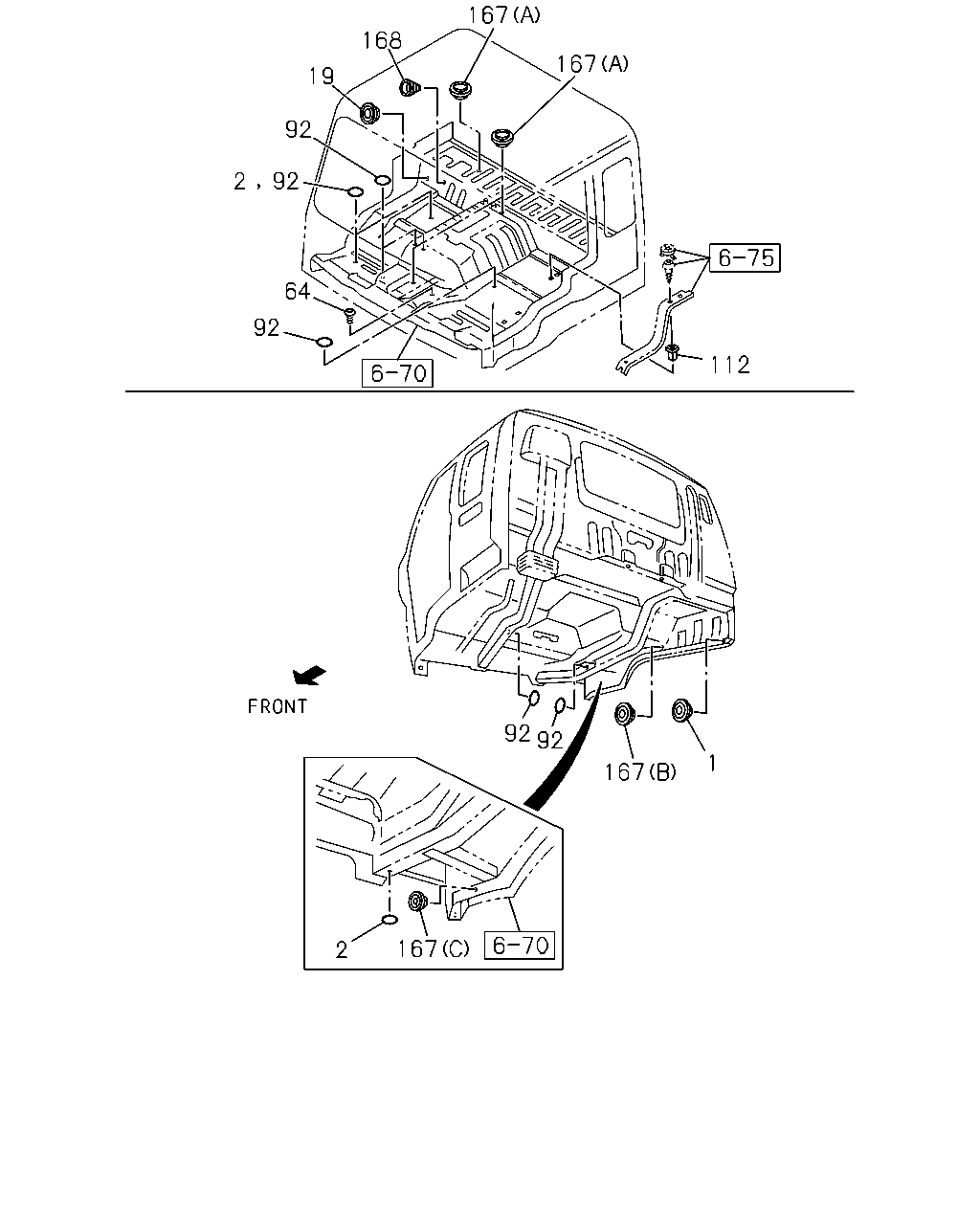

çizim 26384
167 168 167 19 92 2 92 64 92 112 92 92 1 167 167 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 GROMMET
OD=40 		1-09600-083-0 02 1 9811- ● ●
2 GROMMET
OD=25 BLACK TAI 		1-76798-019-0 02 1 9811- ● ●
19 GROMMET; FLOOR FRT
OD=28 		8-94279-720-0 02 1 9811- ● ●
64 PLUG; ENG HOOD
D7.8X20 TAI 		8-94353-238-0 01 1 9811- ● ●
92 SEAL; LOCATION HOLE
A/C MAN CONT(C60) OD=25 BLACK TAI 		1-76798-019-0 02 1 0611- ●
92 SEAL; LOCATION HOLE
OD=25 BLACK TAI 		1-76798-019-0 02 1 0611- ●
92 SEAL; LOCATION HOLE
EXC. A/C MAN CONT(C60) OD=25 BLACK TAI 		1-76798-019-0 04 1 0611- ●
92 SEAL; LOCATION HOLE
OD=25 BLACK TAI 		1-76798-019-0 28 1 9811-0105 ● ●
92 SEAL; LOCATION HOLE
OD=25 BLACK TAI 		1-76798-019-0 29 1 0106-0610 ● ●
92 SEAL; LOCATION HOLE
OD=25 BLACK TAI 		1-76798-019-0 27 1 0611- ● ●
92 SEAL; LOCATION HOLE
OD=36 T=0.05 BLACK 		5-76777-035-0 05 1 9811-0105 ● ●
92 SEAL; LOCATION HOLE
OD=36 T=0.05 BLACK 		5-76777-035-0 04 1 0106-0203 ● ●
92 SEAL; LOCATION HOLE
OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0204- ● ●
112 GROMMET; SCREW,TRIM COVER
D=7.8X7.8 L=18 NATURAL TAI 		8-94279-043-0 08 1 9811- ● ●
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-101-0 07 1 9811- ● ●
167 GROMMET; LOCATION HOLE
(C) OD=35 		8-94122-971-0 04 1 9811- ● ●
167 GROMMET; LOCATION HOLE
(B) OD=15.0 		8-94279-040-0 02 1 9811- ● ●
168 COVER; HOLE,ANNTENA CABLE 1-79998-891-1 01 1 9811- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
