7-45 — CONSOLE BOX (#74909) — 154 parça

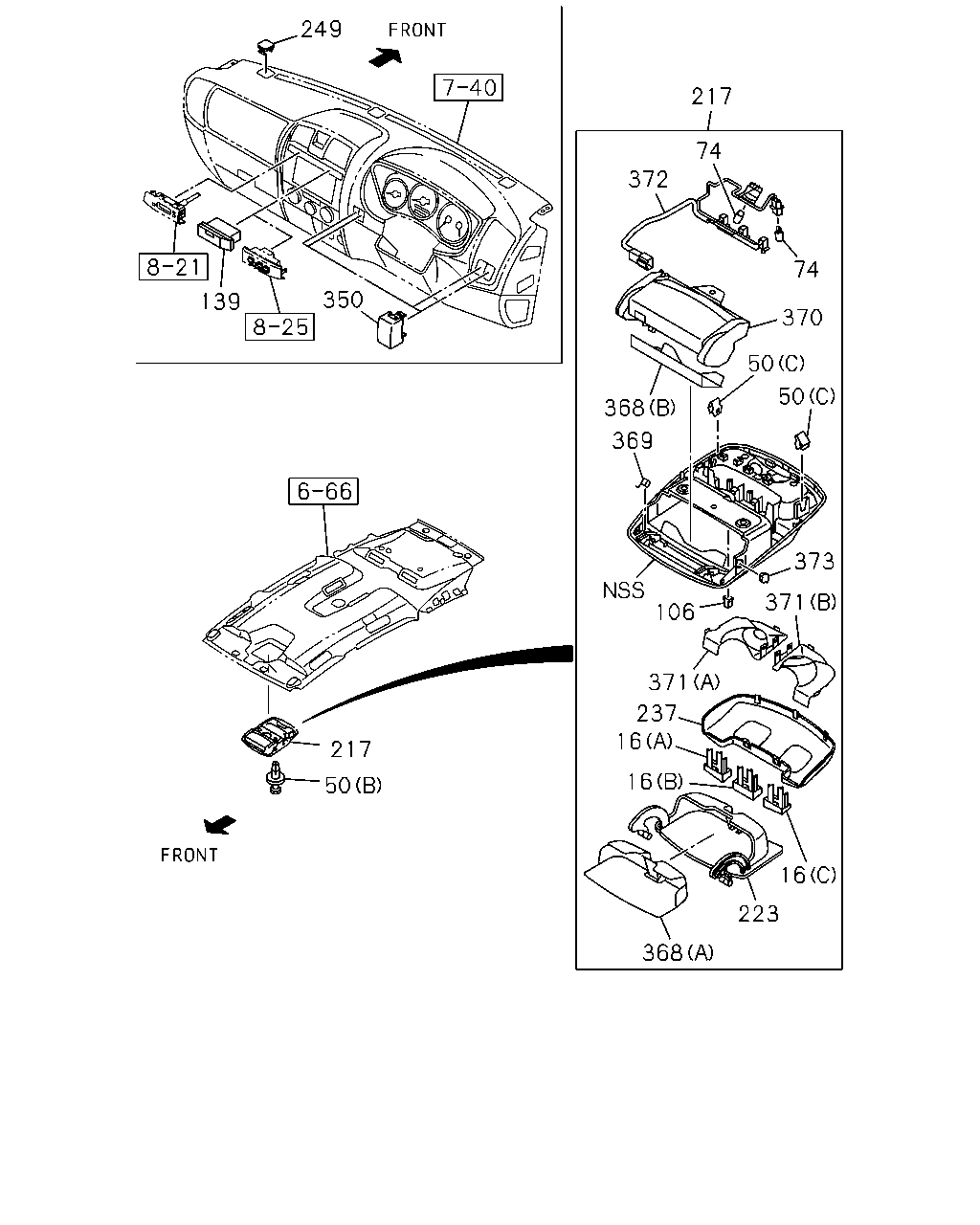

çizim 134095
368 223 16 16 16 237 371 106 371 373 50 369 368 50 370 74 372 74 217 249 139 350 217 50
BalonParca AdiParca NoAdetTipApplied Date
16 KNOB ASM
INTERIOR COLOR VERY DARK GRAY<116> (A) BLACK THA 		8-97418-464-1 01 1 1101-
16 KNOB ASM
INTERIOR COLOR VERY DARK GRAY<116> (B) BLACK THA 		8-97418-465-1 01 1 1101-
16 KNOB ASM
INTERIOR COLOR VERY DARK GRAY<116> (C) BLACK THA 		8-97418-486-1 01 1 1101-
16 KNOB ASM
(A) LIGHT GRAY THA 		8-97401-424-1 01 1 0411-0606
16 KNOB ASM
(A) BEIGE THA 		8-97404-793-1 01 1 0607-1010
16 KNOB ASM
INTERIOR COLOR BEIGE<184> (A) BEIGE THA 		8-97404-793-1 01 1 1011-
16 KNOB ASM
(B) LIGHT GRAY THA 		8-97401-427-1 01 1 0411-0606
16 KNOB ASM
(B) BEIGE THA 		8-97404-794-1 01 1 0607-1010
16 KNOB ASM
INTERIOR COLOR BEIGE<184> (B) BEIGE THA 		8-97404-794-1 01 1 1011-
16 KNOB ASM
(C) LIGHT GRAY THA 		8-97401-432-1 01 1 0411-0606
16 KNOB ASM
(C) BEIGE THA 		8-97404-795-1 01 1 0607-1010
16 KNOB ASM
INTERIOR COLOR BEIGE<184> (C) BEIGE THA 		8-97404-795-1 01 1 1011-
50 CLIP; CONSOLE
INTERIOR COLOR VERY DARK GRAY<116> (B) BLACK THA 		8-97418-440-0 02 1 1101-
50 CLIP; CONSOLE
(C) THA 		8-97388-958-0 02 1 0411-
50 CLIP; CONSOLE
(B) LIGHT GRAY THA 		8-97399-825-0 02 1 0411-0606
50 CLIP; CONSOLE
(B) BEIGE THA 		8-97404-621-0 02 1 0607-1010
50 CLIP; CONSOLE
INTERIOR COLOR BEIGE<184> (B) BEIGE THA 		8-97404-621-0 02 1 1011-
50 CLIP; CONSOLE
CLOTH TRIM COVER<7PG> (A) THA 		8-97355-734-0 02 1 0411-0510
50 CLIP; CONSOLE
(A) THA 		8-97355-734-0 02 1 0511-1010
50 CLIP; CONSOLE
INTERIOR COLOR BEIGE<184> (A) THA 		8-97355-734-0 02 1 1011-1104
50 CLIP; CONSOLE
(A) THA 		8-97355-734-0 02 1 1105-
74 BULB; CONSOLE
THA 		8-97388-953-0 02 1 0411-
106 LOCK; CONSOLE LID
THA 		8-97388-944-0 01 1 0411-
139 BOX; CONSOLE,UPR
4X2<UCB***> LIGHT GRAY THA 		8-97298-418-0 01 1 0411-0606
139 BOX; CONSOLE,UPR
4X2<UCB***> LIGHT GRAY THA 		8-97403-311-2 01 1 0607-1010
139 BOX; CONSOLE,UPR
4X2<UCB***> INTERIOR COLOR BEIGE<184> LIGHT GRAY THA 		8-97403-311-2 01 1 1011-1012
139 BOX; CONSOLE,UPR
4X2<UCB***> INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> LIGHT GRAY THA 		8-97403-311-2 01 1 1101-
217 CONSOLE; HEADER
INTERIOR COLOR VERY DARK GRAY<116> BLACK THA 		8-97418-439-3 01 1 1101-
217 CONSOLE; HEADER
LIGHT GRAY THA 		8-97398-979-3 01 1 0411-0606
217 CONSOLE; HEADER
BEIGE THA 		8-97404-620-3 01 1 0607-1010
217 CONSOLE; HEADER
INTERIOR COLOR BEIGE<184> BEIGE THA 		8-97404-620-3 01 1 1011-
223 LID; HEADER CONSOLE
INTERIOR COLOR VERY DARK GRAY<116> BLACK THA 		8-97418-463-0 01 1 1101-
223 LID; HEADER CONSOLE
LIGHT GRAY THA 		8-97401-419-0 01 1 0411-0606
223 LID; HEADER CONSOLE
BEIGE THA 		8-97404-792-0 01 1 0607-1010
223 LID; HEADER CONSOLE
INTERIOR COLOR BEIGE<184> BEIGE THA 		8-97404-792-0 01 1 1011-
237 LENS; HEADER CONSOLE
THA 		8-97371-299-0 01 1 0411-
249 COVER
DARK GRAY THA 		8-97293-913-0 03 1 0411-0606
249 COVER
DARK GRAY THA 		8-97403-309-0 03 1 0607-1104
249 COVER
BLACK THA 		8-97422-663-0 03 1 1105-
350 COVER; CONSOLE
4X2<UCB***> EXC. HEAD LAMP LEVELING MANUAL<T92> DARK GRAY THA 		8-97298-962-0 01 1 0411-0606
350 COVER; CONSOLE
EXC. AIR CONDITIONER ROOF MOUNTED<C69> DARK GRAY THA 		8-97298-962-0 01 1 0411-0606
350 COVER; CONSOLE
DARK GRAY THA 		8-97396-598-0 01 1 0607-1010
350 COVER; CONSOLE
EXC. AIR CONDITIONER ROOF MOUNTED<C69> DARK GRAY THA 		8-97396-598-0 01 1 0607-1010
350 COVER; CONSOLE
DARK GRAY THA 		8-97396-598-0 01 1 1011-
350 COVER; CONSOLE
EXC. AIR CONDITIONER ROOF MOUNTED<C69> DARK GRAY THA 		8-97396-598-0 01 1 1011-
368 SHEET; CASE,HEADER CONSOLE
(A) THA 		8-97388-945-0 01 1 0411-
368 SHEET; CASE,HEADER CONSOLE
(B) THA 		8-97388-948-0 01 1 0411-
369 SPRING; LID,HEADER CONSOLE
THA 		8-97388-946-0 01 1 0411-
370 CASE; HEADER CONSOLE
THA 		8-97388-947-0 01 1 0411-
371 REFLECTOR; LAMP,HEADER CONSOLE
(A) THA 		8-97388-949-0 01 1 0411-
371 REFLECTOR; LAMP,HEADER CONSOLE
(B) THA 		8-97388-950-0 01 1 0411-
372 HARNESS ASM; SWITCH,HEADER CONSOLE
THA 		8-97388-951-0 01 1 0411-
373 DAMPER; LID,HEADER CONSOLE
THA 		8-97388-954-0 01 1 0411-

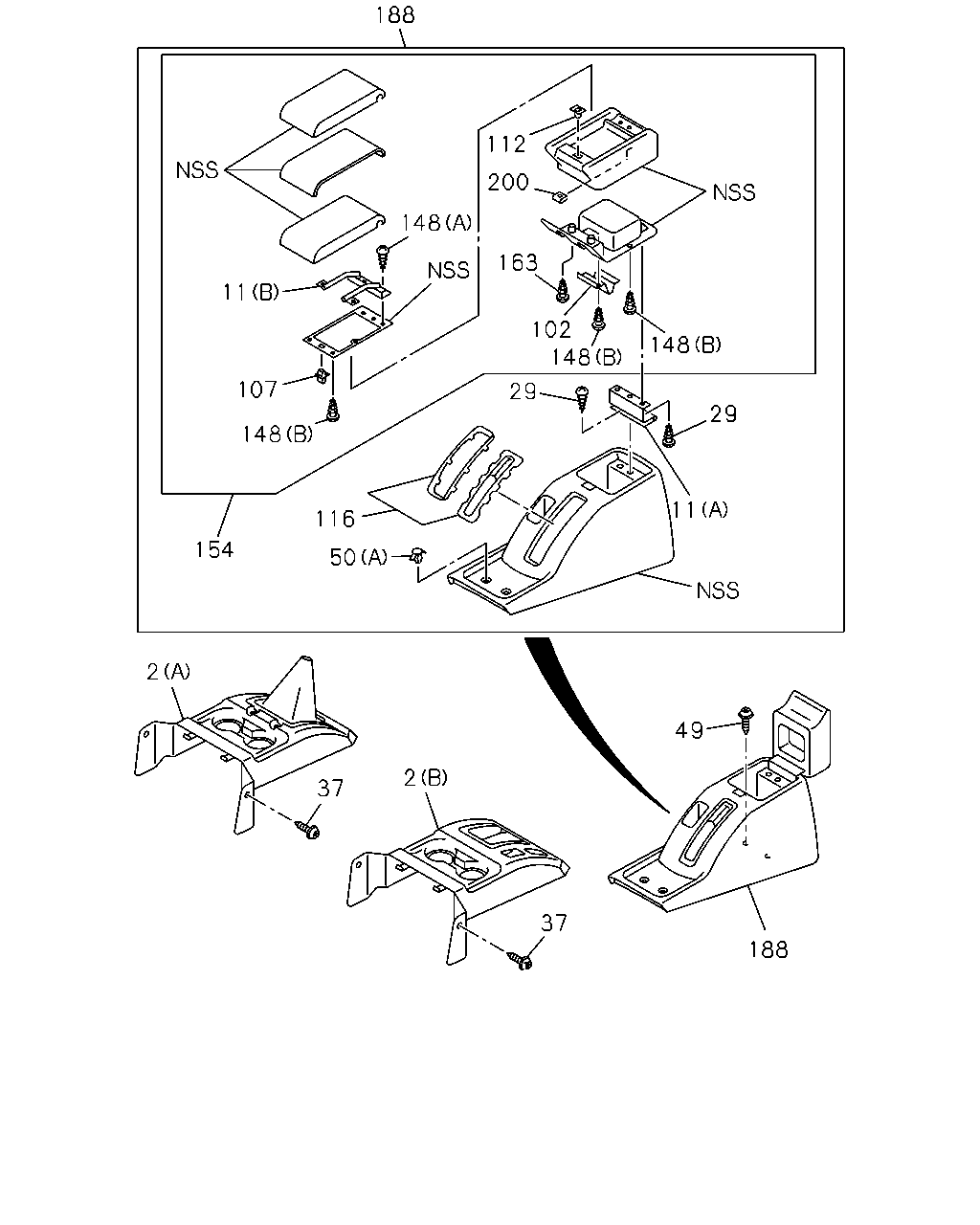

çizim 134239
188 112 200 148 163 11 102 148 148 107 29 29 148 11 116 154 50 2 49 2 37 37 188
BalonParca AdiParca NoAdetTipApplied Date
2 CONSOLE; CENTER
A/T AISIN<RMD> INTERIOR COLOR VERY DARK GRAY<116> INTERIOR CUSTOM<B19> (B) BLACK THA 		8-97422-890-0 01 1 1101-1110
2 CONSOLE; CENTER
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR VERY DARK GRAY<116> INTERIOR CUSTOM<B19> (B) BLACK THA 		8-97422-890-0 01 1 1111-
2 CONSOLE; CENTER
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR VERY DARK GRAY<116> INTERIOR LUXURY<B20> (B) BLACK THA 		8-97419-958-1 01 1 1101-1110
2 CONSOLE; CENTER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR VERY DARK GRAY<116> INTERIOR CUSTOM<B19> (A) BLACK THA 		8-97423-453-0 01 1 1111-
2 CONSOLE; CENTER
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> INTERIOR LUXURY<B20> (B) BEIGE THA 		8-97416-873-1 01 1 0902-1010
2 CONSOLE; CENTER
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR BEIGE<184> INTERIOR LUXURY<B20> (B) BEIGE THA 		8-97416-873-1 01 1 1011-
2 CONSOLE; CENTER
A/T AISIN<RMD> (B) BEIGE THA 		8-97406-896-0 01 1 0610-0708
2 CONSOLE; CENTER
A/T AISIN<RMD> (B) BEIGE THA 		8-97406-896-0 01 1 0710-0809
2 CONSOLE; CENTER
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (B) BEIGE THA 		8-97406-896-0 01 1 0810-0901
2 CONSOLE; CENTER
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> EXC. INTERIOR LUXURY<B20> (B) BEIGE THA 		8-97406-896-0 01 1 0902-0908
2 CONSOLE; CENTER
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> EXC. INTERIOR LUXURY<B20> (B) BEIGE THA 		8-97418-096-0 01 1 0909-1012
2 CONSOLE; CENTER
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR BEIGE<184> EXC. INTERIOR LUXURY<B20> (B) BEIGE THA 		8-97418-096-1 01 1 1101-
2 CONSOLE; CENTER
A/T 4 SPEED-JATCO<RMK> (B) LIGHT GRAY THA 		8-97400-108-0 01 1 0411-0508
2 CONSOLE; CENTER
A/T 4 SPEED-JATCO<RMK> (B) LIGHT GRAY THA 		8-97404-491-0 01 1 0509-0606
2 CONSOLE; CENTER
M/T MUA 5 SPEED 5H<MWQ> (A) BEIGE THA 		8-97406-897-0 01 1 0607-0802
2 CONSOLE; CENTER
M/T MUA 5 SPEED 5G<RSP> (A) LIGHT GRAY THA 		8-97400-110-1 01 1 0411-0508
2 CONSOLE; CENTER
M/T MUA 5 SPEED 5G<RSP> (A) LIGHT GRAY THA 		8-97405-068-0 01 1 0509-0606
2 CONSOLE; CENTER
M/T MUX 5 SPEED 5S<MZJ> (A) BEIGE THA 		8-97407-084-0 01 1 0610-0708
2 CONSOLE; CENTER
M/T MUX 5 SPEED 5S<MZJ> (A) BEIGE THA 		8-97407-084-0 01 1 0710-0808
2 CONSOLE; CENTER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (A) BEIGE THA 		8-97407-084-0 01 1 0809-0908
2 CONSOLE; CENTER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (A) BEIGE THA 		8-97418-097-1 01 1 0909-1010
2 CONSOLE; CENTER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR BEIGE<184> (A) BEIGE THA 		8-97418-097-1 01 1 1011-1110
2 CONSOLE; CENTER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR BEIGE<184> EXC. INTERIOR CUSTOM<B19> (A) BEIGE THA 		8-97418-097-1 01 1 1111-
11 HINGE; CONSOLE LID
CLOTH TRIM COVER<7PG> (A) THA 		8-97349-645-0 01 1 0411-0510
11 HINGE; CONSOLE LID
(A) THA 		8-97349-645-0 01 1 0511-1010
11 HINGE; CONSOLE LID
INTERIOR COLOR BEIGE<184> (A) THA 		8-97349-645-0 01 1 1011-1104
11 HINGE; CONSOLE LID
(A) THA 		8-97349-645-0 01 1 1105-
11 HINGE; CONSOLE LID
CLOTH TRIM COVER<7PG> (B) THA 		8-97349-646-0 01 1 0411-0510
11 HINGE; CONSOLE LID
(B) THA 		8-97349-646-0 01 1 0511-1010
11 HINGE; CONSOLE LID
INTERIOR COLOR BEIGE<184> (B) THA 		8-97349-646-0 01 1 1011-1104
11 HINGE; CONSOLE LID
(B) THA 		8-97349-646-0 01 1 1105-
29 SCREW; HINGE
CLOTH TRIM COVER<7PG> M5X16 THA 		8-94279-312-0 05 1 0411-0510
29 SCREW; HINGE
M5X16 THA 		8-94279-312-0 05 1 0511-1010
29 SCREW; HINGE
INTERIOR COLOR BEIGE<184> M5X16 THA 		8-94279-312-0 05 1 1011-1104
29 SCREW; HINGE
M5X16 THA 		8-94279-312-0 05 1 1105-
37 SCREW; CONSOLE
M5X16 THA 		8-94358-694-0 02 1 0411-0702
37 SCREW; CONSOLE
M5X16 THA 		8-98061-684-0 02 1 0703-1005
37 SCREW; CONSOLE
M5X16 THA 		8-98167-220-0 02 1 1006-
49 SCREW; CONSOLE
M5X16 THA 		8-94358-694-0 02 1 0411-0702
49 SCREW; CONSOLE
M5X16 THA 		8-98061-684-0 02 1 0703-1005
49 SCREW; CONSOLE
M5X16 THA 		8-98167-220-0 02 1 1006-
50 CLIP; CONSOLE
INTERIOR COLOR VERY DARK GRAY<116> (B) BLACK THA 		8-97418-440-0 02 1 1101-
50 CLIP; CONSOLE
(C) THA 		8-97388-958-0 02 1 0411-
50 CLIP; CONSOLE
(B) LIGHT GRAY THA 		8-97399-825-0 02 1 0411-0606
50 CLIP; CONSOLE
(B) BEIGE THA 		8-97404-621-0 02 1 0607-1010
50 CLIP; CONSOLE
INTERIOR COLOR BEIGE<184> (B) BEIGE THA 		8-97404-621-0 02 1 1011-
50 CLIP; CONSOLE
CLOTH TRIM COVER<7PG> (A) THA 		8-97355-734-0 02 1 0411-0510
50 CLIP; CONSOLE
(A) THA 		8-97355-734-0 02 1 0511-1010
50 CLIP; CONSOLE
INTERIOR COLOR BEIGE<184> (A) THA 		8-97355-734-0 02 1 1011-1104
50 CLIP; CONSOLE
(A) THA 		8-97355-734-0 02 1 1105-
102 LOCK ASM; RR CONSOLE
CLOTH TRIM COVER<7PG> THA 		8-97349-650-0 01 1 0411-0510
102 LOCK ASM; RR CONSOLE
THA 		8-97349-650-0 01 1 0511-1010
102 LOCK ASM; RR CONSOLE
INTERIOR COLOR BEIGE<184> THA 		8-97349-650-0 01 1 1011-1104
102 LOCK ASM; RR CONSOLE
THA 		8-97349-650-0 01 1 1105-
107 LOCK; LID,RR CONSOLE
CLOTH TRIM COVER<7PG> THA 		8-97349-644-0 01 1 0411-0510
107 LOCK; LID,RR CONSOLE
THA 		8-97349-644-0 01 1 0511-1010
107 LOCK; LID,RR CONSOLE
INTERIOR COLOR BEIGE<184> THA 		8-97349-644-0 01 1 1011-1104
107 LOCK; LID,RR CONSOLE
THA 		8-97349-644-0 01 1 1105-
112 LOCK; HOLE,RR CONSOLE
CLOTH TRIM COVER<7PG> THA 		8-97349-643-0 01 1 0411-0510
112 LOCK; HOLE,RR CONSOLE
THA 		8-97349-643-0 01 1 0511-1010
112 LOCK; HOLE,RR CONSOLE
INTERIOR COLOR BEIGE<184> THA 		8-97349-643-0 01 1 1011-1104
112 LOCK; HOLE,RR CONSOLE
THA 		8-97349-643-0 01 1 1105-
116 COVER; HOLE,CONSOLE,RR
INTERIOR COLOR VERY DARK GRAY<116> BLACK THA 		8-97422-799-0 01 1 1101-
116 COVER; HOLE,CONSOLE,RR
CLOTH TRIM COVER<7PG> LIGHT GRAY THA 		8-97402-570-0 01 1 0411-0510
116 COVER; HOLE,CONSOLE,RR
LIGHT GRAY THA 		8-97402-570-0 01 1 0511-0606
116 COVER; HOLE,CONSOLE,RR
BEIGE THA 		8-97404-959-0 01 1 0607-1010
116 COVER; HOLE,CONSOLE,RR
INTERIOR COLOR BEIGE<184> BEIGE THA 		8-97404-959-0 01 1 1011-1104
116 COVER; HOLE,CONSOLE,RR
INTERIOR COLOR BEIGE<184> BEIGE THA 		8-97422-809-0 01 1 1105-
148 SCREW; LID,CONSOLE
CLOTH TRIM COVER<7PG> (B) M4X14 THA 		8-97349-647-0 13 1 0411-0510
148 SCREW; LID,CONSOLE
(B) M4X14 THA 		8-97349-647-0 13 1 0511-1010
148 SCREW; LID,CONSOLE
INTERIOR COLOR BEIGE<184> (B) M4X14 THA 		8-97349-647-0 13 1 1011-1104
148 SCREW; LID,CONSOLE
(B) M4X14 THA 		8-97349-647-0 13 1 1105-
148 SCREW; LID,CONSOLE
CLOTH TRIM COVER<7PG> (A) M5X14 THA 		8-97349-872-0 03 1 0411-0510
148 SCREW; LID,CONSOLE
(A) M5X14 THA 		8-97349-872-0 03 1 0511-1010
148 SCREW; LID,CONSOLE
INTERIOR COLOR BEIGE<184> (A) M5X14 THA 		8-97349-872-0 03 1 1011-1104
148 SCREW; LID,CONSOLE
(A) M5X14 THA 		8-97349-872-0 03 1 1105-
154 LID ASM; RR CONSOLE
INTERIOR COLOR VERY DARK GRAY<116> THA 		8-97422-690-0 01 1 1101-
154 LID ASM; RR CONSOLE
CLOTH TRIM COVER<7PG> LIGHT GRAY THA 		8-97402-571-0 01 1 0411-0606
154 LID ASM; RR CONSOLE
CLOTH TRIM COVER<7PG> BEIGE THA 		8-97404-956-1 01 1 0607-1010
154 LID ASM; RR CONSOLE
INTERIOR COLOR BEIGE<184> CLOTH TRIM COVER<7PG> BEIGE THA 		8-97404-956-1 01 1 1011-
154 LID ASM; RR CONSOLE
EXC. CLOTH TRIM COVER<7PG> LIGHT GRAY THA 		8-97406-138-0 01 1 0511-0606
154 LID ASM; RR CONSOLE
EXC. CLOTH TRIM COVER<7PG> BEIGE THA 		8-97406-989-0 01 1 0607-1010
154 LID ASM; RR CONSOLE
INTERIOR COLOR BEIGE<184> EXC. CLOTH TRIM COVER<7PG> BEIGE THA 		8-97406-989-0 01 1 1011-1104
154 LID ASM; RR CONSOLE
INTERIOR COLOR BEIGE<184> EXC. CLOTH TRIM COVER<7PG> BEIGE THA 		8-97422-813-0 01 1 1105-
163 RUBBER; CUSHION,PARCEL BOX LID
CLOTH TRIM COVER<7PG> THA 		8-97349-682-0 02 1 0411-0510
163 RUBBER; CUSHION,PARCEL BOX LID
THA 		8-97349-682-0 02 1 0511-1010
163 RUBBER; CUSHION,PARCEL BOX LID
INTERIOR COLOR BEIGE<184> THA 		8-97349-682-0 02 1 1011-1104
163 RUBBER; CUSHION,PARCEL BOX LID
THA 		8-97349-682-0 02 1 1105-
188 CONSOLE; RR
INTERIOR COLOR VERY DARK GRAY<116> DARK GRAY THA 		8-97422-899-0 01 1 1101-
188 CONSOLE; RR
CLOTH TRIM COVER<7PG> LIGHT GRAY THA 		8-97398-963-0 01 1 0411-0606
188 CONSOLE; RR
CLOTH TRIM COVER<7PG> BEIGE THA 		8-97404-600-1 01 1 0607-1010
188 CONSOLE; RR
INTERIOR COLOR BEIGE<184> CLOTH TRIM COVER<7PG> BEIGE THA 		8-97404-600-1 01 1 1011-
188 CONSOLE; RR
EXC. CLOTH TRIM COVER<7PG> THA 		8-97402-352-1 01 1 0411-0508
188 CONSOLE; RR
EXC. CLOTH TRIM COVER<7PG> LIGHT GRAY THA 		8-97404-977-0 01 1 0509-0606
188 CONSOLE; RR
EXC. CLOTH TRIM COVER<7PG> BEIGE THA 		8-97406-955-0 01 1 0607-1010
188 CONSOLE; RR
INTERIOR COLOR BEIGE<184> EXC. CLOTH TRIM COVER<7PG> BEIGE THA 		8-97406-955-0 01 1 1011-1104
188 CONSOLE; RR
INTERIOR COLOR BEIGE<184> EXC. CLOTH TRIM COVER<7PG> BEIGE THA 		8-97422-774-0 01 1 1105-
200 NUT; SPIRE,SPR LID
CLOTH TRIM COVER<7PG> THA 		8-97349-642-0 03 1 0411-0510
200 NUT; SPIRE,SPR LID
THA 		8-97349-642-0 03 1 0511-1010
200 NUT; SPIRE,SPR LID
INTERIOR COLOR BEIGE<184> THA 		8-97349-642-0 03 1 1011-1104
200 NUT; SPIRE,SPR LID
THA 		8-97349-642-0 03 1 1105-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
