◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51027 - UCR/UCS(THAILAND) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-42 - ASH TRAY ▶
7-42 — ASH TRAY (#74907) — 27 parça

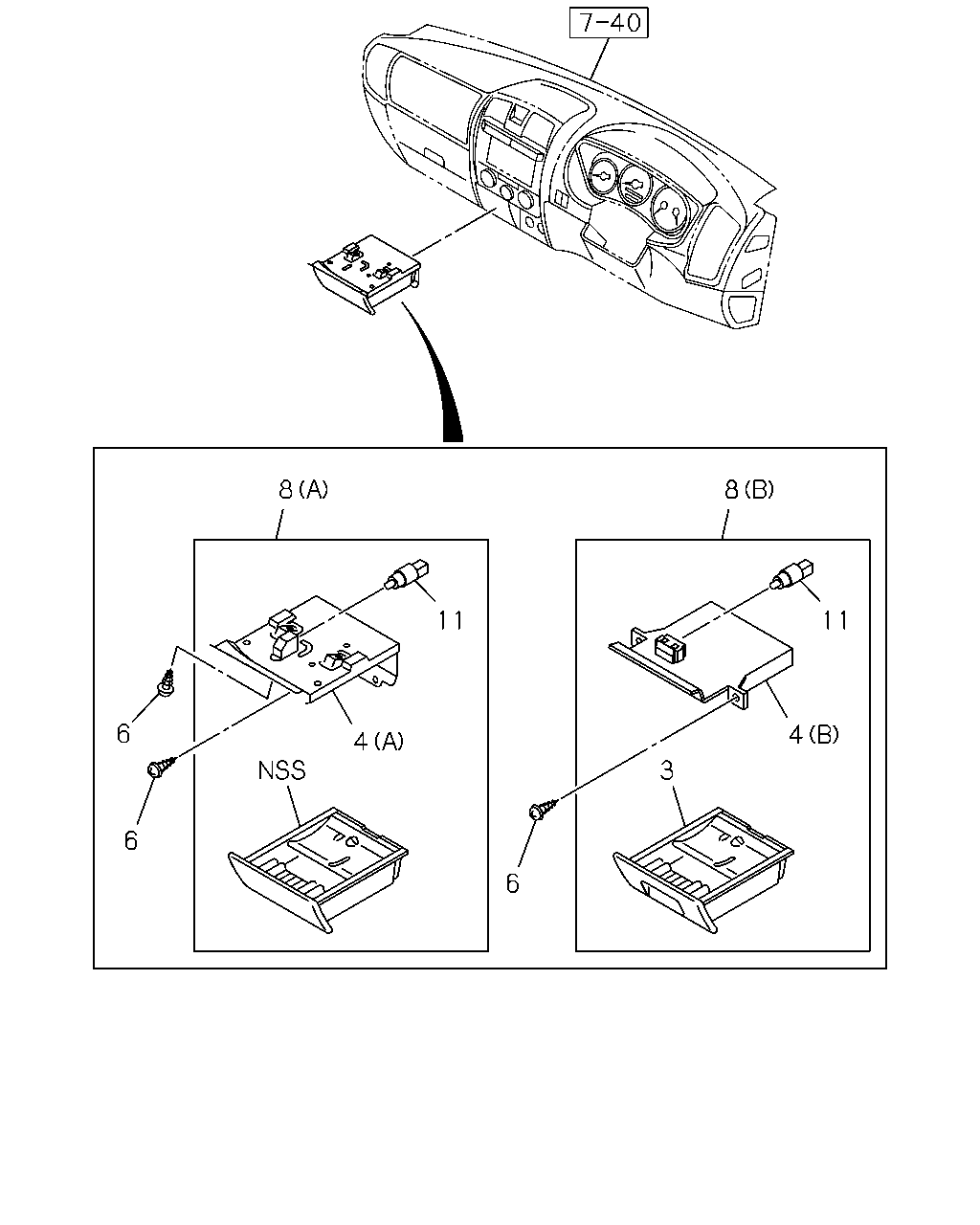

çizim 132806
8 8 11 11 6 4 4 3 6 6
BalonParca AdiParca NoAdetTipApplied Date A B
3 CASE ASM; ASH TRAY INNER
INTERIOR CUSTOM<B19> THA 		8-98184-294-0 01 1 1101-1107 ●
3 CASE ASM; ASH TRAY INNER
INTERIOR CUSTOM<B19> THA 		8-98184-294-0 01 1 1108- ● ●
3 CASE ASM; ASH TRAY INNER
INTERIOR LUXURY<B20> THA 		8-98134-997-0 01 1 0902- ● ●
3 CASE ASM; ASH TRAY INNER
THA 		8-98044-026-0 01 1 0607-0901 ● ●
3 CASE ASM; ASH TRAY INNER
EXC. INTERIOR LUXURY<B20> THA 		8-98044-026-0 01 1 0902-0908 ● ●
3 CASE ASM; ASH TRAY INNER
EXC. INTERIOR LUXURY<B20> THA 		8-98149-240-0 01 1 0909-1012 ● ●
3 CASE ASM; ASH TRAY INNER
EXC. INTERIOR CUSTOM<B19>,INTERIOR LUXURY<B20> THA 		8-98149-240-0 01 1 1101-1107 ●
3 CASE ASM; ASH TRAY INNER
EXC. INTERIOR LUXURY<B20> THA 		8-98149-240-0 01 1 1101-1107 ●
3 CASE ASM; ASH TRAY INNER
EXC. INTERIOR CUSTOM<B19>,INTERIOR LUXURY<B20> THA 		8-98149-240-0 01 1 1108- ● ●
4 CASE ASM; ASH TRAY OUTER
(A) THA 		8-97308-647-0 01 1 0411-0606 ● ●
4 CASE ASM; ASH TRAY OUTER
(B) THA 		8-98044-027-0 01 1 0607- ● ●
6 SCREW; ASH TRAY
M5X16 TAPPING THA 		9-09829-323-1 03 1 0411-0606 ● ●
6 SCREW; ASH TRAY
M5X16 TAPPING THA 		9-09829-323-1 02 1 0607-0702 ● ●
6 SCREW; ASH TRAY
M5X16 TAPPING THA 		8-98061-685-0 02 1 0703-1005 ● ●
6 SCREW; ASH TRAY
M5X16 TAPPING THA 		8-98167-449-0 02 1 1006- ● ●
8 TRAY ASM; ASH
INTERIOR CUSTOM<B19> (B) THA 		8-98184-293-0 01 1 1101-1107 ●
8 TRAY ASM; ASH
INTERIOR CUSTOM<B19> (B) THA 		8-98184-293-0 01 1 1108- ● ●
8 TRAY ASM; ASH
INTERIOR LUXURY<B20> (B) THA 		8-98134-996-0 01 1 0902- ● ●
8 TRAY ASM; ASH
(A) LIGHT GRAY THA 		8-97392-979-0 01 1 0411-0508 ● ●
8 TRAY ASM; ASH
(A) THA 		8-98018-261-0 01 1 0509-0606 ● ●
8 TRAY ASM; ASH
(B) THA 		8-98034-823-0 01 1 0607-0901 ● ●
8 TRAY ASM; ASH
EXC. INTERIOR LUXURY<B20> (B) THA 		8-98034-823-0 01 1 0902-0908 ● ●
8 TRAY ASM; ASH
EXC. INTERIOR LUXURY<B20> (B) THA 		8-98149-230-0 01 1 0909-1012 ● ●
8 TRAY ASM; ASH
EXC. INTERIOR CUSTOM<B19>,INTERIOR LUXURY<B20> (B) THA 		8-98149-230-0 01 1 1101-1107 ●
8 TRAY ASM; ASH
EXC. INTERIOR LUXURY<B20> (B) THA 		8-98149-230-0 01 1 1101-1107 ●
8 TRAY ASM; ASH
EXC. INTERIOR CUSTOM<B19>,INTERIOR LUXURY<B20> (B) THA 		8-98149-230-0 01 1 1108- ● ●
11 BULB; ASH TRAY
THA 		8-97308-651-0 01 1 0411- ● ●
