7-40 — INSTRUMENT PANEL AND BOX (#74906) — 103 parça

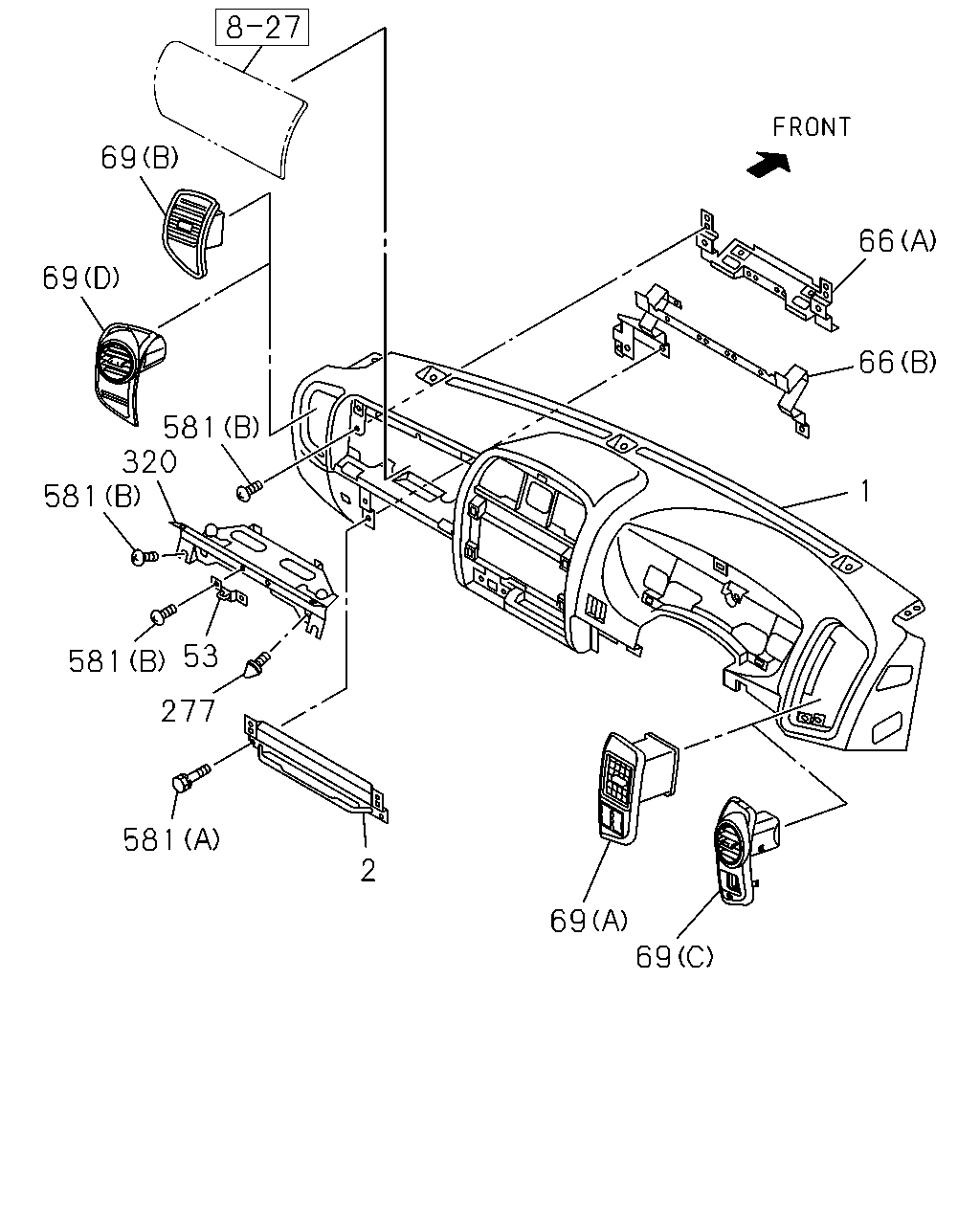

çizim 132890
69 66 69 66 581 320 581 1 53 581 277 581 2 69 69
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST
DARK GRAY THA 		8-97299-326-0 01 1 0411-0606 ● ●
1 PANEL; INST
DARK GRAY THA 		8-97405-969-1 01 1 0607- ● ●
2 REINFORCEMENT; INST PNL,LWR
THA 		8-97308-645-0 01 1 0411- ● ●
53 STRIKER; GLOVE BOX
THA 		8-97308-646-0 01 1 0411- ● ●
66 REINFORCEMENT; INST PANEL
(A) THA 		8-97308-641-0 01 1 0411- ● ●
66 REINFORCEMENT; INST PANEL
(B) THA 		8-97308-643-0 01 1 0411- ● ●
69 GRILLE; SIDE,AIR OUTLET
INTERIOR CUSTOM<B19> (C) THA 		8-98184-296-0 01 1 1101-1107 ●
69 GRILLE; SIDE,AIR OUTLET
INTERIOR CUSTOM<B19> (C) THA 		8-98184-296-0 01 1 1108- ● ●
69 GRILLE; SIDE,AIR OUTLET
INTERIOR CUSTOM<B19> (D) THA 		8-98184-290-0 01 1 1101- ●
69 GRILLE; SIDE,AIR OUTLET
INTERIOR LUXURY<B20> RADIO AM/FM W/CD,W/MP3<ULA>,RADIO DELETE<UL5> (D) THA 		8-98134-995-0 01 1 0902-0910 ● ●
69 GRILLE; SIDE,AIR OUTLET
INTERIOR LUXURY<B20> RADIO AM/FM W/CD,W/MP3<ULA>,RADIO DELETE<UL5> (D) THA 		8-98156-365-0 01 1 0911-1010 ● ●
69 GRILLE; SIDE,AIR OUTLET
INTERIOR LUXURY<B20> (D) THA 		8-98156-365-0 01 1 1011- ● ●
69 GRILLE; SIDE,AIR OUTLET
(B) THA 		8-97399-489-0 01 1 0411-0508 ● ●
69 GRILLE; SIDE,AIR OUTLET
(B) THA 		8-98018-244-0 01 1 0509-0606 ● ●
69 GRILLE; SIDE,AIR OUTLET
(D) THA 		8-98034-825-2 01 1 0607-0908 ● ●
69 GRILLE; SIDE,AIR OUTLET
RADIO AM/FM W/CD,W/MP3<ULA>,RADIO DELETE<UL5> EXC. INTERIOR LUXURY<B20> (D) THA 		8-98149-239-0 01 1 0909-0910 ● ●
69 GRILLE; SIDE,AIR OUTLET
RADIO AM/FM W/CD,W/MP3<ULA>,RADIO DELETE<UL5> EXC. INTERIOR LUXURY<B20> (D) THA 		8-98156-366-0 01 1 0911-1010 ● ●
69 GRILLE; SIDE,AIR OUTLET
EXC. INTERIOR LUXURY<B20> (D) THA 		8-98156-366-0 01 1 1011-1012 ● ●
69 GRILLE; SIDE,AIR OUTLET
EXC. INTERIOR CUSTOM<B19>,INTERIOR LUXURY<B20> (D) THA 		8-98156-366-0 01 1 1101- ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) THA 		8-97399-490-0 01 1 0411-0508 ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) THA 		8-98018-252-0 01 1 0509-0606 ● ●
69 GRILLE; SIDE,AIR OUTLET
(C) THA 		8-98034-827-2 01 1 0607-0908 ● ●
69 GRILLE; SIDE,AIR OUTLET
EXC. INTERIOR LUXURY<B20> (C) THA 		8-98149-235-0 01 1 0909-0910 ● ●
69 GRILLE; SIDE,AIR OUTLET
EXC. INTERIOR LUXURY<B20> (C) THA 		8-98154-837-0 01 1 0911-1012 ● ●
69 GRILLE; SIDE,AIR OUTLET
EXC. INTERIOR CUSTOM<B19>,INTERIOR LUXURY<B20> (C) THA 		8-98154-837-0 01 1 1101-1107 ●
69 GRILLE; SIDE,AIR OUTLET
EXC. INTERIOR LUXURY<B20> (C) THA 		8-98154-837-0 01 1 1101-1107 ●
69 GRILLE; SIDE,AIR OUTLET
EXC. INTERIOR CUSTOM<B19>,INTERIOR LUXURY<B20> (C) THA 		8-98154-837-0 01 1 1108- ● ●
69 GRILLE; SIDE,AIR OUTLET
INTERIOR LUXURY<B20> (C) THA 		8-98135-002-0 01 1 0902-0910 ● ●
69 GRILLE; SIDE,AIR OUTLET
INTERIOR LUXURY<B20> (C) THA 		8-98154-836-0 01 1 0911- ● ●
277 RUBBER; STOPPER GLOVE LID
THA 		8-97308-650-0 03 1 0411- ● ●
320 COVER; GLOVE BOX
DARK GRAY THA 		8-97299-328-1 01 1 0411-0606 ● ●
320 COVER; GLOVE BOX
DARK GRAY THA 		8-97405-960-2 01 1 0607- ● ●
581 SCREW
(A) M6X20 W/WASHER THA 		8-94112-987-1 03 1 0411-0610 ● ●
581 SCREW
(A) M6X20 W/WASHER THA 		8-98056-282-0 03 1 0611- ● ●
581 SCREW
(B) M5X16 THA 		8-94279-312-0 13 1 0411-0411 ● ●
581 SCREW
(B) M5X16 THA 		8-94279-312-0 11 1 0412-0610 ● ●
581 SCREW
(B) M5X16 TAPPING THA 		8-98061-683-0 11 1 0611-0910 ● ●
581 SCREW
(B) M5X16 TAPPING THA 		8-98061-683-0 13 1 0911- ● ●

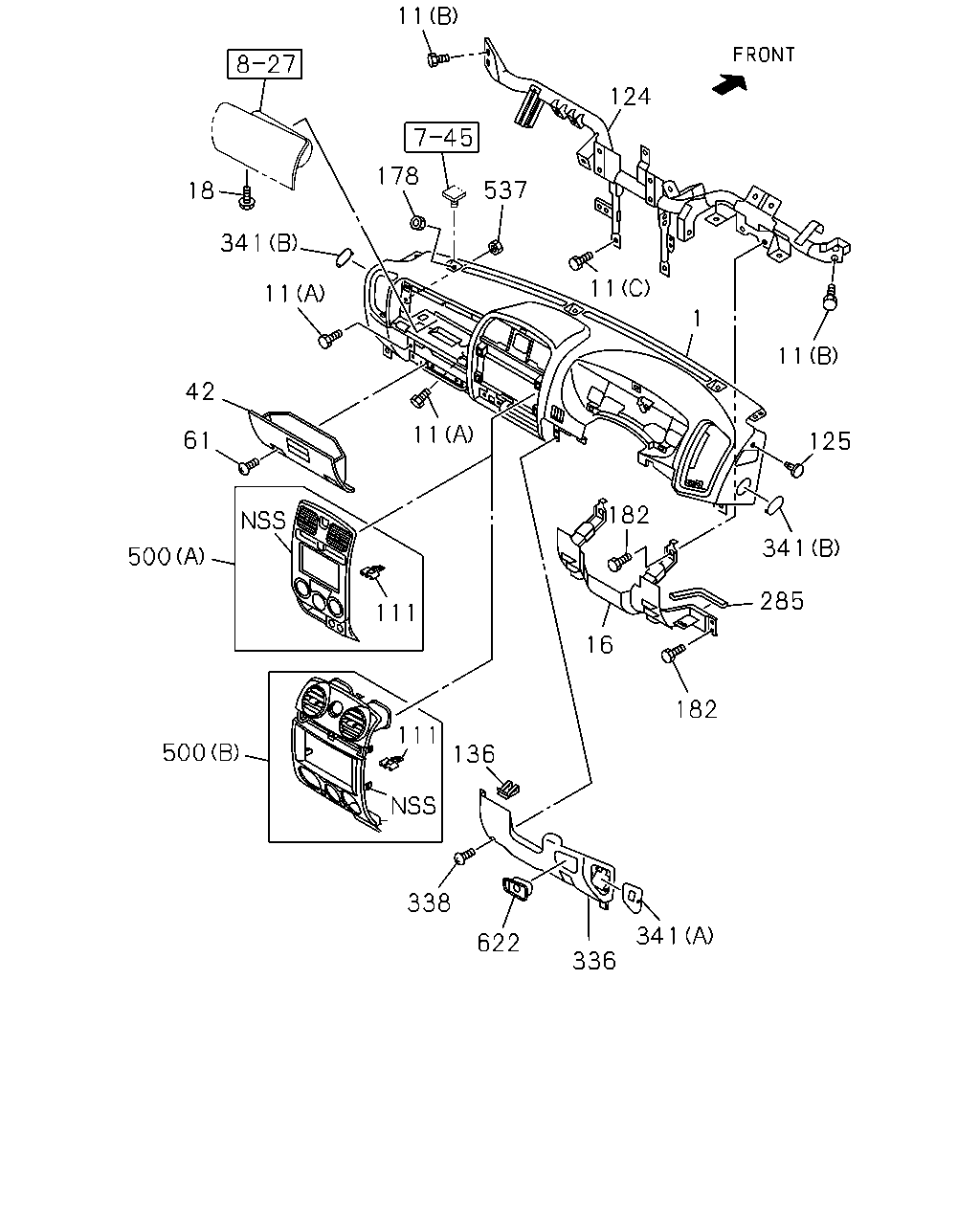

çizim 133223
11 124 178 537 18 341 11 11 1 11 42 11 61 125 182 341 500 285 111 16 182 111 500 136 338 341 622 336
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST
DARK GRAY THA 		8-97299-326-0 01 1 0411-0606 ● ●
1 PANEL; INST
DARK GRAY THA 		8-97405-969-1 01 1 0607- ● ●
11 BOLT; INST PNL
(A) M6X20 W/WASHER THA 		8-94112-987-1 06 1 0411-0612 ● ●
11 BOLT; INST PNL
(A) M6X20 W/WASHER THA 		8-98056-282-0 06 1 0701- ● ●
11 BOLT; INST PNL
(B) M8X25 W/LK&PL WASHER THA 		8-94411-977-0 04 1 0411-0612 ● ●
11 BOLT; INST PNL
(B) M8X30 W/LK&PL WASHER THA 		8-98057-964-0 04 1 0701- ● ●
11 BOLT; INST PNL
(C) M6X25 W/LK&PL WASHER THA 		8-94416-136-0 04 1 0411-0612 ● ●
11 BOLT; INST PNL
(C) M6X30 W/LK&PL WASHER THA 		8-98057-965-0 04 1 0701- ● ●
16 BRACKET; INST PNL
THA 		8-97302-051-0 01 1 0411-0606 ● ●
16 BRACKET; INST PNL
THA 		8-98043-124-0 01 1 0607- ● ●
18 BOLT; BRKT
M6X18 W/LK&PL WASHER THA 		8-97353-832-0 02 1 0411- ● ●
42 BOX; GLOVE,INST PNL
DARK GRAY THA 		8-97293-941-2 01 1 0411-0606 ● ●
42 BOX; GLOVE,INST PNL
DARK GRAY THA 		8-97403-321-2 01 1 0607-0612 ● ●
42 BOX; GLOVE,INST PNL
DARK GRAY THA 		8-97409-179-0 01 1 0701-0805 ● ●
42 BOX; GLOVE,INST PNL
DARK GRAY THA 		8-97415-658-0 01 1 0806- ● ●
61 SCREW; GLOVE BOX
M5X16 THA 		8-94279-312-0 02 1 0411-0702 ● ●
61 SCREW; GLOVE BOX
M5X16 TAPPING THA 		8-98061-683-0 02 1 0703-1005 ● ●
61 SCREW; GLOVE BOX
M5X16 TAPPING THA 		8-98167-214-0 02 1 1006- ● ●
111 CLIP; CLUSTER PANEL,GRILLE
T=0.5 THA 		8-97137-828-0 06 1 0411-0910 ● ●
111 CLIP; CLUSTER PANEL,GRILLE
T=0.5 THA 		8-98061-356-0 06 1 0911- ● ●
124 REINFORCEMENT; INST PNL,UPR
THA 		8-97362-195-0 01 1 0411-0508 ● ●
124 REINFORCEMENT; INST PNL,UPR
THA 		8-98023-068-0 01 1 0509-0808 ● ●
124 REINFORCEMENT; INST PNL,UPR
THA 		8-98110-168-0 01 1 0809- ● ●
125 CLIP; INST PANEL
THA 		8-97310-401-0 01 1 0411- ● ●
136 CLIP; INST COVER
4JJ1-TCS ENG<LFB> T=0.5 THA 		8-97137-828-0 04 1 0411-0606 ● ●
136 CLIP; INST COVER
T=0.5 THA 		8-97137-828-0 04 1 0607-0612 ● ●
136 CLIP; INST COVER
T=0.5 THA 		8-98061-356-0 04 1 0701- ● ●
178 NUT; INST PANEL
M6 FLANGE THA 		8-97063-399-0 03 1 0411-0702 ● ●
178 NUT; INST PANEL
M6 FLANGE IMA 		8-98055-704-0 03 1 0703- ● ●
182 BOLT; BRKT,INST PANEL
M6X20 W/WASHER THA 		8-94112-987-1 04 1 0411-0612 ● ●
182 BOLT; BRKT,INST PANEL
M6X20 W/WASHER THA 		8-98056-282-0 04 1 0701- ● ●
285 FINISHER; INST PANEL
L=175 SERVICED BY L=2040 THA 		1-71997-513-1 01 1 0411- ● ●
336 COVER; INST PANEL SIDE
4JJ1-TCS ENG<LFB> DARK GRAY THA 		8-97393-913-0 01 1 0411-0606 ● ●
336 COVER; INST PANEL SIDE
DARK GRAY THA 		8-97403-940-0 01 1 0607-1104 ● ●
336 COVER; INST PANEL SIDE
BLACK THA 		8-97422-814-0 01 1 1105- ● ●
338 SCREW; COVER
M5X16 THA 		8-94279-312-0 01 1 0411-0702 ● ●
338 SCREW; COVER
M5X16 TAPPING THA 		8-98061-683-0 01 1 0703-1005 ● ●
338 SCREW; COVER
M5X16 TAPPING THA 		8-98167-214-0 01 1 1006- ● ●
341 LID; FUSE BOX
4JJ1-TCS ENG<LFB> (A) DARK GRAY THA 		8-97393-914-0 01 1 0411-0606 ● ●
341 LID; FUSE BOX
(A) DARK GRAY THA 		8-97403-945-0 01 1 0607-1104 ● ●
341 LID; FUSE BOX
(A) BLACK THA 		8-97422-818-0 01 1 1105- ● ●
341 LID; FUSE BOX
(B) DARK GRAY THA 		8-97396-877-0 01 1 0411-0606 ● ●
341 LID; FUSE BOX
(B) DARK GRAY THA 		8-97408-049-1 01 1 0607- ● ●
341 LID; FUSE BOX
(B) DARK GRAY THA 		8-97396-876-0 01 1 0411-0606 ● ●
341 LID; FUSE BOX
(B) DARK GRAY THA 		8-97408-048-1 01 1 0607- ● ●
500 CLUSTER; INST CENTER
INTERIOR CUSTOM<B19> RADIO DELETE<UL5> (B) THA 		8-98184-295-0 01 1 1101-1107 ●
500 CLUSTER; INST CENTER
INTERIOR CUSTOM<B19> RADIO DELETE<UL5> (B) THA 		8-98184-295-0 01 1 1108- ● ●
500 CLUSTER; INST CENTER
INTERIOR LUXURY<B20> RADIO DELETE<UL5> (B) THA 		8-98134-998-0 01 1 0902-0910 ● ●
500 CLUSTER; INST CENTER
INTERIOR LUXURY<B20> RADIO DELETE<UL5> (B) THA 		8-98154-833-0 01 1 0911- ● ●
500 CLUSTER; INST CENTER
(A) LIGHT GRAY THA 		8-97398-208-0 01 1 0411-0508 ● ●
500 CLUSTER; INST CENTER
(A) THA 		8-98018-250-0 01 1 0509-0606 ● ●
500 CLUSTER; INST CENTER
RADIO AM/FM W/CD,W/MP3<ULA> (B) THA 		8-98034-824-2 01 1 0607-0908 ● ●
500 CLUSTER; INST CENTER
RADIO AM/FM W/CD,W/MP3<ULA> (B) THA 		8-98149-231-0 01 1 0909-0910 ● ●
500 CLUSTER; INST CENTER
RADIO AM/FM W/CD,W/MP3<ULA> (B) THA 		8-98154-834-0 01 1 0911- ● ●
500 CLUSTER; INST CENTER
RADIO DELETE<UL5> (B) THA 		8-98035-895-2 01 1 0607-0908 ● ●
500 CLUSTER; INST CENTER
RADIO DELETE<UL5> EXC. INTERIOR LUXURY<B20> (B) THA 		8-98149-232-0 01 1 0909-0910 ● ●
500 CLUSTER; INST CENTER
RADIO DELETE<UL5> EXC. INTERIOR LUXURY<B20> (B) THA 		8-98154-835-0 01 1 0911-1012 ● ●
500 CLUSTER; INST CENTER
RADIO DELETE<UL5> EXC. INTERIOR CUSTOM<B19>,INTERIOR LUXURY<B20> (B) THA 		8-98154-835-0 01 1 1101-1107 ●
500 CLUSTER; INST CENTER
RADIO DELETE<UL5> EXC. INTERIOR LUXURY<B20> (B) THA 		8-98154-835-0 01 1 1101-1107 ●
500 CLUSTER; INST CENTER
RADIO DELETE<UL5> EXC. INTERIOR CUSTOM<B19>,INTERIOR LUXURY<B20> (B) THA 		8-98154-835-0 01 1 1108- ● ●
537 NUT; BRKT
M6 W/DISHED WASHER THA 		8-97018-399-1 02 1 0411-0702 ● ●
537 NUT; BRKT
M6 W/DISHED WASHER THA 		8-98073-372-0 02 1 0703- ● ●
622 BOX; IDLE CONT
4JJ1-TCS ENG<LFB> DARK GRAY THA 		8-97393-915-0 01 1 0411-0606 ● ●
622 BOX; IDLE CONT
DARK GRAY THA 		8-97403-947-0 01 1 0607-1104 ● ●
622 BOX; IDLE CONT
BLACK THA 		8-97422-820-0 01 1 1105- ● ●
