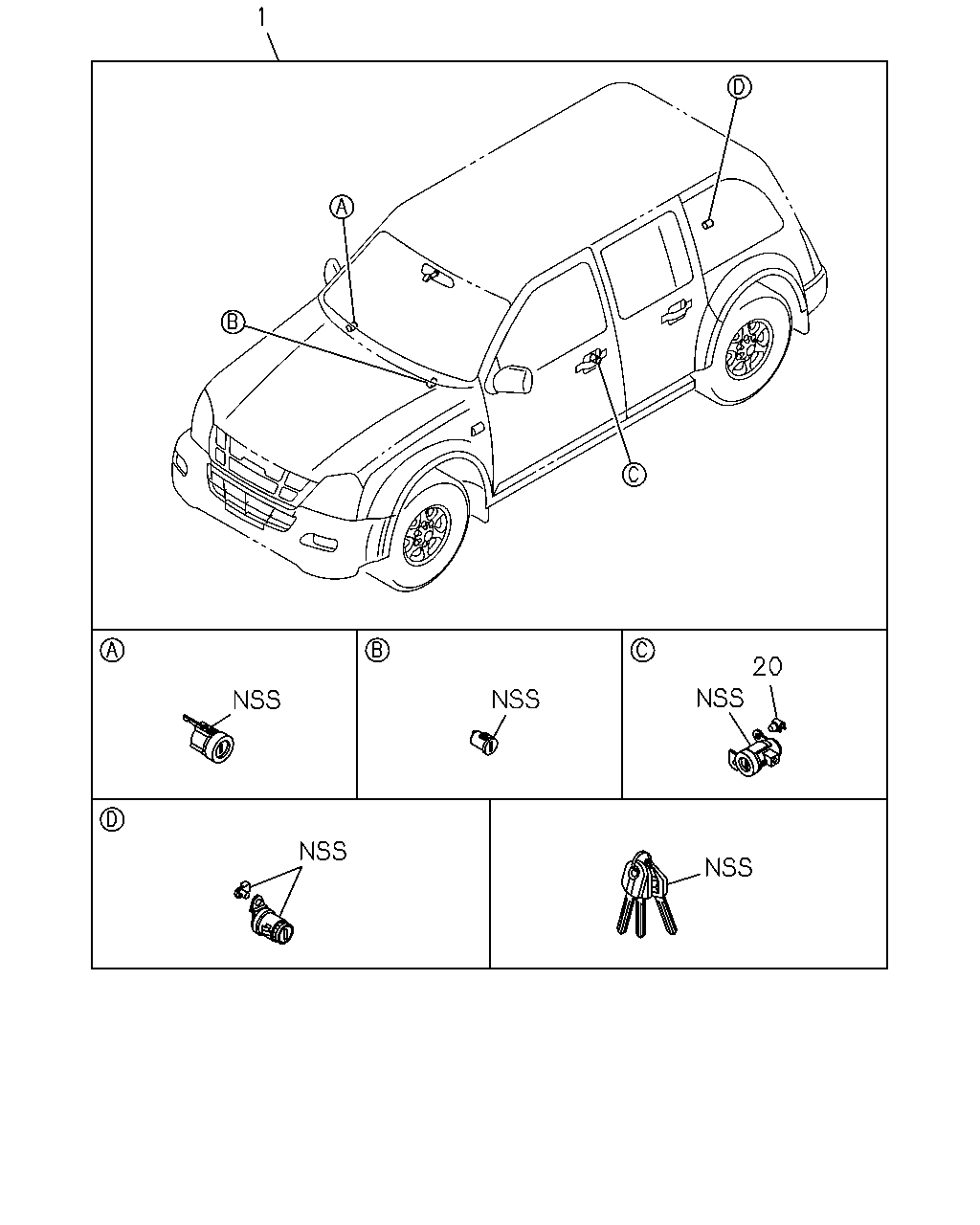

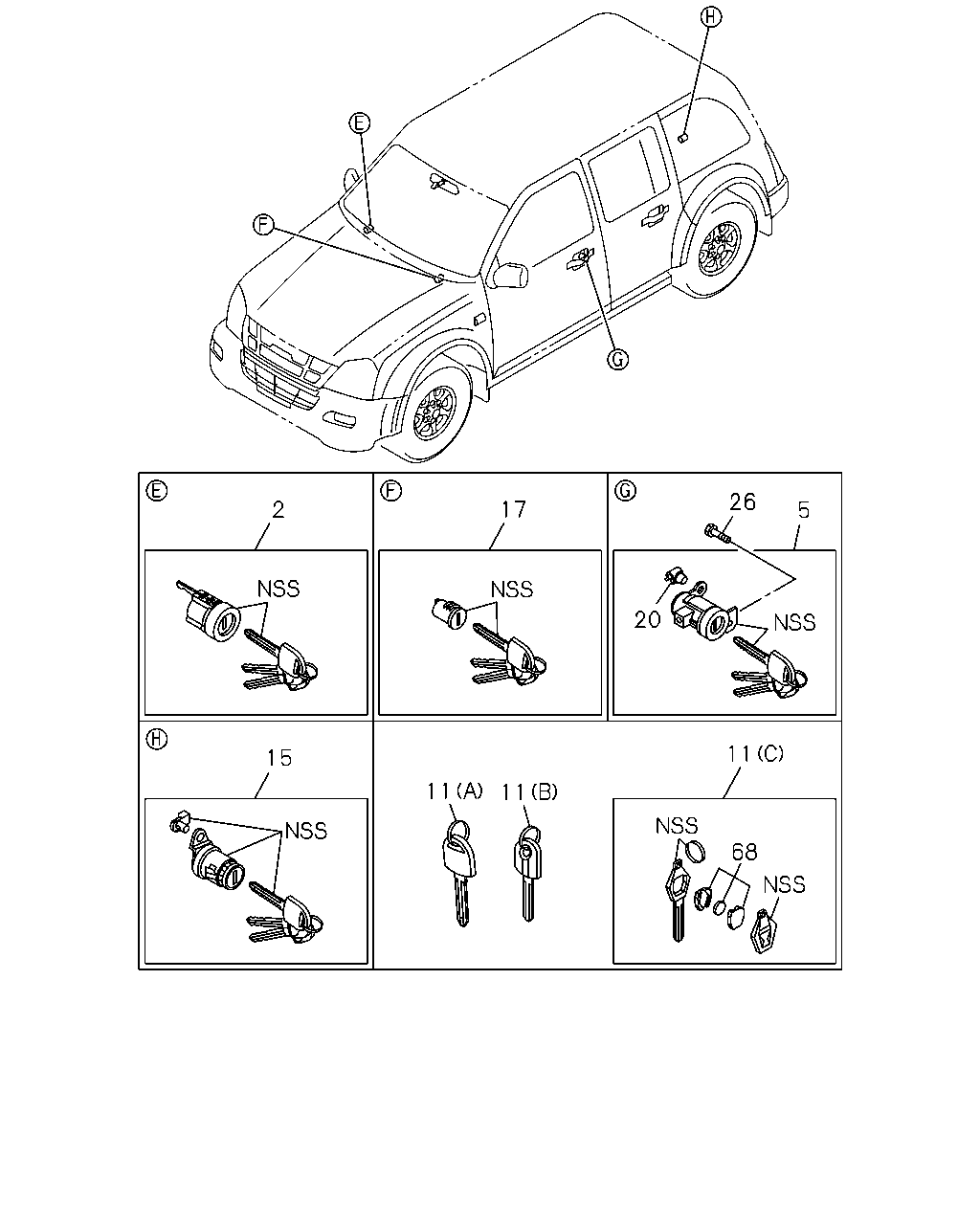

7-30 — LOCK CYLINDER SET (#74905) — 30 parça

20 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CYLINDER SET; CAR LOCK THA	8-97362-858-2	01	1	0411-0606	●	●
1	CYLINDER SET; CAR LOCK THA	8-98018-791-1	01	1	0607-0609	●	●
1	CYLINDER SET; CAR LOCK THA	8-98060-431-0	01	1	0610-0708	●	●
1	CYLINDER SET; CAR LOCK THA	8-98052-718-3	01	1	0709-	●	●
20	SNAP; DOOR LOCK CYL YELLOW THA	8-97350-043-0	02	1	0411-	●	●
20	SNAP; DOOR LOCK CYL WHITE THA	8-97350-044-0	01	1	0411-	●	●

5 26 20 17 2 11 11 11 15 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BARREL ASM; W/KEY,STRG LOCK THA	8-97376-650-1	01	1	0411-0606	●	●
2	BARREL ASM; W/KEY,STRG LOCK THA	8-98049-745-0	01	1	0607-0609	●	●
2	BARREL ASM; W/KEY,STRG LOCK THA	8-98060-589-0	01	1	0610-0708	●	●
2	BARREL ASM; W/KEY,STRG LOCK THA	8-98095-175-0	01	1	0709-	●	●
5	CYLINDER ASM; DOOR LOCK THA	8-97376-649-1	01	1	0411-0606	●	●
5	CYLINDER ASM; DOOR LOCK THA	8-98049-736-0	01	1	0607-0609	●	●
5	CYLINDER ASM; DOOR LOCK THA	8-98060-582-0	01	1	0610-	●	●
5	CYLINDER ASM; DOOR LOCK THA	8-97376-648-1	01	1	0411-0606	●	●
5	CYLINDER ASM; DOOR LOCK THA	8-98049-735-0	01	1	0607-0609	●	●
5	CYLINDER ASM; DOOR LOCK THA	8-98060-581-0	01	1	0610-	●	●
11	KEY; BLANK (A) IMMOBILIZER THA	8-97378-106-0	AR	1	0411-0606	●	●
11	KEY; BLANK (B) IMMOBILIZER THA	8-98007-939-1	AR	1	0607-	●	●
11	KEY; BLANK (C) REMOTE CONT DOOR LOCK W/IMMOBILIZER THA	8-98046-772-1	AR	1	0709-	●	●
15	CYLINDER ASM; W/KEY,TAIL GATE LOCK THA	8-97376-651-1	01	1	0411-0606	●	●
15	CYLINDER ASM; W/KEY,TAIL GATE LOCK THA	8-98051-775-0	01	1	0607-0609	●	●
15	CYLINDER ASM; W/KEY,TAIL GATE LOCK THA	8-98060-591-0	01	1	0610-	●	●
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK THA	8-97376-647-1	01	1	0411-0606	●	●
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK THA	8-98049-734-0	01	1	0607-0609	●	●
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK THA	8-98060-580-0	01	1	0610-	●	●
20	SNAP; DOOR LOCK CYL YELLOW THA	8-97350-043-0	02	1	0411-	●	●
20	SNAP; DOOR LOCK CYL WHITE THA	8-97350-044-0	01	1	0411-	●	●
26	BOLT; KEY CYL,DOOR M6X8 FLANGE THA	8-97175-668-0	04	1	0411-0701	●	●
26	BOLT; KEY CYL,DOOR THA	8-98062-137-0	04	1	0702-	●	●
68	TRANSMITTER; DOOR LOCK THA	8-98053-166-0	01	1	0709-	●	●
