◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51027 - UCR/UCS(THAILAND) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#74903) — 16 parça

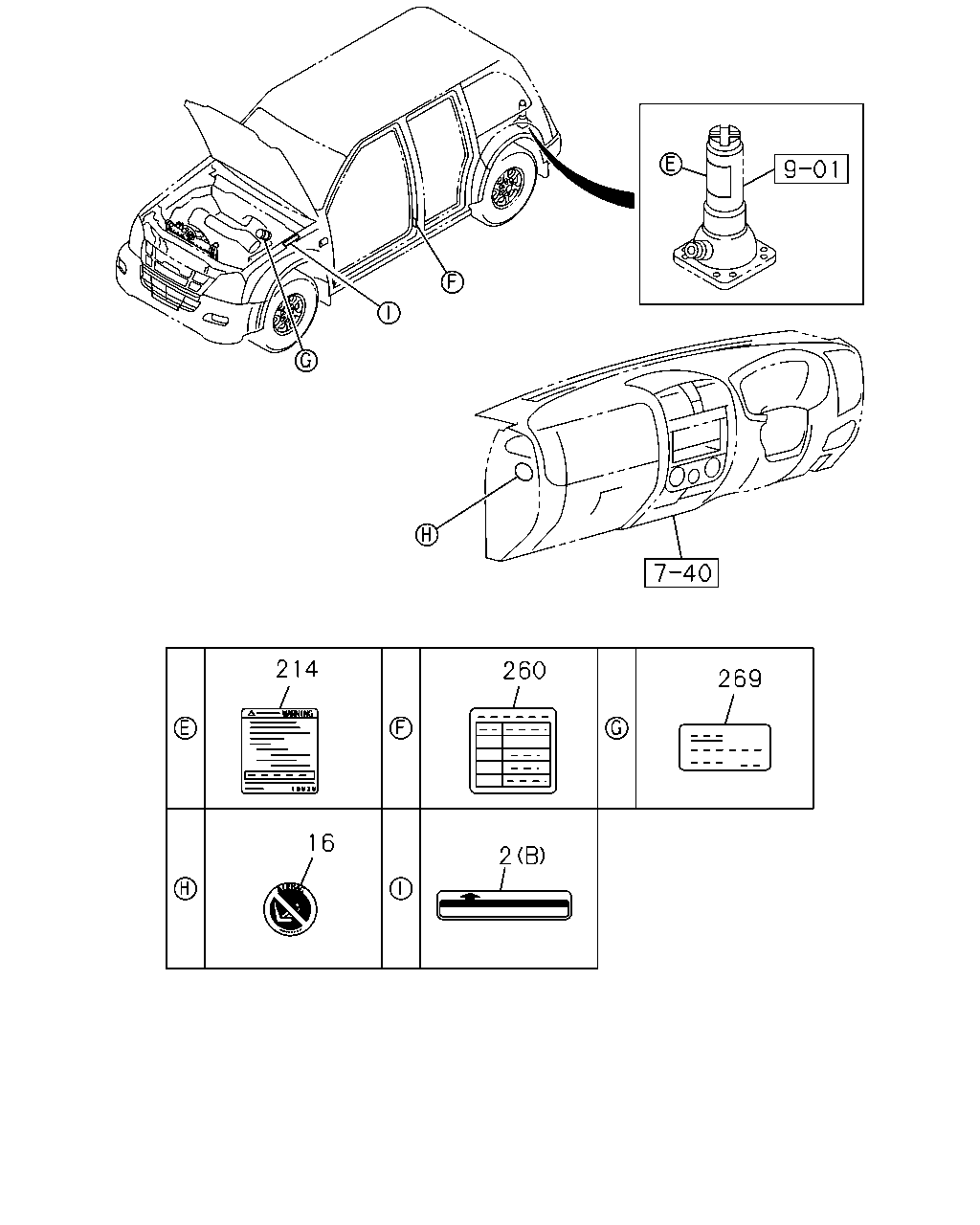

çizim 133132
214 260 269 16 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 LABEL; FUEL CAUTION
(A) THA 		8-97944-098-0 01 1 0411- ● ●
2 LABEL; FUEL CAUTION
(B) THA 		8-97945-777-0 01 1 0607- ● ●
16 PLATE; CAUTION,SIR
THA 		8-97378-569-0 01 1 0411- ● ●
214 LABEL; JACK
THA 		8-97942-649-0 01 1 0411- ● ●
260 PLATE; CAUTION,HEAD LAMP LEVELING
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> THA 		8-97943-123-0 01 1 0411-0606 ●
260 PLATE; CAUTION,HEAD LAMP LEVELING
THA 		8-97943-123-0 01 1 0411-0606 ●
269 LABEL; CAUTION,EGR
THA 		8-97374-989-0 01 1 0411- ● ●

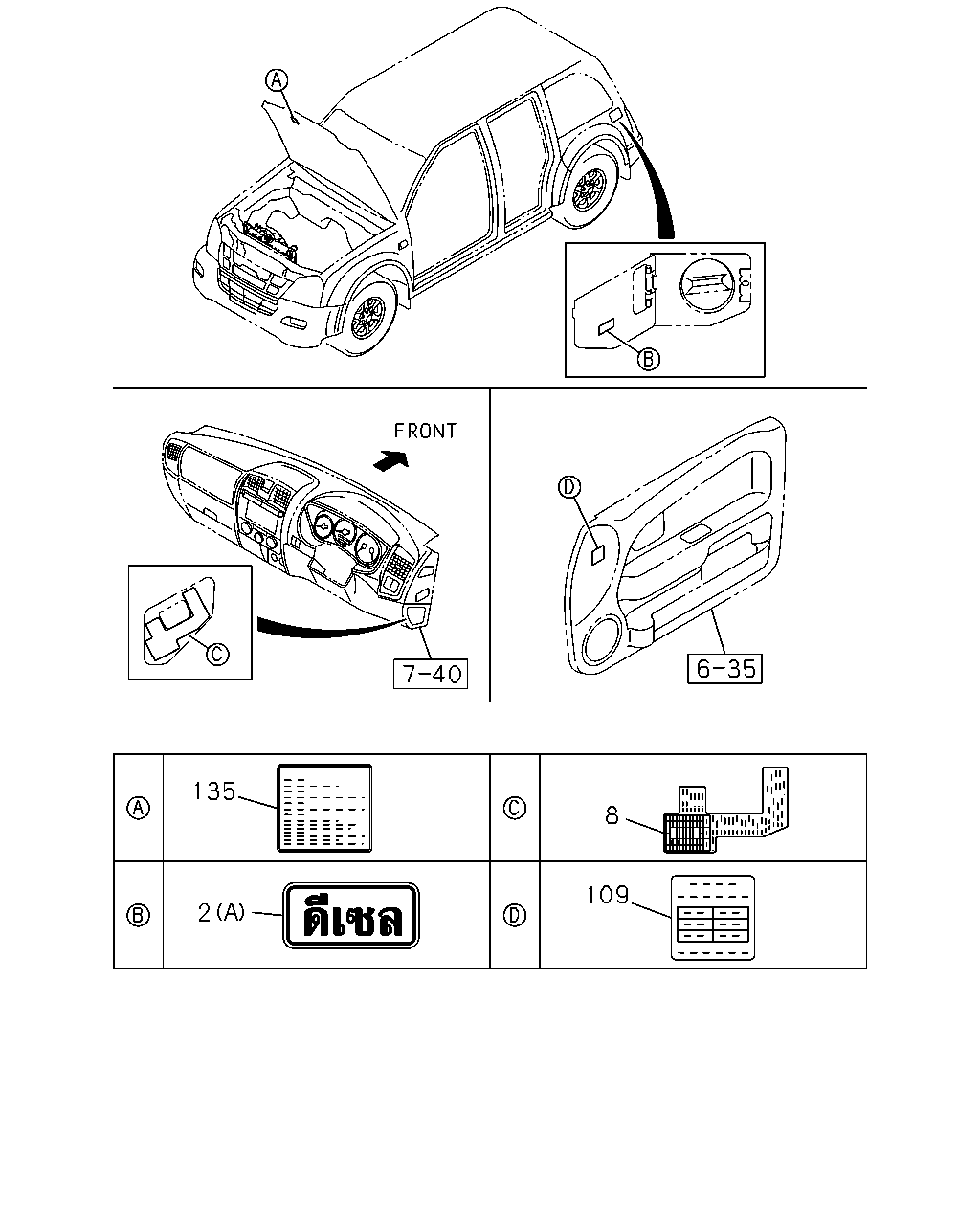

çizim 185445
135 8 109 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 LABEL; FUEL CAUTION
(A) THA 		8-97944-098-0 01 1 0411- ● ●
2 LABEL; FUEL CAUTION
(B) THA 		8-97945-777-0 01 1 0607- ● ●
8 LABEL; FUSE
THA 		8-97378-477-0 01 1 0411-0606 ● ●
8 LABEL; FUSE
THA 		8-98031-406-1 01 1 0607- ● ●
109 PLATE; CAUTION,TIRE PLACARD
THA 		8-97363-561-0 01 1 0411-0705 ● ●
109 PLATE; CAUTION,TIRE PLACARD
THA 		8-98083-039-0 01 1 0706- ● ●
135 PLATE; CAUTION,ENGINE
THA 		8-97370-540-1 01 1 0411-0508 ● ●
135 PLATE; CAUTION,ENGINE
THA 		8-98029-482-0 01 1 0509-0606 ● ●
135 PLATE; CAUTION,ENGINE
THA 		8-98036-186-0 01 1 0607- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
