◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10632 - FVM-RHD ▶ 3 - Brakes, Brake System ▶ 3-40 - FRONT BRAKE POWER CHAMBER ▶
3-40 — FRONT BRAKE POWER CHAMBER (#749) — 24 parça

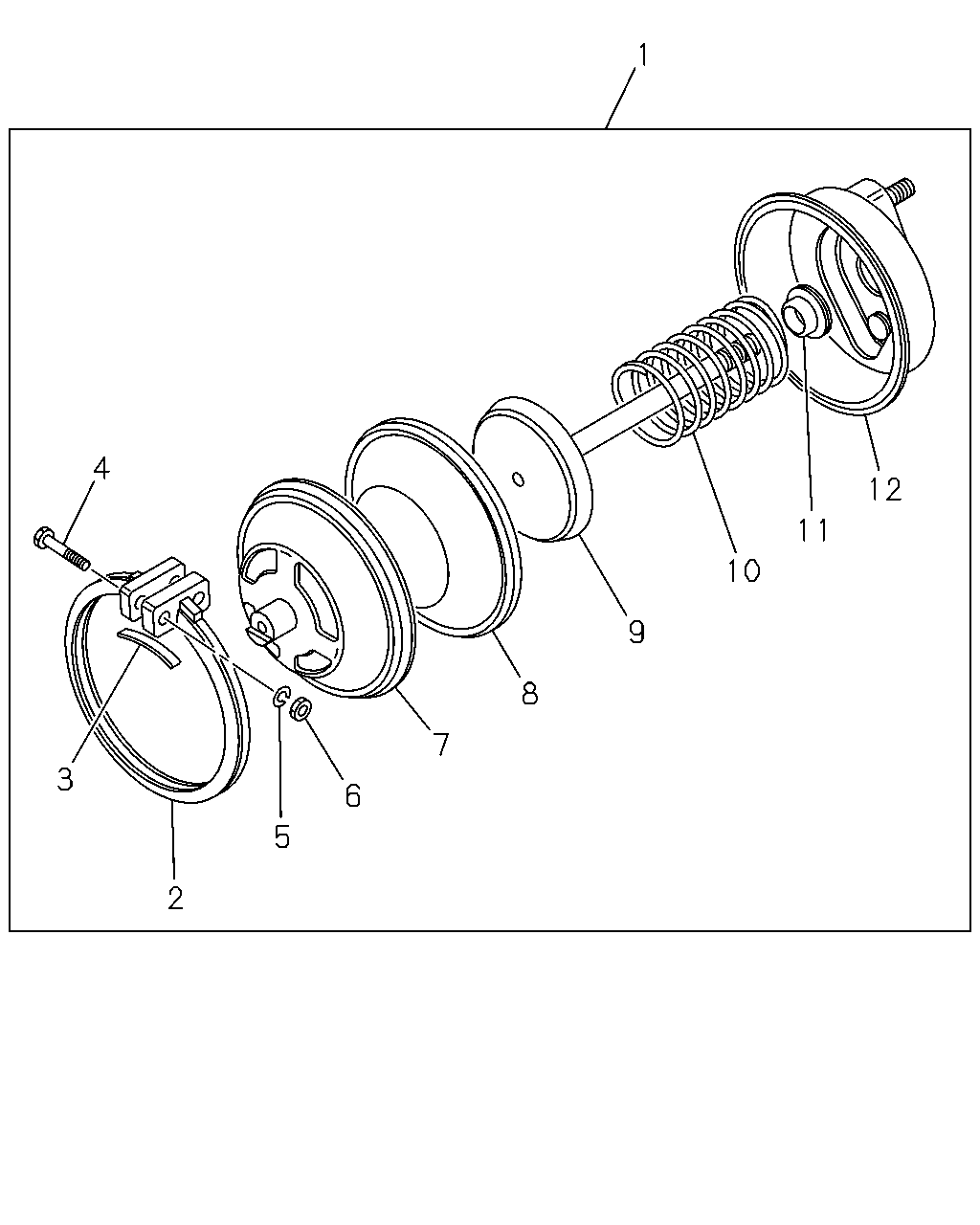

çizim 95267
1 4 12 11 10 9 8 7 3 6 5 2
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; POWER,FRT BRK 1-48250-062-1 02 1 9204-9504
1 CHAMBER ASM; POWER,FRT BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48250-062-1 02 1 9505-
2 RING; CLAMP,SPR CHAMBER 1-48259-001-0 02 1 9204-9504
2 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-001-0 02 1 9505-
3 RETAINER; DIAPH 9-48259-016-0 02 1 9204-9504
3 RETAINER; DIAPH
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		9-48259-016-0 02 1 9505-
4 BOLT; CLAMP RING 1-48259-002-0 04 1 9204-9504
4 BOLT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-002-0 04 1 9505-
5 WASHER; LK,CLAMP RING
ID=10.2 		9-09150-510-0 04 1 9204-9504
5 WASHER; LK,CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10.2 		9-09150-510-0 04 1 9505-
6 NUT; CLAMP RING
M10 		9-09110-010-0 04 1 9204-9504
6 NUT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 		9-09110-010-0 04 1 9505-
7 COVER ASM; UPR,SPR CHAMBER 1-48251-002-0 02 1 9204-9504
7 COVER ASM; UPR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48251-002-0 02 1 9505-
8 DIAPHRAGM; SPR CHAMBER 1-48252-006-0 02 1 9204-9504
8 DIAPHRAGM; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48252-006-0 02 1 9505-
9 PISTON; SPR CHAMBER 1-48253-001-0 02 1 9204-9504
9 PISTON; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48253-001-0 02 1 9505-
10 SPRING; PISTON,SPR CHAMBER 1-48255-001-0 02 1 9204-9504
10 SPRING; PISTON,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48255-001-0 02 1 9505-
11 SEAL; PISTON,SPR CHAMBER 1-48252-025-0 02 1 9204-9504
11 SEAL; PISTON,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48252-025-0 02 1 9505-
12 COVER ASM; LWR,SPR CHAMBER 1-48251-019-0 02 1 9204-9504
12 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48251-019-0 02 1 9505-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
