6-83 — BACK DOOR LOCK AND HANDLE (#74897) — 70 parça

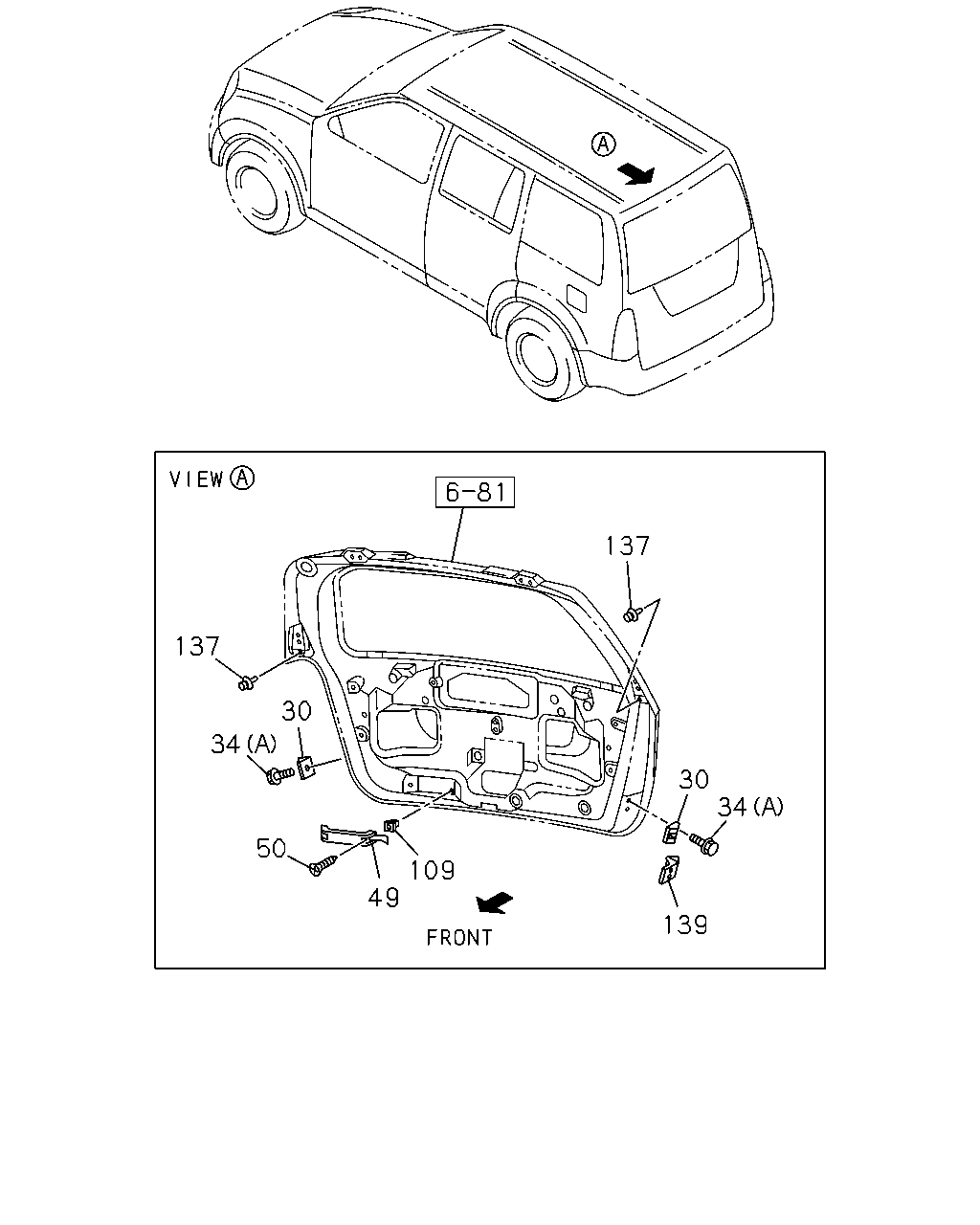

137 137 30 34 30 34 50 109 49 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	DOVETAIL; BACK DOOR THA	8-97234-389-3	02	1	0411-	●	●
34	BOLT; DOVETAIL TO BACK DOOR (A) M6X16 W/LK&PL WASHER THA	8-94279-214-0	06	1	0411-0805	●	●
34	BOLT; DOVETAIL TO BACK DOOR (A) M6X16 W/LK&PL WASHER THA	8-98125-360-0	06	1	0806-	●	●
34	BOLT; DOVETAIL TO BACK DOOR (B) M6X18 THA	8-97071-681-0	06	1	0411-0702	●	●
34	BOLT; DOVETAIL TO BACK DOOR (B) M6X18 THA	8-98056-280-0	06	1	0703-	●	●
49	GRIP; ASSIST BACK DOOR INTERIOR COLOR VERY DARK GRAY<116> BLACK THA	8-97422-931-0	01	1	1101-1107	●
49	GRIP; ASSIST BACK DOOR INTERIOR COLOR VERY DARK GRAY<116> BLACK THA	8-97422-931-0	01	1	1108-	●	●
49	GRIP; ASSIST BACK DOOR LIGHT GRAY THA	8-97399-013-0	01	1	0411-0606	●	●
49	GRIP; ASSIST BACK DOOR BEIGE THA	8-97404-658-0	01	1	0607-1010	●	●
49	GRIP; ASSIST BACK DOOR INTERIOR COLOR BEIGE<184> BEIGE THA	8-97404-658-0	01	1	1011-1107	●
49	GRIP; ASSIST BACK DOOR BEIGE THA	8-97404-658-0	01	1	1011-1107		●
49	GRIP; ASSIST BACK DOOR INTERIOR COLOR BEIGE<184> BEIGE THA	8-97404-658-0	01	1	1108-	●	●
50	SCREW; ASSIST GRIP M6X30 TAPPING THA	9-07066-630-0	02	1	0411-0606	●	●
50	SCREW; ASSIST GRIP M6X30 TAPPING THA	0-71040-630-0	02	1	0607-	●	●
109	GROMMET; SCREW THA	8-94159-130-0	02	1	0411-	●	●
137	CUSHION; BACK DOOR THA	8-97258-864-0	02	1	0411-	●	●
139	DOVETAIL; BODY THA	8-97234-392-0	02	1	0411-	●	●

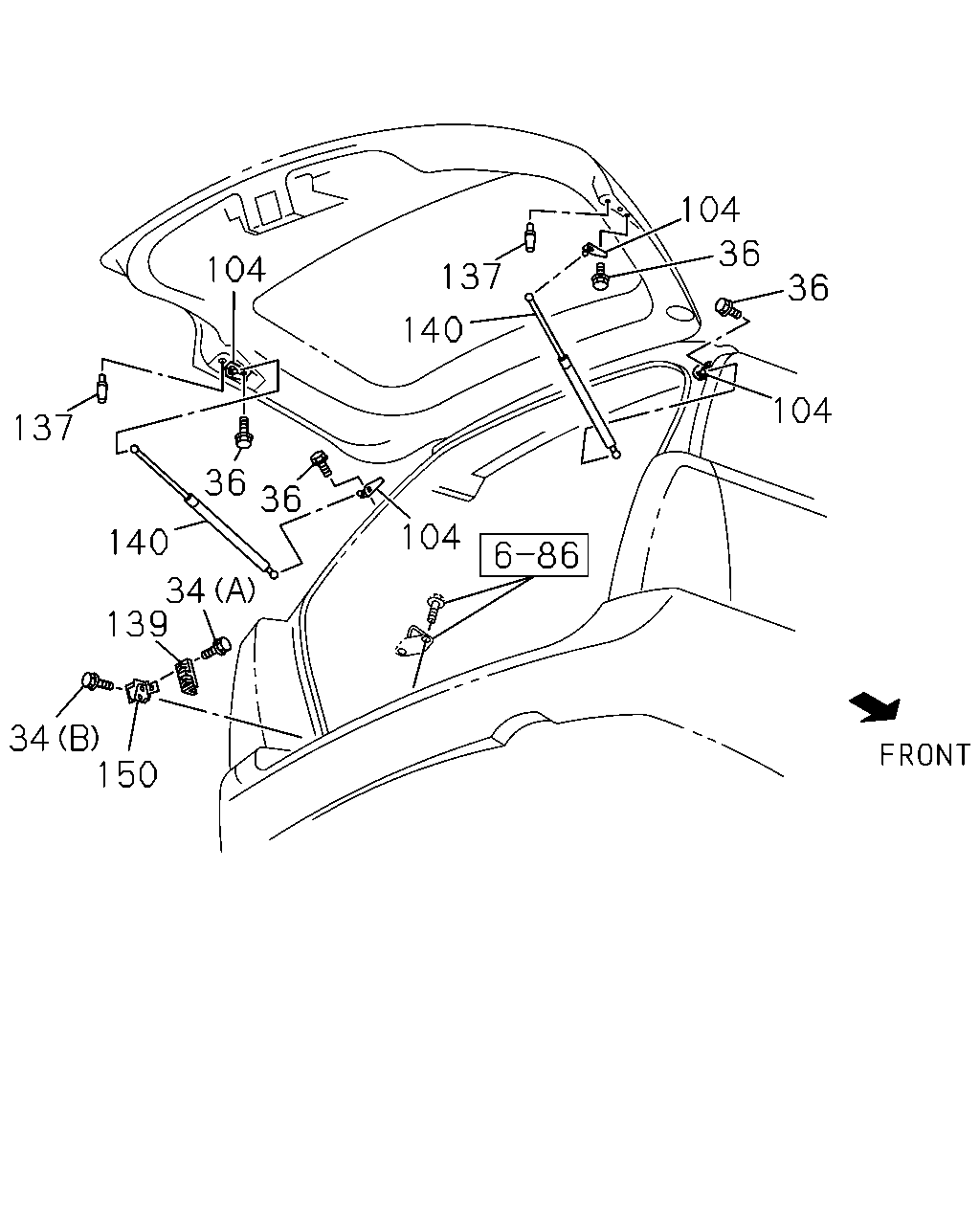

104 36 104 137 36 140 104 137 36 36 104 140 34 139 34 150

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	BOLT; DOVETAIL TO BACK DOOR (A) M6X16 W/LK&PL WASHER THA	8-94279-214-0	06	1	0411-0805	●	●
34	BOLT; DOVETAIL TO BACK DOOR (A) M6X16 W/LK&PL WASHER THA	8-98125-360-0	06	1	0806-	●	●
34	BOLT; DOVETAIL TO BACK DOOR (B) M6X18 THA	8-97071-681-0	06	1	0411-0702	●	●
34	BOLT; DOVETAIL TO BACK DOOR (B) M6X18 THA	8-98056-280-0	06	1	0703-	●	●
36	BOLT; LINK M6X16 FLANGE THA	8-97803-298-0	08	1	0411-0611	●	●
36	BOLT; LINK M6X16 FLANGE THA	8-98049-357-0	08	1	0612-	●	●
104	BRACKET THA	8-97367-643-0	02	1	0411-	●	●
104	BRACKET THA	8-97367-642-0	02	1	0411-	●	●
137	CUSHION; BACK DOOR THA	8-97258-864-0	02	1	0411-	●	●
139	DOVETAIL; BODY THA	8-97234-392-0	02	1	0411-	●	●
140	STAY; TAIL GATE THA	8-97355-725-0	01	1	0411-0708	●	●
140	STAY; TAIL GATE THA	8-98089-812-0	01	1	0709-	●	●
140	STAY; TAIL GATE THA	8-97355-724-0	01	1	0411-0708	●	●
140	STAY; TAIL GATE THA	8-98089-811-0	01	1	0709-	●	●
150	BRACKET; STOPPER THA	8-97360-741-1	01	1	0411-	●	●
150	BRACKET; STOPPER THA	8-97360-740-1	01	1	0411-	●	●

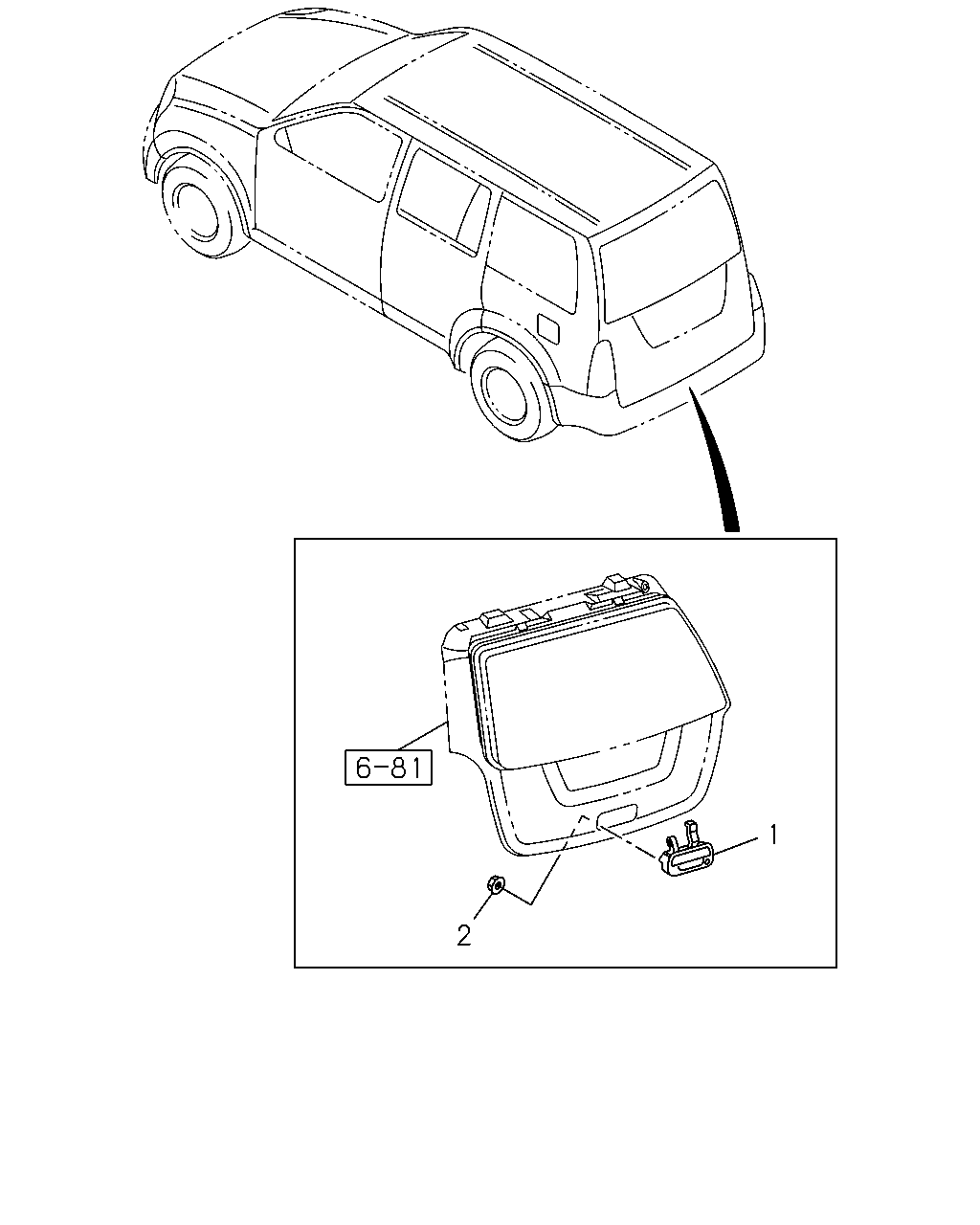

1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HANDLE; OUTSIDE,BACK DOOR BODY COLOR ROYAL GRAY MET<505> DARK GRAY THA	8-97418-117-0	01	1	0909-1008	●	●
1	HANDLE; OUTSIDE,BACK DOOR BODY COLOR MINERAL GRAY MET<530> GRAY THA	8-97418-902-0	01	1	1009-	●	●
1	HANDLE; OUTSIDE,BACK DOOR BODY COLOR MISTY ONYX MICA/STERLING SIL. MET<950> SILVER THA	8-97408-265-0	01	1	0909-1107	●	●
1	HANDLE; OUTSIDE,BACK DOOR BODY COLOR OMEGA WHITE PEARL<689> WHITE THA	8-97415-734-0	01	1	0803-1008	●	●
1	HANDLE; OUTSIDE,BACK DOOR BODY COLOR SILKY WHITE PEARL<531> WHITE THA	8-97418-903-0	01	1	1009-	●	●
1	HANDLE; OUTSIDE,BACK DOOR BODY COLOR ALPINE WHITE<877> WHITE THA	8-97400-539-0	01	1	0411-0702	●	●
1	HANDLE; OUTSIDE,BACK DOOR BODY COLOR ALPINE WHITE<877> WHITE THA	8-97408-260-0	01	1	0703-0808	●	●
1	HANDLE; OUTSIDE,BACK DOOR B/COLOR NEBULA GRAY MICA/STERLING SIL.MET<524> DARK GRAY THA	8-97414-871-0	01	1	0809-1107	●	●
1	HANDLE; OUTSIDE,BACK DOOR BODY COLOR COSMIC GRAY MET/STERLING SIL.MET<957> GRAY THA	8-97400-536-0	01	1	0509-0606	●	●
1	HANDLE; OUTSIDE,BACK DOOR BODY COLOR MISTY ONYX MICA/STERLING SIL. MET<950> SILVER THA	8-97404-589-0	01	1	0607-0702	●	●
1	HANDLE; OUTSIDE,BACK DOOR BODY COLOR MISTY ONYX MICA/STERLING SIL. MET<950> SILVER THA	8-97408-265-0	01	1	0703-0808	●	●
1	HANDLE; OUTSIDE,BACK DOOR BODY COLOR COSMIC GRAY MET/WARM SILVER MET<690> GRAY THA	8-97400-536-0	01	1	0411-0508	●	●
1	HANDLE; OUTSIDE,BACK DOOR BODY COLOR STERLING SILVER MET<936> SILVER THA	8-97401-372-0	01	1	0509-0702	●	●
1	HANDLE; OUTSIDE,BACK DOOR BODY COLOR STERLING SILVER MET<936> SILVER THA	8-97408-263-0	01	1	0703-	●	●
1	HANDLE; OUTSIDE,BACK DOOR BODY COLOR IMPERIAL BLOND MET<688>,BODY COLOR IMPERIAL BLOND MET/WARM SILVER MET<691> GOLD THA	8-97400-537-0	01	1	0411-0508	●	●
1	HANDLE; OUTSIDE,BACK DOOR B/COLOR IMPERIAL BLOND MET/STERLING SIL.MET<941> GOLD THA	8-97400-537-0	01	1	0509-0606	●	●
1	HANDLE; OUTSIDE,BACK DOOR BODY COLOR DUNE GRAY MET/STERLING SIL. MET<949> GRAY THA	8-97404-588-0	01	1	0607-0702	●	●
1	HANDLE; OUTSIDE,BACK DOOR BODY COLOR DUNE GRAY MET/STERLING SIL. MET<949> GRAY THA	8-97408-264-0	01	1	0703-0808	●	●
1	HANDLE; OUTSIDE,BACK DOOR B/COLOR NAUTILUS BLUE MICA/STERLING SIL.MET<525> DARK BLUE THA	8-97416-076-0	01	1	0809-0908	●	●
1	HANDLE; OUTSIDE,BACK DOOR BODY COLOR NAUTILUS BLUE MICA<521>,B/COLOR NAUTILUS BLUE MICA/STERLING SIL.MET<525> DARK BLUE THA	8-97416-076-0	01	1	0909-1107	●	●
1	HANDLE; OUTSIDE,BACK DOOR BODY COLOR NAUTILUS BLUE MICA<521> DARK BLUE THA	8-97416-076-0	01	1	1108-	●	●
1	HANDLE; OUTSIDE,BACK DOOR BODY COLOR MOONSTONE BLUE MICA/WARM SIL. MET<694> BLUE THA	8-97400-534-0	01	1	0411-0508	●	●
1	HANDLE; OUTSIDE,BACK DOOR BODY COLOR CRYSTAL BLUE MET/STERLING SIL.MET<939> BLUE THA	8-97401-370-0	01	1	0509-0702	●	●
1	HANDLE; OUTSIDE,BACK DOOR BODY COLOR CRYSTAL BLUE MET/STERLING SIL.MET<939> BLUE THA	8-97408-807-0	01	1	0703-0708	●	●
1	HANDLE; OUTSIDE,BACK DOOR BODY COLOR OMEGA WHITE PEARL/WARM SILVER MET<692> WHITE THA	8-97400-538-0	01	1	0411-0508	●	●
1	HANDLE; OUTSIDE,BACK DOOR BODY COLOR OMEGA WHITE PEARL/STERLING SIL.MET<940> WHITE THA	8-97400-538-0	01	1	0509-0606	●	●
1	HANDLE; OUTSIDE,BACK DOOR BODY COLOR TOPAZ GOLD MET<501> GOLD THA	8-97404-739-0	01	1	0607-0702	●	●
1	HANDLE; OUTSIDE,BACK DOOR BODY COLOR TOPAZ GOLD MET<501> GOLD THA	8-97408-266-0	01	1	0703-0708	●	●
1	HANDLE; OUTSIDE,BACK DOOR BODY COLOR CHARDONNAY GOLD MET<511> GOLD THA	8-97412-579-0	01	1	0709-0709	●	●
1	HANDLE; OUTSIDE,BACK DOOR B/COLOR CHARDONNAY GOLD MET/STERLING SIL.MET<519> GOLD THA	8-97412-579-0	01	1	0710-1107	●	●
1	HANDLE; OUTSIDE,BACK DOOR BODY COLOR STEEL BLACK MET/WARM SILVER MET<693> BLACK THA	8-97400-535-0	01	1	0411-0508	●	●
1	HANDLE; OUTSIDE,BACK DOOR BODY COLOR STARRY BLACK MICA/STERLING SIL.MET<938> BLACK THA	8-97401-371-0	01	1	0509-0702	●	●
1	HANDLE; OUTSIDE,BACK DOOR BODY COLOR STARRY BLACK MICA/STERLING SIL.MET<938> BLACK THA	8-97408-262-0	01	1	0703-0901	●	●
1	HANDLE; OUTSIDE,BACK DOOR BODY COLOR STARRY BLACK MICA<935>,BODY COLOR STARRY BLACK MICA/STERLING SIL.MET<938> BLACK THA	8-97408-262-0	01	1	0902-0908	●	●
1	HANDLE; OUTSIDE,BACK DOOR BODY COLOR STARRY BLACK MICA<935> BLACK THA	8-97408-262-0	01	1	0909-	●	●
2	NUT; HANDLE TO BACK DOOR M6 FLANGE IMA	5-09440-004-0	02	1	0411-0610	●	●
2	NUT; HANDLE TO BACK DOOR M6 FLANGE THA	8-98049-362-0	02	1	0611-	●	●
