6-81 — BACK DOOR AND HINGE (#74895) — 20 parça

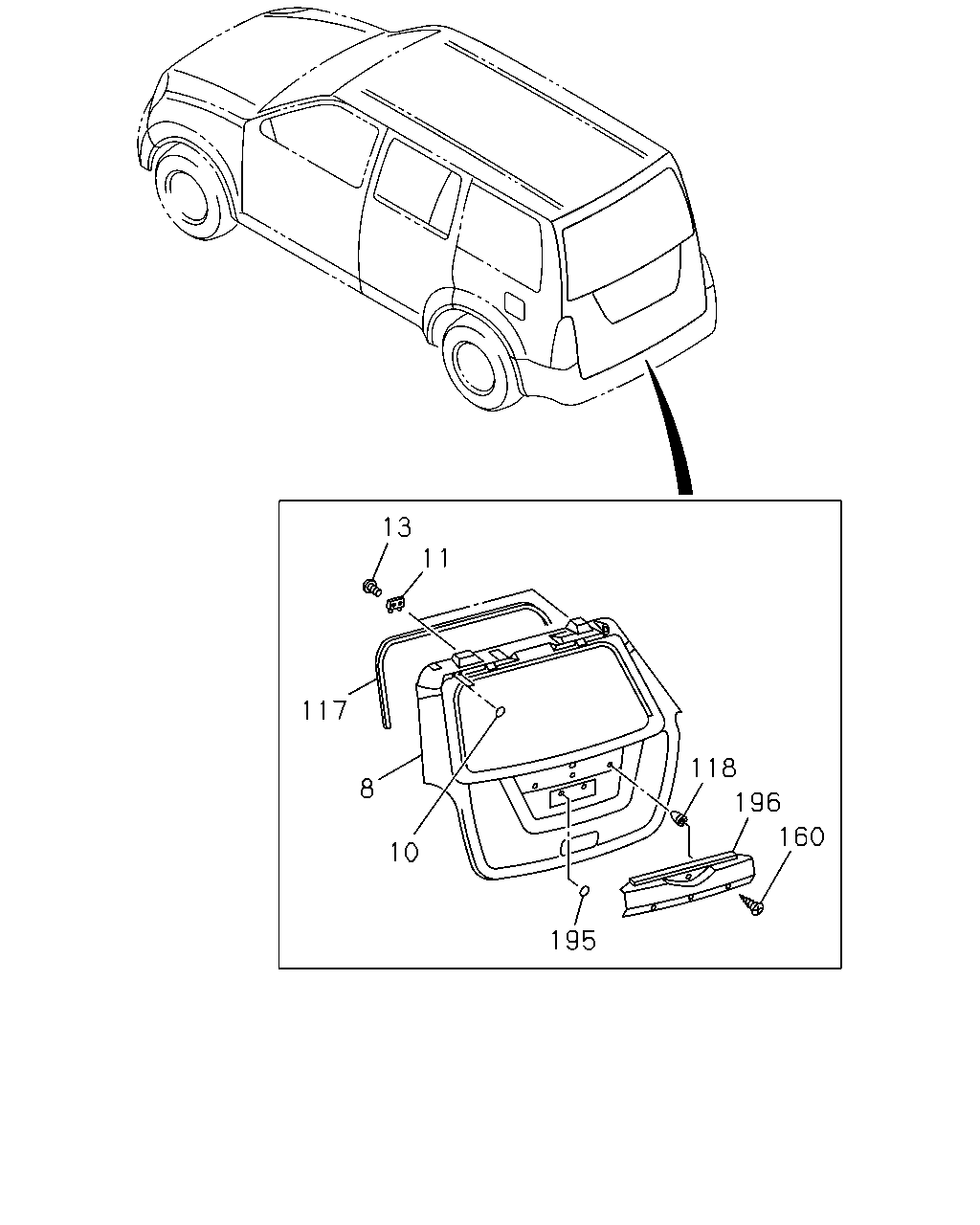

çizim 185436
13 11 117 118 8 196 160 10 195
BalonParca AdiParca NoAdetTipApplied Date A B
8 PANEL; TAIL GATE
M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> THA 		8-98045-656-0 01 1 0710- ●
8 PANEL; TAIL GATE
THA 		8-98045-656-0 01 1 0710- ●
8 PANEL; TAIL GATE
THA 		8-97363-871-3 01 1 0411-0508 ● ●
8 PANEL; TAIL GATE
THA 		8-98027-453-0 01 1 0509-0606 ● ●
8 PANEL; TAIL GATE
THA 		8-98045-657-0 01 1 0607-0709 ● ●
8 PANEL; TAIL GATE
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98045-657-0 01 1 0710-0809 ●
8 PANEL; TAIL GATE
M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-98045-657-0 01 1 0810- ●
10 PLUG; TAIL GATE
OD=20 T=0.05 BLACK IMA 		5-76777-036-0 02 1 0509-0709 ● ●
10 PLUG; TAIL GATE
M/T MUA 5 SPEED 5H<MWQ> OD=20 T=0.05 BLACK IMA 		5-76777-036-0 02 1 0710-0809 ●
10 PLUG; TAIL GATE
M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> OD=20 T=0.05 BLACK IMA 		5-76777-036-0 02 1 0810- ●
10 PLUG; TAIL GATE
OD=20 T=0.05 BLACK IMA 		5-76777-036-0 04 1 0607- ● ●
11 HINGE; TAIL GATE
THA 		8-97234-370-1 02 1 0411- ● ●
13 BOLT; HINGE TO TAIL GATE
M8X23 FLANGE THA 		8-94174-559-2 04 1 0411-0411 ● ●
13 BOLT; HINGE TO TAIL GATE
M8X20 FLANGE THA 		0-28650-820-0 04 1 0412- ● ●
117 GARNISH
THA 		8-97360-266-1 01 1 0411- ● ●
118 NUT; GARNISH
D=7.9X7.9 L=11.4 M5 THA 		8-94367-528-0 03 1 0411- ● ●
160 BOLT
M5X16 THA 		8-94384-690-0 03 1 0411-0611 ● ●
160 BOLT
M5X16 TAPPING THA 		8-98049-145-0 03 1 0612- ● ●
195 SEAL; LOCATION HOLE
OD=20 T=0.05 BLACK IMA 		5-76777-036-0 02 1 0411- ● ●
196 MOLDING; TAIL GATE
THA 		8-97354-779-4 01 1 0411- ● ●
