◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51027 - UCR/UCS(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#74892) — 35 parça

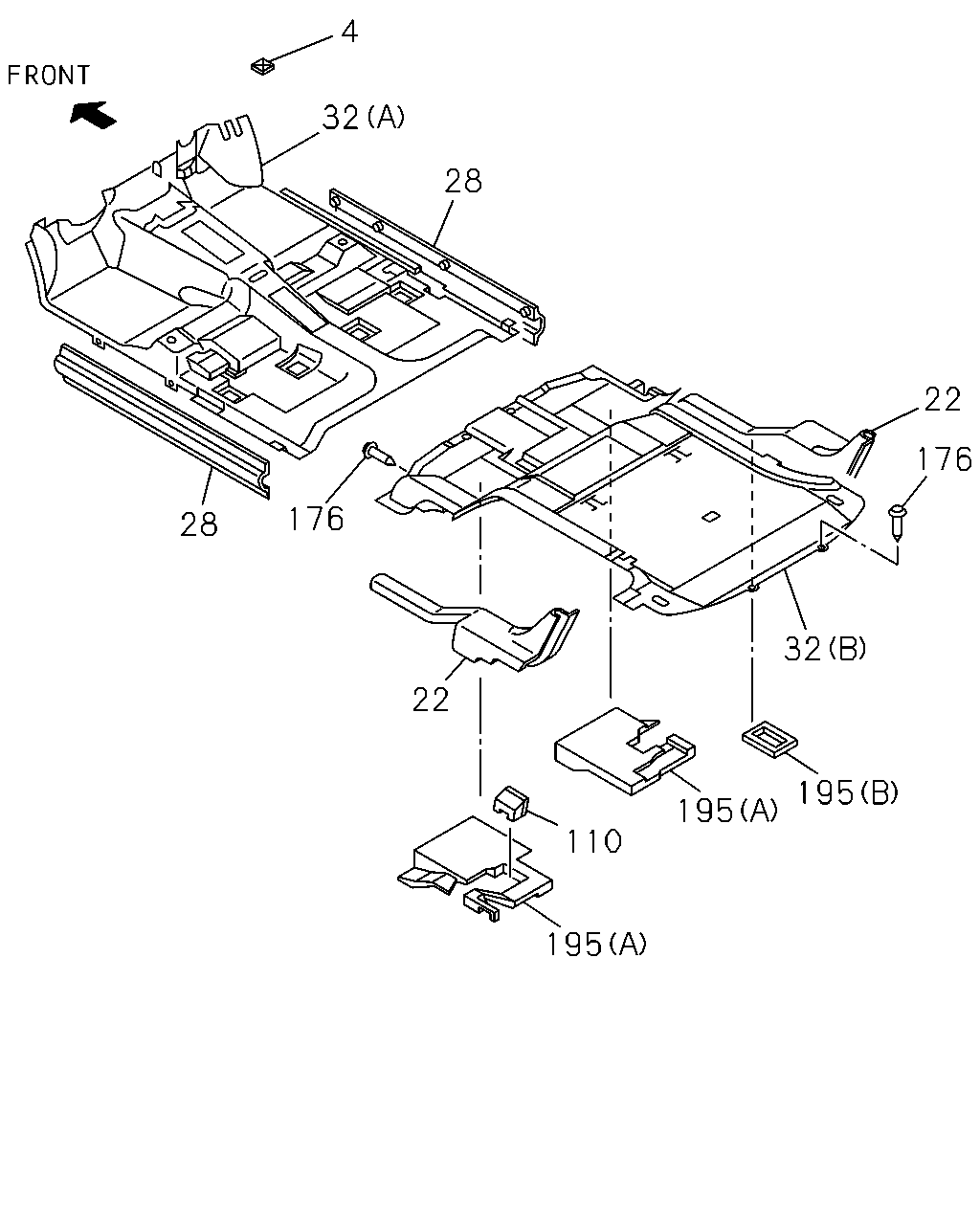

çizim 132075
4 32 28 22 176 176 28 32 22 195 195 110 195
BalonParca AdiParca NoAdetTipApplied Date
4 INSULATOR; FRT
THA 		8-97352-085-0 04 1 0411-
22 PLATE; SILL,RR
INTERIOR COLOR VERY DARK GRAY<116> BLACK THA 		8-97422-903-2 01 1 1101-
22 PLATE; SILL,RR
INTERIOR COLOR VERY DARK GRAY<116> BLACK THA 		8-97422-904-2 01 1 1101-
22 PLATE; SILL,RR
LIGHT GRAY THA 		8-97398-970-2 01 1 0411-0606
22 PLATE; SILL,RR
BEIGE THA 		8-97404-609-2 01 1 0607-1010
22 PLATE; SILL,RR
INTERIOR COLOR BEIGE<184> BEIGE THA 		8-97404-609-2 01 1 1011-
22 PLATE; SILL,RR
LIGHT GRAY THA 		8-97398-969-2 01 1 0411-0606
22 PLATE; SILL,RR
BEIGE THA 		8-97404-608-2 01 1 0607-1010
22 PLATE; SILL,RR
INTERIOR COLOR BEIGE<184> BEIGE THA 		8-97404-608-2 01 1 1011-
28 PLATE; SILL,FRT
INTERIOR COLOR VERY DARK GRAY<116> DARK GRAY THA 		8-97403-455-1 02 1 1101-
28 PLATE; SILL,FRT
LIGHT GRAY THA 		8-97398-968-1 02 1 0411-0606
28 PLATE; SILL,FRT
BEIGE THA 		8-97404-607-1 02 1 0607-1010
28 PLATE; SILL,FRT
INTERIOR COLOR BEIGE<184> BEIGE THA 		8-97404-607-1 02 1 1011-
32 CARPET; FLOOR
INTERIOR COLOR VERY DARK GRAY<116> (A) THA 		8-97422-900-5 01 1 1101-
32 CARPET; FLOOR
INTERIOR COLOR VERY DARK GRAY<116> (B) THA 		8-97422-901-1 01 1 1101-
32 CARPET; FLOOR
(A) LIGHT GRAY THA 		8-97398-964-5 01 1 0411-0606
32 CARPET; FLOOR
(A) BEIGE THA 		8-97404-601-5 01 1 0607-1010
32 CARPET; FLOOR
INTERIOR COLOR BEIGE<184> (A) BEIGE THA 		8-97404-601-5 01 1 1011-
32 CARPET; FLOOR
(B) LIGHT GRAY THA 		8-97398-965-6 01 1 0411-0505
32 CARPET; FLOOR
(B) EXC.6:4 BENCH SEAT LIGHT GRAY THA 		8-97404-303-0 01 1 0506-0606
32 CARPET; FLOOR
(B) BEIGE THA 		8-97406-881-1 01 1 0607-1010
32 CARPET; FLOOR
INTERIOR COLOR BEIGE<184> (B) BEIGE THA 		8-97406-881-1 01 1 1011-
32 CARPET; FLOOR
(B) 6:4 BENCH SEAT LIGHT GRAY THA 		8-97408-926-0 01 1 0509-0606
110 INSULATION; PAD,RR FLOOR,RR
THA 		8-97375-231-1 02 1 0411-
176 RETAINER; CARPET
INTERIOR COLOR VERY DARK GRAY<116> DARK GRAY THA 		8-97403-411-0 04 1 1101-
176 RETAINER; CARPET
LIGHT GRAY THA 		8-97398-966-0 04 1 0411-0606
176 RETAINER; CARPET
BEIGE THA 		8-97404-605-0 04 1 0607-1010
176 RETAINER; CARPET
INTERIOR COLOR BEIGE<184> BEIGE THA 		8-97404-605-0 04 1 1011-
195 SPACER; RR FLOOR
(A) EXC.6:4 BENCH SEAT THA 		8-97367-069-1 01 1 0411-0606
195 SPACER; RR FLOOR
(A) THA 		8-98033-686-0 01 1 0607-
195 SPACER; RR FLOOR
(A) EXC.6:4 BENCH SEAT THA 		8-97367-068-1 01 1 0411-0606
195 SPACER; RR FLOOR
(A) THA 		8-98033-684-0 01 1 0607-
195 SPACER; RR FLOOR
(A) 6:4 BENCH SEAT THA 		8-98033-686-0 01 1 0509-0606
195 SPACER; RR FLOOR
(A) 6:4 BENCH SEAT THA 		8-98033-684-0 01 1 0509-0606
195 SPACER; RR FLOOR
(B) THA 		8-98065-927-0 AR 1 0611-
