◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51027 - UCR/UCS(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#74891) — 48 parça

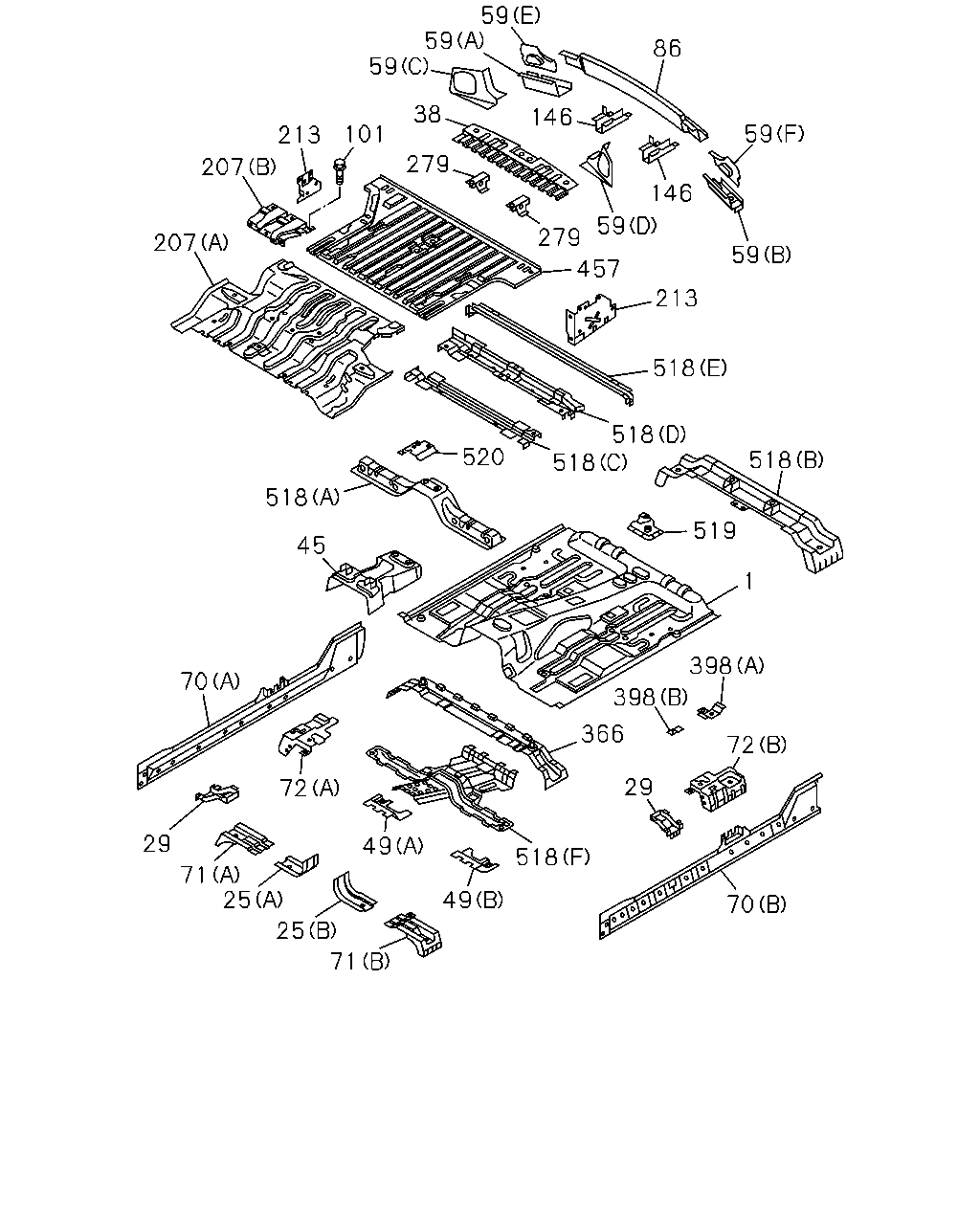

çizim 185439
59 59 59 86 38 146 59 101 213 279 207 146 59 279 207 59 457 213 518 518 518 520 518 518 519 45 1 398 70 398 366 72 29 72 29 49 518 71 25 49 70 25 71
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; FLOOR
THA 		8-97357-509-0 01 1 0411- ● ●
25 REINFORCEMENT; FRAME FLOOR,FRT
(A) THA 		8-97235-810-1 01 1 0411- ● ●
25 REINFORCEMENT; FRAME FLOOR,FRT
(B) THA 		8-97235-811-1 01 1 0411- ● ●
29 GUSSET
THA 		8-97349-433-0 02 1 0411- ● ●
38 CLOSING; RR END
THA 		8-97361-196-0 01 1 0411- ● ●
45 REINFORCEMENT; TUNNEL,FRT
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-98152-774-0 01 1 0911- ● ●
45 REINFORCEMENT; TUNNEL,FRT
THA 		8-97380-608-0 01 1 0411-0910 ● ●
45 REINFORCEMENT; TUNNEL,FRT
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA 		8-97380-608-0 01 1 0911- ●
45 REINFORCEMENT; TUNNEL,FRT
A/T AISIN<RMD> THA 		8-97380-608-0 01 1 0911- ●
49 BRACKET; HEAT PROTECTOR,FRT
(A) THA 		8-97334-434-0 01 1 0411- ● ●
49 BRACKET; HEAT PROTECTOR,FRT
(B) THA 		8-97334-435-0 01 1 0411- ● ●
59 EXTENSION; RR END CLOSING
(A) THA 		8-97359-896-2 01 1 0411- ● ●
59 EXTENSION; RR END CLOSING
(B) THA 		8-97359-897-2 01 1 0411- ● ●
59 EXTENSION; RR END CLOSING
(C) THA 		8-97359-909-1 01 1 0411- ● ●
59 EXTENSION; RR END CLOSING
(D) THA 		8-97359-910-1 01 1 0411- ● ●
59 EXTENSION; RR END CLOSING
(E) THA 		8-97360-043-0 01 1 0411- ● ●
59 EXTENSION; RR END CLOSING
(F) THA 		8-97360-044-0 01 1 0411- ● ●
70 PANEL; ROCKER INNER
(A) THA 		8-97361-194-2 01 1 0411- ● ●
70 PANEL; ROCKER INNER
(B) THA 		8-97361-195-2 01 1 0411- ● ●
71 BRACKET; CAB MTG,CENTER
(A) THA 		8-97363-846-0 01 1 0411- ● ●
71 BRACKET; CAB MTG,CENTER
(B) THA 		8-97363-847-0 01 1 0411- ● ●
72 BRACKET; CAB MTG,RR
(A) THA 		8-97367-941-0 01 1 0411- ● ●
72 BRACKET; CAB MTG,RR
(B) THA 		8-97367-942-0 01 1 0411- ● ●
86 BAR; RR END
THA 		8-97359-891-0 01 1 0411- ● ●
101 BOLT; EXT PANEL
M8X16 FLANGE IMA 		0-28080-816-0 03 1 0411-0601 ● ●
101 BOLT; EXT PANEL
M8X16 FLANGE THA 		0-28050-816-0 03 1 0602-0606 ● ●
146 BRACKET; RR BUMPER,RR FLOOR
THA 		8-97359-893-0 02 1 0411- ● ●
207 PANEL; FLOOR,RR CTR
(A) THA 		8-97359-837-1 01 1 0411-0606 ● ●
207 PANEL; FLOOR,RR CTR
(A) THA 		8-98032-797-0 01 1 0607- ● ●
207 PANEL; FLOOR,RR CTR
(B) THA 		8-97360-000-0 01 1 0411-0606 ● ●
213 PANEL; RR FLOOR SIDE
THA 		8-97362-624-4 01 1 0411- ● ●
213 PANEL; RR FLOOR SIDE
THA 		8-97360-776-1 01 1 0411- ● ●
279 REINFORCEMENT
THA 		8-97359-892-1 02 1 0411- ● ●
366 BAR ASM; FRT SEAT MTG
THA 		8-97359-914-2 01 1 0411- ● ●
398 BRACKET; PIPE SUPPORT
(A) THA 		8-97333-851-1 01 1 0411- ● ●
398 BRACKET; PIPE SUPPORT
(B) THA 		8-97360-719-0 01 1 0411- ● ●
457 PAN; LUG FLOOR
THA 		8-97359-862-3 01 1 0411- ● ●
518 SILL; FLOOR
(A) THA 		8-97235-794-3 01 1 0411-0709 ● ●
518 SILL; FLOOR
(A) THA 		8-98048-087-0 01 1 0710- ● ●
518 SILL; FLOOR
(B) THA 		8-97359-839-1 01 1 0411-0606 ● ●
518 SILL; FLOOR
(B) THA 		8-98030-677-0 01 1 0607- ● ●
518 SILL; FLOOR
(C) THA 		8-97359-864-3 01 1 0411-0804 ● ●
518 SILL; FLOOR
(C) THA 		8-98107-511-0 01 1 0805- ● ●
518 SILL; FLOOR
(D) THA 		8-97359-873-1 01 1 0411- ● ●
518 SILL; FLOOR
(E) THA 		8-97359-882-2 01 1 0411- ● ●
518 SILL; FLOOR
(F) THA 		8-97371-000-0 01 1 0411- ● ●
519 BRACKET; CONTROLLER 4WD
THA 		8-97246-499-2 01 1 0411-0606 ● ●
520 BRACKET; FUEL LID OPENER
THA 		8-97236-152-2 01 1 0411- ● ●
