6-66 — HEAD LINING AND TRIM (#74890) — 31 parça

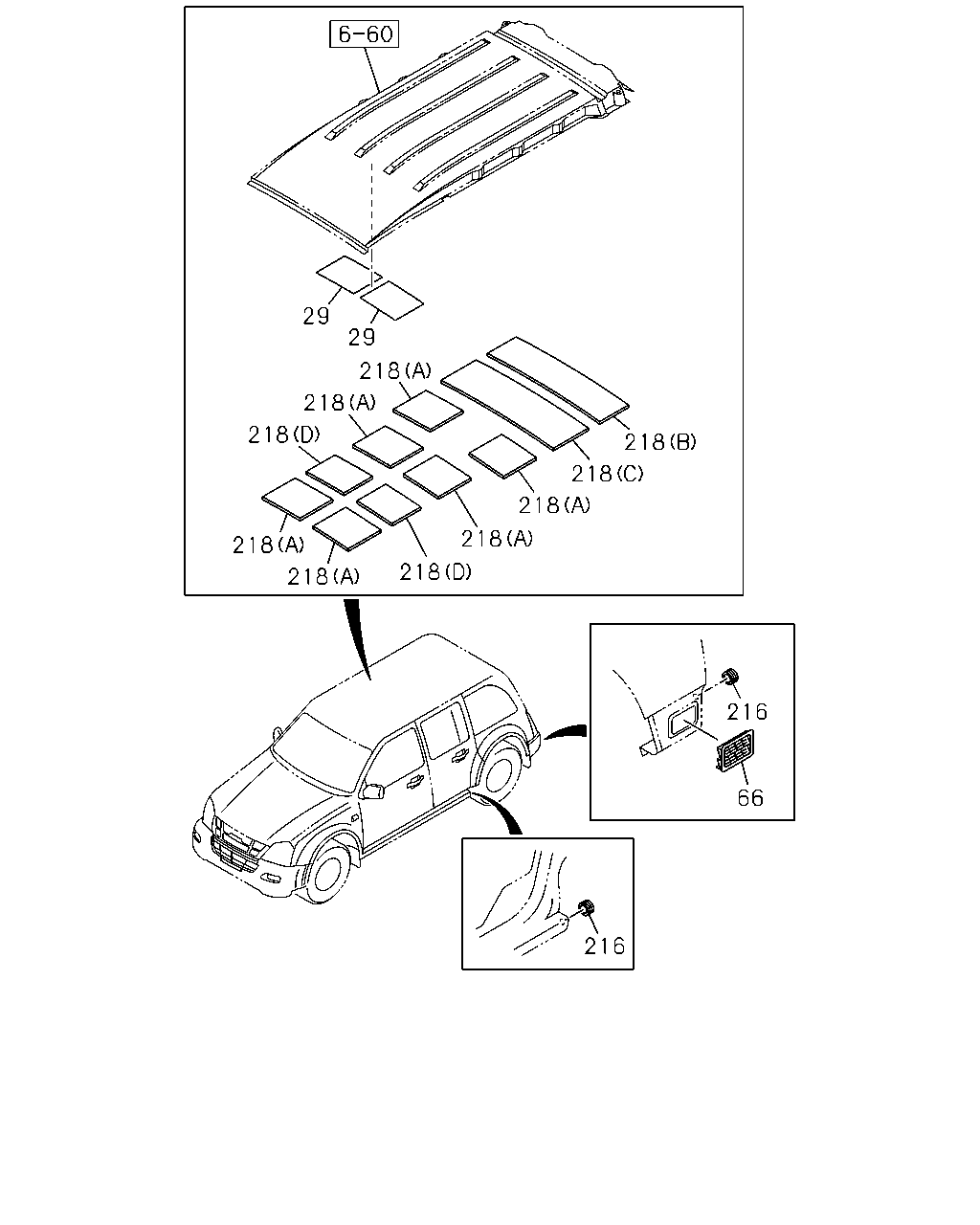

çizim 131277
29 29 218 218 218 218 218 218 218 218 218 218 216 66 216
BalonParca AdiParca NoAdetTipApplied Date
29 DEADENER; ROOF PANEL
THA 		8-97369-873-1 02 1 0411-
66 GRILLE; AIR OUTLET
THA 		8-97360-901-1 01 1 0411-
216 GROMMET; HOLE
OD=19 THA 		8-97365-823-0 04 1 0411-
218 INSULATOR; ROOF
(A) THA 		8-97367-329-0 06 1 0411-
218 INSULATOR; ROOF
(B) THA 		8-97367-330-1 01 1 0411-
218 INSULATOR; ROOF
(C) THA 		8-97367-331-0 01 1 0411-
218 INSULATOR; ROOF
(D) THA 		8-98022-396-0 02 1 0509-

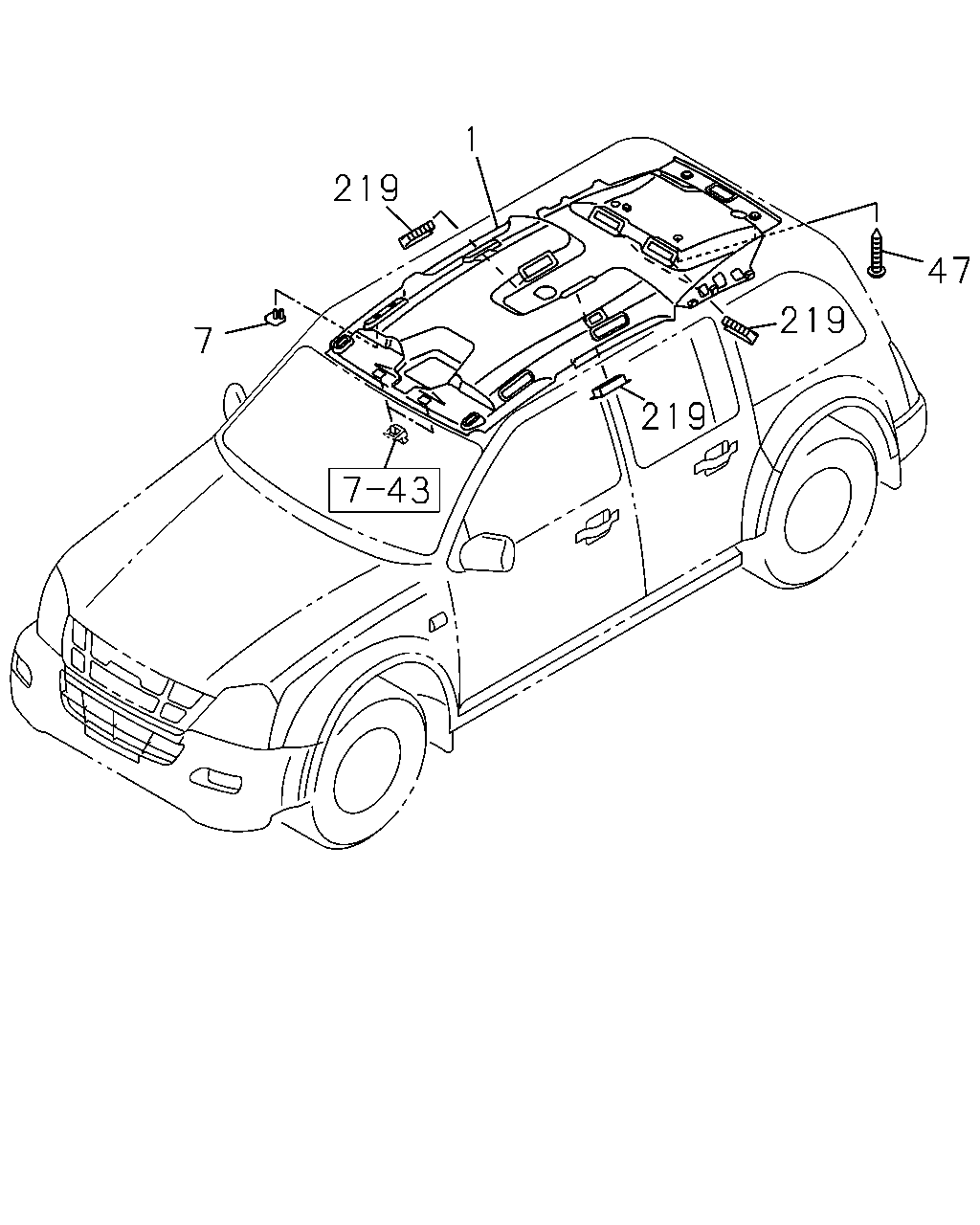

çizim 131745
1 219 47 219 7 219
BalonParca AdiParca NoAdetTipApplied Date
1 LINING; HD
INTERIOR COLOR VERY DARK GRAY<116> AIR CONDITIONER ROOF MOUNTED<C69> BLACK THA 		8-97422-905-4 01 1 1101-
1 LINING; HD
INTERIOR COLOR VERY DARK GRAY<116> EXC. AIR CONDITIONER ROOF MOUNTED<C69> BLACK THA 		8-97422-906-4 01 1 1101-
1 LINING; HD
AIR CONDITIONER ROOF MOUNTED<C69> LIGHT GRAY THA 		8-97398-980-3 01 1 0411-0606
1 LINING; HD
AIR CONDITIONER ROOF MOUNTED<C69> BEIGE THA 		8-97404-622-4 01 1 0607-1010
1 LINING; HD
INTERIOR COLOR BEIGE<184> AIR CONDITIONER ROOF MOUNTED<C69> BEIGE THA 		8-97404-622-4 01 1 1011-
1 LINING; HD
EXC. AIR CONDITIONER ROOF MOUNTED<C69> LIGHT GRAY THA 		8-97398-981-3 01 1 0411-0606
1 LINING; HD
EXC. AIR CONDITIONER ROOF MOUNTED<C69> BEIGE THA 		8-97404-623-4 01 1 0607-1010
1 LINING; HD
INTERIOR COLOR BEIGE<184> EXC. AIR CONDITIONER ROOF MOUNTED<C69> BEIGE THA 		8-97404-623-4 01 1 1011-
7 RETAINER; HEADLINING RAIL
INTERIOR COLOR VERY DARK GRAY<116> BLACK THA 		8-97418-567-0 02 1 1101-
7 RETAINER; HEADLINING RAIL
LIGHT GRAY THA 		8-97400-400-0 02 1 0411-0606
7 RETAINER; HEADLINING RAIL
BEIGE THA 		8-97404-625-0 02 1 0607-1010
7 RETAINER; HEADLINING RAIL
INTERIOR COLOR BEIGE<184> BEIGE THA 		8-97404-625-0 02 1 1011-
47 CLIP; HEADLINING
INTERIOR COLOR VERY DARK GRAY<116> AIR CONDITIONER ROOF MOUNTED<C69> BLACK THA 		8-97422-907-0 04 1 1101-
47 CLIP; HEADLINING
INTERIOR COLOR VERY DARK GRAY<116> EXC. AIR CONDITIONER ROOF MOUNTED<C69> BLACK THA 		8-97422-907-0 05 1 1101-
47 CLIP; HEADLINING
AIR CONDITIONER ROOF MOUNTED<C69> LIGHT GRAY THA 		8-97398-982-0 04 1 0411-0606
47 CLIP; HEADLINING
AIR CONDITIONER ROOF MOUNTED<C69> BEIGE THA 		8-97404-624-0 04 1 0607-1010
47 CLIP; HEADLINING
INTERIOR COLOR BEIGE<184> AIR CONDITIONER ROOF MOUNTED<C69> BEIGE THA 		8-97404-624-0 04 1 1011-
47 CLIP; HEADLINING
EXC. AIR CONDITIONER ROOF MOUNTED<C69> LIGHT GRAY THA 		8-97398-982-0 05 1 0411-0606
47 CLIP; HEADLINING
EXC. AIR CONDITIONER ROOF MOUNTED<C69> BEIGE THA 		8-97404-624-0 05 1 0607-1010
47 CLIP; HEADLINING
INTERIOR COLOR BEIGE<184> EXC. AIR CONDITIONER ROOF MOUNTED<C69> BEIGE THA 		8-97404-624-0 05 1 1011-
219 GRILLE; RR COOLER
INTERIOR COLOR VERY DARK GRAY<116> AIR CONDITIONER ROOF MOUNTED<C69> BLACK THA 		8-97422-947-2 04 1 1101-
219 GRILLE; RR COOLER
AIR CONDITIONER ROOF MOUNTED<C69> LIGHT GRAY THA 		8-97400-773-1 04 1 0411-0606
219 GRILLE; RR COOLER
AIR CONDITIONER ROOF MOUNTED<C69> BEIGE THA 		8-97404-797-2 04 1 0607-1010
219 GRILLE; RR COOLER
INTERIOR COLOR BEIGE<184> AIR CONDITIONER ROOF MOUNTED<C69> BEIGE THA 		8-97404-797-2 04 1 1011-
