◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10775 - FRR/FVR(TAIWAN) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#7489) — 13 parça

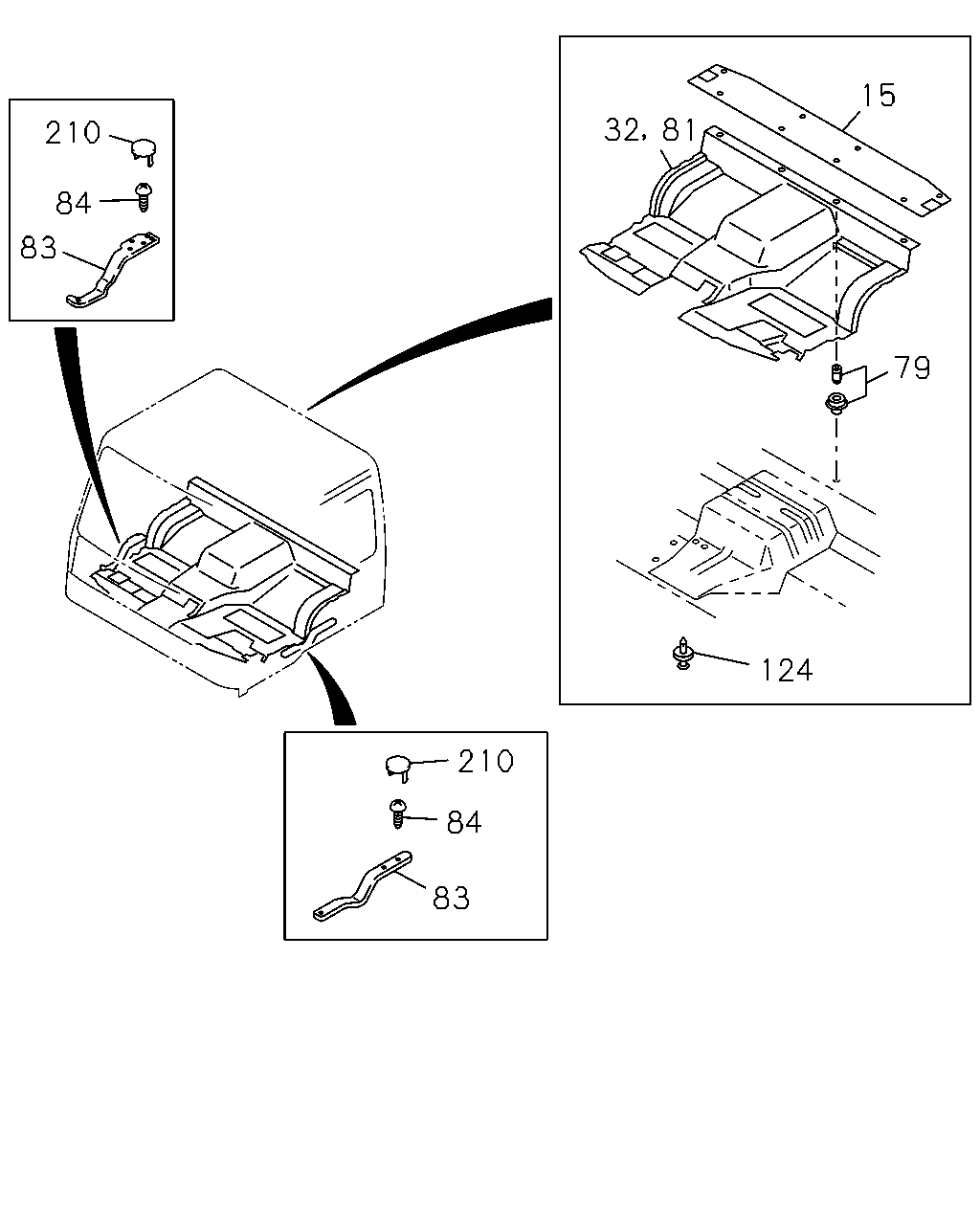

çizim 26166
15 32 81 210 84 83 79 124 210 84 83
BalonParca AdiParca NoAdetTipApplied Date A B
15 MAT; FLOOR REAR
EXC. MATTRESS SLEEPER CAB<E40> 		1-73236-522-1 01 1 0611- ● ●
32 CARPET; FLOOR
TAI 		8-97535-026-2 01 1 9811-9906 ● ●
32 CARPET; FLOOR
TAI 		8-97535-104-2 01 1 9907-0610 ● ●
79 HOOK; MALE
BLACK TAI 		8-94279-089-0 08 1 9811- ● ●
81 MAT; FLOOR,CENTER
TAI 		1-73236-774-0 01 1 0611- ● ●
83 PLATE; KICKING,FLOOR MAT 1-76798-027-2 01 1 9811-9906 ● ●
83 PLATE; KICKING,FLOOR MAT
TAI 		1-76798-046-0 01 1 9907- ● ●
83 PLATE; KICKING,FLOOR MAT 1-76798-026-3 01 1 9811-9906 ● ●
83 PLATE; KICKING,FLOOR MAT
TAI 		1-76798-045-0 01 1 9907- ● ●
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 9811- ● ●
124 FASTENER 1-09470-007-0 04 1 9811- ● ●
210 COVER; KICKING PLATE 1-72538-166-0 09 1 9811-9906 ● ●
210 COVER; KICKING PLATE
TAI 		1-76337-461-0 09 1 9907- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
