◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51027 - UCR/UCS(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-55 - REAR DOOR TRIM ▶
6-55 — REAR DOOR TRIM (#74888) — 74 parça

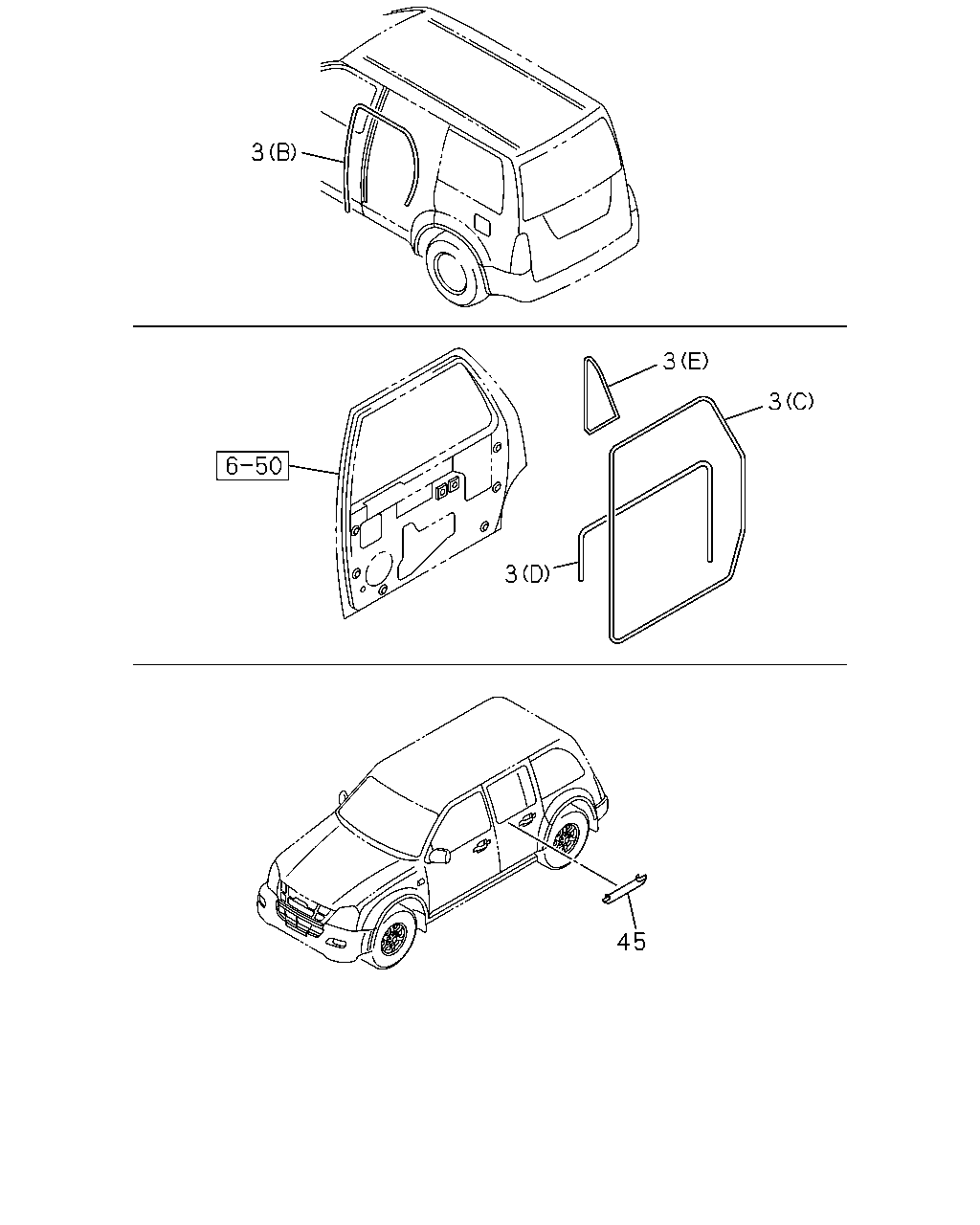

çizim 131339
3 3 3 3 45
BalonParca AdiParca NoAdetTipApplied Date
3 WEATHERSTRIP; RR DOOR
INTERIOR COLOR VERY DARK GRAY<116> (B) DARK GRAY THA 		8-97422-919-1 01 1 1101-
3 WEATHERSTRIP; RR DOOR
INTERIOR COLOR VERY DARK GRAY<116> (B) THA 		8-97422-920-1 01 1 1101-
3 WEATHERSTRIP; RR DOOR
(C) THA 		8-97357-588-0 01 1 0411-
3 WEATHERSTRIP; RR DOOR
(D) THA 		8-97357-596-3 01 1 0411-
3 WEATHERSTRIP; RR DOOR
(E) THA 		8-97357-600-1 01 1 0411-
3 WEATHERSTRIP; RR DOOR
(B) LIGHT GRAY THA 		8-97398-999-1 01 1 0411-0606
3 WEATHERSTRIP; RR DOOR
(B) BEIGE THA 		8-97404-645-1 01 1 0607-1010
3 WEATHERSTRIP; RR DOOR
INTERIOR COLOR BEIGE<184> (B) BEIGE THA 		8-97404-645-1 01 1 1011-
3 WEATHERSTRIP; RR DOOR
(C) THA 		8-97357-587-0 01 1 0411-
3 WEATHERSTRIP; RR DOOR
(D) THA 		8-97357-595-3 01 1 0411-
3 WEATHERSTRIP; RR DOOR
(E) THA 		8-97357-599-1 01 1 0411-
3 WEATHERSTRIP; RR DOOR
(B) LIGHT GRAY THA 		8-97398-998-1 01 1 0411-0606
3 WEATHERSTRIP; RR DOOR
(B) BEIGE THA 		8-97404-644-1 01 1 0607-1010
3 WEATHERSTRIP; RR DOOR
INTERIOR COLOR BEIGE<184> (B) BEIGE THA 		8-97404-644-1 01 1 1011-
3 WEATHERSTRIP; RR DOOR
CLOTH TRIM COVER<7PG> (A) THA 		8-97357-594-0 01 1 0411-0510
3 WEATHERSTRIP; RR DOOR
(A) THA 		8-97357-594-0 01 1 0511-
3 WEATHERSTRIP; RR DOOR
CLOTH TRIM COVER<7PG> (A) THA 		8-97357-593-0 01 1 0411-0510
3 WEATHERSTRIP; RR DOOR
(A) THA 		8-97357-593-0 01 1 0511-
45 FINISHER; RR DOOR
BODY SIDE MOLDING CHROME<8NL> THA 		8-98152-894-0 01 1 1002-
45 FINISHER; RR DOOR
BODY SIDE MOLDING CHROME<8NL> THA 		8-98152-893-0 01 1 1002-
45 FINISHER; RR DOOR
THA 		8-97357-592-0 01 1 0411-1001
45 FINISHER; RR DOOR
EXC. BODY SIDE MOLDING CHROME<8NL> THA 		8-97357-592-0 01 1 1002-
45 FINISHER; RR DOOR
THA 		8-97357-591-0 01 1 0411-1001
45 FINISHER; RR DOOR
EXC. BODY SIDE MOLDING CHROME<8NL> THA 		8-97357-591-0 01 1 1002-

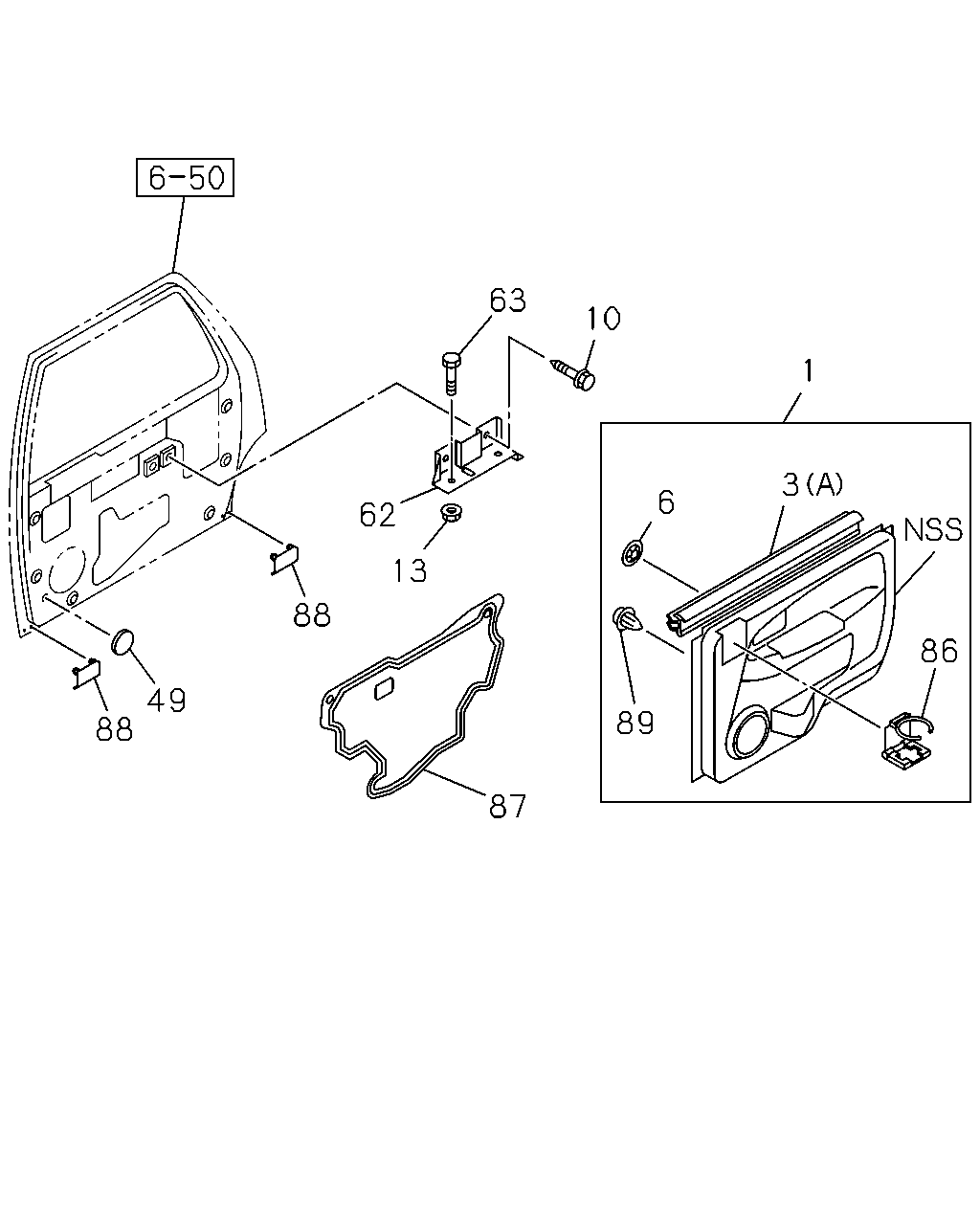

çizim 185438
1 10 63 62 13 88 49 88 87 89 6 3 86
BalonParca AdiParca NoAdetTipApplied Date
1 PAD; TRIM,RR DOOR
INTERIOR COLOR VERY DARK GRAY<116> DARK GRAY THA 		8-97422-927-0 01 1 1101-
1 PAD; TRIM,RR DOOR
INTERIOR COLOR VERY DARK GRAY<116> DARK GRAY THA 		8-97422-928-0 01 1 1101-
1 PAD; TRIM,RR DOOR
CLOTH TRIM COVER<7PG> LIGHT GRAY THA 		8-97399-008-3 01 1 0411-0606
1 PAD; TRIM,RR DOOR
CLOTH TRIM COVER<7PG> BEIGE THA 		8-97404-655-0 01 1 0607-1010
1 PAD; TRIM,RR DOOR
INTERIOR COLOR BEIGE<184> CLOTH TRIM COVER<7PG> BEIGE THA 		8-97404-655-0 01 1 1011-
1 PAD; TRIM,RR DOOR
CLOTH TRIM COVER<7PG> LIGHT GRAY THA 		8-97399-007-3 01 1 0411-0606
1 PAD; TRIM,RR DOOR
CLOTH TRIM COVER<7PG> BEIGE THA 		8-97404-654-0 01 1 0607-1010
1 PAD; TRIM,RR DOOR
INTERIOR COLOR BEIGE<184> CLOTH TRIM COVER<7PG> BEIGE THA 		8-97404-654-0 01 1 1011-
1 PAD; TRIM,RR DOOR
EXC. CLOTH TRIM COVER<7PG> THA 		8-97402-349-0 01 1 0411-0508
1 PAD; TRIM,RR DOOR
EXC. CLOTH TRIM COVER<7PG> LIGHT GRAY THA 		8-97404-983-0 01 1 0509-0606
1 PAD; TRIM,RR DOOR
EXC. CLOTH TRIM COVER<7PG> BEIGE THA 		8-97406-961-0 01 1 0607-1010
1 PAD; TRIM,RR DOOR
INTERIOR COLOR BEIGE<184> EXC. CLOTH TRIM COVER<7PG> BEIGE THA 		8-97406-961-0 01 1 1011-
1 PAD; TRIM,RR DOOR
EXC. CLOTH TRIM COVER<7PG> THA 		8-97402-348-0 01 1 0411-0508
1 PAD; TRIM,RR DOOR
EXC. CLOTH TRIM COVER<7PG> LIGHT GRAY THA 		8-97404-982-0 01 1 0509-0606
1 PAD; TRIM,RR DOOR
EXC. CLOTH TRIM COVER<7PG> BEIGE THA 		8-97406-960-0 01 1 0607-1010
1 PAD; TRIM,RR DOOR
INTERIOR COLOR BEIGE<184> EXC. CLOTH TRIM COVER<7PG> BEIGE THA 		8-97406-960-0 01 1 1011-
3 WEATHERSTRIP; RR DOOR
INTERIOR COLOR VERY DARK GRAY<116> (B) DARK GRAY THA 		8-97422-919-1 01 1 1101-
3 WEATHERSTRIP; RR DOOR
INTERIOR COLOR VERY DARK GRAY<116> (B) THA 		8-97422-920-1 01 1 1101-
3 WEATHERSTRIP; RR DOOR
(C) THA 		8-97357-588-0 01 1 0411-
3 WEATHERSTRIP; RR DOOR
(D) THA 		8-97357-596-3 01 1 0411-
3 WEATHERSTRIP; RR DOOR
(E) THA 		8-97357-600-1 01 1 0411-
3 WEATHERSTRIP; RR DOOR
(B) LIGHT GRAY THA 		8-97398-999-1 01 1 0411-0606
3 WEATHERSTRIP; RR DOOR
(B) BEIGE THA 		8-97404-645-1 01 1 0607-1010
3 WEATHERSTRIP; RR DOOR
INTERIOR COLOR BEIGE<184> (B) BEIGE THA 		8-97404-645-1 01 1 1011-
3 WEATHERSTRIP; RR DOOR
(C) THA 		8-97357-587-0 01 1 0411-
3 WEATHERSTRIP; RR DOOR
(D) THA 		8-97357-595-3 01 1 0411-
3 WEATHERSTRIP; RR DOOR
(E) THA 		8-97357-599-1 01 1 0411-
3 WEATHERSTRIP; RR DOOR
(B) LIGHT GRAY THA 		8-97398-998-1 01 1 0411-0606
3 WEATHERSTRIP; RR DOOR
(B) BEIGE THA 		8-97404-644-1 01 1 0607-1010
3 WEATHERSTRIP; RR DOOR
INTERIOR COLOR BEIGE<184> (B) BEIGE THA 		8-97404-644-1 01 1 1011-
3 WEATHERSTRIP; RR DOOR
CLOTH TRIM COVER<7PG> (A) THA 		8-97357-594-0 01 1 0411-0510
3 WEATHERSTRIP; RR DOOR
(A) THA 		8-97357-594-0 01 1 0511-
3 WEATHERSTRIP; RR DOOR
CLOTH TRIM COVER<7PG> (A) THA 		8-97357-593-0 01 1 0411-0510
3 WEATHERSTRIP; RR DOOR
(A) THA 		8-97357-593-0 01 1 0511-
6 CLIP; DOOR PAD
THA 		8-97182-223-0 48 1 0511-
10 SCREW; ARM REST
M5X14 THA 		8-94152-495-0 04 1 0411-
13 GROMMET; SCREW,ARM REST
THA 		8-94152-494-0 04 1 0411-
49 SEAL; DOOR
OD=25 BLACK THA 		1-76798-019-0 02 1 0411-
62 BRACKET
THA 		8-93358-284-2 01 1 0411-
62 BRACKET
THA 		8-93358-285-2 01 1 0411-
63 BOLT
M5X14 THA 		8-94152-495-0 04 1 0411-0707
86 DRINK HOLDER
INTERIOR COLOR VERY DARK GRAY<116> BLACK THA 		8-97422-952-3 02 1 1101-
86 DRINK HOLDER
CLOTH TRIM COVER<7PG> LIGHT GRAY THA 		8-97399-031-3 02 1 0411-0510
86 DRINK HOLDER
LIGHT GRAY THA 		8-97399-031-3 02 1 0511-0606
86 DRINK HOLDER
BEIGE THA 		8-97405-978-3 02 1 0607-1010
86 DRINK HOLDER
INTERIOR COLOR BEIGE<184> BEIGE THA 		8-97405-978-3 02 1 1011-
87 DEFLECTOR; RR DOOR
THA 		8-97357-248-1 01 1 0411-
87 DEFLECTOR; RR DOOR
THA 		8-97357-247-1 01 1 0411-
88 PLUG; DOOR
THA 		8-98009-500-0 04 1 0508-
89 RETAINER; RR DOOR
H=16.7 THA 		8-97022-017-0 14 1 0511-
