◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51027 - UCR/UCS(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#74884) — 107 parça

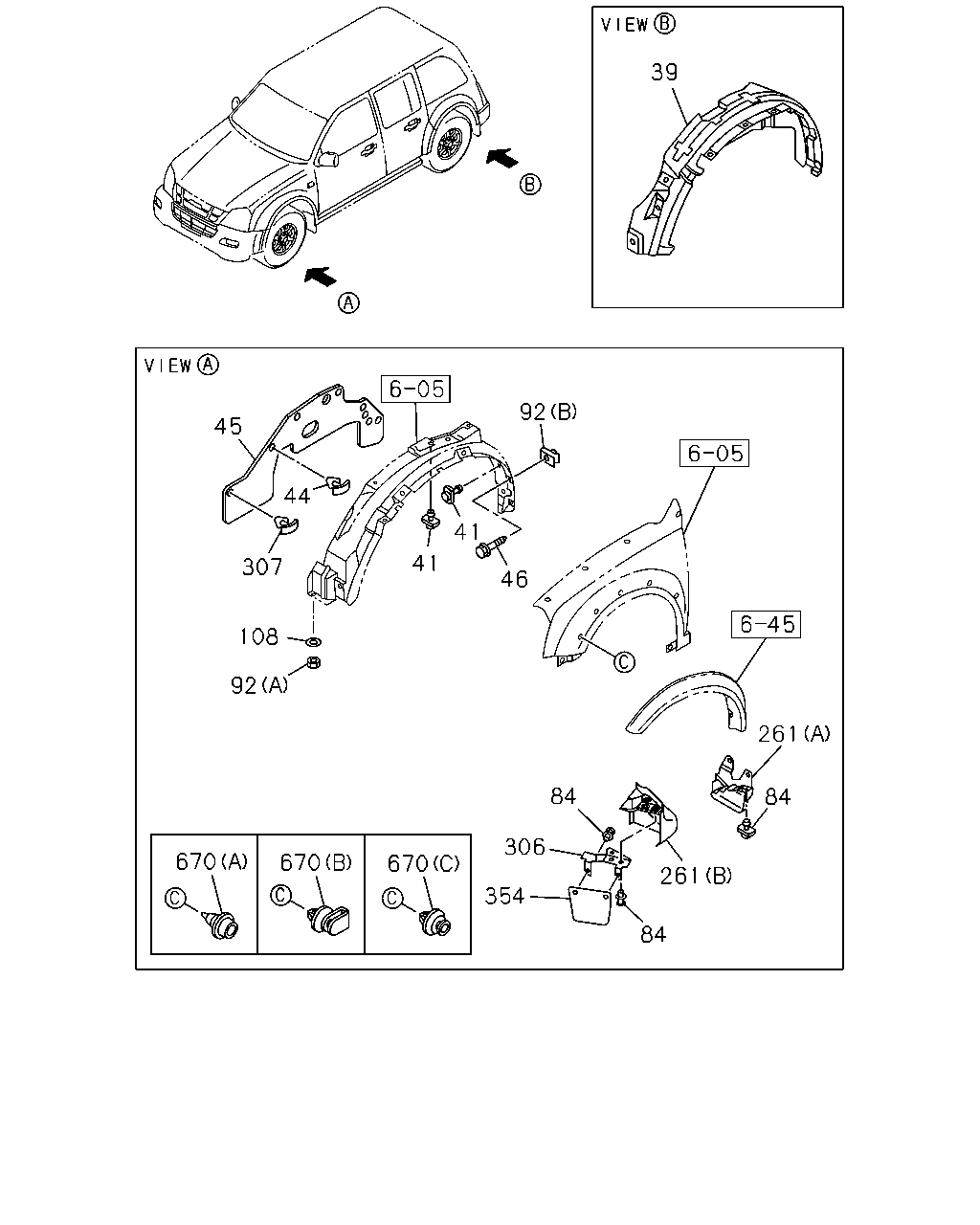

çizim 131282
39 92 45 44 41 41 307 46 108 92 261 84 84 306 670 670 670 261 354 84
BalonParca AdiParca NoAdetTipApplied Date A B
39 LINER; FENDER
REAR THA 		8-97354-338-2 01 1 0411- ● ●
39 LINER; FENDER
REAR THA 		8-97354-337-2 01 1 0411- ● ●
41 RIVET; INNER LINER
THA 		8-94221-150-0 28 1 0411- ● ●
44 CLIP; ANCHOR
OD=22 L=10.7 THA 		8-94215-211-0 12 1 0411-0606 ● ●
44 CLIP; ANCHOR
OD=22 L=10.7 THA 		8-94215-211-0 10 1 0607- ● ●
45 COVER; MUD,FENDER SKIRT
THA 		8-97235-462-0 01 1 0411- ● ●
45 COVER; MUD,FENDER SKIRT
THA 		8-97235-460-1 01 1 0411- ● ●
46 SCREW; INNER LINER
M6X20 TAPPING THA 		8-97377-971-0 12 1 0411-0611 ● ●
46 SCREW; INNER LINER
M6X20 TAPPING THA 		8-98048-999-0 12 1 0612- ● ●
84 RIVET; MUD GUARD
SIDE STEP<6TC> BLACK THA 		8-98023-678-0 04 1 0906-1309 ●
84 RIVET; MUD GUARD
BLACK THA 		8-98023-678-0 04 1 0906-1309 ●
84 RIVET; MUD GUARD
BLACK THA 		8-98023-678-0 04 1 1310-1310 ● ●
84 RIVET; MUD GUARD
SIDE STEP<6TC> BLACK THA 		8-98023-678-0 04 1 1311- ●
84 RIVET; MUD GUARD
BLACK THA 		8-98023-678-0 04 1 1311- ●
84 RIVET; MUD GUARD
SIDE STEP<6TC> THA 		8-97388-142-0 12 1 0512-0606 ●
84 RIVET; MUD GUARD
THA 		8-97388-142-0 12 1 0512-0606 ●
84 RIVET; MUD GUARD
SIDE STEP<6TC> BLACK THA 		8-98023-678-0 12 1 0607-0607 ●
84 RIVET; MUD GUARD
BLACK THA 		8-98023-678-0 12 1 0607-0607 ●
84 RIVET; MUD GUARD
SIDE STEP<6TC> NATURAL THA 		8-97384-015-0 12 1 0608-0905 ●
84 RIVET; MUD GUARD
NATURAL THA 		8-97384-015-0 12 1 0608-0905 ●
84 RIVET; MUD GUARD
SIDE STEP<6TC> NATURAL THA 		8-97384-015-0 08 1 0906-1309 ●
84 RIVET; MUD GUARD
NATURAL THA 		8-97384-015-0 08 1 0906-1309 ●
84 RIVET; MUD GUARD
NATURAL THA 		8-97384-015-0 08 1 1310-1310 ● ●
84 RIVET; MUD GUARD
SIDE STEP<6TC> NATURAL THA 		8-97384-015-0 08 1 1311- ●
84 RIVET; MUD GUARD
NATURAL THA 		8-97384-015-0 08 1 1311- ●
84 RIVET; MUD GUARD
EXC. SIDE STEP<6TC> NATURAL THA 		8-97384-015-0 06 1 0411-0606 ●
84 RIVET; MUD GUARD
EXC. SIDE STEP<6TC> BLACK THA 		8-98023-678-0 06 1 0607-0607 ●
84 RIVET; MUD GUARD
EXC. SIDE STEP<6TC> NATURAL THA 		8-97384-015-0 06 1 0608-0709 ●
84 RIVET; MUD GUARD
EXC. SIDE STEP<6TC> NATURAL THA 		8-97384-015-0 06 1 0803- ●
92 NUT; MUD COVER
(B) THA 		8-97125-519-0 14 1 0411-0606 ● ●
92 NUT; MUD COVER
(B) THA 		8-97125-519-0 12 1 0607- ● ●
92 NUT; MUD COVER
(A) M6 CAP NUT THA 		8-98049-850-0 02 1 0607- ● ●
108 WASHER; PL,PANEL TO FRAME
ID=6.5 OD=18 T=1.6 THA 		8-98049-851-0 02 1 0607- ● ●
261 RUBBER; FRT,MUD GUARD
EXC. SIDE STEP<6TC> (B) THA 		8-98024-148-0 01 1 0803- ●
261 RUBBER; FRT,MUD GUARD
EXC. SIDE STEP<6TC> (A) THA 		8-98024-149-0 01 1 0803- ●
261 RUBBER; FRT,MUD GUARD
BODY COLOR ALPINE WHITE<877> SIDE STEP<6TC> (B) THA 		8-97406-180-0 01 1 0512-0606 ●
261 RUBBER; FRT,MUD GUARD
BODY COLOR ALPINE WHITE<877> (B) THA 		8-97406-180-0 01 1 0512-0606 ●
261 RUBBER; FRT,MUD GUARD
SIDE STEP<6TC> (B) THA 		8-98024-189-0 01 1 0607-0901 ●
261 RUBBER; FRT,MUD GUARD
(B) THA 		8-98024-189-0 01 1 0607-0901 ●
261 RUBBER; FRT,MUD GUARD
SIDE STEP<6TC> (B) THA 		8-98024-189-0 01 1 0902-0908 ● ●
261 RUBBER; FRT,MUD GUARD
SIDE STEP<6TC> (B) THA 		8-98024-189-0 01 1 0909-1309 ●
261 RUBBER; FRT,MUD GUARD
(B) THA 		8-98024-189-0 01 1 0909-1309 ●
261 RUBBER; FRT,MUD GUARD
(B) THA 		8-98024-189-0 01 1 1310-1310 ● ●
261 RUBBER; FRT,MUD GUARD
SIDE STEP<6TC> (B) THA 		8-98024-189-0 01 1 1311- ●
261 RUBBER; FRT,MUD GUARD
(B) THA 		8-98024-189-0 01 1 1311- ●
261 RUBBER; FRT,MUD GUARD
BODY COLOR ALPINE WHITE<877> SIDE STEP<6TC> (B) THA 		8-97406-146-0 01 1 0512-0606 ●
261 RUBBER; FRT,MUD GUARD
BODY COLOR ALPINE WHITE<877> (B) THA 		8-97406-146-0 01 1 0512-0606 ●
261 RUBBER; FRT,MUD GUARD
SIDE STEP<6TC> (B) THA 		8-98024-177-0 01 1 0607-0901 ●
261 RUBBER; FRT,MUD GUARD
(B) THA 		8-98024-177-0 01 1 0607-0901 ●
261 RUBBER; FRT,MUD GUARD
SIDE STEP<6TC> (B) THA 		8-98024-177-0 01 1 0902-0908 ● ●
261 RUBBER; FRT,MUD GUARD
SIDE STEP<6TC> (B) THA 		8-98024-177-0 01 1 0909-1309 ●
261 RUBBER; FRT,MUD GUARD
(B) THA 		8-98024-177-0 01 1 0909-1309 ●
261 RUBBER; FRT,MUD GUARD
(B) THA 		8-98024-177-0 01 1 1310-1310 ● ●
261 RUBBER; FRT,MUD GUARD
SIDE STEP<6TC> (B) THA 		8-98024-177-0 01 1 1311- ●
261 RUBBER; FRT,MUD GUARD
(B) THA 		8-98024-177-0 01 1 1311- ●
261 RUBBER; FRT,MUD GUARD
BODY COLOR STERLING SILVER MET<936>,BODY COLOR STARRY BLACK MICA/STERLING SIL.MET<938>,BODY COLOR CRYSTAL BLUE MET/STERLING SIL.MET<939>,BODY COLOR OMEGA WHITE PEARL/STERLING SIL.MET<940>,B/COLOR IMPERIAL BLOND MET/STERLING SIL.MET<941>,BODY COLOR COSMIC GRAY MET/STERLING SIL.MET<957> SIDE STEP<6TC> (B) THA 		8-97406-148-0 01 1 0512-0606 ●
261 RUBBER; FRT,MUD GUARD
BODY COLOR STERLING SILVER MET<936>,BODY COLOR STARRY BLACK MICA/STERLING SIL.MET<938>,BODY COLOR CRYSTAL BLUE MET/STERLING SIL.MET<939>,BODY COLOR OMEGA WHITE PEARL/STERLING SIL.MET<940>,B/COLOR IMPERIAL BLOND MET/STERLING SIL.MET<941>,BODY COLOR COSMIC GRAY MET/STERLING SIL.MET<957> (B) THA 		8-97406-148-0 01 1 0512-0606 ●
261 RUBBER; FRT,MUD GUARD
BODY COLOR STERLING SILVER MET<936>,BODY COLOR STARRY BLACK MICA/STERLING SIL.MET<938>,BODY COLOR CRYSTAL BLUE MET/STERLING SIL.MET<939>,BODY COLOR OMEGA WHITE PEARL/STERLING SIL.MET<940>,B/COLOR IMPERIAL BLOND MET/STERLING SIL.MET<941>,BODY COLOR COSMIC GRAY MET/STERLING SIL.MET<957> SIDE STEP<6TC> (B) THA 		8-97406-144-0 01 1 0512-0606 ●
261 RUBBER; FRT,MUD GUARD
BODY COLOR STERLING SILVER MET<936>,BODY COLOR STARRY BLACK MICA/STERLING SIL.MET<938>,BODY COLOR CRYSTAL BLUE MET/STERLING SIL.MET<939>,BODY COLOR OMEGA WHITE PEARL/STERLING SIL.MET<940>,B/COLOR IMPERIAL BLOND MET/STERLING SIL.MET<941>,BODY COLOR COSMIC GRAY MET/STERLING SIL.MET<957> (B) THA 		8-97406-144-0 01 1 0512-0606 ●
261 RUBBER; FRT,MUD GUARD
EXC. SIDE STEP<6TC> (A) THA 		8-98002-239-0 01 1 0411-0606 ●
261 RUBBER; FRT,MUD GUARD
EXC. SIDE STEP<6TC> (A) THA 		8-98002-237-0 01 1 0411-0606 ●
261 RUBBER; FRT,MUD GUARD
EXC. SIDE STEP<6TC> (A) THA 		8-98024-149-0 01 1 0607-0709 ●
261 RUBBER; FRT,MUD GUARD
EXC. SIDE STEP<6TC> (A) THA 		8-98024-148-0 01 1 0607-0709 ●
306 BRACKET; MUD GUARD
SIDE STEP<6TC> THA 		8-97388-143-0 01 1 0411-0606 ●
306 BRACKET; MUD GUARD
THA 		8-97388-143-0 01 1 0411-0606 ●
306 BRACKET; MUD GUARD
SIDE STEP<6TC> THA 		8-98024-191-0 01 1 0607-0901 ●
306 BRACKET; MUD GUARD
THA 		8-98024-191-0 01 1 0607-0901 ●
306 BRACKET; MUD GUARD
SIDE STEP<6TC> THA 		8-98024-191-0 01 1 0902-0908 ● ●
306 BRACKET; MUD GUARD
SIDE STEP<6TC> THA 		8-98024-191-0 01 1 0909-1309 ●
306 BRACKET; MUD GUARD
THA 		8-98024-191-0 01 1 0909-1309 ●
306 BRACKET; MUD GUARD
THA 		8-98024-191-0 01 1 1310-1310 ● ●
306 BRACKET; MUD GUARD
SIDE STEP<6TC> THA 		8-98024-191-0 01 1 1311- ●
306 BRACKET; MUD GUARD
THA 		8-98024-191-0 01 1 1311- ●
306 BRACKET; MUD GUARD
SIDE STEP<6TC> THA 		8-97388-144-0 01 1 0512-0606 ●
306 BRACKET; MUD GUARD
THA 		8-97388-144-0 01 1 0512-0606 ●
306 BRACKET; MUD GUARD
SIDE STEP<6TC> THA 		8-98024-192-0 01 1 0607-0901 ●
306 BRACKET; MUD GUARD
THA 		8-98024-192-0 01 1 0607-0901 ●
306 BRACKET; MUD GUARD
SIDE STEP<6TC> THA 		8-98024-192-0 01 1 0902-0908 ● ●
306 BRACKET; MUD GUARD
SIDE STEP<6TC> THA 		8-98024-192-0 01 1 0909-1309 ●
306 BRACKET; MUD GUARD
THA 		8-98024-192-0 01 1 0909-1309 ●
306 BRACKET; MUD GUARD
THA 		8-98024-192-0 01 1 1310-1310 ● ●
306 BRACKET; MUD GUARD
SIDE STEP<6TC> THA 		8-98024-192-0 01 1 1311- ●
306 BRACKET; MUD GUARD
THA 		8-98024-192-0 01 1 1311- ●
307 RETAINER
THA 		8-98050-462-0 02 1 0607- ● ●
354 PLATE; MUD GUARD
SIDE STEP<6TC> THA 		8-97388-145-0 02 1 0411-0606 ●
354 PLATE; MUD GUARD
THA 		8-97388-145-0 02 1 0411-0606 ●
354 PLATE; MUD GUARD
SIDE STEP<6TC> THA 		8-98024-195-0 02 1 0607-0905 ●
354 PLATE; MUD GUARD
THA 		8-98024-195-0 02 1 0607-0905 ●
354 PLATE; MUD GUARD
SIDE STEP<6TC> THA 		8-98024-195-0 01 1 0906-1309 ●
354 PLATE; MUD GUARD
THA 		8-98024-195-0 01 1 0906-1309 ●
354 PLATE; MUD GUARD
THA 		8-98024-195-0 01 1 1310-1310 ● ●
354 PLATE; MUD GUARD
SIDE STEP<6TC> THA 		8-98024-195-0 01 1 1311- ●
354 PLATE; MUD GUARD
THA 		8-98024-195-0 01 1 1311- ●
354 PLATE; MUD GUARD
SIDE STEP<6TC> THA 		8-98141-371-0 01 1 0906-1309 ●
354 PLATE; MUD GUARD
THA 		8-98141-371-0 01 1 0906-1309 ●
354 PLATE; MUD GUARD
THA 		8-98141-371-0 01 1 1310-1310 ● ●
354 PLATE; MUD GUARD
SIDE STEP<6TC> THA 		8-98141-371-0 01 1 1311- ●
354 PLATE; MUD GUARD
THA 		8-98141-371-0 01 1 1311- ●
670 FASTENER
(A) THA 		8-97359-942-0 10 1 0411-0606 ● ●
670 FASTENER
(C) THA 		8-98023-676-0 06 1 0607-0709 ● ●
670 FASTENER
SIDE STEP<6TC> (C) THA 		8-98023-676-0 06 1 0710-0808 ●
670 FASTENER
(C) THA 		8-98023-676-0 06 1 0710-0808 ●
670 FASTENER
(C) THA 		8-98023-676-0 06 1 0809- ● ●
670 FASTENER
(B) THA 		8-98023-691-0 04 1 0607-0709 ● ●
670 FASTENER
SIDE STEP<6TC> (B) THA 		8-98023-691-0 04 1 0710-0808 ●
670 FASTENER
(B) THA 		8-98023-691-0 04 1 0710-0808 ●
670 FASTENER
(B) THA 		8-98023-691-0 04 1 0809- ● ●
