◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51174 - ELF400/500/600/BUS ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#74881) — 51 parça
çizim 96716
172 25 532 385 562 143 2 44 1 88 36 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH 8-98074-108-1 01 1 0807- ● ●
2 GASKET; PIPE TO MANIF 8-97381-455-0 01 1 0807- ● ●
8 BRACKET; EXH PIPE 8-97365-228-0 01 1 0807- ● ●
25 PIPE; EXH,BRK VLV TO SILENCER 8-98099-493-0 01 1 0807- ● ●
36 NUT; EXH PIPE
M10 FLANGE 		8-97096-192-1 03 1 0807- ● ●
44 BOLT; BRKT
M10X40 FLANGE 		0-28051-040-0 01 1 0807- ● ●
88 CLAMP; EXH PIPE 8-97373-158-0 01 1 0807- ● ●
143 RUBBER; SUPPORT 8-97080-694-0 01 1 0807- ● ●
172 BOLT
M10X35 FLANGE 		0-28651-035-0 02 1 0807- ● ●
385 BRACKET; SILENCER MTG
(B) 		8-97207-224-0 02 1 0807- ● ●
385 BRACKET; SILENCER MTG
(A) 		8-98074-495-1 01 1 0807- ● ●
532 NUT
WHEEL BASE 2800MM(28W) M8 FLANGE 		0-91180-108-0 02 1 0807- ● ●
532 NUT
M10 FLANGE 		0-91180-110-0 02 1 0807- ● ●
532 NUT
WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) M10 FLANGE 		0-91180-110-0 02 1 0807- ● ●
562 PLATE; STUD,BOLT
M8X70 		0-10855-870-0 04 1 0807- ● ●

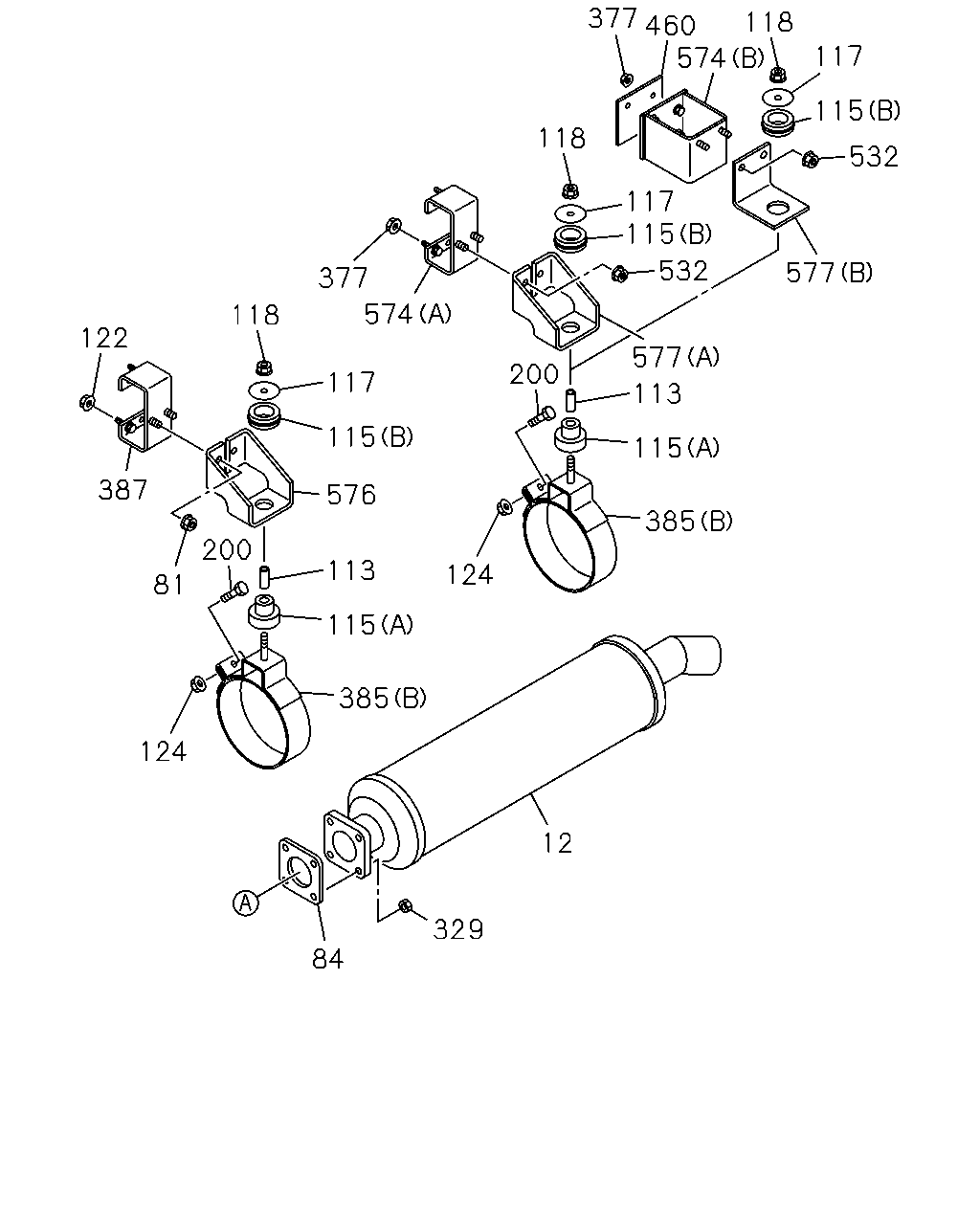

çizim 185933
377 460 574 118 117 115 118 532 117 115 532 577 377 574 118 122 577 200 117 113 115 115 387 576 385 200 113 124 81 115 385 124 12 329 84
BalonParca AdiParca NoAdetTipApplied Date A B
12 SILENCER ASM; EXH 8-97225-931-2 01 1 0807- ● ●
81 NUT; BRKT
WHEEL BASE 2800MM(28W),WHEEL BASE 3400MM(34W), WHEEL BASE 3800MM(38W) M10 FLANGE 		0-91180-110-0 02 1 0807- ●
81 NUT; BRKT
M10 FLANGE 		0-91180-110-0 02 1 0807- ●
84 GASKET; EXH PIPE
ID=64 		8-97373-108-0 01 1 0807- ● ●
113 COLLAR; DIST,MTG BRKT
L=37.5 		9-22151-217-0 02 1 0807- ● ●
115 RUBBER; MTG,SILENCER
(A) 		8-94457-277-1 02 1 0807- ● ●
115 RUBBER; MTG,SILENCER
(B) 		8-94457-278-1 02 1 0807- ● ●
117 WASHER; PL,SILENCER MTG BRKT
OD=55 		9-09852-169-0 02 1 0807- ● ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		5-09440-006-0 02 1 0807- ● ●
122 NUT; HANGER BRKT
M10 FLANGE 		0-91180-110-0 02 1 0807- ● ●
124 NUT; SUPPORT RUBBER
M8 		0-91110-508-0 02 1 0807- ● ●
200 BOLT; SUPPORT RUBBER
M8X45 W/LK WASHER 		0-50040-845-0 02 1 0807-0909 ● ●
200 BOLT; SUPPORT RUBBER
M8X45 W/LK WASHER 		0-50540-845-0 02 1 0910- ● ●
329 NUT; EXH PIPE TO PIPE
M8 FLANGE 		0-91180-108-0 04 1 0807- ● ●
377 NUT; BRKT
WHEEL BASE 2800MM(28W) M8 FLANGE 		0-91180-108-0 03 1 0807- ● ●
377 NUT; BRKT
WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) M10 FLANGE 		0-91180-110-0 02 1 0807- ● ●
385 BRACKET; SILENCER MTG
(B) 		8-97207-224-0 02 1 0807- ● ●
385 BRACKET; SILENCER MTG
(A) 		8-98074-495-1 01 1 0807- ● ●
387 SPACER; BRKT
WHEEL BASE 2800MM(28W) FUEL TANK 140L,37GAL<N19> 		8-98292-469-0 01 1 1412- ● ●
387 SPACER; BRKT
WHEEL BASE 2800MM(28W),WHEEL BASE 3400MM(34W), WHEEL BASE 3800MM(38W) 		8-98044-774-0 01 1 0807-1411 ●
387 SPACER; BRKT 8-98044-774-0 01 1 0807-1411 ●
387 SPACER; BRKT
WHEEL BASE 2800MM(28W),WHEEL BASE 3400MM(34W), WHEEL BASE 3800MM(38W) EXC. FUEL TANK 140L,37GAL<N19> 		8-98044-774-0 01 1 1412- ●
387 SPACER; BRKT
WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W) FUEL TANK 140L,37GAL<N19> 		8-98044-774-0 01 1 1412- ●
387 SPACER; BRKT
EXC. FUEL TANK 140L,37GAL<N19> 		8-98044-774-0 01 1 1412- ●
387 SPACER; BRKT
WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> 		8-98044-774-0 01 1 1412- ●
460 PLATE; EXH PIPE
WHEEL BASE 2800MM(28W) 		8-98035-656-0 01 1 0807- ● ●
532 NUT
WHEEL BASE 2800MM(28W) M8 FLANGE 		0-91180-108-0 02 1 0807- ● ●
532 NUT
M10 FLANGE 		0-91180-110-0 02 1 0807- ● ●
532 NUT
WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) M10 FLANGE 		0-91180-110-0 02 1 0807- ● ●
574 SPACER; DPD
WHEEL BASE 2800MM(28W) (B) 		8-98099-498-0 01 1 0807- ● ●
574 SPACER; DPD
WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W) (A) 		8-98044-774-0 01 1 0807- ●
574 SPACER; DPD
WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) (A) 		8-98044-774-0 01 1 0807- ●
576 BRACKET; DPD FRT TO FRAME 8-98074-124-1 01 1 0807- ● ●
577 BRACKET; DPD RR TO FRAME
WHEEL BASE 2800MM(28W) (B) 		8-98087-853-0 01 1 0807- ● ●
577 BRACKET; DPD RR TO FRAME
WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W) (A) 		8-98074-124-1 01 1 0807- ●
577 BRACKET; DPD RR TO FRAME
WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) (A) 		8-98074-124-1 01 1 0807- ●
