Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#74880) — 441 parça

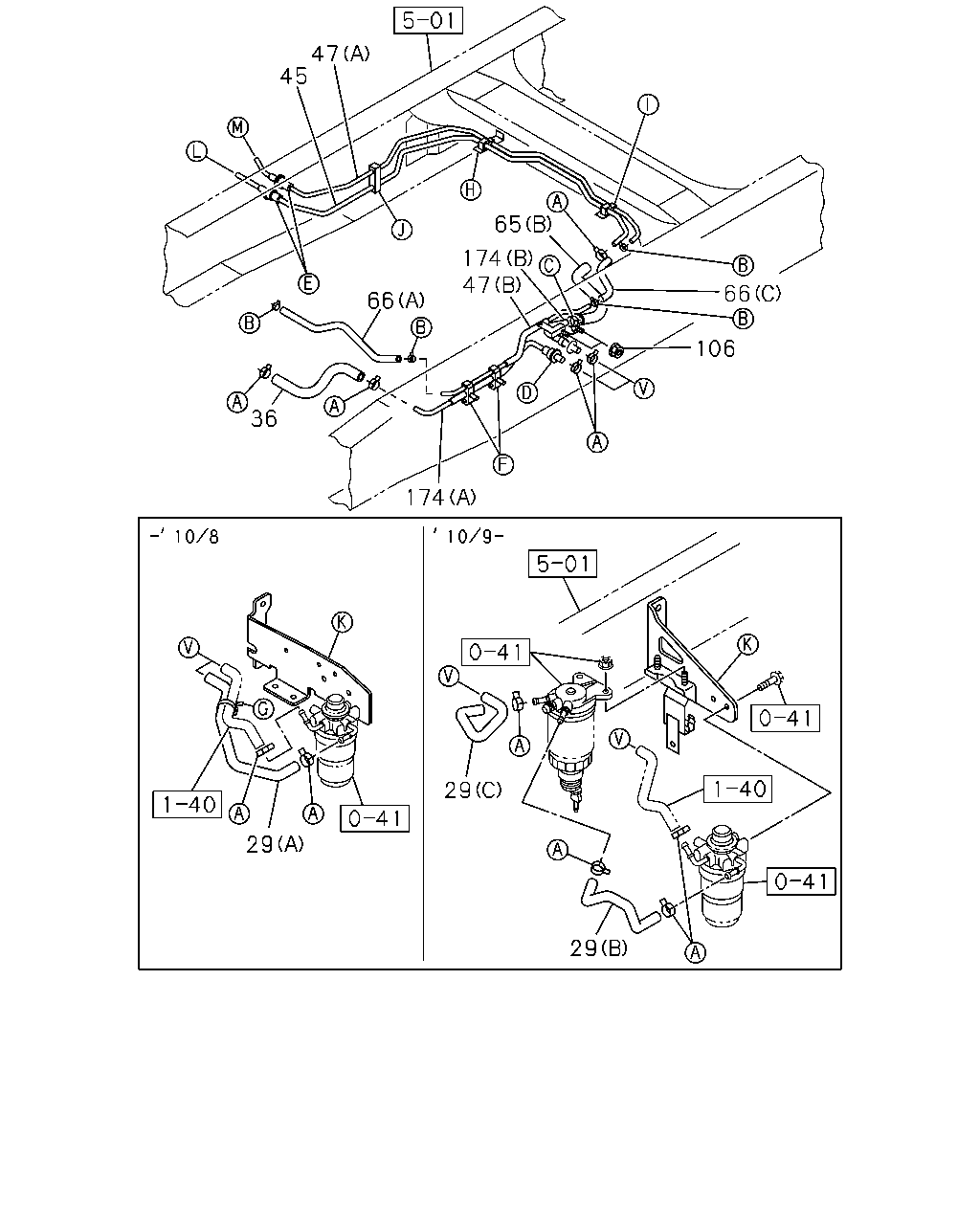

47 45 65 174 47 66 66 106 36 174 29 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL (B)	8-98173-663-0	01	1	1009-	●	●
29	HOSE; FUEL (A)	8-98082-461-1	01	1	0807-1008	●	●
29	HOSE; FUEL (C)	8-98173-664-0	01	1	1009-	●	●
36	HOSE; FUEL,FILTER TO TANK	8-98082-458-1	01	1	0807-	●	●
45	PIPE; FUEL,DELIVERY FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19>	8-98082-484-2	01	1	0807-1411	●	●
45	PIPE; FUEL,DELIVERY FUEL TANK 140L,37GAL<N19>	8-98082-484-2	01	1	1412-	●	●
47	PIPE; FUEL,RETURN FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (B)	8-98033-864-0	01	1	0807-1411	●	●
47	PIPE; FUEL,RETURN FUEL TANK 140L,37GAL<N19> (B)	8-98033-864-0	01	1	1412-	●	●
47	PIPE; FUEL,RETURN FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (A)	8-98082-488-1	01	1	0807-1411	●	●
47	PIPE; FUEL,RETURN FUEL TANK 140L,37GAL<N19> (A)	8-98082-488-1	01	1	1412-	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 2800MM(28W) FUEL TANK 113L,30GAL<NH2> (C)	8-98064-837-1	01	1	0807-	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 3400MM(34W) FUEL TANK 113L,30GAL<NH2> (C)	8-98064-838-1	01	1	0807-	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> (D) L=70	8-98036-483-0	01	1	0807-1411	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 2800MM(28W),WHEEL BASE 3400MM(34W), WHEEL BASE 3800MM(38W) FUEL TANK 140L,37GAL<N19> (D) L=70	8-98036-483-0	01	1	1412-	●
47	PIPE; FUEL,RETURN FUEL TANK 140L,37GAL<N19> (D) L=70	8-98036-483-0	01	1	1412-		●
47	PIPE; FUEL,RETURN WHEEL BASE 3800MM(38W) FUEL TANK 113L,30GAL<NH2> (C)	8-98064-839-1	01	1	0807-	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 4500MM(45W) FUEL TANK 113L,30GAL<NH2> (C)	8-98064-840-1	01	1	0807-		●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 113L,30GAL<NH2> (A) L=500 SERVICED BY L=3000	0-01262-300-0	01	1	0807-	●	●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 125L,33GAL<NL7> (A) L=950 SERVICED BY L=3000	0-01262-300-0	01	1	0807-1411	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2800MM(28W) FUEL TANK 140L,37GAL<N19> (C)	8-98290-740-0	01	1	1412-	●	●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (B)	8-98116-283-0	01	1	0807-1411	●	●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 140L,37GAL<N19> (B)	8-98116-283-0	01	1	1412-	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W) FUEL TANK 140L,37GAL<N19> (C)	8-98098-999-2	01	1	0807-	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> (C)	8-98099-000-2	01	1	0807-		●
66	HOSE; FUEL,RETURN PIPE FUEL TANK 113L,30GAL<NH2> (D) L=480 SERVICED BY L=3000	0-01855-300-0	01	1	0807-	●	●
66	HOSE; FUEL,RETURN PIPE FUEL TANK 125L,33GAL<NL7> (C) L=960 SERVICED BY L=3000	0-01855-300-0	01	1	0807-1411	●	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 2800MM(28W) FUEL TANK 140L,37GAL<N19> (B)	8-98290-741-0	01	1	1412-	●	●
66	HOSE; FUEL,RETURN PIPE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (C) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	0807-1411	●	●
66	HOSE; FUEL,RETURN PIPE FUEL TANK 140L,37GAL<N19> (C) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	1412-	●	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W) FUEL TANK 140L,37GAL<N19> (B)	8-98080-705-2	01	1	0807-	●	●
66	HOSE; FUEL,RETURN PIPE (A)	8-98082-459-1	01	1	0807-	●	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> (B)	8-98080-704-2	01	1	0807-		●
106	NUT; FUEL PIPE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> M10 FLANGE	0-91180-110-0	02	1	0807-1411	●	●
106	NUT; FUEL PIPE FUEL TANK 140L,37GAL<N19> M10 FLANGE	0-91180-110-0	02	1	1412-	●	●
174	PIPE; FUEL,FEED,FRT FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (B)	8-98041-615-0	01	1	0807-1411	●	●
174	PIPE; FUEL,FEED,FRT FUEL TANK 140L,37GAL<N19> (B)	8-98041-615-0	01	1	1412-	●	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 2800MM(28W) FUEL TANK 113L,30GAL<NH2> (C)	8-98064-830-1	01	1	0807-	●	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3400MM(34W) FUEL TANK 113L,30GAL<NH2> (C)	8-98064-831-1	01	1	0807-	●	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3800MM(38W) FUEL TANK 113L,30GAL<NH2> (C)	8-98064-832-1	01	1	0807-	●	●
174	PIPE; FUEL,FEED,FRT (A)	8-98094-177-0	01	1	0807-	●	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4500MM(45W) FUEL TANK 113L,30GAL<NH2> (C)	8-98064-833-1	01	1	0807-		●

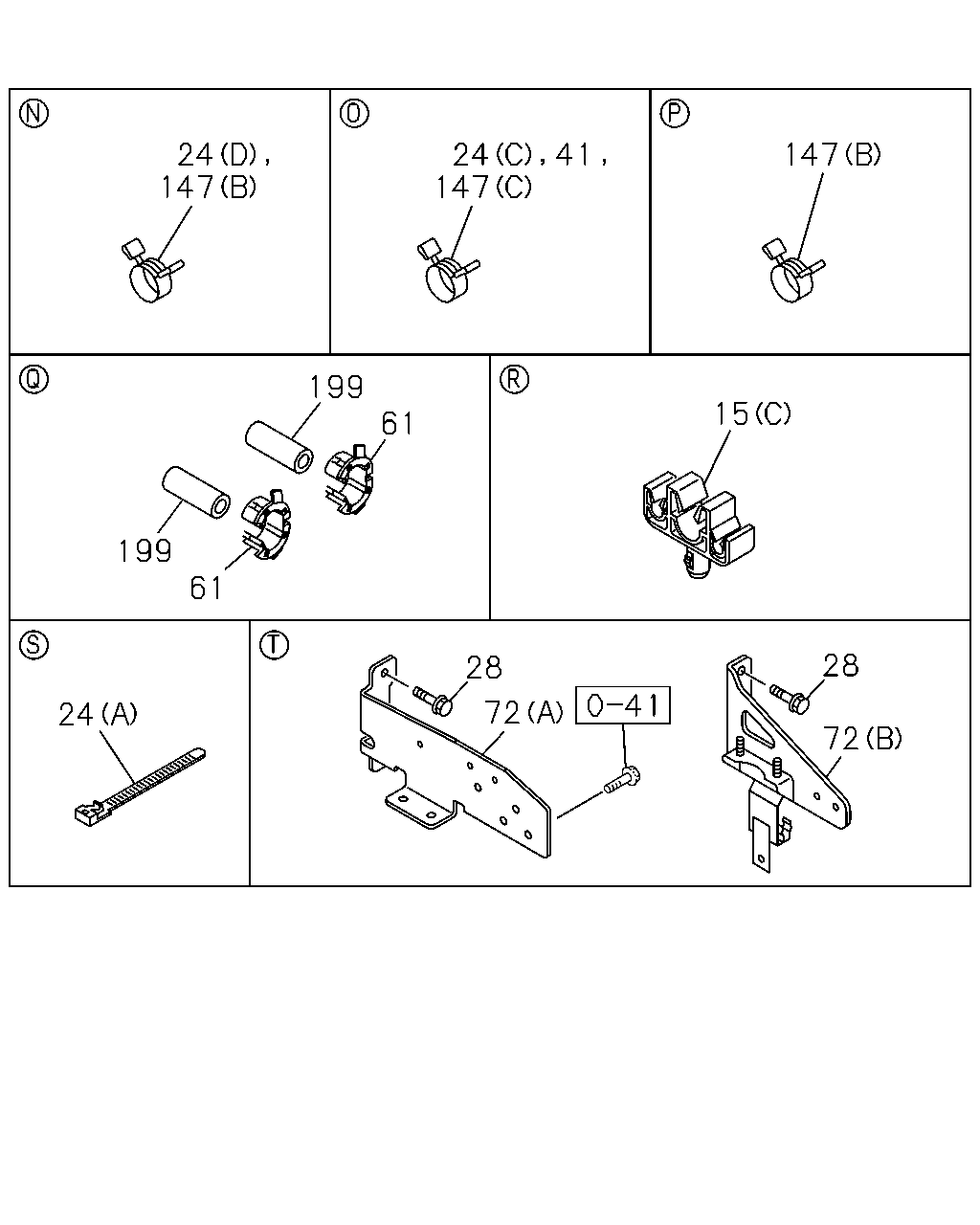

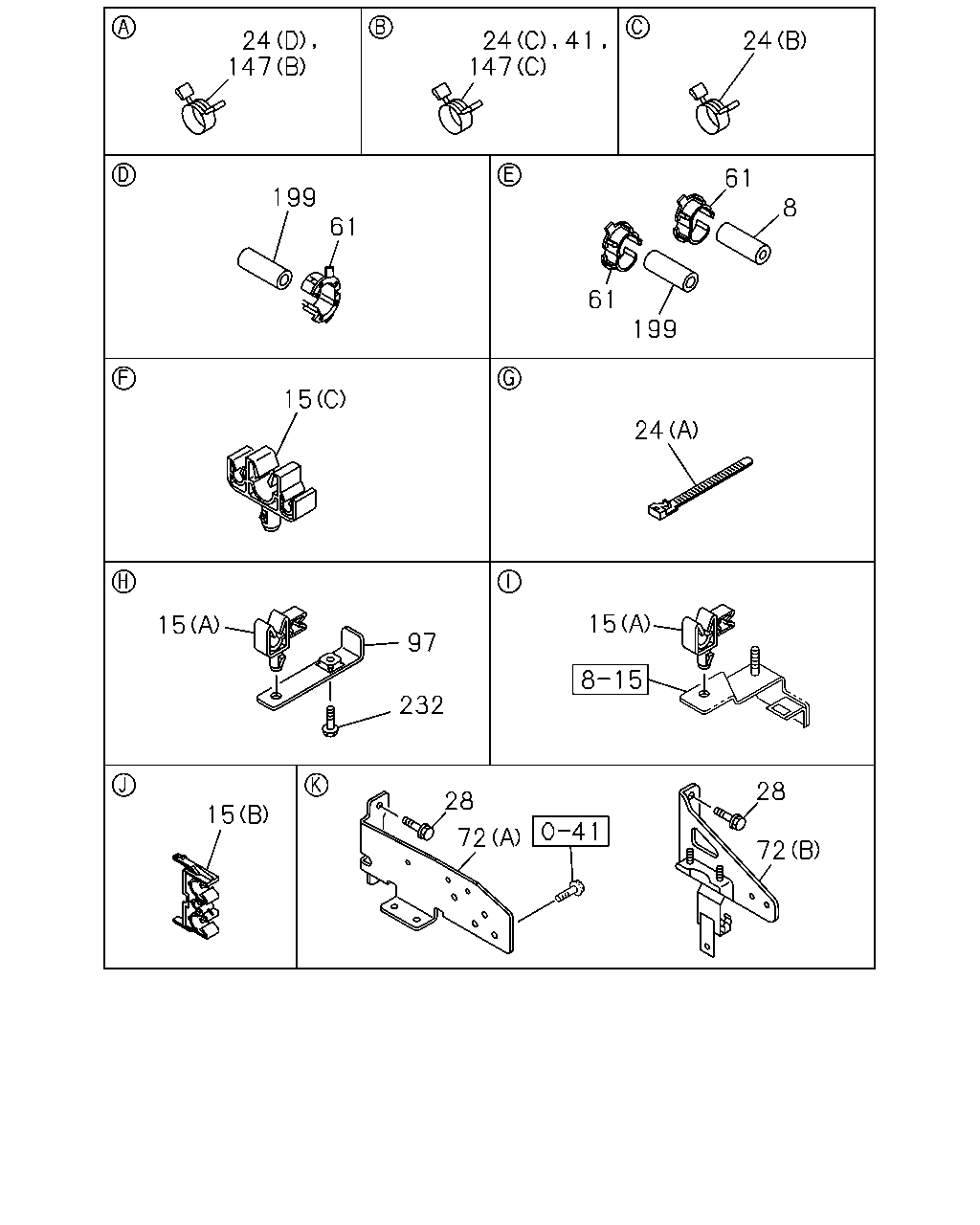

24 147 147 24 61 199 8 61 61 199 15 24 15 15 97 232 28 28 15 72 72 24 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	RUBBER; MTG FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> OD=17 L=50	8-94157-054-1	01	1	0807-1411	●	●
8	RUBBER; MTG FUEL TANK 140L,37GAL<N19> OD=17 L=50	8-94157-054-1	01	1	1412-	●	●
15	CLIP; FUEL PIPE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (A) ID=12 & 6.35	8-97215-437-0	02	1	0807-1411	●	●
15	CLIP; FUEL PIPE FUEL TANK 140L,37GAL<N19> (A) ID=12 & 6.35	8-97215-437-0	02	1	1412-	●	●
15	CLIP; FUEL PIPE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (B) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0807-1411	●	●
15	CLIP; FUEL PIPE FUEL TANK 140L,37GAL<N19> (B) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1412-	●	●
15	CLIP; FUEL PIPE FUEL TANK 140L,37GAL<N19> (D) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0807-1411	●	●
15	CLIP; FUEL PIPE WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> (D) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0807-1411		●
15	CLIP; FUEL PIPE WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W) FUEL TANK 140L,37GAL<N19> (D) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1412-	●
15	CLIP; FUEL PIPE WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> (D) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1412-		●
15	CLIP; FUEL PIPE WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> (D) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1412-		●
15	CLIP; FUEL PIPE WHEEL BASE 2800MM(28W) FUEL TANK 113L,30GAL<NH2> (C) ID=12 & 6.35 & 4.76	8-97202-954-1	05	1	0807-	●	●
15	CLIP; FUEL PIPE WHEEL BASE 3400MM(34W) FUEL TANK 113L,30GAL<NH2> (C) ID=12 & 6.35 & 4.76	8-97202-954-1	06	1	0807-	●	●
15	CLIP; FUEL PIPE WHEEL BASE 3800MM(38W) FUEL TANK 113L,30GAL<NH2> (C) ID=12 & 6.35 & 4.76	8-97202-954-1	07	1	0807-	●	●
15	CLIP; FUEL PIPE (C) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	0807-	●	●
15	CLIP; FUEL PIPE WHEEL BASE 4500MM(45W) FUEL TANK 113L,30GAL<NH2> (C) ID=12 & 6.35 & 4.76	8-97202-954-1	08	1	0807-		●
24	CLIP; FUEL HOSE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (B) ID=16	8-94238-568-0	01	1	0807-0911	●	●
24	CLIP; FUEL HOSE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (B) ID=16	8-98008-098-0	01	1	0912-1411	●	●
24	CLIP; FUEL HOSE FUEL TANK 140L,37GAL<N19> (B) ID=16	8-98008-098-0	01	1	1412-	●	●
24	CLIP; FUEL HOSE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (D) ID=19	8-94238-569-0	01	1	0807-0911	●	●
24	CLIP; FUEL HOSE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (D) ID=19	8-98150-356-0	01	1	0912-1411	●	●
24	CLIP; FUEL HOSE FUEL TANK 140L,37GAL<N19> (D) ID=19	8-98150-356-0	01	1	1412-	●	●
24	CLIP; FUEL HOSE FUEL TANK 140L,37GAL<N19> (A) L=140	5-09707-031-1	01	1	0807-1008	●	●
24	CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	1009-1411	●	●
24	CLIP; FUEL HOSE FUEL TANK 140L,37GAL<N19> (A) L=140	5-09707-031-1	01	1	1009-1411	●	●
24	CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	1412-	●	●
24	CLIP; FUEL HOSE WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W) FUEL TANK 140L,37GAL<N19> (A) L=140	5-09707-031-1	01	1	1412-	●
24	CLIP; FUEL HOSE WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> (A) L=140	5-09707-031-1	01	1	1412-		●
24	CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	0807-1008	●	●
24	CLIP; FUEL HOSE (D) ID=19	8-94238-569-0	02	1	0807-0911	●	●
24	CLIP; FUEL HOSE (D) ID=19	8-98150-356-0	02	1	0912-	●	●
24	CLIP; FUEL HOSE (C) ID=12	8-94238-610-0	02	1	0807-0911	●	●
24	CLIP; FUEL HOSE (C) ID=12	8-98150-358-0	02	1	0912-	●	●
28	BOLT; BRKT,FUEL PUMP M10X30 FLANGE	0-28651-030-0	02	1	0807-	●	●
41	CLIP; FUEL PIPE,FUEL TANK ID=12	8-94238-610-0	01	1	0807-0911	●	●
41	CLIP; FUEL PIPE,FUEL TANK ID=12	8-98150-358-0	01	1	0912-	●	●
61	GROMMET; PIPE TO FRAME FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> ID=17	8-94128-319-2	01	1	0807-1411	●	●
61	GROMMET; PIPE TO FRAME FUEL TANK 140L,37GAL<N19> ID=17	8-94128-319-2	01	1	1412-	●	●
61	GROMMET; PIPE TO FRAME ID=17	8-94128-319-2	02	1	0807-	●	●
72	BRACKET; FUEL PUMP & FILTER (A)	8-98108-365-2	01	1	0807-0807	●	●
72	BRACKET; FUEL PUMP & FILTER (A)	8-98121-710-0	01	1	0807-1008	●	●
72	BRACKET; FUEL PUMP & FILTER (B)	8-98163-522-1	01	1	1009-	●	●
97	BRACKET; CLIP FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19>	8-98041-203-0	01	1	0807-1411	●	●
97	BRACKET; CLIP FUEL TANK 140L,37GAL<N19>	8-98041-203-0	01	1	1412-	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=19	8-94238-569-0	01	1	0807-0911	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 113L,30GAL<NH2> (B) ID=19	8-94238-569-0	01	1	0807-0911	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 113L,30GAL<NH2>,FUEL TANK 125L, 33GAL<NL7> (B) ID=19	8-94238-569-0	01	1	0807-0911	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=19	8-98150-356-0	01	1	0912-1411	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 113L,30GAL<NH2> (B) ID=19	8-98150-356-0	01	1	0912-1411	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 113L,30GAL<NH2>,FUEL TANK 125L, 33GAL<NL7> (B) ID=19	8-98150-356-0	01	1	0912-1411	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=19	8-98150-356-0	01	1	1412-	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 113L,30GAL<NH2> (B) ID=19	8-98150-356-0	01	1	1412-	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 113L,30GAL<NH2> (B) ID=19	8-98150-356-0	01	1	1412-	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 113L,30GAL<NH2>,FUEL TANK 125L, 33GAL<NL7> (C) ID=12	8-94238-610-0	01	1	0807-0911	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 113L,30GAL<NH2>,FUEL TANK 125L, 33GAL<NL7> (C) ID=12	8-98150-358-0	01	1	0912-1411	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 113L,30GAL<NH2> (C) ID=12	8-98150-358-0	01	1	1412-	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 140L,37GAL<N19> (A) ID=16	8-94238-568-0	01	1	0807-0911	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (A) ID=16	8-94238-568-0	01	1	0807-0911	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 140L,37GAL<N19> (A) ID=16	8-98008-098-0	01	1	0912-1411	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (A) ID=16	8-98008-098-0	01	1	0912-1411	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 140L,37GAL<N19> (A) ID=16	8-98008-098-0	01	1	1412-	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 140L,37GAL<N19> (A) ID=16	8-98008-098-0	01	1	1412-	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (C) ID=12	8-94238-610-0	02	1	0807-0911	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (C) ID=12	8-98150-358-0	02	1	0912-1411	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 140L,37GAL<N19> (C) ID=12	8-98150-358-0	02	1	1412-	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 140L,37GAL<N19> (D) ID=13	8-94238-571-0	01	1	0807-0911	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 140L,37GAL<N19> (D) ID=13	8-98150-357-0	01	1	0912-	●	●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> (B) ID=19	8-94238-569-0	02	1	0807-0911	●	●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> (B) ID=19	8-98150-356-0	02	1	0912-1411	●	●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3400MM(34W), WHEEL BASE 3800MM(38W) FUEL TANK 140L,37GAL<N19> (B) ID=19	8-98150-356-0	02	1	1412-	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 140L,37GAL<N19> (B) ID=19	8-98150-356-0	02	1	1412-		●
147	CLIP; FUEL PIPE TO HOSE (B) ID=19	8-94238-569-0	03	1	0807-0911	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=19	8-98150-356-0	03	1	0912-1008	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=19	8-98150-356-0	05	1	1009-	●	●
199	PROTECTOR; FUEL PIPE OD=16.5 L=50	8-97214-235-0	01	1	0807-	●	●
199	PROTECTOR; FUEL PIPE OD=16.5 L=50	8-97214-235-0	01	1	0807-	●	●
232	BOLT; CLIP,PIPE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> M8X25 FLANGE	0-28650-825-0	01	1	0807-1411	●	●
232	BOLT; CLIP,PIPE FUEL TANK 140L,37GAL<N19> M8X25 FLANGE	0-28650-825-0	01	1	1412-	●	●

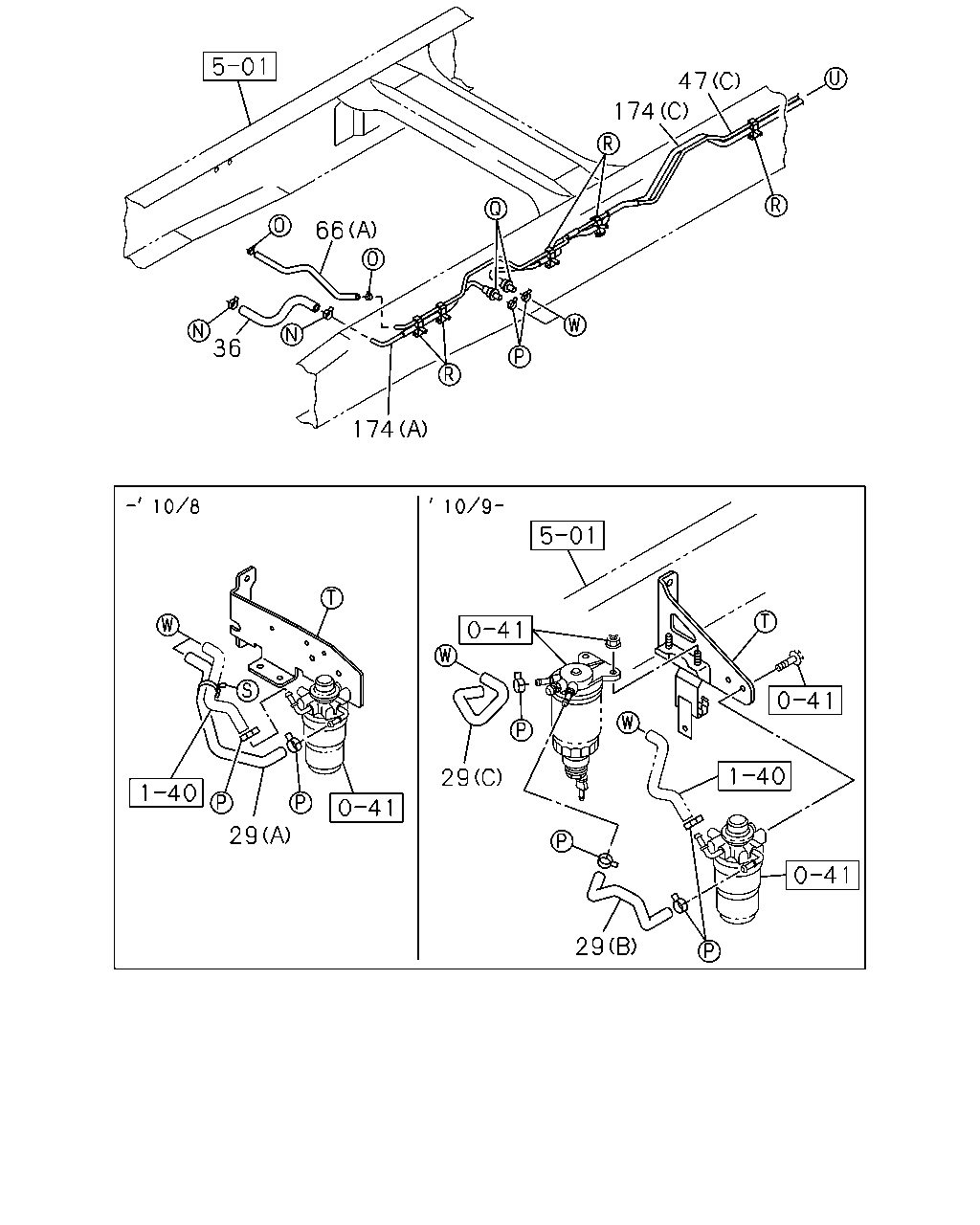

47 174 66 36 174 29 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL (B)	8-98173-663-0	01	1	1009-	●	●
29	HOSE; FUEL (A)	8-98082-461-1	01	1	0807-1008	●	●
29	HOSE; FUEL (C)	8-98173-664-0	01	1	1009-	●	●
36	HOSE; FUEL,FILTER TO TANK	8-98082-458-1	01	1	0807-	●	●
47	PIPE; FUEL,RETURN FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (B)	8-98033-864-0	01	1	0807-1411	●	●
47	PIPE; FUEL,RETURN FUEL TANK 140L,37GAL<N19> (B)	8-98033-864-0	01	1	1412-	●	●
47	PIPE; FUEL,RETURN FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (A)	8-98082-488-1	01	1	0807-1411	●	●
47	PIPE; FUEL,RETURN FUEL TANK 140L,37GAL<N19> (A)	8-98082-488-1	01	1	1412-	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 2800MM(28W) FUEL TANK 113L,30GAL<NH2> (C)	8-98064-837-1	01	1	0807-	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 3400MM(34W) FUEL TANK 113L,30GAL<NH2> (C)	8-98064-838-1	01	1	0807-	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> (D) L=70	8-98036-483-0	01	1	0807-1411	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 2800MM(28W),WHEEL BASE 3400MM(34W), WHEEL BASE 3800MM(38W) FUEL TANK 140L,37GAL<N19> (D) L=70	8-98036-483-0	01	1	1412-	●
47	PIPE; FUEL,RETURN FUEL TANK 140L,37GAL<N19> (D) L=70	8-98036-483-0	01	1	1412-		●
47	PIPE; FUEL,RETURN WHEEL BASE 3800MM(38W) FUEL TANK 113L,30GAL<NH2> (C)	8-98064-839-1	01	1	0807-	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 4500MM(45W) FUEL TANK 113L,30GAL<NH2> (C)	8-98064-840-1	01	1	0807-		●
66	HOSE; FUEL,RETURN PIPE FUEL TANK 113L,30GAL<NH2> (D) L=480 SERVICED BY L=3000	0-01855-300-0	01	1	0807-	●	●
66	HOSE; FUEL,RETURN PIPE FUEL TANK 125L,33GAL<NL7> (C) L=960 SERVICED BY L=3000	0-01855-300-0	01	1	0807-1411	●	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 2800MM(28W) FUEL TANK 140L,37GAL<N19> (B)	8-98290-741-0	01	1	1412-	●	●
66	HOSE; FUEL,RETURN PIPE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (C) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	0807-1411	●	●
66	HOSE; FUEL,RETURN PIPE FUEL TANK 140L,37GAL<N19> (C) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	1412-	●	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W) FUEL TANK 140L,37GAL<N19> (B)	8-98080-705-2	01	1	0807-	●	●
66	HOSE; FUEL,RETURN PIPE (A)	8-98082-459-1	01	1	0807-	●	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> (B)	8-98080-704-2	01	1	0807-		●
174	PIPE; FUEL,FEED,FRT FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (B)	8-98041-615-0	01	1	0807-1411	●	●
174	PIPE; FUEL,FEED,FRT FUEL TANK 140L,37GAL<N19> (B)	8-98041-615-0	01	1	1412-	●	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 2800MM(28W) FUEL TANK 113L,30GAL<NH2> (C)	8-98064-830-1	01	1	0807-	●	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3400MM(34W) FUEL TANK 113L,30GAL<NH2> (C)	8-98064-831-1	01	1	0807-	●	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3800MM(38W) FUEL TANK 113L,30GAL<NH2> (C)	8-98064-832-1	01	1	0807-	●	●
174	PIPE; FUEL,FEED,FRT (A)	8-98094-177-0	01	1	0807-	●	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4500MM(45W) FUEL TANK 113L,30GAL<NH2> (C)	8-98064-833-1	01	1	0807-		●

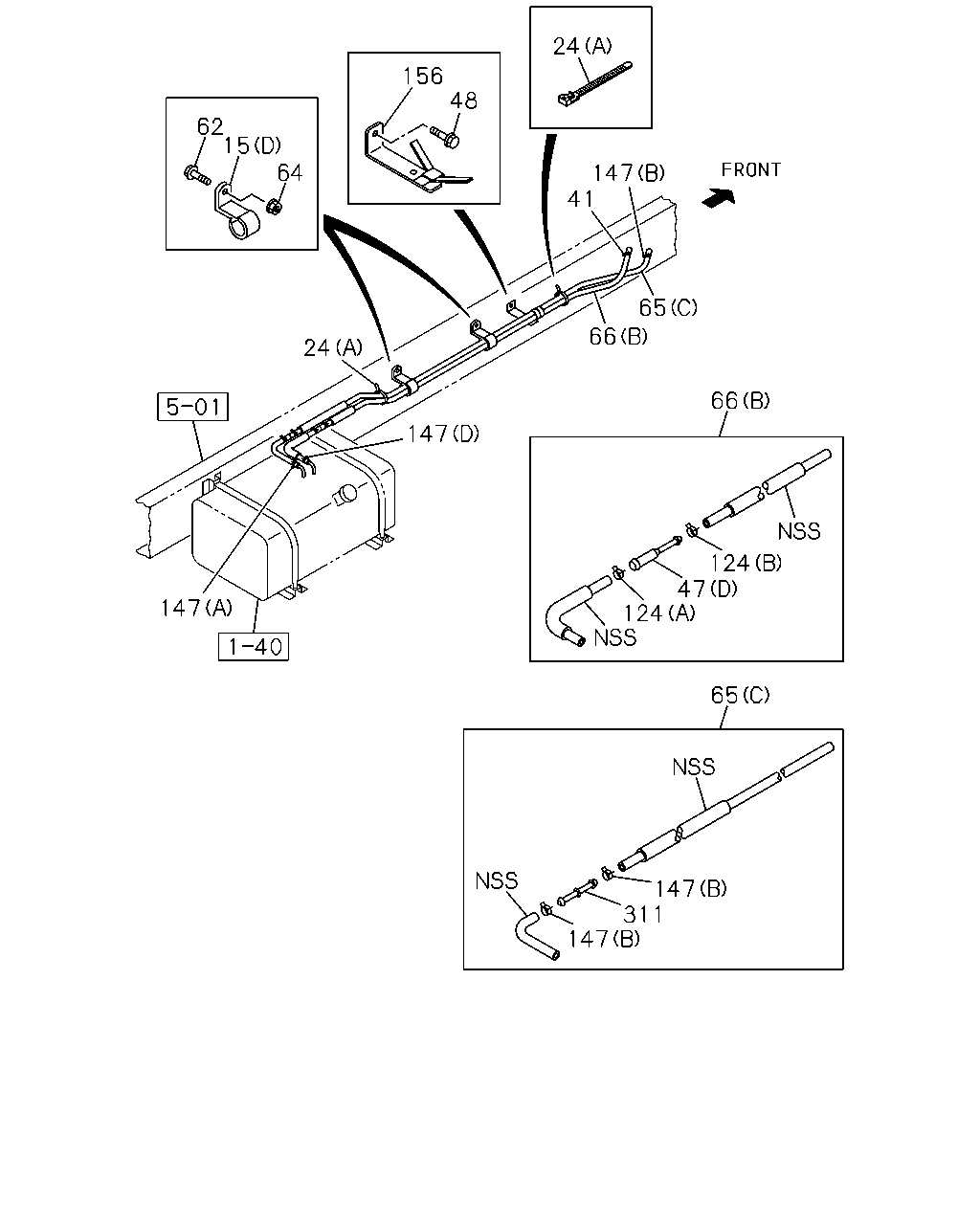

24 156 48 62 15 64 147 41 65 66 24 66 147 124 47 124 147 65 147 311 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	CLIP; FUEL PIPE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (A) ID=12 & 6.35	8-97215-437-0	02	1	0807-1411	●	●
15	CLIP; FUEL PIPE FUEL TANK 140L,37GAL<N19> (A) ID=12 & 6.35	8-97215-437-0	02	1	1412-	●	●
15	CLIP; FUEL PIPE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (B) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0807-1411	●	●
15	CLIP; FUEL PIPE FUEL TANK 140L,37GAL<N19> (B) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1412-	●	●
15	CLIP; FUEL PIPE FUEL TANK 140L,37GAL<N19> (D) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0807-1411	●	●
15	CLIP; FUEL PIPE WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> (D) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0807-1411		●
15	CLIP; FUEL PIPE WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W) FUEL TANK 140L,37GAL<N19> (D) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1412-	●
15	CLIP; FUEL PIPE WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> (D) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1412-		●
15	CLIP; FUEL PIPE WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> (D) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1412-		●
15	CLIP; FUEL PIPE WHEEL BASE 2800MM(28W) FUEL TANK 113L,30GAL<NH2> (C) ID=12 & 6.35 & 4.76	8-97202-954-1	05	1	0807-	●	●
15	CLIP; FUEL PIPE WHEEL BASE 3400MM(34W) FUEL TANK 113L,30GAL<NH2> (C) ID=12 & 6.35 & 4.76	8-97202-954-1	06	1	0807-	●	●
15	CLIP; FUEL PIPE WHEEL BASE 3800MM(38W) FUEL TANK 113L,30GAL<NH2> (C) ID=12 & 6.35 & 4.76	8-97202-954-1	07	1	0807-	●	●
15	CLIP; FUEL PIPE (C) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	0807-	●	●
15	CLIP; FUEL PIPE WHEEL BASE 4500MM(45W) FUEL TANK 113L,30GAL<NH2> (C) ID=12 & 6.35 & 4.76	8-97202-954-1	08	1	0807-		●
24	CLIP; FUEL HOSE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (B) ID=16	8-94238-568-0	01	1	0807-0911	●	●
24	CLIP; FUEL HOSE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (B) ID=16	8-98008-098-0	01	1	0912-1411	●	●
24	CLIP; FUEL HOSE FUEL TANK 140L,37GAL<N19> (B) ID=16	8-98008-098-0	01	1	1412-	●	●
24	CLIP; FUEL HOSE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (D) ID=19	8-94238-569-0	01	1	0807-0911	●	●
24	CLIP; FUEL HOSE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (D) ID=19	8-98150-356-0	01	1	0912-1411	●	●
24	CLIP; FUEL HOSE FUEL TANK 140L,37GAL<N19> (D) ID=19	8-98150-356-0	01	1	1412-	●	●
24	CLIP; FUEL HOSE FUEL TANK 140L,37GAL<N19> (A) L=140	5-09707-031-1	01	1	0807-1008	●	●
24	CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	1009-1411	●	●
24	CLIP; FUEL HOSE FUEL TANK 140L,37GAL<N19> (A) L=140	5-09707-031-1	01	1	1009-1411	●	●
24	CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	1412-	●	●
24	CLIP; FUEL HOSE WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W) FUEL TANK 140L,37GAL<N19> (A) L=140	5-09707-031-1	01	1	1412-	●
24	CLIP; FUEL HOSE WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> (A) L=140	5-09707-031-1	01	1	1412-		●
24	CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	0807-1008	●	●
24	CLIP; FUEL HOSE (D) ID=19	8-94238-569-0	02	1	0807-0911	●	●
24	CLIP; FUEL HOSE (D) ID=19	8-98150-356-0	02	1	0912-	●	●
24	CLIP; FUEL HOSE (C) ID=12	8-94238-610-0	02	1	0807-0911	●	●
24	CLIP; FUEL HOSE (C) ID=12	8-98150-358-0	02	1	0912-	●	●
41	CLIP; FUEL PIPE,FUEL TANK ID=12	8-94238-610-0	01	1	0807-0911	●	●
41	CLIP; FUEL PIPE,FUEL TANK ID=12	8-98150-358-0	01	1	0912-	●	●
47	PIPE; FUEL,RETURN FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (B)	8-98033-864-0	01	1	0807-1411	●	●
47	PIPE; FUEL,RETURN FUEL TANK 140L,37GAL<N19> (B)	8-98033-864-0	01	1	1412-	●	●
47	PIPE; FUEL,RETURN FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (A)	8-98082-488-1	01	1	0807-1411	●	●
47	PIPE; FUEL,RETURN FUEL TANK 140L,37GAL<N19> (A)	8-98082-488-1	01	1	1412-	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 2800MM(28W) FUEL TANK 113L,30GAL<NH2> (C)	8-98064-837-1	01	1	0807-	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 3400MM(34W) FUEL TANK 113L,30GAL<NH2> (C)	8-98064-838-1	01	1	0807-	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> (D) L=70	8-98036-483-0	01	1	0807-1411	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 2800MM(28W),WHEEL BASE 3400MM(34W), WHEEL BASE 3800MM(38W) FUEL TANK 140L,37GAL<N19> (D) L=70	8-98036-483-0	01	1	1412-	●
47	PIPE; FUEL,RETURN FUEL TANK 140L,37GAL<N19> (D) L=70	8-98036-483-0	01	1	1412-		●
47	PIPE; FUEL,RETURN WHEEL BASE 3800MM(38W) FUEL TANK 113L,30GAL<NH2> (C)	8-98064-839-1	01	1	0807-	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 4500MM(45W) FUEL TANK 113L,30GAL<NH2> (C)	8-98064-840-1	01	1	0807-		●
48	BOLT; BRKT FUEL TANK 140L,37GAL<N19> M10X30 FLANGE	0-28651-030-0	01	1	0807-1411	●	●
48	BOLT; BRKT WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> M10X30 FLANGE	0-28651-030-0	01	1	1412-	●	●
62	BOLT; CLIP FIX FUEL TANK 140L,37GAL<N19> M8X25 FLANGE	0-28650-825-0	01	1	0807-1411	●	●
62	BOLT; CLIP FIX WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> M8X25 FLANGE	0-28650-825-0	01	1	0807-1411		●
62	BOLT; CLIP FIX WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W) FUEL TANK 140L,37GAL<N19> M8X25 FLANGE	0-28650-825-0	01	1	1412-	●
62	BOLT; CLIP FIX WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> M8X25 FLANGE	0-28650-825-0	01	1	1412-		●
62	BOLT; CLIP FIX WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> M8X25 FLANGE	0-28650-825-0	01	1	1412-		●
64	NUT; CLIP FUEL TANK 140L,37GAL<N19> M8 FLANGE	0-91180-108-0	01	1	0807-1411	●	●
64	NUT; CLIP WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> M8 FLANGE	0-91180-108-0	01	1	0807-1411		●
64	NUT; CLIP WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W) FUEL TANK 140L,37GAL<N19> M8 FLANGE	0-91180-108-0	01	1	1412-	●
64	NUT; CLIP WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> M8 FLANGE	0-91180-108-0	01	1	1412-		●
64	NUT; CLIP WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> M8 FLANGE	0-91180-108-0	01	1	1412-		●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 113L,30GAL<NH2> (A) L=500 SERVICED BY L=3000	0-01262-300-0	01	1	0807-	●	●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 125L,33GAL<NL7> (A) L=950 SERVICED BY L=3000	0-01262-300-0	01	1	0807-1411	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2800MM(28W) FUEL TANK 140L,37GAL<N19> (C)	8-98290-740-0	01	1	1412-	●	●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (B)	8-98116-283-0	01	1	0807-1411	●	●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 140L,37GAL<N19> (B)	8-98116-283-0	01	1	1412-	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W) FUEL TANK 140L,37GAL<N19> (C)	8-98098-999-2	01	1	0807-	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> (C)	8-98099-000-2	01	1	0807-		●
66	HOSE; FUEL,RETURN PIPE FUEL TANK 113L,30GAL<NH2> (D) L=480 SERVICED BY L=3000	0-01855-300-0	01	1	0807-	●	●
66	HOSE; FUEL,RETURN PIPE FUEL TANK 125L,33GAL<NL7> (C) L=960 SERVICED BY L=3000	0-01855-300-0	01	1	0807-1411	●	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 2800MM(28W) FUEL TANK 140L,37GAL<N19> (B)	8-98290-741-0	01	1	1412-	●	●
66	HOSE; FUEL,RETURN PIPE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (C) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	0807-1411	●	●
66	HOSE; FUEL,RETURN PIPE FUEL TANK 140L,37GAL<N19> (C) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	1412-	●	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W) FUEL TANK 140L,37GAL<N19> (B)	8-98080-705-2	01	1	0807-	●	●
66	HOSE; FUEL,RETURN PIPE (A)	8-98082-459-1	01	1	0807-	●	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> (B)	8-98080-704-2	01	1	0807-		●
124	CLIP; HOSE WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> (A) ID=13	8-94238-571-0	01	1	0807-0911	●	●
124	CLIP; HOSE WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> (A) ID=13	8-98150-357-0	01	1	0912-1411	●	●
124	CLIP; HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3400MM(34W), WHEEL BASE 3800MM(38W) FUEL TANK 140L,37GAL<N19> (A) ID=13	8-98150-357-0	01	1	1412-	●
124	CLIP; HOSE FUEL TANK 140L,37GAL<N19> (A) ID=13	8-98150-357-0	01	1	1412-		●
124	CLIP; HOSE WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> (B) ID=12	8-97358-961-0	01	1	0807-1002	●	●
124	CLIP; HOSE WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> (B) ID=12	8-98150-358-0	01	1	1003-1411	●	●
124	CLIP; HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3400MM(34W), WHEEL BASE 3800MM(38W) FUEL TANK 140L,37GAL<N19> (B) ID=12	8-98150-358-0	01	1	1412-	●
124	CLIP; HOSE FUEL TANK 140L,37GAL<N19> (B) ID=12	8-98150-358-0	01	1	1412-		●
147	CLIP; FUEL PIPE TO HOSE (B) ID=19	8-94238-569-0	01	1	0807-0911	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 113L,30GAL<NH2> (B) ID=19	8-94238-569-0	01	1	0807-0911	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 113L,30GAL<NH2>,FUEL TANK 125L, 33GAL<NL7> (B) ID=19	8-94238-569-0	01	1	0807-0911	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=19	8-98150-356-0	01	1	0912-1411	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 113L,30GAL<NH2> (B) ID=19	8-98150-356-0	01	1	0912-1411	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 113L,30GAL<NH2>,FUEL TANK 125L, 33GAL<NL7> (B) ID=19	8-98150-356-0	01	1	0912-1411	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=19	8-98150-356-0	01	1	1412-	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 113L,30GAL<NH2> (B) ID=19	8-98150-356-0	01	1	1412-	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 113L,30GAL<NH2> (B) ID=19	8-98150-356-0	01	1	1412-	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 113L,30GAL<NH2>,FUEL TANK 125L, 33GAL<NL7> (C) ID=12	8-94238-610-0	01	1	0807-0911	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 113L,30GAL<NH2>,FUEL TANK 125L, 33GAL<NL7> (C) ID=12	8-98150-358-0	01	1	0912-1411	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 113L,30GAL<NH2> (C) ID=12	8-98150-358-0	01	1	1412-	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 140L,37GAL<N19> (A) ID=16	8-94238-568-0	01	1	0807-0911	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (A) ID=16	8-94238-568-0	01	1	0807-0911	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 140L,37GAL<N19> (A) ID=16	8-98008-098-0	01	1	0912-1411	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (A) ID=16	8-98008-098-0	01	1	0912-1411	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 140L,37GAL<N19> (A) ID=16	8-98008-098-0	01	1	1412-	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 140L,37GAL<N19> (A) ID=16	8-98008-098-0	01	1	1412-	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (C) ID=12	8-94238-610-0	02	1	0807-0911	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (C) ID=12	8-98150-358-0	02	1	0912-1411	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 140L,37GAL<N19> (C) ID=12	8-98150-358-0	02	1	1412-	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 140L,37GAL<N19> (D) ID=13	8-94238-571-0	01	1	0807-0911	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 140L,37GAL<N19> (D) ID=13	8-98150-357-0	01	1	0912-	●	●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> (B) ID=19	8-94238-569-0	02	1	0807-0911	●	●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> (B) ID=19	8-98150-356-0	02	1	0912-1411	●	●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3400MM(34W), WHEEL BASE 3800MM(38W) FUEL TANK 140L,37GAL<N19> (B) ID=19	8-98150-356-0	02	1	1412-	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 140L,37GAL<N19> (B) ID=19	8-98150-356-0	02	1	1412-		●
147	CLIP; FUEL PIPE TO HOSE (B) ID=19	8-94238-569-0	03	1	0807-0911	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=19	8-98150-356-0	03	1	0912-1008	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=19	8-98150-356-0	05	1	1009-	●	●
156	BRACKET; FUEL HOSE FUEL TANK 140L,37GAL<N19>	8-98041-250-2	01	1	0807-1411	●	●
156	BRACKET; FUEL HOSE WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19>	8-98041-250-2	01	1	1412-	●	●
311	JOINT; HOSE WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19>	8-98105-080-0	01	1	0807-1411	●	●
311	JOINT; HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3400MM(34W), WHEEL BASE 3800MM(38W) FUEL TANK 140L,37GAL<N19>	8-98105-080-0	01	1	1412-	●
311	JOINT; HOSE FUEL TANK 140L,37GAL<N19>	8-98105-080-0	01	1	1412-		●

24 147 147 147 199 15 61 199 61 28 28 72 24 72 24 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	CLIP; FUEL PIPE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (A) ID=12 & 6.35	8-97215-437-0	02	1	0807-1411	●	●
15	CLIP; FUEL PIPE FUEL TANK 140L,37GAL<N19> (A) ID=12 & 6.35	8-97215-437-0	02	1	1412-	●	●
15	CLIP; FUEL PIPE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (B) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0807-1411	●	●
15	CLIP; FUEL PIPE FUEL TANK 140L,37GAL<N19> (B) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1412-	●	●
15	CLIP; FUEL PIPE FUEL TANK 140L,37GAL<N19> (D) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0807-1411	●	●
15	CLIP; FUEL PIPE WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> (D) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0807-1411		●
15	CLIP; FUEL PIPE WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W) FUEL TANK 140L,37GAL<N19> (D) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1412-	●
15	CLIP; FUEL PIPE WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> (D) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1412-		●
15	CLIP; FUEL PIPE WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> (D) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1412-		●
15	CLIP; FUEL PIPE WHEEL BASE 2800MM(28W) FUEL TANK 113L,30GAL<NH2> (C) ID=12 & 6.35 & 4.76	8-97202-954-1	05	1	0807-	●	●
15	CLIP; FUEL PIPE WHEEL BASE 3400MM(34W) FUEL TANK 113L,30GAL<NH2> (C) ID=12 & 6.35 & 4.76	8-97202-954-1	06	1	0807-	●	●
15	CLIP; FUEL PIPE WHEEL BASE 3800MM(38W) FUEL TANK 113L,30GAL<NH2> (C) ID=12 & 6.35 & 4.76	8-97202-954-1	07	1	0807-	●	●
15	CLIP; FUEL PIPE (C) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	0807-	●	●
15	CLIP; FUEL PIPE WHEEL BASE 4500MM(45W) FUEL TANK 113L,30GAL<NH2> (C) ID=12 & 6.35 & 4.76	8-97202-954-1	08	1	0807-		●
24	CLIP; FUEL HOSE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (B) ID=16	8-94238-568-0	01	1	0807-0911	●	●
24	CLIP; FUEL HOSE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (B) ID=16	8-98008-098-0	01	1	0912-1411	●	●
24	CLIP; FUEL HOSE FUEL TANK 140L,37GAL<N19> (B) ID=16	8-98008-098-0	01	1	1412-	●	●
24	CLIP; FUEL HOSE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (D) ID=19	8-94238-569-0	01	1	0807-0911	●	●
24	CLIP; FUEL HOSE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (D) ID=19	8-98150-356-0	01	1	0912-1411	●	●
24	CLIP; FUEL HOSE FUEL TANK 140L,37GAL<N19> (D) ID=19	8-98150-356-0	01	1	1412-	●	●
24	CLIP; FUEL HOSE FUEL TANK 140L,37GAL<N19> (A) L=140	5-09707-031-1	01	1	0807-1008	●	●
24	CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	1009-1411	●	●
24	CLIP; FUEL HOSE FUEL TANK 140L,37GAL<N19> (A) L=140	5-09707-031-1	01	1	1009-1411	●	●
24	CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	1412-	●	●
24	CLIP; FUEL HOSE WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W) FUEL TANK 140L,37GAL<N19> (A) L=140	5-09707-031-1	01	1	1412-	●
24	CLIP; FUEL HOSE WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> (A) L=140	5-09707-031-1	01	1	1412-		●
24	CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	0807-1008	●	●
24	CLIP; FUEL HOSE (D) ID=19	8-94238-569-0	02	1	0807-0911	●	●
24	CLIP; FUEL HOSE (D) ID=19	8-98150-356-0	02	1	0912-	●	●
24	CLIP; FUEL HOSE (C) ID=12	8-94238-610-0	02	1	0807-0911	●	●
24	CLIP; FUEL HOSE (C) ID=12	8-98150-358-0	02	1	0912-	●	●
28	BOLT; BRKT,FUEL PUMP M10X30 FLANGE	0-28651-030-0	02	1	0807-	●	●
41	CLIP; FUEL PIPE,FUEL TANK ID=12	8-94238-610-0	01	1	0807-0911	●	●
41	CLIP; FUEL PIPE,FUEL TANK ID=12	8-98150-358-0	01	1	0912-	●	●
61	GROMMET; PIPE TO FRAME FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> ID=17	8-94128-319-2	01	1	0807-1411	●	●
61	GROMMET; PIPE TO FRAME FUEL TANK 140L,37GAL<N19> ID=17	8-94128-319-2	01	1	1412-	●	●
61	GROMMET; PIPE TO FRAME ID=17	8-94128-319-2	02	1	0807-	●	●
72	BRACKET; FUEL PUMP & FILTER (A)	8-98108-365-2	01	1	0807-0807	●	●
72	BRACKET; FUEL PUMP & FILTER (A)	8-98121-710-0	01	1	0807-1008	●	●
72	BRACKET; FUEL PUMP & FILTER (B)	8-98163-522-1	01	1	1009-	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=19	8-94238-569-0	01	1	0807-0911	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 113L,30GAL<NH2> (B) ID=19	8-94238-569-0	01	1	0807-0911	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 113L,30GAL<NH2>,FUEL TANK 125L, 33GAL<NL7> (B) ID=19	8-94238-569-0	01	1	0807-0911	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=19	8-98150-356-0	01	1	0912-1411	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 113L,30GAL<NH2> (B) ID=19	8-98150-356-0	01	1	0912-1411	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 113L,30GAL<NH2>,FUEL TANK 125L, 33GAL<NL7> (B) ID=19	8-98150-356-0	01	1	0912-1411	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=19	8-98150-356-0	01	1	1412-	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 113L,30GAL<NH2> (B) ID=19	8-98150-356-0	01	1	1412-	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 113L,30GAL<NH2> (B) ID=19	8-98150-356-0	01	1	1412-	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 113L,30GAL<NH2>,FUEL TANK 125L, 33GAL<NL7> (C) ID=12	8-94238-610-0	01	1	0807-0911	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 113L,30GAL<NH2>,FUEL TANK 125L, 33GAL<NL7> (C) ID=12	8-98150-358-0	01	1	0912-1411	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 113L,30GAL<NH2> (C) ID=12	8-98150-358-0	01	1	1412-	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 140L,37GAL<N19> (A) ID=16	8-94238-568-0	01	1	0807-0911	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (A) ID=16	8-94238-568-0	01	1	0807-0911	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 140L,37GAL<N19> (A) ID=16	8-98008-098-0	01	1	0912-1411	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (A) ID=16	8-98008-098-0	01	1	0912-1411	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 140L,37GAL<N19> (A) ID=16	8-98008-098-0	01	1	1412-	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 140L,37GAL<N19> (A) ID=16	8-98008-098-0	01	1	1412-	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (C) ID=12	8-94238-610-0	02	1	0807-0911	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (C) ID=12	8-98150-358-0	02	1	0912-1411	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 140L,37GAL<N19> (C) ID=12	8-98150-358-0	02	1	1412-	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 140L,37GAL<N19> (D) ID=13	8-94238-571-0	01	1	0807-0911	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 140L,37GAL<N19> (D) ID=13	8-98150-357-0	01	1	0912-	●	●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> (B) ID=19	8-94238-569-0	02	1	0807-0911	●	●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> (B) ID=19	8-98150-356-0	02	1	0912-1411	●	●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3400MM(34W), WHEEL BASE 3800MM(38W) FUEL TANK 140L,37GAL<N19> (B) ID=19	8-98150-356-0	02	1	1412-	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 140L,37GAL<N19> (B) ID=19	8-98150-356-0	02	1	1412-		●
147	CLIP; FUEL PIPE TO HOSE (B) ID=19	8-94238-569-0	03	1	0807-0911	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=19	8-98150-356-0	03	1	0912-1008	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=19	8-98150-356-0	05	1	1009-	●	●
199	PROTECTOR; FUEL PIPE OD=16.5 L=50	8-97214-235-0	01	1	0807-	●	●
199	PROTECTOR; FUEL PIPE OD=16.5 L=50	8-97214-235-0	01	1	0807-	●	●

66 65 47 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	PIPE; FUEL,RETURN FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (B)	8-98033-864-0	01	1	0807-1411	●	●
47	PIPE; FUEL,RETURN FUEL TANK 140L,37GAL<N19> (B)	8-98033-864-0	01	1	1412-	●	●
47	PIPE; FUEL,RETURN FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (A)	8-98082-488-1	01	1	0807-1411	●	●
47	PIPE; FUEL,RETURN FUEL TANK 140L,37GAL<N19> (A)	8-98082-488-1	01	1	1412-	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 2800MM(28W) FUEL TANK 113L,30GAL<NH2> (C)	8-98064-837-1	01	1	0807-	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 3400MM(34W) FUEL TANK 113L,30GAL<NH2> (C)	8-98064-838-1	01	1	0807-	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> (D) L=70	8-98036-483-0	01	1	0807-1411	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 2800MM(28W),WHEEL BASE 3400MM(34W), WHEEL BASE 3800MM(38W) FUEL TANK 140L,37GAL<N19> (D) L=70	8-98036-483-0	01	1	1412-	●
47	PIPE; FUEL,RETURN FUEL TANK 140L,37GAL<N19> (D) L=70	8-98036-483-0	01	1	1412-		●
47	PIPE; FUEL,RETURN WHEEL BASE 3800MM(38W) FUEL TANK 113L,30GAL<NH2> (C)	8-98064-839-1	01	1	0807-	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 4500MM(45W) FUEL TANK 113L,30GAL<NH2> (C)	8-98064-840-1	01	1	0807-		●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 113L,30GAL<NH2> (A) L=500 SERVICED BY L=3000	0-01262-300-0	01	1	0807-	●	●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 125L,33GAL<NL7> (A) L=950 SERVICED BY L=3000	0-01262-300-0	01	1	0807-1411	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2800MM(28W) FUEL TANK 140L,37GAL<N19> (C)	8-98290-740-0	01	1	1412-	●	●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (B)	8-98116-283-0	01	1	0807-1411	●	●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 140L,37GAL<N19> (B)	8-98116-283-0	01	1	1412-	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W) FUEL TANK 140L,37GAL<N19> (C)	8-98098-999-2	01	1	0807-	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> (C)	8-98099-000-2	01	1	0807-		●
66	HOSE; FUEL,RETURN PIPE FUEL TANK 113L,30GAL<NH2> (D) L=480 SERVICED BY L=3000	0-01855-300-0	01	1	0807-	●	●
66	HOSE; FUEL,RETURN PIPE FUEL TANK 125L,33GAL<NL7> (C) L=960 SERVICED BY L=3000	0-01855-300-0	01	1	0807-1411	●	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 2800MM(28W) FUEL TANK 140L,37GAL<N19> (B)	8-98290-741-0	01	1	1412-	●	●
66	HOSE; FUEL,RETURN PIPE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (C) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	0807-1411	●	●
66	HOSE; FUEL,RETURN PIPE FUEL TANK 140L,37GAL<N19> (C) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	1412-	●	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W) FUEL TANK 140L,37GAL<N19> (B)	8-98080-705-2	01	1	0807-	●	●
66	HOSE; FUEL,RETURN PIPE (A)	8-98082-459-1	01	1	0807-	●	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> (B)	8-98080-704-2	01	1	0807-		●
174	PIPE; FUEL,FEED,FRT FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (B)	8-98041-615-0	01	1	0807-1411	●	●
174	PIPE; FUEL,FEED,FRT FUEL TANK 140L,37GAL<N19> (B)	8-98041-615-0	01	1	1412-	●	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 2800MM(28W) FUEL TANK 113L,30GAL<NH2> (C)	8-98064-830-1	01	1	0807-	●	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3400MM(34W) FUEL TANK 113L,30GAL<NH2> (C)	8-98064-831-1	01	1	0807-	●	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3800MM(38W) FUEL TANK 113L,30GAL<NH2> (C)	8-98064-832-1	01	1	0807-	●	●
174	PIPE; FUEL,FEED,FRT (A)	8-98094-177-0	01	1	0807-	●	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4500MM(45W) FUEL TANK 113L,30GAL<NH2> (C)	8-98064-833-1	01	1	0807-		●

147 66 47 147 65 24 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (B) ID=16	8-94238-568-0	01	1	0807-0911	●	●
24	CLIP; FUEL HOSE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (B) ID=16	8-98008-098-0	01	1	0912-1411	●	●
24	CLIP; FUEL HOSE FUEL TANK 140L,37GAL<N19> (B) ID=16	8-98008-098-0	01	1	1412-	●	●
24	CLIP; FUEL HOSE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (D) ID=19	8-94238-569-0	01	1	0807-0911	●	●
24	CLIP; FUEL HOSE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (D) ID=19	8-98150-356-0	01	1	0912-1411	●	●
24	CLIP; FUEL HOSE FUEL TANK 140L,37GAL<N19> (D) ID=19	8-98150-356-0	01	1	1412-	●	●
24	CLIP; FUEL HOSE FUEL TANK 140L,37GAL<N19> (A) L=140	5-09707-031-1	01	1	0807-1008	●	●
24	CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	1009-1411	●	●
24	CLIP; FUEL HOSE FUEL TANK 140L,37GAL<N19> (A) L=140	5-09707-031-1	01	1	1009-1411	●	●
24	CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	1412-	●	●
24	CLIP; FUEL HOSE WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W) FUEL TANK 140L,37GAL<N19> (A) L=140	5-09707-031-1	01	1	1412-	●
24	CLIP; FUEL HOSE WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> (A) L=140	5-09707-031-1	01	1	1412-		●
24	CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	0807-1008	●	●
24	CLIP; FUEL HOSE (D) ID=19	8-94238-569-0	02	1	0807-0911	●	●
24	CLIP; FUEL HOSE (D) ID=19	8-98150-356-0	02	1	0912-	●	●
24	CLIP; FUEL HOSE (C) ID=12	8-94238-610-0	02	1	0807-0911	●	●
24	CLIP; FUEL HOSE (C) ID=12	8-98150-358-0	02	1	0912-	●	●
47	PIPE; FUEL,RETURN FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (B)	8-98033-864-0	01	1	0807-1411	●	●
47	PIPE; FUEL,RETURN FUEL TANK 140L,37GAL<N19> (B)	8-98033-864-0	01	1	1412-	●	●
47	PIPE; FUEL,RETURN FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (A)	8-98082-488-1	01	1	0807-1411	●	●
47	PIPE; FUEL,RETURN FUEL TANK 140L,37GAL<N19> (A)	8-98082-488-1	01	1	1412-	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 2800MM(28W) FUEL TANK 113L,30GAL<NH2> (C)	8-98064-837-1	01	1	0807-	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 3400MM(34W) FUEL TANK 113L,30GAL<NH2> (C)	8-98064-838-1	01	1	0807-	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> (D) L=70	8-98036-483-0	01	1	0807-1411	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 2800MM(28W),WHEEL BASE 3400MM(34W), WHEEL BASE 3800MM(38W) FUEL TANK 140L,37GAL<N19> (D) L=70	8-98036-483-0	01	1	1412-	●
47	PIPE; FUEL,RETURN FUEL TANK 140L,37GAL<N19> (D) L=70	8-98036-483-0	01	1	1412-		●
47	PIPE; FUEL,RETURN WHEEL BASE 3800MM(38W) FUEL TANK 113L,30GAL<NH2> (C)	8-98064-839-1	01	1	0807-	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 4500MM(45W) FUEL TANK 113L,30GAL<NH2> (C)	8-98064-840-1	01	1	0807-		●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 113L,30GAL<NH2> (A) L=500 SERVICED BY L=3000	0-01262-300-0	01	1	0807-	●	●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 125L,33GAL<NL7> (A) L=950 SERVICED BY L=3000	0-01262-300-0	01	1	0807-1411	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2800MM(28W) FUEL TANK 140L,37GAL<N19> (C)	8-98290-740-0	01	1	1412-	●	●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (B)	8-98116-283-0	01	1	0807-1411	●	●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 140L,37GAL<N19> (B)	8-98116-283-0	01	1	1412-	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W) FUEL TANK 140L,37GAL<N19> (C)	8-98098-999-2	01	1	0807-	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> (C)	8-98099-000-2	01	1	0807-		●
66	HOSE; FUEL,RETURN PIPE FUEL TANK 113L,30GAL<NH2> (D) L=480 SERVICED BY L=3000	0-01855-300-0	01	1	0807-	●	●
66	HOSE; FUEL,RETURN PIPE FUEL TANK 125L,33GAL<NL7> (C) L=960 SERVICED BY L=3000	0-01855-300-0	01	1	0807-1411	●	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 2800MM(28W) FUEL TANK 140L,37GAL<N19> (B)	8-98290-741-0	01	1	1412-	●	●
66	HOSE; FUEL,RETURN PIPE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (C) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	0807-1411	●	●
66	HOSE; FUEL,RETURN PIPE FUEL TANK 140L,37GAL<N19> (C) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	1412-	●	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W) FUEL TANK 140L,37GAL<N19> (B)	8-98080-705-2	01	1	0807-	●	●
66	HOSE; FUEL,RETURN PIPE (A)	8-98082-459-1	01	1	0807-	●	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> (B)	8-98080-704-2	01	1	0807-		●
147	CLIP; FUEL PIPE TO HOSE (B) ID=19	8-94238-569-0	01	1	0807-0911	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 113L,30GAL<NH2> (B) ID=19	8-94238-569-0	01	1	0807-0911	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 113L,30GAL<NH2>,FUEL TANK 125L, 33GAL<NL7> (B) ID=19	8-94238-569-0	01	1	0807-0911	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=19	8-98150-356-0	01	1	0912-1411	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 113L,30GAL<NH2> (B) ID=19	8-98150-356-0	01	1	0912-1411	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 113L,30GAL<NH2>,FUEL TANK 125L, 33GAL<NL7> (B) ID=19	8-98150-356-0	01	1	0912-1411	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=19	8-98150-356-0	01	1	1412-	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 113L,30GAL<NH2> (B) ID=19	8-98150-356-0	01	1	1412-	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 113L,30GAL<NH2> (B) ID=19	8-98150-356-0	01	1	1412-	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 113L,30GAL<NH2>,FUEL TANK 125L, 33GAL<NL7> (C) ID=12	8-94238-610-0	01	1	0807-0911	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 113L,30GAL<NH2>,FUEL TANK 125L, 33GAL<NL7> (C) ID=12	8-98150-358-0	01	1	0912-1411	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 113L,30GAL<NH2> (C) ID=12	8-98150-358-0	01	1	1412-	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 140L,37GAL<N19> (A) ID=16	8-94238-568-0	01	1	0807-0911	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (A) ID=16	8-94238-568-0	01	1	0807-0911	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 140L,37GAL<N19> (A) ID=16	8-98008-098-0	01	1	0912-1411	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (A) ID=16	8-98008-098-0	01	1	0912-1411	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 140L,37GAL<N19> (A) ID=16	8-98008-098-0	01	1	1412-	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 140L,37GAL<N19> (A) ID=16	8-98008-098-0	01	1	1412-	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (C) ID=12	8-94238-610-0	02	1	0807-0911	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (C) ID=12	8-98150-358-0	02	1	0912-1411	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 140L,37GAL<N19> (C) ID=12	8-98150-358-0	02	1	1412-	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 140L,37GAL<N19> (D) ID=13	8-94238-571-0	01	1	0807-0911	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 140L,37GAL<N19> (D) ID=13	8-98150-357-0	01	1	0912-	●	●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> (B) ID=19	8-94238-569-0	02	1	0807-0911	●	●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> (B) ID=19	8-98150-356-0	02	1	0912-1411	●	●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3400MM(34W), WHEEL BASE 3800MM(38W) FUEL TANK 140L,37GAL<N19> (B) ID=19	8-98150-356-0	02	1	1412-	●
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 140L,37GAL<N19> (B) ID=19	8-98150-356-0	02	1	1412-		●
147	CLIP; FUEL PIPE TO HOSE (B) ID=19	8-94238-569-0	03	1	0807-0911	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=19	8-98150-356-0	03	1	0912-1008	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=19	8-98150-356-0	05	1	1009-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
