◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51174 - ELF400/500/600/BUS ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-40 - FUEL TANK ▶
1-40 — FUEL TANK (#74879) — 349 parça

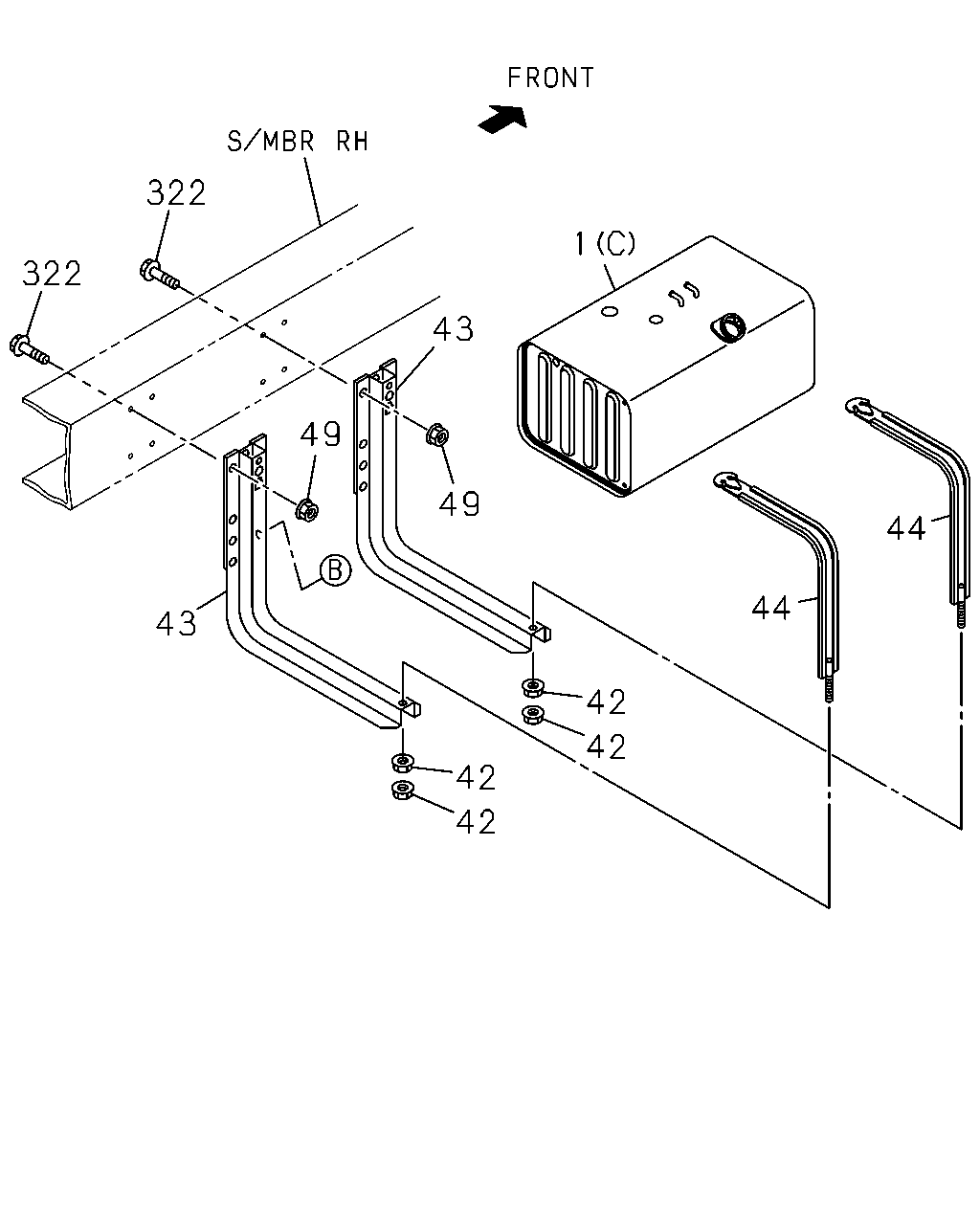

çizim 92845
322 322 49 49 43 42 42 42 42 44 44 1 43
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK; FUEL
FUEL TANK 113L,30GAL<NH2> (B) 620X530X440 113L 		8-98088-839-3 01 1 0807-1203 ● ●
1 TANK; FUEL
FUEL TANK 113L,30GAL<NH2> (B) 620X530X440 113L 		8-98210-992-0 01 1 1204-1308 ● ●
1 TANK; FUEL
FUEL TANK 113L,30GAL<NH2> (B) 620X530X440 113L 		8-98250-514-0 01 1 1309-1402 ● ●
1 TANK; FUEL
FUEL TANK 113L,30GAL<NH2> (B) 620X530X440 113L 		8-98256-413-1 01 1 1403- ● ●
1 TANK; FUEL
FUEL TANK 125L,33GAL<NL7> (A) OD=400 L=1130 124.5L 		8-98103-529-1 01 1 0807-1008 ● ●
1 TANK; FUEL
FUEL TANK 125L,33GAL<NL7> (A) OD=400 L=1130 124.5L 		8-98167-225-1 01 1 1009-1203 ● ●
1 TANK; FUEL
FUEL TANK 125L,33GAL<NL7> (A) OD=400 L=1130 124.5L 		8-98210-995-0 01 1 1204-1308 ● ●
1 TANK; FUEL
FUEL TANK 125L,33GAL<NL7> (A) OD=400 L=1130 124.5L 		8-98250-517-0 01 1 1309-1411 ● ●
1 TANK; FUEL
FUEL TANK 140L,37GAL<N19> (C) 820X500X400 140L 		8-98051-031-4 01 1 0807- ● ●
42 NUT; SUPPORT BELT
FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> M10 		0-91110-510-0 04 1 0807-1411 ● ●
42 NUT; SUPPORT BELT
FUEL TANK 140L,37GAL<N19> M10 		0-91110-510-0 04 1 1412- ● ●
43 BRACKET; FUEL TANK
FUEL TANK 125L,33GAL<NL7> 		5-53461-044-2 02 1 0807-1411 ● ●
43 BRACKET; FUEL TANK
WHEEL BASE 2800MM(28W) FUEL TANK 140L,37GAL<N19> FRONT 		8-98297-144-0 01 1 1412- ● ●
43 BRACKET; FUEL TANK
FUEL TANK 140L,37GAL<N19> FRONT 		8-98049-768-1 01 1 0807-1411 ● ●
43 BRACKET; FUEL TANK
WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W) FUEL TANK 140L,37GAL<N19> FRONT 		8-98049-768-1 01 1 1412- ●
43 BRACKET; FUEL TANK
WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> FRONT 		8-98049-768-1 01 1 1412- ●
43 BRACKET; FUEL TANK
FUEL TANK 140L,37GAL<N19> REAR 		8-98083-790-0 01 1 0807-1312 ● ●
43 BRACKET; FUEL TANK
FUEL TANK 140L,37GAL<N19> REAR 		8-98127-229-0 01 1 1401- ● ●
44 BAND; FUEL TANK
FUEL TANK 125L,33GAL<NL7> 		8-94418-159-0 02 1 0807-1411 ● ●
44 BAND; FUEL TANK
FUEL TANK 140L,37GAL<N19> L=925 		8-98049-769-1 02 1 0807- ● ●
49 NUT; BRKT
WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W) FUEL TANK 140L,37GAL<N19> M10 FLANGE 		0-91180-210-0 08 1 1412- ●
49 NUT; BRKT
WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> M10 FLANGE 		0-91180-210-0 08 1 1412- ●
49 NUT; BRKT
FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> M10 FLANGE 		0-91180-210-0 08 1 0807-1411 ● ●
49 NUT; BRKT
WHEEL BASE 2800MM(28W) FUEL TANK 140L,37GAL<N19> M10 FLANGE 		0-91180-210-0 05 1 1412- ● ●
322 BOLT; BRKT FIX
FUEL TANK 125L,33GAL<NL7> M10X30 FLANGE 		0-28661-030-0 08 1 0807-1411 ● ●
322 BOLT; BRKT FIX
WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W) FUEL TANK 140L,37GAL<N19> M10X40 FLANGE 		0-28661-040-0 08 1 1412- ●
322 BOLT; BRKT FIX
WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> M10X40 FLANGE 		0-28661-040-0 08 1 1412- ●
322 BOLT; BRKT FIX
FUEL TANK 140L,37GAL<N19> M10X40 FLANGE 		0-28661-040-0 08 1 0807-1411 ● ●
322 BOLT; BRKT FIX
WHEEL BASE 2800MM(28W) FUEL TANK 140L,37GAL<N19> M10X40 FLANGE 		0-28661-040-0 07 1 1412- ● ●
çizim 93033
512 3 411 6 626 625 130 133 129 19 346 346 254 8 11 210 1 64 64 468 382 93 382 239 468 545 495 382 468 93 339 495 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK; FUEL
FUEL TANK 113L,30GAL<NH2> (B) 620X530X440 113L 		8-98088-839-3 01 1 0807-1203 ● ●
1 TANK; FUEL
FUEL TANK 113L,30GAL<NH2> (B) 620X530X440 113L 		8-98210-992-0 01 1 1204-1308 ● ●
1 TANK; FUEL
FUEL TANK 113L,30GAL<NH2> (B) 620X530X440 113L 		8-98250-514-0 01 1 1309-1402 ● ●
1 TANK; FUEL
FUEL TANK 113L,30GAL<NH2> (B) 620X530X440 113L 		8-98256-413-1 01 1 1403- ● ●
1 TANK; FUEL
FUEL TANK 125L,33GAL<NL7> (A) OD=400 L=1130 124.5L 		8-98103-529-1 01 1 0807-1008 ● ●
1 TANK; FUEL
FUEL TANK 125L,33GAL<NL7> (A) OD=400 L=1130 124.5L 		8-98167-225-1 01 1 1009-1203 ● ●
1 TANK; FUEL
FUEL TANK 125L,33GAL<NL7> (A) OD=400 L=1130 124.5L 		8-98210-995-0 01 1 1204-1308 ● ●
1 TANK; FUEL
FUEL TANK 125L,33GAL<NL7> (A) OD=400 L=1130 124.5L 		8-98250-517-0 01 1 1309-1411 ● ●
1 TANK; FUEL
FUEL TANK 140L,37GAL<N19> (C) 820X500X400 140L 		8-98051-031-4 01 1 0807- ● ●
3 UNIT; FUEL TANK,SUB
FUEL TANK 113L,30GAL<NH2> (B) 		8-98249-269-0 01 1 1309- ● ●
3 UNIT; FUEL TANK,SUB
FUEL TANK 125L,33GAL<NL7> (A) 		8-98249-270-0 01 1 1309-1411 ● ●
3 UNIT; FUEL TANK,SUB
FUEL TANK 113L,30GAL<NH2> (B) 		8-98081-181-1 01 1 0807-1203 ● ●
3 UNIT; FUEL TANK,SUB
FUEL TANK 113L,30GAL<NH2> (B) 		8-98203-548-0 01 1 1204-1308 ● ●
3 UNIT; FUEL TANK,SUB
FUEL TANK 125L,33GAL<NL7> (A) 		8-98081-182-0 01 1 0807-1203 ● ●
3 UNIT; FUEL TANK,SUB
FUEL TANK 125L,33GAL<NL7> (A) 		8-98203-549-0 01 1 1204-1308 ● ●
3 UNIT; FUEL TANK,SUB
FUEL TANK 140L,37GAL<N19> (C) 		8-98065-304-0 01 1 0807- ● ●
6 SCREW; TANK UNIT TO SUB FUEL TANK
FUEL TANK 125L,33GAL<NL7> M5X10 W/LK WASHER 		0-36220-510-0 05 1 1309-1411 ● ●
6 SCREW; TANK UNIT TO SUB FUEL TANK
FUEL TANK 113L,30GAL<NH2>,FUEL TANK 125L, 33GAL<NL7> M5X10 W/LK WASHER 		0-36220-510-0 05 1 0807-1308 ● ●
6 SCREW; TANK UNIT TO SUB FUEL TANK
FUEL TANK 140L,37GAL<N19> M5X12 W/LK WASHER 		0-36220-512-0 05 1 0807-1308 ● ●
6 SCREW; TANK UNIT TO SUB FUEL TANK
FUEL TANK 113L,30GAL<NH2>,FUEL TANK 140L, 37GAL<N19> M5X12 W/LK WASHER 		0-36220-512-0 05 1 1309- ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 140L,37GAL<N19> (C) ID=18.2 OD=26.0 		9-09571-418-0 01 1 1504- ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 113L,30GAL<NH2>,FUEL TANK 125L, 33GAL<NL7> (A) ID=14.2 OD=23.0 		9-09572-014-0 01 1 1309-1411 ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 113L,30GAL<NH2> (A) ID=14.2 OD=23.0 		9-09572-014-0 01 1 1412- ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 113L,30GAL<NH2>,FUEL TANK 125L, 33GAL<NL7> (A) ID=14.2 OD=23.0 		9-09572-014-0 01 1 0807-1308 ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 140L,37GAL<N19> (B) ID=30 		8-98067-041-0 01 1 0807- ● ●
11 PLUG; DRAIN,FUEL TANK
FUEL TANK 113L,30GAL<NH2>,FUEL TANK 125L, 33GAL<NL7> M14X14 		8-98202-438-0 01 1 1309-1411 ● ●
11 PLUG; DRAIN,FUEL TANK
FUEL TANK 113L,30GAL<NH2> M14X14 		8-98202-438-0 01 1 1412- ● ●
11 PLUG; DRAIN,FUEL TANK
FUEL TANK 113L,30GAL<NH2>,FUEL TANK 125L, 33GAL<NL7> M14X14 		9-09862-156-0 01 1 0807-1203 ● ●
11 PLUG; DRAIN,FUEL TANK
FUEL TANK 113L,30GAL<NH2>,FUEL TANK 125L, 33GAL<NL7> M14X14 		8-98202-438-0 01 1 1204-1308 ● ●
11 PLUG; DRAIN,FUEL TANK
FUEL TANK 140L,37GAL<N19> M18 		8-98068-006-0 01 1 0807- ● ●
19 GASKET; FUEL TANK UNIT
FUEL TANK 113L,30GAL<NH2>,FUEL TANK 125L, 33GAL<NL7> 		8-98051-797-0 01 1 1309-1411 ● ●
19 GASKET; FUEL TANK UNIT
FUEL TANK 113L,30GAL<NH2> 		8-98051-797-0 01 1 1412- ● ●
19 GASKET; FUEL TANK UNIT
FUEL TANK 113L,30GAL<NH2>,FUEL TANK 125L, 33GAL<NL7>,FUEL TANK 140L,37GAL<N19> ID=42 OD=71 		5-83148-001-0 01 1 0807-1308 ● ●
19 GASKET; FUEL TANK UNIT
FUEL TANK 140L,37GAL<N19> ID=42 OD=71 		5-83148-001-0 01 1 1309- ● ●
64 BOLT; FUEL TANK
FUEL TANK 113L,30GAL<NH2> M12X30 FLANGE 		0-28651-230-0 08 1 0807- ● ●
64 BOLT; FUEL TANK
FUEL TANK 125L,33GAL<NL7> M10X40 FLANGE 		0-28661-040-0 08 1 0807-1411 ● ●
93 HOSE; BREATHER,FUEL TANK
FUEL TANK 113L,30GAL<NH2> (A) 		8-97244-801-0 01 1 0807- ● ●
93 HOSE; BREATHER,FUEL TANK
FUEL TANK 113L,30GAL<NH2> (B) 		8-98006-451-0 01 1 0807- ● ●
129 VENTILATOR; SAFETY,FUEL TANK
FUEL TANK 113L,30GAL<NH2> (B) 		8-98097-612-1 01 1 1309- ● ●
129 VENTILATOR; SAFETY,FUEL TANK
FUEL TANK 125L,33GAL<NL7> (A) 		8-98106-041-1 01 1 1309-1411 ● ●
129 VENTILATOR; SAFETY,FUEL TANK
FUEL TANK 113L,30GAL<NH2> (B) 		8-98097-612-1 01 1 0807-1308 ● ●
129 VENTILATOR; SAFETY,FUEL TANK
FUEL TANK 125L,33GAL<NL7> (A) 		8-98106-041-1 01 1 0807-1308 ● ●
130 SCREW; SAFETY VENT
FUEL TANK 113L,30GAL<NH2>,FUEL TANK 125L, 33GAL<NL7> M5X14 W/LK WASHER 		0-36220-514-0 05 1 1309-1411 ● ●
130 SCREW; SAFETY VENT
FUEL TANK 113L,30GAL<NH2> M5X14 W/LK WASHER 		0-36220-514-0 05 1 1412- ● ●
130 SCREW; SAFETY VENT
FUEL TANK 113L,30GAL<NH2>,FUEL TANK 125L, 33GAL<NL7> M5X14 W/LK WASHER 		0-36220-514-0 05 1 0807-1308 ● ●
133 GASKET; VALVE,FUEL TANK
FUEL TANK 125L,33GAL<NL7> 		1-22459-001-1 01 1 1309-1411 ● ●
133 GASKET; VALVE,FUEL TANK
FUEL TANK 125L,33GAL<NL7> 		1-22459-001-1 01 1 0807-1308 ● ●
133 GASKET; VALVE,FUEL TANK
FUEL TANK 113L,30GAL<NH2> 		8-94366-904-0 01 1 0807-1308 ● ●
133 GASKET; VALVE,FUEL TANK
FUEL TANK 113L,30GAL<NH2> 		8-94366-904-0 01 1 1309- ● ●
210 CAP; FUEL TANK
FUEL TANK 113L,30GAL<NH2> 		8-97133-939-0 01 1 0807- ● ●
239 SUPPORT; FUEL TANK
FUEL TANK 113L,30GAL<NH2> 		8-97326-572-0 02 1 0807- ● ●
254 GUARD
FUEL TANK 113L,30GAL<NH2> 		8-97136-012-0 01 1 0807-1308 ● ●
254 GUARD
FUEL TANK 113L,30GAL<NH2> 		8-97136-012-0 01 1 1309- ● ●
339 CLIP; BAND,FUEL HOSE
FUEL TANK 113L,30GAL<NH2> (A) L=600 		1-09707-107-1 02 1 0807- ● ●
339 CLIP; BAND,FUEL HOSE
FUEL TANK 113L,30GAL<NH2> (B) L=250 		5-09707-030-1 01 1 0807- ● ●
346 BOLT; GUARD
FUEL TANK 113L,30GAL<NH2> M8X20 FLANGE 		0-28050-820-0 04 1 0807-1308 ● ●
346 BOLT; GUARD
FUEL TANK 113L,30GAL<NH2> M8X20 FLANGE 		0-28050-820-0 04 1 1309- ● ●
382 CLIP; RUBBER HOSE
FUEL TANK 113L,30GAL<NH2> (B) ID=21 		8-98150-355-0 03 1 0912- ● ●
382 CLIP; RUBBER HOSE
FUEL TANK 113L,30GAL<NH2> (A) ID=21 		8-94242-034-0 04 1 0807-0911 ● ●
382 CLIP; RUBBER HOSE
FUEL TANK 113L,30GAL<NH2> (A) ID=21 		8-94242-034-0 01 1 0912- ● ●
411 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W) FUEL TANK 140L,37GAL<N19> (E) T=4.5 & 9 		8-97371-947-0 03 1 0807- ● ●
411 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W) FUEL TANK 140L,37GAL<N19> (D) T=5.5 		8-97371-951-0 01 1 0807- ● ●
411 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> (E) T=4.5 & 9 		8-97371-947-0 02 1 0807-1411 ●
411 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2800MM(28W) FUEL TANK 140L,37GAL<N19> (E) T=4.5 & 9 		8-97371-947-0 02 1 1412- ●
411 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2800MM(28W),WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> (E) T=4.5 & 9 		8-97371-947-0 02 1 1412- ●
411 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> (D) T=5.5 		8-97371-951-0 04 1 0807- ●
411 CLIP; FUEL TANK UNIT HARNESS
FUEL TANK 113L,30GAL<NH2> (B) ID=6.5 		5-09709-117-0 01 1 0807-1308 ● ●
411 CLIP; FUEL TANK UNIT HARNESS
FUEL TANK 125L,33GAL<NL7> (A) L=140 		5-09707-031-1 02 1 0807-1411 ● ●
411 CLIP; FUEL TANK UNIT HARNESS
FUEL TANK 140L,37GAL<N19> (C) ID=5-12 L=18 		1-09709-287-0 01 1 0807- ● ●
411 CLIP; FUEL TANK UNIT HARNESS
FUEL TANK 140L,37GAL<N19> (A) L=140 		5-09707-031-1 01 1 0807- ● ●
468 NUT
FUEL TANK 113L,30GAL<NH2> (B) M10 FLANGE 		0-91180-210-0 05 1 0807- ● ●
468 NUT
FUEL TANK 113L,30GAL<NH2> (A) M12 FLANGE 		0-91180-212-0 04 1 0807- ● ●
468 NUT
FUEL TANK 125L,33GAL<NL7> (B) M10 FLANGE 		0-91180-210-0 08 1 0807-1411 ● ●
495 BOLT; PIPE
FUEL TANK 113L,30GAL<NH2> M10X25 FLANGE 		0-28651-025-0 05 1 0807- ● ●
512 CAP; CONNECTOR
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (B) 		8-97145-503-0 01 1 0807-0912 ● ●
512 CAP; CONNECTOR
FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (A) 		8-98067-270-1 01 1 0807-1411 ● ●
512 CAP; CONNECTOR
FUEL TANK 140L,37GAL<N19> (A) 		8-98067-270-1 01 1 1412- ● ●
545 PIPE; BREATHER
FUEL TANK 113L,30GAL<NH2> 		8-97187-840-2 01 1 0807- ● ●
625 PIPE ASM; FUEL TANK
FUEL TANK 113L,30GAL<NH2> 		8-98061-838-0 01 1 0807-1203 ● ●
625 PIPE ASM; FUEL TANK
FUEL TANK 113L,30GAL<NH2> 		8-98211-008-0 01 1 1204-1308 ● ●
625 PIPE ASM; FUEL TANK
FUEL TANK 113L,30GAL<NH2> 		8-98211-008-0 01 1 1309-1402 ● ●
625 PIPE ASM; FUEL TANK
FUEL TANK 113L,30GAL<NH2> 		8-98256-416-0 01 1 1403- ● ●
626 SCREW; PIPE ASM
FUEL TANK 113L,30GAL<NH2> M5X10 W/LK WASHER 		0-36220-510-0 08 1 0807-1308 ● ●
626 SCREW; PIPE ASM
FUEL TANK 113L,30GAL<NH2> M5X10 W/LK WASHER 		0-36220-510-0 08 1 1309-1402 ● ●
626 SCREW; PIPE ASM
FUEL TANK 113L,30GAL<NH2> 		8-98240-070-0 08 1 1403- ● ●

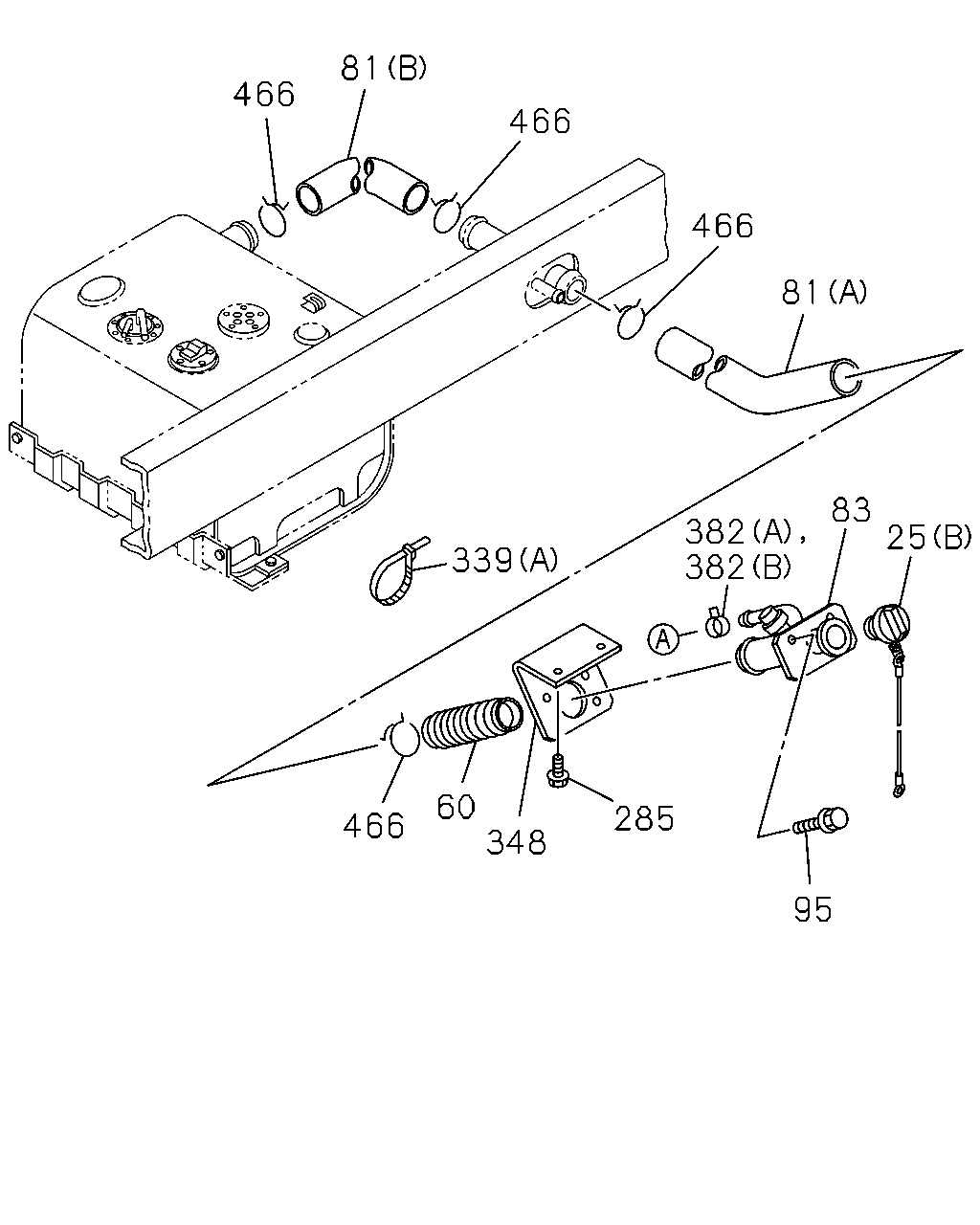

çizim 93102
466 81 466 466 81 83 382 25 382 339 95 285 348 60 466
BalonParca AdiParca NoAdetTipApplied Date A B
25 CAP; FILLER,FUEL TANK
FUEL TANK 125L,33GAL<NL7> (A) 		8-97233-810-0 01 1 1309-1411 ● ●
25 CAP; FILLER,FUEL TANK
FUEL TANK 113L,30GAL<NH2> (B) 		8-97218-702-0 01 1 0807- ● ●
25 CAP; FILLER,FUEL TANK
FUEL TANK 125L,33GAL<NL7> (A) 		8-97233-810-0 01 1 0807-1308 ● ●
60 PROTECTOR; FUEL FILLER
FUEL TANK 113L,30GAL<NH2> 		8-97114-063-0 01 1 0807- ● ●
81 HOSE; FUEL FILLER
FUEL TANK 113L,30GAL<NH2> (B) 		8-97187-875-1 01 1 0807-1006 ● ●
81 HOSE; FUEL FILLER
FUEL TANK 113L,30GAL<NH2> (B) 		8-98171-211-0 01 1 1007- ● ●
81 HOSE; FUEL FILLER
FUEL TANK 113L,30GAL<NH2> (A) 		8-98006-450-0 01 1 0807- ● ●
83 NECK; FUEL FILLER
FUEL TANK 113L,30GAL<NH2> 		8-98103-548-0 01 1 0807- ● ●
95 SCREW; FILLER NECK
FUEL TANK 113L,30GAL<NH2> M6X16 		8-97581-217-0 03 1 0807- ● ●
285 BOLT; BRKT
FUEL TANK 113L,30GAL<NH2> M10X35 FLANGE 		0-28651-035-0 02 1 0807-0910 ● ●
339 CLIP; BAND,FUEL HOSE
FUEL TANK 113L,30GAL<NH2> (A) L=600 		1-09707-107-1 02 1 0807- ● ●
339 CLIP; BAND,FUEL HOSE
FUEL TANK 113L,30GAL<NH2> (B) L=250 		5-09707-030-1 01 1 0807- ● ●
348 BRACKET; FUEL FILLER
FUEL TANK 113L,30GAL<NH2> 		8-97116-621-0 01 1 0807- ● ●
382 CLIP; RUBBER HOSE
FUEL TANK 113L,30GAL<NH2> (B) ID=21 		8-98150-355-0 03 1 0912- ● ●
382 CLIP; RUBBER HOSE
FUEL TANK 113L,30GAL<NH2> (A) ID=21 		8-94242-034-0 04 1 0807-0911 ● ●
382 CLIP; RUBBER HOSE
FUEL TANK 113L,30GAL<NH2> (A) ID=21 		8-94242-034-0 01 1 0912- ● ●
466 CLIP
FUEL TANK 113L,30GAL<NH2> ID=58-76 		1-09707-203-0 04 1 0807-0811 ● ●
466 CLIP
FUEL TANK 113L,30GAL<NH2> ID=55-75 		8-98133-349-0 04 1 0812- ● ●
çizim 93105
411 411 411 411 1 6 3 19 14 635 158 159 25 8 7 11 512 640
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK; FUEL
FUEL TANK 113L,30GAL<NH2> (B) 620X530X440 113L 		8-98088-839-3 01 1 0807-1203 ● ●
1 TANK; FUEL
FUEL TANK 113L,30GAL<NH2> (B) 620X530X440 113L 		8-98210-992-0 01 1 1204-1308 ● ●
1 TANK; FUEL
FUEL TANK 113L,30GAL<NH2> (B) 620X530X440 113L 		8-98250-514-0 01 1 1309-1402 ● ●
1 TANK; FUEL
FUEL TANK 113L,30GAL<NH2> (B) 620X530X440 113L 		8-98256-413-1 01 1 1403- ● ●
1 TANK; FUEL
FUEL TANK 125L,33GAL<NL7> (A) OD=400 L=1130 124.5L 		8-98103-529-1 01 1 0807-1008 ● ●
1 TANK; FUEL
FUEL TANK 125L,33GAL<NL7> (A) OD=400 L=1130 124.5L 		8-98167-225-1 01 1 1009-1203 ● ●
1 TANK; FUEL
FUEL TANK 125L,33GAL<NL7> (A) OD=400 L=1130 124.5L 		8-98210-995-0 01 1 1204-1308 ● ●
1 TANK; FUEL
FUEL TANK 125L,33GAL<NL7> (A) OD=400 L=1130 124.5L 		8-98250-517-0 01 1 1309-1411 ● ●
1 TANK; FUEL
FUEL TANK 140L,37GAL<N19> (C) 820X500X400 140L 		8-98051-031-4 01 1 0807- ● ●
3 UNIT; FUEL TANK,SUB
FUEL TANK 113L,30GAL<NH2> (B) 		8-98249-269-0 01 1 1309- ● ●
3 UNIT; FUEL TANK,SUB
FUEL TANK 125L,33GAL<NL7> (A) 		8-98249-270-0 01 1 1309-1411 ● ●
3 UNIT; FUEL TANK,SUB
FUEL TANK 113L,30GAL<NH2> (B) 		8-98081-181-1 01 1 0807-1203 ● ●
3 UNIT; FUEL TANK,SUB
FUEL TANK 113L,30GAL<NH2> (B) 		8-98203-548-0 01 1 1204-1308 ● ●
3 UNIT; FUEL TANK,SUB
FUEL TANK 125L,33GAL<NL7> (A) 		8-98081-182-0 01 1 0807-1203 ● ●
3 UNIT; FUEL TANK,SUB
FUEL TANK 125L,33GAL<NL7> (A) 		8-98203-549-0 01 1 1204-1308 ● ●
3 UNIT; FUEL TANK,SUB
FUEL TANK 140L,37GAL<N19> (C) 		8-98065-304-0 01 1 0807- ● ●
6 SCREW; TANK UNIT TO SUB FUEL TANK
FUEL TANK 125L,33GAL<NL7> M5X10 W/LK WASHER 		0-36220-510-0 05 1 1309-1411 ● ●
6 SCREW; TANK UNIT TO SUB FUEL TANK
FUEL TANK 113L,30GAL<NH2>,FUEL TANK 125L, 33GAL<NL7> M5X10 W/LK WASHER 		0-36220-510-0 05 1 0807-1308 ● ●
6 SCREW; TANK UNIT TO SUB FUEL TANK
FUEL TANK 140L,37GAL<N19> M5X12 W/LK WASHER 		0-36220-512-0 05 1 0807-1308 ● ●
6 SCREW; TANK UNIT TO SUB FUEL TANK
FUEL TANK 113L,30GAL<NH2>,FUEL TANK 140L, 37GAL<N19> M5X12 W/LK WASHER 		0-36220-512-0 05 1 1309- ● ●
7 GASKET; TANK UNIT,SUB TANK
FUEL TANK 140L,37GAL<N19> ID=14.2 OD=23.0 		9-09572-014-0 01 1 0807-1503 ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 140L,37GAL<N19> (C) ID=18.2 OD=26.0 		9-09571-418-0 01 1 1504- ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 113L,30GAL<NH2>,FUEL TANK 125L, 33GAL<NL7> (A) ID=14.2 OD=23.0 		9-09572-014-0 01 1 1309-1411 ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 113L,30GAL<NH2> (A) ID=14.2 OD=23.0 		9-09572-014-0 01 1 1412- ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 113L,30GAL<NH2>,FUEL TANK 125L, 33GAL<NL7> (A) ID=14.2 OD=23.0 		9-09572-014-0 01 1 0807-1308 ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 140L,37GAL<N19> (B) ID=30 		8-98067-041-0 01 1 0807- ● ●
11 PLUG; DRAIN,FUEL TANK
FUEL TANK 113L,30GAL<NH2>,FUEL TANK 125L, 33GAL<NL7> M14X14 		8-98202-438-0 01 1 1309-1411 ● ●
11 PLUG; DRAIN,FUEL TANK
FUEL TANK 113L,30GAL<NH2> M14X14 		8-98202-438-0 01 1 1412- ● ●
11 PLUG; DRAIN,FUEL TANK
FUEL TANK 113L,30GAL<NH2>,FUEL TANK 125L, 33GAL<NL7> M14X14 		9-09862-156-0 01 1 0807-1203 ● ●
11 PLUG; DRAIN,FUEL TANK
FUEL TANK 113L,30GAL<NH2>,FUEL TANK 125L, 33GAL<NL7> M14X14 		8-98202-438-0 01 1 1204-1308 ● ●
11 PLUG; DRAIN,FUEL TANK
FUEL TANK 140L,37GAL<N19> M18 		8-98068-006-0 01 1 0807- ● ●
14 HOSE; BREATHER,OUTLET
FUEL TANK 140L,37GAL<N19> L=460 		8-98082-184-1 01 1 0807- ● ●
19 GASKET; FUEL TANK UNIT
FUEL TANK 113L,30GAL<NH2>,FUEL TANK 125L, 33GAL<NL7> 		8-98051-797-0 01 1 1309-1411 ● ●
19 GASKET; FUEL TANK UNIT
FUEL TANK 113L,30GAL<NH2> 		8-98051-797-0 01 1 1412- ● ●
19 GASKET; FUEL TANK UNIT
FUEL TANK 113L,30GAL<NH2>,FUEL TANK 125L, 33GAL<NL7>,FUEL TANK 140L,37GAL<N19> ID=42 OD=71 		5-83148-001-0 01 1 0807-1308 ● ●
19 GASKET; FUEL TANK UNIT
FUEL TANK 140L,37GAL<N19> ID=42 OD=71 		5-83148-001-0 01 1 1309- ● ●
25 CAP; FILLER,FUEL TANK
FUEL TANK 125L,33GAL<NL7> (A) 		8-97233-810-0 01 1 1309-1411 ● ●
25 CAP; FILLER,FUEL TANK
FUEL TANK 113L,30GAL<NH2> (B) 		8-97218-702-0 01 1 0807- ● ●
25 CAP; FILLER,FUEL TANK
FUEL TANK 125L,33GAL<NL7> (A) 		8-97233-810-0 01 1 0807-1308 ● ●
158 VALVE; ROLL OVER & FLOAT
FUEL TANK 125L,33GAL<NL7> 		8-98103-512-0 01 1 1309-1411 ● ●
158 VALVE; ROLL OVER & FLOAT
FUEL TANK 140L,37GAL<N19> 		8-98095-223-0 01 1 0807- ● ●
158 VALVE; ROLL OVER & FLOAT
FUEL TANK 125L,33GAL<NL7> 		8-98103-512-0 01 1 0807-1308 ● ●
159 SEAL; ROLL OVER & FLOAT VALVE
FUEL TANK 140L,37GAL<N19> ID=45 OD=67 		1-83149-003-0 01 1 0807- ● ●
411 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W) FUEL TANK 140L,37GAL<N19> (E) T=4.5 & 9 		8-97371-947-0 03 1 0807- ● ●
411 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W) FUEL TANK 140L,37GAL<N19> (D) T=5.5 		8-97371-951-0 01 1 0807- ● ●
411 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> (E) T=4.5 & 9 		8-97371-947-0 02 1 0807-1411 ●
411 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2800MM(28W) FUEL TANK 140L,37GAL<N19> (E) T=4.5 & 9 		8-97371-947-0 02 1 1412- ●
411 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2800MM(28W),WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> (E) T=4.5 & 9 		8-97371-947-0 02 1 1412- ●
411 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> (D) T=5.5 		8-97371-951-0 04 1 0807- ●
411 CLIP; FUEL TANK UNIT HARNESS
FUEL TANK 113L,30GAL<NH2> (B) ID=6.5 		5-09709-117-0 01 1 0807-1308 ● ●
411 CLIP; FUEL TANK UNIT HARNESS
FUEL TANK 125L,33GAL<NL7> (A) L=140 		5-09707-031-1 02 1 0807-1411 ● ●
411 CLIP; FUEL TANK UNIT HARNESS
FUEL TANK 140L,37GAL<N19> (C) ID=5-12 L=18 		1-09709-287-0 01 1 0807- ● ●
411 CLIP; FUEL TANK UNIT HARNESS
FUEL TANK 140L,37GAL<N19> (A) L=140 		5-09707-031-1 01 1 0807- ● ●
512 CAP; CONNECTOR
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (B) 		8-97145-503-0 01 1 0807-0912 ● ●
512 CAP; CONNECTOR
FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (A) 		8-98067-270-1 01 1 0807-1411 ● ●
512 CAP; CONNECTOR
FUEL TANK 140L,37GAL<N19> (A) 		8-98067-270-1 01 1 1412- ● ●
635 SCREW; ROLL OVER & FLOAT VALVE
FUEL TANK 140L,37GAL<N19> M5X10 W/LK WASHER 		0-36220-510-0 05 1 0807- ● ●
640 VENTILATOR; HOSE,BREATHER
FUEL TANK 140L,37GAL<N19> 		8-98092-398-0 01 1 0807- ● ●
çizim 93297
1 6 3 19 25 135 11 8 422 133 129 130 158 512 411 44 42 42 43 49 468 322 47 64
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK; FUEL
FUEL TANK 113L,30GAL<NH2> (B) 620X530X440 113L 		8-98088-839-3 01 1 0807-1203 ● ●
1 TANK; FUEL
FUEL TANK 113L,30GAL<NH2> (B) 620X530X440 113L 		8-98210-992-0 01 1 1204-1308 ● ●
1 TANK; FUEL
FUEL TANK 113L,30GAL<NH2> (B) 620X530X440 113L 		8-98250-514-0 01 1 1309-1402 ● ●
1 TANK; FUEL
FUEL TANK 113L,30GAL<NH2> (B) 620X530X440 113L 		8-98256-413-1 01 1 1403- ● ●
1 TANK; FUEL
FUEL TANK 125L,33GAL<NL7> (A) OD=400 L=1130 124.5L 		8-98103-529-1 01 1 0807-1008 ● ●
1 TANK; FUEL
FUEL TANK 125L,33GAL<NL7> (A) OD=400 L=1130 124.5L 		8-98167-225-1 01 1 1009-1203 ● ●
1 TANK; FUEL
FUEL TANK 125L,33GAL<NL7> (A) OD=400 L=1130 124.5L 		8-98210-995-0 01 1 1204-1308 ● ●
1 TANK; FUEL
FUEL TANK 125L,33GAL<NL7> (A) OD=400 L=1130 124.5L 		8-98250-517-0 01 1 1309-1411 ● ●
1 TANK; FUEL
FUEL TANK 140L,37GAL<N19> (C) 820X500X400 140L 		8-98051-031-4 01 1 0807- ● ●
3 UNIT; FUEL TANK,SUB
FUEL TANK 113L,30GAL<NH2> (B) 		8-98249-269-0 01 1 1309- ● ●
3 UNIT; FUEL TANK,SUB
FUEL TANK 125L,33GAL<NL7> (A) 		8-98249-270-0 01 1 1309-1411 ● ●
3 UNIT; FUEL TANK,SUB
FUEL TANK 113L,30GAL<NH2> (B) 		8-98081-181-1 01 1 0807-1203 ● ●
3 UNIT; FUEL TANK,SUB
FUEL TANK 113L,30GAL<NH2> (B) 		8-98203-548-0 01 1 1204-1308 ● ●
3 UNIT; FUEL TANK,SUB
FUEL TANK 125L,33GAL<NL7> (A) 		8-98081-182-0 01 1 0807-1203 ● ●
3 UNIT; FUEL TANK,SUB
FUEL TANK 125L,33GAL<NL7> (A) 		8-98203-549-0 01 1 1204-1308 ● ●
3 UNIT; FUEL TANK,SUB
FUEL TANK 140L,37GAL<N19> (C) 		8-98065-304-0 01 1 0807- ● ●
6 SCREW; TANK UNIT TO SUB FUEL TANK
FUEL TANK 125L,33GAL<NL7> M5X10 W/LK WASHER 		0-36220-510-0 05 1 1309-1411 ● ●
6 SCREW; TANK UNIT TO SUB FUEL TANK
FUEL TANK 113L,30GAL<NH2>,FUEL TANK 125L, 33GAL<NL7> M5X10 W/LK WASHER 		0-36220-510-0 05 1 0807-1308 ● ●
6 SCREW; TANK UNIT TO SUB FUEL TANK
FUEL TANK 140L,37GAL<N19> M5X12 W/LK WASHER 		0-36220-512-0 05 1 0807-1308 ● ●
6 SCREW; TANK UNIT TO SUB FUEL TANK
FUEL TANK 113L,30GAL<NH2>,FUEL TANK 140L, 37GAL<N19> M5X12 W/LK WASHER 		0-36220-512-0 05 1 1309- ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 140L,37GAL<N19> (C) ID=18.2 OD=26.0 		9-09571-418-0 01 1 1504- ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 113L,30GAL<NH2>,FUEL TANK 125L, 33GAL<NL7> (A) ID=14.2 OD=23.0 		9-09572-014-0 01 1 1309-1411 ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 113L,30GAL<NH2> (A) ID=14.2 OD=23.0 		9-09572-014-0 01 1 1412- ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 113L,30GAL<NH2>,FUEL TANK 125L, 33GAL<NL7> (A) ID=14.2 OD=23.0 		9-09572-014-0 01 1 0807-1308 ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 140L,37GAL<N19> (B) ID=30 		8-98067-041-0 01 1 0807- ● ●
11 PLUG; DRAIN,FUEL TANK
FUEL TANK 113L,30GAL<NH2>,FUEL TANK 125L, 33GAL<NL7> M14X14 		8-98202-438-0 01 1 1309-1411 ● ●
11 PLUG; DRAIN,FUEL TANK
FUEL TANK 113L,30GAL<NH2> M14X14 		8-98202-438-0 01 1 1412- ● ●
11 PLUG; DRAIN,FUEL TANK
FUEL TANK 113L,30GAL<NH2>,FUEL TANK 125L, 33GAL<NL7> M14X14 		9-09862-156-0 01 1 0807-1203 ● ●
11 PLUG; DRAIN,FUEL TANK
FUEL TANK 113L,30GAL<NH2>,FUEL TANK 125L, 33GAL<NL7> M14X14 		8-98202-438-0 01 1 1204-1308 ● ●
11 PLUG; DRAIN,FUEL TANK
FUEL TANK 140L,37GAL<N19> M18 		8-98068-006-0 01 1 0807- ● ●
19 GASKET; FUEL TANK UNIT
FUEL TANK 113L,30GAL<NH2>,FUEL TANK 125L, 33GAL<NL7> 		8-98051-797-0 01 1 1309-1411 ● ●
19 GASKET; FUEL TANK UNIT
FUEL TANK 113L,30GAL<NH2> 		8-98051-797-0 01 1 1412- ● ●
19 GASKET; FUEL TANK UNIT
FUEL TANK 113L,30GAL<NH2>,FUEL TANK 125L, 33GAL<NL7>,FUEL TANK 140L,37GAL<N19> ID=42 OD=71 		5-83148-001-0 01 1 0807-1308 ● ●
19 GASKET; FUEL TANK UNIT
FUEL TANK 140L,37GAL<N19> ID=42 OD=71 		5-83148-001-0 01 1 1309- ● ●
25 CAP; FILLER,FUEL TANK
FUEL TANK 125L,33GAL<NL7> (A) 		8-97233-810-0 01 1 1309-1411 ● ●
25 CAP; FILLER,FUEL TANK
FUEL TANK 113L,30GAL<NH2> (B) 		8-97218-702-0 01 1 0807- ● ●
25 CAP; FILLER,FUEL TANK
FUEL TANK 125L,33GAL<NL7> (A) 		8-97233-810-0 01 1 0807-1308 ● ●
42 NUT; SUPPORT BELT
FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> M10 		0-91110-510-0 04 1 0807-1411 ● ●
42 NUT; SUPPORT BELT
FUEL TANK 140L,37GAL<N19> M10 		0-91110-510-0 04 1 1412- ● ●
43 BRACKET; FUEL TANK
FUEL TANK 125L,33GAL<NL7> 		5-53461-044-2 02 1 0807-1411 ● ●
43 BRACKET; FUEL TANK
WHEEL BASE 2800MM(28W) FUEL TANK 140L,37GAL<N19> FRONT 		8-98297-144-0 01 1 1412- ● ●
43 BRACKET; FUEL TANK
FUEL TANK 140L,37GAL<N19> FRONT 		8-98049-768-1 01 1 0807-1411 ● ●
43 BRACKET; FUEL TANK
WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W) FUEL TANK 140L,37GAL<N19> FRONT 		8-98049-768-1 01 1 1412- ●
43 BRACKET; FUEL TANK
WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> FRONT 		8-98049-768-1 01 1 1412- ●
43 BRACKET; FUEL TANK
FUEL TANK 140L,37GAL<N19> REAR 		8-98083-790-0 01 1 0807-1312 ● ●
43 BRACKET; FUEL TANK
FUEL TANK 140L,37GAL<N19> REAR 		8-98127-229-0 01 1 1401- ● ●
44 BAND; FUEL TANK
FUEL TANK 125L,33GAL<NL7> 		8-94418-159-0 02 1 0807-1411 ● ●
44 BAND; FUEL TANK
FUEL TANK 140L,37GAL<N19> L=925 		8-98049-769-1 02 1 0807- ● ●
47 SPACER; FUEL TANK
FUEL TANK 125L,33GAL<NL7> REAR 		8-98067-786-0 01 1 0807-1411 ● ●
47 SPACER; FUEL TANK
FUEL TANK 125L,33GAL<NL7> FRONT 		8-98082-244-0 01 1 0807-1411 ● ●
49 NUT; BRKT
WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W) FUEL TANK 140L,37GAL<N19> M10 FLANGE 		0-91180-210-0 08 1 1412- ●
49 NUT; BRKT
WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> M10 FLANGE 		0-91180-210-0 08 1 1412- ●
49 NUT; BRKT
FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> M10 FLANGE 		0-91180-210-0 08 1 0807-1411 ● ●
49 NUT; BRKT
WHEEL BASE 2800MM(28W) FUEL TANK 140L,37GAL<N19> M10 FLANGE 		0-91180-210-0 05 1 1412- ● ●
64 BOLT; FUEL TANK
FUEL TANK 113L,30GAL<NH2> M12X30 FLANGE 		0-28651-230-0 08 1 0807- ● ●
64 BOLT; FUEL TANK
FUEL TANK 125L,33GAL<NL7> M10X40 FLANGE 		0-28661-040-0 08 1 0807-1411 ● ●
129 VENTILATOR; SAFETY,FUEL TANK
FUEL TANK 113L,30GAL<NH2> (B) 		8-98097-612-1 01 1 1309- ● ●
129 VENTILATOR; SAFETY,FUEL TANK
FUEL TANK 125L,33GAL<NL7> (A) 		8-98106-041-1 01 1 1309-1411 ● ●
129 VENTILATOR; SAFETY,FUEL TANK
FUEL TANK 113L,30GAL<NH2> (B) 		8-98097-612-1 01 1 0807-1308 ● ●
129 VENTILATOR; SAFETY,FUEL TANK
FUEL TANK 125L,33GAL<NL7> (A) 		8-98106-041-1 01 1 0807-1308 ● ●
130 SCREW; SAFETY VENT
FUEL TANK 113L,30GAL<NH2>,FUEL TANK 125L, 33GAL<NL7> M5X14 W/LK WASHER 		0-36220-514-0 05 1 1309-1411 ● ●
130 SCREW; SAFETY VENT
FUEL TANK 113L,30GAL<NH2> M5X14 W/LK WASHER 		0-36220-514-0 05 1 1412- ● ●
130 SCREW; SAFETY VENT
FUEL TANK 113L,30GAL<NH2>,FUEL TANK 125L, 33GAL<NL7> M5X14 W/LK WASHER 		0-36220-514-0 05 1 0807-1308 ● ●
133 GASKET; VALVE,FUEL TANK
FUEL TANK 125L,33GAL<NL7> 		1-22459-001-1 01 1 1309-1411 ● ●
133 GASKET; VALVE,FUEL TANK
FUEL TANK 125L,33GAL<NL7> 		1-22459-001-1 01 1 0807-1308 ● ●
133 GASKET; VALVE,FUEL TANK
FUEL TANK 113L,30GAL<NH2> 		8-94366-904-0 01 1 0807-1308 ● ●
133 GASKET; VALVE,FUEL TANK
FUEL TANK 113L,30GAL<NH2> 		8-94366-904-0 01 1 1309- ● ●
135 COVER; SAFETY VENT
FUEL TANK 125L,33GAL<NL7> 		5-22458-005-0 01 1 1309-1411 ● ●
158 VALVE; ROLL OVER & FLOAT
FUEL TANK 125L,33GAL<NL7> 		8-98103-512-0 01 1 1309-1411 ● ●
158 VALVE; ROLL OVER & FLOAT
FUEL TANK 140L,37GAL<N19> 		8-98095-223-0 01 1 0807- ● ●
158 VALVE; ROLL OVER & FLOAT
FUEL TANK 125L,33GAL<NL7> 		8-98103-512-0 01 1 0807-1308 ● ●
322 BOLT; BRKT FIX
FUEL TANK 125L,33GAL<NL7> M10X30 FLANGE 		0-28661-030-0 08 1 0807-1411 ● ●
322 BOLT; BRKT FIX
WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W) FUEL TANK 140L,37GAL<N19> M10X40 FLANGE 		0-28661-040-0 08 1 1412- ●
322 BOLT; BRKT FIX
WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> M10X40 FLANGE 		0-28661-040-0 08 1 1412- ●
322 BOLT; BRKT FIX
FUEL TANK 140L,37GAL<N19> M10X40 FLANGE 		0-28661-040-0 08 1 0807-1411 ● ●
322 BOLT; BRKT FIX
WHEEL BASE 2800MM(28W) FUEL TANK 140L,37GAL<N19> M10X40 FLANGE 		0-28661-040-0 07 1 1412- ● ●
411 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W) FUEL TANK 140L,37GAL<N19> (E) T=4.5 & 9 		8-97371-947-0 03 1 0807- ● ●
411 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W) FUEL TANK 140L,37GAL<N19> (D) T=5.5 		8-97371-951-0 01 1 0807- ● ●
411 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> (E) T=4.5 & 9 		8-97371-947-0 02 1 0807-1411 ●
411 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2800MM(28W) FUEL TANK 140L,37GAL<N19> (E) T=4.5 & 9 		8-97371-947-0 02 1 1412- ●
411 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2800MM(28W),WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> (E) T=4.5 & 9 		8-97371-947-0 02 1 1412- ●
411 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> (D) T=5.5 		8-97371-951-0 04 1 0807- ●
411 CLIP; FUEL TANK UNIT HARNESS
FUEL TANK 113L,30GAL<NH2> (B) ID=6.5 		5-09709-117-0 01 1 0807-1308 ● ●
411 CLIP; FUEL TANK UNIT HARNESS
FUEL TANK 125L,33GAL<NL7> (A) L=140 		5-09707-031-1 02 1 0807-1411 ● ●
411 CLIP; FUEL TANK UNIT HARNESS
FUEL TANK 140L,37GAL<N19> (C) ID=5-12 L=18 		1-09709-287-0 01 1 0807- ● ●
411 CLIP; FUEL TANK UNIT HARNESS
FUEL TANK 140L,37GAL<N19> (A) L=140 		5-09707-031-1 01 1 0807- ● ●
422 PLUG; FUEL TANK
FUEL TANK 140L,37GAL<N19> M30 		8-98067-038-0 01 1 1504- ● ●
422 PLUG; FUEL TANK
FUEL TANK 125L,33GAL<NL7> 		8-94421-626-0 01 1 0807-1008 ● ●
468 NUT
FUEL TANK 113L,30GAL<NH2> (B) M10 FLANGE 		0-91180-210-0 05 1 0807- ● ●
468 NUT
FUEL TANK 113L,30GAL<NH2> (A) M12 FLANGE 		0-91180-212-0 04 1 0807- ● ●
468 NUT
FUEL TANK 125L,33GAL<NL7> (B) M10 FLANGE 		0-91180-210-0 08 1 0807-1411 ● ●
512 CAP; CONNECTOR
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (B) 		8-97145-503-0 01 1 0807-0912 ● ●
512 CAP; CONNECTOR
FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (A) 		8-98067-270-1 01 1 0807-1411 ● ●
512 CAP; CONNECTOR
FUEL TANK 140L,37GAL<N19> (A) 		8-98067-270-1 01 1 1412- ● ●
çizim 185934
411 411 411 411 1 25 512 8 422 8 11 159 656 635 158 656 640 19 6 3 14
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK; FUEL
FUEL TANK 113L,30GAL<NH2> (B) 620X530X440 113L 		8-98088-839-3 01 1 0807-1203 ● ●
1 TANK; FUEL
FUEL TANK 113L,30GAL<NH2> (B) 620X530X440 113L 		8-98210-992-0 01 1 1204-1308 ● ●
1 TANK; FUEL
FUEL TANK 113L,30GAL<NH2> (B) 620X530X440 113L 		8-98250-514-0 01 1 1309-1402 ● ●
1 TANK; FUEL
FUEL TANK 113L,30GAL<NH2> (B) 620X530X440 113L 		8-98256-413-1 01 1 1403- ● ●
1 TANK; FUEL
FUEL TANK 125L,33GAL<NL7> (A) OD=400 L=1130 124.5L 		8-98103-529-1 01 1 0807-1008 ● ●
1 TANK; FUEL
FUEL TANK 125L,33GAL<NL7> (A) OD=400 L=1130 124.5L 		8-98167-225-1 01 1 1009-1203 ● ●
1 TANK; FUEL
FUEL TANK 125L,33GAL<NL7> (A) OD=400 L=1130 124.5L 		8-98210-995-0 01 1 1204-1308 ● ●
1 TANK; FUEL
FUEL TANK 125L,33GAL<NL7> (A) OD=400 L=1130 124.5L 		8-98250-517-0 01 1 1309-1411 ● ●
1 TANK; FUEL
FUEL TANK 140L,37GAL<N19> (C) 820X500X400 140L 		8-98051-031-4 01 1 0807- ● ●
3 UNIT; FUEL TANK,SUB
FUEL TANK 113L,30GAL<NH2> (B) 		8-98249-269-0 01 1 1309- ● ●
3 UNIT; FUEL TANK,SUB
FUEL TANK 125L,33GAL<NL7> (A) 		8-98249-270-0 01 1 1309-1411 ● ●
3 UNIT; FUEL TANK,SUB
FUEL TANK 113L,30GAL<NH2> (B) 		8-98081-181-1 01 1 0807-1203 ● ●
3 UNIT; FUEL TANK,SUB
FUEL TANK 113L,30GAL<NH2> (B) 		8-98203-548-0 01 1 1204-1308 ● ●
3 UNIT; FUEL TANK,SUB
FUEL TANK 125L,33GAL<NL7> (A) 		8-98081-182-0 01 1 0807-1203 ● ●
3 UNIT; FUEL TANK,SUB
FUEL TANK 125L,33GAL<NL7> (A) 		8-98203-549-0 01 1 1204-1308 ● ●
3 UNIT; FUEL TANK,SUB
FUEL TANK 140L,37GAL<N19> (C) 		8-98065-304-0 01 1 0807- ● ●
6 SCREW; TANK UNIT TO SUB FUEL TANK
FUEL TANK 125L,33GAL<NL7> M5X10 W/LK WASHER 		0-36220-510-0 05 1 1309-1411 ● ●
6 SCREW; TANK UNIT TO SUB FUEL TANK
FUEL TANK 113L,30GAL<NH2>,FUEL TANK 125L, 33GAL<NL7> M5X10 W/LK WASHER 		0-36220-510-0 05 1 0807-1308 ● ●
6 SCREW; TANK UNIT TO SUB FUEL TANK
FUEL TANK 140L,37GAL<N19> M5X12 W/LK WASHER 		0-36220-512-0 05 1 0807-1308 ● ●
6 SCREW; TANK UNIT TO SUB FUEL TANK
FUEL TANK 113L,30GAL<NH2>,FUEL TANK 140L, 37GAL<N19> M5X12 W/LK WASHER 		0-36220-512-0 05 1 1309- ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 140L,37GAL<N19> (C) ID=18.2 OD=26.0 		9-09571-418-0 01 1 1504- ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 113L,30GAL<NH2>,FUEL TANK 125L, 33GAL<NL7> (A) ID=14.2 OD=23.0 		9-09572-014-0 01 1 1309-1411 ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 113L,30GAL<NH2> (A) ID=14.2 OD=23.0 		9-09572-014-0 01 1 1412- ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 113L,30GAL<NH2>,FUEL TANK 125L, 33GAL<NL7> (A) ID=14.2 OD=23.0 		9-09572-014-0 01 1 0807-1308 ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 140L,37GAL<N19> (B) ID=30 		8-98067-041-0 01 1 0807- ● ●
11 PLUG; DRAIN,FUEL TANK
FUEL TANK 113L,30GAL<NH2>,FUEL TANK 125L, 33GAL<NL7> M14X14 		8-98202-438-0 01 1 1309-1411 ● ●
11 PLUG; DRAIN,FUEL TANK
FUEL TANK 113L,30GAL<NH2> M14X14 		8-98202-438-0 01 1 1412- ● ●
11 PLUG; DRAIN,FUEL TANK
FUEL TANK 113L,30GAL<NH2>,FUEL TANK 125L, 33GAL<NL7> M14X14 		9-09862-156-0 01 1 0807-1203 ● ●
11 PLUG; DRAIN,FUEL TANK
FUEL TANK 113L,30GAL<NH2>,FUEL TANK 125L, 33GAL<NL7> M14X14 		8-98202-438-0 01 1 1204-1308 ● ●
11 PLUG; DRAIN,FUEL TANK
FUEL TANK 140L,37GAL<N19> M18 		8-98068-006-0 01 1 0807- ● ●
14 HOSE; BREATHER,OUTLET
FUEL TANK 140L,37GAL<N19> L=460 		8-98082-184-1 01 1 0807- ● ●
19 GASKET; FUEL TANK UNIT
FUEL TANK 113L,30GAL<NH2>,FUEL TANK 125L, 33GAL<NL7> 		8-98051-797-0 01 1 1309-1411 ● ●
19 GASKET; FUEL TANK UNIT
FUEL TANK 113L,30GAL<NH2> 		8-98051-797-0 01 1 1412- ● ●
19 GASKET; FUEL TANK UNIT
FUEL TANK 113L,30GAL<NH2>,FUEL TANK 125L, 33GAL<NL7>,FUEL TANK 140L,37GAL<N19> ID=42 OD=71 		5-83148-001-0 01 1 0807-1308 ● ●
19 GASKET; FUEL TANK UNIT
FUEL TANK 140L,37GAL<N19> ID=42 OD=71 		5-83148-001-0 01 1 1309- ● ●
25 CAP; FILLER,FUEL TANK
FUEL TANK 125L,33GAL<NL7> (A) 		8-97233-810-0 01 1 1309-1411 ● ●
25 CAP; FILLER,FUEL TANK
FUEL TANK 113L,30GAL<NH2> (B) 		8-97218-702-0 01 1 0807- ● ●
25 CAP; FILLER,FUEL TANK
FUEL TANK 125L,33GAL<NL7> (A) 		8-97233-810-0 01 1 0807-1308 ● ●
158 VALVE; ROLL OVER & FLOAT
FUEL TANK 125L,33GAL<NL7> 		8-98103-512-0 01 1 1309-1411 ● ●
158 VALVE; ROLL OVER & FLOAT
FUEL TANK 140L,37GAL<N19> 		8-98095-223-0 01 1 0807- ● ●
158 VALVE; ROLL OVER & FLOAT
FUEL TANK 125L,33GAL<NL7> 		8-98103-512-0 01 1 0807-1308 ● ●
159 SEAL; ROLL OVER & FLOAT VALVE
FUEL TANK 140L,37GAL<N19> ID=45 OD=67 		1-83149-003-0 01 1 0807- ● ●
411 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W) FUEL TANK 140L,37GAL<N19> (E) T=4.5 & 9 		8-97371-947-0 03 1 0807- ● ●
411 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W) FUEL TANK 140L,37GAL<N19> (D) T=5.5 		8-97371-951-0 01 1 0807- ● ●
411 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> (E) T=4.5 & 9 		8-97371-947-0 02 1 0807-1411 ●
411 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2800MM(28W) FUEL TANK 140L,37GAL<N19> (E) T=4.5 & 9 		8-97371-947-0 02 1 1412- ●
411 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2800MM(28W),WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> (E) T=4.5 & 9 		8-97371-947-0 02 1 1412- ●
411 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> (D) T=5.5 		8-97371-951-0 04 1 0807- ●
411 CLIP; FUEL TANK UNIT HARNESS
FUEL TANK 113L,30GAL<NH2> (B) ID=6.5 		5-09709-117-0 01 1 0807-1308 ● ●
411 CLIP; FUEL TANK UNIT HARNESS
FUEL TANK 125L,33GAL<NL7> (A) L=140 		5-09707-031-1 02 1 0807-1411 ● ●
411 CLIP; FUEL TANK UNIT HARNESS
FUEL TANK 140L,37GAL<N19> (C) ID=5-12 L=18 		1-09709-287-0 01 1 0807- ● ●
411 CLIP; FUEL TANK UNIT HARNESS
FUEL TANK 140L,37GAL<N19> (A) L=140 		5-09707-031-1 01 1 0807- ● ●
422 PLUG; FUEL TANK
FUEL TANK 140L,37GAL<N19> M30 		8-98067-038-0 01 1 1504- ● ●
422 PLUG; FUEL TANK
FUEL TANK 125L,33GAL<NL7> 		8-94421-626-0 01 1 0807-1008 ● ●
512 CAP; CONNECTOR
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (B) 		8-97145-503-0 01 1 0807-0912 ● ●
512 CAP; CONNECTOR
FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> (A) 		8-98067-270-1 01 1 0807-1411 ● ●
512 CAP; CONNECTOR
FUEL TANK 140L,37GAL<N19> (A) 		8-98067-270-1 01 1 1412- ● ●
635 SCREW; ROLL OVER & FLOAT VALVE
FUEL TANK 140L,37GAL<N19> M5X10 W/LK WASHER 		0-36220-510-0 05 1 0807- ● ●
640 VENTILATOR; HOSE,BREATHER
FUEL TANK 140L,37GAL<N19> 		8-98092-398-0 01 1 0807- ● ●
656 CLAMP; FUEL TANK
FUEL TANK 140L,37GAL<N19> 		8-98304-416-0 02 1 1504- ● ●

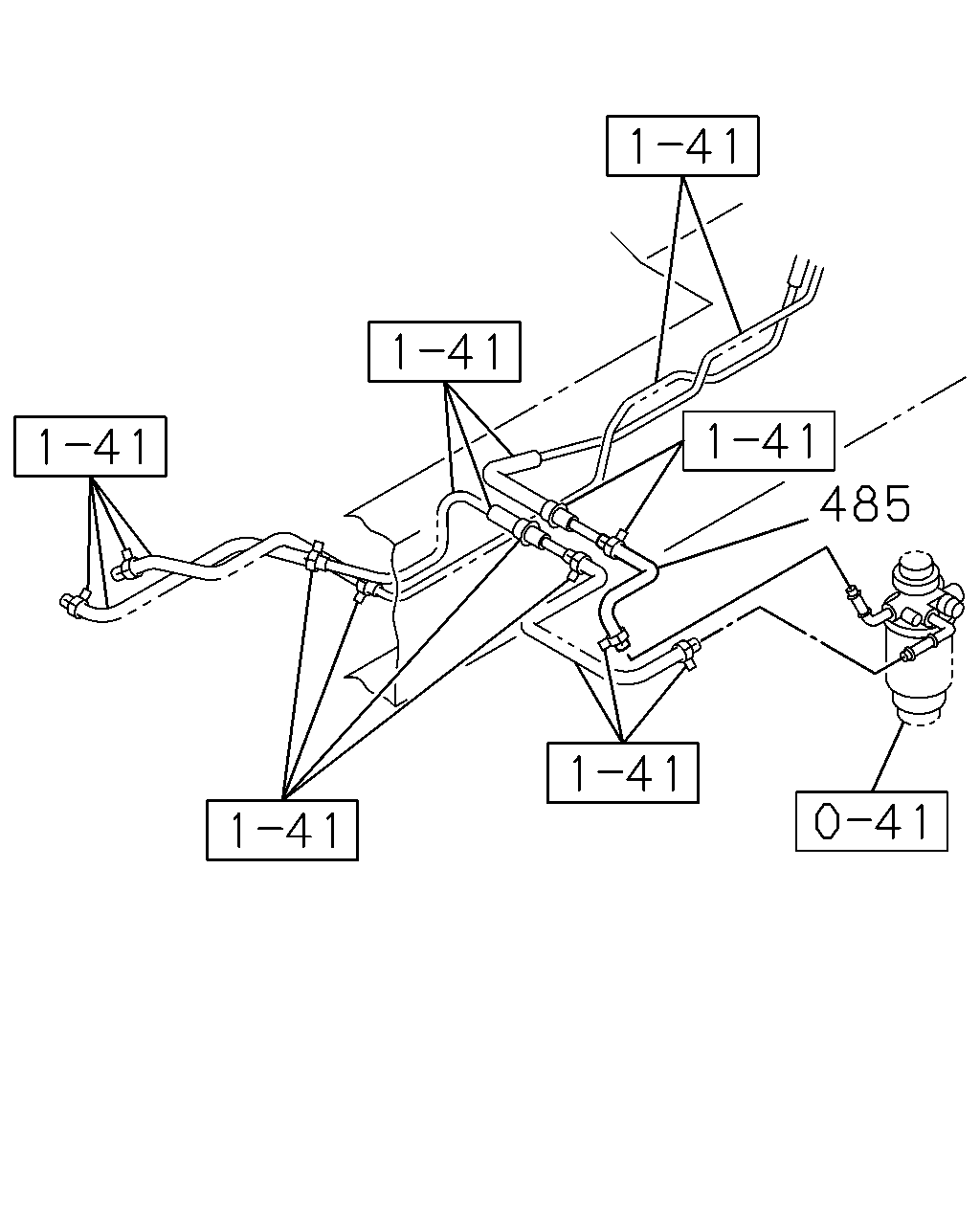

çizim 284053
485
BalonParca AdiParca NoAdetTipApplied Date A B
485 HOSE; FUEL
FUEL TANK 113L,30GAL<NH2> 		8-98082-460-1 01 1 0807-1008 ● ●
485 HOSE; FUEL
FUEL TANK 113L,30GAL<NH2> 		8-98163-579-0 01 1 1009- ● ●
485 HOSE; FUEL
FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> 		8-98084-049-1 01 1 0807-1008 ● ●
485 HOSE; FUEL
FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> 		8-98163-580-0 01 1 1009-1411 ● ●
485 HOSE; FUEL
FUEL TANK 140L,37GAL<N19> 		8-98163-580-0 01 1 1412- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
