◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51174 - ELF400/500/600/BUS ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-11 - RADIATOR HOSE AND SUB TANK ▶
1-11 — RADIATOR HOSE AND SUB TANK (#74875) — 20 parça

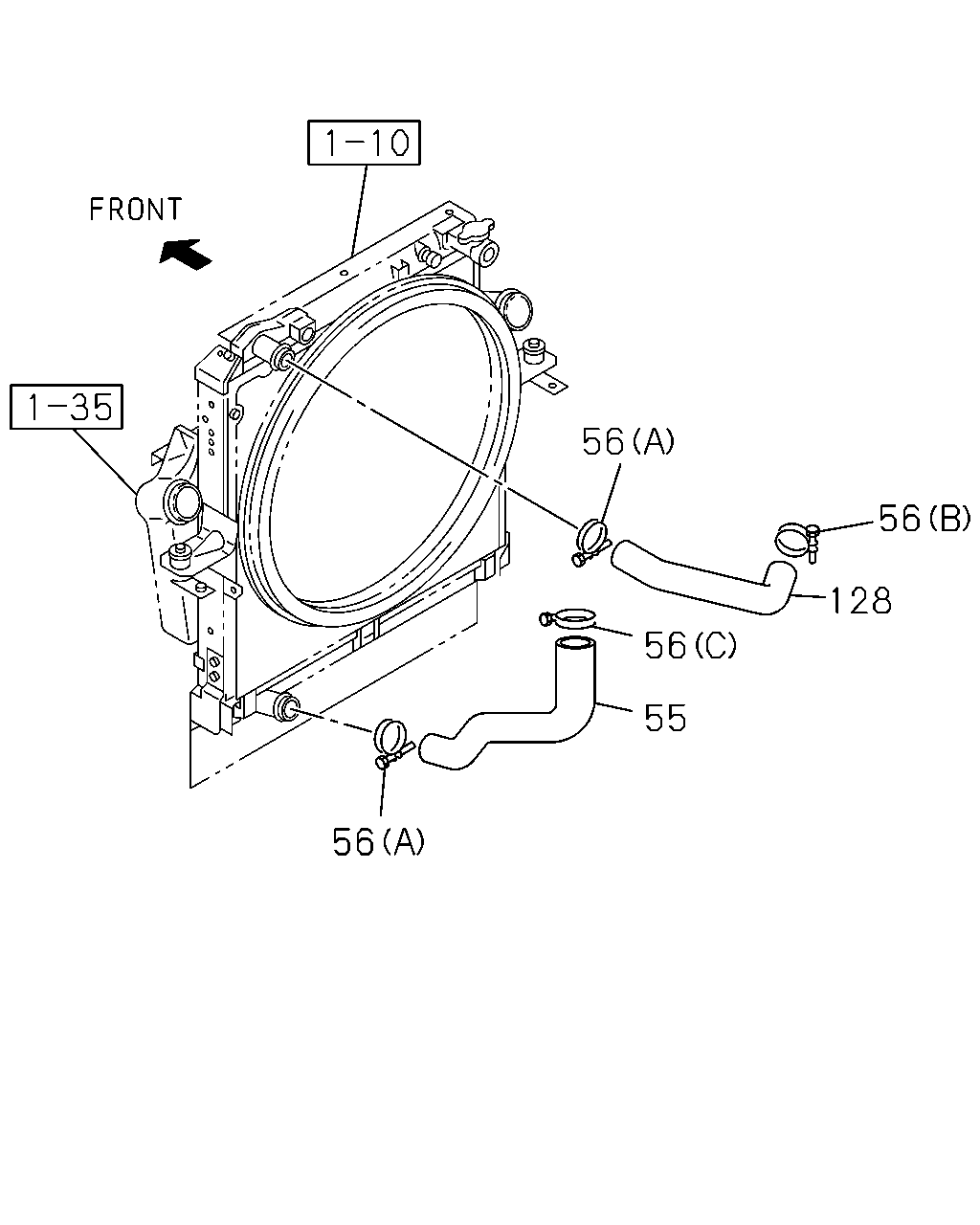

çizim 89432
56 56 128 56 55 56
BalonParca AdiParca NoAdetTipApplied Date A B
55 HOSE; WATER,RAD OUTLET 8-98006-453-0 01 1 0807- ● ●
56 CLIP; WATER HOSE,RAD
(A) ID=48 		8-98036-282-0 02 1 0807-0901 ● ●
56 CLIP; WATER HOSE,RAD
(A) ID=52 		1-09704-057-0 01 1 0902- ● ●
56 CLIP; WATER HOSE,RAD
(B) ID=52 		8-98036-283-0 01 1 0807-0901 ● ●
56 CLIP; WATER HOSE,RAD
(B) ID=48 		8-98133-956-0 02 1 0902- ● ●
56 CLIP; WATER HOSE,RAD
(C) ID=62 		8-98036-284-0 01 1 0807-0901 ● ●
56 CLIP; WATER HOSE,RAD
(C) ID=62 		8-98133-957-0 01 1 0902- ● ●
128 HOSE; WATER,RAD INL 8-98006-452-0 01 1 0807- ● ●

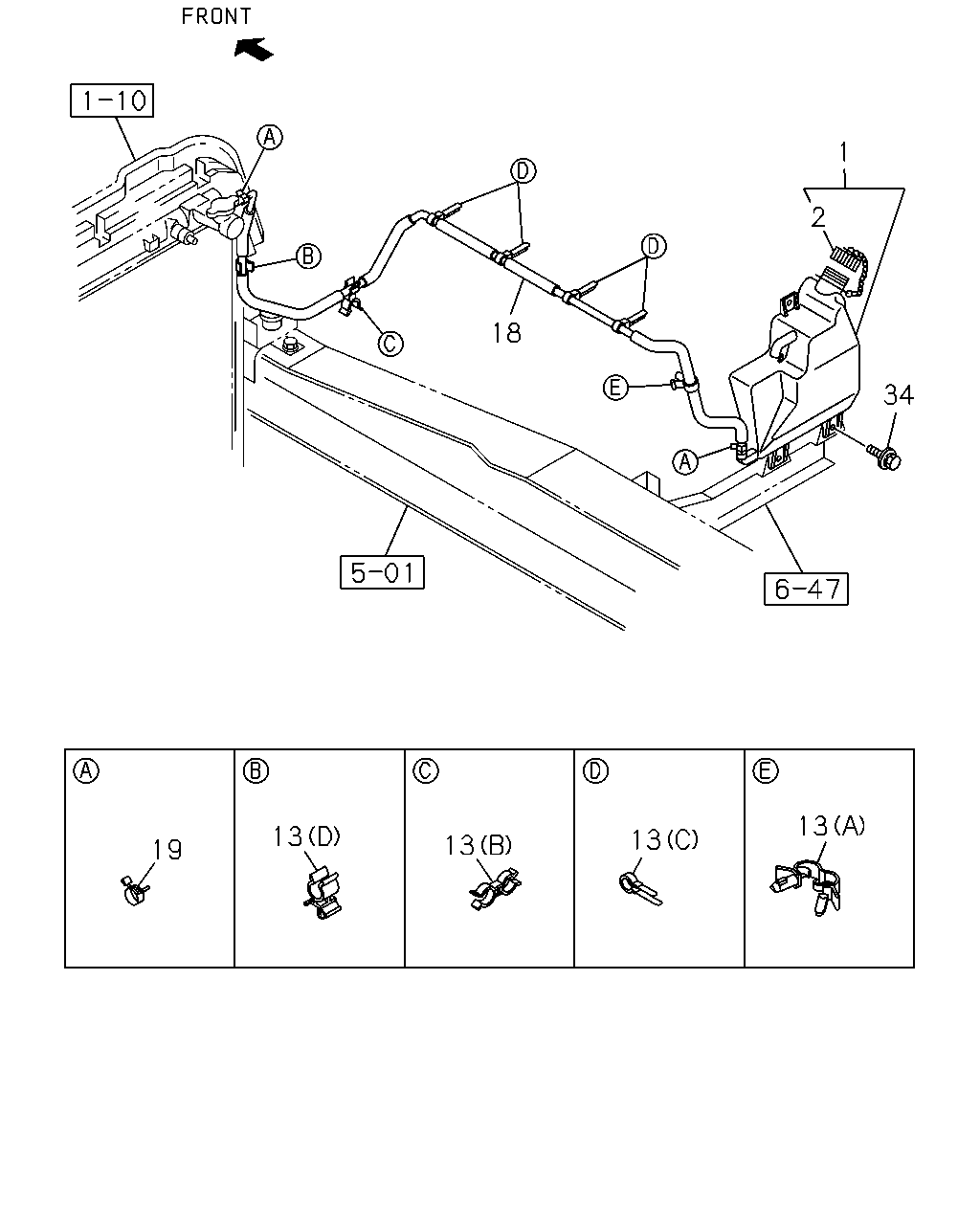

çizim 89458
1 2 18 34 13 13 13 13 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK; SURGE,RAD 8-98004-793-1 01 1 0807-1010 ● ●
1 TANK; SURGE,RAD 8-98178-180-0 01 1 1011- ● ●
2 CAP; SURGE TANK 8-97223-011-2 01 1 0807-1010 ● ●
2 CAP; SURGE TANK 8-98179-197-0 01 1 1011- ● ●
13 CLIP; HOSE,SURGE TANK
(A) ID=13-18 L=14.5 		1-09709-290-0 01 1 0807- ● ●
13 CLIP; HOSE,SURGE TANK
(C) ID=14 L=47 		5-09700-319-0 04 1 0807- ● ●
13 CLIP; HOSE,SURGE TANK
(B) ID=10 & 11 		8-94438-996-0 01 1 0807- ● ●
13 CLIP; HOSE,SURGE TANK
(D) ID=12 		8-98029-256-0 01 1 0807- ● ●
18 HOSE; RAD TO SURGE TANK
L=1450 		8-98006-531-3 01 1 0807- ● ●
19 CLIP; HOSE,SURGE TANK
ID=12 		8-94238-610-0 02 1 0807-0911 ● ●
19 CLIP; HOSE,SURGE TANK
ID=12 		8-98150-358-0 02 1 0912- ● ●
34 BOLT; RESERVE TANK
M8X22 W/LK&PL WASHER 		1-09030-042-0 03 1 0807- ● ●
