◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51174 - ELF400/500/600/BUS ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶
1-10 — RADIATOR (#74874) — 40 parça

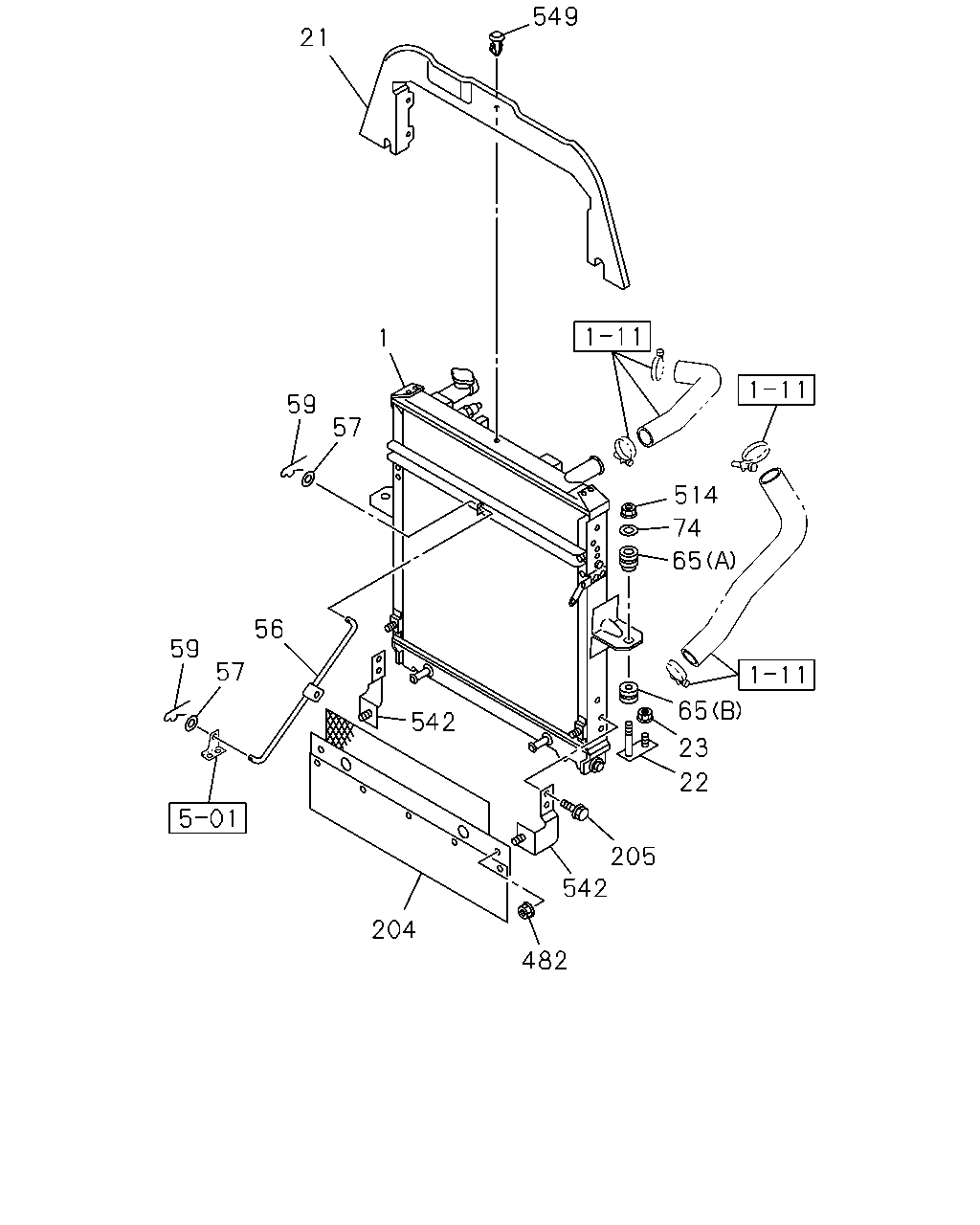

çizim 85474
549 21 1 59 57 514 74 65 56 59 57 65 542 23 22 205 542 204 482
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM 8-98096-250-0 01 1 0807-1410 ● ●
1 RADIATOR ASM 8-98259-949-0 01 1 1411- ● ●
21 SEAL; RAD 8-98006-486-3 01 1 0807- ● ●
22 BRACKET; RAD MTG 8-97330-527-1 02 1 0807- ● ●
23 NUT; RAD MTG
M8 FLANGE 		0-91180-108-0 02 1 0807- ● ●
56 STAY; RAD 8-98006-490-2 01 1 0807- ● ●
57 WASHER; PL,STAY
ID=10.5 		0-91610-510-0 02 1 0807- ● ●
59 PIN; SNAP,STAY
L=32.6 		8-97359-052-0 02 1 0807- ● ●
65 INSULATOR; RAD
(A) 		8-94249-346-0 02 1 0807- ● ●
65 INSULATOR; RAD
(B) 		8-94249-347-0 02 1 0807- ● ●
74 WASHER; PL,CUSHION RUBBER
ID=8.5 OD=36 		8-97359-049-1 02 1 0807- ● ●
204 GUIDE ASM; AIR 8-98057-524-1 01 1 0807- ● ●
205 BOLT; AIR GUIDE
M6X10 FLANGE 		0-28050-610-0 04 1 0807- ● ●
482 NUT; AIR GUIDE
M8 FLANGE 		0-91180-108-0 02 1 0807- ● ●
514 NUT; RAD
M8 FLANGE 		0-91180-108-0 02 1 0807- ● ●
542 BRACKET; AIR GUIDE 8-98025-414-0 01 1 0807- ● ●
542 BRACKET; AIR GUIDE 8-98025-415-0 01 1 0807- ● ●
549 CLIP; SEAL,RAD 8-97228-568-0 07 1 0807- ● ●

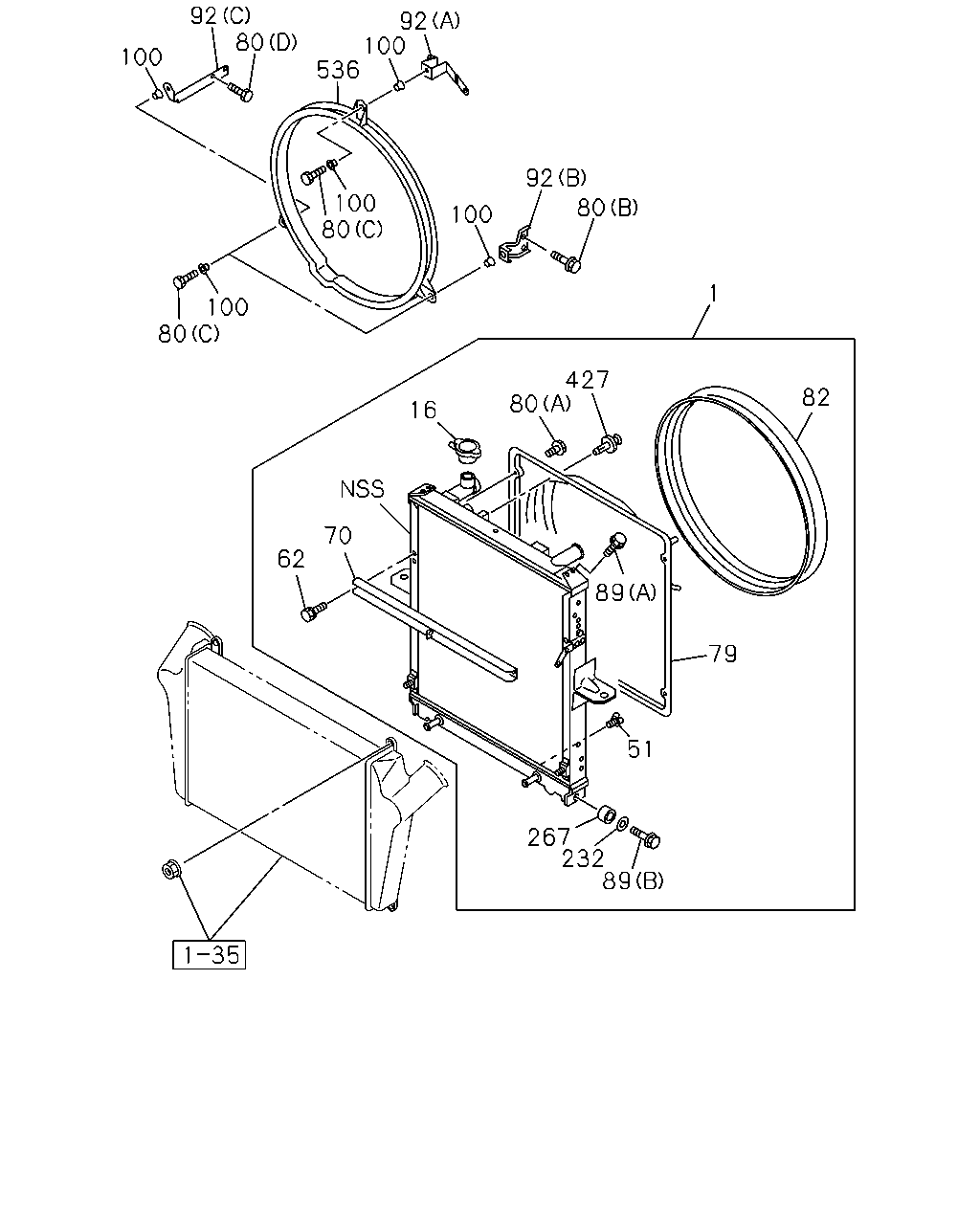

çizim 86189
92 80 92 100 536 100 92 100 80 80 100 1 100 80 427 82 80 16 70 62 89 79 51 267 232 89
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM 8-98096-250-0 01 1 0807-1410 ● ●
1 RADIATOR ASM 8-98259-949-0 01 1 1411- ● ●
16 CAP; RAD 8-97239-187-0 01 1 0807- ● ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0807- ● ●
62 BOLT; STAY
M8X12 FLANGE 		0-28050-812-0 02 1 0807- ● ●
70 STAY; RAD 8-98018-941-0 01 1 0807- ● ●
79 GUIDE; FAN,RAD 8-98006-477-0 01 1 0807- ● ●
80 BOLT; FAN GUIDE
(B) M10X20 FLANGE 		0-28151-020-0 02 1 0807- ● ●
80 BOLT; FAN GUIDE
(D) M10X18 FLANGE 		0-28181-018-0 02 1 0807- ● ●
80 BOLT; FAN GUIDE
(C) M8X30 FLANGE 		0-28650-830-0 03 1 0807- ● ●
80 BOLT; FAN GUIDE
(A) M6X16 		1-21559-481-0 04 1 0807- ● ●
82 COVER; FAN,RAD 8-98006-478-0 01 1 0807- ● ●
89 BOLT
(A) M8X12 FLANGE 		0-28050-812-0 02 1 0807- ● ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 02 1 0807- ● ●
92 BRACKET; FAN GUIDE
(A) 		8-97350-996-0 01 1 0807- ● ●
92 BRACKET; FAN GUIDE
(C) 		8-97350-997-0 01 1 0807- ● ●
92 BRACKET; FAN GUIDE
(B) 		8-97386-233-0 01 1 0807- ● ●
100 RUBBER; MTG 1-09337-027-0 06 1 0807- ● ●
232 COLLAR; DIST,CUSHION RUBBER 1-87410-723-0 02 1 0807- ● ●
267 RUBBER; CUSHION 1-21467-023-0 02 1 0807- ● ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 0807- ● ●
536 SHROUD; FAN 8-97350-995-0 01 1 0807- ● ●
