◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51174 - ELF400/500/600/BUS ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-01 - ACCELERATOR PEDAL AND CONTROL ▶
1-01 — ACCELERATOR PEDAL AND CONTROL (#74873) — 21 parça

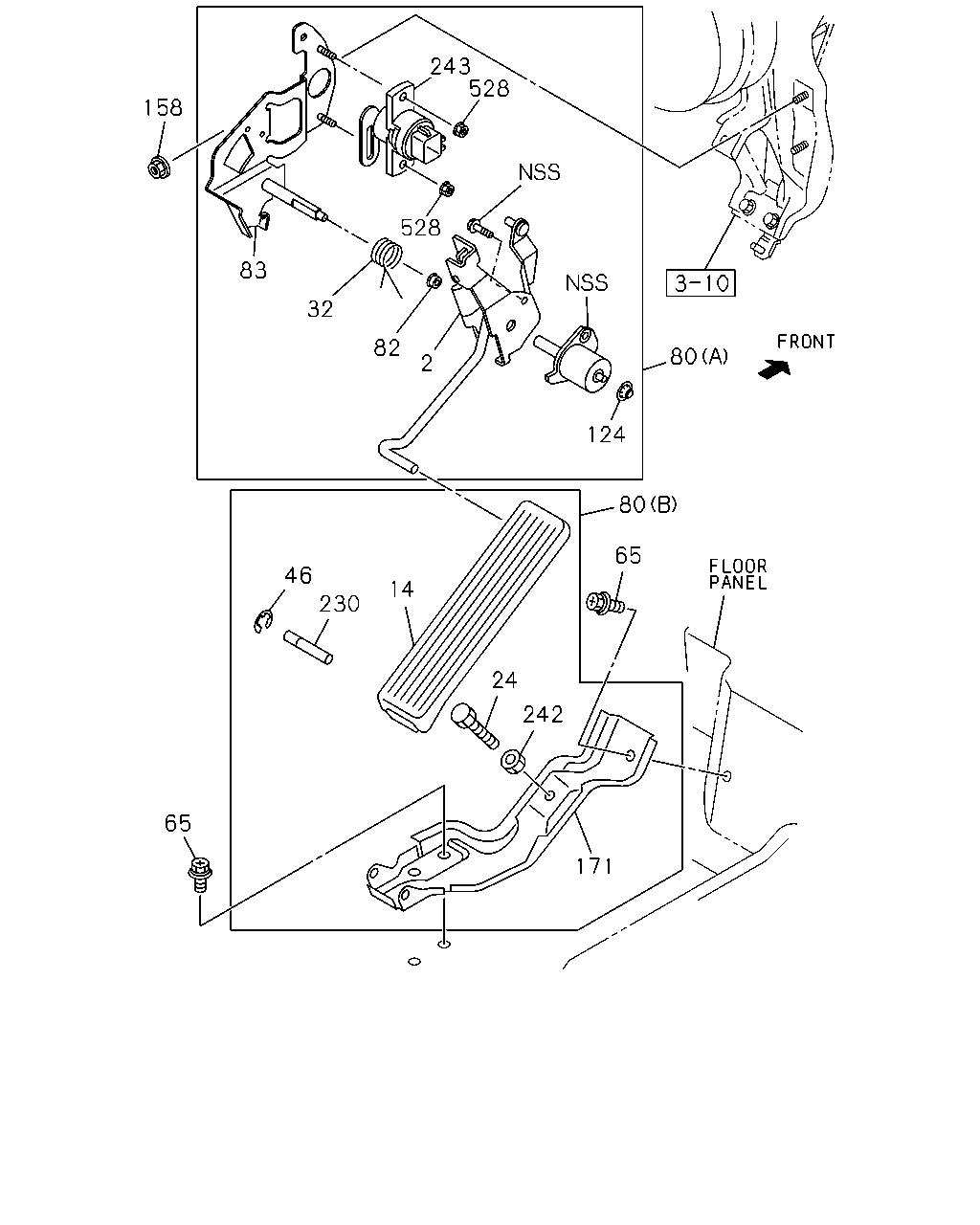

çizim 85255
243 528 158 528 83 32 82 80 2 124 80 65 46 14 230 24 242 65 171
BalonParca AdiParca NoAdetTipApplied Date A B
2 LEVER; ENG CONT 8-98002-158-2 01 1 0807- ● ●
14 PAD; PEDAL,ACCEL 8-97853-062-2 01 1 0807- ● ●
24 BOLT; BRKT
M8X35 FLANGE 		8-98049-562-0 01 1 0807- ● ●
32 SPRING; RETURN,ACCEL PEDAL 8-98031-665-0 01 1 0807- ● ●
46 RING; SNAP,ACCEL CONT PEDAL
ID=4 		0-91805-504-0 01 1 0807- ● ●
65 BOLT
M8X16 W/LK&PL WASHER 		8-94310-730-0 03 1 0807- ● ●
80 LINK ASM; ENG CONT
(B) 		8-98006-714-1 01 1 0807- ● ●
80 LINK ASM; ENG CONT
(A) 		8-97387-358-3 01 1 0807- ● ●
82 BUSHING; ENG CONT LVR 8-97581-053-0 01 1 0807- ● ●
83 BRACKET; CONT LINK 8-98023-885-2 01 1 0807- ● ●
124 NUT; LEVER
ID=7.9 PUSH NUT 		8-94368-617-0 01 1 0807- ● ●
158 NUT; BRKT
M8 FLANGE 		8-94279-060-0 02 1 0807- ● ●
171 BRACKET ASM; ACCEL PEDAL 8-98006-716-1 01 1 0807- ● ●
230 PIN; JOINT,ACCEL PEDAL TO BRKT 8-98026-806-0 01 1 0807- ● ●
242 NUT; ACCEL PEDAL
M8 FLANGE 		8-98040-024-0 01 1 0807- ● ●
243 SENSOR; ACCEL 8-97602-416-0 01 1 0807-0910 ● ●
243 SENSOR; ACCEL 8-98131-263-0 01 1 0911- ● ●
528 NUT; ACCEL SENSOR
M5 		8-94169-022-0 02 1 0807- ● ●

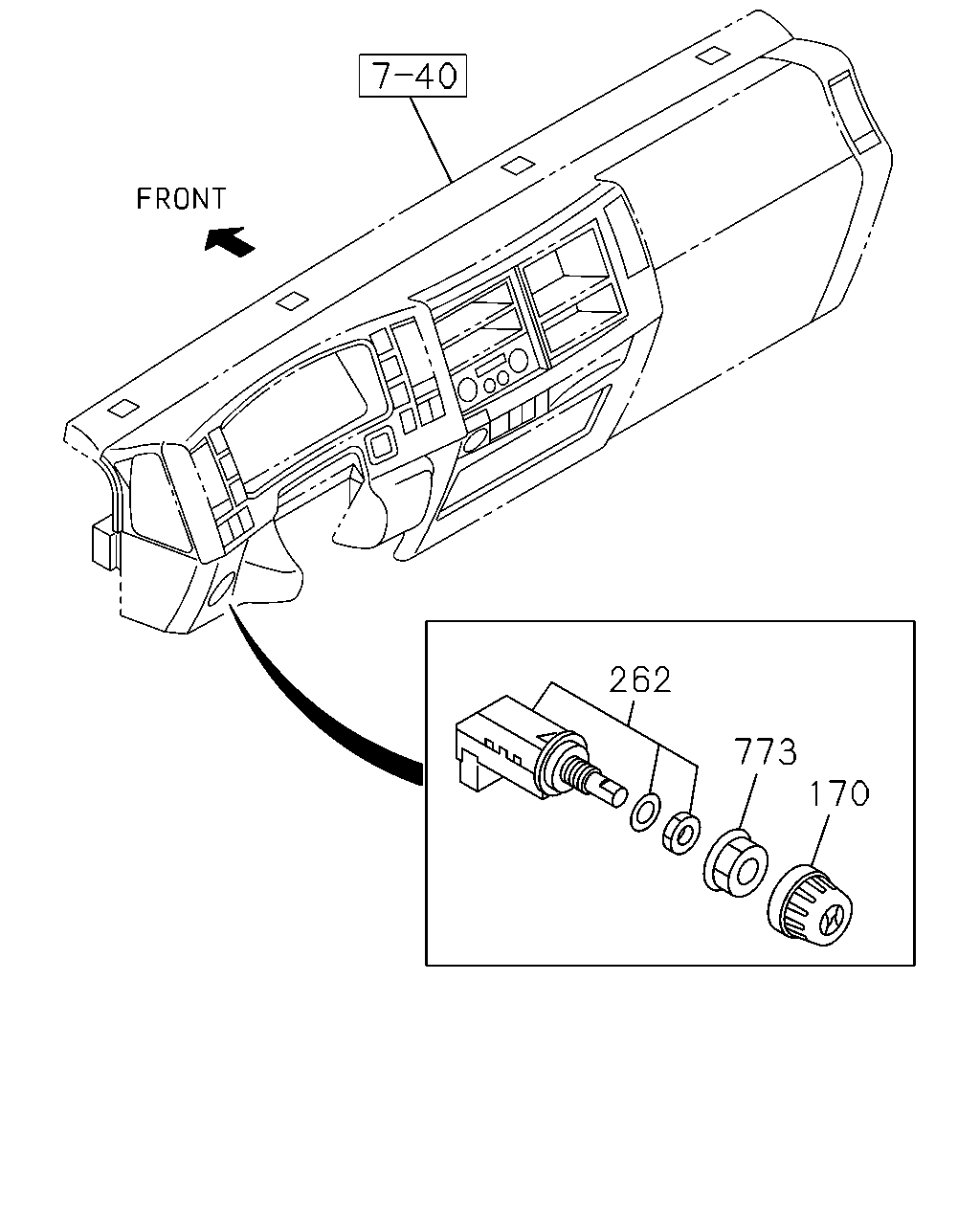

çizim 185929
262 773 170
BalonParca AdiParca NoAdetTipApplied Date A B
170 KNOB 8-98013-420-0 01 1 0807- ● ●
262 SWITCH; ACCEL,IDLE 8-98013-418-0 01 1 0807- ● ●
773 HOLDER; ACCEL PEDAL 8-97352-127-0 01 1 0807- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
