◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51174 - ELF400/500/600/BUS ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-66 - GENERATOR ▶
0-66 — GENERATOR (#74871) — 28 parça

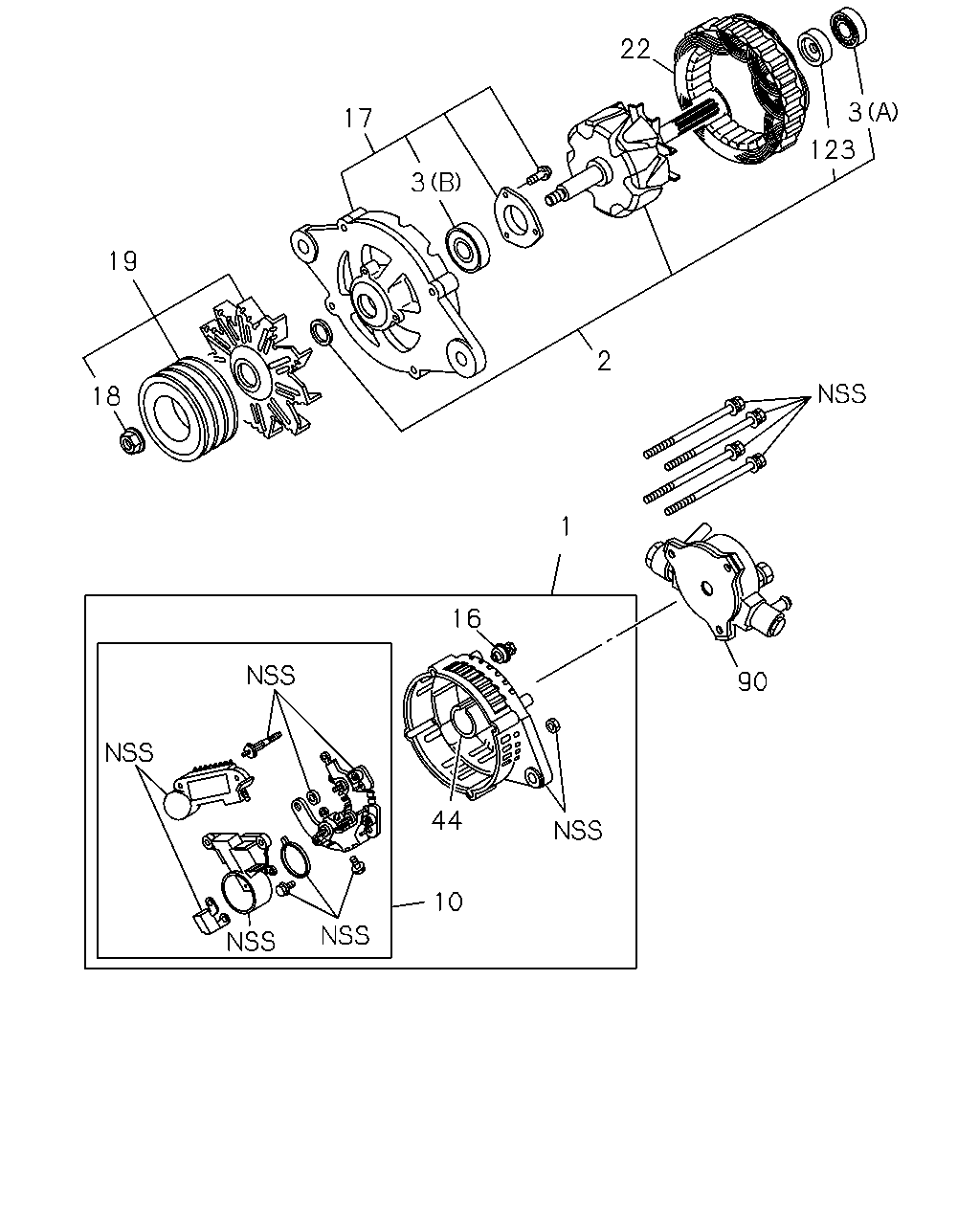

çizim 75201
22 3 17 123 3 19 2 18 1 16 90 44 10
BalonParca AdiParca NoAdetTipApplied Date
1 COVER ASM; RR,GEN
ASM PART: A = 8-98101-762-0 		8-97374-851-0 01 1 -1208
1 COVER ASM; RR,GEN
ASM PART: A = 8-98101-762-0 		8-98230-319-0 01 1 1209-
2 ROTOR; GEN
ASM PART: A = 8-98101-762-0 		8-97310-977-0 01 1 -
3 BEARING; ROTOR,GEN
(A) ASM PART: A = 8-98101-762-0 		8-97062-744-0 01 1 -
3 BEARING; ROTOR,GEN
(B) ASM PART: A = 8-98101-762-0 		8-97161-473-0 01 1 -
10 RECTIFIER; GEN
ASM PART: A = 8-98101-762-0 		8-97374-854-0 01 1 -1208
10 RECTIFIER; GEN
ASM PART: A = 8-98101-762-0 		8-98230-329-0 01 1 1209-
16 TERMINAL ASM; RECTIFIER,GEN
ASM PART: A = 8-98101-762-0 		8-97310-981-0 01 1 -
17 COVER ASM; FRT,GEN
ASM PART: A = 8-98101-762-0 		8-97302-703-0 01 1 -
18 NUT; PULLEY,GEN
ASM PART: A = 8-98101-762-0 		8-97083-293-0 01 1 -
19 PULLEY; GEN
ASM PART: A = 8-98101-762-0 		8-97083-292-0 01 1 -
22 STATOR; GEN
ASM PART: A = 8-98101-762-0 		8-97310-978-0 01 1 -
44 SEAL; RR COVER,GEN
ASM PART: A = 8-98101-762-0 		8-94156-589-0 01 1 -
90 PUMP ASM; VAC,GEN
ASM PART: A = 8-98101-762-0 		8-98106-134-0 01 1 -
123 GUIDE; BRUSH
ASM PART: A = 8-98101-762-0 		8-97062-644-0 01 1 -

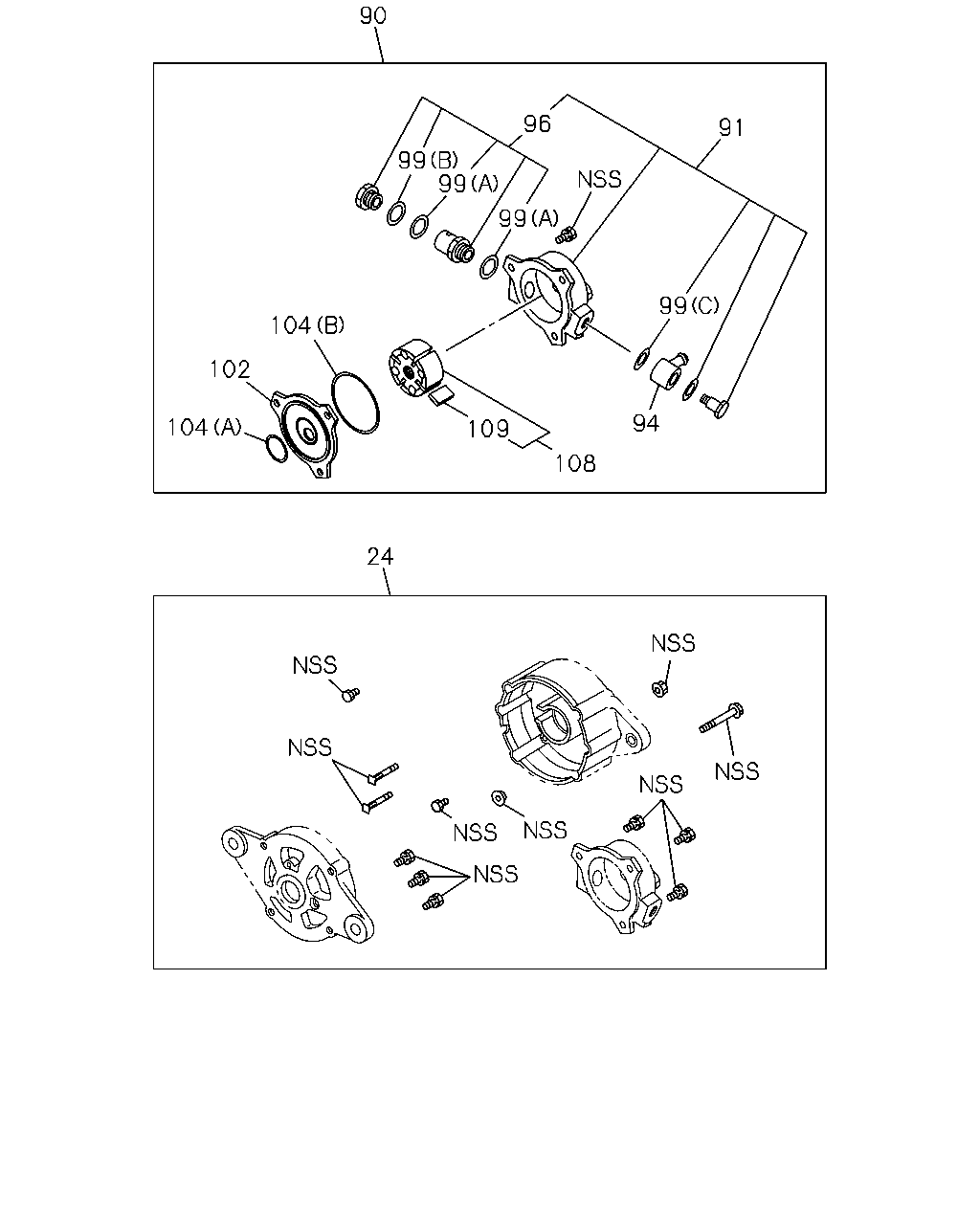

çizim 84243
90 96 91 99 99 99 99 104 102 94 104 109 108 24
BalonParca AdiParca NoAdetTipApplied Date
24 SCREW; RECTIFIER,GEN
ASM PART: A = 8-98101-762-0 		8-97130-577-0 01 1 -
90 PUMP ASM; VAC,GEN
ASM PART: A = 8-98101-762-0 		8-98106-134-0 01 1 -
91 BODY; VAC PUMP
ASM PART: A = 8-98101-762-0 		8-97167-900-0 01 1 -
94 CONNECTOR; VAC PUMP
ASM PART: A = 8-98101-762-0 		5-19619-034-0 01 1 -
96 VALVE ASM; VAC PUMP
ASM PART: A = 8-98101-762-0 		8-97018-875-0 01 1 -
99 GASKET; VAC PUMP
(A), ID=18 OD=24 ASM PART: A = 8-98101-762-0 		5-19679-002-0 02 1 -
99 GASKET; VAC PUMP
(B), ID=12 OD=24 ASM PART: A = 8-98101-762-0 		5-19679-003-0 01 1 -
99 GASKET; VAC PUMP
(C), ID=16 OD=22 ASM PART: A = 8-98101-762-0 		5-19679-004-2 01 1 -
102 COVER; FRT,VAC PUMP
ASM PART: A = 8-98101-762-0 		8-97134-764-0 01 1 -
104 GASKET; FRT COVER,VAC PUMP
(A) ASM PART: A = 8-98101-762-0 		8-94156-608-0 01 1 -
104 GASKET; FRT COVER,VAC PUMP
(B) ASM PART: A = 8-98101-762-0 		8-94462-877-0 01 1 -
108 ROTOR; VAC PUMP
ASM PART: A = 8-98101-762-0 		8-97062-658-0 01 1 -
109 VANE; VAC PUMP
ASM PART: A = 8-98101-762-0 		8-94462-883-0 04 1 -
