Isuzu WW
▶
TRUCKS
▶
ELF
▶
51174 - ELF400/500/600/BUS
▶
0 - Engine, Emission, Engine Electrical
▶
0-65 - STARTER
▶

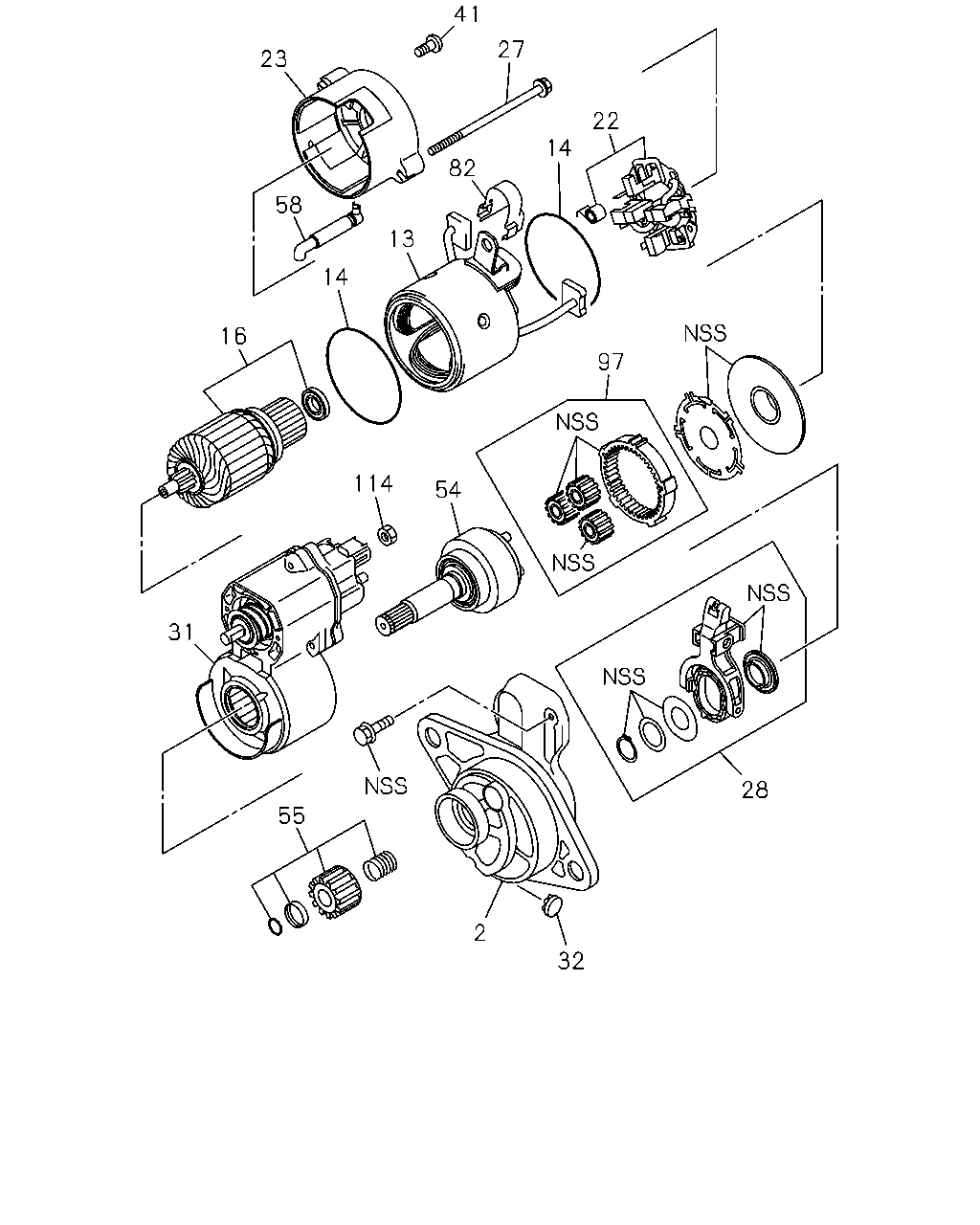

0-65 — STARTER
(#74870) — 18 parça
41
27
23
22
14
82
58
13
14
16
97
114
54
31
28
55
2
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
CASE; PINION,STARTER
ASM PART: A = 8-98092-464-3
8-98095-353-0
01
1
-
13
YOKE; STARTER
ASM PART: A = 8-98092-464-3
8-98094-918-1
01
1
-
14
GASKET; YOKE,STARTER
ASM PART: A = 8-98092-464-3
8-98094-925-0
02
1
-
16
ARMATURE; STARTER
ASM PART: A = 8-98092-464-3
8-98094-919-0
01
1
-
22
HOLDER; BRUSH STARTER
ASM PART: A = 8-98092-464-3
8-98094-923-0
01
1
-
23
COVER; RR COVER STARTER
ASM PART: A = 8-98092-464-3
8-98094-924-0
01
1
-
27
BOLT; THROUGH,STARTER
ASM PART: A = 8-98092-464-3
8-98094-944-0
02
1
-
28
LEVER; SHIFT,STARTER
ASM PART: A = 8-98092-464-3
8-98094-933-0
01
1
-
31
SWITCH; ENGAGE STARTER
ASM PART: A = 8-98092-464-3
8-98094-922-0
01
1
-
32
COVER; RUBBER,STARTER
ASM PART: A = 8-98092-464-3
8-98094-946-0
01
1
-
41
SCREW; RR COVER,STARTER
ASM PART: A = 8-98092-464-3
8-97142-903-0
02
1
1107-
41
SCREW; RR COVER,STARTER
ASM PART: A = 8-98092-464-3
8-98094-941-0
02
1
-1106
54
CLUTCH; PINION,STARTER
ASM PART: A = 8-98092-464-3
8-98094-920-0
01
1
-
55
PINION; CLU,STARTER
ASM PART: A = 8-98092-464-3
8-98094-926-0
01
1
-
58
PIPE; DRAIN RR COVER STARTER
ASM PART: A = 8-98092-464-3
8-98095-019-0
01
1
-
82
COVER; DUST ENGAGE SW STARTER
ASM PART: A = 8-98092-464-3
8-98094-947-0
01
1
-
97
GEAR; STARTER
ASM PART: A = 8-98092-464-3
8-98094-936-0
01
1
-
114
NUT; TERMINAL
ASM PART: A = 8-98092-464-3
8-97211-014-0
01
1
-
