◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10775 - FRR/FVR(TAIWAN) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#7487) — 30 parça

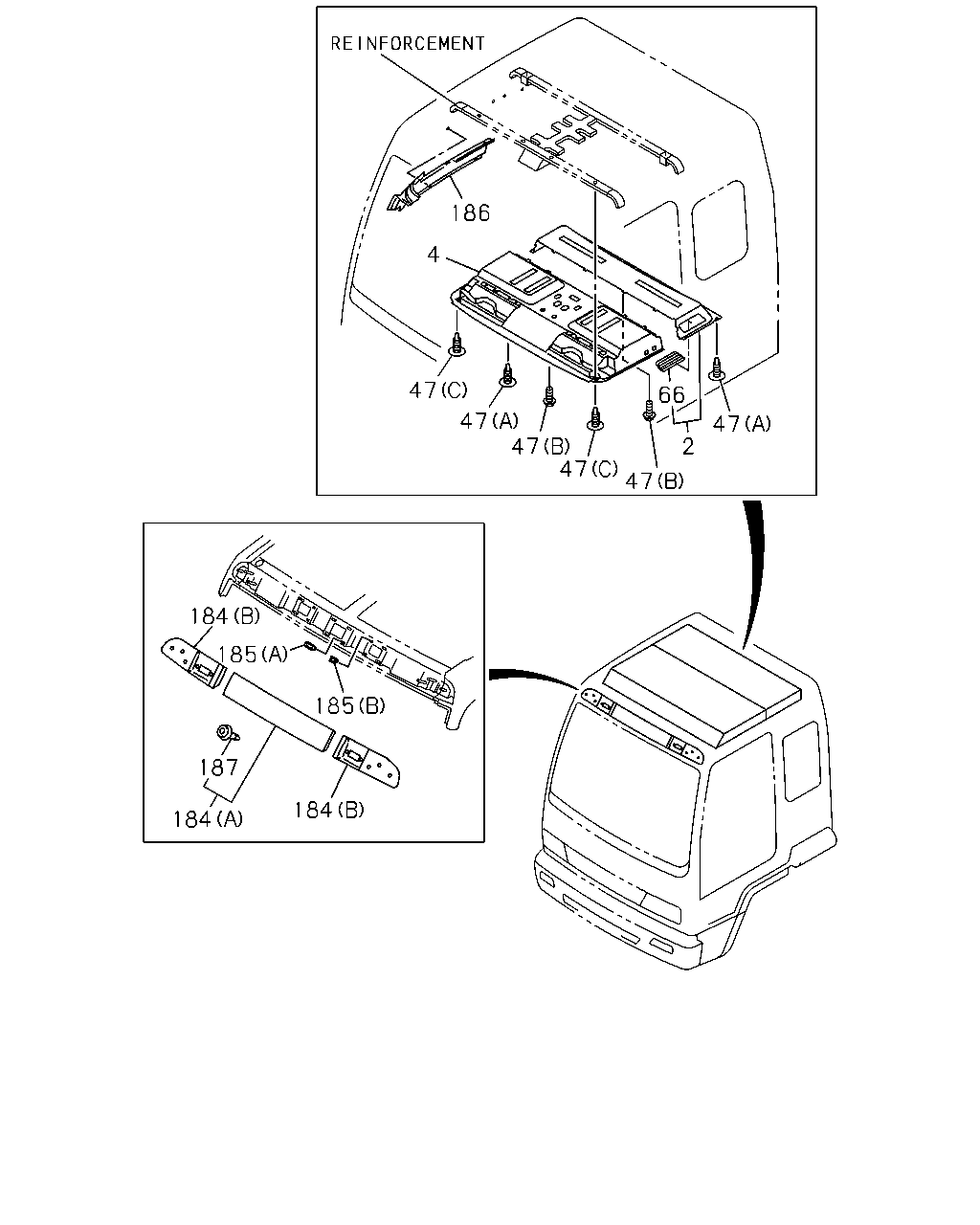

çizim 25997
186 4 47 66 47 47 47 47 47 2 184 185 185 187 184 184
BalonParca AdiParca NoAdetTipApplied Date A B
2 LINING; HD,ROOF RR
PROVISIONAL PACKAGE<NLY> 		1-73318-708-2 01 1 0611- ● ●
2 LINING; HD,ROOF RR 1-73318-598-5 01 1 9811-0610 ● ●
2 LINING; HD,ROOF RR
EXC. PROVISIONAL PACKAGE<NLY> 		1-73318-598-5 01 1 0611- ● ●
4 LINING; ROOF,FRT
MAP LAMP<C85> PROVISIONAL PACKAGE<NLY> 		1-73318-696-3 01 1 0611- ● ●
4 LINING; ROOF,FRT
PROVISIONAL PACKAGE<NLY> EXC. MAP LAMP<C85> 		8-97893-788-3 01 1 0611- ●
4 LINING; ROOF,FRT
EXC. MAP LAMP<C85>,PROVISIONAL PACKAGE<NLY> 		8-97865-577-4 01 1 0611- ●
4 LINING; ROOF,FRT 1-73318-597-7 01 1 9811-0610 ● ●
4 LINING; ROOF,FRT
MAP LAMP<C85> EXC. PROVISIONAL PACKAGE<NLY> 		1-73318-597-7 01 1 0611- ● ●
47 CLIP; HEADLINING
EXC. MAP LAMP<C85> (A) D6X23 LIGHT GRAY TAI 		1-73318-629-0 12 1 0611- ●
47 CLIP; HEADLINING
EXC. MAP LAMP<C85> (B) OD=6 L=17 LIGHT GRAY TAI 		1-73996-301-0 02 1 0611- ●
47 CLIP; HEADLINING
(C) D7.7X25 LIGHT GRAY TAI 		1-73317-371-0 06 1 9811-0610 ●
47 CLIP; HEADLINING
EXC. WINDOW CURTAIN ROUND<BW4> (C) D7.7X25 LIGHT GRAY TAI 		1-73317-371-0 06 1 0611- ●
47 CLIP; HEADLINING
(A) D6X23 LIGHT GRAY TAI 		1-73318-629-0 13 1 9811-0610 ● ●
47 CLIP; HEADLINING
MAP LAMP<C85> (A) D6X23 LIGHT GRAY TAI 		1-73318-629-0 13 1 0611- ● ●
66 GRILLE; AIR OUTLET 1-73317-367-1 01 1 9811- ● ●
66 GRILLE; AIR OUTLET 1-73317-366-1 01 1 9811- ● ●
184 ORNAMENT; ROOF
(A) 		1-73318-587-0 01 1 9811- ● ●
184 ORNAMENT; ROOF
(B) 		1-73318-581-0 01 1 9811- ● ●
184 ORNAMENT; ROOF
(B) 		1-73318-580-0 01 1 9811- ● ●
185 GROMMET; ORNAMENT
(A) 		1-79198-012-0 06 1 9811- ● ●
185 GROMMET; ORNAMENT
(B) 		1-79198-013-0 02 1 9811- ● ●
186 TRIM; ROOM,CANT RAIL SIDE
EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-918-2 01 1 0611- ● ●
186 TRIM; ROOM,CANT RAIL SIDE
EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-919-2 01 1 0611- ● ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-917-0 01 1 9811-9906 ● ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-919-2 01 1 9907-0610 ● ●
186 TRIM; ROOM,CANT RAIL SIDE
PROVISIONAL PACKAGE<NLY> 		1-73348-963-1 01 1 0611- ● ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-916-0 01 1 9811-9906 ● ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-918-2 01 1 9907-0610 ● ●
186 TRIM; ROOM,CANT RAIL SIDE
PROVISIONAL PACKAGE<NLY> 		1-73348-962-1 01 1 0611- ● ●
187 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 9811- ● ●
