51174 - ELF400/500/600/BUS
▶
0 - Engine, Emission, Engine Electrical
▶
0-61 - BATTERY AND ENGINE ELECTRICAL PARTS
▶

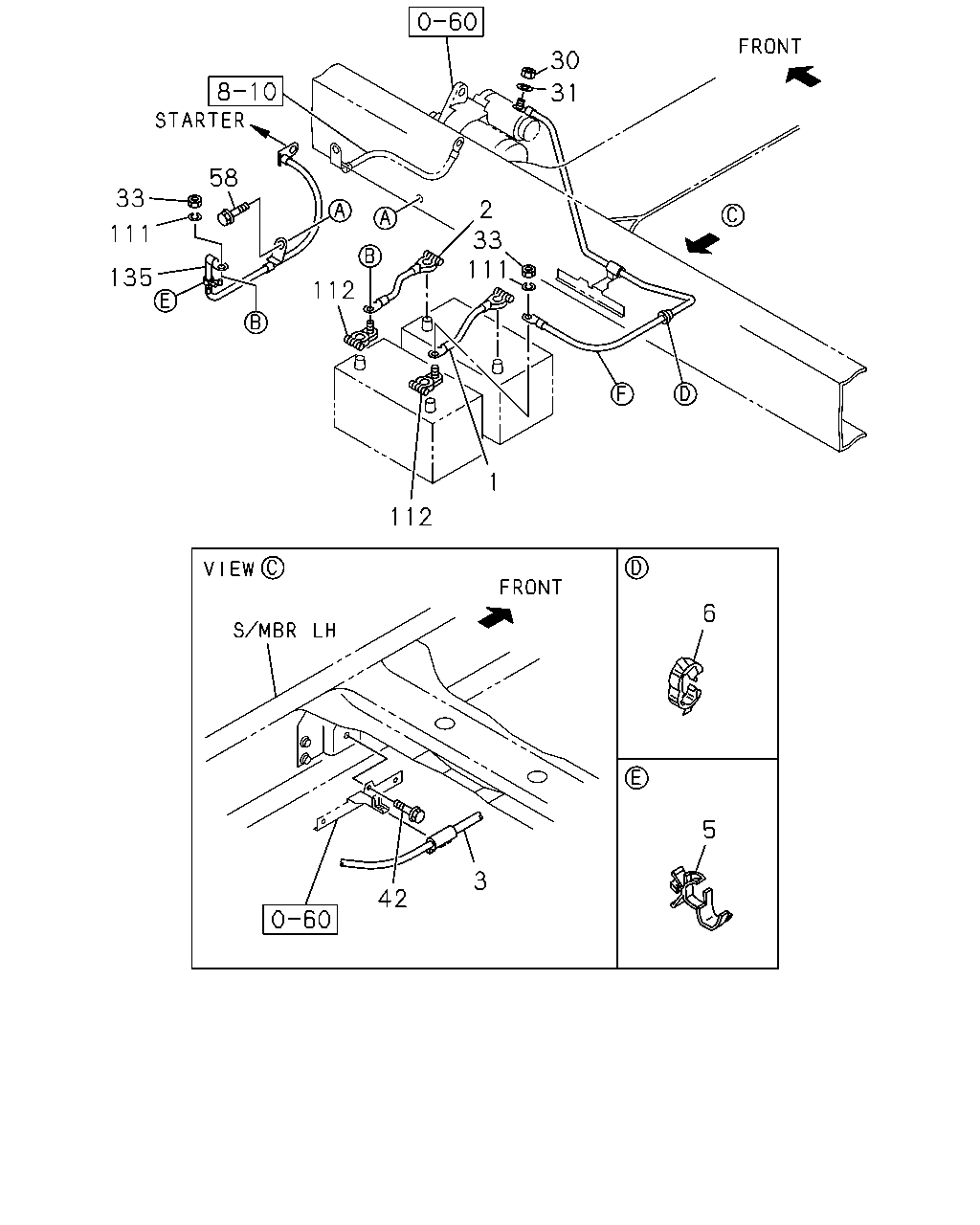

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS
(#74869) — 19 parça
◀
[061A] NO.1 (15 parça)
[061A] NO.2 (4 parça)
▶
30
31
58
33
2
111
33
111
135
112
1
112
6
5
3
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CABLE; BATTERY
L=200
8-98055-112-0
01
1
0807-
2
CABLE; BATTERY
L=200
8-98055-113-0
01
1
0807-
3
HARNESS; CABLE,BATTERY TO STARTER
8-98091-797-2
01
1
0807-
5
CLIP; BATTERY CABLE TO BODY
ID=16
8-97040-812-0
01
1
0807-
6
GROMMET; BATTERY CABLE
ID=17
8-94128-319-2
01
1
0807-
30
NUT; CABLE,STARTER TO BATTERY
M10
8-98011-328-0
01
1
0807-
31
WASHER; LK,CABLE,STARTER TO BATTERY
ID=10.2
0-91510-510-0
01
1
0807-
33
CAP; INSULATOR
M10
0-91110-510-0
02
1
0807-
42
BOLT; BRKT,BATTERY CABLE
M6X16 FLANGE
8-97329-599-0
01
1
0807-
58
BOLT; CABLE,BATTERY
M8X25 W/LK&PL WASHER
8-97087-203-0
01
1
0807-1004
58
BOLT; CABLE,BATTERY
M8X24 W/PL WASHER
8-98141-256-1
01
1
1005-
111
CAP; INSULATOR,BATTERY RELAY
ID=10.2
0-91510-510-0
02
1
0807-
112
TERMINAL; BATTERY
<+>
1-82695-175-0
01
1
0807-
112
TERMINAL; BATTERY
<->
1-82695-176-0
01
1
0807-
135
CABLE; ENG TO BATTERY
8-98031-865-0
01
1
0807-
31
30
37
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
HARNESS; CABLE,BATTERY TO STARTER
8-98091-797-2
01
1
0807-
30
NUT; CABLE,STARTER TO BATTERY
M10
8-98011-328-0
01
1
0807-
31
WASHER; LK,CABLE,STARTER TO BATTERY
ID=10.2
0-91510-510-0
01
1
0807-
37
CAP; TERMINAL,BATTERY CABLE
8-98093-905-0
01
1
0807-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
