0-40 — FUEL INJECTION SYSTEM (#74860) — 83 parça

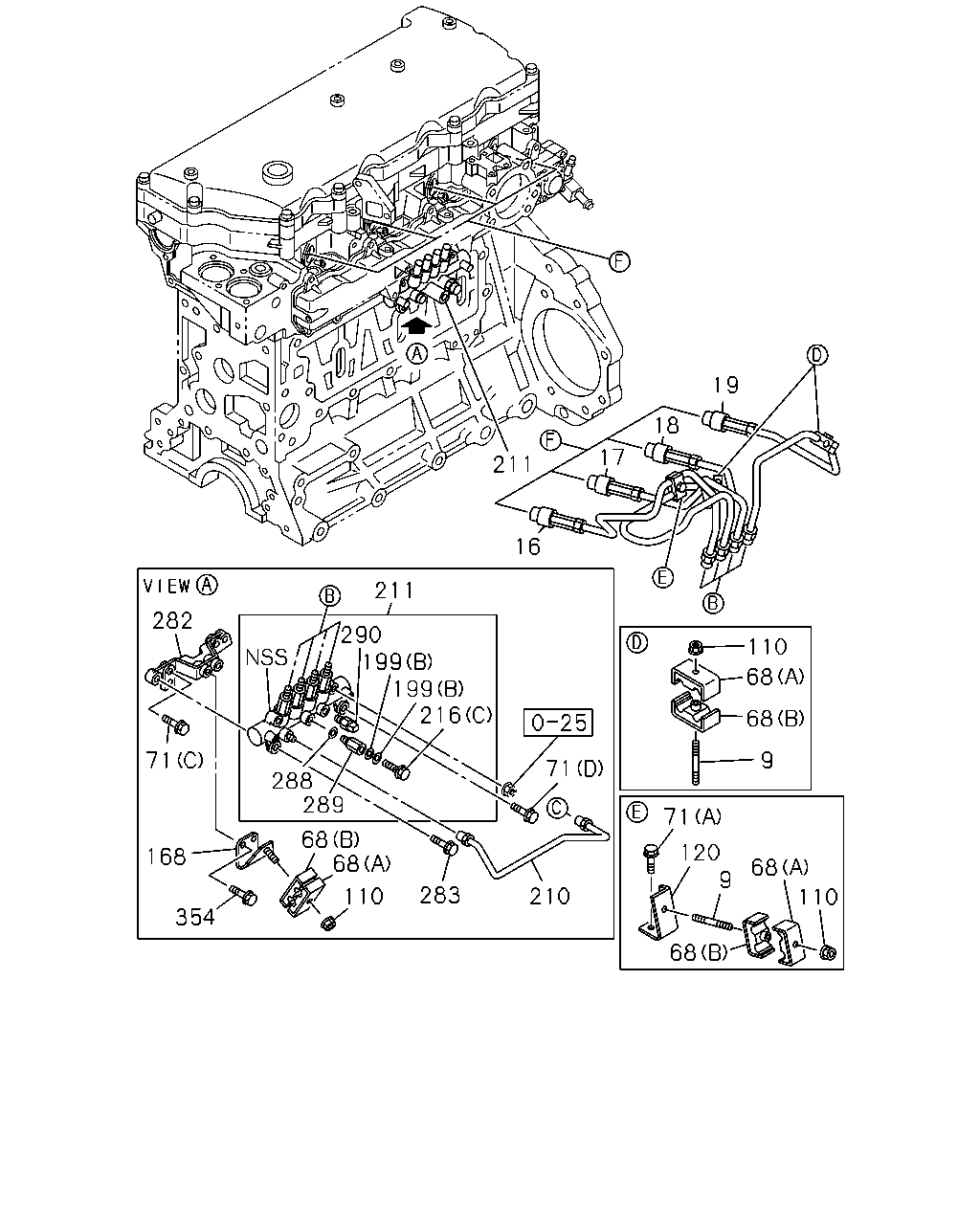

çizim 62954
19 18 17 211 16 211 282 290 199 199 216 110 68 68 71 9 71 288 289 71 68 68 120 9 168 68 283 110 210 110 354 68
BalonParca AdiParca NoAdetTipApplied Date
9 STUD; CLIP
M6X30 L=38 		0-41010-630-0 03 1 0807-
16 PIPE; INJ NO.1 8-97371-831-1 01 1 0807-
17 PIPE; INJ NO.2 8-97373-417-1 01 1 0807-
18 PIPE; INJ NO.3 8-97371-833-1 01 1 0807-
19 PIPE; INJ NO.4 8-97371-834-1 01 1 0807-
68 CLIP; INJ PIPE
(A) ID=7 & 7 L=22 		8-97330-118-3 04 1 0807-
68 CLIP; INJ PIPE
(B) ID=7 & 7 L=22 		8-97330-119-3 04 1 0807-
71 BOLT; BRKT
(B) M6X10 FLANGE 		0-28050-610-0 02 1 0807-
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0807-
71 BOLT; BRKT
(C) M8X40 FLANGE 		0-28050-840-0 01 1 0807-
71 BOLT; BRKT
(D) M8X50 FLANGE 		0-28050-850-0 01 1 0807-
110 NUT; CLIP
M6 FLANGE 		0-91180-106-0 04 1 0807-
120 BRACKET; INJ PIPE 8-97306-084-2 01 1 0807-
168 BRACKET; FUEL PIPE 8-97324-195-0 01 1 0807-
199 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 0807-
199 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 0807-
210 PIPE; INJ,C/R 8-97312-509-3 01 1 0807-
211 RAIL ASM; COMMON 8-97306-063-4 01 1 0807-
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0807-
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 0807-
216 BOLT; EYE
(C) 		8-97602-173-0 01 1 0807-
282 BRACKET; COMMON RAIL 8-97324-194-0 01 1 0807-1005
282 BRACKET; COMMON RAIL 8-98157-115-0 01 1 1006-
283 BOLT; COMMON RAIL
M8X25 FLANGE 		0-28050-825-0 01 1 0807-
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 0807-
289 LIMITER; FUEL PRESS 8-97318-691-0 01 1 0807-
290 SENSOR; PRESS 8-97318-684-0 01 1 0807-1102
290 SENSOR; PRESS 8-98119-790-0 01 1 1103-
354 BOLT; FUEL PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 0807-

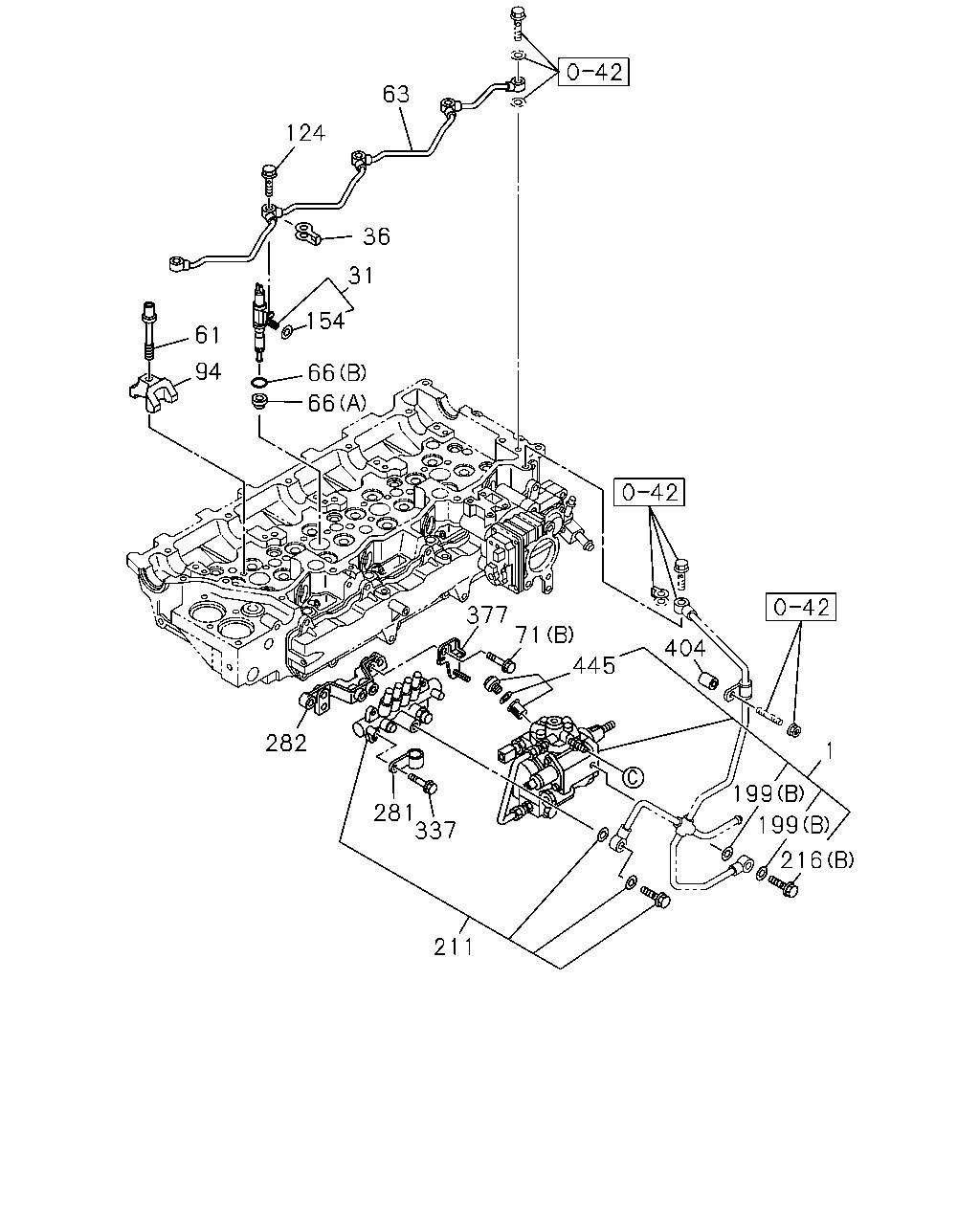

çizim 62963
63 124 36 31 154 66 66 61 94 377 71 445 404 199 199 1 216 211 337 281 282
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; INJ 8-97328-886-6 01 1 0807-
31 NOZZLE ASM; INJ 8-97329-703-5 04 1 0807-
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 		8-97600-925-0 04 1 0807-0908
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 OD=15.0 		8-98065-992-0 04 1 0909-
61 BOLT; CLAMP NOZZLE HOLDER
M8X54 		8-98008-895-0 04 1 0807-
63 PIPE; FUEL,NOZZLE LEAK OFF 8-97306-081-0 01 1 0807-
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=23.3 		8-94173-412-0 04 1 0807-
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1 		8-97601-447-2 04 1 0807-0909
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1 		8-98079-248-0 04 1 0910-
71 BOLT; BRKT
(B) M6X10 FLANGE 		0-28050-610-0 02 1 0807-
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0807-
71 BOLT; BRKT
(C) M8X40 FLANGE 		0-28050-840-0 01 1 0807-
71 BOLT; BRKT
(D) M8X50 FLANGE 		0-28050-850-0 01 1 0807-
94 BRACKET; INJ NOZZLE 8-98028-999-1 04 1 0807-
124 BOLT; EYE LEAK OFF PIPE
M8X18 EYE-BOLT 		1-09675-037-1 04 1 0807-
154 GASKET; CONNECTOR
ID=11.0 		9-09561-111-0 04 1 0807-1106
154 GASKET; CONNECTOR
ID=11.0 		0-95690-111-0 04 1 1107-
199 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 0807-
199 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 0807-
211 RAIL ASM; COMMON 8-97306-063-4 01 1 0807-
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0807-
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 0807-
216 BOLT; EYE
(C) 		8-97602-173-0 01 1 0807-
281 CLIP
ID=16 H=24 L=20 		0-95207-315-0 01 1 0807-
282 BRACKET; COMMON RAIL 8-97324-194-0 01 1 0807-1005
282 BRACKET; COMMON RAIL 8-98157-115-0 01 1 1006-
337 BOLT; CLIP
M6X10 FLANGE 		0-28050-610-0 01 1 0807-
377 BRACKET; HARNESS 8-97374-283-1 02 1 0807-
404 SPACER; FUEL LEAK OFF
L=24.5 		1-33659-186-1 01 1 0807-
445 SCREW; FILTER,INLET 8-98204-986-0 01 1 0807-

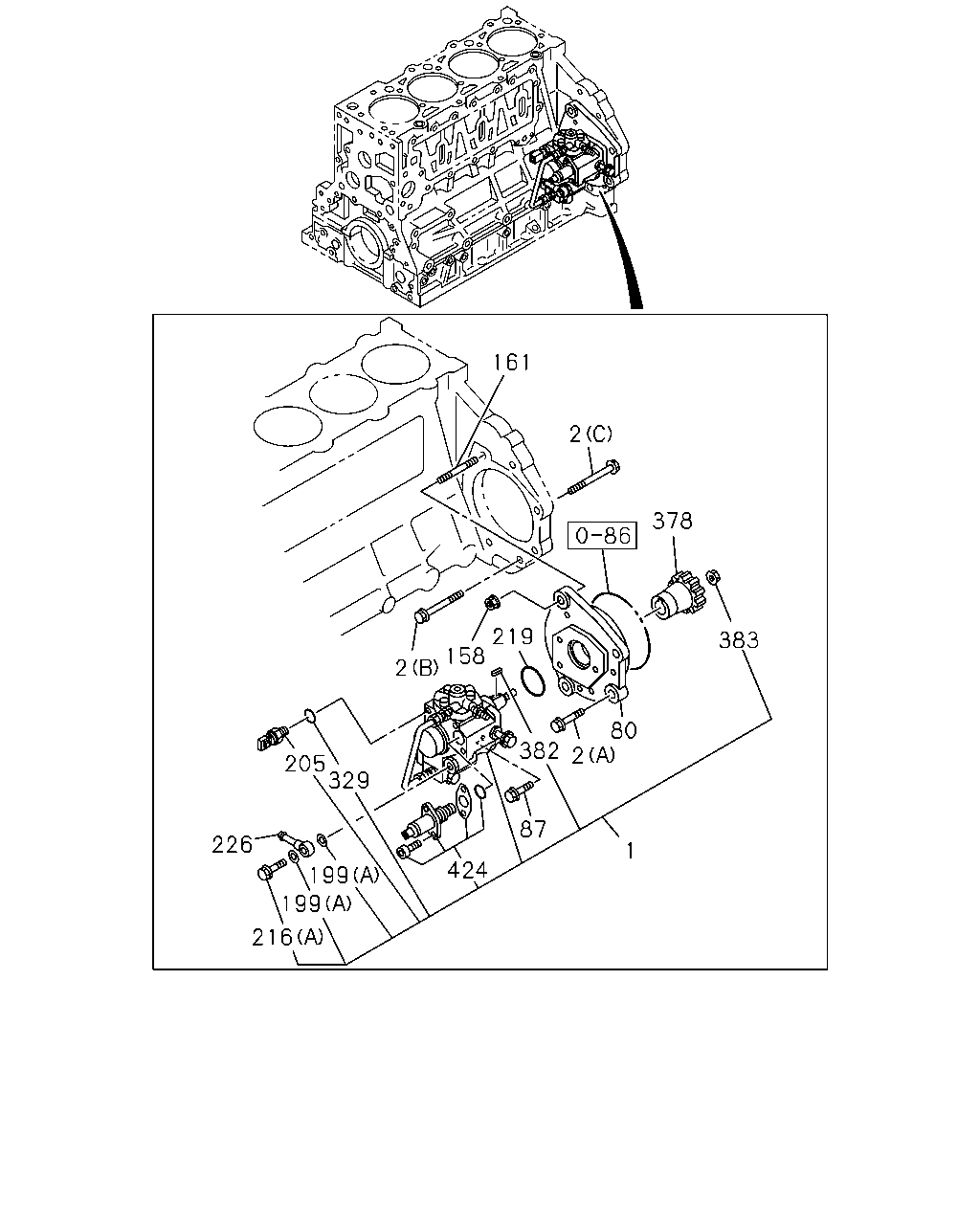

çizim 63359
161 2 378 219 158 2 383 80 382 2 205 329 87 226 1 424 199 199 216
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; INJ 8-97328-886-6 01 1 0807-
2 BOLT; INJ PUMP
(B) M10X50 FLANGE 		0-28151-050-0 01 1 0807-
2 BOLT; INJ PUMP
(A) M12X70 FLANGE 		0-28151-270-0 01 1 0807-
2 BOLT; INJ PUMP
(C) M12X90 FLANGE 		0-28151-290-0 01 1 0807-
80 BRACKET; PUMP 8-97601-699-0 01 1 0807-
87 BOLT; PUMP
M8X30 FLANGE 		0-28650-830-0 03 1 0807-
158 NUT; INJ PUMP
M10 FLANGE 		0-91180-110-0 02 1 0807-
161 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0807-0910
161 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97066-386-1 02 1 0911-
199 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 0807-
199 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 0807-
205 SENSOR; FUEL TEMP 8-98023-581-0 01 1 0807-
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0807-
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 0807-
216 BOLT; EYE
(C) 		8-97602-173-0 01 1 0807-
219 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=52 		8-98031-844-0 01 1 0807-
226 PIPE; FUEL 8-97320-019-0 01 1 0807-0808
226 PIPE; FUEL 8-98126-433-0 01 1 0809-
329 GASKET; SENSOR,FUEL TEMP
ID=9.8 OD=11.7 		9-09566-110-0 01 1 0807-1206
378 GEAR; PUMP
Z=35 		8-97601-698-1 01 1 0807-
382 KEY; DRIVE SHAFT 8-97375-384-0 01 1 0807-1206
382 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1207-
383 NUT; DRIVE SHAFT 8-97141-469-0 01 1 0807-
424 OVERHAUL KIT; SUPPLY PUMP 8-98043-686-0 01 1 0807-
