0-25 — INLET MANIFOLD (#74850) — 16 parça

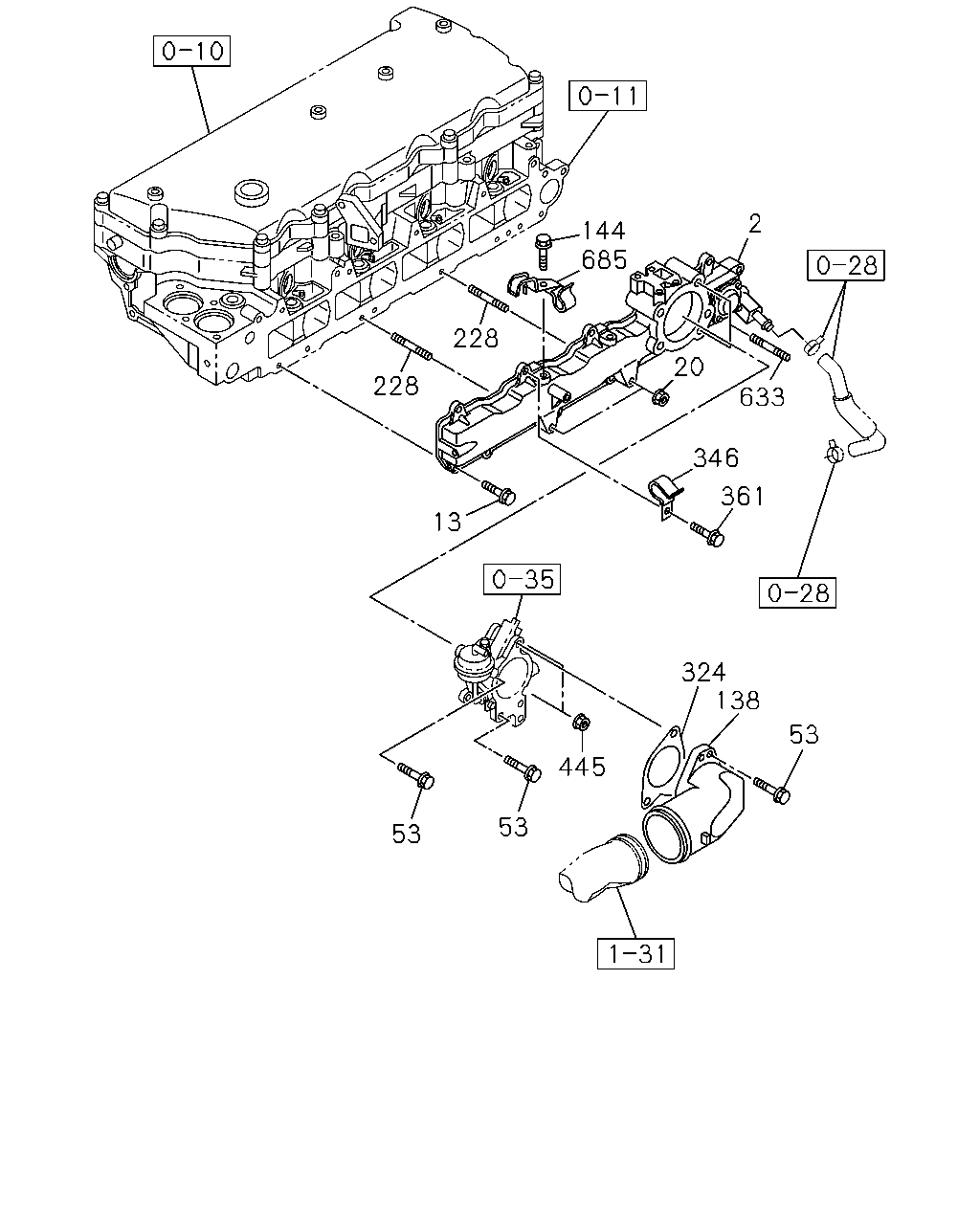

çizim 40044
2 144 685 228 20 228 633 346 361 13 324 138 53 445 53 53
BalonParca AdiParca NoAdetTipApplied Date
2 COVER; INL 8-97310-495-0 01 1 0807-
13 BOLT; INL MANIF
M8X30 FLANGE 		0-28050-830-0 09 1 0807-
20 NUT; INL MANIF
M8 FLANGE 		0-91180-108-0 02 1 0807-
53 BOLT; INL PIPE
M8X30 FLANGE 		0-28650-830-0 05 1 0807-
138 PIPE; INL 8-97306-024-1 01 1 0807-
144 BOLT; BRKT FIX
M8X12 FLANGE 		0-28050-812-0 01 1 0807-
228 STUD; INL COVER
M8X117 L=128 		8-97111-477-0 02 1 0807-
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97306-025-1 01 1 0807-
346 CLIP; ENG HARNESS
ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 0807-
361 BOLT; CLIP
M8X12 FLANGE 		0-28050-812-0 01 1 0807-
445 NUT; THROTTLE BODY TO MANIF
M8 FLANGE 		0-91180-108-0 02 1 0807-
633 STUD; THROTTLE BODY
M8X25 L=37 		0-41010-825-0 01 1 0807-
633 STUD; THROTTLE BODY
M8X55 L=67 		0-41010-855-0 01 1 0807-
685 BRACKET; HARNESS 8-97331-921-1 01 1 0807-

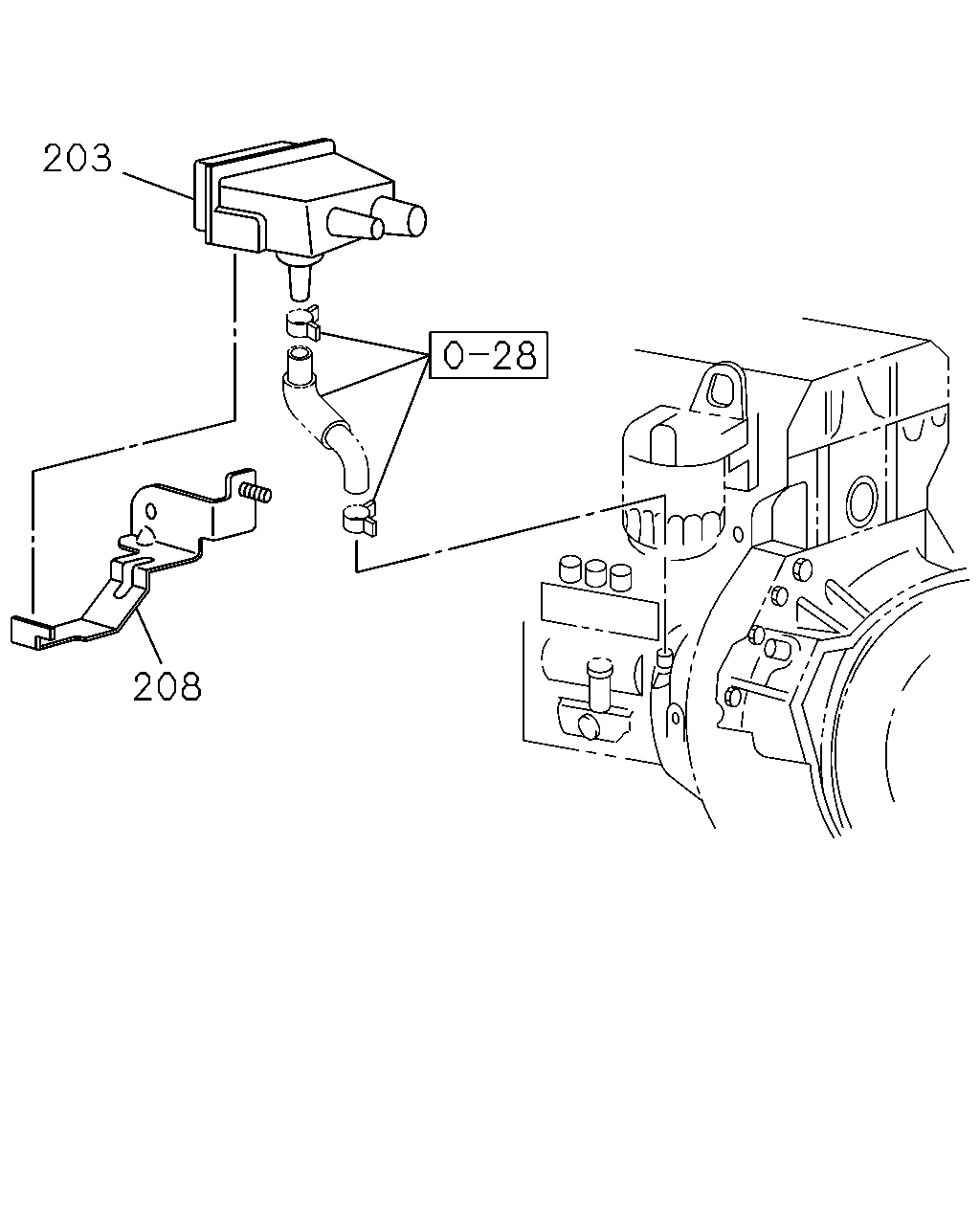

çizim 185919
203 208
BalonParca AdiParca NoAdetTipApplied Date
203 TANK; CATCH,PRESSURE CONT VLV 8-97088-685-1 01 1 0807-
208 BRACKET; CATCH TANK,OIL 8-97375-702-0 01 1 0807-
