6-47 — MUD GUARD AND INSULATOR (#7485) — 324 parça

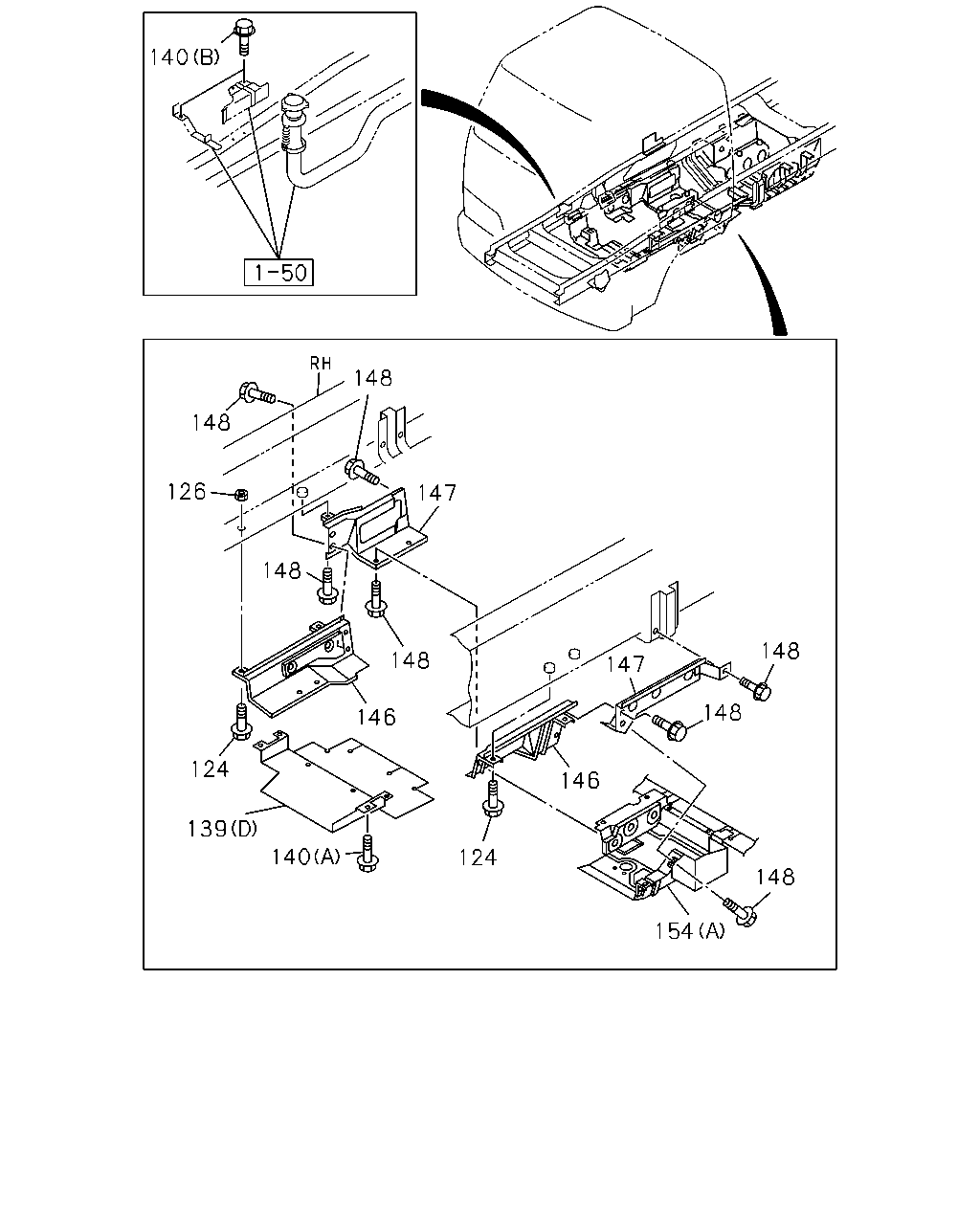

140 148 148 126 147 148 148 148 147 148 146 124 146 139 140 124 148 154

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
124	BOLT; BRKT ANTI NOISE EQUIPMENT ECE<SLK> M8X25 FLANGE	0-28680-825-0	08	1	0503-0503	●	●
124	BOLT; BRKT ANTI NOISE EQUIPMENT ECE<SLK> M8X25 FLANGE	0-28680-825-0	07	1	0504-0512	●	●
124	BOLT; BRKT ANTI NOISE EQUIPMENT ECE<SLK> M8X25 FLANGE	0-28650-825-0	07	1	0601-0610	●	●
124	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	08	1	0611-		●
126	NUT; PANEL ANTI NOISE EQUIPMENT ECE<SLK> M8 FLANGE	0-91150-108-0	01	1	0504-0602	●	●
126	NUT; PANEL ANTI NOISE EQUIPMENT ECE<SLK> M8 FLANGE	0-91180-108-0	01	1	0603-0610	●	●
139	PANEL; SIDE (B)	1-53194-642-0	01	1	0611-		●
139	PANEL; SIDE (A)	1-53194-654-2	01	1	0611-		●
139	PANEL; SIDE ANTI NOISE EQUIPMENT ECE<SLK> (D)	1-53192-917-2	01	1	0503-0505	●	●
139	PANEL; SIDE ANTI NOISE EQUIPMENT ECE<SLK> (D)	1-53194-625-1	01	1	0506-0610	●	●
139	PANEL; SIDE (C)	1-53194-574-0	01	1	0611-		●
140	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT ECE<SLK> (A) M8X25 FLANGE	0-28680-825-0	04	1	0503-0512	●	●
140	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT ECE<SLK> (A) M8X25 FLANGE	0-28650-825-0	04	1	0601-0610	●	●
140	BOLT; SIDE PANEL (C) M8X35 W/LK&PL WASHER	1-09030-073-0	08	1	0611-	●
140	BOLT; SIDE PANEL (B) M8X25 FLANGE	0-28680-825-0	02	1	9811-9906	●	●
140	BOLT; SIDE PANEL (B) M8X20 FLANGE	0-28680-820-0	01	1	0012-0512	●	●
140	BOLT; SIDE PANEL (B) M8X20 FLANGE	0-28650-820-0	01	1	0601-0610	●	●
140	BOLT; SIDE PANEL (D) M8X25 FLANGE	0-28650-825-0	10	1	0611-		●
146	PANEL; SIDE,UNDER,FRT ANTI NOISE EQUIPMENT ECE<SLK>	1-53192-936-0	01	1	0503-0509	●
146	PANEL; SIDE,UNDER,FRT ANTI NOISE EQUIPMENT ECE<SLK>	1-53194-653-0	01	1	0510-0610	●
146	PANEL; SIDE,UNDER,FRT	1-53194-579-0	01	1	0611-		●
146	PANEL; SIDE,UNDER,FRT ANTI NOISE EQUIPMENT ECE<SLK>	1-53192-938-0	01	1	0503-0610	●
146	PANEL; SIDE,UNDER,FRT	1-53192-938-0	01	1	0611-		●
146	PANEL; SIDE,UNDER,FRT ANTI NOISE EQUIPMENT ECE<SLK>	1-53192-937-1	01	1	0503-0507		●
146	PANEL; SIDE,UNDER,FRT ANTI NOISE EQUIPMENT ECE<SLK>	1-53194-648-0	01	1	0508-0610		●
146	PANEL; SIDE,UNDER,FRT ANTI NOISE EQUIPMENT ECE<SLK>	1-53192-939-0	01	1	0503-0610		●
147	PANEL; SIDE,UNDER,RR ANTI NOISE EQUIPMENT ECE<SLK>	1-53192-924-0	01	1	0503-0506	●
147	PANEL; SIDE,UNDER,RR ANTI NOISE EQUIPMENT ECE<SLK>	1-53194-644-2	01	1	0507-0602	●
147	PANEL; SIDE,UNDER,RR ANTI NOISE EQUIPMENT ECE<SLK>	1-53194-663-0	01	1	0603-0610	●
147	PANEL; SIDE,UNDER,RR	1-53194-639-0	01	1	0611-		●
147	PANEL; SIDE,UNDER,RR ANTI NOISE EQUIPMENT ECE<SLK>	1-53193-043-1	01	1	0503-0610	●
147	PANEL; SIDE,UNDER,RR	1-53194-571-0	01	1	0611-		●
147	PANEL; SIDE,UNDER,RR ANTI NOISE EQUIPMENT ECE<SLK>	1-53192-923-1	01	1	0503-0507		●
147	PANEL; SIDE,UNDER,RR ANTI NOISE EQUIPMENT ECE<SLK>	1-53194-397-0	01	1	0508-0610		●
147	PANEL; SIDE,UNDER,RR ANTI NOISE EQUIPMENT ECE<SLK>	1-53193-051-1	01	1	0503-0610		●
148	BOLT; PANEL TO PANEL ANTI NOISE EQUIPMENT ECE<SLK> M8X22 W/LK&PL WASHER	1-09030-084-0	02	1	0508-0509		●
148	BOLT; PANEL TO PANEL ANTI NOISE EQUIPMENT ECE<SLK> M8X22 W/LK&PL WASHER	1-09030-084-0	04	1	0510-0610	●	●
148	BOLT; PANEL TO PANEL M8X22 W/LK&PL WASHER	1-09030-084-0	08	1	0611-		●
148	BOLT; PANEL TO PANEL ANTI NOISE EQUIPMENT ECE<SLK> M8X22 W/LK&PL WASHER	1-09030-084-0	08	1	0503-0507	●	●
148	BOLT; PANEL TO PANEL ANTI NOISE EQUIPMENT ECE<SLK> M8X22 W/LK&PL WASHER	1-09030-084-0	04	1	0508-0509	●	●
148	BOLT; PANEL TO PANEL ANTI NOISE EQUIPMENT ECE<SLK> M8X22 W/LK&PL WASHER	1-09030-084-0	04	1	0508-0509	●
148	BOLT; PANEL TO PANEL ANTI NOISE EQUIPMENT ECE<SLK> M8X22 W/LK&PL WASHER	1-09030-084-0	02	1	0510-0610	●	●
154	PANEL; SIDE,UNDER ENG CTR ANTI NOISE EQUIPMENT ECE<SLK> (A)	1-53192-919-1	01	1	0503-0610	●
154	PANEL; SIDE,UNDER ENG CTR (B)	1-53194-601-1	01	1	0611-	●
154	PANEL; SIDE,UNDER ENG CTR ANTI NOISE EQUIPMENT ECE<SLK> (A)	1-53192-920-1	01	1	0503-0610		●
154	PANEL; SIDE,UNDER ENG CTR (C)	1-53194-572-0	01	1	0611-		●

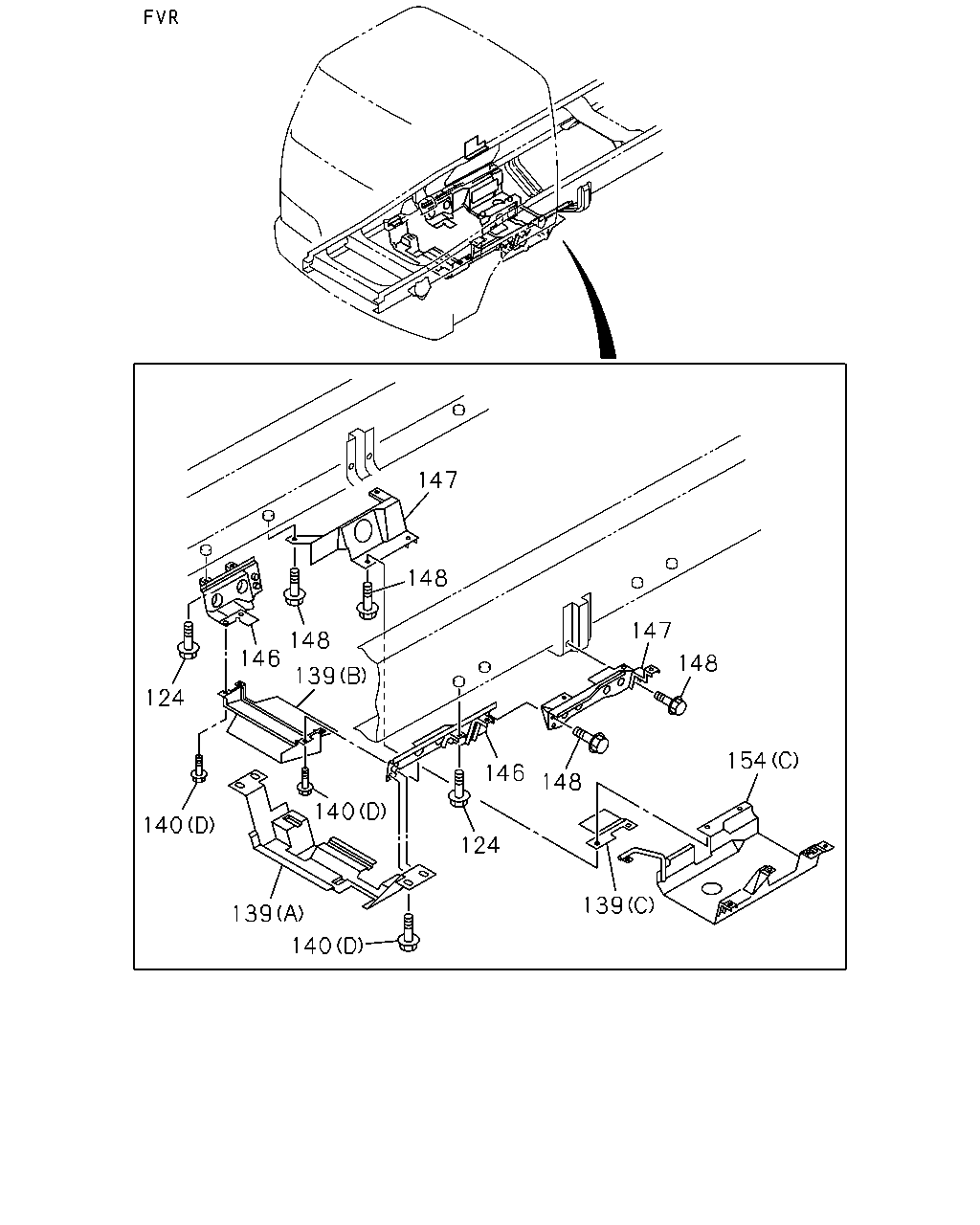

147 148 147 148 146 148 139 124 154 146 148 140 140 124 139 139 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
124	BOLT; BRKT ANTI NOISE EQUIPMENT ECE<SLK> M8X25 FLANGE	0-28680-825-0	08	1	0503-0503	●	●
124	BOLT; BRKT ANTI NOISE EQUIPMENT ECE<SLK> M8X25 FLANGE	0-28680-825-0	07	1	0504-0512	●	●
124	BOLT; BRKT ANTI NOISE EQUIPMENT ECE<SLK> M8X25 FLANGE	0-28650-825-0	07	1	0601-0610	●	●
124	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	08	1	0611-		●
139	PANEL; SIDE (B)	1-53194-642-0	01	1	0611-		●
139	PANEL; SIDE (A)	1-53194-654-2	01	1	0611-		●
139	PANEL; SIDE ANTI NOISE EQUIPMENT ECE<SLK> (D)	1-53192-917-2	01	1	0503-0505	●	●
139	PANEL; SIDE ANTI NOISE EQUIPMENT ECE<SLK> (D)	1-53194-625-1	01	1	0506-0610	●	●
139	PANEL; SIDE (C)	1-53194-574-0	01	1	0611-		●
140	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT ECE<SLK> (A) M8X25 FLANGE	0-28680-825-0	04	1	0503-0512	●	●
140	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT ECE<SLK> (A) M8X25 FLANGE	0-28650-825-0	04	1	0601-0610	●	●
140	BOLT; SIDE PANEL (C) M8X35 W/LK&PL WASHER	1-09030-073-0	08	1	0611-	●
140	BOLT; SIDE PANEL (B) M8X25 FLANGE	0-28680-825-0	02	1	9811-9906	●	●
140	BOLT; SIDE PANEL (B) M8X20 FLANGE	0-28680-820-0	01	1	0012-0512	●	●
140	BOLT; SIDE PANEL (B) M8X20 FLANGE	0-28650-820-0	01	1	0601-0610	●	●
140	BOLT; SIDE PANEL (D) M8X25 FLANGE	0-28650-825-0	10	1	0611-		●
146	PANEL; SIDE,UNDER,FRT ANTI NOISE EQUIPMENT ECE<SLK>	1-53192-936-0	01	1	0503-0509	●
146	PANEL; SIDE,UNDER,FRT ANTI NOISE EQUIPMENT ECE<SLK>	1-53194-653-0	01	1	0510-0610	●
146	PANEL; SIDE,UNDER,FRT	1-53194-579-0	01	1	0611-		●
146	PANEL; SIDE,UNDER,FRT ANTI NOISE EQUIPMENT ECE<SLK>	1-53192-938-0	01	1	0503-0610	●
146	PANEL; SIDE,UNDER,FRT	1-53192-938-0	01	1	0611-		●
146	PANEL; SIDE,UNDER,FRT ANTI NOISE EQUIPMENT ECE<SLK>	1-53192-937-1	01	1	0503-0507		●
146	PANEL; SIDE,UNDER,FRT ANTI NOISE EQUIPMENT ECE<SLK>	1-53194-648-0	01	1	0508-0610		●
146	PANEL; SIDE,UNDER,FRT ANTI NOISE EQUIPMENT ECE<SLK>	1-53192-939-0	01	1	0503-0610		●
147	PANEL; SIDE,UNDER,RR ANTI NOISE EQUIPMENT ECE<SLK>	1-53192-924-0	01	1	0503-0506	●
147	PANEL; SIDE,UNDER,RR ANTI NOISE EQUIPMENT ECE<SLK>	1-53194-644-2	01	1	0507-0602	●
147	PANEL; SIDE,UNDER,RR ANTI NOISE EQUIPMENT ECE<SLK>	1-53194-663-0	01	1	0603-0610	●
147	PANEL; SIDE,UNDER,RR	1-53194-639-0	01	1	0611-		●
147	PANEL; SIDE,UNDER,RR ANTI NOISE EQUIPMENT ECE<SLK>	1-53193-043-1	01	1	0503-0610	●
147	PANEL; SIDE,UNDER,RR	1-53194-571-0	01	1	0611-		●
147	PANEL; SIDE,UNDER,RR ANTI NOISE EQUIPMENT ECE<SLK>	1-53192-923-1	01	1	0503-0507		●
147	PANEL; SIDE,UNDER,RR ANTI NOISE EQUIPMENT ECE<SLK>	1-53194-397-0	01	1	0508-0610		●
147	PANEL; SIDE,UNDER,RR ANTI NOISE EQUIPMENT ECE<SLK>	1-53193-051-1	01	1	0503-0610		●
148	BOLT; PANEL TO PANEL ANTI NOISE EQUIPMENT ECE<SLK> M8X22 W/LK&PL WASHER	1-09030-084-0	02	1	0508-0509		●
148	BOLT; PANEL TO PANEL ANTI NOISE EQUIPMENT ECE<SLK> M8X22 W/LK&PL WASHER	1-09030-084-0	04	1	0510-0610	●	●
148	BOLT; PANEL TO PANEL M8X22 W/LK&PL WASHER	1-09030-084-0	08	1	0611-		●
148	BOLT; PANEL TO PANEL ANTI NOISE EQUIPMENT ECE<SLK> M8X22 W/LK&PL WASHER	1-09030-084-0	08	1	0503-0507	●	●
148	BOLT; PANEL TO PANEL ANTI NOISE EQUIPMENT ECE<SLK> M8X22 W/LK&PL WASHER	1-09030-084-0	04	1	0508-0509	●	●
148	BOLT; PANEL TO PANEL ANTI NOISE EQUIPMENT ECE<SLK> M8X22 W/LK&PL WASHER	1-09030-084-0	04	1	0508-0509	●
148	BOLT; PANEL TO PANEL ANTI NOISE EQUIPMENT ECE<SLK> M8X22 W/LK&PL WASHER	1-09030-084-0	02	1	0510-0610	●	●
154	PANEL; SIDE,UNDER ENG CTR ANTI NOISE EQUIPMENT ECE<SLK> (A)	1-53192-919-1	01	1	0503-0610	●
154	PANEL; SIDE,UNDER ENG CTR (B)	1-53194-601-1	01	1	0611-	●
154	PANEL; SIDE,UNDER ENG CTR ANTI NOISE EQUIPMENT ECE<SLK> (A)	1-53192-920-1	01	1	0503-0610		●
154	PANEL; SIDE,UNDER ENG CTR (C)	1-53194-572-0	01	1	0611-		●

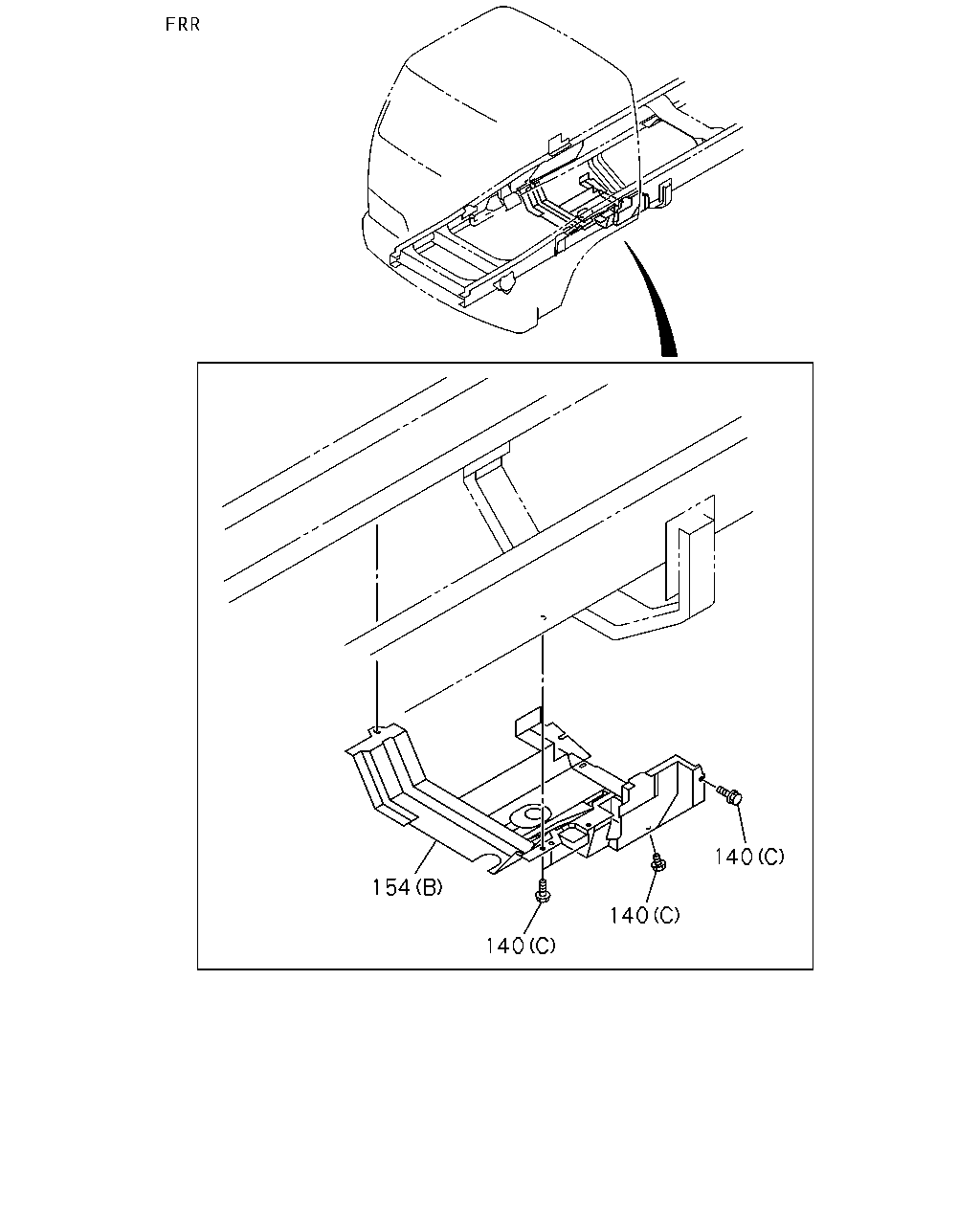

140 154 140 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
140	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT ECE<SLK> (A) M8X25 FLANGE	0-28680-825-0	04	1	0503-0512	●	●
140	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT ECE<SLK> (A) M8X25 FLANGE	0-28650-825-0	04	1	0601-0610	●	●
140	BOLT; SIDE PANEL (C) M8X35 W/LK&PL WASHER	1-09030-073-0	08	1	0611-	●
140	BOLT; SIDE PANEL (B) M8X25 FLANGE	0-28680-825-0	02	1	9811-9906	●	●
140	BOLT; SIDE PANEL (B) M8X20 FLANGE	0-28680-820-0	01	1	0012-0512	●	●
140	BOLT; SIDE PANEL (B) M8X20 FLANGE	0-28650-820-0	01	1	0601-0610	●	●
140	BOLT; SIDE PANEL (D) M8X25 FLANGE	0-28650-825-0	10	1	0611-		●
154	PANEL; SIDE,UNDER ENG CTR ANTI NOISE EQUIPMENT ECE<SLK> (A)	1-53192-919-1	01	1	0503-0610	●
154	PANEL; SIDE,UNDER ENG CTR (B)	1-53194-601-1	01	1	0611-	●
154	PANEL; SIDE,UNDER ENG CTR ANTI NOISE EQUIPMENT ECE<SLK> (A)	1-53192-920-1	01	1	0503-0610		●
154	PANEL; SIDE,UNDER ENG CTR (C)	1-53194-572-0	01	1	0611-		●

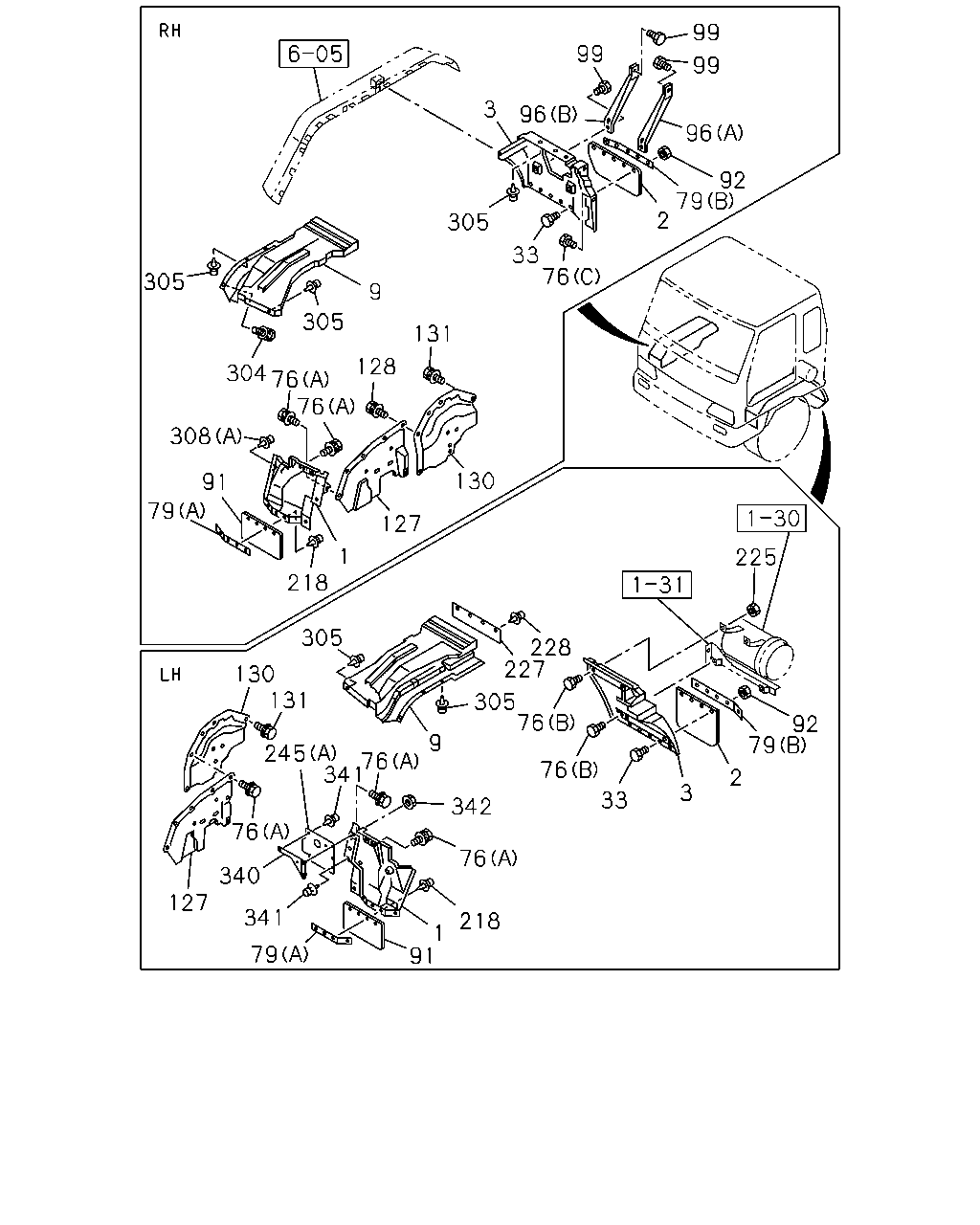

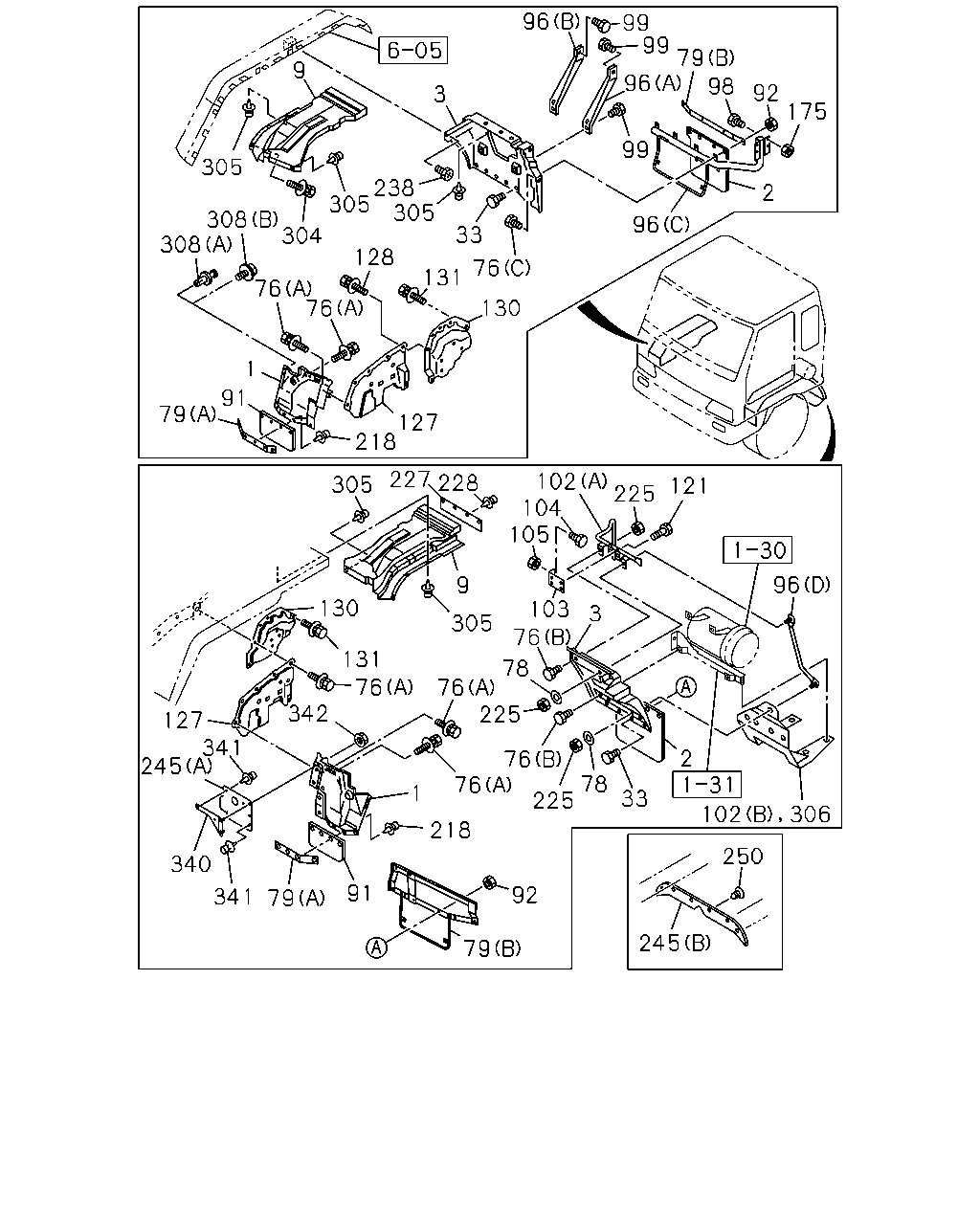

99 99 99 3 96 96 92 79 2 305 33 76 305 9 305 131 128 304 76 76 308 130 91 79 127 1 225 218 305 228 227 130 131 305 76 92 79 9 245 76 341 76 2 3 33 342 76 76 340 127 341 218 1 91 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GUARD; MUD,FRT	1-79938-812-8	01	1	0611-	●
1	GUARD; MUD,FRT	1-79938-810-8	01	1	9811-	●	●
1	GUARD; MUD,FRT	1-79938-812-8	01	1	9811-9906	●	●
1	GUARD; MUD,FRT	1-79938-995-1	01	1	9907-0610	●	●
1	GUARD; MUD,FRT	1-79938-995-1	01	1	0611-		●
2	COVER; MUD,TIRE RR TAI	8-97535-016-1	01	1	9811-0610	●
2	COVER; MUD,TIRE RR TAI	1-79930-693-1	01	1	0611-	●
2	COVER; MUD,TIRE RR TAI	8-97535-015-1	01	1	9811-0610	●
2	COVER; MUD,TIRE RR TAI	1-79930-484-2	01	1	0611-	●
2	COVER; MUD,TIRE RR TAI	8-97535-017-2	01	1	9811-		●
2	COVER; MUD,TIRE RR TAI	8-97530-374-1	01	1	9811-0610		●
2	COVER; MUD,TIRE RR TAI	1-79931-270-0	01	1	0611-		●
3	GUARD; MUD,RR	1-79938-961-2	01	1	9811-	●
3	GUARD; MUD,RR TAI	1-79938-935-3	01	1	9811-9906	●
3	GUARD; MUD,RR	1-79936-011-0	01	1	9907-0610	●
3	GUARD; MUD,RR TAI	1-79938-935-3	01	1	0611-	●
3	GUARD; MUD,RR	1-79938-962-2	01	1	9811-		●
3	GUARD; MUD,RR	1-79938-971-1	01	1	9811-9906		●
3	GUARD; MUD,RR	1-79936-012-0	01	1	9907-0610		●
3	GUARD; MUD,RR	1-79938-971-1	01	1	0611-		●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-822-9	01	1	9811-0304	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-037-1	01	1	0305-	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-821-9	01	1	9811-0304	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-036-1	01	1	0305-	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-007-2	01	1	9811-		●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-955-3	01	1	9811-		●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	09	1	9811-	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	13	1	9811-		●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	9811-0610	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	0611-	●	●
76	BOLT; MUD GUARD (C) M6X20 W/LK&PL WASHER TAI	8-94279-203-0	02	1	9811-	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER USA	8-94331-747-1	08	1	9811-	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	02	1	9811-0610		●
79	RETAINER; MUD COVER (B) TAI	8-97535-013-0	01	1	9811-0610	●
79	RETAINER; MUD COVER (B) TAI	1-79930-962-1	01	1	0611-	●
79	RETAINER; MUD COVER (B) TAI	8-97535-012-0	01	1	9811-0610	●
79	RETAINER; MUD COVER (B) L=509 TAI	1-79930-695-1	01	1	0611-	●
79	RETAINER; MUD COVER (A)	1-79931-044-0	02	1	9811-	●	●
79	RETAINER; MUD COVER (B) TAI	8-97535-014-0	01	1	9811-		●
79	RETAINER; MUD COVER (B) TAI	8-97530-375-0	01	1	9811-0610		●
79	RETAINER; MUD COVER (B) TAI	1-79931-269-0	01	1	0611-		●
91	COVER; MUD,FRT	1-79931-214-1	02	1	9811-	●	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	09	1	9811-0602	●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	09	1	0603-	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	07	1	9811-9906		●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	11	1	9907-0602		●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	11	1	0603-0610		●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	10	1	0611-		●
96	STAY; MUD GUARD (D)	1-53497-592-1	01	1	9811-		●
96	STAY; MUD GUARD (A) TAI	1-79938-737-0	01	1	9811-	●	●
96	STAY; MUD GUARD (B)	1-79938-738-1	01	1	9811-	●	●
96	STAY; MUD GUARD (C)	1-53497-577-2	01	1	9811-		●
99	BOLT; STAY TO MUD GUARD M6X20 W/LK&PL WASHER TAI	8-94279-203-0	04	1	9811-	●	●
127	APRON; FRT	1-53193-222-1	01	1	9811-	●
127	APRON; FRT	1-53192-301-3	01	1	9811-	●
127	APRON; FRT	1-53192-957-2	01	1	9811-		●
127	APRON; FRT	1-53192-956-1	01	1	9811-		●
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER USA	8-94331-747-1	10	1	9811-	●	●
130	PANEL; SHUTTER NOISE TAI	1-53192-307-4	01	1	9811-0610	●
130	PANEL; SHUTTER NOISE	1-53194-665-0	01	1	0611-	●	●
130	PANEL; SHUTTER NOISE	1-53192-305-1	01	1	9811-9906	●
130	PANEL; SHUTTER NOISE	1-53193-704-1	01	1	9907-0610	●	●
130	PANEL; SHUTTER NOISE	1-53194-486-3	01	1	0611-	●	●
130	PANEL; SHUTTER NOISE	1-53192-955-2	01	1	9811-0610		●
130	PANEL; SHUTTER NOISE	1-53192-954-1	01	1	9811-9906		●
131	BOLT; PANEL M6X20 W/LK&PL WASHER TAI	8-94279-203-0	08	1	9811-	●	●
218	FASTENER; RUBBER	1-09470-001-0	08	1	9811-	●	●
225	NUT; MUD GUARD M8 FLANGE	0-91150-108-0	02	1	9811-0602	●
225	NUT; MUD GUARD M8 FLANGE	0-91180-108-0	02	1	0603-	●
225	NUT; MUD GUARD M8 FLANGE	0-91150-108-0	03	1	9811-0602		●
225	NUT; MUD GUARD M8 FLANGE	0-91180-108-0	03	1	0603-		●
227	SEAL; MUD GUARD TAI	1-79938-953-1	01	1	9811-	●	●
228	FASTENER; MUD GUARD SEAL D8X13.5 TAI	1-09987-248-1	04	1	9811-	●	●
245	RUBBER; SHUTTER,RAD (A)	1-79936-023-0	01	1	9907-9907	●	●
245	RUBBER; SHUTTER,RAD (A)	1-79936-027-0	01	1	9908-0610	●	●
245	RUBBER; SHUTTER,RAD (A)	1-79936-027-0	01	1	0611-		●
245	RUBBER; SHUTTER,RAD (B)	1-79938-927-0	01	1	9811-		●
304	BOLT; SPLASH GUARD M6X20 W/LK&PL WASHER TAI	8-94279-203-0	02	1	9811-	●	●
305	FASTENER; SPLASH GUARD D8X13.5 TAI	1-09987-248-1	01	1	0610-0610		●
305	FASTENER; SPLASH GUARD D8X13.5 TAI	1-09987-248-1	06	1	0611-		●
305	FASTENER; SPLASH GUARD D8X13.5 TAI	1-09987-248-1	08	1	9811-0610	●
305	FASTENER; SPLASH GUARD D8X13.5 TAI	1-09987-248-1	13	1	0611-	●
305	FASTENER; SPLASH GUARD D8X13.5 TAI	1-09987-248-1	05	1	9811-0610	●	●
308	FASTENER; MUD GUARD (A) M6X22 TAI	1-65481-386-0	04	1	0705-		●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	04	1	9811-0610	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	04	1	0611-0704	●	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	04	1	0705-	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	02	1	9811-9905		●
308	FASTENER; MUD GUARD (B) M6X22 TAI	1-65481-386-0	02	1	9811-9905		●
308	FASTENER; MUD GUARD (B) M6X22 TAI	1-65481-386-0	04	1	9906-0610		●
340	BRACKET; RUBBER,SHUTTER	1-79936-024-1	01	1	9907-0610	●	●
340	BRACKET; RUBBER,SHUTTER	1-79936-024-1	01	1	0611-		●
341	CLIP; RUBBER ID=6X6 OD=8	1-09987-194-0	03	1	9907-0610	●	●
341	CLIP; RUBBER ID=6X6 OD=8	1-09987-194-0	03	1	0611-		●
342	NUT; BRKT,RUBBER M8 FLANGE	0-91150-108-0	02	1	9907-9907	●	●
342	NUT; BRKT,RUBBER M8 FLANGE TAI	8-97046-127-0	02	1	9908-0610	●	●
342	NUT; BRKT,RUBBER M8 FLANGE TAI	8-97046-127-0	02	1	0611-		●

114 71 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
71	RUBBER; SEAL	1-21593-089-0	01	1	9907-0610	●
71	RUBBER; SEAL	1-21593-090-1	01	1	9907-0610	●
114	BOLT M8X25 FLANGE	0-28680-825-0	04	1	9907-0512	●
114	BOLT M8X25 FLANGE	0-28650-825-0	04	1	0601-0610	●
138	NUT M8 FLANGE	0-91150-108-0	04	1	9907-0602	●
138	NUT M8 FLANGE	0-91180-108-0	04	1	0603-	●

96 99 99 79 9 96 98 92 3 175 99 305 238 305 305 2 308 304 308 96 33 128 76 131 76 76 130 1 91 79 127 218 227 228 102 104 105 225 305 121 103 76 96 9 3 130 305 131 78 76 225 342 76 127 341 76 2 245 78 225 76 1 33 218 250 340 91 92 341 79 245 79 102 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GUARD; MUD,FRT	1-79938-812-8	01	1	0611-	●
1	GUARD; MUD,FRT	1-79938-810-8	01	1	9811-	●	●
1	GUARD; MUD,FRT	1-79938-812-8	01	1	9811-9906	●	●
1	GUARD; MUD,FRT	1-79938-995-1	01	1	9907-0610	●	●
1	GUARD; MUD,FRT	1-79938-995-1	01	1	0611-		●
2	COVER; MUD,TIRE RR TAI	8-97535-016-1	01	1	9811-0610	●
2	COVER; MUD,TIRE RR TAI	1-79930-693-1	01	1	0611-	●
2	COVER; MUD,TIRE RR TAI	8-97535-015-1	01	1	9811-0610	●
2	COVER; MUD,TIRE RR TAI	1-79930-484-2	01	1	0611-	●
2	COVER; MUD,TIRE RR TAI	8-97535-017-2	01	1	9811-		●
2	COVER; MUD,TIRE RR TAI	8-97530-374-1	01	1	9811-0610		●
2	COVER; MUD,TIRE RR TAI	1-79931-270-0	01	1	0611-		●
3	GUARD; MUD,RR	1-79938-961-2	01	1	9811-	●
3	GUARD; MUD,RR TAI	1-79938-935-3	01	1	9811-9906	●
3	GUARD; MUD,RR	1-79936-011-0	01	1	9907-0610	●
3	GUARD; MUD,RR TAI	1-79938-935-3	01	1	0611-	●
3	GUARD; MUD,RR	1-79938-962-2	01	1	9811-		●
3	GUARD; MUD,RR	1-79938-971-1	01	1	9811-9906		●
3	GUARD; MUD,RR	1-79936-012-0	01	1	9907-0610		●
3	GUARD; MUD,RR	1-79938-971-1	01	1	0611-		●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-822-9	01	1	9811-0304	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-037-1	01	1	0305-	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-821-9	01	1	9811-0304	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-036-1	01	1	0305-	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-007-2	01	1	9811-		●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-955-3	01	1	9811-		●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	09	1	9811-	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	13	1	9811-		●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	9811-0610	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	0611-	●	●
76	BOLT; MUD GUARD (C) M6X20 W/LK&PL WASHER TAI	8-94279-203-0	02	1	9811-	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER USA	8-94331-747-1	08	1	9811-	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	02	1	9811-0610		●
78	WASHER; PL,MUD GUARD ID=8.4 OD=26	9-09164-808-0	02	1	9811-0605		●
78	WASHER; PL,MUD GUARD ID=8.4 OD=26	0-91614-808-0	02	1	0606-		●
79	RETAINER; MUD COVER (B) TAI	8-97535-013-0	01	1	9811-0610	●
79	RETAINER; MUD COVER (B) TAI	1-79930-962-1	01	1	0611-	●
79	RETAINER; MUD COVER (B) TAI	8-97535-012-0	01	1	9811-0610	●
79	RETAINER; MUD COVER (B) L=509 TAI	1-79930-695-1	01	1	0611-	●
79	RETAINER; MUD COVER (A)	1-79931-044-0	02	1	9811-	●	●
79	RETAINER; MUD COVER (B) TAI	8-97535-014-0	01	1	9811-		●
79	RETAINER; MUD COVER (B) TAI	8-97530-375-0	01	1	9811-0610		●
79	RETAINER; MUD COVER (B) TAI	1-79931-269-0	01	1	0611-		●
91	COVER; MUD,FRT	1-79931-214-1	02	1	9811-	●	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	09	1	9811-0602	●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	09	1	0603-	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	07	1	9811-9906		●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	11	1	9907-0602		●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	11	1	0603-0610		●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	10	1	0611-		●
96	STAY; MUD GUARD (D)	1-53497-592-1	01	1	9811-		●
96	STAY; MUD GUARD (A) TAI	1-79938-737-0	01	1	9811-	●	●
96	STAY; MUD GUARD (B)	1-79938-738-1	01	1	9811-	●	●
96	STAY; MUD GUARD (C)	1-53497-577-2	01	1	9811-		●
98	BOLT; STAY TO BRKT M8X30 FLANGE	0-28680-830-0	04	1	9811-0512		●
98	BOLT; STAY TO BRKT M8X30 FLANGE	0-28650-830-0	04	1	0601-		●
99	BOLT; STAY TO MUD GUARD M6X20 W/LK&PL WASHER TAI	8-94279-203-0	04	1	9811-	●	●
102	STAY; LWR,MUD GUARD (A) TAI	8-97530-443-0	01	1	9811-0610		●
102	STAY; LWR,MUD GUARD (A) TAI	1-53497-535-0	01	1	0611-		●
102	STAY; LWR,MUD GUARD (B) TAI	8-97530-445-0	01	1	9811-9908		●
102	STAY; LWR,MUD GUARD (B) TAI	8-97531-160-0	01	1	9909-0610		●
103	BRACKET ASM; RR MUD FLAP TAI	8-97530-366-0	01	1	9811-0610		●
103	BRACKET ASM; RR MUD FLAP TAI	1-53497-486-2	01	1	0611-		●
104	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0611-		●
104	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	9811-0512		●
104	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9811-0602		●
105	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-		●
121	BOLT M10X30 FLANGE	0-28681-030-0	04	1	9811-0512		●
121	BOLT M10X30 FLANGE	0-28651-030-0	04	1	0601-0610		●
121	BOLT M10X25 FLANGE	0-28651-025-0	04	1	0611-		●
127	APRON; FRT	1-53193-222-1	01	1	9811-	●
127	APRON; FRT	1-53192-301-3	01	1	9811-	●
127	APRON; FRT	1-53192-957-2	01	1	9811-		●
127	APRON; FRT	1-53192-956-1	01	1	9811-		●
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER USA	8-94331-747-1	10	1	9811-	●	●
130	PANEL; SHUTTER NOISE TAI	1-53192-307-4	01	1	9811-0610	●
130	PANEL; SHUTTER NOISE	1-53194-665-0	01	1	0611-	●	●
130	PANEL; SHUTTER NOISE	1-53192-305-1	01	1	9811-9906	●
130	PANEL; SHUTTER NOISE	1-53193-704-1	01	1	9907-0610	●	●
130	PANEL; SHUTTER NOISE	1-53194-486-3	01	1	0611-	●	●
130	PANEL; SHUTTER NOISE	1-53192-955-2	01	1	9811-0610		●
130	PANEL; SHUTTER NOISE	1-53192-954-1	01	1	9811-9906		●
131	BOLT; PANEL M6X20 W/LK&PL WASHER TAI	8-94279-203-0	08	1	9811-	●	●
175	NUT; STAY FIX M8 FLANGE	0-91150-108-0	04	1	9811-0602		●
175	NUT; STAY FIX M8 FLANGE	0-91180-108-0	04	1	0603-0610		●
218	FASTENER; RUBBER	1-09470-001-0	08	1	9811-	●	●
225	NUT; MUD GUARD M8 FLANGE	0-91150-108-0	02	1	9811-0602	●
225	NUT; MUD GUARD M8 FLANGE	0-91180-108-0	02	1	0603-	●
225	NUT; MUD GUARD M8 FLANGE	0-91150-108-0	03	1	9811-0602		●
225	NUT; MUD GUARD M8 FLANGE	0-91180-108-0	03	1	0603-		●
227	SEAL; MUD GUARD TAI	1-79938-953-1	01	1	9811-	●	●
228	FASTENER; MUD GUARD SEAL D8X13.5 TAI	1-09987-248-1	04	1	9811-	●	●
238	SCREW; MUD GUARD M6X20 W/LK&PL WASHER TAI	8-94279-203-0	01	1	9811-		●
245	RUBBER; SHUTTER,RAD (A)	1-79936-023-0	01	1	9907-9907	●	●
245	RUBBER; SHUTTER,RAD (A)	1-79936-027-0	01	1	9908-0610	●	●
245	RUBBER; SHUTTER,RAD (A)	1-79936-027-0	01	1	0611-		●
245	RUBBER; SHUTTER,RAD (B)	1-79938-927-0	01	1	9811-		●
250	FASTENER; SHUTTER	1-09987-189-0	06	1	9811-		●
304	BOLT; SPLASH GUARD M6X20 W/LK&PL WASHER TAI	8-94279-203-0	02	1	9811-	●	●
305	FASTENER; SPLASH GUARD D8X13.5 TAI	1-09987-248-1	01	1	0610-0610		●
305	FASTENER; SPLASH GUARD D8X13.5 TAI	1-09987-248-1	06	1	0611-		●
305	FASTENER; SPLASH GUARD D8X13.5 TAI	1-09987-248-1	08	1	9811-0610	●
305	FASTENER; SPLASH GUARD D8X13.5 TAI	1-09987-248-1	13	1	0611-	●
305	FASTENER; SPLASH GUARD D8X13.5 TAI	1-09987-248-1	05	1	9811-0610	●	●
306	BRACKET; MUD GUARD TAI	1-53497-618-0	01	1	0611-		●
308	FASTENER; MUD GUARD (A) M6X22 TAI	1-65481-386-0	04	1	0705-		●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	04	1	9811-0610	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	04	1	0611-0704	●	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	04	1	0705-	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	02	1	9811-9905		●
308	FASTENER; MUD GUARD (B) M6X22 TAI	1-65481-386-0	02	1	9811-9905		●
308	FASTENER; MUD GUARD (B) M6X22 TAI	1-65481-386-0	04	1	9906-0610		●
340	BRACKET; RUBBER,SHUTTER	1-79936-024-1	01	1	9907-0610	●	●
340	BRACKET; RUBBER,SHUTTER	1-79936-024-1	01	1	0611-		●
341	CLIP; RUBBER ID=6X6 OD=8	1-09987-194-0	03	1	9907-0610	●	●
341	CLIP; RUBBER ID=6X6 OD=8	1-09987-194-0	03	1	0611-		●
342	NUT; BRKT,RUBBER M8 FLANGE	0-91150-108-0	02	1	9907-9907	●	●
342	NUT; BRKT,RUBBER M8 FLANGE TAI	8-97046-127-0	02	1	9908-0610	●	●
342	NUT; BRKT,RUBBER M8 FLANGE TAI	8-97046-127-0	02	1	0611-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
