51174 - ELF400/500/600/BUS
▶
0 - Engine, Emission, Engine Electrical
▶
0-22 - ENGINE MOUNTING
▶

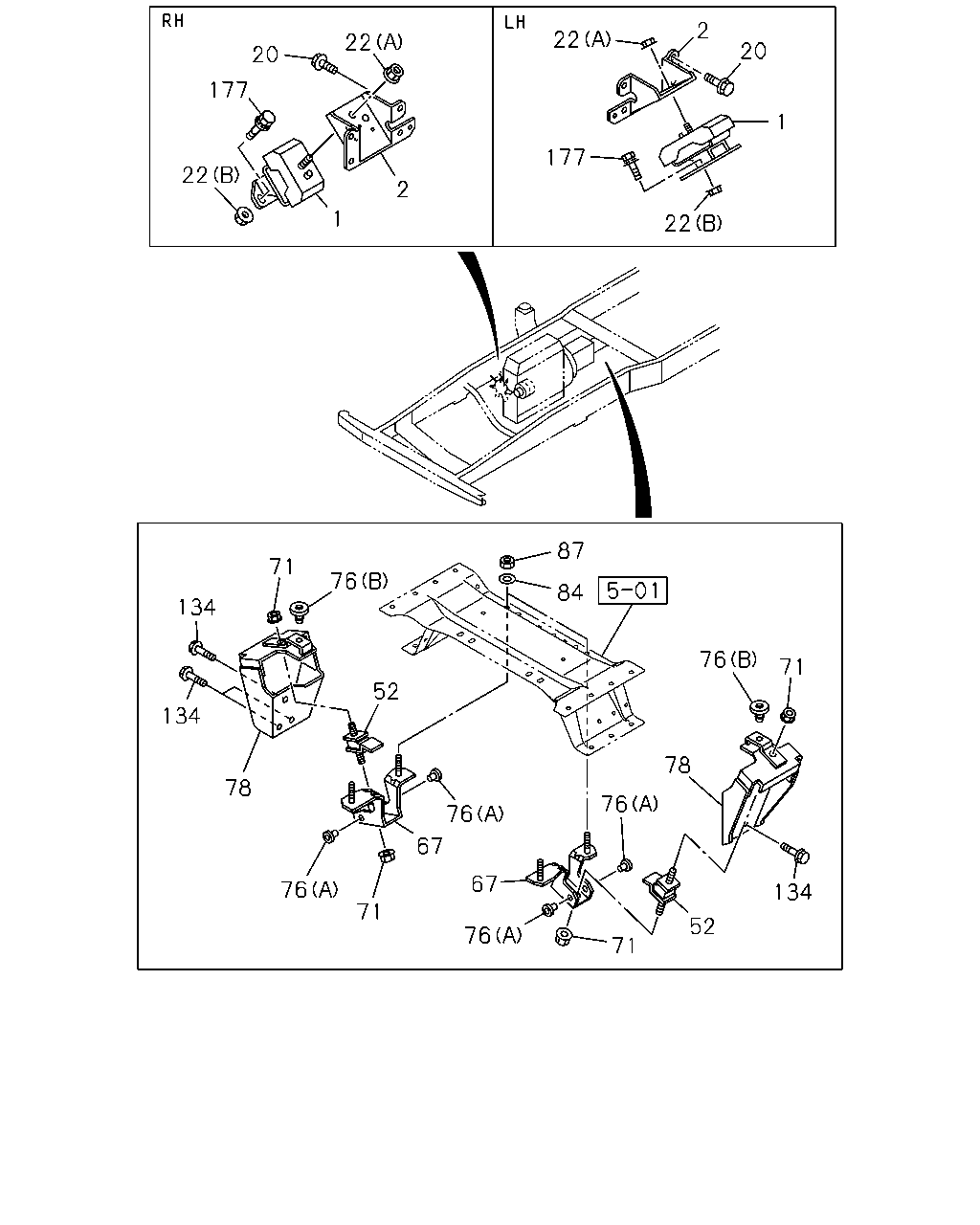

0-22 — ENGINE MOUNTING
(#74849) — 20 parça
2
22
22
20
20
177
1
177
22
2
1
22
87
71
76
84
134
76
71
52
134
78
78
76
76
67
67
76
134
71
52
76
71
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RUBBER; ENG FOOT,FRT
8-97387-250-2
01
1
0807-1112
1
RUBBER; ENG FOOT,FRT
8-98203-633-0
01
1
1201-
1
RUBBER; ENG FOOT,FRT
8-98061-232-0
01
1
0807-1112
1
RUBBER; ENG FOOT,FRT
8-98203-634-0
01
1
1201-
2
FOOT; ENG
8-97228-669-2
02
1
0807-
20
BOLT; ENG FOOT
M10X20 FLANGE
0-28161-020-0
08
1
0807-
22
NUT; CUSHION RUBBER TO BRKT
(A) M12 FLANGE
0-91180-112-0
02
1
0807-
22
NUT; CUSHION RUBBER TO BRKT
(B) M10 FLANGE
0-91180-210-0
04
1
0807-
52
RUBBER; CUSHION,ENG MTG,RR
8-97039-277-0
02
1
0807-
67
BRACKET; SUPPORT,ENG MTG,RR
8-97180-457-0
01
1
0807-
67
BRACKET; SUPPORT,ENG MTG,RR
8-97180-458-0
01
1
0807-
71
NUT; SUPPORT RUBBER TO BRKT
M10 FLANGE
0-91180-110-0
04
1
0807-
76
STOPPER; ENG MTG RUBBER
(B)
8-94111-904-0
02
1
0807-
76
STOPPER; ENG MTG RUBBER
(A)
8-97039-947-1
04
1
0807-
78
BRACKET; ENG MTG,RR
8-97211-475-0
01
1
0807-
78
BRACKET; ENG MTG,RR
8-97234-719-0
01
1
0807-
84
WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32
0-91614-810-0
04
1
0807-
87
NUT; ENG MTG RR
M10 FLANGE
0-91180-110-0
04
1
0807-
134
BOLT; SUPPORT BRKT
M12X25 FLANGE
0-28751-225-0
06
1
0807-
177
BOLT; BRKT TO CUSHION RUBBER
M10X37.5
8-94468-733-1
04
1
0807-
