0-14 — CAMSHAFT AND VALVE (#74846) — 54 parça

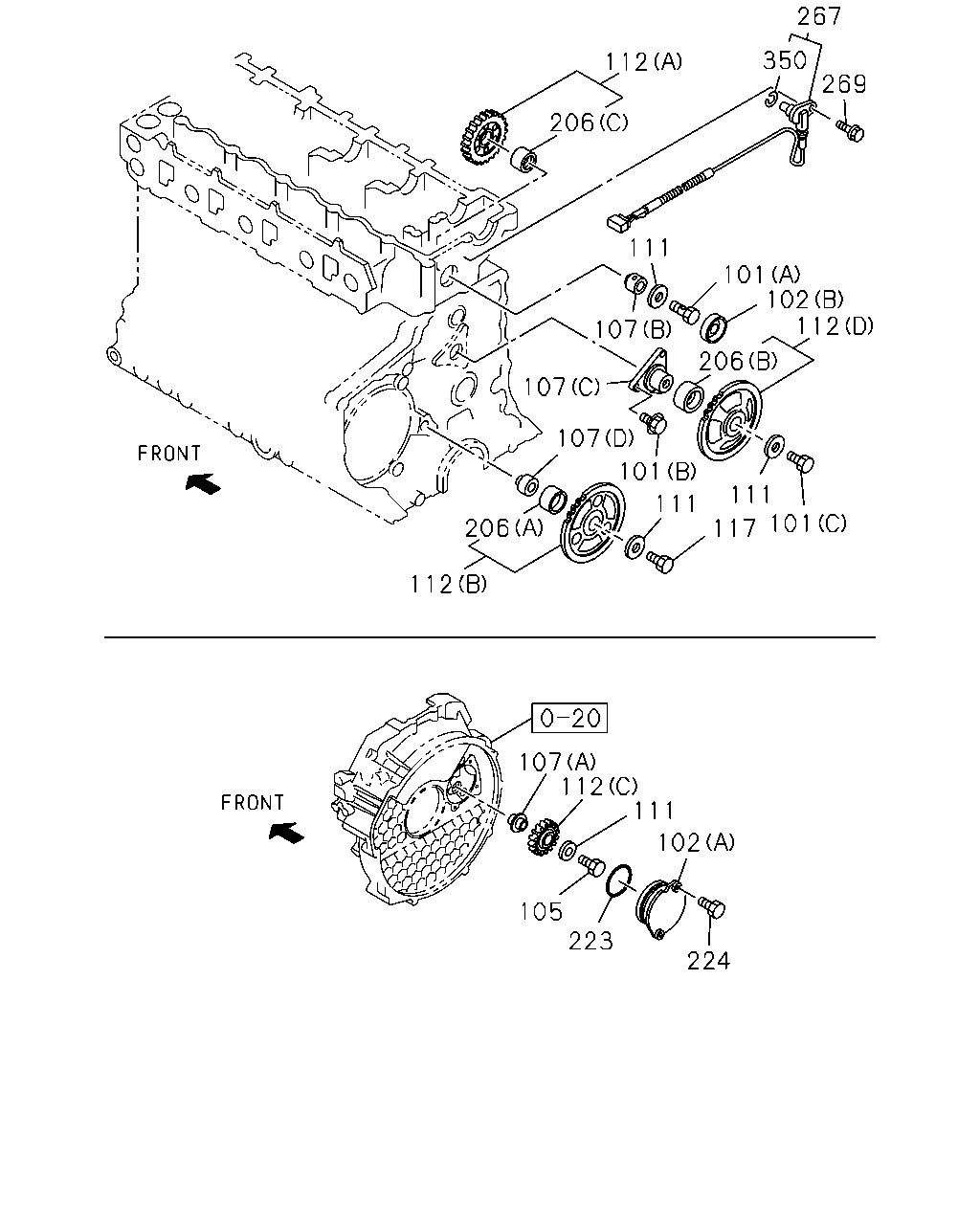

267 350 112 269 206 111 101 102 112 107 206 107 107 101 111 101 111 206 117 112 107 112 111 102 105 223 224

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	0807-
101	BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	0807-
101	BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	0807-1310
101	BOLT; THRUST COLLAR (C) M14X25	0-23951-425-0	01	1	1311-
102	COVER; IDLE GEAR (A)	8-94334-681-1	01	1	0807-
102	COVER; IDLE GEAR (B) OD=51	8-97096-826-0	01	1	0807-
105	BOLT; IDLE GEAR SHAFT M14X60	0-16956-460-0	01	1	0807-
107	SHAFT; IDLE GEAR (A)	8-94334-682-1	01	1	0807-
107	SHAFT; IDLE GEAR (B)	8-97186-398-1	01	1	0807-
107	SHAFT; IDLE GEAR (C)	8-97350-021-0	01	1	0807-
107	SHAFT; IDLE GEAR (D)	8-98060-780-0	01	1	0807-
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	04	1	0807-
112	GEAR; IDLE (C) Z=34	8-97120-005-1	01	1	0807-
112	GEAR; IDLE (B) Z=72-60-30	8-97600-586-1	01	1	0807-1402
112	GEAR; IDLE (B) Z=72-60-30	8-98254-970-0	01	1	1403-
112	GEAR; IDLE (D) Z=61	8-97606-767-0	01	1	0807-
112	GEAR; IDLE (A) Z=41	8-97606-929-0	01	1	0807-
117	BOLT; FLANGE M14X65 FLANGE	8-97113-167-0	01	1	0807-
206	BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-12528-028-0	01	1	0807-1402
206	BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	8-98255-899-0	01	1	1403-
206	BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-97606-768-0	01	1	0807-
206	BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97606-770-0	01	1	0807-
223	GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	0807-
224	BOLT; COVER M8X16 FLANGE	0-28050-816-0	02	1	0807-
267	SENSOR; CAM ANGLE	8-97329-775-1	01	1	0807-
269	BOLT; SENSOR M6X12 FLANGE	0-28050-612-0	01	1	0807-
350	GASKET; SENSOR,CAM ANGLE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97387-194-0	01	1	0807-

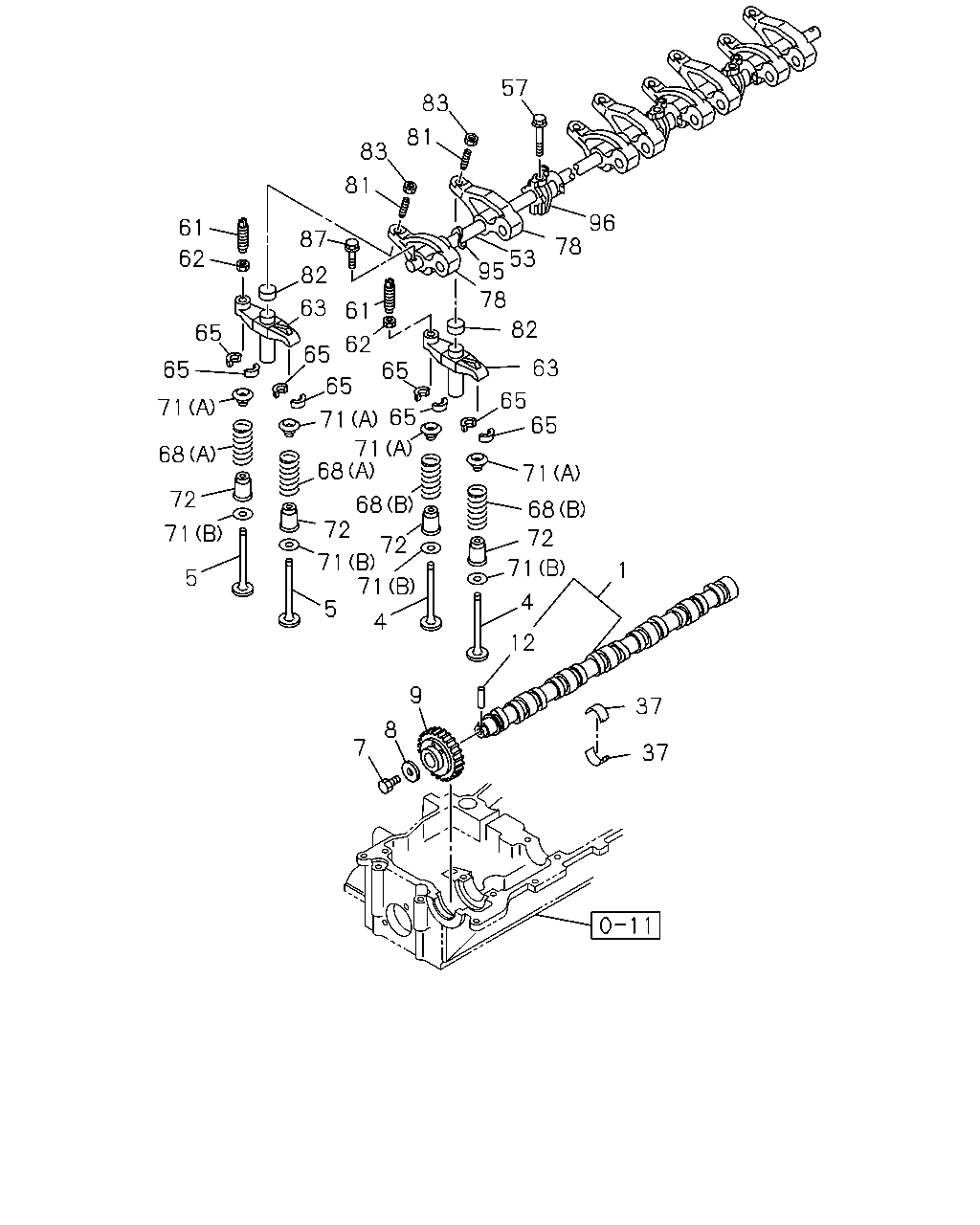

57 83 81 83 81 96 78 87 61 62 53 95 82 78 63 61 82 65 62 65 63 65 65 65 65 65 71 65 71 71 68 68 71 68 72 72 68 71 72 72 71 71 71 1 5 4 5 4 12 9 37 8 7 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CAMSHAFT	8-97262-166-0	01	1	0807-
4	VALVE; INL	8-94395-882-2	08	1	0807-
5	VALVE; EXH	8-97209-876-4	08	1	0807-
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0807-
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0807-
9	GEAR; CM/SHF Z=35	8-97324-472-0	01	1	0807-
12	KEY; CAM GEAR SET OD=7 L=7.5	8-94399-487-0	02	1	0807-
37	METAL; CM/SHF B=16	8-97386-189-0	10	1	0807-
53	SHAFT; ROCKER ARM	8-97389-921-0	01	1	0807-
57	BOLT; ROCKER ARM BRKT M10X62 FLANGE	8-94393-131-0	03	1	0807-
61	SCREW; ADJ,BRIDGE M8X21	8-94394-803-0	08	1	0807-
62	NUT; ADJ SCREW LK BRIDGE M8 FLANGE	9-09844-574-0	08	1	0807-
63	BRIDGE	8-94392-002-3	08	1	0807-
65	COLLAR; SPLIT	5-12565-004-0	32	1	0807-
68	SPRING; VLV (A) MARK RED	8-97210-682-0	08	1	0807-
68	SPRING; VLV (B) MARK BLUE	8-97352-888-0	08	1	0807-
71	SEAT; SPR (A) UPPER OD=32.8 T=12.75	8-94390-783-2	16	1	0807-
71	SEAT; SPR (B) LOWER ID=14.3 T=1.0	8-94391-468-0	16	1	0807-
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	16	1	0807-
78	ARM; ROCKER INLET	8-97306-421-3	04	1	0807-
78	ARM; ROCKER EXHAUST	8-97306-424-3	04	1	0807-
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	08	1	0807-
82	CAP; ROCKER SHAFT	8-94396-015-2	08	1	0807-
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	0807-
87	BOLT; ROCKER SHAFT M8X40 FLANGE	0-28050-840-0	02	1	0807-
95	SPRING; ROCKER SHAFT	8-94392-999-0	04	1	0807-
96	BRACKET; ROCKER ARM SHAFT	8-97334-414-0	03	1	0807-
