◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10775 - FRR/FVR(TAIWAN) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#7484) — 34 parça

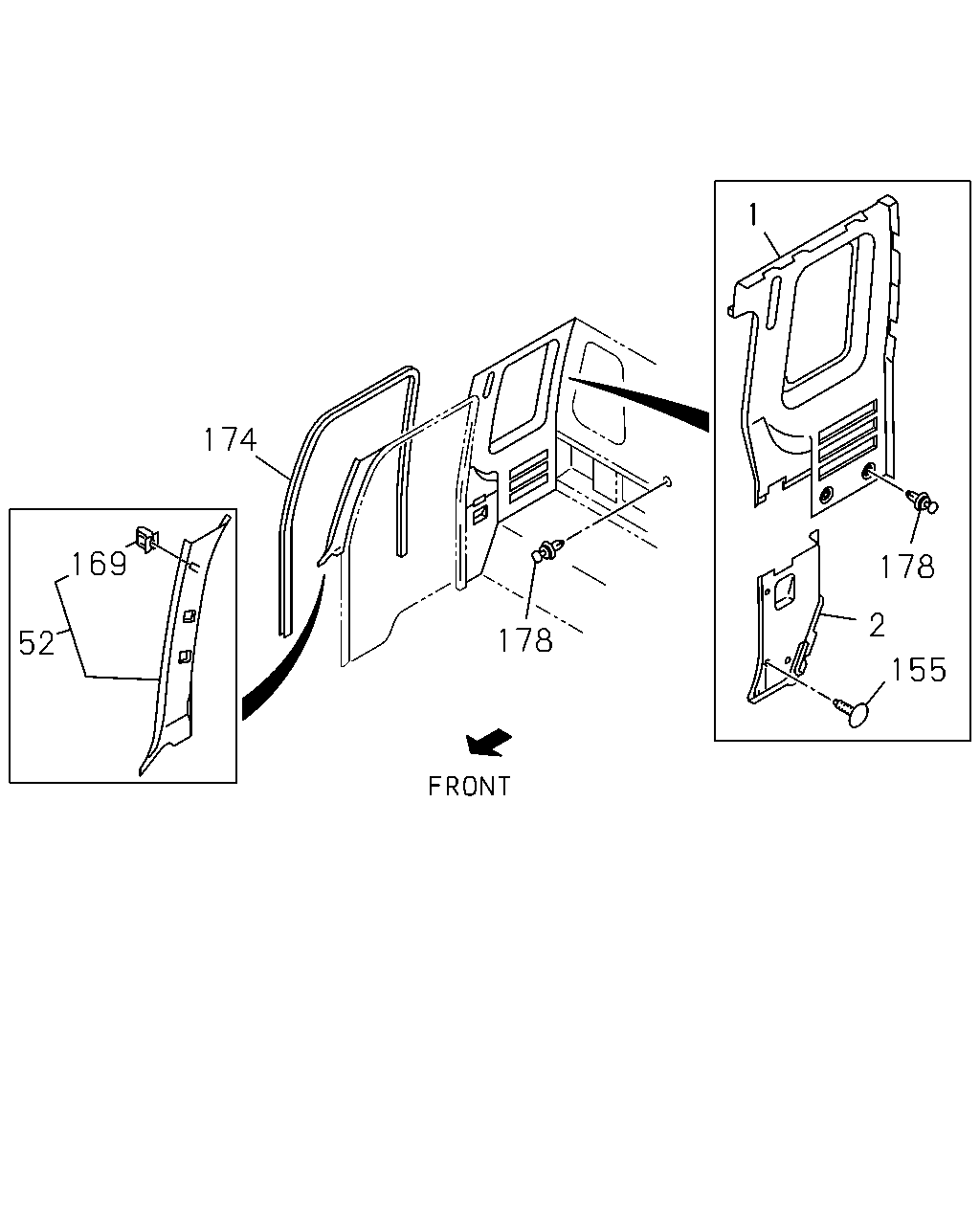

çizim 26118
1 174 169 178 178 2 52 155
BalonParca AdiParca NoAdetTipApplied Date A B
1 TRIM; ROOM,QUARTER WINDOW UPR
PROVISIONAL PACKAGE<NLY> 		1-73348-964-3 01 1 0611- ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR
PROVISIONAL PACKAGE<NLY> 		1-73348-965-3 01 1 0611- ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73348-878-2 01 1 9811-9906 ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73348-961-6 01 1 9907-0610 ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR
EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-961-6 01 1 0611- ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73348-877-2 01 1 9811-9906 ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73348-960-6 01 1 9907-0610 ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR
EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-960-6 01 1 0611- ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR
PROVISIONAL PACKAGE<NLY> 		1-73348-966-2 01 1 0611- ●
2 TRIM; ROOM,QUARTER WINDOW LWR
PROVISIONAL PACKAGE<NLY> 		1-73348-967-2 01 1 0611- ●
2 TRIM; ROOM,QUARTER WINDOW LWR
PROVISIONAL PACKAGE<NLY> 		1-73348-977-2 01 1 0611- ●
2 TRIM; ROOM,QUARTER WINDOW LWR
PROVISIONAL PACKAGE<NLY> 		1-73348-978-2 01 1 0611- ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73348-865-5 01 1 9811-9906 ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73348-923-3 01 1 9907-0610 ●
2 TRIM; ROOM,QUARTER WINDOW LWR
EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-923-3 01 1 0611- ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73348-864-5 01 1 9811-9906 ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73348-922-3 01 1 9907-0610 ●
2 TRIM; ROOM,QUARTER WINDOW LWR
EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-922-3 01 1 0611- ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73347-780-8 01 1 9811-9906 ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73348-927-3 01 1 9907-0610 ●
2 TRIM; ROOM,QUARTER WINDOW LWR
EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-927-3 01 1 0611- ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73347-779-8 01 1 9811-9906 ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73348-926-3 01 1 9907-0610 ●
2 TRIM; ROOM,QUARTER WINDOW LWR
EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-926-3 01 1 0611- ●
52 COVER; TRIM,FRT PILLAR
TAI 		1-73348-939-0 01 1 9907- ● ●
52 COVER; TRIM,FRT PILLAR 1-73348-484-3 01 1 9811-9906 ● ●
52 COVER; TRIM,FRT PILLAR 1-73348-483-3 01 1 9811-9906 ● ●
52 COVER; TRIM,FRT PILLAR
TAI 		1-73347-833-0 01 1 9907- ● ●
155 CLIP; TRIM,QUARTER
OD=6 L=17 DARK GRAY 		1-73996-128-1 02 1 9811-9906 ●
155 CLIP; TRIM,QUARTER
OD=6 L=17 LIGHT GRAY TAI 		1-73996-301-0 02 1 9907- ●
169 CLIP; TRIM COVER,FRT PILLAR
TAI 		8-94313-458-0 02 1 9811- ● ●
174 FINISHER; BODY SIDE 1-76718-175-4 02 1 9811- ● ●
178 CLIP; TRIM COVER
OD=6.2 DARK GRAY 		1-09983-167-0 09 1 9811-9906 ● ●
178 CLIP; TRIM COVER
OD=6.2 LIGHT GRAY 		1-09983-178-0 09 1 9907- ● ●
