◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51171 - TFR/TFS CHEV HOLDEN ▶ 9 - Tools ▶ 9-32 - REAR BODY; GUARD FRAME ▶
9-32 — REAR BODY; GUARD FRAME (#74838) — 24 parça

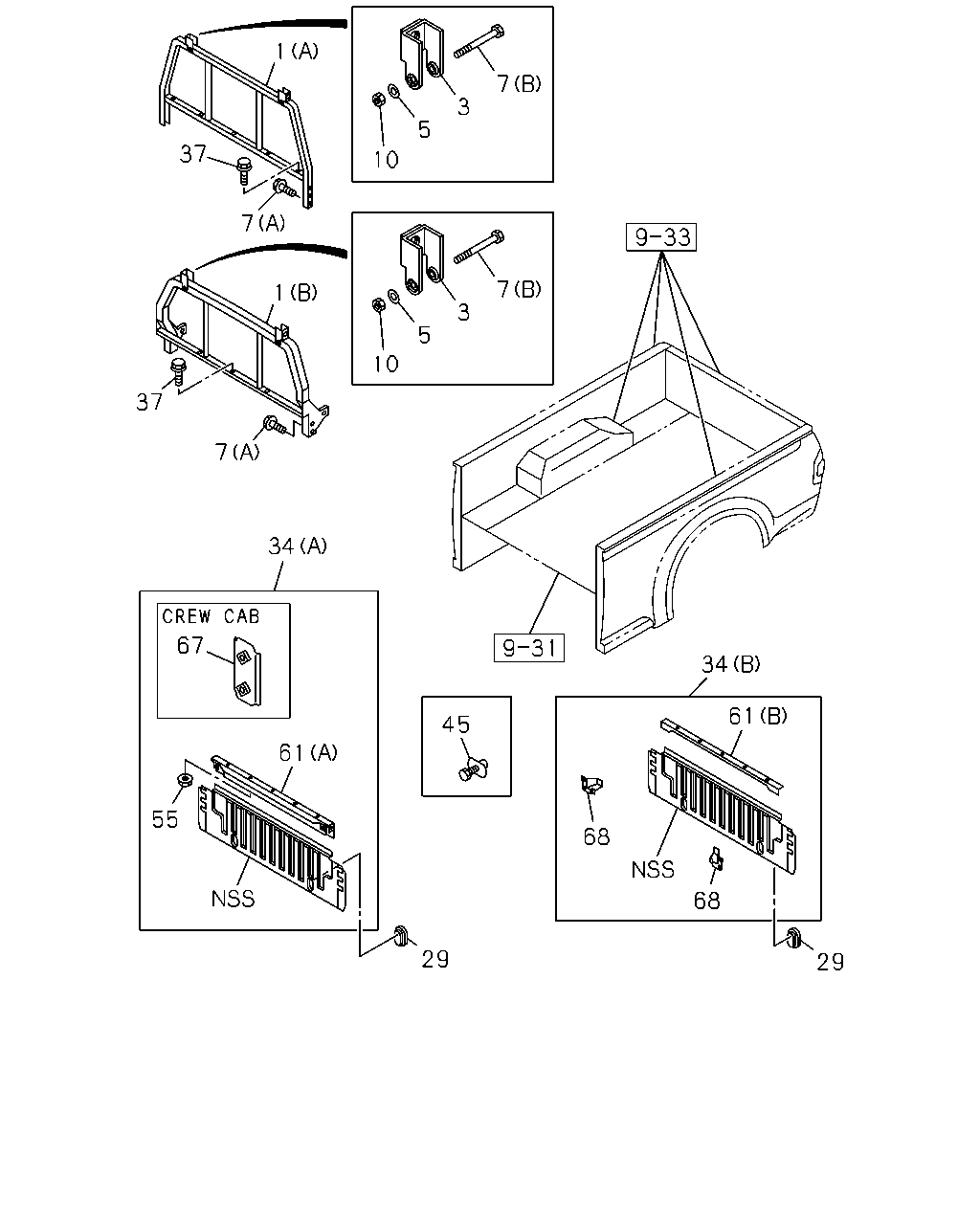

çizim 144445
1 7 3 5 37 10 7 7 1 3 5 10 37 7 34 67 34 61 45 61 55 68 68 29 29
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 17.455 FRAME; GUARD,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-97310-075-2 01 1 0805- ● ● ● ●
1 17.455 FRAME; GUARD,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-97236-678-5 01 1 0805- ●
3 17.447 STOPPER; GUARD FRAME,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-97352-624-0 02 1 0805- ● ● ● ● ●
5 17.447 WASHER; PL,GUARD FRAME STOPPER
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98056-308-0 02 1 0805- ● ● ● ● ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) 17.400 (A) M8X16.5 		8-98058-001-0 06 1 0805- ● ● ● ● ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) M6X45 		8-98056-129-0 02 1 0805- ● ● ● ● ●
10 17.447 NUT; GUARD FRAME STOPPER
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> M6 		8-98056-127-0 02 1 0805- ● ● ● ● ●
29 17.455 COVER; GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) 		8-97918-416-0 02 1 0805- ● ● ● ● ●
34 17.455 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-97373-643-1 01 1 0805- ● ●
34 17.455 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN <V89> (A) 		8-97369-725-1 01 1 0805- ● ●
34 17.455 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-97369-723-1 01 1 0805- ●
34 17.455 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-97373-644-1 01 1 0805- ● ●
34 17.455 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN <V89> (A) 		8-97369-727-1 01 1 0805- ● ●
37 17.455 BOLT; GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 03.162 M6X12 FLANGE 		0-28050-612-0 07 1 0805- ● ● ● ● ●
45 08.131 RIVET; DUST SHIELD COVER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 08.154 		8-94221-150-0 12 1 1008- ● ●
45 08.131 RIVET; DUST SHIELD COVER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 08.154 		8-94221-150-0 14 1 1008- ●
45 08.131 RIVET; DUST SHIELD COVER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 08.154 		8-94221-150-0 10 1 1008- ● ●
55 17.070 NUT; MEMBER
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 16.545 M6 		9-09114-086-0 05 1 0805- ● ● ● ●
61 17.447 BAR ASM
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-97326-371-0 01 1 0805- ● ● ● ●
61 17.447 BAR ASM
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN <V89> (A) 		8-97236-715-0 01 1 0805- ● ● ● ●
61 17.447 BAR ASM
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-97252-308-2 01 1 0805- ●
67 17.455 PLATE; RR BODY FRONT
REAR BODY DBL WALL CTR PULL(E63) 		8-93326-173-1 02 1 0805- ● ●
68 17.455 EXTENSION; FRONT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-97287-179-1 01 1 0805- ●
68 17.455 EXTENSION; FRONT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-97287-178-1 01 1 0805- ●
