Isuzu WW
▶
PICKUP
▶
TFR
▶
51171 - TFR/TFS CHEV HOLDEN
▶
9 - Tools
▶
9-30 - REAR BODY ASM AND MOUNTING
▶
9-30 — REAR BODY ASM AND MOUNTING
(#74836) — 27 parça
Tümü
A - TFB5CF
B - TFS5C
C - TFB5SF
D - TFB5WF
E - TFS5W
◀

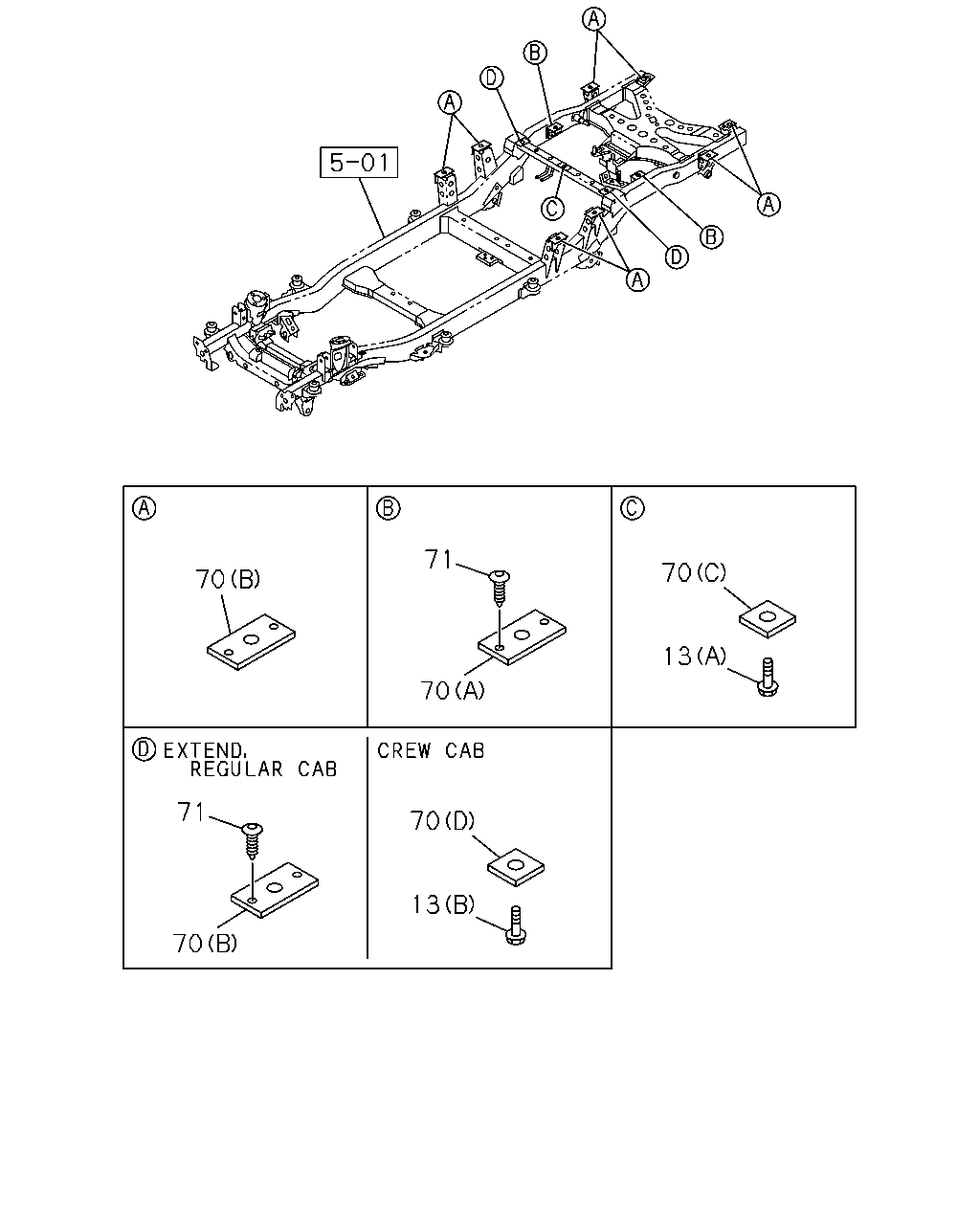

[930A] CUSHION (13 parça)

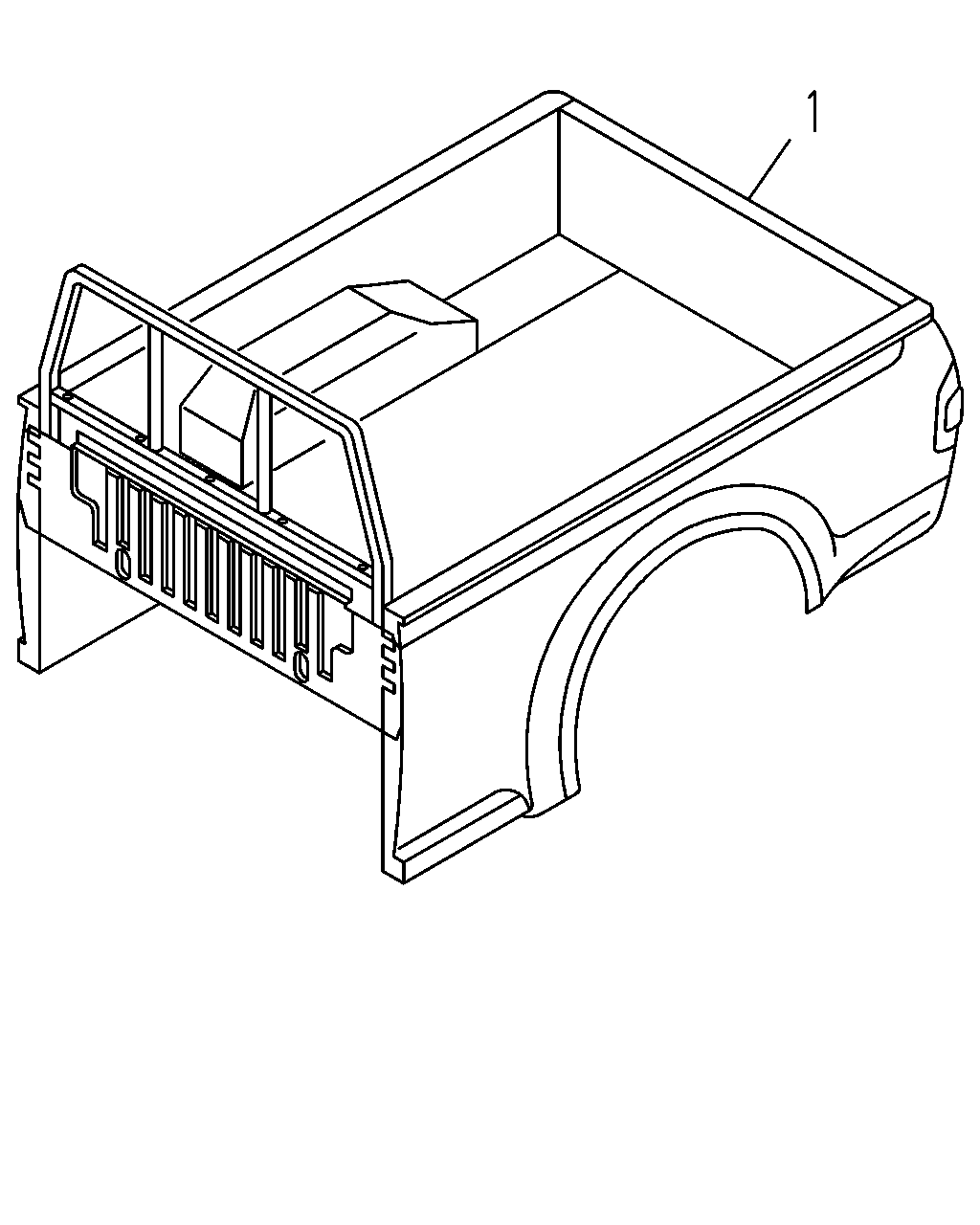

[930A] REAR BODY ASM (14 parça)
▶
71
70
70
13
70
71
70
13
70
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
13
09.008 BOLT; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (A) M12X50 FLANGE
8-98030-678-0
06
1
0805-
●
●
13
09.008 BOLT; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (A) M12X50 FLANGE
8-98030-678-0
08
1
0805-
●
13
09.008 BOLT; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (A) M12X50 FLANGE
8-98030-678-0
04
1
0805-
●
●
13
09.008 BOLT; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (B) M12X35 FLANGE
8-98056-126-0
02
1
0805-
●
●
70
08.214 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (A)
8-98090-513-0
02
1
0805-
●
●
●
●
●
70
08.214 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (B)
8-98090-511-0
06
1
0805-
●
●
70
08.214 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (C)
8-98090-512-0
03
1
0805-
●
●
70
08.214 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (B)
8-98090-511-0
08
1
0805-
●
70
08.214 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (D)
8-98090-510-0
02
1
0805-
●
●
70
08.214 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (B)
8-98090-511-0
04
1
0805-
●
●
70
08.214 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (C)
8-98090-512-0
01
1
0805-
●
●
71
08.214 CLIP; CUSHION
REAR BODY DBL WALL CTR PULL(E63) 03.023 ID=6 OD=16 L=18
8-94178-705-0
06
1
0805-
●
●
71
08.214 CLIP; CUSHION
REAR BODY DBL WALL CTR PULL(E63) 03.023 ID=6 OD=16 L=18
8-94178-705-0
04
1
0805-
●
●
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
1
17.090 BODY ASM; REAR
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89>
8-98098-520-0
01
1
0805-
●
1
17.090 BODY ASM; REAR
4X4 EXTEND CAB LONG(TFS*CF) REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89>
8-98098-520-0
01
1
0805-
●
1
17.090 BODY ASM; REAR
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN <V89>
8-98098-519-0
01
1
0805-
●
1
17.090 BODY ASM; REAR
4X4 EXTEND CAB LONG(TFS*CF) REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN <V89>
8-98098-519-0
01
1
0805-
●
1
17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OVER FENDER<B74>
8-98098-139-0
01
1
0805-
●
1
17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,GUARD FRAME BAR CARGO TIE DOWN<V89>
8-98098-138-0
01
1
0805-
●
1
17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> EXC. OVER FENDER<B74>
8-98090-597-0
01
1
0805-0809
●
1
17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OVER FENDER<B74>
8-98090-597-0
01
1
0810-
●
1
17.090 BODY ASM; REAR
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89>
8-98090-620-0
01
1
0805-
●
1
17.090 BODY ASM; REAR
4X4 CREW CAB LONG(TFS*WF) REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89>
8-98090-620-0
01
1
0805-
●
1
17.090 BODY ASM; REAR
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN <V89>
8-98090-598-0
01
1
0805-
●
1
17.090 BODY ASM; REAR
4X4 CREW CAB LONG(TFS*WF) REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN <V89>
8-98090-598-0
01
1
0805-
●
1
17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OVER FENDER<B74>
8-98090-621-0
01
1
0805-
●
1
17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,GUARD FRAME BAR CARGO TIE DOWN<V89>
8-98090-602-0
01
1
0805-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
