Sayfa 9-01 - Isuzu EPC

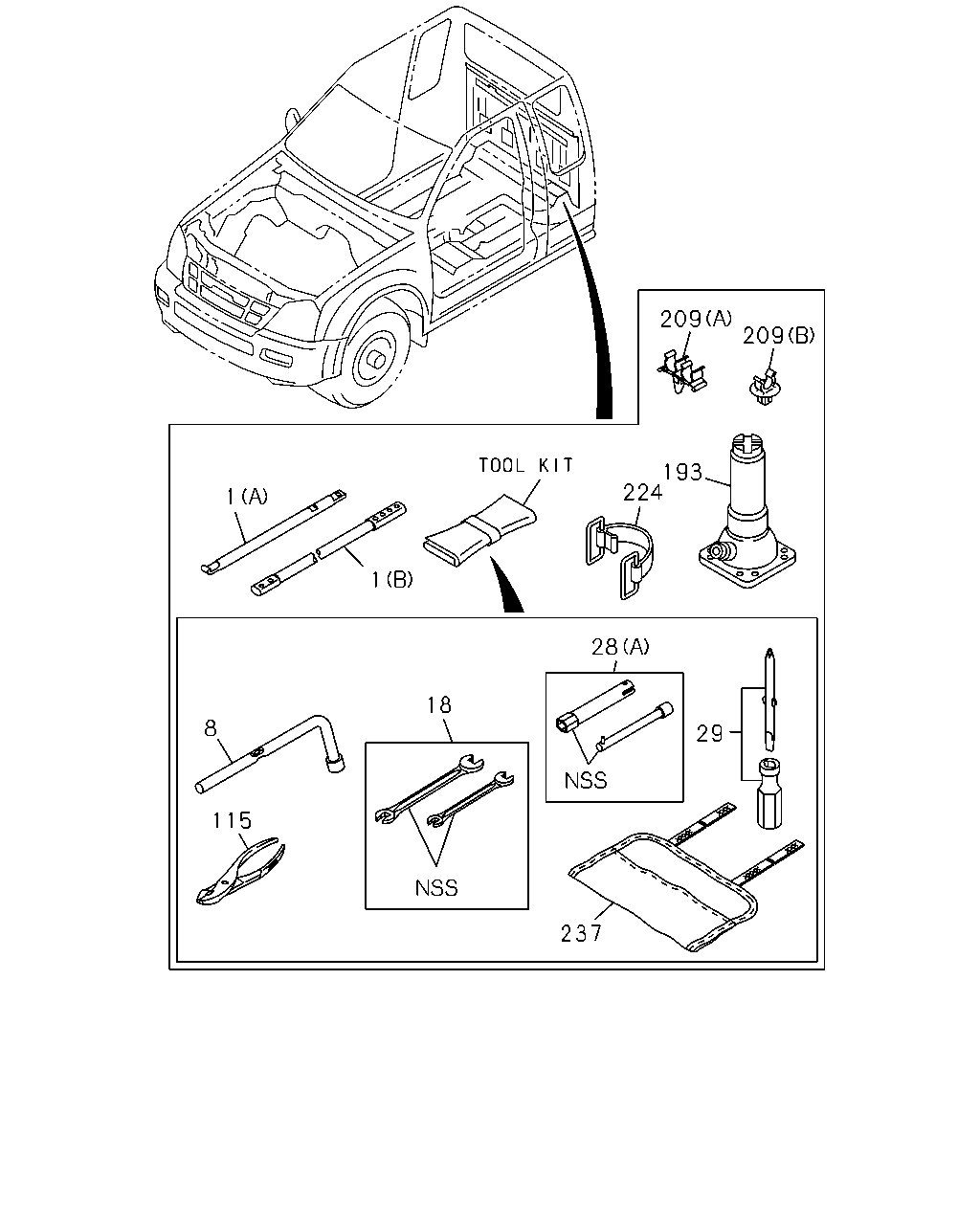

209 209 193 224 1 1 28 18 8 29 115 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	07.629 HANDLE; SPARE TIRE CARRIER (A)	8-97215-330-0	01	1	0805-	●	●	●	●	●	●	●	●
1	07.629 HANDLE; SPARE TIRE CARRIER (B)	8-97215-332-0	03	1	0805-	●	●	●	●	●	●	●	●
8	08.821 WRENCH; WHEEL L=19	8-98027-834-0	01	1	0805-	●	●	●	●	●	●	●	●
18	08.821 WRENCH KIT 8X10,12X14	8-97945-273-0	01	1	0805-	●	●	●	●	●	●	●	●
28	08.821 WRENCH; SPARK PLUG HF V6 ENG(LCA) (A)	8-98027-836-0	01	1	0805-	●	●	●	●	●	●	●	●
28	08.821 WRENCH; SPARK PLUG C24SE ENG(LG1) (B)	8-98027-835-0	01	1	0805-1003				●	●
29	08.821 DRIVER; SCREW	8-98027-833-0	01	1	0805-	●	●	●	●	●	●	●	●
115	08.821 PLIER	8-98027-832-0	01	1	0805-1003	●	●	●	●	●	●	●	●
115	08.821 PLIER	8-98099-659-0	01	1	1004-	●	●	●	●	●	●	●	●
193	08.820 JACK ASM C24SE ENG(LG1),4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC)	8-97217-788-1	01	1	0805-1003	●	●	●	●	●
193	08.820 JACK ASM HF V6 ENG(LCA)	8-97217-788-1	01	1	0805-1003	●	●	●	●	●
193	08.820 JACK ASM	8-97217-788-1	01	1	0805-1003						●	●	●
193	08.820 JACK ASM HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC)	8-97217-788-1	01	1	1004-	●	●	●	●	●
193	08.820 JACK ASM	8-97217-788-1	01	1	1004-						●	●	●
193	08.820 JACK ASM C24SE ENG(LG1),4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC)	8-97217-789-1	01	1	0805-1003	●	●	●	●	●
193	08.820 JACK ASM 4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC)	8-97217-789-1	01	1	1004-	●	●	●	●	●
209	08.820 CLIP; JACK HANDLE HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) (A)	8-97264-777-0	04	1	0805-	●	●				●
209	08.820 CLIP; JACK HANDLE HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) (B)	8-97264-782-0	02	1	0805-	●	●				●
224	08.821 BAND; RUBBER,JACK	8-98027-837-0	01	1	0805-	●	●	●	●	●	●	●	●
237	08.821 BAG; TOOL	8-97945-395-0	01	1	0805-	●	●	●	●	●	●	●	●

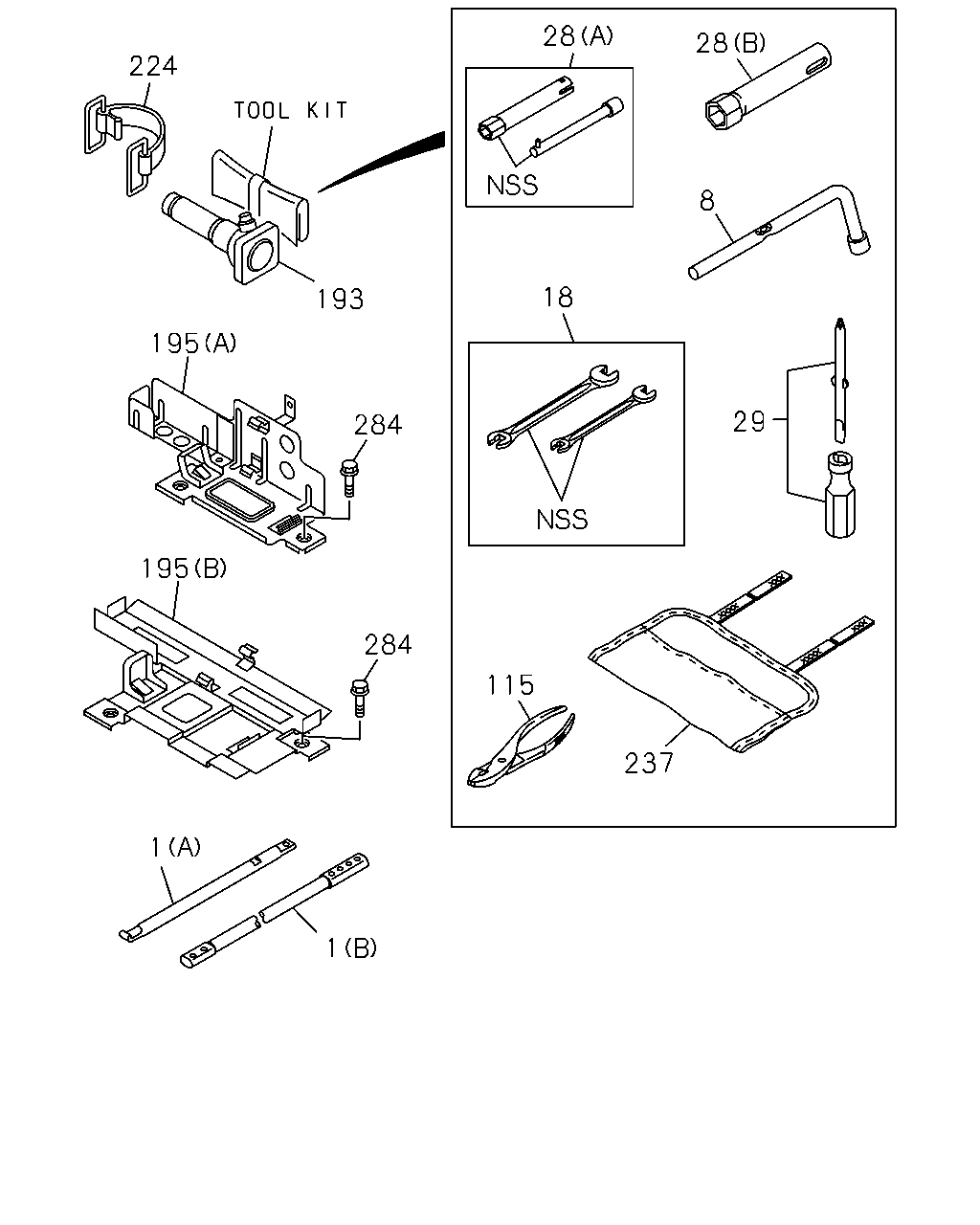

28 28 224 8 18 193 195 29 284 195 284 115 237 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	07.629 HANDLE; SPARE TIRE CARRIER (A)	8-97215-330-0	01	1	0805-	●	●	●	●	●	●	●	●
1	07.629 HANDLE; SPARE TIRE CARRIER (B)	8-97215-332-0	03	1	0805-	●	●	●	●	●	●	●	●
8	08.821 WRENCH; WHEEL L=19	8-98027-834-0	01	1	0805-	●	●	●	●	●	●	●	●
18	08.821 WRENCH KIT 8X10,12X14	8-97945-273-0	01	1	0805-	●	●	●	●	●	●	●	●
28	08.821 WRENCH; SPARK PLUG HF V6 ENG(LCA) (A)	8-98027-836-0	01	1	0805-	●	●	●	●	●	●	●	●
28	08.821 WRENCH; SPARK PLUG C24SE ENG(LG1) (B)	8-98027-835-0	01	1	0805-1003				●	●
29	08.821 DRIVER; SCREW	8-98027-833-0	01	1	0805-	●	●	●	●	●	●	●	●
115	08.821 PLIER	8-98027-832-0	01	1	0805-1003	●	●	●	●	●	●	●	●
115	08.821 PLIER	8-98099-659-0	01	1	1004-	●	●	●	●	●	●	●	●
193	08.820 JACK ASM C24SE ENG(LG1),4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC)	8-97217-788-1	01	1	0805-1003	●	●	●	●	●
193	08.820 JACK ASM HF V6 ENG(LCA)	8-97217-788-1	01	1	0805-1003	●	●	●	●	●
193	08.820 JACK ASM	8-97217-788-1	01	1	0805-1003						●	●	●
193	08.820 JACK ASM HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC)	8-97217-788-1	01	1	1004-	●	●	●	●	●
193	08.820 JACK ASM	8-97217-788-1	01	1	1004-						●	●	●
193	08.820 JACK ASM C24SE ENG(LG1),4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC)	8-97217-789-1	01	1	0805-1003	●	●	●	●	●
193	08.820 JACK ASM 4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC)	8-97217-789-1	01	1	1004-	●	●	●	●	●
195	08.820 BRACKET; JACK HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) (C)	8-97249-694-5	01	1	0805-	●	●				●
195	08.820 BRACKET; JACK (A)	8-97249-692-2	01	1	0805-			●	●			●
195	08.820 BRACKET; JACK (B)	8-97249-698-2	01	1	0805-					●			●
224	08.821 BAND; RUBBER,JACK	8-98027-837-0	01	1	0805-	●	●	●	●	●	●	●	●
237	08.821 BAG; TOOL	8-97945-395-0	01	1	0805-	●	●	●	●	●	●	●	●
284	08.821 BOLT; TOOL BOX M6X16 W/PL WASHER	8-98049-085-0	03	1	0805-	●	●	●	●		●	●
284	08.821 BOLT; TOOL BOX M6X16 W/PL WASHER	8-98049-085-0	02	1	0805-					●			●

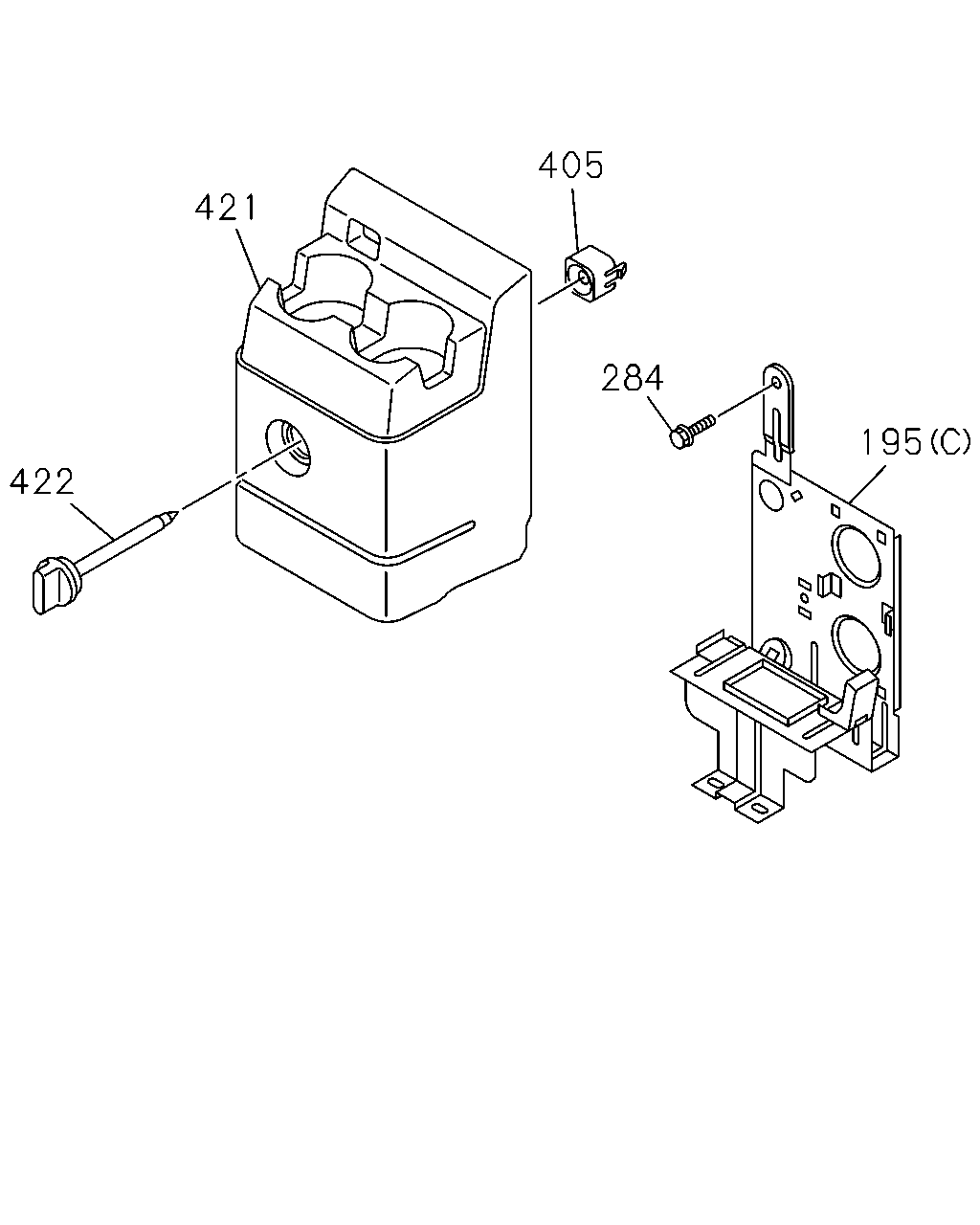

405 421 284 195 422

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
195	08.820 BRACKET; JACK HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) (C)	8-97249-694-5	01	1	0805-	●	●				●
195	08.820 BRACKET; JACK (A)	8-97249-692-2	01	1	0805-			●	●			●
195	08.820 BRACKET; JACK (B)	8-97249-698-2	01	1	0805-					●			●
284	08.821 BOLT; TOOL BOX M6X16 W/PL WASHER	8-98049-085-0	03	1	0805-	●	●	●	●		●	●
284	08.821 BOLT; TOOL BOX M6X16 W/PL WASHER	8-98049-085-0	02	1	0805-					●			●
405	08.821 GUIDE; COUNTER HF V6 ENG(LCA),4JJ1-TCX ENG(LS0)	8-97328-053-0	01	1	0805-	●	●				●
421	08.820 COVER; JACK DARK GRAY	8-97409-188-1	01	1	0805-	●	●				●
422	08.820 RETAINER; JACK DARK GRAY	8-97409-189-0	01	1	0805-	●	●				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
